Novel approaches to therapy in CML

Chronic myeloid leukemia (CML) arises from stem cell transformation by the BCR-ABL gene. The development of BCR-ABL tyrosine kinase inhibitors (TKIs) has revolutionized therapy for CML. TKIs are highly effective in inducing remission, preventing disease progression, and prolonging survival of chronic phase (CP) CML patients. However, limitations of TKI treatment include (1) treatment failure in a subset of patients, related to inadequate response, disease progression, and drug toxicities precluding drug administration, and (2) persistence of leukemia stem cells (LSCs) in the broader patient population, such that only a small proportion of patients can maintain treatment-free remission (TFR) after discontinuing TKI treatment.¹  Risks of prolonged TKI treatment include noncompliance, associated with risk of relapse and progression; toxicity, including serious vascular complications; and teratogenic effects, precluding pregnancy while on treatment. There is considerable evidence that CML LSCs are resistant to the effects of TKIs and persist in patients on long-term therapy.²  Although a subset of CP CML patients can maintain remission after stopping TKIs, most patients require continued treatment to prevent relapse. Importantly, the high costs of TKIs has a huge financial impact, compounded by increasing cost of drugs and the increasing prevalence of CML resulting from improved survival and the costs associated with continued, regular molecular monitoring of these patients. In addition to the societal burden, high copayment requirements impact individual patients and adversely affect adherence to treatment.³  Future availability of generic TKIs at reduced price could markedly impact the cost of care for CML. However, although a generic version of imatinib (IM) is now available, potential cost savings benefits are yet to be realized in the United States because of complex factors, including high price of generics, competition from second-generation TKIs, physician behavior, issues with copayments, and third-party payers. Persistent LSCs, in addition to being the reason for lack of cure, may also be the ultimate source of acquired TKI resistance, relapse, or disease progression, which remains the other unmet need in CML treatment. Understanding LSC resistance to TKIs and development of strategies to increase the proportion of patients that may be cured of their leukemia is an exceptionally important area of investigation in CML.

TKIs have a strong antiproliferative effect on LSCs but induce only modest levels of apoptosis. Quiescent LSCs are especially resistant to TKI-induced apoptosis and elimination.^4,5  Several studies have found that TKIs effectively inhibit kinase activity within LSCs and that LSC resistance is therefore BCR-ABL kinase independent.^6,7  These findings have had a huge impact in defining the direction of CML research over the last 15 years, and there is wide agreement that approaches to increase treatment-free remissions are the major need in CML research.

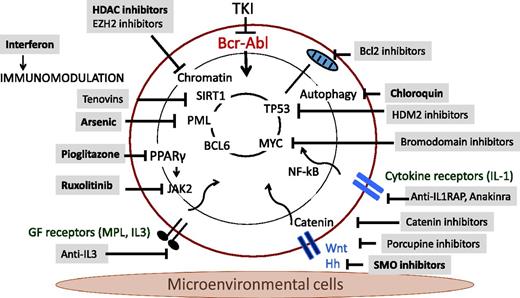

Diverse intracellular regulatory mechanisms contributing to CML LSC maintenance and drug resistance have been identified, including JAK/STAT, NF-κB, and β-catenin signaling and regulatory networks involving MYC, SIRT1, and P53, and form the basis for several of the novel therapeutic strategies described here (Figure 1; Table 1). In addition, the bone marrow microenvironment (BMM) is known to play an important role in regulating LSC maintenance and in protecting LSCs from antileukemia treatment. Leukemia-induced alterations in BMM function may also contribute to enhanced growth and maintenance of LSCs compared with normal hematopoietic stem cells (HSCs) and provide CML LSCs with a competitive advantage.⁸  Importantly, BMM abnormalities may persist after treatment-induced remission and contribute to LSC retention.

Finally, there is increasing interest in the role of intercellular heterogeneity in tumor resistance and relapse. Even cell populations that are purified to phenotypic homogeneity demonstrate intercellular heterogeneity in molecular profiles and functional potential. LSC populations vary greatly in their capacity to generate leukemia, associated with variability in gene expression profiles and differential sensitivity to TKIs and other treatments.^9,10  An important question is whether LSC retention on TKI reflects retention of preexisting populations vs. acquisition of adaptive resistance mechanisms.

There has been considerable interest in identifying critical downstream signaling mechanisms that could be targeted to eliminate LSCs. The JAK kinases are intracellular nonreceptor kinases that mediate cytokine-mediated signaling via activation of STAT transcription factors. CML cells demonstrate increased STAT5 phosphorylation, nuclear translocation, and transcriptional activity, and STAT5 inactivation attenuates CML development in mouse models. Although BCR-ABL can directly activate STAT5 independently of the JAK2 kinase, inhibition of JAK2 activity by using ruxolitinib in combination with BCR-ABL TKIs results in the loss of LSCs both in vitro and in vivo. These findings implicate JAK2 as an upstream mediator of JAK/STAT signaling in CML LSCs, possibly related to cytokines expressed in the BMM.¹¹  Expression of the thrombopoietin receptor MPL is elevated in CML LSCs with increased proliferative and regenerative capacity.⁹  Human and murine CML LSCs with high MPL expression showed enhanced JAK/STAT signaling and proliferation and increased leukemogenic capacity in vivo. CML LSCs with high MPL expression had reduced sensitivity to TKI treatment but increased sensitivity to JAK inhibitors. These studies suggest that high MPL-expressing CML LSCs are potential targets for therapy and provide a further rationale for JAK2 inhibitor therapy to deplete LSC in TKI-treated patients. In addition, reactivation of the serine-threonine phosphatase PP2A, which is inactivated in CML LSCs, leads to marked inhibition of STAT5 and β-catenin signaling and may represent an alternative strategy to target this pathway and deplete LSCs in CML when clinically applicable agents are available.¹²  At this time, several clinical trials are evaluating the effects of addition of ruxolitinib to TKI in CML patients with suboptimal response to TKI. The combination has been well tolerated and appears to represent a promising approach.

Prost et al have reported that treatment with glitazones, activators of peroxisome proliferator-activated receptor-γ (PPARγ) approved for treatment of diabetes, can gradually deplete residual CML LSCs.¹³  PPARγ activation decreases expression of STAT5 and its downstream targets, HIF2α and CITED2, which appear to play an important role in maintaining quiescence and stemness of CML LSCs.¹³  These observations were tested in the Pioglityazone and Imatinib for CML Patients (ACTIM) phase 2 clinical trial, in which pioglitazone was added to IM treatment in CML patients who had received IM with achievement of major molecular response (MMR) but without achieving molecular response grade 4.5 (MR4.5).¹⁴  Twenty-four patients were included. The combination was well tolerated, and the cumulative incidence of MR4.5 was 56% by 12 months, compared with 23% with IM alone in a parallel cohort. These results are encouraging but need confirmation in a randomized clinical trial.

The p53 protein is an important regulator of cell cycle and apoptosis. The NAD⁺ dependent deacetylase SIRT1 is an important p53 regulator and is overexpressed in human CML LSCs. Pharmacological inhibition of SIRT1 or SIRT1 knockdown increased apoptosis and depletes CP CML LSCs. SIRT1 effects were enhanced in combination with TKIs.¹⁵  SIRT1 inhibition increased p53 acetylation and transcriptional activity in CML progenitors, and the inhibitory effects of SIRT1 targeting on CML cells depended on p53 expression and acetylation. Therefore, SIRT1 inhibition may represent a potential approach to activate p53 to target CML LSCs. An alternative approach to p53 activation is via inhibition of interactions between p53 and its negative regulator HDM2. A small-molecule inhibitor of this interaction, MI-219, reduced CML but not normal primitive progenitors both in vitro and in vivo.¹⁶  These data suggest that a p53-activating agent may be effective in targeting CML LSCs.

Holyoake and colleagues used proteomics, transcriptomics, and network analyses to show that p53 and c-MYC represent critical, connected nodes that regulate aberrant protein expression in human CML LSCs.¹⁷  The combination of MDM2 and BET inhibitors was used to upregulate the p53 apoptotic pathway and downregulate c-MYC, respectively, and resulted in synergistic and selective killing—and near elimination—of transplantable human LSCs in mice, while sparing normal HSCs. These studies demonstrate the utility of an unbiased systems approach to identify critical targets for LSC targeting.

Using gene expression analysis, Azam and colleagues found that BCR-ABL kinase and growth factor signaling led to convergent enhancement of FBJ osteosarcoma oncogene (c-FOS) and dual-specificity phosphatase 1 (DUSP1) expression. These genes played a critical role in driving tumor growth in a BCR-ABL mouse model of CML.¹⁸  Pharmacological inhibition of c-FOS and DUSP1 eradicated minimal residual disease (MRD) in multiple in vivo models, including mice xenotransplanted with human CML cells. They concluded that c-FOS and DUSP1 represent important targets for therapy to eradicate LSCs. Interestingly, this mechanism was also active in other types of kinase-driven leukemias.

TKI treatment induces autophagy in CML cells, associated with endoplasmic reticulum stress and intracellular Ca²⁺ flux. Suppression of autophagy using either pharmacological inhibitors or RNA interference enhanced TKI-induced cell death in primary CML cells and elimination of CML stem cells.¹⁹  These intriguing observations have resulted in a trial of hydroxychloroquine with IM for chronic myeloid leukemia (CHOICES) to enhance the therapeutic effects of TKIs. This trial has accrued and results are currently pending.

Zhang et al investigated the ability of histone deacetylase inhibitors (HDACis) to target CML stem cells.²⁰  The HDACi LBH589 (panobinostat) given in combination with IM was effective in inducing apoptosis in quiescent CML progenitors and eliminating CML LSCs capable of engrafting immunodeficient mice. In vivo administration of HDACis with IM markedly depleted LSCs in a genetic mouse model of CML. The HDACi and IM combination inhibited expression of genes regulating HSC maintenance and survival. These studies suggesting that HDACi treatment may effectively target LSCs in CML patients receiving TKI led to a phase 1 clinical trial to determine the safety and tolerability of LBH589 given in combination with IM in CML patients. CP CML patients treated with IM 400 mg/d with major or complete cytogenetic response and residual disease on quantitative PCR were eligible. Nine patients were enrolled, and no dose-limiting toxicity was observed with amended intermittent schedule. Reduction in BCR-ABL levels (>1 log) was seen in 4 of 9 patients. The study reached the 3rd dose level but was discontinued because of slow accrual.

Vetrie and colleagues evaluated chromatin modifications and showed that polycomb repressive complex 2 (PRC2) is dysregulated in CP CML LSCs, with extensive reprogramming of H3K27me3 targets.²¹  Treatment with an EZH2 inhibitor (EZH2i) sensitized LSCs to apoptosis but did not impair normal HSC survival. Treatment of primary CML cells with either EZH2i or TKI alone caused significant upregulation of H3K27me3 targets, and combined treatment further potentiated these effects and enhanced depletion of LSCs compared with TKI alone. These findings indicate that EZH2 and H3K27me3 reprogramming is important for LSC survival but renders them sensitive to combined EZH2i and TKI treatment. The Orkin group similarly found EZH2 overexpression in CML LSCs and identified EZH2 as a selective vulnerability for CML LSCs, regardless of BCR-ABL1 mutational status.²²  These observations support EZH2 inhibition as a promising therapeutic strategy to more effectively target LSCs in patients with CML receiving TKIs that is likely to be evaluated in future trials.

Pan and colleagues reported protein arginine methyltransferase 5 (PRMT5) overexpression in CML cells.²³  PRMT5 knockdown or inhibition with the small-molecule inhibitor PJ-68 reduced human CML LSC survival and self-renewal, prolonged survival in a murine model of CML, and inhibited long-term engraftment of human CML CD34⁺ cells in a xenograft model. PRMT5 effects may be related to inhibition of the Wnt/β-catenin pathway. These results suggest that epigenetic modification on histone arginine methylation regulates self-renewal of CML LSCs, and that PRMT5 may represent a therapeutic target against LSCs, as clinically applicable inhibitors become available.

There is considerable evidence that CML development is associated with altered function of the BMM, contributing to altered regulation of leukemic and normal stem cells.⁸  Decreased CXCL12 expression in CML BM contributes to altered interactions of CML LSCs with the BMM. Observations made in a genetic mouse model and validated using human CML samples indicate that leukemia development markedly alters inflammatory cytokine expression in the BM, selectively impairs normal long-term HSC growth, and provides a growth advantage to CML LSCs. TKI treatment only partially corrects these abnormalities.

Autocrine production of tumor necrosis factor-α (TNF-α) enhances survival of CML LSCs by promoting NF-κB/p65 activity and expression of the common β-chain receptor.²⁴  Inhibition of autocrine TNF-α signaling via a small-molecule TNF-α inhibitor induced apoptosis in CML LSCs and, in combination with nilotinib, induced significantly more apoptosis and reduction in CML LSCs than either treatment alone, suggesting that TNF-α may be a potential therapeutic target.

Expression of the pivotal pro-inflammatory cytokine interleukin-1 (IL-1) is increased in CML BM. Moreover, the IL-1 receptors, IL-1 receptor accessory protein (IL1-RAP) and IL-1 receptor type 1, are upregulated on CML LSCs, which also demonstrate increased IL-1-induced signaling. Treatment with recombinant IL-1 receptor antagonist (IL-1RA) inhibited IL-1 signaling in CML LSCs and inhibited growth of CML LSCs. The combination of IL-1RA with TKI resulted in significantly greater inhibition of CML LSCs compared with TKI alone. These studies support a role for IL-1 signaling in maintenance of CML LSCs after TKI treatment.²⁵  Ågerstam et al demonstrated therapeutic effects of in vivo administration of IL1RAP antibodies in mice xenotransplanted with CP and blast crisis (BC) CML cells.²⁶  Targeting occurs via blockage of IL-1 signaling and engagement of effector cells. These studies support continued exploration of anti-IL-1 strategies to enhance LSC elimination. A humanized anti-IL1RAP antibody is expected to enter clinical trials soon.

Wnt signaling from the BMM contributes to preservation of CML LSCs after TKI treatment. CML progenitors demonstrated enhanced sensitivity to Wnt stimulation, associated with increased expression of the FZD4 receptor.²⁷  Secretion of Wnt ligands requires their modification by the O-acyl transferase Porcupine (PORCN). WNT974, a potent and selective PORCN inhibitor, antagonized Wnt signaling in human CML CD34⁺ cells and, in combination with the TKI nilotinib (NIL), significantly inhibited growth of CML LSCs in vitro and in vivo, compared with NIL alone. PORCN inhibitors are being tested clinically and represent a potential approach to inhibit Wnt secretion and signaling and enhance selective targeting of CML stem cells.

Hedgehog binding to the Patched receptor allows activation of SMO and the transcription factor GLI1. SMO deletion or pharmacological inhibition leads to loss of LSCs in mouse models of CML. This pathway is activated in CD34⁺ CP CML stem/progenitor cells through kinase-independent mechanisms. LDE225 (sonidegib), a small-molecule, clinically investigated SMO inhibitor, used alone and in combination with NIL, inhibited the Hedgehog pathway in CD34⁺ CP CML cells, reducing the number and self-renewal capacity of CML LSCs in vitro and their engraftment in NSG mice.²⁸  The SMO inhibitor BMS-833923 has been tested in combination with dasatinib in CML patients with suboptimal TKI responses. However, despite observation of expected toxicities due to SMO inhibition and lack of effect on normal HSCs, no evidence of efficacy was shown, and further testing of this combination in CP CML was not supported.

Interferon-α (IFNα) was previously frontline treatment of CML in patients ineligible for transplantation. Possible mechanisms of action, in addition to direct targeting of CML stem cells, include altered microenvironmental interactions and immune activation. Clinical trials testing combination therapy of IFNα plus IM indicate increased rate and depth of response compared with IM alone.²⁹  However, IFNα has considerable side effects that make it challenging to use in this patient population. Further studies are required to clarify the role of IFNα in enhancing TFR.

Despite the abundance of studies evaluating mechanisms of BCR-ABL-independent TKI resistance in CML LSCs and approaches to targeting CML LSC populations, translation of preclinical work on CML stem cell eradication to the clinical setting remains challenging. Studies to date have been hampered by difficulties in accrual. Given the outstanding prognosis with continued TKI treatment, one requirement for a successful intervention trial in this setting is that the additional agents be very well tolerated and easy to administer. Although several potentially useful targets for therapy have been identified, targeting of which results in reduced numbers of LSCs, potential toxicities to normal stem cells and nonhematological toxicities are a concern.

One potential trial design has been adopted by the French in a trial that will test candidate therapies in combination or sequentially with TKI in CP CML patients in CCR without achieving a deep molecular response: an adaptive trial based on a drop loser design (NCT0267063; Therapies in Combination or Sequentially With Tyrosine Kinase Inhibitors [TKIs] in Chronic Phase Chronic Myelogenous Leukemia Patients in CCR [ACTIW]). Patients are randomized in phase 2 trials to continue on the same TKI vs. one of the alternative treatment approaches with the objective to identify agents producing a 25% increase in MR4.5 compared with control. The trial will start with current available treatment options for the experimental arms, with new treatment options added as available. In addition, it would potentially be attractive to test such interventions with the intention of attempting TKI discontinuation, or in the setting of a failed attempt at discontinuation with requirement to restart TKI, where motivation would be high.

Unfortunately, there has been rather limited progress in developing more effective treatment approaches for TKI-resistant and advanced-phase CML. Mutations in the BCR-ABL kinase domain are an established mechanism of TKI resistance and can usually be managed by using alternative BCR-ABL inhibitors. However, many cases of clinical TKI failure occur in the absence of resistant mutations, and despite adequate suppression of BCR-ABL kinase activity, through BCR-ABL kinase-independent mechanisms of resistance. Clearly improved understanding of the biology underlying progression and resistance is critical to the development of effective new approaches. The following approaches are promising, but yet to be tested for efficacy in clinical trials.

Deininger and colleagues reported that activation of STAT3 signaling by extrinsic or intrinsic mechanisms was a critical mechanism underlying BCR-ABL kinase-independent TKI resistance.³⁰  A potent and selective STAT3 SH2 domain inhibitor, BP-5-087, reduced STAT3 phosphorylation and nuclear transactivation. BP-5-087 also restored TKI sensitivity in primary cells from CML patients with BCR-ABL kinase-independent TKI resistance.

It is recognized that enhanced Wnt/β-catenin activity is a characteristic of BC CML and drives expansion and enhanced self-renewal of LSCs. Carter and colleagues confirmed overexpression of β-catenin in BC CML stem cells and showed that combined inhibition of β-catenin and Bcr-Abl synergistically targeted TKI-resistant BC CML progenitors.³¹  A novel Wnt/β-catenin signaling modulator, C82, when combined with nilotinib, synergistically killed TKI-resistant primary BC CML cells with or without BCR-ABL kinase mutations and significantly prolonged survival of mice xenografted with primary BCR-ABLT315I/E255V BC CML cells. These studies support a potential benefit of β-catenin inhibition to overcome TKI resistance in BC CML.

Carter et al demonstrated increased BCL-2 expression at the protein level in CML BM cells.³²  Selective inhibition of BCL-2, aided by TKI-mediated MCL-1 and BCL-XL inhibition, markedly decreased LSC numbers and prolonged survival in a murine CML model. This combination also effectively eradicated LSCs from BC CML patient samples. These results support the role of BCL-2 as a key survival factor for CML LSCs and the utility of combined inhibition of BCL-2 and BCR-ABL to target resistant, advanced CML.

Green and colleagues performed a large-scale RNA interference screen to evaluate BCR-ABL-independent TKI-resistance mechanisms and identify TKI-sensitizing genes.³³  They identified enhanced RAF/MEK/ERK signaling after IM treatment, related to upregulation of PRKCH, as a potential resistance mechanism.³³  PRKCH was also upregulated in samples from CML patients with BCR-ABL-independent IM resistance. Combined treatment with IM and the MEK inhibitor trametinib prolonged survival in mouse models of BCR-ABL-independent IM-resistant CML but had negligible effect on normal HSCs. MEK inhibition may be a therapeutically targetable mechanism in resistant CML.

Our ability to identify and characterize LSC populations that persist in patients in molecular remission after TKI treatment is currently limited because of the rarity of these cells (<1:1000 to 1:10 000) and lack of markers to selectively detect these cells. Although the presence of a low frequency of leukemic cells can be inferred using PCR or fluorescence in situ hybridization assays performed on purified HSC populations, these approaches do not allow isolation and characterization of these populations. In addition, in vivo functional analysis of CML LSC populations is difficult because of poor growth in current xenograft models. There has recently been a tremendous advance in single-cell analysis and cell tracking technologies, which may enhance the feasibility of identifying and characterizing residual LSCs in the future and increase the chances of successful translation into new treatments.

Leukemia relapse after TKI discontinuation may also reflect failure of host immune surveillance. Defects in immune regulation seen at diagnosis are improved in patients achieving deep remission, including increased NK cell and effector cytotoxic T cell function, reduced PD-1 expression on T cells, and reduced numbers of monocytic myeloid-derived suppressor cells, and these responses were retained in patients maintaining TFR after TKI discontinuation.³⁴  These observations suggest development of immune therapy-based therapeutic approaches in the future.

Ravi Bhatia, Division of Hematology/Oncology, Department of Medicine, University of Alabama at Birmingham, Birmingham, AL 35294; e-mail: rbhatia@uabmc.edu.
