TCF1 expression marks self-renewing human CD8⁺ T cells

Memory lymphocytes have the capacity to self-renew and maintain lifelong immunity to repeat pathogen exposure. Collapse of self-renewal is a hallmark of immune failure in chronic infection, cancer, and aging. Memory CD8⁺ T cells are organized in hierarchical subsets possessing progressively increased effector characteristics, including central memory (TCM), effector memory (TEM), and effector memory CD45RA positive (TEMRA). TCM cells share features with naive T cells, including circulation through secondary lymphoid organs and expression of CCR7 and CD62L. TCM cells retain a greater proliferative capacity than TEM cells but exhibit less function immediately after restimulation.¹  TEMRA cells are thought to be terminally differentiated. While the identification of memory cell subsets by CCR7 and CD45RA expression provided insights into the organization of human immunological memory, these markers are heterogeneous and numerous subpopulations exist.

T-cell factor 1 (TCF1) is a critical regulator of T-cell development in mice.^2,3  In acute infections, active progenitor cells that express TCF1 and have divided more than 4 times can produce TCF1-lo, irreversibly determined effector cells while self-renewing TCF1⁺ cells through asymmetric divisions.^4,5  In persistent low-level infections, active, TCF1⁺, self-renewing progenitors continuously reseed the effector cell pool, presumably undergoing periodic replacement by recruitment of quiescent central memory cells.^6,7  In chronic active infections, self-renewing TCF1⁺ progenitors replenish the effector cell pool and can be mobilized by immune checkpoint inhibitors.^8-11  Expression of TCF1 in human CD8⁺ T-cell populations has not been fully explored.¹²  Here, we show that TCF1 expression marks subsets of memory CD8⁺ T cells in blood with increased self-renewal properties, which could substantially refine traditional CCR7/CD45RA-based classifications for immune profiling and lead to better understanding of human T-cell memory.

Healthy adult human peripheral blood mononuclear cells were obtained from donor blood packs from the New York Blood Center. Donors with chronic hepatitis C virus infection were recruited under a Columbia University institutional review board–approved protocol (IRB-AAAP4004), and peripheral blood samples were obtained by venipuncture. All human participants gave written informed consent.

Samples were stained according to standard flow cytometry protocols. Antibodies used include CD3 (OKT3, eBioscience), CD4 (RPA-T4, BioLegend), CD8 (RPA-T8, Tonbo Biosciences), CD27 (O323, BioLegend), CCR7 (G043H7, BioLegend), CD107a (ebioH4A3, eBioscience), CD45RA (HI100, Tonbo Biosciences), CD127 (R34-34, Tonbo Biosciences), CD57 (TB01, eBioscience), Eomes (WD1928, eBioscience), LEF1 (C12A5, Cell Signaling Technology), TCF1 (C63D9, Cell Signaling Technology), T-bet (4B10, BioLegend), interferon γ (IFN-γ) (4S.B3, eBioscience), and granzyme B (GB11, BD Pharmingen). For cytokine staining, cells were stimulated with 50 ng/mL 12-O-tetradecanoylphorbol 13-acetate/1 μg/mL ionomycin for 4 hours in the presence of Golgi Plug (BD Biosciences).

Cells from the indicated populations were fluorescence-activated cell sorter (FACS) sorted and labeled with cell proliferation dye (CTV, Thermo Fisher). 1 × 10⁵ cells were plated per well in 96-well plates, coated with 1 μg/mL anti-CD3/CD28 antibodies and 1 μg/mL human Fc-ICAM (R&D Systems), and cultured in RPMI supplemented with 10% fetal bovine serum and 100 IU/mL interleukin-2 for 4 or 5 days.

Peripheral blood from healthy donors and patients chronically infected with hepatitis C virus was examined to determine the range of TCF1 expression across CD8⁺ T-cell subsets in different immunological states. For both healthy and chronically infected individuals, CD4⁺/CD8⁺ T-cell ratios and distributions of naive (CCR7⁺CD45RA⁺), TCM (CCR7⁺CD45RA⁻), TEM (CCR7⁻CD45RA⁻), and TEMRA (CCR7⁻CD45RA⁺) cells were similar (Figure 1A). Naive cells expressed the highest levels of TCF1 protein, whereas TCM expressed higher levels than TEM and TEMRA (Figure 1A). These results indicate that there is substantial heterogeneity in TCF1 expression by memory cells and that heightened TCF1 expression is characteristic of more quiescent cells.

Examination of total CD8⁺ T cells revealed 3 distinct levels of TCF1 expression: high (TCF1-hi), intermediate (TCF1-int), and low (TCF1-lo) (Figure 1B). Expression of TCF1 was reciprocal to the transcription factor T-bet, which also occupied 3 distinct levels. Cells with TCF1-hi, TCF1-int, or TCF1-lo expression were represented at varying frequencies within each of the naive, TCM, TEM, and TEMRA compartments (Figure 1B). Similar distributions were detected in chronically infected patients, indicating preservation of hierarchical TCF1 expression despite effects of chronic infection on bystander immunity.¹³

Examination of other transcription factors governing T-cell differentiation revealed that TCF1-int cells had the highest expression of Eomes, which regulates memory cell formation in mice (Figure 1C).¹⁴  Lymphoid-enhancer-binding factor 1 (LEF1), which also regulates memory cell formation¹⁵  and is part of the same family of Wnt pathway factors as TCF1, was expressed coordinately with TCF1 (Figure 1C). T-bet expression, which is associated with effector differentiation, was expressed inversely to TCF1 (Figure 1C).

We next assessed the surface marker phenotype of cells expressing different levels of TCF1. TCF1 expression was reciprocal to CD57, a marker of senescence and terminal differentiation (Figure 1D-E).¹⁶  Notably, the TEM and TEMRA compartments, conventionally regarded as more differentiated cells, contained readily detectable subpopulations of TCF1⁺ CD57⁻ cells. Both TCF1-hi and TCF1-int cells exhibited high CD127 expression, associated with long-lived memory populations (Figure 1E).¹⁷  TCF1-hi cells also showed evidence of quiescence, including greater maintenance of the costimulatory receptor CD27 compared with TCF1-int and TCF1-lo cells (Figure 1E). Key markers associated with effector and memory formation in mice are thus differentially expressed by human CD8⁺ T cells and associated with memory cell heterogeneity.

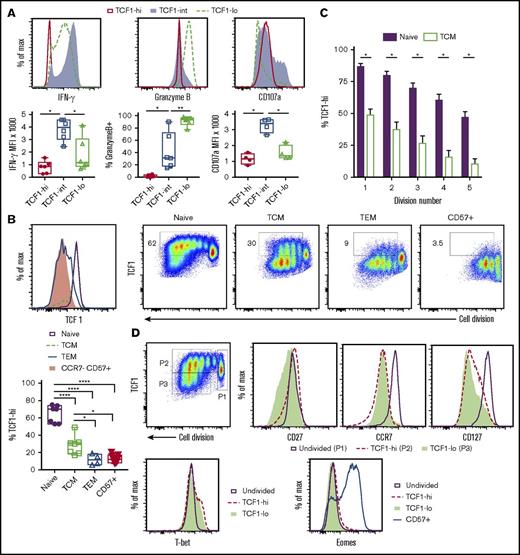

To determine whether TCF1 expression is associated with functionally distinct memory cell populations, we assessed cytokine production and cytotoxicity. TCF1-int cells had the largest capacity for immediate cytokine production, producing greater levels of IFN-γ than TCF1-hi or TCF1-lo populations (Figure 2A). TCF1-lo cells expressed high levels of the cytotoxic granule component granzyme B, although they produced less IFN-γ and underwent less efficient degranulation than TCF1-int cells following stimulation (Figure 2A). Consistent with a quiescent and less differentiated phenotype, TCF1-hi cells had the least immediate effector function (Figure 2A).

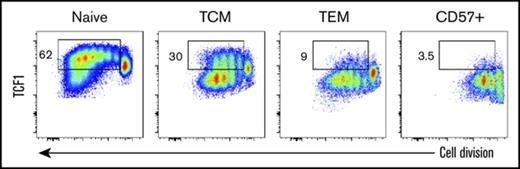

In mice, silencing of TCF1 marks irreversible CD8⁺ effector T-cell differentiation and loss of progenitor cell self-renewal.^4,5  Therefore, we assessed TCF1 expression dynamics following T-cell activation in populations that were TCF1-hi (naive or TCM), TCF1-int/lo (TEM), or TCF1-lo (CCR7⁻CD57⁺) (Figure 2B). When naive cells were stimulated, a TCF1-lo population emerged after several divisions, while a population of TCF1-hi cells was maintained among the proliferating cells at each division (Figure 2B). Activated TCM also maintained a population of TCF1-hi cells at each division. TCM cells, however, produced TCF1-lo progeny at earlier divisions and higher frequencies than naive cells (Figure 2B-C), in agreement with prior mouse experiments showing earlier and increased repression of TCF1 by memory T cells following pathogen rechallenge.^4,5  In addition, the human TCM-phenotype (CCR7⁺CD45RA⁻) population contains a small proportion of cells with lower TCF1 expression than the naive samples (Figures 1B-D and 2B), which may further explain why TCM cell cultures yield more TCF1-lo progeny after stimulation.

TEM cells were predominantly TCF1-int before stimulation, whereas CCR7⁻CD57⁺ cells were mostly TCF1-lo (Figure 2B). TEM cells exhibited more proliferative capacity than CD57⁺ cells but lost TCF1 expression after the first division and did not maintain a TCF1-hi or TCF1-int population. Similarly, following activation and proliferation, CD57⁺ TCF1-lo cells produced more TCF1-lo descendants without evidence of de-differentiation^18,19  into TCF1-hi progeny (Figure 2B). Prior to division, naive cells that had been activated for 4 days maintained high levels of CD27, CCR7, and CD127, as well as low levels of Eomes (Figures 2D). All proliferating cells downregulated CCR7, but proliferating TCF1-lo cells downregulated CD127 and CD27 to a greater extent than proliferating TCF1-hi cells (Figure 2D). Under these conditions, proliferating TCF1-hi and TCF1-lo cells had comparably high levels of T-bet and comparably low levels of Eomes expression (Figure 2D). Together, these results suggest that dividing TCF1-hi cells are more activated than quiescent naive and memory populations and that they function as an intermediate, self-renewing progenitor of more differentiated TCF1-lo cells.

Lineage transfer studies using TCF1 reporter mice during acute infections indicated that a substantial fraction of previously presumed memory precursor cells (KLRG1-lo) are actually TCF1-lo and incapable of re-expressing TCF1 under physiological conditions,⁵  consistent with our replating experiments using human CD8⁺ T cells (Figure 2B). Instead, active TCF1⁺ progenitor cells continually produce TCF1-lo effector cells when antigen is present.^5-9  When antigen is cleared, TCF1⁺ progenitors, but not TCF1-lo effector cells, contribute to the quiescent, TCF1⁺ central memory cell pool.⁵  Profiling peripheral blood TCF1 expression, along with traditional markers of effector/memory cell differentiation, may become a useful biomarker for cancer immunotherapy, vaccination, and other immunologic conditions.^19,20  Pharmacologic manipulation of T-cell self-renewal may become a novel strategy for combating infection and malignancy.

The authors are grateful to Nyanza Rothman for assistance and the anonymous blood donors and study participants who made this work possible.

This study was supported by the National Institutes of Health, National Institute of Allergy and Infectious Diseases (grants AI113365 and AI076458) (S.L.R.) and the Charles H. Revson Foundation.

Contribution: R.K. performed experiments, analyzed data, and wrote the manuscript; A.M.M. coordinated patient recruitment and acquisition of blood samples; and S.L.R. analyzed data, wrote the manuscript, and supervised the project at all stages.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: Steven L. Reiner, Department of Microbiology and Immunology and Department of Pediatrics, Roy and Diana Vagelos College of Physicians and Surgeons, Columbia University, 701 West 168th St, Hammer Building, Room 912, New York, NY 10032; e-mail: sr2978@cumc.columbia.edu.
