Inverse relationship between oligoclonal expanded CD69⁻ T_TE and CD69⁺ T_TE cells in bone marrow of multiple myeloma patients

Multiple myeloma (MM) is a plasma cell (PC) neoplasm that is preceded by the premalignant condition monoclonal gammopathy of undetermined significance (MGUS) or asymptomatic, smoldering MM (SMM). In MM, malignant PCs in the bone marrow (BM) are accessible to T cells (marrow-infiltrating lymphocytes [MILs]) entering the BM by blood circulation. This proximity between PCs and T cells may facilitate autologous T-cell–mediated immune responses against malignant PCs. Direct evidence of autologous T-cell–mediated antimyeloma responses has been demonstrated in the Vk*MYC mouse model,^1,2  while a number of clinical studies provide indirect evidence to support autologous antimyeloma responses in humans.^3-6

CD57 has been most widely explored as a marker of senescent CD8⁺T cells.⁷  Persistent immune stimulation is believed to induce the conversion of memory T (T_M) cells from CD28⁺CD57⁻ cells to senescent CD28⁻CD57⁺ cells characterized by limited proliferative capacity.⁸  Acquisition of CD57 is thought to reflect a shift toward highly cytotoxic terminally differentiated effector T (T_TE) cells, with increased perforin and granzyme production.⁹

We have previously reported on the existence of oligoclonal expansions of T_TE cells, identified by expression of T-cell receptor (TCR) variable β (TCR-Vβ) families, in the peripheral blood (PB) of the majority of MM patients⁷  and related their presence to a favorable prognosis.¹⁰  Such oligoclonal expanded T_TE cells have lower expression of the inhibitory checkpoint CD279 (PD-1), suggesting that these cells may not be an optimal target for checkpoint blockade immunotherapy.^11,12  It has also been suggested that T_TE cells within MILs may impair immune responses to myeloma due to their senescent status.¹³

Expansion of oligoclonal T_TE cells in MM patients may result from persistent stimulation of CD8⁺T cells by myeloma-associated antigens^6,14  in the absence of effective clearance of malignant clones. Recently, it has also been reported that progression from MGUS to MM involves attrition of the BM-resident T-cell compartment¹⁵  and the appearance of exhausted T cells.¹⁶  We considered that cytotoxic T_TE cells, being a constituent of MILs, may undergo changes that can help explain the altered immune responses observed in MM patients and provide novel ground for future immunotherapeutic approaches.¹⁷

In this study, we analyzed CD8⁺CD57⁺T_TE cells in the BM and PB of age-matched controls and patients with MGUS, SMM, and newly diagnosed (ND) MM using fluorescence flow cytometry, mass cytometry,¹⁸  and unsupervised FlowSOM clustering algorithm analyses.¹⁹  We found that T_TE cells in all subjects can be subdivided by expression of CD69. CD69⁻T_TE cells circulate between PB and BM, while CD69⁺T_TE are restricted to the BM and have many characteristics in common with T resident memory (T_RM) cells. Within the BM-T_TE compartment, CD69⁻ and CD69⁺ cells are found in comparable proportions in controls, while CD69⁻ cells are dominant in MGUS and SMM and predominantly either CD69⁻ or CD69⁺ cells in NDMM. Within the BM-T_TE compartment, a positive relationship between CD69⁺ and CD69⁻ cells is observed in controls, lost in MGUS, and converted to an inverse relationship in NDMM. We also demonstrated that the previously described oligoclonal expansions⁷  are found within the CD69⁻T_TE cells in BM and PB, but not in CD69⁺T_TE cells, and that oligoclonal expanded cells from the PB of NDMM patients are capable of eliminating autologous CD38^hiPCs in vitro involving degranulation and high expression of perforin and granzyme B.

MGUS, SMM, and NDMM patients, diagnosed using the criteria established by the International Myeloma Working Group,²⁰  were recruited through the Department of Hematology, Royal Prince Alfred Hospital (RPAH). Age-matched controls included healthy blood donors and patients without diagnosed malignancy or active infection, undergoing hip arthroplasty at the Department of Orthopedic Surgery, RPAH. Patients and controls characteristics are shown in Table 1. Where possible, paired BM and PB samples were collected and, dependent on sample availability, analyzed by mass cytometry, fluorescence flow cytometry, or both. The study was approved by the institutional human ethics committee. All patients signed informed consent before sample collection in accordance with the amended Declaration of Helsinki.

Fluorescence flow cytometry samples comprised fresh whole-blood samples, cryopreserved BM mononuclear cells (MNCs), and PB MNCs isolated by Ficoll-Hypaque density gradient. To analyze cytokine production, BM MNCs were rested overnight, sorted into CD3⁺CD69⁻ and CD3⁺CD69⁺ cells (BDFACS Aria II, BD Biosciences), and stimulated with phorbol 12-myristate 13-acetate and ionomycin calcium salt (Sigma-Aldrich) for 4 hours with the addition of protein transport inhibitor cocktail (Thermo Fisher Scientific) for the last 3 hours of culture. Following stimulation, cells were labeled with monoclonal antibodies (mAbs) targeting surface antigens (supplemental Table 1), fixed and permeabilized (fixation/permeabilization buffer, BD Biosciences), and stained with mAbs specific to interferon-γ (IFN-γ) and tumor necrosis factor α (TNF-α) in Perm/Wash buffer (BD Biosciences).

TCR-Vβ usage was analyzed using the IOTest β Mark TCR-Vβ Repertoire Kit (Beckman Coulter Life Sciences). TCR-Vβ family–expressing populations within a patient’s T_TE were determined to be oligoclonally expanded when the percentage of T_TE cells expressing that TCR-Vβ family was more than 3 standard deviations (SDs) higher than the mean frequency within the naive CD8⁺T (T_N) compartment of healthy blood donors. The dominant oligoclonal expansion in each patient was defined as the one representing the largest percentage of PB T_TE cells.

To analyze the elimination of autologous CD38^hiPCs (target) by CD69⁻T_TE cells (effectors), 2 subsets of T_TE cells were flow-sorted from PB MNCs: those expressing the dominant TCR-Vβ family and the remainder expressing all other TCR-Vβ families. Sorted cells were stimulated for 12 to 14 hours by CD2/CD3/CD28-loaded anti-biotin MACSiBead (Miltenyi Biotec) before the addition to the target cells; CD3-depleted autologous BM MNCs (effector/target ratio of 1:2). To assess degranulation and associated IFN-γ expression, αCD107a and protein transport inhibitor cocktail were added at the beginning of cell culture. Following 1 to 2 hours of culture, cells were labeled with mAbs targeting surface markers (supplemental Table 1), fixed and permeabilized, and stained depending on the experiment with mAbs specific to cleaved caspase-3 AF488, rabbit immunoglobulin G AF488, or IFN-γ in Perm/Wash buffer.

BM MNCs and PB MNCs from MGUS (n = 4) and NDMM (n = 8) patients were analyzed by mass cytometry. Cells were stained with 1.25 μL cisplatin (Fluidigm) followed by quenching and washing with fluorescence-activated cell sorter buffer. Cells were initially incubated with an AF647-labeled CD160 (BD Biosciences) mAb, followed by a cocktail of metal-conjugated mAbs targeting surface proteins (supplemental Table 2). Cells were subsequently fixed and permeabilized (Foxp3 fixation kit, Thermo Fisher Scientific) and stained with metal-conjugated mAbs targeting intracellular proteins (supplemental Table 2). Cell acquisition occurred at a rate of 200 to 400 cells per second using a CyTOF 2 Helios upgraded mass cytometer (Fluidigm, Charles Perkins Centre, University of Sydney, NSW, Australia).

After exclusion of CD3⁻CD38^hiPCs, CD56⁺NK cells, and CD19⁺B cells, BM-T_TE and PB-T_TE cells in MGUS and NDMM were manually gated based on CD57 expression within the CD8⁺T gate, imported into R studio (v1.2.1135), and analyzed using the CAPX (v0.3) script, which includes both the clustering algorithm FlowSOM¹⁹  and dimensionality reduction algorithm t-distributed stochastic neighbor embedding (tSNE)²¹  in a single script.²²  tSNE plots were generated using the same 15 antigens selected for FlowSOM, with the addition of 3 TCR-Vβ antigens (supplemental Table 2) to allow visualization of oligoclonal expanded CD69⁻T_TE cells expressing dominant TCR-Vβ family.

The nonparametric Mann-Whitney U test was used to compare 2 variables, and the Kruskal-Wallis and Friedman test with Dunn’s multiple comparisons was used to compare multiple unpaired and paired data sets, respectively. Relationships between 2 variables were analyzed by linear regression and between multiple variable by nonparametric Spearman correlation. Statistical significance was determined at Spearman R < −0.5 and > 0.5 and P < .05 for all statistical analyses using GraphPad Prism version 8.02 (GraphPad Software).

We initially characterized CD8⁺CD57⁺T_TE cells in the BM and PB of age-matched controls and patients with MGUS, SMM, and NDMM by fluorescence flow cytometry. In all subjects, BM-T_TE cells contained both CD69⁻ and CD69⁺ subsets, whereas PB T_TE cells contained only the CD69⁻ cell subset (Figure 1). Although CD69⁺T_TE cells were “resident” within BM, only a minority expressed another marker of residency, CD103²³  (supplemental Figure 1). CD69⁻ and CD69⁺ cells accounted for comparable proportions of BM-T_TE cells in controls, while CD69⁻ cells dominated within BM-T_TE cells of MGUS and SMM patients (Figure 1B). Neither of these trends was apparent in BM-T_TE cells of NDMM patients; instead, CD69⁻ cells in some patients and CD69⁺ cells in other patients represented the majority of BM-T_TE compartment (Figure 1B). In addition, CD69⁻ and CD69⁺ subsets, as well as total BM-T_TE cells, accounted for highly variable proportions of BM-CD8⁺T cells in NDMM (Figure 1C; supplemental Figure 2A). Despite interpatient variability, CD69⁻T_TE and total T_TE cells were significantly increased in the BM of NDMM patients compared with controls (expressed as a percentage of CD8⁺T cells; Figure 1C; supplemental Figure 2A). In contrast to BM T_TE cells, PB CD69⁻T_TE and total PB T_TE cells were present in similar proportions in all subjects (Figure 1B-C; supplemental Figure 2A). These data suggest that BM T_TE cells possess inherent non–myeloma-related heterogeneity (based on CD69 expression) that is differently regulated during progression from MGUS and/or SMM to NDMM and that there is an accumulation of both CD69⁻T_TE and total T_TE cells (expressed as a percentage of CD8⁺T cells) in the BM of NDMM patients.

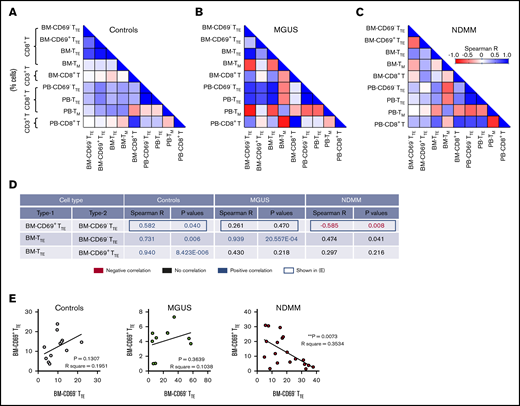

We next analyzed whether the different contribution of CD69⁻ and CD69⁺ subsets to BM-T_TE compartments of controls and MGUS and NDMM patients along with the increase in CD69⁻T_TE and total T_TE cells seen in BM of NDMM patients involve different relationships between various memory/effector subsets within CD8⁺T cells. We analyzed relationships between CD69⁻T_TE cells, CD69⁺T_TE cells, total T_TE cells, conventional T memory cells (CD8⁺CD57⁻CD45RO⁺T_M), and total CD8⁺T cells (Figure 2; supplemental Figure 3). SMM patients were excluded from this analysis due to limited numbers (SMM, n = 5, Figure 1B-C; supplemental Figure 2A). In controls, there was a positive correlation between CD69⁻ and CD69⁺ subsets within the BM-T_TE compartment. Further, there was a strong positive correlation between total BM-T_TE cells and their CD69⁻ and CD69⁺ subsets (Figure 2A,D-E). Compared with controls, MGUS patients maintained only a strong positive correlation between total BM-T_TE cells and their CD69⁻ subset (Figure 2B,D-E). None of the positive correlations observed in controls and MGUS patients were sustained in NDMM patients; instead, a negative correlation was established between CD69⁻ and CD69⁺ subsets within the BM-T_TE compartment (Figure 2C-E). These data suggest that inverse relationships established between CD69⁻ and CD69⁺ subsets within the BM-T_TE compartment discriminate NDMM from MGUS and controls.

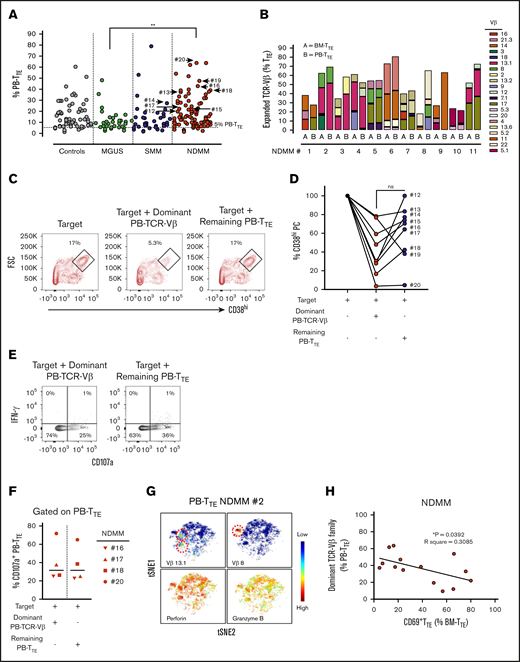

Our group has previously reported the presence of oligoclonal expansions expressing different TCR-Vβ families within PB-CD8⁺T cells in the majority of MM patients.⁷  To reveal oligoclonal expansions within CD8⁺T_TE cells that may be overlooked at the level of CD8⁺T cells, we assessed TCR-Vβ usage within PB T_TE cells in age-matched controls and patients with MGUS, SMM, and NDMM (Figure 3A). As expected based on the known oligoclonality of T_TE cells,²⁴  TCR-Vβ expansions were evident in 98.8% (84 out of 85) of analyzed samples, with an average of 3 expanded TCR-Vβ families detected per sample. The average size of the oligoclonal expansions expressed as a percentage of PB-T_TE cells was higher in NDMM (12.2%) than in controls (10.3%), MGUS (8.7%), and SMM (8.6%) (Figure 3A). Although the data may be skewed due to differences in the numbers of subjects in each group, results suggest that expanded TCR-Vβ families account for higher proportions of PB T_TE in NDMM than in MGUS (Figure 3A). Since the significance of oligoclonal expansions comprising <5% of PB-T_TE cells maybe not conclusive, we excluded them from further analysis. The percentage of oligoclonal expansions of size >5% of PB T_TE cells was higher in NDMM (83.7%) than in controls (74.7%), MGUS (76.9%), or SMM (76.3%) (supplemental Figure 4). Occasionally, very highly expanded TCR-Vβ families representing >50% of PB T_TE cells were detected across cohorts (Figure 3A; supplemental Figure 4). In addition, the majority of expanded TCR-Vβ families were shared between BM-T_TE and PB-T_TE cells of NDMM patients (Figure 3B).

The increase in the percentage of oligoclonal expanded TCR-Vβ families within PB-T_TE of NDMM suggested intensified immune responses. To address the possibility that these responses may be mediated by PB-T_TE cells against the patient’s myeloma, we purified oligoclonal expanded PB-T_TE cells expressing the dominant TCR-Vβ family from the remaining PB-T_TE cells within that individual and tested both populations for their capacity to kill autologous CD38^hiPCs in a 2-hour culture assay (Figure 3C-D). Contamination by natural killer T (NKT) cells (CD3⁺CD56⁺CD16⁺ cells) and γδ T cells was negligible, as NKT cells represented <5% and γδ T cells were undetectable in PB-T_TE compartment (data not shown). PB-T_TE cells expressing the dominant TCR-Vβ families eliminated on average 70% of autologous CD38^hiPCs within the last hour of a 2-hour culture assay (Figure 3D). Elimination of CD38^hiPCs involved caspase-3 activation; however, we were not able to demonstrate an increase in caspase-3 activity in CD38^hiPCs cultured with oligoclonal expanded PB-T_TE (either at 1- or 2-hour time points), likely due to the rapid cell death following caspase-3 activation (data not shown). In 8 out of 9 patients, oligoclonal expanded PB-T_TE cells expressing the dominant TCR-Vβ family were superior to the remaining PB-T_TE cells in eliminating autologous CD38^hiPCs (Figure 3D). However, PB-T_TE cells that did not contain the dominant oligoclonal expansion also exhibited some cytotoxic activity against autologous CD38^hiPCs (eliminating on average 30% of autologous CD38^hiPCs), suggesting that smaller oligoclonal expansions also contribute to antimyeloma activity (Figure 3D). At the 2-hour time point of coculture, both PB-T_TE cells expressing the dominant TCR-Vβ family and the remaining PB-T_TE cells exhibited comparable levels of degranulation, as measured by CD107a expression, without concordant IFN-γ production (Figure 3E-F). These results indicate that the enhanced cytotoxic capacity of PB-T_TE cells expressing the dominant TCR-Vβ family against autologous CD38^hiPCs likely relies on increased perforin and granzyme B content (Figure 3G) rather than on increased activity of degranulation. This is the first direct evidence supporting autologous antimyeloma responses mediated by oligoclonal expanded PB-T_TE cells. It is worth noting that myeloma-reactive PB-T_TE cells expressing the dominant TCR-Vβ family inversely correlate with CD69⁺T_TE (Figure 3H), implying that antimyeloma responses may be limited in NDMM patients with increased proportions of CD69⁺T_TE cells in their BM.

We used mass cytometry¹⁸  and FlowSOM clustering analyses¹⁹  to obtain a more comprehensive signature of CD69⁻T_TE and CD69⁺T_TE cells in NDMM. In agreement with flow cytometry data, we confirmed the presence and tissue distribution of CD69⁻T_TE and CD69⁺T_TE cells in NDMM (Figure 4A). By including mAbs to detect dominant oligoclonal expansions in matched PB and BM samples, we demonstrated that oligoclonal expanded T_TE cells were restricted to the CD69⁻T_TE subset in BM and PB of NDMM patients (Figure 4B-C). This suggests that BM-CD69⁻T_TE cells could be the direct counterpart of the PB-CD69⁻T_TE cells capable of killing autologous CD38^hiPCs in vitro.

To further define the phenotype of CD69⁻T_TE and CD69⁺T_TE cells, we examined the expression of additional molecules within the CD69⁺T_TE and oligoclonal expanded CD69⁻T_TE cells expressing the dominant TCR-Vβ family in PB and BM of NDMM patients. BM-CD69⁺T_TE cells expressed a Tbet^loEomes^hi transcriptional signature and low perforin and granzyme B (Figure 4D-E). In contrast, the phenotype of BM-CD69⁻T_TE cells strongly indicated cytotoxic function, with high expression of perforin and granzyme B and the reciprocal Tbet^hiEomes^lo/neg signature (Figure 4D-E). The dominant TCR-Vβ13.1⁺ oligoclonal expansion within BM-CD69⁻T_TE and PB-CD69⁻T_TE cells shared the cytotoxic phenotype and transcriptional signature of the CD69⁻T_TE population as a whole (Figure 4E). Both BM-CD69⁻T_TE and BM-CD69⁺T_TE cells produced the cytokines IFN-γ and TNF-α at equivalent levels (Figure 4F). BM-CD69⁺T_TE were further distinguished from oligoclonal expanded CD69⁻T_TE expressing the dominant TCR-Vβ family in PB and BM of NDMM by decreased expression of CD45RA, retention of CD27 and CD28, and higher expression of several inhibitory checkpoints, CD279 (PD-1), TIGIT, CD223 (Lag3), and CD160 (supplemental Figure 5). Overall, based on the expression of CD69, BM residency, cytokine production, and inhibitory checkpoint expression, CD69⁺T_TE cells appear closely related to T_RM cells,²³  while the phenotype of the oligoclonal expanded CD69⁻T_TE cells was that of highly cytotoxic CD8⁺T_TE cells.

Using mass cytometry, we next compared CD69⁻T_TE, CD69⁺T_TE, and total T_TE cells in small cohorts of premalignant MGUS and NDMM patients, aiming to understand CD69⁻T_TE-cell and CD69⁺T_TE-cell development during disease progression. We used 2 approaches: manual gating and FlowSOM clustering of mass cytometry data. Although data are preliminary (due to limited availability of BM samples from MGUS patients), both CD69⁻T_TE and CD69⁺T_TE cells were clearly identified within total BM-T_TE cells in MGUS and maintain the same tissue distribution as their counterparts in NDMM (Figure 5A-C). CD69⁺T_TE and total T_TE cells accounted for a significantly lower proportion of BM-CD8⁺T cells in MGUS than in NDMM (Figure 5D; supplemental Figure 2B). In particular, CD69⁺T_TE cells were very sparse, representing on average 13.8% of T_TE cells and 2.1% of CD8⁺T cells in BM of MGUS patients (Figure 5C-D). Expression of CD69 on T_M cells, and the extent of its downregulation during the transition from the T_M to the T_TE stage of differentiation, appeared to be related to the proportions of CD69⁺T_TE cells in BM of NDMM and MGUS patients (Figure 5E). Our data suggest that CD69 expression may be amplified on T_M and T_TE cells in BM of NDMM compared with their counterparts in BM of MGUS patients.

Finally, to compare the degree of heterogeneity of BM-T_TE cells in both MGUS and NDMM, we analyzed the phenotypes of the 25 metaclusters (MCs) generated by FlowSOM clustering (Figure 5F-G). This revealed that BM-CD69⁺T_TE cells, like their CD69⁻T_TE counterparts, are still phenotypically heterogeneous in both MGUS and NDMM. CD69⁺T_TE can be subdivided into 4 MCs based on differences in expression of CD45RA, CD45RO, CD27, CD28, CD279, and CD38 while uniformly expressing TIGIT, KLRG1, and CD49d and lacking expression of CD127, CD197 (CCR7), CD62L, and CD39 (Figure 5F). These 4 MC are variable in size but persist in all MGUS and NDMM patients (Figure 5G).

This study provides the first definitive evidence that circulating oligoclonal expanded cytotoxic CD69⁻T_TE cells are myeloma-reactive cells capable of eliminating autologous CD38^hiPCs in vitro. It also suggests the novel concept that balance between cytotoxic oligoclonal expanded CD69⁻T_TE cells and noncytotoxic CD69⁺T_TE cells, which resemble T_RM cells with BM residency, may regulate immune responses in NDMM patients.

The most clinically important outcome of this study is the demonstration that antimyeloma responses occur in NDMM patients and are executed by oligoclonal expanded PB-CD69⁻T_TE cells. Thus, oligoclonal expanded PB-CD69⁻T_TE cells, which we previously reported as “T-cell clones,”⁷  are indeed myeloma reactive. Elimination of autologous CD38^hiPCs occurs rapidly within a 2-hour culture, likely through degranulation and release of preformed perforin and granzyme from lytic granules of PB-CD69⁻T_TE cells. As expected, no IFN-γ production was detected after 2 hours of culture, as it requires a longer time to be produced de novo following T-cell activation.²⁵  The potent cytotoxic functions of myeloma-reactive PB-CD69⁻T_TE cells are further reinforced by their lower expression of inhibitory receptors, CD279, TIGIT, Lag 3, and CD160, consistent with our previous studies.^11,26  Mass cytometric analysis indicated a high degree of similarity between CD69⁻T_TE cells in PB and BM, and this similarity is further extended to the dominant oligoclonal expansions present in both tissues (BM and PB) of NDMM patients. Direct testing of oligoclonal expanded CD69⁻T_TE cells in the BM for their myeloma reactivity remains challenging due to their limited numbers and small volume of diagnostic BM samples available for research. However, our data are consistent with the concept that myeloma-reactive cells likely arise within MIL in the MM microenvironment and undergo oligoclonal expansion and terminal differentiation into CD69⁻T_TE cells, which then circulate between BM and PB.

We found that myeloma reactivity is not restricted to oligoclonal expanded PB-CD69⁻T_TE cells expressing dominant TCR-Vβ families, since remaining PB-CD69⁻T_TE cells expressing less expanded TCR-Vβ families also retain some capacity to eliminate autologous CD38^hiPCs. Also, highly expanded TCR-Vβ families representing >50% of PB-T_TE cells are not restricted to patients, as they are occasionally seen in age-matched controls, perhaps induced by aging-associated autoimmune and infective processes.²⁷  We ruled out the possibility that contaminating NKT and γδ T cells play a significant role in the elimination of autologous CD38^hiPCs. This is consistent with the observation that NKT and γδ T cells are not required for antimyeloma immunity in mice bearing Vk*MYC myeloma and that CD8⁺T-cell clones of rare, small, and medium size are protective.¹  Nonetheless, antigen specificity of readily accessible TCR-Vβ restricted myeloma-reactive PB-CD69⁻T_TE cells could be further explored, in particular by testing for restriction to major histocompatibility complex class I–related molecule (MR1), which is expressed on myeloma cells.²⁸  The possibility that PB-CD69⁻T_TE cells include MR1-reactive T cells capable of killing a variety of cancers expressing MR1^29,30  is an interesting future research topic.

Our finding that oligoclonal expanded PB-CD69⁻T_TE cells in NDMM patients are highly functional conflicts with a number of reports that T cells in MM patients are dysfunctional, senescent, and/or exhausted.^13,14,16  Our data strongly support the concept that potent antimyeloma immunity mediated by oligoclonal expanded CD69⁻T_TE cells persists in NDMM. However, how these naturally induced circulating myeloma-reactive CD69⁻T_TE cells can be retained within MIL and protected from the harmful effects of myeloma therapeutics is not clear. In particular, it will be important to determine the sensitivity of myeloma-reactive CD69⁻T_TE cells to myeloma therapies and to understand their role in the immunological aspects of autologous stem cell transplantation, a front-line therapy for transplant-eligible MM patients.²⁰

In addition to defining myeloma-reactive cytotoxic CD69⁻T_TE cells, this study provides a detailed analysis of noncytotoxic, proinflammatory BM-CD69⁺T_TE cells that are present in controls and all patient groups. Correlative analysis performed in this study revealed that noncytotoxic BM CD69⁺T_TE cells maintained inverse relationships with their CD69⁻T_TE counterparts within BM-T_TE cells of NDMM patients, but not MGUS patients and controls. They also maintain negative relationships with myeloma-reactive oligoclonal expanded PB-CD69⁻T_TE cells expressing dominant TCR-Vβ families indicating altered immune homeostasis over and above the direct effect of oligoclonal expansion within the CD69⁻T_TE subset. How the development of CD69⁺T_TE and CD69⁻T_TE cells within the BM-T_TE compartment is regulated remains unclear. However, our mass cytometry data suggest that the development of BM-CD69⁺T_TE cells may be more closely related to the transition from T_M cells expressing CD69 rather than from CD69⁻T_TE cells and that regulation of this transition may differ between NDMM and MGUS patients.

We demonstrated that CD69⁺T_TE cells have markedly different properties from cytotoxic CD69⁻T_TE cells, including low expression of the cytotoxic molecules perforin and granzyme B, an Eomes^hiTbet^low/neg transcriptional signature, and high expression of multiple inhibitory checkpoints, such as CD279, TIGIT, Lag 3, and CD160, suggesting CD69⁺T_TE cells may be a suitable target for checkpoint inhibition immunotherapy.¹⁷  CD69⁺T_TE cells reside in the BM and appear closely related to T_RM cells.²³  Small proportions of CD8⁺CD69⁺CD57⁺T_RM cells have been reported in human lung and spleen²³  and may be equivalent to the CD69⁺T_TE cells described in this study. To the best of our knowledge, this is the first documentation of BM-resident CD69⁺T_TE cells, which likely belong to the resident CD8⁺CD69⁺ cells seen in human BM.³¹

We found that CD69⁺T_TE cells account for highly variable proportions of the BM-T_TE compartment in NDMM patients (5% to 84%), a finding that may relate to clinical heterogeneity. CD69⁺T_TE cells appear to be less frequent within BM-T_TE cells of MGUS and SMM patients (6% to 47% MGUS; 6% to 34% SMM), suggesting that progression to clinical MM, at least in some patients, may be associated with an accumulation of noncytotoxic CD69⁺T_TE cells within MILs. Accumulation of CD69⁺T_TE within MILs may contribute to local inflammation through the production of the proinflammatory cytokines IFN-γ and TNF-α, impair the development of cytotoxic CD69⁻T_TE cells, and thus promote myeloma growth. It has already been demonstrated by a study in CD69-knockout mice that CD69 expression on T cells impaired the antitumor immune response, suggesting CD69 is an attractive target for cancer immunotherapy.³²  Understanding the role of CD69⁺T_TE cells within MILs throughout disease progression has the potential to lead to the development of novel immune-based approaches for the management of MM.

Our study suggests that changes in T_TE cells contributing to MILs, without apparent changes in the PB-T_TE compartment, are associated with myeloma progression from premalignant MGUS or asymptomatic SMM. Data also suggests that the development of cytotoxic CD69⁻T_TE cells, which mediate antimyeloma responses in NDMM patients, can be affected by the accumulation of noncytotoxic CD69⁺T_TE cells within MILs. Tracing CD69⁺T_TE cells within MILs and correlating their numbers with clinical outcome in MM patients receiving MILs as adoptive T-cell therapy^33,34  could provide essential insights into role of BM-CD69⁺T_TE cells in antimyeloma immunity.
