Targeting of the collagen-binding site on glycoprotein VI is not essential for in vivo depletion of the receptor

Coronary artery thrombosis is often initiated by platelet adhesion and aggregation on subendothelial collagens exposed on the surface of the ruptured atherosclerotic plaque.1-4Platelet-collagen interactions are complex and involve a large number of receptors that directly or indirectly interact with the matrix protein, most importantly GPIb-V-IX,5 integrins α₂β₁6 and α_IIbβ₃,5 and glycoprotein (GP) VI.7 Among these, GPVI plays a central role as it mediates the activation of integrins α₂β₁ and α_IIbβ₃, which is a prerequisite for firm platelet adhesion and thrombus growth.8 GPVI (62 kDa) belongs to the immunoglobulin superfamily9,10 and is noncovalently associated with the Fc receptor (FcR)γ chain.11,12 GPVI-deficient patients suffer from a mild bleeding diathesis and their platelets show severely impaired responses to collagen.7,13,14 Similarly, platelets from FcRγ chain–deficient mice, which lack GPVI,15 are unresponsive to collagen16 but no major bleeding has been observed in those mice, making GPVI an interesting target for safe antithrombotic therapy.

The first direct proof for effective antithrombotic protection by anti-GPVI treatment came from studies in mice using the anti-GPVI monoclonal antibody (mAb), JAQ1. JAQ1 is directed against the major collagen-binding site on GPVI and inhibits platelet activation by collagen and the collagen-related peptide (CRP).15,17 In vivo treatment of mice with JAQ1 or monovalent F(ab) fragments of the antibody induces the internalization and proteolytic degradation of GPVI in circulating platelets resulting in a prolonged GPVI-knock-out–like phenotype.18 Similar mechanisms of GPVI down-regulation appear to exist in humans because one GPVI-deficient patient had developed highly specific antibodies against the apparently absent receptor suggesting that she suffered from an acquired GPVI deficiency based on antibody-induced clearing of the receptor from her platelets.13 F(ab) fragments of the antibodies isolated from this patient inhibited collagen-induced activation of normal human platelets.7,13 Together, these observations led to the hypothesis that targeting of the collagen-binding site on GPVI may elicit signals that finally result in down-regulation of the receptor in vivo.18

To develop effective anti-GPVI agents and to predict their mode of action in vivo, a better understanding of the mechanisms underlying GPVI down-regulation is required. To test the hypothesis that targeting of the ligand-binding site on the receptor is essential for this process to occur, we generated mAbs against other epitopes on mouse GPVI and examined their in vivo activity. Unexpectedly, we found that the in vivo depletion of GPVI was induced by all anti-GPVI mAbs or F(ab) fragments thereof, irrespective of their binding site on the receptor.

Specific pathogen-free mice (NMRI, C57Bl/6), 6 to 10 weeks of age, were obtained from Charles River (Sulzfeld, Germany). C57Bl/6 mice deficient in the FcRγ chain were obtained from Taconics (Germantown, NY).

The mAbs against mouse GPVI (JAQ1), GPIIIa (EDL1), and GPV (DOM2, IgG2a) have been described previously.15phycoerythrin (PE)–labeled JON/A, which preferentially binds to activated GPIIb/IIIa, has been reported previously.19JAQ2 and JAQ3 were produced as described.15 F(ab) fragments were prepared as described.18 Briefly, mAbs were incubated for 6 to 8 hours with immobilized papain (Pierce, Rockford, IL), and the preparations were then applied to an immobilized protein A column followed by an immobilized protein G column (both Pharmacia, Uppsala, Sweden) to remove Fc fragments and undigested IgG. Purity of F(ab) fragments was tested by sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE). Goat antirat IgG (Dianova, Hamburg, Germany), streptavidin–horseradish peroxidase (HRP), and rabbit antirat-HRP (both Dako, Hamburg, Germany) were purchased.

Mice were bled under ether anesthesia from the retro-orbital plexus. Blood was collected in a tube containing 10 U/mL heparin, and platelet-rich plasma (prp) was obtained by centrifugation at 300g for 10 minutes at room temperature (RT). For washed platelets, prp was centrifuged at 1000g for 8 minutes and the pellet was resuspended twice in modified Tyrode-HEPES (N-2-hydroxyethylpiperazine-N′2-ethanesulfonic acid) buffer (134 mM NaCl, 0.34 mM Na₂HPO₄, 2.9 mM KCl, 12 mM NaHCO₃, 20 mM HEPES, 5 mM glucose, 0.35% bovine serum albumin, pH 6.6) in the presence of prostacyclin (0.1 μg/mL) and apyrase (0.02 U/mL). Platelets were then resuspended in the same buffer (pH 7.0, 0.02 U/mL apyrase) and incubated at 37°C for at least 30 minutes before analysis.

Immunoprecipitation was performed as described previously.15 Briefly, 10⁸ washed platelets were surface labeled with EZ-Link sulfo-NHS-LC-biotin (Pierce, 100 μg/mL in phosphate-buffered saline [PBS]) and subsequently solubilized in 1 mL lysis buffer (Tris-buffered saline containing 20 mM Tris [tris(hydroxymethyl)aminomethane])/HCl, pH 8.0, 150 mM NaCl, 1 mM EDTA [ethylenediaminetetraacetic acid], 1 mM phenylmethylsulfonyl fluoride, and 1% Nonidet P-40). Cell debris was removed by centrifugation (15 000g, 10 minutes). Following preclearing (8 hours), 10 μg mAb was added together with 25 μL protein G-Sepharose (Pharmacia) and precipitation took place overnight with rotation at 4°C. Samples were separated by 12% SDS-PAGE along with a molecular weight marker and transferred onto a polyvinylidene difluoride membrane. The membrane was incubated with streptavidin-HRP (1 μg/mL) for 1 hour after blocking. After extensive washing, biotinylated proteins were visualized by enhanced chemiluminescence (ECL; Amersham, Freiburg, Germany). For immunoblotting, platelets were not surface labeled. After lysis, whole cell extract was run on an SDS-polyacrylamide gel and transferred onto a polyvinylidene difluoride membrane. The membrane was first incubated with 5 μg/mL JAQ1 followed by HRP-labeled rabbit antirat immunoglobulin and proteins were visualized by ECL.

Washed platelets (2 × 10⁶) or whole blood samples were incubated with fluorophore-conjugated mAbs at saturating concentrations for 15 minutes at RT and directly analyzed on a FACScalibur (Becton Dickinson, Heidelberg, Germany). Platelets were gated by forward scatter/side scatter (FSC/SSC) characteristics. For competition studies, platelets were preincubated with unlabeled antibodies (50 μg/mL, 30 minutes), washed with PBS, and then incubated with fluorescein isothiocyanate (FITC)–labeled JAQ1, JAQ2, or JAQ3.

To determine platelet aggregation, light transmission was measured using prp (200 μL with 0.5 × 10⁶platelets/μL). Transmission was recorded in a Fibrintimer 4 channel aggregometer (APACT Laborgeräte und Analysensysteme, Hamburg, Germany) over 10 minutes and was expressed as arbitrary units with 100% transmission adjusted with plasma. Platelet aggregation was induced by addition of CRP (0.25-5 μg/mL), collagen (1-20 μg/mL), adenosine diphosphate (ADP; 5 μM), or cross-linking of bound antibodies by antirat IgG. For inhibition studies, prp was preincubated with various concentrations of JAQ1, JAQ2, JAQ3, or control IgG followed by addition of CRP or collagen.

Mouse blood (1 vol) was collected into 0.5 vol HEPES buffer, pH 7.4, containing 20 U/mL heparin and Ca²⁺ (1 mM). Coverslips (24 × 60 mm) were coated with fibrillar (Horm) collagen (0.25 mg/mL, Nycomed, Munich, Germany), and blocked for 1 hour with 1% bovine serum albumin. Perfusion studies were then performed as described.8 Briefly, transparent flow chambers with a slit depth of 50 μm, equipped with the collagen-coated coverslips, were connected to a syringe filled with the anticoagulated blood. Perfusion was performed using a pulse-free pump under high shear stress equivalent to a wall shear rate of 1000 s⁻¹ (4 minutes). Thereafter, chambers were rinsed by a 4-minute perfusion with HEPES buffer at the same shear stress, and phase-contrast images were recorded from at least 5 different microscope fields (× 63 objectives).

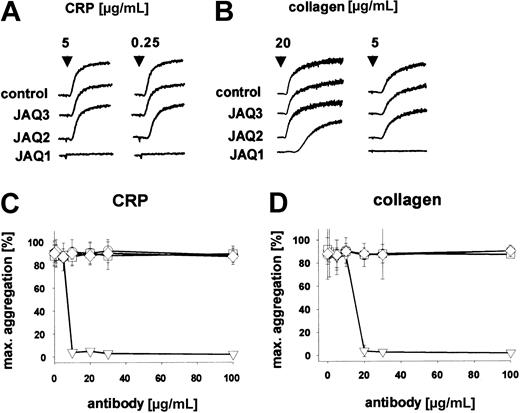

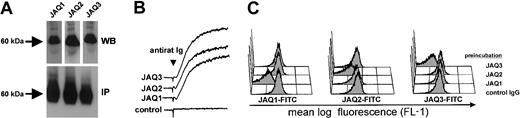

To determine whether the in vivo depletion of GPVI is dependent on targeting of the ligand-binding site on the receptor, we generated new anti-GPVI mAbs recognizing different epitopes on the receptor and tested their in vitro and in vivo activity. Both antibodies (JAQ2, JAQ3, rat IgG2a) precipitated a single-chain protein of an apparent molecular weight of approximately 60 kDa (Figure1A, IP). The identity of the precipitated protein with GPVI was verified by immunoblotting with JAQ1 (not shown). JAQ2 and JAQ3 also recognized GPVI in Western blot analysis under nonreducing conditions (Figure 1A, WB). JAQ2 and JAQ3 did not bind to platelets from FcRγ chain–deficient mice that are known to lack GPVI15 (not shown). Similar to JAQ1,15 JAQ2 and JAQ3 alone did not induce platelet aggregation, whereas strong and irreversible aggregation occurred on cross-linking of the bound antibodies by antirat immunoglobulin antibodies (Figure 1B), confirming that multivalent clustering of GPVI is required to induce platelet activation.20 Flow cytometric preincubation studies demonstrated that JAQ1, JAQ2, and JAQ3 do not block each other's binding, suggesting that they recognize different epitopes on GPVI (Figure 1C). Consistent with this, JAQ2 and JAQ3 (up to 100 μg/mL) did not inhibit CRP-induced platelet aggregation, whereas this was completely blocked by JAQ1 (Figure 2A,C). Similarly, collagen-induced aggregation was largely inhibited by JAQ1 in a dose-dependent manner, whereas it was not affected by JAQ2 or JAQ3 (Figure 2B,D). Together, these results demonstrated that JAQ2 and JAQ3 bind to epitopes on mouse GPVI that are different from the collagen-binding site on the receptor.

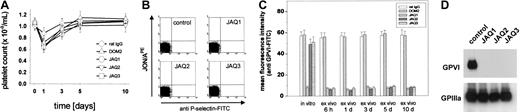

To test the effects of JAQ2 and JAQ3 on the in vivo expression of GPVI, mice received 100 μg of the respective antibodies and platelets were monitored for 10 days. As controls, mice received 100 μg nonspecific rat immunoglobulin or DOM2, a rat IgG2a directed against mouse GPV. Similar to JAQ1,18 JAQ2, JAQ3, and DOM2 had a mild and transient effect on platelet counts with a maximum drop of about 40% on day 1 and a return to almost normal after 48 to 72 hours (Figure3A). Circulating platelets in JAQ-treated mice were not activated at any time point after injection as shown by flow cytometric analysis of P-selectin expression and integrin activation19 (Figure 3B). GPVI expression on the platelet surface was analyzed by flow cytometry at different time points after antibody injection using JAQ1^FITC. Very unexpectedly, as soon as 6 hours after antibody injection GPVI was undetectable on platelets from JAQ2- or JAQ3-treated mice and this remained unchanged for 10 days (Figure 3C). In contrast, GPVI levels on circulating platelets were not altered significantly at any time in DOM2-treated mice. These findings suggested that GPVI had been specifically depleted by JAQ2 and JAQ3 in vivo. This was confirmed when separate groups of mice received the antibodies (100 μg/mouse) and platelets were tested on day 5 for the presence of GPVI in Western blot analysis. As shown in Figure 3D, GPVI was undetectable in platelets from mice treated with JAQ1, JAQ2, or JAQ3, whereas normal amounts of GPIIIa were found in all platelets. Importantly, the expression of other receptors including GPIb-IX, GPV, and α₂β₁ was not altered in any group of mice as confirmed by flow cytometry (not shown). In agreement with the specific absence of GPVI, these platelets were completely resistant to collagen- and CRP-induced aggregation but reacted normally to ADP (5 μM; Figure 4A). Finally, adhesion of those platelets to collagen was tested in whole blood perfusion experiments (1000 s⁻¹). Whereas marked platelet adhesion and aggregate formation was observed with blood from control mice, adhesion was completely abolished with blood from JAQ1-, JAQ2-, or JAQ3-treated mice, confirming the crucial role of GPVI in this process8 21 (Figure 4B).

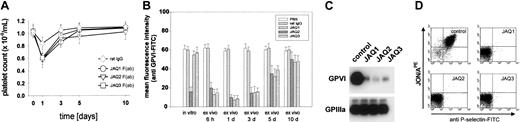

To address the question whether the Fc part or the dimeric form of anti-GPVI antibodies plays a role in depletion of the receptor, we produced monovalent F(ab) fragments of JAQ1, JAQ2, and JAQ3 and tested their in vivo effects. After injection of F(ab) fragments (100 μg), platelet counts and GPVI expression were monitored for 10 days. Interestingly, F(ab) fragments of JAQ2 or JAQ3 induced a similar transient decrease in platelet counts as the intact IgG (Figure5A), demonstrating that this effect was not mediated by antibody-induced Fc receptor or complement activation. Strikingly, both F(ab) fragments of JAQ2 and JAQ3 induced the depletion of GPVI (Figure 5B). However, the duration of F(ab)–induced GPVI depletion was significantly reduced as compared to intact IgG. As shown in Figure 5B-C, very low levels of GPVI were detected in platelets on day 3 by flow cytometry and Western blot analysis, respectively, and this increased to almost normal on day 10. Consequently, during the first 3 days, platelets from these mice were resistant to activation with CRP (Figure 5D) and did not adhere to collagen in whole blood perfusion experiments (not shown).

Our findings show that neither the Fc part nor the dimeric form of anti-GPVI antibodies is responsible for the observed transient thrombocytopenia or the depletion of the receptor. However, the significantly shorter absence of GPVI in F(ab) versus IgG-treated mice strongly suggests that in vivo stability and avidity of anti-GPVI agents may have a major influence on their potential to induce long-term antithrombotic protection. At present, the mechanisms underlying anti-GPVI–induced transient thrombocytopenia are not clear, but it may be based on weak activation of GPIIb/IIIa leading to the formation of loose aggregates and their temporary sequestration to the spleen where the actual loss of GPVI may occur. This assumption may be supported by the observation that GPVI down-regulation cannot be induced by antibodies in vitro, suggesting that a second signal is required for the induction of this process and that this signal is provided by other cells in vivo.18

In summary, our results demonstrate that the antibody-induced depletion of GPVI from circulating platelets in vivo is neither dependent on the exact binding epitope recognized by the antibody nor its Fc part or dimeric form. This unexpected finding strongly suggests that anti-GPVI agents that do not directly activate the platelet may generally induce the down-regulation of the receptor in vivo, resulting in long-term antithrombotic protection. This may have important implications for the development of anti-GPVI– based therapeutics for the prevention of ischemic cardiovascular diseases.

We would like to thank M. Koch and S. Hartmann for excellent technical assistance and U. Barnfred for constant support throughout the study.
