Inhibition of restenosis by tissue factor pathway inhibitor: in vivo and in vitro evidence for suppressed monocyte chemoattraction and reduced gelatinolytic activity

Vascular restenosis after percutaneous balloon angioplasty of atherosclerotic arteries is primarily mediated by intimal hyperplasia due to proliferation of vascular smooth muscle cells (VSMCs)¹  and shrinkage of the vessel wall due to adventitial scarring.²  Inflammation and activation of the coagulation cascade are thought to be the key mechanisms triggering this response.

Tissue factor (TF), the major physiologic activator of coagulation in vivo,³  was shown to mediate a prolonged prothrombotic state after balloon angioplasty⁴  by generating active serine proteases of the coagulation cascade, including factor VIIa (VIIa), factor Xa (Xa), and thrombin. Next to their pivotal enzyme function in coagulation these proteases contribute to restenosis by nonthrombotic mechanisms exerting mitogenic and chemotactic effects on VSMCs⁵  and by eliciting a proinflammatory response.⁶  To which extent the TF pathway is involved in the recruitment of monocytes and in vascular matrix degradation after balloon injury is not known.

Tissue factor pathway inhibitor (TFPI), a Kunitz-type protease inhibitor, exerts feedback inhibition on the TF/VIIa-complex in a Xa-dependent manner,⁷  and the coexpression of TFPI and TF was shown to balance TF activity of injured atherosclerotic plaques.⁸  Furthermore, a direct antiproliferative effect and reduced chemokinesis of VSMCs was reported with overexpression of TFPI in vitro.^9,10

In this study, we examined whether catheter-based adenoviral overexpression of TFPI has the potential to limit the proinflammatory, nonthrombogenic effects of the activated TF pathway, such as lesional monocyte recruitment and the expression of matrix metalloproteinase-2 (MMP-2) and MMP-9 in an atherosclerotic rabbit injury model for postangioplasty restenosis. Furthermore, the selective activation and inhibition of factor VIIa– and factor Xa–mediated induction of monocyte chemoattractant protein 1 (MCP-1) was studied in control- and TFPI-transfected VSMCs in vitro.

In order to differentiate exogenous from endogenous TFPI, a TFPI transgene was generated by polymerase chain reaction (PCR) from full-length human TFPI-cDNA carrying a carboxyterminal myc-tag that codes for a 13–amino acid epitope that is detectable by the monoclonal antibody (mAb) 9E10 (catalog no. OP10, Oncogene; Merck, Darmstadt, Germany). The 1097-bp product including a 5-prime KOZAK sequence was amplified using 5′-GAATTCC ACCATGATTTACACA ATGAAGAAAGTAC-3′ as forward (fwd) primer and 5′-AAGCTT TCACCGCAGCAGATCTTCTTCAGAAATAAGTTTTTGTTCCATATTTTTAACAA AAATTTC-′3 as reverse (rev) primer.

The myc-TFPI cDNA or the lacZ control transgene (Ad5lacZ)¹¹  was cloned into the adenoviral transfer vector pACCMVpLpASR+,¹²  and recombinant virus was generated by recombination in 293 cells with the vector pJM17 as described.¹³  Purification of adenovirus preparations was done by 2 consecutive cesium chloride centrifugations.

Rabbit VSMCs (rVSMCs) and human vascular smooth muscle cells (hVSMCs) were cultured by explantation technique from rabbit aortic and human coronary artery segments, respectively. Human umbilical vein endothelial cells (HUVECs) and U937 cells, a human monoblastic cell line (no. CRL-1593.2; American Type Culture Collection [ATCC], Manassas, VA), were cultured by standard technique.

Ad5TFPI or Ad5lacZ adenovirus was diluted to 1 × 10⁹ plaque forming units (pfu)/mL and incubated on 60% confluent VSMCs (15-30 minutes, 37°C, 5% CO₂ in air) under microscopic control. Transgene expression was allowed for 48 hours before in vitro experiments were performed to test the inhibitory capacity of TFPI on coagulation factors.

Cellular extracts and conditioned supernatant fluid from ³⁵S-labeled VSMCs were immunoprecipitated as described using 5 μg of either antihuman TFPI polyclonal Ab (pAb, no. 4901; American Diagnostica [AD], Greenwich, CT), antihuman c-myc mAb (clone 9E10; Santa Cruz Biotechnology, Santa Cruz, CA) or the control antirabbit pAb (no. 15006; Sigma, St Louis, MO), and antitrinitrophenol mAb (catalog no. 03001D; Pharmingen, San Diego, CA).¹⁴  Denatured samples were separated by 12% sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE), followed by protein fixation, blotting onto filter paper, and exposure to film.

Cell-associated and secreted inhibitory activity of TFPI-transfected VSMCs were measured by 1-stage and 2-stage chromogenic assay as described.¹⁵  In brief, serial dilutions of relipidated TF/factor VIIa complex (0-7 pM/7 nM) or factor Xa (0-10 nM) were incubated in 100 μL assay buffer with either transfected or untransfected VSMCs in 96-well plates for 20 minutes at 37°C. After addition of EDTA (ethylenediaminetetraacetic acid)–containing stop buffer, residual amidolytic activity of factor Xa was determined with Spectrozyme Xa (0.5 mM) at A_405nm using a kinetic plate reader (DIAS; Dynatech, Chantilly, VA). A standard curve was created with serial dilutions of TF/VIIa complex or factor Xa on plastic. Revelation software (Dynatech) was used for acquisition and analysis.

U937 cells were stimulated with lipopolysaccharide (LPS, 10 ng/mL) for 16 hours to induce TF expression. After coculture with transfected and untransfected rabbit VSMCs at ratios of 1:1 to 1:10 for 0.5 hours at 37°C and 5% CO₂ in air, plates were centrifuged and TF-dependent amidolytic activity was determined with purified coagulation factor VIIa (7 nM), factor X (300 nM), and Spectrozyme Xa (0.5 mM). Results were compared with a standard curve generated with serial dilutions of relipidated TF/VIIa complex on plastic.

Factor Xa (10 nM)–, factor VIIa (1 nM)–, and thrombin receptor activator peptide (TRAP: SFLLRNPNDKYEPF; 6 μM)–induced expression of platelet-derived growth factor BB (PDGF-BB; catalog no. DBB00, Quantikine; R&D, Minneapolis, MN) and monocyte chemoattractant protein 1 (MCP-1; catalog no. DCP00 Quantikine, R&D) were assessed in time-course experiments (1, 2, 4, 8, and 16 hours) on 24-hour starved untransfected, Ad5TFPI-transfected, or Ad5lacZ-transfected human coronary VSMCs by immunoassay. Trans retinoic acid (TRA, 10 μM) was used in selected experiments as a partial inhibitor of PDGF-BB.¹⁶  Factor Xa–induced matrix metalloproteinase-2 (MMP-2; catalog no. QIA63; Oncogene) was analyzed from cellular extracts or conditioned supernatant fluid of VSMCs (2.5 × 10⁵) by immunoassay and by SDS-gelatin zymography as described.¹⁷  Densitometry was performed using National Institutes of Health (NIH) Image software (version 1.62; Rockville, MD). Control experiments using the Limulus Amoebocyte lysate assay showed that less than 10 pg/mL LPS was present in preparations of coagulation factors, in accordance with the observation that after heating (100°C, 5 minutes) these factors failed to induce PDGF-BB, MCP-1, or MMP-2 production.

To detect specific mRNA expression in untransfected, Ad5TFPI–transfected, and Ad5lacZ-transfected vessels, total RNA was prepared from minced vascular segments using TRIzol (InVitrogen, Paisley, Scotland). Primers for human TFPI-myc (fwd: 5′-CAA GAA TGT CTG AGG GCA-3′, rev: 5′-CTT TCA CCG CAG CAG A-3′; 174 bp, 55°C annealing temperature [AT]), rabbit glyceraldehyde-3-phosphate dehydrogenase (GAPDH; fwd: 5′-ACG GTG CAC GCC ATC ACT GCC-3′, rev: 5′-GCC TGC TTC ACC ACC TTC TTG-3′; 266 bp, 63°C AT), rabbit MMP-2 (fwd: 5′-GAA GGT CAA GTG GTC CGT GT-3′, rev: 5′-CCG TAC TTG CCA TCC TTC TC-3′, 167 bp, 68°C AT), rabbit MMP-9 (fwd: 5′-GCT GTT GAC ATC CTG GCA CT-3′, rev: 5′-CTC TCA CCC CAG AAC AAA CC-3′; 154 bp, 65°C AT), rabbit MCP-1 (fwd: 5′-TTC AGC TCC CAT GTG CTT-3′, rev: 5′-CTG GAC CCA CTT CTG CT-3′; 204 bp, 62°C AT), and rabbit TF (fwd: 5′-CCG TAC CTG GAC ACA AAC CT-3′, rev: 5′-GGG AAT CAC TGC TTG GAC AC-3′; 279 bp, 65°C AT) were designed using the LightCycler Probe Design Software Version 1.0 (Roche, Basel, Switzerland) and the Primer3 Software (http://www-genome.wi.mit.edu/genome_software/other/primer3.html). The following primers were designed to detect human MCP-1 (fwd: 5′-ACTGAAGCTCGCAC TCTC-3′, rev: 5′-CTTGGGTTGTGGAGTGAG-3′;65°C AT) and human GAPDH mRNA levels (fwd: 5′-ACAGTCCATGCCATC ACTGCC-3′, rev: 5′-GCCTGCTTCACCACCTTCTTG-3′;65°C AT) in transfected and untransfected VSMCs by real-time PCR. Real-time PCR was performed using LightCycler-RNA Master SYBR Green I (Roche) according to the manufacturer's instructions. The amplification conditions consisted of an initial incubation at 61°C for 20 minutes, followed by incubation at 95°C for 30 seconds, 50 cycles at 95°C for 1 second, the respective indicated annealing temperature for 10 seconds, 72°C for 10 seconds, a melting step from 45°C to 95°C (increasing 0.1°C per second), and a final cooling to 40°C. Data were analyzed using LightCycler Software Version 3.5 (Roche).

Animal experiments were approved by the state committee for animal research and performed according to its guidelines. Focal atherosclerosis of the femoral artery was induced in 40 (N = 40) male New Zealand White (strain KBL-NZW-BR) rabbits (3.2 ± 0.3 kg) by bilateral air-desiccation injury followed by a 1% cholesterol/6% peanut-oil diet for 28 days as described.¹⁸

At 4 weeks after surgery and hypercholesteremic diet, balloon angioplasty and gene delivery were performed at the surgically demarcated site of the femoral stenosis. Under anesthesia and endotracheal ventilation, a 5-French (5-F) introducer was placed through an arteriotomy in the right common carotid artery and advanced to the aortic arch. After an aortoiliofemoral control angiogram and intra-arterial injection of unfractionated heparin (150 IU/kg), balloon injury (2.5/40 mm, Opta; Cordis, Vienna, Austria) was induced by 3 inflations to 8 atm for 60 seconds each with 60-second intervals. Then, 3 mL adenoviral vector solution (1 × 10⁹ pfu/mL; Ad5TFPI–c-myc, n = 18; Ad5lacZ, n = 18) or saline control was applied percutaneously over 35 ± 7 seconds at 4 to 6 atm using an infusion catheter (3/20 mm, CrescendoBC; Cordis) and a 10-mL LeVeen inflator with pressure gauge assembly (Boston Scientific, Vienna, Austria). A normal rabbit chow diet was continued after angioplasty. Of the animals, 4 received surgery and angioplasty without gene delivery; 3 animals from each group were analyzed on days 2 and 5 after angioplasty (PTA) and gene therapy.

For analysis, animals received a follow-up angiogram and were killed on day 2 (n = 6), day 5 (n = 6), or day 21 (n = 24) after gene delivery by lethal injection of potassium in profound analgosedation. The abdominal aorta was ligated and flushed with saline followed by surgical preparation and excision of the iliofemoral arteries. Tissue segments were sliced in 3-mm rings and number-coded to identify their relative location to one another, and consecutive ring segments were alternatingly fixed in 4% formalin followed by paraffin embedding or preserved in cryoprotective agent.

There were 2 blinded observers who selected 3 cross sections per vessel with the greatest extent of intimal hyperplasia for histomorphometric quantification. Lumen area (L; A1), (neo-) intimal (I), and lumen area (A2) plus medial area (M; A3), delineated by the internal elastic lamina (IEL) and external elastic lamina (EEL), respectively, were quantified by substraction (L = A1; I = A2-A1; M = A3-A2) on digitalized microscope images (BX60 microscope and C-3030 CAMEDIA; Olympus, Tokyo, Japan) of Elastica van Gieson–stained sections using NIH Image software (version 1.62). The ratio of intima to media area was used as a measure of restenosis.

Immunohistochemistry was performed on paraffin-embedded sections after microwave treatment (600 Watts, 2 × 6 minutes) in citrate buffer (pH 6.0) to detect Kunitz domain 2 (K2) of human TFPI (1:10, mAb, catalog no. 4904; AD), rabbit TF (1:20, mAb, catalog no. 4511; AD), and rabbit macrophages (1:100, mAb, RAM-11, clone M0633; Dako, Glostrop, Denmark) as described.¹⁹  MAbs against MMP-2 (1:100, mAb-3, catalog no. IM33L; Oncogene) and MMP-9 (1:50, mAb-3, catalog no. IM37L; Oncogene) were incubated in Tris (tris(hydroxymethyl)aminomethane)–bovine serum albumin (BSA) 1% on paraffin-embedded autoclaved sections (20 minutes, 2 bar, 10 mM citrate buffer, pH6). Human c-myc epitope was detected on acetone-pretreated cryosections incubated with mouse antihuman c-myc (1:20, 4°C, o/n, mAb, clone 9E10; catalog no. OP10; Oncogene). MCP-1 was detected on blocked, paraffin-embedded sections after overnight incubation with goat antihuman MCP-1/CC chemokine ligand 2 (1:5, 4°C, pAb, catalog no. AF-279-NA; R&D).

In order to visualize primary antibody binding, we used the following secondary reagents: biotinylated antimouse Ab (Vector-BA2000)/mABC-complex with DAB (3,3′diamino benzidine tetrahydrochloride dihydrate) for detection of c-myc, with AEC (3-amino-9-ethyl-carbazole) for visualization of TFPI-K2 and TF, and with Vector-Vip for MMP-2 and MMP-9. Biotinylated goat anti–mouse immunoglobulin G (IgG, mSS-link; GM601H)/mSS-SA-HRP (HP604H; Biocare) and biotinylated antigoat (1:200, Vector)/mSS-SA-HRP (Biocare) followed by AEC were used to detect rabbit macrophages (RAM11) and MCP-1. Immunomorphometry was quantified using AnalySiS software (SIS SoftImaging Software) with a constant color threshold and is given in percent of positive vessel cross-sectional area (%, fract. area).

Gelatinolytic activity of vascular sections was detected by in situ zymography as previously described.²⁰  In brief, gelatin was conjugated with Texas Red (TR) sulphonyl chloride (Molecular Probes, Eugene, OR) according to the manufacturer's instruction. Poly-l-lysin–coated glass slides were covered with conjugated gelatin-TR for 2 hours at room temperature. Thereafter, excess gelatin-TR was removed and the coating was fixed with 4% paraformaldehyde. After repeat washings in phosphate buffer solution (PBS), glass slides were dried at 37°C. Frozen vascular sections (5 μm) were placed and incubated with PBS on gelatin-TR films for 32 hours at 37°C in humidified chambers. After fixation in ethanol, slides were mounted in VectorShield with 4′, 6′-diamino-2-phenylindol (DAPI; Vector Laboratories, Burlingame, CA) and viewed using a confocal laser scanning microscope (LSM 510; Zeiss, Jena, Germany). Fluorescence signals of DAPI and Texas Red were recorded successively by using the MultiTrack feature of the LSM 510. The DAPI signal was scanned by ultraviolet excitation, Texas Red by a 543-nm He/Ne laser. The full dynamic range of the photomultiplier tubes (PMTs) was used for accurate image cytometry by setting the instrument's sensitivity in a way that the highest fluorescence signals retained just the maximum gray value in the recorded images. Images were recorded at constant PMT sensitivity and at a magnification of × 400 (lens: Zeiss Plan-Neofluar × 40/1.30). Image cytometry was performed using the analysis software TissueQuest (TissueGnostics, Vienna, Austria) based on a method described previously.²¹  This software identified perinuclear areas based on DAPI nuclear staining. The algorithm used measured fluorescence intensity around each individual nucleus in an area of variable size preset by the user. The maximum perinuclear area was defined as a 20-pixel layer around each nucleus, unless neighboring cells restricted the area of measurement. When integrating the mean relative fluorescence intensity of an individual cell, the software takes into account adjacent cells and ensures that no pixel is measured twice to avoid any overlay with a perinuclear area of a neighboring cell.

Morphometric data of femoral arteries in each experimental group are expressed as mean ± SD unless otherwise stated. The TFPI treatment group and Ad5lacZ control group were compared by 2-sided, unpaired t test. Significance was defined as probability less than 5%. Statistical analysis was performed with SPSS software package version 10.0 (SPSS, Chicago, IL) for Macintosh.

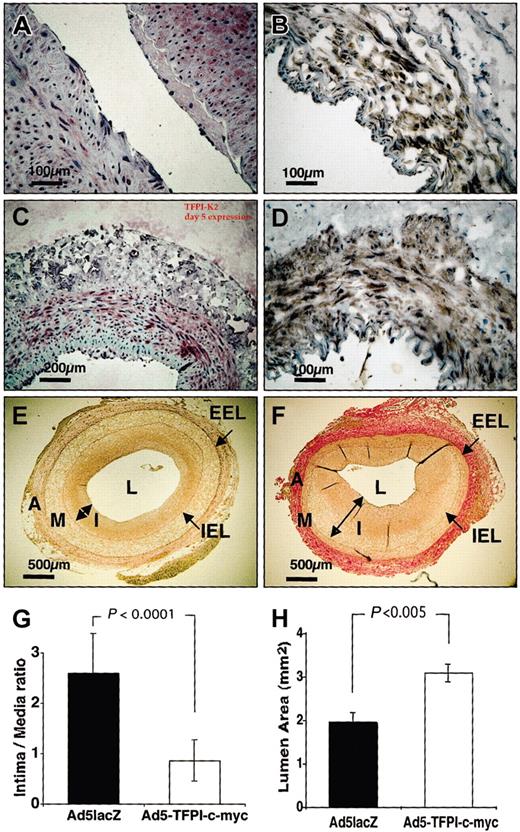

In order to establish a clinically feasible catheter-based approach, percutaneous unilateral impregnation of Ad5TFPI–c-myc (n = 18) or Ad5lacZ (n = 18) at a total dose of 3 × 10⁹ pfu was performed in atherosclerotic NZW rabbits using a porous membrane catheter. Percutaneous application of saline to the contralateral femoral artery served as control in all animals. Uniform expression of exogenous myc-tagged TFPI was detected by immunohistochemistry throughout the vascular media using the antihuman TFPI-K2 mAb (Figure 1A,C) and the anti–c-myc mAb (Figure 1B,D) composed of 55% ± 12% and 72% ± 6% of all media VSMCs on day 2 and day 5 after percutaneous transfection, respectively. Identical results were obtained with antihuman TFPI mAb directed against Kunitz domain 1 (not shown). No cross-reactivity of mAb antihuman TFPI K2 was observed with rabbit TFPI on paraffin-embedded sections. Insignificant expression of exogenous TFPI was detected on day 21 after gene transfer (not shown). No appositional thrombus formation was observed in TFPI-transfected vessel segments, in contrast to 4 of 18 virus control (Ad5lacZ) and 6 of 40 saline control vessels. In the Ad5lacZ-control group, 2 rabbits had to be killed prematurely (day 2 after angioplasty) because of a stroke; 1 died of septic complications on day 5.

Restenosis as quantitated by intima-media (I/M) ratio was reduced in percutaneously Ad5TFPI-treated arteries (0.9 ± 0.4 I/M; n = 12; Figure 1E,G) by 63% ± 14% compared with Ad5lacZ virus control (2.7 ± 0.8 I/M, P < .0001; Figure 1F-G) 21 days after balloon injury and transfection. Luminal gain was 60 ± 26% with vascular overexpression of TFPI (3.1 ± 0.8 mm²) compared with Ad5lacZ-transfected control segments (1.9 ± 0.7 mm², P < .005; Figure 1H).

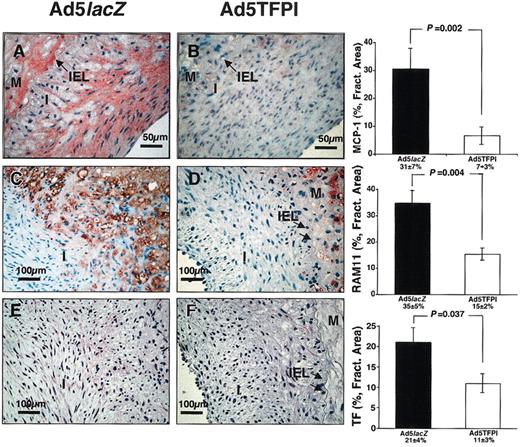

In order to examine the effect of TFPI overexpression on lesional monocyte recruitment after balloon injury, vascular sections were stained for monocyte chemoattractant protein 1 (MCP-1) and infiltrating rabbit monocytes. Both, neointimal MCP-1 expression (7% ± 3% vs 31% ± 7%; P = .002; Figure 2A-B) and lesional monocyte (RAM11⁺ positive) recruitment (15% ± 2% vs 35% ± 5%; P = .004; Figure 2C-D) were significantly suppressed after balloon injury by overexpression of TFPI compared with the virus control. Postinjury increase in vascular MCP-1 mRNA was attenuated in TFPI-treated vessels versus control (Table 1). Monocyte infiltrates in Ad5TFPI-transfected arteries were generally confined to the basal media, supposedly in response to the primary surgical air desiccation injury. In parallel to MCP-1, prolonged TF expression in neointima and media VSMCs was detected in Ad5lacZ-transfected vessel segments until day 21 after angioplasty (21% ± 4% fractional area; Figure 2E) compared with faint TF expression in TFPI-transfected vessels (11% ± 3% fractional area, P = .037; Figure 2F), despite strong initial expression of rabbit TF in media VSMCs of both Ad5TFPI- and Ad5lacZ-transfected vessels until day 2 after percutaneous intervention.

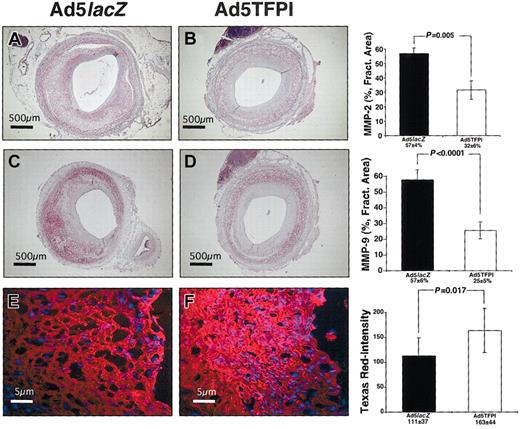

Next we determined expression of gelatinase mRNA antigen and activity in TFPI- and control virus–transfected balloon-injured vascular segments. MMP-2 expression by VSMCs of the injured media and proliferative neointima was detectable on 57% ± 4% fractional area of Ad5lacZ-transfected vascular cross sections (Figure 3A) compared with 32% ± 6% fractional area of Ad5TFPI-transfected segments (Figure 3B, P = .005) on day 21 after angioplasty and gene delivery. At the same time point significantly less MMP-2 mRNA was induced in TFPI-treated vessels compared with control (Table 1).

MMP-9, primarily expressed by infiltrating macrophages, was more abundant in virus control vessel segments (57% ± 6% fractional area; Figure 3C) than in Ad5TFPI-transfected vessels (25.5% ± 5.2% fractional area, P < .0001; Figure 3D). Gelatinolytic activity of vascular sections was significantly suppressed in TFPI-transfected (163 ± 44 Texas Red [TR]–Intensity; Figure 3F) compared with virus-control vascular segments (111 ± 37 TR-Intensity; Figure 3E) as detected by in situ zymography (P = .017).

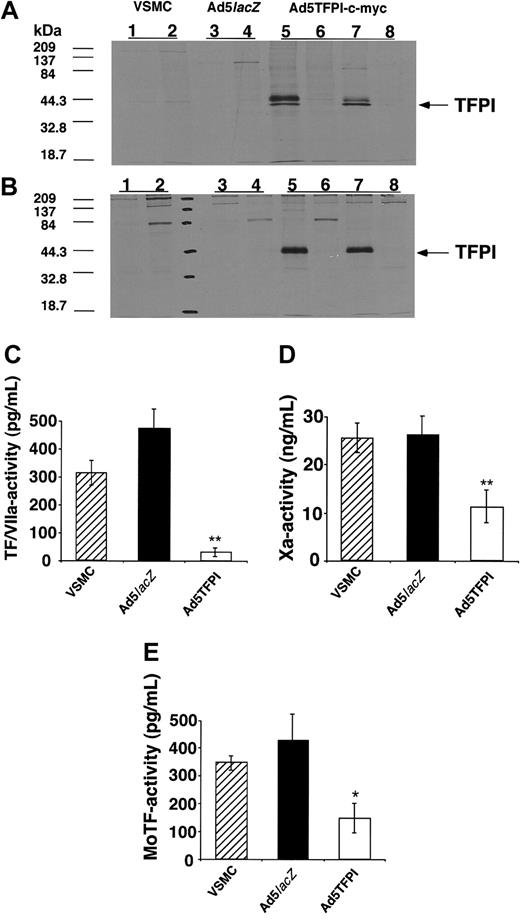

To further examine potential mechanisms of TFPI contributing to the inhibition of restenosis observed in vivo, we conducted a series of in vitro experiments. Immunoprecipitation of cytoplasmic protein extracts prepared from Ad5TFPI–c-myc–transfected rabbit VSMCs showed a double band at 41 and 43 kDa detectable with both the pAb against human TFPI and the mAb directed against the human c-myc peptide (Figure 4A), confirming synthesis and expression of myc-tagged, full-length human TFPI. No labeled protein was precipitated with the respective polyclonal (Figure 4, lane 6) and monoclonal (lane 8) control antibody. In untreated (Figure 4, lanes 1-2) or Ad5lacZ-transfected rabbit VSMCs (lanes 3-4) no precipitation occurred either with control^2,4  or with specific pAb for TFPI,^1,3  excluding cross-reactivity with endogenous rabbit TFPI. As TFPI is a secretory protein, a similar band pattern showing a single band at 43 kDa was precipitated with anti-TFPI and anti–c-myc Ab from supernatant fluid conditioned for 16 hours on ³⁵S-labeled Ad5TFPI–c-myc–transfected VSMCs (Figure 4B).

As we found high-level cell-associated expression of TFPI by immunohistochemistry, we next determined the direct anticoagulant activity of Ad5TFPI-transfected VSMCs for purified coagulation factors and monocyte TF activity. Factor Xa generation by relipidated TF/VIIa-complex was reduced by 89% ± 3% (**P < .001; Figure 4C) and purified factor Xa activity was reduced by 57% ± 14% (**P < .001; Figure 4D) on Ad5TFPI-transfected rabbit VSMCs compared with untransfected rabbit VSMCs. Monocyte TF activity of LPS-activated U937 cells was inhibited by 65% ± 12% (*P = .0046; Figure 4E) after coculture with TFPI-transfected VSMCs at a 1:1 cell ratio compared with untransfected rabbit VSMCs. In all 3 assay systems, no inhibition was observed with Ad5lacZ-transfected VSMCs. Recalcified clotting time of citrated rabbit plasma was significantly prolonged in the presence of Ad5TFPI-transfected HUVECs (680 ± 102 seconds) compared with Ad5lacZ-transfected HUVECs (533 ± 53 seconds, P = .018), and both were significantly prolonged compared with the clotting time on plastic (370 ± 32 seconds, P < .001), confirming species compatibility (data not shown).

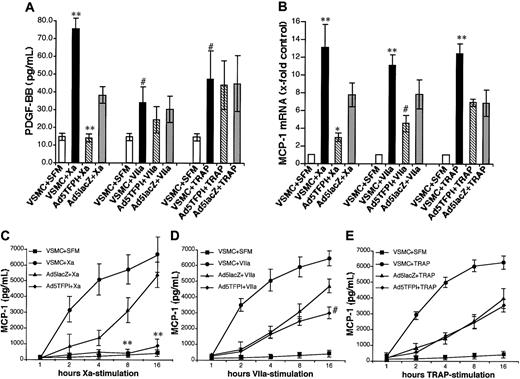

As neointimal MCP-1 was suppressed by TFPI in vivo, we next examined the potential role of the TF pathway in inducing MCP-1 in VSMCs in vitro. MCP-1 mRNA (Figure 5B, 16-hour time point) and protein of VSMCs were increased in response to factor Xa (Figure 5C), factor VIIa (Figure 5D), and TRAP (Figure 5E) in a time-dependent fashion. Adenoviral infection of VSMCs using the control virus Ad5lacZ generally impaired MCP-1 induction by these coagulation factors. However, factor Xa–mediated (**P < .001) and factor VIIa–mediated (#P < .05), but not TRAP-mediated MCP-1 secretion, were significantly reduced by Ad5TFPI-transfected VSMCs compared with virus control after 16-hour stimulation (Figure 5C-E) in accordance with our in vivo finding. Similarly, induction of MCP-1 mRNA by factors VIIa and Xa but not TRAP was significantly inhibited by Ad5TFPI-transfected VSMCs compared with the Ad5lacZ control (Figure 4B). Since pilot experiments showed that coincubation with retinoic acid—a known suppressor of platelet-derived growth factor (PDGF)–induced transcription¹⁶ —antagonized MCP-1 induction by approximately 40% to 50%, we further tested the factor VIIa–, factor Xa–, and TRAP-mediated autocrine PDGF release in untransfected, and TFPI- and control virus–transfected VSMCs. PDGF-BB, a known inducer of MCP-1 in fibroblasts,¹⁶  was significantly increased in media conditioned by factor Xa– (**P < .001), factor VIIa– (#P = .04), or TRAP-stimulated (#P = .03) untransfected VSMCs after 16 hours (Figure 5). Overexpression of Ad5TFPI in VSMCs significantly decreased factor Xa–stimulated (**P < .001; Figure 5) and lowered factor VIIa–stimulated (P = not significant) autocrine release of PDGF-BB compared with control virus transfection. TRAP-induced PDGF release was not antagonized by overexpression of TFPI compared with virus control.

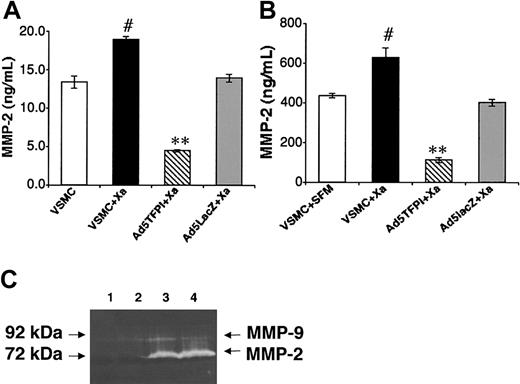

In contrast to vascular MMP-9 expression, which was exclusively associated with macrophages and diminished in TFPI-transfected vessels due to reduced lesional monocyte recruitment, vascular MMP-2 expression was confined to neointimal VSMCs but similarly suppressed in TFPI-transfected vessels. Therefore, we examined factor Xa stimulation of untransfected, and TFPI- and control virus–transfected VSMCs in vitro. Coagulation factor Xa stimulation for 24 hours increased cell-associated and secreted MMP-2 in VSMCs by 34 ± 3% (#P = .01; Figure 6A) and 45% ± 8% (#P = .03; Figure 6B), respectively, and Ad5TFPI transfection of VSMCs significantly inhibited Xa-dependent induction of cell-associated (by 75% ± 1%, **P = .0002; Figure 6A) and secreted (by 82% ± 2%, **P = .005; Figure 6B) MMP-2 compared with control. Factor Xa–induced latent MMP-2 activity (Figure 6C, lane 4: 2730 ± 91 units) was reduced by 30% in TFPI-transfected rabbit VSMCs (lane 3: 1914 ± 39 units, P = .01) as shown by gelatin zymography (Figure 6C). No latent MMP-2 activity was detected without factor Xa stimulation in Ad5TFPI-transfected (Figure 6C, lane 1) and untransfected (lane 2) rabbit VSMCs.

Restenosis caused by local thrombus formation and inflammation in response to balloon injury¹  remains a major limitation in successful endovascular therapy of obstructive atherosclerosis.²²  As fibrin- and platelet-rich thrombi were shown to play a key role in neointima formation, thrombosis soon became a target for antirestenotic therapy.²³  Despite an impressive reduction of restenosis with systemically applied inhibitors of the coagulation cascade in experimental animal models,²⁴  the improvement of periinterventional antithrombotic strategies in the clinical setting of angioplasty using combined regimens of anticoagulant and antiplatelet agents did not significantly lower the incidence of restenosis in humans.²⁵  The failure of systemically administered antithrombotic therapy to efficiently interfere with clinical postangioplasty restenosis in humans is thought to be a result of insufficient local concentration of antithrombotic drugs at sites of balloon injury. Thus, various studies with local application strategies of TFPI protein^23,24,26-31  or TFPI gene^32-35  were undertaken to antagonize local thrombus formation, intimal hyperplasia, or vascular remodeling, generally using a surgical approach for irrigation or transfection. In contrast to these studies, we sought to locally overexpress TFPI using a clinically feasible, catheter-based approach. Short-term adenoviral transfection with a virus titer below the vector-dependent inflammatory threshold (< 1.6 × 10⁹ pfu/mL)³⁶  resulted in transmural expression of the transgene in approximately 60% of media VSMCs. The lack of appositional thrombus formation in TFPI-transfected balloon-injured vessels suggested effective local inhibition of procoagulant TF activity in vivo. Exogenous TFPI was detected at high levels in transfected VSMCs and in media conditioned by these cells in vitro, suggesting paracrine actions of the transgene product.

We further investigated the capacity and mechanisms of TFPI locally secreted into the plaque environment to inhibit restenosis. Importantly, we found a TFPI-dependent reduction in restenosis and identified both anticoagulant and anti-inflammatory mechanisms responsible for this phenomenon. First, we demonstrated that the TFPI-mediated anticoagulant activity in VSMCs was limited not only to the inhibition of purified coagulation factor Xa and TF/VIIa, but also exerted a direct inhibition of monocyte TF, a known determinant of the adhesive and migratory monocyte phenotype.³⁷  Second, our data provided in vitro and in vivo evidence for reduced autologous MCP-1 activity of TFPI-transfected VSMCs. In vitro, coagulation factor Xa– and factor VIIa–induced MCP-1 secretion of VSMCs was significantly reduced by adenoviral overexpression of TFPI compared with virus control. A similar effect was observed for PDGF-BB, which was induced by factors Xa and VIIa stimulation of VSMCs and suppressed by overexpression of TFPI. A functional link between PDGF-BB and MCP-1 secretion in VSMCs by coagulation factors of the TF pathway in vitro was supported by the suppressed induction of MCP-1 upon coincubation with trans retinoic acid, a partial inhibitor of PDGF-BB–mediated transcriptional activity.¹⁶  In vivo, vascular overexpression of TFPI diminished neointimal expression of MCP-1, reduced lesional recruitment of monocytes (a known determinant of the extent of restenosis),³⁸  and shortened the expression of vascular TF (previously shown to be directly induced by MCP-1 in aortic smooth muscle cells).³⁹  Third, we demonstrated diminished expression of monocyte-associated MMP-9 after angioplasty of TFPI-transfected atherosclerotic vessels correlating with reduced lesional infiltration of RAM11⁺ macrophages. Together, these mechanisms contributed to a significant reduction in restenosis mediated by overexpression of TFPI.

Decreased matrix degradation in TFPI-transfected balloon-injured vessel segments was further supported by reduced expression of vascular MMP-2 mRNA and antigen in vivo and by the suppression of vascular gelatinolytic activity of frozen sections on films of Texas Red–conjugated gelatin ex vivo. In addition we could demonstrate diminished Xa-dependent MMP-2 secretion in TFPI-transfected VSMCs in vitro. These findings are in accordance with factor Xa–regulated expression of MMP-2 in VSMCs as reported by Rauch et al.⁴⁰  Intimal hyperplasia may thus be orchestrated not only by MCP-1–mediated direct mitogenic activity⁴¹  and its capacity to attract monocytes to balloon injured vessels, but also by monocyte (MMP-9)– and VSMC (MMP-2)–directed extracellular matrix degradation. In contrast to TFPI-2, which was shown to directly antagonize the activity of MMP-1, -2, -9, and -13,⁴²  TFPI-1 established its anti-inflammatory function indirectly by reducing factor VIIa– and factor Xa–dependent stimulation of VSMCs.

In our in vitro experiments, control virus transfection significantly inhibited Xa-induced MCP-1 and PDGF mRNA expression despite correction for loading using the housekeeping gene GADPH. Similarly, Xa-, VIIa/TF-, and TRAP-induced MCP-1 antigen expression was significantly inhibited by control adenoviral transfection despite correction for protein concentration. One explanation for this phenomenon may relate to the potential of E3-containing first-generation adenoviral vectors—as used in our experimental systems—to attenuate nuclear factor κB (NFκB)– dependent gene expression. As shown previously, NFκB and p90 are required for optimum PDGF induction of MCP-1.⁴³  Adenoviral E3 was shown to prevent NFκB from entering the nucleus by preventing activation of the IκB kinase complex, which is responsible for the inhibitor of NFκB(IκB) phosphorylation and degradation, and thus retains NFκB in the cytoplasm in an inactive state.⁴⁴  Concerning the correlation with in vivo data, we have previously shown that activation of NFκB significantly contributes to lumen loss in a rabbit iliac artery balloon angioplasty model.⁴⁵  Thus E3-containing adenoviral overexpression by itself may contribute to the inhibition of restenosis by interfering with activation and nuclear translocation of NFκB. Aware of the limitation of the adenoviral-vector system used for gene therapy and despite careful correction for virus background, we observed significant inhibition of Xa-induced PDGF-BB and of Xa- and VIIa-induced MCP-1, but not of TRAP-mediated induction of PDGF or MCP-1. Thus, only proteases directly antagonized by TFPI but not the direct protease-activated receptor-1 (PAR-1) agonist were inhibited by Ad5TFPI-transfected VSMCs, which suggests substrate specificity of the transgene product.

Here, we first demonstrated that overexpression of TFPI in VSMCs regulates factor VIIa– and factor Xa–induced PDGF-BB and MCP-1 in vitro. This is in line with previous studies, which reported autocrine release of PDGF, a potent inducer of MCP-1 transcription,¹⁶  in response to factors VIIa⁴⁶  and Xa stimulation^47,48  in various cell systems. We further showed reduced vascular MCP-1 expression, lesional macrophage accumulation, and intimal hyperplasia in balloon-injured TFPI-transfected arteries in vivo. Previous studies reported that selective inhibition of PDGF⁴⁹  or MCP-1⁵⁰  interferes with restenosis and found an in vivo relationship between PDGF and MCP-1 in the process of restenosis.⁵¹  In addition, both factors were demonstrated to induce TF activity in peripheral blood monocytes,⁵²  which we found effectively antagonized by TFPI-transfected VSMCs. Thus, it is conceivable that TFPI-mediated inhibition of MCP-1–dependent mechanisms such as smooth muscle cell proliferation, monocyte chemoattraction, and TF induction may be central to the antirestenotic effect observed in our study.

The receptors for factor VIIa– and factor Xa–signaling MCP-1 induction on VSMCs remain to be defined. TF and effector-cell protease receptor-1 (EPR-1) are the most likely candidate receptors for factors VIIa⁴⁶  and Xa,⁴⁸  respectively, as—similar to our finding in VSMCs—autocrine PDGF release was demonstrated due to these receptor-ligand interactions in fibroblasts. However, a role of PAR-2 as the potential receptor for both factor VIIa/TF and Xa cannot be excluded.⁵³  This proinflammatory pathway appears to be different from the mitogenic effect of factor Xa on VSMCs, which was reported to be independent of PDGF.⁵⁴

In conclusion, our data emphasize a cross-talk between thrombosis and inflammation, both, on the pro- and anticoagulant level of the TF pathway by showing that TF-dependent coagulation and inflammation orchestrate key mechanisms in the process of restenosis, which can effectively be inhibited by catheter-based, adenoviral overexpression of TFPI.

The authors are indebted to Dr Tamara Kopp for thoughtful revision of the manuscript.
