Impaired dendritic-cell homing in vivo in the absence of Wiskott-Aldrich syndrome protein

Dendritic cells (DCs) are highly motile bone marrow–derived antigen-presenting cells (APCs). They have specialized migratory and homing properties that allow them both to initiate primary immune responses and to induce tolerance.^1,2  In lymphoid organs they are present as interdigitating cells in the white pulp of the spleen and in the paracortex of lymph nodes (LNs) where they are able to capture incoming foreign antigen from blood or lymph, respectively. In nonlymphoid tissues DCs act as sentinels of injury and patrol for the presence of foreign antigens and pathogens. Upon capture they migrate to draining secondary lymphoid tissue during which time they mature and develop the capacity to stimulate antigen specific T cells.

The migration and spatial localization of DCs are controlled by numerous extrinsic factors, including chemokine family members to which they are responsive through maturation and localization-dependent mechanisms.^3-7  The physical motility of cells and anchorage in specific tissues is, however, ultimately dependent on the regulated dynamics of the actin cytoskeleton, which determines the response of cells to chemokine gradients and enables purposeful movement through the sequential process of leading-edge protrusion, attachment, and tail retraction.⁸  The molecular control of this highly coordinated activity is orchestrated by Rho family guanosine triphosphatases (GTPases), the best characterized of which are Cdc42, Rac1/2, and RhoA, and their downstream effectors.⁹  In hematopoietic cells, a key effector for Cdc42 is the Wiskott-Aldrich syndrome protein (WASp). WASp is a 502–amino acid member of a conserved family of proteins that participate in the organization of actin polymerization primarily through activation of the actin-related protein (Arp2/Arp3) complex.^10-12  Interference in these signaling pathways results in multiple cytoskeletal defects in DCs, including the failure to form normal membrane projections and specialized structures known as podosomes, which form behind the leading edge of motile cells.^13-16  Podosomes concentrate β2 integrins around an actin core and, although their function has not been clearly identified, are responsible for tight adhesion of cells to intercellular adhesion molecule-1 (ICAM-1) and possibly junctional adhesion molecule-A (JAM-A).^17-19  Furthermore, they are highly dynamic with a turnover of minutes, providing a migrating cell with a mechanism for rapid attachment and detachment, and with localized anchorage points that could facilitate traverse of endothelial barriers in particular.

Wiskott-Aldrich syndrome (WAS) is characterized by microthrombocytopenia, immunodeficiency, eczema, and autoimmunity.¹²  The pathophysiology of WAS relates to defective polymerization of monomeric actin in hematologic cells, although the predominating mechanisms that result in dysregulated immunity have not been clearly identified. Almost certainly the complex phenotype results from multiple defects of cell function and receptor signaling.^20-26  However, defects of migration identified in myeloid and T cells in vitro, and stem cells in vivo,^27-31  all support the hypothesis that many of the immunologic consequences of WASp deficiency arise from abnormal cell homing and spatial localization.

In previous studies, we and others have characterized profound defects of WAS patient DC migration in vitro, including failure to achieve normal polarization and effective translocation. From these observations, it seemed likely that DC trafficking abnormalities in vivo would contribute in a significant way to the immunologic dysregulation of WAS. For example, the failure of DCs to localize appropriately within secondary lymphoid tissue, in the context of normal activation in terms of cytokine production or up-regulation of cell surface ligands, may be sufficient to initiate ectopic and uncontrolled T-cell responses. Similarly, trapping of DCs at peripheral sites following activation may result in the formation of inflammatory foci. These hypothetical consequences of WASp deficiency on DC traffic are difficult to confirm in vivo in patients with WAS. We have therefore used a murine model of WASp deficiency to demonstrate abnormalities of DC trafficking in vivo.

WASp-deficient mice (WASp-null, sv129 background) generated by gene targeting were a gift from Drs S. Snapper and F. Alt (Harvard Medical School, Boston, MA).²¹  The mice were bred and maintained in sterile isolators. Control mice were also from a sv129 background (purchased from Harlan, Leicester, United Kingdom). All animal experiments were approved by the relevant regulatory authorities.

Soluble tachyzoite antigen (STAg) was prepared from tachyzoites of the RH 88 strain of Toxoplasma gondii, as previously described (a gift from C. Reis e Sousa).³²  STAg was administered to mice at a dose of 10 μg per mouse. Lipopolysaccharide (LPS) from Escherichia coli 026:B6 (Sigma, Poole, United Kingdom) was used at 1 μg per mouse. Each stimulus was dissolved in 200 μL and injected intraperitoneally. Control mice received the same volume of phosphate-buffered saline (PBS) only. All animals were killed at the same time. Preliminary experiments showed that the response to STAg of the sv129 strain was comparable to that of other strains previously investigated.

Bone marrow–derived DCs (BMDCs) were prepared as described³³  with some modifications. Bone marrow (BM) from femora and tibiae of mice was distributed into Falcon flasks (BD Biosciences, Bedford, MA) to a final concentration of approximately 1 to 2 × 10⁶cells/mL in RPMI 1640 Glutamax-1 with HEPES (N-2-hydroxyethylpiperazine-N′-2-ethanesulfonic acid, 25mM; Gibco Life Technologies, Paisley, United Kingdom) supplemented with 10% fetal calf serum (Autogen Bioclear, Wiltshire, United Kingdom) and 10 000 IU/mL penicillin and streptomycin (Gibco Life Technologies). Granulocyte-macrophage colony-stimulating factor (GM-CSF) was in the form of a supernatant derived from a plasmacytoma cell line transfected with an expression vector containing the polymerase chain reaction (PCR)–derived mouse GM-CSF gene³⁴  and used at 5% of the conditioned medium (CM). Alternatively recombinant GM-CSF (Insight Biotechnology, Middlesex, United Kingdom) was used at 25 ng/mL. On day 3 growth media was replenished. Cells were then harvested on day 8 by centrifugation.

On day 7 to 8 the floating cell fraction of the BMDC culture was extracted and washed with PBS. Cells were stained with a panel of antibodies including CD11c-fluorescein isothiocyanate (FITC; clone HL3), unlabeled I-A^b supernatant, unlabeled CD80 (clone 1G10), unlabeled DEC205 supernatant, and a monoclonal antibody specific for mouse CCR7,³⁵  in FACS (fluorescence activated cell sorting) washing buffer (FWB). After 45 minutes, cells were washed twice in FWB and stained with FITC-labeled anti-rat (for unlabeled antibodies). After 30 minutes cells were washed again and visualized by flow cytometry using a Beckman Coulter FACS (High Wycombe, United Kingdom).

BMDCs (10⁵), prepared as outlined in “BMDC phenotyping,” were plated on fibronectin (FN)–coated 13-mm coverslips and allowed to adhere for 2 hours at 37°C/5% CO₂. Dunn chambers (Weber Scientific, Hamilton, NJ) were assembled as previously described.^14,36  Inner and outer wells of the Dunn chambers were filled with CM supplemented with GM-CSF. For each experiment 2 Dunn chambers were run in parallel. Dunn chambers were maintained at 37°C/5% CO₂ on a microscope stage. Using an inverted microscope (Olympus, Southall, United Kingdom) cells located on the viewing bridge of the chamber were visualized using a 20 ×/0.4 objective lens with a 1.5 × optivar. Images were acquired using Sony video cameras (CCD-IRIS) and either recorded on to a Betacam SP recorder (Sony, Berkshire, United Kingdom) or on to a personal computer (PC) using AQM:AMVS (Kinetic Imaging, Nottingham, United Kingdom). The camera was set to acquire 1 frame every 10 minutes over a 5-hour period. The processed sequences were then replayed as a movie. To test cell motility to CCL21, BMDCs were isolated as described earlier but with addition of LPS at 0.5 μg/mL on day 6, and with selection of CD11c⁺ cells using magnetic activated cell sorting (MACS) microbeads (clone N418; Miltenyi Biotec, Surrey, United Kingdom) according to manufacturer's instructions on day 7. Matured BMDCs were similar in phenotype to the pre-LPS–treated cells with regard to CD11c⁺ and I-A^b+ expression. Dunn chambers and the outer well of the chamber were either filled with CM or CM supplemented with recombinant murine CCL21 (at 100 ng/mL; R&D Systems, Abingdon, United Kingdom). Dunn chambers were maintained at 37°C on a microscope stage (Zeiss Axiovert 135; Zeiss, Hertfordshire, United Kingdom), and cell motility was recorded using a 10 ×/0.25 objective lens for the next 5 hours (the stimulation period) using a Hamamatsu digital camera (C4742-95) and Improvision Openlab software version 3 (Improvision, Coventry, United Kingdom). Images were first analyzed as described previously^28,37  and processed using Mathematica notebooks version 4 (Wolfram Research, Champaign, IL), which provide detailed statistical data on the rates of leukocyte movement and related migration parameters.

Preliminary experiments examined the amount of FITC required for detection, the solvent requirements, and different time points. On the basis of these results, 0.5% FITC was dissolved in a 1:1 (vol:vol) acetone/dibutyl phthalate mixture immediately before application to give a final concentration of 5 mg/mL. Mice were painted on the abdomen with 0.2 mL FITC. At 4 hours and 18 hours, inguinal LNs were removed, and cell suspensions were obtained after digestion with Liberase CI (Boehringer Mannheim, Mannheim, Germany) and DNAse I (Roche, Basel, Switzerland) for 20 minutes at 37°C. Next, cells were washed twice in PBS/5 mM ethylene diamine tetra-acetic acid (EDTA), and the resultant LN cell suspension was depleted of B cells and T cells using anti-IgG (immunoglobulin G) and anti-Thy.1 Dynabeads (product nos. 114.03 and 114.01; Dynal, Oslo, Norway). LNs were pooled from 2 mice for each category, because insufficient cells could be harvested from individual nodes. Preliminary experiments showed that FITC was not associated with F4/80⁺ cells, supporting the notion that cells migrating to LNs with FITC are DCs, as has been reported previously.³⁸  The remaining cells were stained with biotinylated I-A^b (clone KH74) for 1 hour followed by streptavidin–phycoerythrin (PE) for 30 minutes. After gating on live cells, events (30 000-50 000) were collected using Beckman Coulter FACS machine (High Wycombe, United Kingdom).

Groups of 3 mice were sensitized by application of 15 μL 1% oxazolone in acetone/olive oil (AOO; 4/1) to the whole surface of each mouse ear. Control mice received AOO only. The ears were removed after 4 hours to quantify the number of Langerhans cells (LCs) before and after sensitization, where a drop in LC number of cells indicated emigration from the skin. The method of LC quantification followed has been described previously.³⁹  Briefly, ears were excised and split into dorsal and ventral halves using fine forceps. Dorsal halves were incubated in 0.02 M EDTA at 37°C for 90 minutes to allow separation of the epidermis and dermis. Epidermal sheets were peeled away from the dermis carefully, washed twice in PBS, fixed in acetone (–20°C, 20 minutes), and washed again. The sheets were incubated with biotin–anti-mouse I-A^b (5 μg/mL in PBS with 0.1% bovine serum albumin [BSA], 60 minutes, at room temperature), washed 3 times, and then incubated for an additional 45 minutes with streptavidin-FITC. After further washes the epidermal sheets were mounted in Citifluor AF1 Mountant Medium (Citifluor, Leicester, United Kingdom). LCs were counted on a Zeiss Axiophot2 fluorescent microscope (Zeiss) in 10 fields in the central portion of the ear using a calibrated grid eyepiece in a 40 ×/0.75 objective lens. Results were expressed as the mean plus or minus standard deviation of the number of LCs per square millimeter of epidermis. LCs were imaged on the same microscope and processed using Improvision Openlab software version 3 (Improvision, Coventry, United Kingdom).

Spleens were cut transversely through the hilus, and a slice was rapidly frozen in tissue mounting gel in a dry ice/isopentane bath. The rest of the spleen was used for flow cytometric analysis. Cryosections (7 μm) were cut onto poly-l-lysine–coated slides (BDH, Poole, United Kingdom) and stored at –70°C. Slides were thawed and fixed in acetone at room temperature for 10 minutes and rehydrated in phosphate-buffered saline (PBS). Endogenous peroxidase was blocked with 0.3% H₂O₂. Sections were stained with a biotin-conjugated hamster anti-mouse CD11c antibody (clone HL3) and unconjugated rat anti-mouse CD19 (clone 1D3) in 0.5% Biorad blocker (BioRad Laboratories, Hercules, CA) at a concentration of 5 μg/mL for 1 to 2 hours at room temperature. Antibody-treated sections were washed 5 times in PBS and then incubated with a streptavidin-biotinylated peroxidase complex (Vectastain ABC kit; Vector Laboratories, Peterborough, United Kingdom) for 30 minutes at room temperature. Peroxidase activity was visualized using Immunopure Metal Enhanced DAB (diaminobenzidine) substrate Kit (Pierce, Rockford, IL) and washed again in PBS. To determine CD19 expression, sections were stained with biotin-conjugated mouse F(ab′)₂ anti-rat IgG (1.4 μg/mL; Jackson ImmunoResearch Laboratories, West Grove, PA). After repeated washing, sections were incubated with a streptavidin-biotinylated phosphatase complex (Vectastain, ABC-AP kit) and developed with vector-red substrate (both Vector Laboratories). The tissue was counterstained with methyl green, and after dehydrating, the tissue was mounted in 1,3-diethyl-8-phenylxanthine (DPX) mountant (BDH). All antibodies were purchased from Pharmingen (San Diego, CA) unless otherwise stated. Spleen sections were imaged using a Zeiss Axioplan2 light microscope (Zeiss) equipped with 10 ×/0.3 and 20 ×/0.5 objective lenses. Images were captured with Progress version 5 plugin (Jenoptik, Jena, Germany) for Adobe Photoshop 6.0 software (Adobe Systems, Uxbridge, United Kingdom).

Spleen cell suspensions were obtained as described earlier in “FITC sensitization and detection in LNs.” Spleen cells were fixed in 1% paraformaldehyde in PBS for 10 minutes, washed, and kept overnight in FWB containing PBS, 0.5% BSA, and 0.01% NaN₃ at 4°C. The next day cells at 5 to 10 × 10⁶/500 μL were blocked with anti-mouse Fcγ III/II receptor (clone 2.4G2) at 5 μg/mL for 5 minutes and then stained with either biotinylated rat anti–mouse interleukin 12 (IL-12)p40/p70 (clone C17.8 or 15.6) or biotinylated rat anti-mouse CD40 (clone 3/23) for 1 hour. After 3 further washes with FWB, cells were stained with R-PE conjugated rat anti–mouse CD8α (Ly2) (clone 53-6.7) and FITC-conjugated hamster anti–mouse CD11c (clone HL3), as well as Streptavidin-Cychrome (BD Pharmingen, San Diego, CA). After gating on live cells, events (not < 300 000) were collected on a FACScan cytometer (Becton Dickinson, Mountain View, CA) and analyzed using FlowJo software (Treestar, San Carlos, CA).

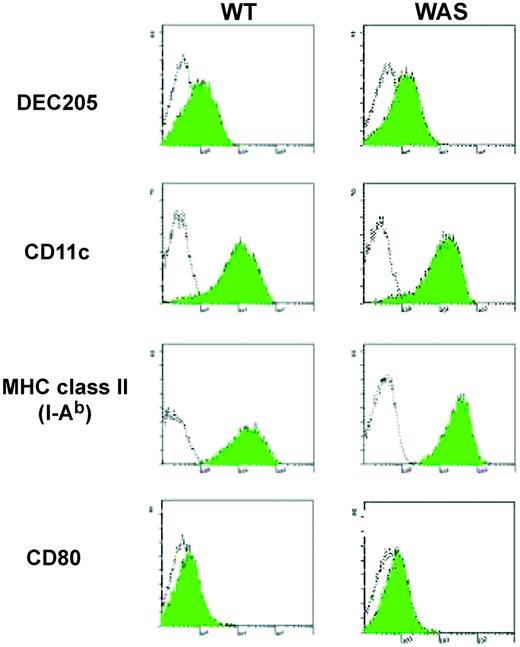

The inability of human DCs derived from patients with WAS to form podosomes and their failure to migrate effectively have been reported previously.^13,28  The actin cytoskeleton, determined by staining of BMDCs with rhodamine phalloidin, was morphologically similar to that of human WASp-null DCs, and podosomes were not formed (Siobhán Burns and A.J.T., unpublished observations, February 2001). The immunophenotype of WASp-null immature BMDCs was the same as that of control cells (Figure 1). Time-lapse video microscopy showed that immature BMDCs derived from control mice moved rapidly across a fibronectin (FN)–coated surface. The BMDCs polarized, formed a clear leading edge, and established transient but stable contact at this end (Figure 2A and supplemental movie 1A). This was followed by retraction of the trailing edge and net forward motion. In contrast, WASp-null BMDCs failed to establish a dominant leading edge and were unable to detach appropriately (Figure 2A and supplemental movie 1B). This resulted in the formation of a relatively static hyperextended cell morphology, oscillation of the cell body between each pole, and restricted translocation (Figure 2B). Therefore, WASp-null murine DCs exhibit a cytoskeletal phenotype in vitro identical to that observed in mutant human cells and are indicative of significant migratory defects.

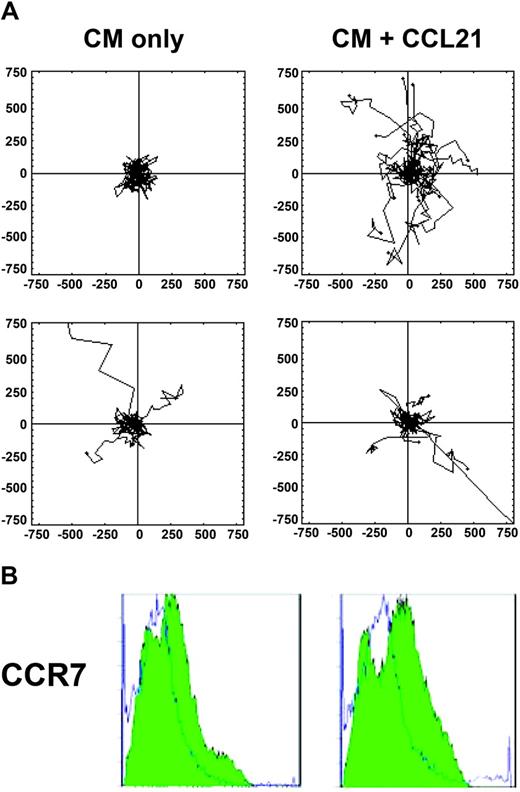

DCs homing to the LN from the skin and within lymphoid tissue are known to involve the up-regulation of chemokine receptor CCR7 and for responsiveness to the CCR7 ligands, CCL21 and CCL19. Specifically, CCL21 is expressed on high endothelial venules (HEVs), by stromal cells within T-cell zones, and on lymphatic endothelium.⁴⁰  The chemokinetic response of WASp-null DCs to CCL21 was therefore tested in vitro. BMDCs that had been matured overnight with LPS (to render them responsive to CCL21), plated on to FN-coated coverslips, were filmed over a 5-hour period in a Dunn chamber. Maturation of normal and WASp-deficient cells determined by up-regulation of CD80, CD86, major histocompatibility complex (MHC) class II was similar (data not shown). As expected, LPS-matured DCs derived from both normal and WASp-null animals migrated minimally in CM medium alone.⁴  In the presence of CCL21, normal BMDCs increased their speed and distance traveled from their origin, while WASp-null cells were significantly less motile (particularly in terms of persistence of migration) over this time period (Figure 3A, and supplemental movie 2A-D). The deficiency of migration could not be accounted for by differences in CCR7 expression, as these were shown to be equivalent both at the level of mRNA (quantitative PCR, data not shown) and surface protein (Figure 3B). Interestingly, the velocity of normal cells to CCL21 is comparable to that observed during contact between primed DCs and T cells in the LN in vivo using the 2-photon microscopy model.⁴¹

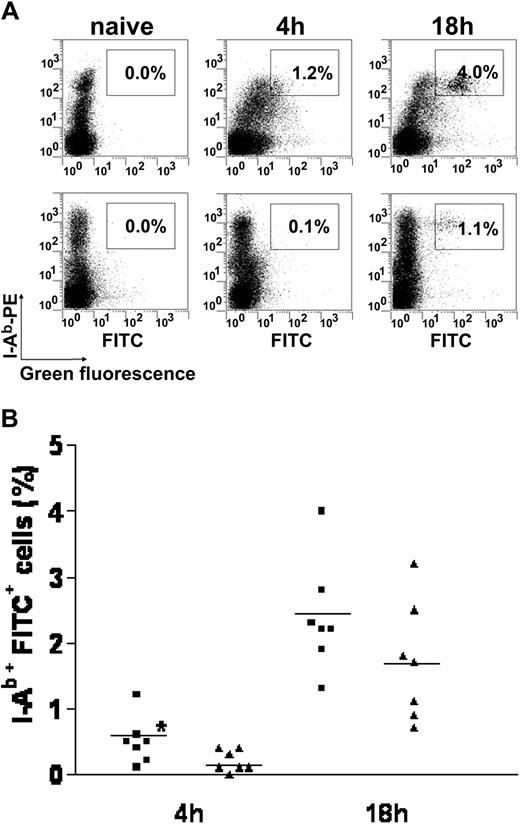

Migration of DCs is important during exit from peripheral tissues, where they enter lymphatics and eventually reach draining lymphoid tissue. To test the hypothesis that DC migration from peripheral sites is compromised in the absence of WASp in vivo, the abdominal skin of normal and mutant mice was sensitized with FITC, and the draining LNs were sampled at subsequent time points. FITC-bearing DCs were identified by flow cytometry using anti–I-A^b following magnetic bead depletion of B and T cells. At 4 hours after sensitization a population of I-A^b+FITC⁺ cells could be detected in normal LNs (Figure 4A), and this was found to be significantly higher compared with that in WASp-null nodes (P < .05, Mann-Whitney test) (Figure 4B). By 18 hours a population of I-A^b+FITC⁺ cells was identified consistently in normal nodes in all experiments (Figure 4A). This was not always seen in WASp-null mice, where in some experiments the population of WASp-null I-A^b+FITC⁺ cells in the LN remained reduced at 18 hours (Figure 4B). However, in the remaining (∼ 60%) of the experiments WASp-null I-A^b+FITC⁺ migrants were found in similar levels to those seen in the normal mice, so that overall the differences were not significant (Figure 4B). These results indicate that the homing response of DCs lacking WASp is impaired at early time points, resulting in reduced numbers of cells reaching the draining lymphoid tissue following peripheral stimulation, and that this lag period of migration can sometimes persist for as much as 18 hours.

In the course of these experiments it was noted that LNs from normal animals responded to challenge by increase in size and cellularity, whereas WASp-null LNs remained relatively unchanged (not shown). The increase in size presumably reflects direct modulation of the kinetics of lymphocyte traffic and production of inflammatory cytokines by migrating DCs as has been shown previously.^42,43  These findings are reminiscent of the response to injection of CCR7⁺ normal DCs, which induce LN congestion, and CCR7^– DCs, which fail to migrate to the LN and do not cause congestion.⁴³  Therefore, abrogated migration of WASp-null DCs to the lymphatics may reflect a reduced response to the CCR7 ligand CCL21, as observed in vitro.

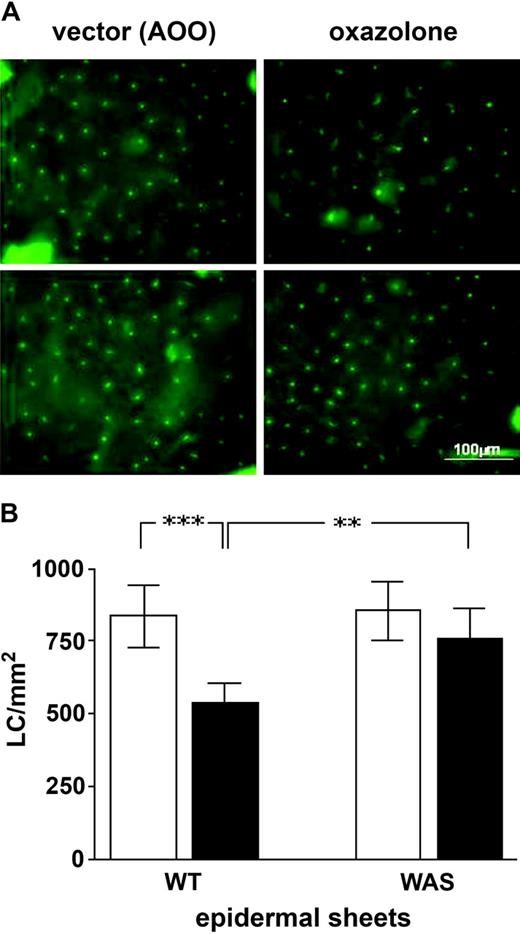

To exclude the possibility that reduced migration of FITC-labeled DCs to regional LNs reflected a quantitative deficiency of peripheral LCs, the number of class II–positive cells in the epidermis was determined by immunohistochemistry. The density of I-Ab⁺ LCs in the skin of normal and WASp-null mice was comparable (sv129 control, 815 ± 104 LC/mm²; WASp-null, 821 ± 96 LC/mm²; Figure 5A), indicating that the steady-state maintenance of LCs in skin, which is dependent on self-renewal, is not compromised quantitatively in the absence of WASp.⁴⁴  Next, we investigated whether a contribution to the reduction in DC traffic in WASp-null mice was caused by an inability of adequate numbers of LCs to emigrate from the epidermis. Normal and WASp-null mice were sensitized with oxazolone, and the density of LCs in the epidermis was again determined. Previous studies have shown that the greatest reduction in epidermal LCs occurs at 4 hours.^39,45  In this study, 4 hours after application of oxazolone there was an expected loss of LCs from the epidermis of normal ears. In contrast, levels of WASp-null LCs remained unchanged compared with those of vector (acetone and olive oil [AOO])–treated ears (Figure 5A). In normal mice there was a significant decline in LC frequency in sensitized skin compared with vector-treated skin (from 836 ± 107 LC/mm² to 535 ± 71 LC/mm²; P < .001; Student t test) (Figure 5B). Sensitized LC frequencies in normal mice were also significantly lower compared with those of WASp-null mice (P < .005; Student t test). LC numbers in WASp-null epidermal sheets were not significantly different from those that had been treated with vector alone (from 855 ± 101 LC/mm² to 761 ± 101 LC/mm²; Student t test) (Figure 5B). These findings indicate that at least a component of reduced migration to draining lymphoid tissue is due to compromised emigration from peripheral sentinel sites but does not exclude a contribution from defects in traffic through the lymphatics and entry into LNs.

DCs are also mobilized within lymphoid tissue in vivo during an immune response to systemic antigen. This response was examined by intraperitoneal challenge with microbial agents, STAg or LPS, that are known to drain into the spleen and stimulate immature interdigitating DCs to migrate exclusively within the T-cell zone and to form tight clusters.^32,46  Having established that the distribution of interdigitating DCs in unstimulated WASp-null spleen was normal, the mice were challenged with the microbial stimuli. DCs from both normal and WASp-null mice were found to redistribute 6 hours after injection of STAg, forming clusters in T-cell areas (Figure 6A). However, in contrast with the normal spleens, in WASp-null spleens a higher proportion of DCs were retained ectopically in the marginal zone (MZ), suggesting that there was incomplete mobilization to the T-cell zones (Figure 6B). Similar abnormalities of DC migration were observed following administration of LPS (Figure 6B).

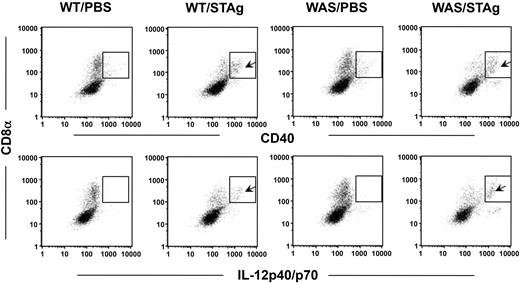

Mobilization of DCs in response to challenge has been shown to coincide with increased expression of CD40 and production of high levels of IL-12.³²  As expected, following administration of STAg, CD8α⁺ DCs from control mice up-regulated expression of CD40 and secreted IL-12p40/p70 (Figure 7). DCs from WASp-null mice showed similar patterns of activation, indicating that these processes are largely independent of WASp. In addition, overnight culture of 10⁵ splenocytes from STAg-primed mice revealed no significant difference in the levels of IL-12p40/p70 compared with splenocytes from control mice as measured by enzyme-linked immunosorbent assay (ELISA; data not shown).

A confounding observation was that the splenic architecture of WASp-null animals (maintained in a sterile environment) was morphologically distinct from that of control animals with respect to several features. WASp-null mice often exhibited splenomegaly, and, although B- and T-cell segregation was observed, the white pulp was spatially disorganized and unevenly distributed (see Figure 3A), forming larger aggregates that are normally seen on equivalent transverse sections. A narrower marginal zone with marked depletion of MZ B cells was also noted (not shown), similar to that seen in human splenic tissue from patients with WAS.⁴⁷  These abnormal features could compromise appropriate localization of WASp-null interdigitating DCs to T-cell areas, although WASp-null primary (immature) splenic DCs sorted for CD11c⁺ and I-A^b+ expression by FACS (≥ 98% purity) displayed defective motility on FNs similar to that observed for BMDCs (data not shown). We conclude therefore that migration of mutant CD8α splenic DCs is compromised as a result of intrinsic cytoskeletal defects, but that activation can be initiated normally.

In this study we have shown that WASp-null DCs exhibit defects of cell migration at multiple levels in vivo, including emigration from skin, trafficking to draining LNs, and spatial localization within the LNs. There are clearly many ways in which these defects could contribute to immune dysregulation. Inefficient delivery of antigen to lymphoid tissue would compromise the development of physiologic immune responses, and activation without migration to a regulated microenvironment could result in the initiation or propagation of ectopic inflammatory processes. The maintenance of tolerance, and the homeostatic regulation of naive and memory T-cell populations, which require varying degrees of interaction between MHC and T-cell receptor (TCR) to preserve numbers and function, might therefore also be disturbed.⁴⁸  As shown in this study, the defects of cell migration in vivo are not absolute, and proper localization may be achieved over time. However, the requirement for coordinated interaction (both temporal and spatial) between antigen, immune cells such as DCs and T cells, and their microenvironment would predict that subtle aberrations might well be sufficient to dysregulate normal immune mechanisms. Contributions from intrinsically defective TCR signaling or T-cell trafficking are also probable and will require the development of lineage-specific murine models of WASp deficiency in order to be evaluated fully.

Abnormalities of WASp-null DC migration, which previously have been described in human cells, are as shown here, mirrored in murine cells. The underlying cellular mechanisms are probably multiple but relate to the defective function of the actin cytoskeleton. It is likely that mutant DCs are defective for chemotaxis (the directional response to stimuli) as has been observed in macrophages.^27,29  This reflects defective polarization and formation of filopodia, which are necessary for a normal chemotactic response as demonstrated by inhibition of Cdc42 in a Bac1 macrophage cell line.³⁷  However, the quality of migration of WASp-null DCs is also highly disturbed, both in terms of development of a dominant leading edge and retraction of the tail. This is indicative of defects in protrusive activity and in the dynamics of adhesion. Unsurprisingly, many aspects are mimicked by inhibition of Rho GTPases by Clostridium difficile toxin B.¹⁵  The absence of podosomes may contribute significantly to the inability of cells such as DCs and macrophages to rapidly attach and detach from substrata. The formation of these structures is regulated in a concerted way by Cdc42, Rac, and RhoA but is absolutely dependent on WASp.¹⁴  Maturation of DCs is associated with the disappearance of podosomes within 2 to 4 hours, suggesting that they are important early on in the migratory process of peripheral DCs on the way to draining secondary lymphoid tissue.¹⁹  The concentrated expression of the β2-family of integrins on DC podosomes also suggests that a key function is for diapedesis, including entry or exit from the lymphatic system through interaction with molecules such as ICAM-1 or JAM-A.

Together, abnormalities of DC migration, and of migration of T and B lymphocytes, are likely to be responsible for the observed disorganization of microarchitecture in the lymphoid tissues of WASp-null animals. There is some resemblance to the findings in CCR7-deficient animals, where failure of lymphocyte and DC migration leads to profound abnormalities in the microarchitecture of all secondary lymphoid tissue.⁴⁹  CCR7 is responsible for migration of DCs to lymphatics and is up-regulated following activation.⁵⁰  The ligands for CCR7 are CCL19, expressed by stromal cells and mature DCs in T-cell areas, and CCL21, expressed by lymphatic endothelial cells. Unsurprisingly, therefore, DCs from CCR7-null mice, although able to activate normally in vitro, fail to migrate to draining LNs⁴⁹  and also fail to induce changes in the kinetics of lymphocyte traffic that normally result in LN congestion after DC migration.⁴³  Defects of DC accumulation in T-cell zones have also been demonstrated in plt/plt mice that are functionally deficient in both CCL19 and CCL21.⁵¹  CCR7 has also recently been shown to be a key regulator of DC migration into afferent dermal lymphatics under inflammatory and steady-state conditions, suggesting an important role for maintenance of peripheral tolerance as well as for generation of protective immunity.⁵²  As shown in this study, WASp-null DCs exhibit a reduced response to CCL21 and also defective homing to lymph nodes. We also noted that the kinetics of lymphocyte traffic after contact sensitization was not normally increased in WASp-null animals. Although not conclusive, it is likely that these observations are directly linked. It is also likely that WASp-null DCs are compromised in their ability to respond to other specific chemokinetic stimuli, eg, during clustering in T-cell areas after challenge with systemic microbial antigen, although this has not yet been investigated in detail. The contribution of abnormal DC trafficking to the immunodeficiency (and breakdown of tolerance) in the WAS is difficult to ascertain because of deficiencies in multiple immune cell lineages. The development of lineage-restricted WASp-deficient models may be useful in this context. Likewise, CCR7 mediates trafficking of both DCs and lymphocytes, and, although a direct parallel cannot be drawn between WASp deficiency and CCR7 deficiency, the delayed antibody responses and delayed-type hypersensitivity (DTH) reactions that have been observed in both models could arise (at least in part) from similar trafficking defects.

In summary, we have demonstrated in this study that WASp is a key molecule for the regulated migration and trafficking of DCs in vivo and suggest that defects in this process may promote abnormalities of immune response and maintenance of tolerance. We also suggest that disturbances of immune cell trafficking, including DCs, are likely to provide an explanation for many of the immunologic abnormalities of the WAS.

We would like to thank Deborah Aubyn from the Light Microscopy Laboratory (CRUK) and Siobhan Burns (Molecular Immunology, ICH) for their assistance.
