Functional analysis of mutations in the kinase domain of the TGF-β receptor ALK1 reveals different mechanisms for induction of hereditary hemorrhagic telangiectasia

Hereditary hemorrhagic telangiectasia (HHT), or Osler-Rendu-Weber syndrome, is an autosomal dominant vascular dysplasia with characteristics of nasal and gastrointestinal hemorrhage. This vascular malformation is reminiscent of defects in vascular remodeling and maturation.¹  Type 2 HHT (HHT2) is caused by mutations in the gene encoding ALK1 (activin receptor-like kinase 1),²  which is a type I receptor for transforming growth factor-β (TGF-β) and is predominantly expressed in endothelial cells.³  ALK1 is activated by the TGF-β type II receptor (TβRII) in the presence of TGF-β, and transduces its signal via Smad1/5.^4-7  Targeted disruption of the Alk1 gene in mice results in embryonic lethality owing to abnormal vascular development, including excessive fusion of capillary plexes into cavernous vessels and hyperdilation of large vessels.^6,8  Similarly, the homozygous mutation of zebrafish ALK1-violet beauregarde (vbg) leads to an abnormal circulation with dilated cranial vessels.⁹  These results strongly suggest an essential role for ALK1 in the establishment and maintenance of blood vessel integrity.

More than 100 different mutations, including frame-shift, nonsense, and missense mutations, have been identified in the ALK1 gene from patients with HHT2. These mutations are distributed throughout the protein, though most (about 70%) cluster in the intracellular kinase domain.^10-14  How these mutations affect ALK1 function is poorly understood. To elucidate the mechanism underlying the contribution of ALK1 mutations to HHT, we constructed 11 ALK1 mutants and analyzed their activities in vitro and in vivo. Our results revealed that HHT mutations of ALK1 can cause either loss-of-function or dominant-negative effect, suggesting that the reduced level of functional ALK1 protein may contribute to the vascular malfunction related to HHT.

ALK1 mutants were generated through site-directed mutagenesis by polymerase chain reaction (PCR) using appropriate primers with desired mutation and were subcloned into mammalian expression vector pCMV5. The validity of all mutations was confirmed by DNA sequencing. All the constructs were tagged at the C-terminus with the hemagglutinin (HA) epitope.

HEK293T and COS7 cells were grown in Dulbecco modified Eagle medium (DMEM) supplemented with 10% fetal bovine serum (FBS) and Hep3B cells were maintained in MEM with 10% fetal bovine serum in 5% CO₂ at 37°C. Transfection was performed with calcium phosphate for HEK293T cells or using LipofectAMINE (Invitrogen, Carlsbad, CA) for Hep3B and COS7 cells.

Forty hours after transfection, cells were harvested for determination of luciferase activity with a luminometer (Berthold Technologies, Baden-Wuerttenberg, Germany), as described previously.⁷  All assays were performed in triplicate.

Cells transfected with HA-tagged receptors were biotinylated with 0.5 mg/mL NHS-SS-biotin (Pierce, Rockford, IL) for 40 minutes at 4°C, as described previously.¹⁵  Biotinylated surface receptors were precipitated with ImmunoPure Streptavidin beads (Pierce) and analyzed by anti-HA immunoblotting.

Forty-eight hours after transfection with the appropriate plasmids, HEK293T cells were washed once with DMEM containing 0.2% FBS and incubated in the presence of 200 pM TGFβ1 for 30 minutes. Protein complexes containing Flag-tagged Smad1(ΔCT) were immunoprecipitated with anti-Flag monoclonal antibody M2 (Sigma, St Louis, MO) and protein A-Sepharose beads (Zymed, San Francisco, CA). Protein complexes containing His-tagged TβRII were precipitated with Ni-NTA beads (Qiagen, Valencia, CA). The precipitated protein complexes were analyzed by immunoblotting with anti-HA, anti-Flag, or anti-His antibodies (Santa Cruz Biotechnology, Santa Cruz, CA).

For the Smad1 phosphorylation assay, transfected COS7 cells were harvested and phosphorylated Smad1 and total Smad1 proteins were detected by anti–phospho-Smad1 antibody (Chemicon, Temecula, CA) and anti-Smad1 antibody (Santa Cruz Biotechnology), respectively.

Messenger RNA generated using the T7 Cap-Scribe Kit (Roche, Milan, Italy) was injected into one-cell stage zebrafish embryos (1 ng ALK1 mRNA in a volume of 0.003 μL per embryo, except for ca-ALK1, for which 150 pg mRNA was used due to severe embryo lethality). Digoxigenin–uridine 5′-triphosphate (UTP)–labeled antisense RNA probes were generated by in vitro transcription. The probes for eve1 and gata2 were described by Joly et al¹⁶  and Detrich et al,¹⁷  respectively. Whole-mount in situ hybridization followed the standard protocol with minor modifications.¹⁸  The live zebrafish were placed in 6% methylcellulose solution (Sigma, St Louis, MO); images were obtained at an original magnification of × 80 by using a 8 ×/0.14 numeric aperture (NA) Planapo objective lens. In situ–hybridized embryos were stained with purple alkaline phosphatase substrate (Roche, Milan, Italy) and placed in glycerol; images were obtained at an original magnification of × 110 by using a 11 ×/0.14 NA Planapo objective lens. All images were visualized using a Leica MZ16 microscope (Leica, Heidelberg, Germany) equipped with a Spot Insight 3.2.0 color camera (Diagnostic Instruments, Sterling Heights, MI). Images were processed with Adobe Photoshop 7.0 software (Adobe Systems, San Jose, CA).

To investigate the effect of HHT2-related ALK1 mutations on receptor activity, we generated 11 mutants, which represent the human mutations in the intracellular kinase domain.^19-23  The residues S333, R374, M376, and P424 are conserved in most protein kinases. The residues C344, I398, A400, E407, R411, and R484 are conserved in the TGFβ type I receptor family. ALK1(1-308) is a truncated mutant that lacks most of the kinase domain.

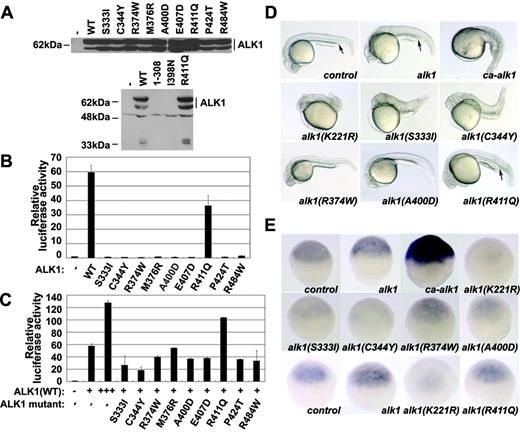

To determine whether these mutations affect protein expression, we transfected these ALK1 mutant constructs into HEK293T cells and detected the mutant proteins by anti-HA immunoblotting. As shown in Figure 1A, expression of both ALK1(1-308) and ALK1(I398N) was not detected, indicating that these 2 mutations affect protein expression and/or destabilize the proteins or mRNA, whereas the other mutants were expressed at levels comparable to wild-type ALK1.

Next, we investigated the effect of these mutations on ALK1 activity, using a Smad1-responsive transcriptional reporter, BRE₄-luciferase.²⁴  The reporter assay was carried out in human hepatoma Hep3B cells, which do not express ALK1 (data not shown). In the absence of exogenously added TGF-β, overexpression of wild-type ALK1 was able to stimulate the expression of BRE₄-luciferase, whereas most mutants were defective in activating the reporter gene, except for ALK1(R411Q), which exhibited a reduced activity (Figure 1B). Similar results were obtained in the presence of TGF-β.

As many HHT2-related ALK1 mutations occur in only one allele of the ALK1 locus, the mutations in the coding region of the ALK1 gene could lead to generation of alleles lacking receptor activity or alleles with dominant-negative functions. To test these possibilities, we cotransfected wild-type ALK1 and individual mutants into Hep3B cells and assayed the effect of the mutants on the ability of wild-type ALK1 to activate the transcriptional reporter. As shown in Figure 1C, the mutants ALK1(S333I) and ALK1(C344Y) apparently had dominant-negative effects by suppressing the activity of wild-type ALK1. ALK1(R411Q) was able to collaborate with wild-type ALK1 to activate the reporter, consistent with the result that this mutant retains a reduced receptor activity. However, the other mutants had little or no effect on wild-type ALK1.

ALK1 is structurally and functionally conserved between humans and zebrafish.⁹  To further analyze the functions of these human ALK1 mutants in vivo, the mRNAs encoding wild-type and mutant ALK1 were injected into single-cell zebrafish embryos. About 30% of embryos injected with 1 ng human wild-type ALK1 mRNA exhibited a weakly ventralized phenotype with expanded intermediate cell mass (equivalent to mammalian blood islands) at 24 hours after fertilization (hpf) (Figure 1D). When injected with the mRNA expressing the constitutively active form ca-ALK1, ALK1(Q201D),⁷  more than 90% of embryos died even at a dose of 150 pg mRNA, and all the surviving embryos were severely ventralized and characterized by an expanded intermediate cell mass and loss of both anterior structures and the notochord (Figure 1D). This result is consistent with the previous report that overexpression of zebrafish active ALK1 induces embryo ventralization.⁹  Conversely, the dorsalized phenotype was observed when a kinase-dead dominant-negative form ALK1(K221R)⁹  was overexpressed; about 80% of the surviving embryos exhibited an enlarged head and a short tail (Figure 1D). Overexpression of ALK1(S333I) and ALK1(C344Y) caused dorsalization of 47% and 29% of the surviving embryos, respectively (Figure 1D), whereas expression of ALK1(R374W) or ALK1(A400D) had no apparent effect.

The effect of these mutants on dorsoventral patterning of zebrafish embryos was supported by examination of the expression of the ventral ectoderm marker gata2 at the shield stage (∼6 hpf). Increased expression of gata2 indicates ventralization of the embryos.¹⁷  Both ALK1(S333I) and ALK1(C344Y), like the dominant-negative ALK1(K221R), reduced gata2 expression, whereas ALK1(R374W) and ALK1(A400D) had no obvious effect (Figure 1E, upper panel). Similarly, ALK1(S333I) and ALK1(C344Y) decreased the expression of eve1,¹⁶  a ventral mesoderm marker (data not shown). Taken together, these data suggest that both ALK1(S333I) and ALK1(C344Y) function in a dominant-negative manner to induce embryonic dorsalization. Consistent with our reporter assay data, overexpression of ALK1(R411Q) led to a ventralized phenotype in about 20% of embryos (Figure 1D) and slightly increased expression of gata2 (Figure 1E, lower panel). These results suggest that ALK1(R411Q) still retains some activity.

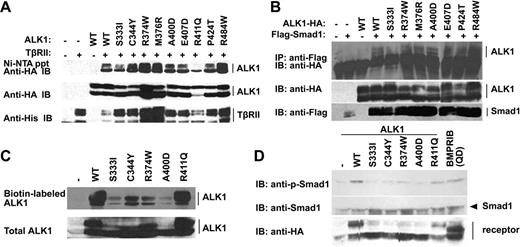

We next attempted to investigate the mechanism by which these mutations influence ALK1 activity. As the interaction of ALK1 with TβRII and Smad1/5 is essential for ALK1 signaling, we examined the ability of ALK1 mutants to associate with TβRII and Smad1. We found that all of the expressed mutants were able to interact with TβRII and Smad1 (Figure 2A-B). To investigate whether these mutations influence receptor trafficking to the cell surface, biotinylation analysis was performed to detect the surface expression of wild-type and mutant ALK1. We selected 5 mutants for further analysis that represented 3 types of function alterations: dominant-negative effect (S333I and C344Y), loss of function (R374W and A400D), and reduced activity (R411Q). Both wild-type and R411Q were highly expressed at the cell surface, whereas the other 4 mutants, S333I, C344Y, R374W, and A400D, were expressed at lower levels (Figure 2C), indicating that these mutations may influence receptor trafficking to the cell surface. Finally, we examined the effect of these mutants on Smad1 phosphorylation. Expression of wild-type ALK1 and R411Q enhanced Smad1 phosphorylation in the presence of TGF-β, whereas expression of other mutants did not alter levels of phosphorylated Smad1 (Figure 2D), consistent with the reporter assay results shown in Figure 1B.

Taken together, our functional analyses suggest that the HHT2-linked ALK1 mutations might contribute to the vascular disorder through different mechanisms of influencing ALK1 activity. Some mutations, such as S333I and C344Y, generate a dominant-negative effect, whereas the others give a null phenotype through loss of protein expression or function. However, it is unclear how R411Q contributes to HHT2 phenotypes, as ALK1(R411Q) still retains certain activity. It is possible that the reduced activity is sufficient to cause the disease phenotypes or that there exists another functional mutation in these patients. Because of limited information about the patients with HHT2 carrying these ALK1 mutations, it is difficult to correlate the types of alterations in ALK1 functions with the severity of HHT disease phenotypes. Nevertheless, these data strongly suggest that proper ALK1 signaling activity is required for its normal functions in endothelial cells, and its haploinsufficiency or dominant-negative effect resulting from the mutations of a single allele of the ALK1 locus may contribute to defects in vascular remodeling and integrity maintenance.

We thank Dr Brant M. Weinstein for ALK1(K221R) plasmid, and Drs Aaron Gitler, Jing-Wei Xiong, and Jing-Dong Han for critical reading of the manuscript.
