The β-tail domain (βTD) regulates physiologic ligand binding to integrin CD11b/CD18

Integrins are αβ heterodimeric receptors normally expressed in an inactive state on the cell surface but can switch rapidly and reversibly to the active physiologic ligand-binding state in response to inside-out activation signals generated from within cells (reviewed by Hynes¹ ). The integrin ectodomain consists of a “head” segment on top of 2 “leg” segments^2,3  (Figure 1). The head segment is formed of a 7-bladed β propeller from the α subunit that associates noncovalently with a von Willebrand factor type A (VWFA) domain (βA or I-like) from the β subunit. The α-subunit leg is formed of an Ig-like “thigh” domain followed by 2 large β-sandwich domains, calf-1 and calf-2. The β-subunit leg is formed of an Ig-like “hybrid” domain inserted into the N-terminal PSI domain,^4,5  followed by 4 EGF-like domains and a novel beta tail domain (βTD)²  (Figure 1). In native integrins, each leg terminates in a single membrane-spanning segment and a short cytoplasmic tail. The prototypical ligand Arg-Gly-Asp binds to the head segment such that the ligand aspartate engages βA through a metal ion coordinated at the metal ion–dependent adhesion site (MIDAS) and the ligand arginine fits an adjacent pocket in the propeller.³  One half of the integrin α subunits have an additional VWFA domain (αA or I) inserted between blades 2 and 3 of the propeller. αA exists in inactive and active conformations, and the α1 helix, the βF-α7 (F/α7) loop, and α7 helix are known to be involved in this transition.^6-8  In the active conformation of αA-containing integrins, a C-terminal glutamate from active αA ligates the βA MIDAS, stabilizing the high-affinity state.⁹

Integrins assume a compact conformation bent at their αβ “knees” (located between the thigh and calf-1 domains of the α subunit and presumably EGF1 and EGF2 of the β subunit) such that the head contacts the lower legs of the same molecule.²  Earlier electron microscopy (EM) images showing genu-straightened integrins¹⁰  led to the early suggestion that inside-out activation (induction of physiologic ligand competency) takes place as a result of a switch from the bent to the linear state.¹¹  Additional studies have shown, however, that such a global change is not required for switching to high-binding affinity,^12-15  suggesting that local changes may be sufficient to enable physiologic ligand binding in the bent state (reviewed by Ginsberg et al¹⁶ ). In the crystal structure of the unliganded αVβ3 ectodomain,²  the βA and hybrid domains make discontinuous intramolecular contacts with the βTD, covering a combined approximately 33.4 nm² of surface area. In this article, we examine the role of βTD's CD loop, which contacts βA, in physiologic ligand binding to integrin CD11b/CD18. The results reveal an important allosteric function for the βTD in regulating physiologic ligand binding by this integrin.

Restriction and modification enzymes were obtained from New England Biolabs (Beverly, MA), Gibco BRL (Gaithersburg, MD), or Fisher Scientific (Pittsburgh, PA). All cell culture reagents were from Invitrogen (San Diego, CA). The anti-CD11b monoclonal antibody (mAb) 44a (IgG2a),¹⁷  the anti-CD18 mAb TS1/18,¹⁸  the heterodimer-specific mAb IB4 (IgG2a),^19,20  and a polyclonal anti-CD18 antibody²¹  have been described previously. mAbs KIM127 and 24 (both IgG1) were kindly provided by M. Robinson²²  and N. Hogg,²³  respectively. Isotype control antibodies MOPC-21 (IgG1) and MOPC-173 (IgG2a) and FITC-conjugated mAbs A85-1 (rat anti–mouse IgG1), R19-15 (rat anti–mouse IgG2a), and goat anti–mouse Ig were from BD PharMingen (San Diego, CA).

Site-directed CD18 mutants were created using standard recombinant DNA protocols²⁴  in pcDNA3 expression vectors.²⁵  The following forward (For) and reverse (Rev) oligonucleotides were used, each followed by the newly introduced restriction site in parentheses: For: 5′-CACGCTGGAGCAGCAGGACtcGtccGgCCGCTACCTCATCTATGTGGATG-3′ (Eag); Rev: 5′-CATCCACATAGATGAGGTAGCGGcCggaCgaGTCCTGCTGCTCCAGCGTG-3′ (Eag); For: 5′-CTACACGCTGGAGCAGCAGaACGGtAccGACCGCTACCTCATCTATGTGG-3′ (Kpn); Rev: 5′-CCACATAGATGAGGTAGCGGTCggTaCCGTtCTGCTGCTCCAGCGTGTAG-3′ (Kpn); For: 5′CACGCTGGAGCAGCAGGcCGGGgcGGcCCGgTACCTCATCTATGTGGATGAGAGCC-3′ (Kpn); Rev: 5′-GGCTCTCATCCACATAGATGAGGTAcCGGgCCgcCCCGgCCTGCTGCTCCAGCGTG-3′ (Kpn).

Polymerase chain reaction (PCR)–amplified DNA was transferred back into the original CD18-containing expression vector using Eco47III and AvrII restriction sites. Each mutation was confirmed by the presence of the introduced restriction site and by DNA sequencing.

Transient transfection assays were carried out in HEK293 cells (American Type Culture Collection [ATCC], Manassas, VA) as described.⁹  Briefly, HEK293 cells were plated on tissue culture–treated p-10 plates (Clontech, Palo Alto, CA) and maintained in complete medium consisting of Dulbecco modified Eagle medium ([DMEM] Gibco BRL) supplemented with 10% heat-inactivated fetal bovine serum (Gibco BRL) and 50 IU/mL penicillin and streptomycin (Gibco BRL) at 37°C. The cells were detached with 0.05% Trypsin-EDTA solution (Gibco BRL) and plated in wells of 6-well plates at a concentration of 1 × 10⁶ cells per well. Cells at about 70% confluence were transfected with supercoiled cDNA encoding wild-type (WT) and mutant CD18 together with WT CD11b using Lipofectamine2000 reagent (Invitrogen) and following the manufacturer's protocol. Transfected cells were grown for 24 hours at 37°C in 5% CO₂. Cells were then carefully washed and detached with the 0.05% Trypsin-EDTA solution, counted, and seeded in replicates for 24 hours onto poly-l-lysine (Sigma Chemical, St Louis, MO)–coated 48-well plates (Clontech). Confluent monolayers in the 48-wells were then used for integrin cell surface expression and ligand-binding assays.

Stable transfection of WT and mutant integrins was carried out in K562 cells (ATCC) using published electroporation protocols.²⁰  Briefly, K562 cells were grown to log phase in Iscove modified Dulbecco medium ([IMDM] CellGro; Mediatech, Herndon, VA) supplemented with 10% heat-inactivated fetal bovine serum and 50 IU/mL penicillin and streptomycin at 37°C and resuspended in serumfree IMDM at about 1 × 10⁷/mL. A total of 0.5 mL of cells were transferred into a 0.4 cm cuvette (Fisher Scientific), and 10 μg WT CD11b and 10 μg WT or mutant CD18 cDNA were added. Electroporation was carried out at 960 μF and 320 volts (Gene-Pulser; Bio-Rad Laboratories, Hercules, CA). Transfectants were allowed to recover in serum-containing media for 48 hours and were then selected with 1 mg/mL G418 (Gibco BRL) for up to 2 weeks. CD11b/CD18-expressing cells were enriched by fluorescence-activated cell sorter (FACS) (on FACS Sort; BD Biosciences, San Jose, CA) using the heterodimer-specific mAb IB4.^20,26  Sorted cells were cloned by limiting dilution, and clones with similar levels of integrin expression were identified by flow cytometry for further analyses. WT and mutant K562 were maintained in IMDM supplemented with 10% heat-inactivated fetal bovine serum, 50 IU/mL penicillin and streptomycin, and 1 mg/mL G418. K562 cells stably transfected with WT CD11b/CD18 using the expression plasmid EE6 hCMV carrying a G418 resistance marker were also provided by Dr D. Simon²⁷  with similar results.

Sheep erythrocytes (E) coated with complement iC3b (EiC3b) were prepared using human serum following published protocols.²⁸  A slight modification was made in that Hanks balanced buffer solution ([HBSS] Gibco BRL) was used instead of the VBSG buffer. Coated and biotinylated erythrocytes (EiC3b and E) were diluted to a concentration of 1.5 × 10⁷/mL to 6 × 10⁷/mL for the ligand-binding assay.

Binding of mAbs and EiC3b to transiently transfected HEK293 cells was performed in parallel in 48-well plates as described.⁹  Integrin cell surface expression was analyzed using anti-CD11b and anti-CD18 mAbs. Briefly, triplicate wells containing confluent monolayers of transfected cells, approximately 48 hours after transfection, were incubated with primary mAbs (10 μg/mL) in DMEM buffer containing 0.1% gelatin and 0.02% sodium azide for 1 hour at 4°C. Binding assays with mAb KIM127 were performed for 30 minutes at 37°C as described.^22,29  Cells were washed and incubated with biotin-labeled rabbit antimouse antibody (Vectastain ABC-kit; Vector Laboratories, Burlingame, CA) for 1 hour at 4°C, washed 3 times, and subsequently fixed with 1% glutaraldehyde overnight at 4°C. After blocking, wells were developed using streptavidin–alkaline phosphatase ([AP] Vectastain ABC-kit; Vector Laboratories) and p-nitrophenyl phosphate ([PNPP] Sigma Chemical) to generate a colored product. The enzymatic reaction was quenched with equal volumes of 2N NaOH, 100 μL of this solution was transferred to 96-well plates (Costar, Corning, NY), and OD₄₀₅ was measured. Binding results, reported as histograms representing mean ± SD of triplicate wells, were normalized such that binding of each antibody to the WT receptor was considered 100.

Ligand binding was assessed by adding 150 μL EiC3b (60 × 10⁶/mL) to triplicate confluent wells in a total volume of 300 μL followed by a 15-second spin at 60g. After 35 minutes of incubation at 37°C, wells were washed and subsequently fixed with 1% glutaraldehyde. Wells were developed using AP and PNPP and binding quantitated. Specific binding was obtained by subtracting background binding of mock-transfected cells and expressed as percentage of binding to WT obtained in the presence of Ca²⁺+Mg²⁺ after correcting for expression using mAb IB4 as previously described.³⁰

Immunoprecipitation followed by a Western blot analysis was carried out to confirm heterodimerization of WT and mutant CD11b/CD18 integrins on the surface of transfected cells. Confluent, transfected HEK 293 cells in 6-well plates were extracted using RIPA buffer (Boston Bioproducts, Worcester, MA) supplemented with 1 mg/mL DNase and a cocktail of protease inhibitors (Complete; Roche Diagnostics, Basel, Switzerland). The detergent-soluble fraction was harvested upon centrifugation and immunoprecipitated using the anti-CD11b mAb 44a and protein G–Sepharose-4 (Amersham Pharmacia Biotech, Uppsala, Sweden). Washed immunoprecipitates were separated by sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE) on a 4% to 15% gradient Tris-HCl gel (Bio-Rad Laboratories) under reducing conditions and electroblotted onto PVDF membranes (Bio-Rad Laboratories). After blocking with 10% nonfat milk in 25 mM Tris-HCl (pH 7.4), 137 mM NaCl, 2.7 mM KCl (TBS; Boston Bioproducts), the membrane was incubated with a polyclonal anti-CD18 antibody as described.⁹  Detection of proteins was performed using horseradish peroxidase (HRP)–linked antirabbit antibody (Amersham Pharmacia Biotech) and SuperSignal Chemiluminescent kit (Pierce Chemical, Rockford, IL). The luminescent signal was detected using BioMax x-ray films (Eastman Kodak, Rochester, NY).

Flow cytometric analysis of K562 cells was performed using published protocols.^31,32  Briefly, cells were counted and washed twice with TBS. Cells (5 × 10⁵) were incubated with primary mAb (10 μg/mL) in 100 μL TBS on ice for 30 minutes, except for mAbs 24 and KIM127 and the isotype-matched control mAb MOPC-21, where incubations were performed at 37°C and in the presence of 1 mM each of Ca²⁺ and Mg²⁺ or 1 mM Mn²⁺.³¹  Cells were then washed with TBS and incubated with FITC-conjugated secondary mAbs on ice for 30 minutes. Stained cells were washed and resuspended in cold TBS and analyzed using FACS Scan flow cytometer (BD Biosciences, San Jose, CA) counting 10 000 events. Data were analyzed using the CellQuest software (BD Biosciences).

K562 cells were washed twice in TBS and resuspended to 1 × 10⁶/mL, of which 40 μL (4 × 10⁴ cells) was incubated in suspension with EiC3b (0.75 × 10⁶) in a total volume of 100 μL at 37°C for 25 minutes in the presence of 1 mM each of Ca²⁺ and Mg²⁺, 1 mM Mn²⁺, varying concentrations of Ca²⁺, or 5 mM EDTA. In preliminary studies, we found that the about 20:1 EiC3b/K562 ratio falls on the steep portion of the dose-response curve and is thus sensitive to changes in ligand-binding activity of the integrin (not shown). Binding, detected in the form of “rosettes” (at least 3 EiC3b/K562, more than 200 cells examined in multiple fields), was scored using phase-contrast microscopy. Binding results are reported as histograms representing mean ± SD of triplicate experiments.

Maxisorp 384-well microtiter plates (Nalge Nunc, Rochester, NY) were coated with 5 μg/mL monomeric iC3b ligand²⁵  in PBS containing 1 mM Ca²⁺ and 1 mM Mg²⁺ (PBS⁺⁺) overnight at 4°C. The concentration of iC3b used for these experiments fell on the steep portion of the dose-response curve (not shown). After coating with iC3b, the wells were washed with TBS and nonspecific sites were blocked by incubation with 2% nonfat milk in TBS at room temperature for 30 minutes. The wells were washed 3 times with TBS, and the plates were immediately used in adhesion assays. K562 cells (30 000) were transferred to each well and incubated at room temperature for 30 minutes in the presence of 1 mM each of Ca²⁺ and Mg²⁺, 1 mM Mn²⁺, or 5 mM EDTA in a total volume of 100 μL. Following a washing step, the adherent cells were fixed with formaldehyde (1.1% vol/vol final concentration), washed 3 more times with TBS, fluorescently labeled with DAPI (0.5 μM final in TBS with 0.1% Triton X-100), and quantitated using an automated microscope (CellWorx automated microscope; Cellomics, Pittsburgh, PA) set at 0.3-second exposure using a DAPI filter set to capture 1 to 3 images per well. Digitized photomicrographs were then analyzed using MetaXpress image analysis software (Molecular Devices, Sunnyvale, CA) using the built-in cell count module to quantify nuclear staining. Data output files were analyzed using MS Excel.

Maxisorp 384-well microtiter plates coated with 5 μg/mL iC3b ligand were prepared as described in the previous section. K562 cells (20 000) were transferred to each well and incubated at room temperature for 1.5 hours in serumfree IMDM, washed, and cell spreading visualized (more than 200 cells examined in multiple fields) using phase-contrast microscopy. Spreading results are reported as histograms representing mean ± SD of triplicate determinations from 3 separate experiments.

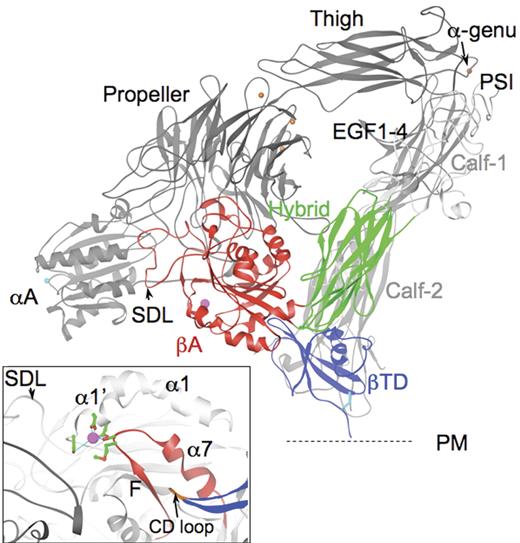

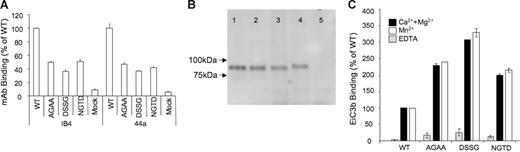

We modified the βTD's CD loop residues D658GMD of WT CD18 (Figure 1, inset) by swapping them with the equivalent D672SSG residues of the β3 subunit. The D658GMD sequence was also replaced with AGAA or with NGTD (to fashion a neo–N-glycan at N658). We assessed transient expression of mutant CD11b/CD18 integrins on the surface of HEK293 cells, which lack endogenous CD11b/CD18, using the heterodimer-specific mAb IB4 and the CD11b-specific mAb 44a. Figure 2A shows that all 3 CD loop mutants were expressed on the surface of HEK293 cells but at reduced levels (about 50% of that of the WT integrin). Both the 44a and IB4 mAbs registered a similar level of integrin expression, which suggests that the expressed integrins are in their heterodimeric form. We further verified integrin heterodimer formation by immunoprecipitation from detergent HEK293 cell lysates with mAb 44a followed by Western blotting using polyclonal anti-CD18 antibody (Figure 2B). Autoradiograph of the Western blot shows the presence of comparable amounts of CD18 in immunoprecipitates from HEK293 cells expressing WT or mutant integrins (Figure 2B, lanes 1-4), suggesting that equivalent amounts are being synthesized. The slower mobility of the NGTD CD18 mutant (Figure 2B, lane 4) is consistent with the attachment of a neo–N-glycan at the introduced site.¹³  No CD18 was seen in anti-CD11b immunoprecipitates from mock-transfected HEK293 cells (Figure 2B, lane 5).

Binding of CD11b/CD18 to its physiologic ligands including iC3b is divalent cation and activation dependent.^30,33  We therefore used the iC3b ligand to assess the functional impact of modifying the βTD CD loop in the CD11b/CD18 mutants expressed on the surface of HEK293 in the physiologic divalent cations (Ca²⁺ plus Mg²⁺, each at 1 mM). A portion of the WT CD11b/CD18 expressed on HEK293 assumes the active state,³⁴  explaining its intrinsic binding to EiC3b (Figure 2C). Binding of the βTD mutants to EiC3b increased by 2- to 3-fold above that of the WT receptor (set empirically at 100%) (Figure 2C). This level of binding did not increase further by the activating cation Mn²⁺ (at 1 mM) (Figure 2C), commonly used as a mimic of inside-out integrin activation (reviewed by Hynes¹ ), suggesting that most of the expressed receptors are already activated.

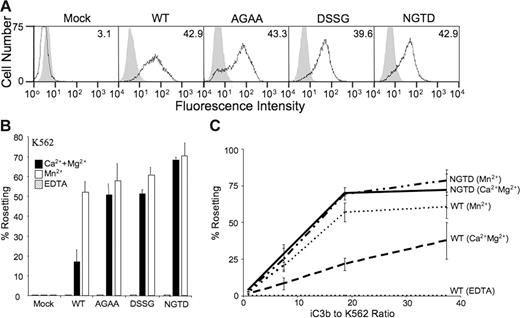

The nature of the conformational changes that may occur in parallel with the high-affinity (physiologic ligand-binding) state were next examined in more detail in the βTD mutants expressed stably in K562 cells. K562 cells express WT integrins in a default low-affinity state as in normal leukocytes,³⁵  which can be activated by inside-out signals primarily through a change in integrin affinity rather than avidity,³⁶  thereby providing a more relevant context to observe changes in the level of integrin activation.³⁵  K562 cells expressing equivalent levels of heterodimeric WT and mutant CD11b/CD18 (Figure 3A) were examined for their ability to bind iC3b (covalently bound to the surface of erythrocytes using fresh serum, as in the physiologic state) or adsorbed to microtiter plastic plates. In the presence of the physiologic divalent cations, binding (rosette formation) of the mutant CD11b/CD18 receptors to EiC3b in suspension was constitutive, unlike that of the WT, which was minimal (20% or less). Mn²⁺ increased the level of binding of the WT to the same degree seen in the mutants in physiologic cations but did not induce a further increase in EiC3b binding by the mutants (Figure 3B), indicating that the respective integrin mutants are maximally activated in this assay, as in HEK293. We also performed a titration with increasing numbers of EiC3b to a constant concentration of WT, NGTD, or mock K562 cells. Results presented in Figure 3C show that even at very low numbers of EiC3b (and thus a low EiC3b/K562 cell ratio), the mutant NGTD-expressing K562 cells showed higher binding to EiC3b in physiologic cations compared with WT-expressing cells. These differences were most pronounced at an EiC3b/K562 cell ratio of about 18. While Mn²⁺ produced the expected increase in binding of WT-expressing K562 to EiC3b, no increase in EiC3b binding to the NGTD mutant took place at any EiC3b/K562 cell ratio tested.

We also evaluated ligand binding under conditions in which CD11b/CD18-expressing K562 cells were allowed to bind ligand adsorbed onto microtiter plastic plates. The specificity of the interaction was again reflected in the lack of binding of mock K562 or WT CD11b/CD18-expressing K562 cells in the presence of the physiologic divalent cations (Figure 4A), while 1 mM Mn²⁺ was sufficient to induce maximal binding by the WT receptor. K562 cells expressing the βTD mutant CD11b/CD18 receptors all showed significant binding to immobilized iC3b in the presence of physiologic cations. However and in contrast to the rosetting assay and the binding assay in HEK293, there were small but significant differences in the magnitude of the response to the addition of Mn²⁺; in the case of the NGTD mutant, Mn²⁺ produced only a modest increase in iC3b binding above that seen in Ca²⁺+Mg²⁺, but the increase was more in the case of the DSSG and even higher in the case of the AGAA mutant (Figure 4A).

To determine whether the activating βTD mutations also modify outside-in signaling, we measured cell spreading on iC3b-coated plates in the presence of Ca²⁺ and Mg²⁺ (1 mM each). Both mock and WT CD11b/CD18-expressing K562 cells showed minimal cell spreading (Figures 4B-C). All 3 βTD mutants showed increased cell spreading, with the NGTD mutant presenting the maximal level of spreading, followed by DSSG and AGAA.

We next used mAbs to probe the conformational state of the expressed mutants in K562. mAb 24 is widely used as a reporter of the high-affinity state in β2 integrins.²³  It binds to an activation- and cation-dependent epitope in βA, which includes residues Arg122 of the α1′ helix and Glu175 in the specificity-determining loop (SDL)³¹  (Figure 1). We assessed the binding of this mAb to WT and mutant CD11b/CD18 expressed on K562 cells. AGAA, DSSG, and NGTD mutants showed a significant increase in binding to mAb 24 compared with WT (Figure 5). The magnitude of this increase was similar to that observed in maximally activated β2 integrins expressed in K562 ³⁷  or Jurkat cells.³⁸  In the presence of Mn²⁺, the reactivity of mAb 24 with WT increased by about 3-fold, compared with the 1.5- to 1.8-fold increase seen in the case of the mutant integrins (Figure 5).

mAb KIM127 binds an epitope in the EGF2 domain in genu-straightened β2-integrins³⁹  and has therefore been used as a marker of this state.⁴⁰  Because WT CD11b/CD18 is largely inactive when expressed on K562, whereas all 3 mutants are constitutively active as judged by the iC3b-binding assays, we tested mAb KIM127 binding to WT and βTD mutant receptors in physiologic Ca²⁺+Mg²⁺. There was no significant difference in the level of binding of mAb KIM127 to the constitutively active βTD mutants versus the WT receptor (Figure 6). Reactivity of mAb KIM127 to the WT integrin was doubled in the presence of 1 mM Mn²⁺, a level of increase consistent with previous reports.³⁸  Interestingly, Mn²⁺ produced an equivalent increase in binding of mAb KIM127 to each of the 3 βTD mutants (Figure 6).

Previous studies in the ligand-binding integrin αA domain have shown that the transition from the inactive to the active state involves coordinated changes in the α1 helix, the F/α7 loop, and α7 helix (reviewed by Arnaout et al⁴¹ ). Small molecules or certain mAbs that bind in the F/α7 region allosterically block ligand binding.^42,43  The membrane-proximal βTD in the bent integrin contacts βA in the F-α7 region; replacing the contact residues S674 (from the βTD CD loop) and V332 (from the βA F-strand) with cysteines creates a disulfide bridge that locks the membranebound integrin in the low-affinity state.^11,44  Here we show that modifications of the CD loop in the β2 integrin CD11b/CD18 are activating, suggesting that the βTD acts as an allosteric regulator of ligand binding in this integrin. Constitutive activation of the integrin by the CD loop mutations also led to a proportional increase in cell spreading on iC3b-coated surfaces, an outside-in signaling response.

The crystal structure of the bent integrin shows that the βA F/α7 loop is also stabilized in the low-affinity state, through an ADMIDAS metal ion-mediated bridge to the α1 helix, which prevents the inward movement of this helix and stabilizes the F/α7 loop (Figure 1, inset) (reviewed by Arnaout et al⁴¹ ). This link is unique to βA domains (versus the αA domains) and is broken in the crystal structure of the RGD-bound bent integrin ectodomain.³  Mutational removal of this link also generates constitutively active bent β2 integrins but impairs cell spreading (data not shown and Chen et al⁴⁵ ), the latter effect perhaps reflective of the need for the ADMIDAS ion in stabilizing the liganded (signaling) integrin state as well.⁴¹  Other studies have shown that swapping of the βA's F/α7 loop residues in β2 with those in the β1 subunit or replacing certain residues with alanine induced the high-affinity state in the respective integrin.^46,47  Taken together, these data argue that local conformational changes taking place within βA or its contact with the βTD are sufficient to switch the integrin to high binding affinity.

Binding of K562-expressing βTD mutants to EiC3b in suspension was equivalent in the presence of physiologic Ca²⁺ + Mg²⁺ or Mn²⁺ over a broad range of ligand concentrations (Figure 3B-C). This was also the case when EiC3b was allowed to bind to adherent HEK293 cells (Figure 2C). However, only in the case of the NGTD-expressing K562 did binding to the adsorbed iC3b in Ca²⁺ + Mg²⁺ approach that seen in the presence of the activating Mn²⁺. Mn²⁺ produced a significant increase in binding of AGAA- and to a lesser degree DSSG-expressing K562 to iC3b above that obtained in Ca²⁺ + Mg²⁺ (Figure 4A). Also, Mn²⁺ further increased the constitutive binding of the affinity reporter mAb 24 to all 3 βTD mutants (Figure 5). One interpretation of these findings is that the βTD mutations increase both receptor avidity as well as affinity. It is known, however, that the change in physiologic ligand binding to integrins expressed in K562 reflects an affinity rather than an avidity switch.³⁶  If a change in avidity is also operational, it is more likely to impact integrin binding to the plastic-adsorbed purified ligand. A second interpretation is that the AGAA and DSSG mutants may exert a priming effect, enhancing the transition from the low- to the high-affinity state, short of the full activation state induced by Mn²⁺. This priming effect is more likely detected when receptor-carrying cells are in suspension, as in the adsorbed ligand-binding assay, explaining the selective enhancing effect of Mn²⁺ in this case. The nearly equivalent ligand-binding activity of the NGTD mutant in Ca²⁺ + Mg²⁺ or Mn²⁺ in all 3 ligand-binding assays performed indicate, however, that this mutation is most effective in inducing the activation state. Why then is its binding to mAb 24 incomplete unless Mn²⁺ is present? It is likely that the incremental increase in mAb 24 binding to NGTD-expressing K562 by Mn²⁺ reflects the small but significant enhancement observed in ligand binding by this cation (Figure 4A). It is also known that mAb 24 reports ligand-occupied βA⁴⁸ -in αA-containing integrins, the endogenous high-affinity αA domain engages the βA MIDAS through the MIDAS cation, which allows αA to then bind exogenous physiologic ligands like iC3b (the ligand relay model).⁹  Thus, the Mn²⁺-induced further increase in binding of mAb 24 (versus iC3b ligand) to the NGTD mutant may reflect the preferential coordination of αA-occupied βA by Mn²⁺ at MIDAS, in comparison with Mg²⁺ or Ca²⁺.

It could be argued that more complete activation of CD11b/CD18 by the NGTD mutation may be the result of the bulky sugar moiety breaking the additional contacts the βTD makes with the hybrid domain²  (Figure 1), resulting in head-leg separation, genu straightening, and the opening of the βA/hybrid hinge, all believed to be features of the high-affinity state.^13,39  However, mAb KIM127, used as the reporter of the genu-straightened conformation of the integrin,³¹  did not bind to the βTD mutants, particularly NGTD, in the presence of Ca²⁺ + Mg²⁺ (Figure 6). Mn²⁺ exposed the KIM127 eiptope in both WT and the βTD mutants to the same degree. This finding together with the physiologic ligand binding data suggests that integrin activation can take place in the absence of genu straightening, which has been linked to the opening of the βA/hybrid hinge. Consistently, the high-binding affinity ADMIDAS-defective CD11a/CD18 integrin was also found to be poorly reactive with KIM127,⁴⁵  and fluorescence lifetime imaging (FLIM) analysis in intact K562 cells in the presence of physiologic cations shows that the ligand-binding site in WT and the NGTD mutant CD11b/CD18 is unchanged relative to the lipid bilayer, arguing against genu straightening induced by this mutation (V. G., Alexandra Makarova, Bradley T. Hyman, and M. A. A., manuscript in preparation). Finally, a recent molecular dynamics study⁴⁹  found that the activating inward shift of the βA α1 helix can be achieved with a very modest approximately 20 degree opening of the βA/hybrid hinge; an increase of this magnitude can be accommodated in the ligand-bound bent conformation.¹⁴

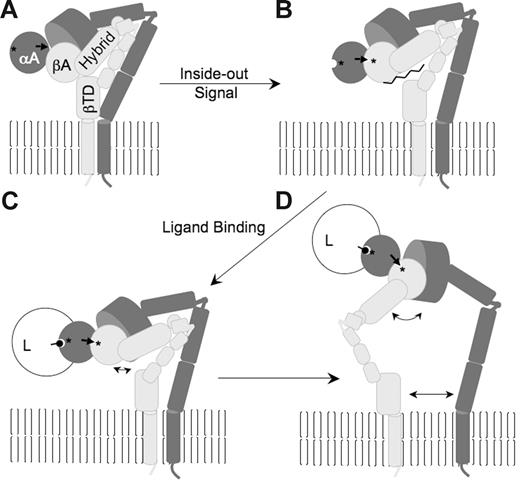

The results presented here add new insights into the allosteric pathways resulting in the integrin-activated state (Figure 7). In the low-affinity state, the integrin is likely expressed on the cell surface in a bent conformation (Figure 7A), stabilized by head-to-leg contacts, inclusive of the membrane-proximal βTD. Conformational changes in the cytoplasmic tails and transmembrane helices, generated by inside-out activation, likely produce a βTD/βA hinge opening (Figure 7B), which switches the integrin βA to the high-affinity binding state, manifested by the restructuring of the F/α7 loop, disrupting ADMIDAS, which permits the activating inward movement of the α1 helix needed to create a stable ligand-binding MIDAS. We cannot exclude a modest (20 degrees or less)¹⁴  opening of the βA/hybrid hinge in the bent integrin as part of this process. The strain build-up induced by the binding of physiologic ligand to the bent high-affinity integrin is released by various degrees of opening of the βA/hybrid hinge (Figure 7C-D) that likely extend to those seen in the crystal structure of the ligand-bound αIIbβ3 head segment,⁵  eliciting genuextension and leg separation, which likely characterize the outside-in signaling state.

In conclusion, we have shown that the βTD CD loop in the bent CD11b/CD18 integrin is functionally relevant, playing an important role in inside-out integrin activation, as proposed in the deadbolt model.³²  Additional accumulating evidence may now be explained in this light (reviewed by Arnaout et al⁴¹  and Kamata et al⁵⁰ ). For example, creating a disulfide linkage between the βTD and calf-2 has been shown to block activation⁴⁴ ; this may prevent the βTD/βA hinge movement. Similarly, mutation of each of the 4 cysteine pairs present in the βTD domain revealed that only C663-C687 in the β3 subunit, located at the base of the CD loop 5 residues away from the TM segment (Figure 1), is activating when interrupted.⁵⁰  Of interest in this regard is that the βTD's CD loop and the strands, inclusive of the stabilizing disulfide at its base, are naturally absent in the β8 subunit in vertebrates⁵¹ ; the present data suggest that these modifications may prime or activate the respective β8 integrin.
