HMG-CoA reductase inhibition induces IL-1β release through Rac1/PI3K/PKB-dependent caspase-1 activation

Mevalonate kinase deficiency (MKD; MIM #260920) is an autoinflammatory disorder characterized by spontaneous and recurrent fever attacks. The febrile attacks are accompanied by painful cervical lymphadenopathy and often by abdominal pain, vomiting, and diarrhea. A variety of other symptoms, including headache, skin rashes, mucosal ulcers, myalgia, and arthralgia, may also occur.^1,–3  MKD is inherited in an autosomal recessive manner and is caused by mutations in the gene MVK, which codes for the enzyme mevalonate kinase.^4,5  Mevalonate kinase is a critical enzyme in the isoprenoid biosynthesis pathway, which produces cholesterol and a number of non-sterol isoprenoids.^6,7  The latter includes geranylgeranylpyrophosphate, a fatty acid side chain that is covalently attached to proteins of the Rho GTPase superfamily.^8,9  The isoprenoid biosynthesis pathway can be perturbed by the use of statins, which strongly inhibit 3-hydroxy-3-methylglutaryl CoA (HMG-CoA) reductase, the enzyme that catalyzes the conversion of HMG-CoA into mevalonate.⁷  Recently, we and others have shown that impairment of the isoprenoid pathway by statins can augment interleukin-1β (IL-1β) secretion by activated peripheral blood mononuclear cells (PBMCs).^10,–12  In PBMCs from MKD patients, it is the specific lack of geranylgeranylated proteins that results in increased IL-1β production.¹³  This IL-1β production may be largely responsible for the inflammation and fever observed in MKD patients, a notion that is strongly supported by the successful treatment of MKD patients with the IL-1 receptor antagonist Anakinra (Kineret, Amgen, Thousand Oaks, CA).^14,–16  However, it remains unclear how reduced levels of geranylgeranylated proteins can lead to increased IL-1β release.

To investigate the molecular mechanisms underlying increased IL-1β production in mevalonate kinase deficiency, we have used the monocytic cell line THP-1 in which the isoprenoid biosynthesis pathway is artificially impaired using simvastatin. In this model, simvastatin treatment results in increased IL-1β release by lipopolysaccharide (LPS)–stimulated THP-1 cells. Previous research suggests a 2-step model in which LPS stimulation is needed for efficient transcription of the IL-1β gene, resulting in high levels of intracellular proIL-1β protein.^17,18  The second step is provided by impairment of the isoprenoid biosynthesis pathway via simvastatin, which strongly enhances proteolytic activity of caspase-1.¹⁹  Active caspase-1 can subsequently process the LPS-induced proIL-1β protein into mature IL-1β, which is then secreted together with the caspase-1 subunits.

To investigate the molecular pathways regulating simvastatin-induced activation of caspase-1, we have analyzed the signal transduction routes involved in LPS/simvastatin-mediated IL-1β release. Taken together, our data demonstrate that simvastatin treatment results in caspase-1 activation through a Rac1/PI3K/protein kinase B (PKB)–dependent pathway and that inhibition of Rac1 can decrease IL-1β release by MKD PBMCs. In addition, we found that LPS augments IL-1β transcription via p38 MAPK-mediated regulation of the transcription factor NF-κB. These findings provide novel insights into the molecular mechanisms responsible for fever and inflammation in MKD patients and define Rac1 as a molecule for potential targeted therapy.

Glycogen synthase kinase 3 (GSK-3) inhibitor SB216763, NF-κB inhibitor CAPE, simvastatin, mevalonate, and LPS (Escherichia coli 0127:B8) were purchased from Sigma-Aldrich (St Louis, MO). Simvastatin, dissolved in ethanol, and mevalonate were prepared by hydrolyzation with 0.1 M of NaOH, followed by neutralization with 1 M N-2-hydroxyethylpiperazine-N′-2-ethanesulfonic acid, pH 7.4, and 0.1 M HCl. The solution was sterilized by filtration through a 0.2-μm filter and stored as aliquots at −20°C. Rac1 inhibitor, Akt inhibitor VIII, protein kinase C zeta (PKC_ζ) pseudosubstrate, MEK1/2 inhibitor U0126, and NF-κB activation inhibitor II were obtained from Calbiochem (San Diego, CA). Mammalian target of rapamycin (mTOR) inhibitor rapamycin and PI3-kinase inhibitor LY294002 were from BIOMOL Research Laboratories (Plymouth Meeting, PA) and p38 MAPK inhibitor SB203580 from Kordia Life Sciences (Leiden, The Netherlands). Primary antibodies to p-p38 MAPK, p-PKB, total PKB, total p38, total IκB, p-NF-kB, p-eIF4B, p-GSK-3, and p-S6 ribosomal protein were purchased from Cell Signaling Technology (Danvers, MA). Antiactin and antigoat IgG were obtained from Santa Cruz Biotechnology (Santa Cruz, CA).

Cells were cultured in RPMI 1640 (Invitrogen, Carlsbad, CA) containing 2 mM glutamine, 100 U/mL penicillin-streptomycin, and either 5% or 0.1% fetal calf serum at a density of 10⁶/mL. Incubations were performed at 37°C in a humidified atmosphere containing 5% CO₂, in the presence or absence of 10 μM simvastatin. After 24 hours of incubation, LPS at a final concentration of 200 ng/mL was added to the cells. When inhibitors were used, they were added either 1 hour before simvastatin or 1 hour before LPS treatment. After 4 hours of LPS stimulation, supernatants were removed and frozen at −20°C. Cell pellets were snap frozen in liquid nitrogen and stored at −80°C for reverse-transcribed polymerase chain reaction (RT-PCR) analysis. Cell lysates were prepared either by direct lysis in 4× sample buffer or by adding lysis buffer to the cell pellets (150 mM NaCl, 20 mM N-2-hydroxyethylpiperazine-N′-2-ethanesulfonic acid, 10 mM ethylenediaminetetraacetic acid, 1% Triton X-100, protease inhibitors). Cell pellets were then lysed for 30 minutes on ice, after which samples were centrifuged at 13 000g for 15 minutes. Supernatants were transferred to fresh tubes. Protein levels were determined using the Bio-Rad protein assay (Bio-Rad, Hercules, CA).

Cytokine detection was carried out using commercially available enzyme-linked immunosorbent assay (ELISA) kits: Pelikine-compact human IL-1β ELISA kit (Sanquin, Amsterdam, The Netherlands), human proIL-1β/IL-1F2, and human caspase-1 Quantikine ELISA Kit (R&D Systems, Minneapolis, MN). The assays were performed according to the manufacturer's instructions, and all samples were measured in duplicate.

Cell lysates were resolved on sodium dodecyl sulfate polyacrylamide gels and transferred onto polyvinylidene difluoride membranes (Millipore, Billerica, MA). As a control for equal transfer of protein, the blots were stained reversibly with Ponceau S. Membranes were blocked in Tris-buffered saline containing 0.3% Tween and 5% nonfat dry milk. Membranes were probed with a 1:1000 dilution of the primary antibody and with a 1:3000 dilution of horseradish peroxidase-conjugated secondary antibody (Dako, Glostrup, Denmark). Chemiluminescence was detected with an enhanced chemoluminescence kit (GE Healthcare, Little Chalfont, United Kingdom).

A bicistronic retroviral DNA construct was used, expressing PKBcaax and an Internal Ribosomal Entry Site followed by the gene encoding eGFP (LZRS-eGFP). LZRS-eGFP retrovirus was produced by transient transfection as previously described.²⁰  After transfection, viral supernatants were collected, filtered through a 0.2-μm filter, and snap frozen in liquid nitrogen. THP-1 cells were transduced in 24-well plates precoated overnight with 10 μg/cm² recombinant human fibronectin fragment CH-296 (RetroNectin, Takara, Japan) in phosphate-buffered saline. Transduction was performed by addition of 0.5 mL viral supernatant to 0.5 mL culture medium containing 4 × 10⁵ cells/mL. Approximately 16 hours after transduction, 0.7 mL medium was removed from the cells and 0.5 mL fresh virus supernatant was added together with 0.5 mL fresh medium. eGFP-positive cells were sorted on a FACS Vantage and cultured in RPMI 1640 containing 50 μM β-mercaptoethanol, 40 U/mL penicillin, 40 μg/mL streptomycin, and 10% fetal bovine serum.

The activity of Rac1 was determined with the EZ-Detect Rac1 Activation Kit (Pierce Chemical, Rockford, IL). Briefly, a GST fusion protein containing the p21-binding domain of human Pak1 was used to specifically precipitate the active, GTP-bound, Rac1.²¹  This binding domain was coupled to glutathione-S-transferase. Using glutathione beads, GTP-bound Rac1 was precipitated.

THP-1 cells were cultured for 24 hours in the presence or absence of simvastatin (20 μM) and stimulated for an additional 4 hours with 200 ng/mL LPS. After treatment the cells were thoroughly resuspended, and 200 μL cell suspension was used for the CytoTox 96 NonRadioactive Cytotoxicity Assay (Promega, Madison, WI). The assays were performed according to the manufacturer's instructions, and all samples were tested in duplicate.

The relative expression level of IL-1β to β-actin RNA was measured with the LightCycler system (Roche Diagnostics, Indianapolis, IN). Total RNA was isolated from THP-1 cells with Trizol extraction. First-strand cDNA was prepared using the first-strand cDNA synthesis kit for RT-PCR according to the manufacturer's instructions. The IL-1β and β-actin fragments were amplified using the following primer sets: IL-1β Fw 5′-AGA AGA ACC TAT CTT CTT CGA C-3′, IL-1β Rev 5′-ACT CTC CAG CTG TAG AGT GG-3′, β-actin Fw 5′-GGC ACC AGG GCG TGA TGG-3′ and β-actin Rev 5′-GTC TCA AAC ATG ATC TGG GTC-3′. Data were analyzed using LightCycler Software, version 3.5 (Roche Diagnostics), and the program LinRegPCR, version 7.5, for analysis of real-time PCR data. To adjust for variations in the amount of input RNA, the IL-1β mRNA levels were normalized against the mRNA levels of the housekeeping gene β-actin.

After approval by the ethics review board of the University Medical Centre and after written informed consent was obtained from their parents in accordance with the Declaration of Helsinki, blood was drawn from 2 patients with MKD and from 3 healthy volunteers. PBMCs were isolated by density gradient centrifugation using Ficoll-Paque (GE Healthcare). Isolated PBMCs were cultured in RPMI 1640 (Invitrogen) containing 2 mM glutamine, 100 U/mL penicillin-streptomycin, and 10% fetal calf serum. Cells (at a density of 10⁶/mL) were seeded in 96-well microtiter plates in the presence or absence of LY294002 or Rac1 inhibitor. Incubations were performed at 37°C in a humidified atmosphere containing 5% CO₂. After LPS stimulation, supernatants were removed and stored at −20°C.

All results are expressed as the mean plus or minus SEM. In Figures 1, 5C, and 6, statistical significance was calculated using a 1-sample t test. According to the Bonferroni correction, significance level was set at .01. In Figure 5B, the Wilcoxon signed-rank test was used with a significance level of .05. All other data were analyzed using 1-way analysis of variance, followed by Tukey multiple comparison test, also with a significance level of .05.

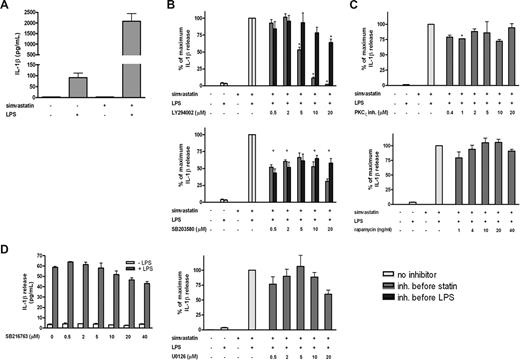

To induce IL-1β secretion, THP-1 cells were cultured for 24 hours in the presence or absence of simvastatin and stimulated for an additional 4 hours with LPS, as described before for both PBMCs and THP-1 cells,^11,19  THP-1 cells stimulated with LPS in the presence of statin, to inhibit HMG-CoA reductase, displayed dramatically increased IL-1β release compared with LPS stimulation alone (Figure 1A). Incubation with statin alone did not induce detectable IL-1β release. The statin-induced effect was specific for IL-1β because IL-6 and tumor necrosis factor-α release was not significantly affected¹⁹  (Figure S1, available on the Blood website; see the Supplemental Materials link at the top of the online article). To investigate the potential role of intracellular signal transduction pathways in simvastatin-enhanced activation of IL-1β release, THP-1 cells were treated with a variety of kinase inhibitors before treatment with simvastatin (Figure 1B). Inhibition of PI3K (LY294002) and p38 MAPK (SB203580) both inhibited IL-1β release when administered before simvastatin, whereas inhibition of MEK1/2 (U0126) had no significant effect. To discern whether the observed inhibition was the result of a simvastatin-mediated or an LPS-mediated effect, the inhibitors were also administered after statin treatment, before addition of LPS (Figure 1B). Inhibition of PI3K no longer had an effect on IL-1β release, whereas the effect of p38 MAPK inhibition was still evident. This suggests that, whereas PI3K activity is crucial for statin-enhanced IL-1β release, p38 MAPK is required for LPS-mediated IL-1β release.

To further investigate the downstream mediators responsible for statin-mediated IL-1β release, several downstream targets of PI3K activation were also investigated. THP-1 cells were treated with inhibitors of mTOR (rapamycin), PKC_ζ (pseudosubstrate), and GSK-3 (SB216763) 1 hour before addition of simvastatin (Figure 1C,D). Because GSK-3 activity is inhibited rather than activated after PI3K activation, THP-1 cells were only stimulated with LPS to determine whether GSK-3 inhibition could mimic the effect of simvastatin treatment on IL-1β release. None of these inhibitors had an effect on IL-1β release, demonstrating that PI3K-mediated effects are independent of PKC_ζ, mTOR, or GSK-3 activities.

Inhibition of PI3K decreases simvastatin-mediated IL-1β release, whereas p38 MAPK inhibition perturbs IL-1β release in an LPS-dependent manner (Figure 1B). To determine whether indeed HMG-CoA reductase inhibition results in PI3K activation, we analyzed the phosphorylation of PKB/c-akt, which we have previously demonstrated is directly dependent on PI3K activity.²²  Furthermore, we analyzed whether LPS treatment could indeed enhance phosphorylation of p38 MAPK. THP-1 cells were serum-starved and subsequently stimulated with either LPS or with simvastatin. Cell extracts were analyzed for phospho-p38 MAPK and phospho-PKB content (Figure 2). Incubation of THP-1 cells with simvastatin induced phosphorylation of PKB, whereas no change in the level of phospho-p38 MAPK was observed (Figure 2A). Simvastatin-induced PKB phosphorylation was inhibited by addition of the PI3K inhibitor LY294002 (Figure 2B). In contrast, stimulation of THP-1 cells with LPS induced a time-dependent increase in phospho-p38 MAPK, reaching a maximum at 1 hour, after which levels slowly declined. During this time, no change in phospho-PKB was observed (Figure 2C). These results further support the hypothesis that inhibition of HMG-CoA reductase by simvastatin treatment stimulates IL-1β secretion via a PI3K/PKB-dependent pathway whereas LPS enhances IL-1β secretion in a p38 MAPK-dependent manner.

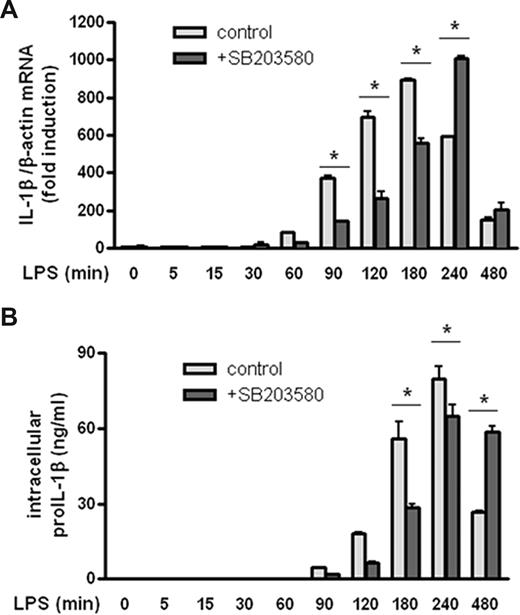

p38 MAPK inhibition was shown to reduce LPS-driven IL-1β secretion to approximately 60% of the maximum (Figure 1B). LPS has been described to increase the level of IL-1β transcription,^18,23  although the exact molecular mechanism involved remains relatively undefined. To determine whether p38 MAPK is indeed required for LPS-induced IL-1β transcription in our model, IL-1β mRNA levels were determined. THP-1 cells were treated with LPS for up to 8 hours in the presence or absence of p38 MAPK inhibitor SB203580. In parallel, levels of proIL-1β protein were determined using a specific proIL-1β ELISA assay (Figure 3). Inhibition of p38 MAPK resulted in a significant delay in IL-1β transcription as shown by the initial inhibition of total IL-1β mRNA levels followed by a recovery (Figure 3A). This pattern was similar for the proIL-1β protein levels (Figure 3B). These data indicate that p38 MAPK indeed plays a role in LPS-induced IL-1β transcription.

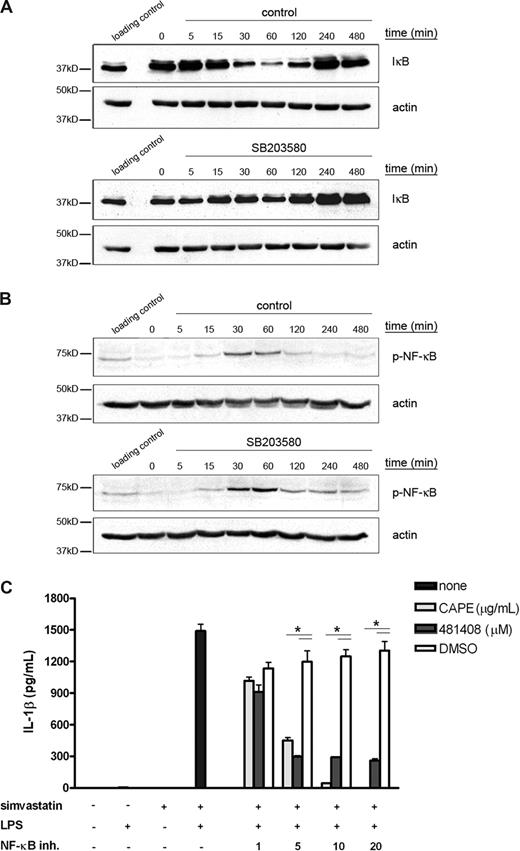

Several reports have shown that NF-κB can be regulated by p38 MAPK activity.^24,25  NF-κB is present in the cytoplasm in an inactive complex containing IκB and 2 NF-κB subunits. When IκB is phosphorylated, it becomes ubiquitinated and subsequently degraded.²⁶  During or after phosphorylation of IκB, NF-κB is phosphorylated and translocates to the nucleus, where it enhances transcription of its target genes. We wanted to determine whether p38 MAPK might play a role in LPS-mediated IL-1β release through activation of NF-κB. Therefore, THP-1 cells were treated with LPS in the presence or absence of p38 MAPK inhibitor SB203580. As a measure of NF-κB activation, we analyzed the levels of IκB (Figure 4A), where degradation of IκB is an indication of NF-κB activation. In the absence of SB203580, LPS induced IκB degradation and this degradation correlated with the increase in p38 MAPK phosphorylation observed earlier (Figure 2C), peaking after 1 hour of LPS stimulation. Inhibition of p38 MAPK prevented LPS-mediated IκB degradation, demonstrating that indeed p38 MAPK activation is required for NF-κB activation. In addition, we wanted to establish whether p38 MAPK can also regulate NF-κB phosphorylation (Figure 4B). LPS induced phosphorylation of NF-κB, peaking after 1 hour of LPS stimulation. The phosphorylation of NF-κB was not inhibited by SB203580, indicating that phosphorylation of NF-κB is independent of p38 MAPK activity. To confirm that NF-κB activity is required for LPS-mediated IL-1β secretion, we incubated THP-1 cells with 2 disparate NF-κB inhibitors 1 hour before LPS stimulation and measured IL-1β secretion (Figure 4C). Both NF-κB inhibitors decreased IL-1β secretion in a dose-dependent manner, confirming that NF-κB activity is required for LPS-mediated IL-1β release.

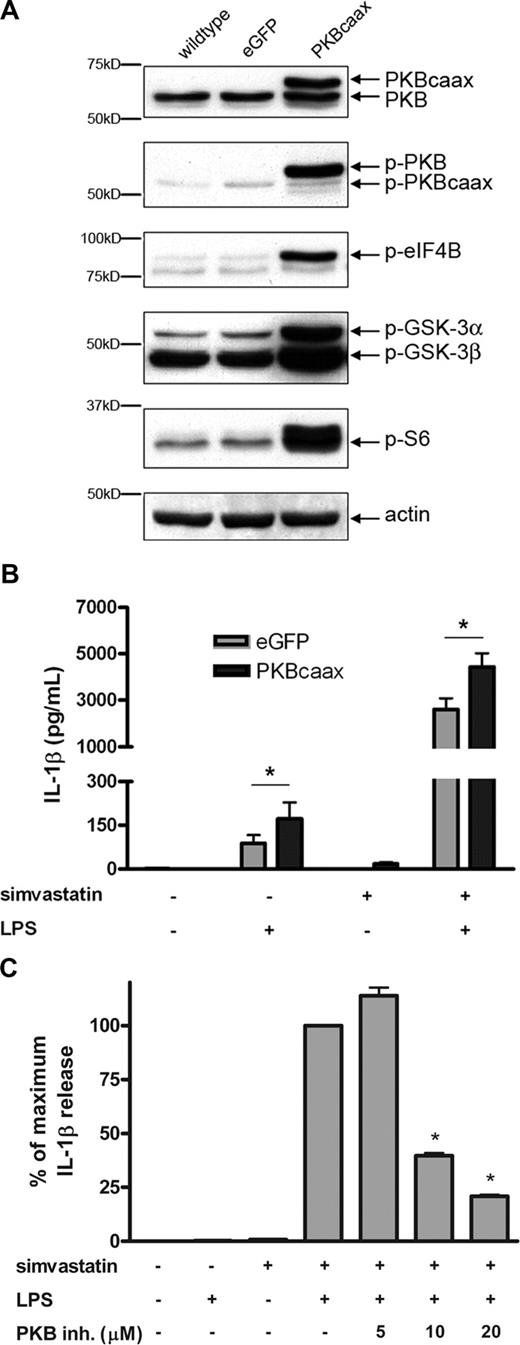

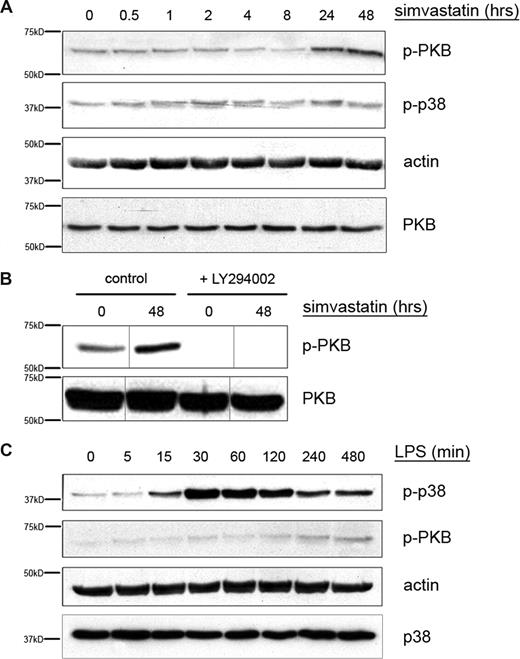

In Figure 2A, we show that PKB is phosphorylated in a time-dependent manner after treatment with simvastatin. To determine whether activation of PKB is sufficient to recapitulate the effects of statin treatment on IL-1β secretion, THP-1 cells were retrovirally transduced with a constitutively active form of PKB (PKBcaax)²⁷  or an eGFP control vector. Retroviral transduction resulted in approximately equal levels of PKBcaax compared with endogenous PKB (Figure 5A). Increased PKB activity was confirmed by analysis of phospho-PKB itself and of phosphorylated downstream PKB substrates, including eukaryotic initiation factor 4B (eIF4B), S6 ribosomal protein, and GSK-3 (Figure 5A). Transduced THP-1 cells were incubated with simvastatin for 24 hours and subsequently stimulated with LPS, after which IL-1β secretion was measured. Ectopic expression of constitutively active PKB induced a significant, 2-fold, increase in IL-1β secretion by LPS-stimulated THP-1 cells. In the presence of both LPS and simvastatin, constitutively active PKB also induced a significant increase in IL-1β secretion (Figure 5B), which, considering the high levels of IL-1β being produced might approach a maximal level, being limited by the capacity of caspase-1 processing. These data suggest that PKB is required, although not sufficient, for simvastatin-mediated activation of IL-1β secretion. This finding was confirmed when wild-type THP-1 cells were incubated with a specific PKB inhibitor before simvastatin treatment (Figure 5C). Inhibition of PKB decreased IL-1β release in a dose-dependent manner. Taken together, these data suggest that PKB is required for simvastatin-mediated activation of caspase-1.

In MKD patients, impairment of the isoprenoid biosynthesis pathway induces a shortage of geranylgeranylated proteins.¹³  The majority of geranylgeranylated proteins consist of small GTPases, including proteins of the Rho family. Lack of geranylgeranylation of the small GTPases may cause mislocalization of the protein because they lack the proper membrane localization anchor. Previously, it was assumed that geranylgeranylation is essential for the functioning of G proteins and lack of this modification would render them inactive.²⁸  However, lack of geranylgeranylation may actually cause an overactivity of the protein because, without the geranylgeranyl fatty acid tail, guanine nucleotide dissociation inhibitors (GDIs) can no longer bind and the protein can more easily change to its active GTP-bound state.^29,30  We wanted to investigate whether small GTPases are activated by statin treatment and may play a role in activating the PI3K/PKB signal transduction route. A probable candidate would be the small GTPase Rac1 because it was shown previously to be able to act upstream of PI3K.^31,32  To determine whether Rac1 activity is indeed directly affected by simvastatin treatment, we performed a pulldown assay to establish the amount of GTP-bound, and thus activated, Rac1 (Figure 6). THP-1 cells were cultured in the presence or absence of simvastatin and cell extracts were prepared. The level of GTP-bound Rac1 was assessed by Western blot analysis according to the manufacturer's protocol. THP-1 cells treated with simvastatin contained more GTP-bound, and thus active, Rac1 than untreated control cells (Figure 6A). To determine whether the increase in GTP-bound Rac1 was indeed the result of an impairment of the isoprenoid biosynthesis pathway, mevalonate was added to simvastatin-treated cells. Mevalonate is the direct downstream product of HMG-CoA reductase and therefore relieves the inhibition imposed by simvastatin. Addition of mevalonate prevented the activation induced by simvastatin (Figure 6B). These results clearly indicate that impairment of the isoprenoid biosynthesis pathway using simvastatin activates the small GTPase Rac1.

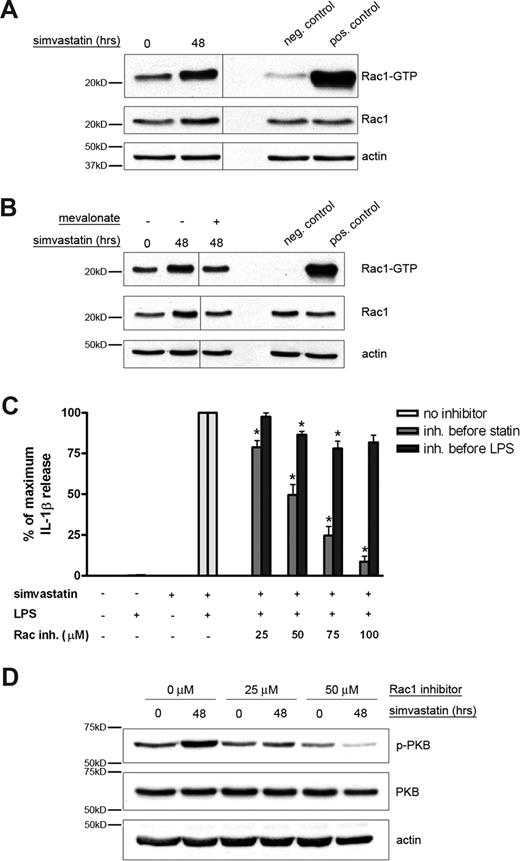

To confirm the role of the small GTPase Rac1 in simvastatin-mediated IL-1β release, we incubated THP-1 cells with a specific inhibitor of Rac1 either before simvastatin or before LPS incubation (Figure 6C). Inhibition of Rac1 decreased IL-1β release in a dose-dependent manner when administered before simvastatin. This effect was abolished when the inhibitor was added after simvastatin but before LPS treatment. These results demonstrate that Rac1 activity is required for statin-mediated enhancement of IL-1β release.

To determine whether Rac1 indeed functioned upstream of both PI3K and PKB, THP-1 cells were incubated with simvastatin in the presence or absence of Rac1 inhibitor and analyzed for the phosphorylation status of PKB (Figure 6D). As observed previously, incubation with simvastatin induced an increase in phosphorylation of PKB, indicating activation. However, when cells were pretreated with Rac1 inhibitor, activation of PKB was inhibited in a dose-dependent manner, illustrating that Rac1 indeed functions upstream of PKB.

Taken together, these data demonstrate that simvastatin treatment can directly activate Rac1 and that Rac1 is required for PKB activation and enhanced IL-1β release. To determine whether increased IL-1β release is mediated via activation of caspase-1, we measured caspase-1 p20 subunit levels in culture supernatants of the THP-1 cells as a marker for caspase-1 activation. Active caspase-1 has previously been shown to be localized in a lysosomal compartment within the cell together with proIL-1β. On activation, proIL-1β is cleaved in a caspase-1–dependent manner, and both mature IL-1β and the active caspase-1 subunits are released extracellularly.³³  In addition, we have previously shown that simvastatin treatment alone and in combination with LPS induces an increase in caspase-1 p20 subunit secretion in both a time- and dose-dependent manner.¹⁹  THP-1 cells were cultured as before in the presence or absence of either the PI3K inhibitor LY294002 or the specific Rac1 inhibitor. Both caspase-1 p20 subunit and IL-1β levels in culture supernatant were determined (Figure 7). As demonstrated previously, secretion of IL-1β was only observed when both simvastatin and LPS were present (Figure 7A), whereas incubation with simvastatin alone already increased the release of caspase-1 p20 subunit, indicating activation. This release further increased when LPS was also present (Figure 7B). As observed previously (Figures 1B, 3C), inhibition of PI3K or Rac1 strongly decreased IL-1β secretion, coinciding with a decrease in caspase-1 p20 subunit, both in the simvastatin-only condition as well as the condition where both simvastatin and LPS are present (Figure 7B). The presence of caspase-1 p20 and IL-1β in the supernatant was not caused by a passive release resulting from cell death as confirmed by a lactate dehydrogenase assay for cell viability (Figure 7C). These results indicate that statin-mediated activation of caspase-1 is dependent on Rac1/PI3K activity.

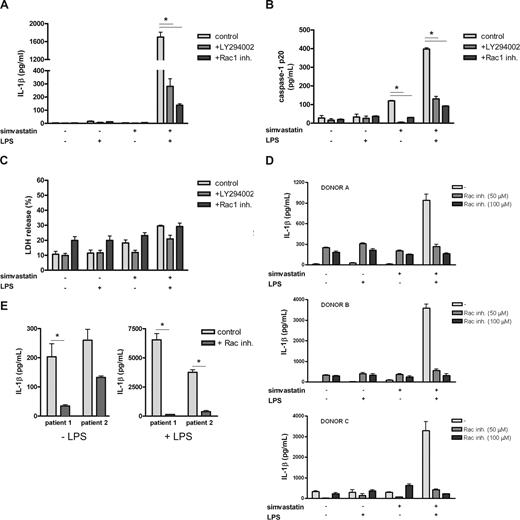

To confirm the primary role of Rac1 in simvastatin-induced IL-1β release in primary cells, we isolated PBMCs from 3 healthy volunteers. Similar to the THP-1 cells, the isolated PBMCs were cultured for 24 hours in the presence of simvastatin, after which they were stimulated with LPS. One hour before simvastatin treatment, the cells were incubated with Rac1 inhibitor at the indicated concentrations. As previously observed for the THP-1 cells, statin/LPS treatment led to a dramatic increase in IL-1β release, whereas treatment with either LPS or simvastatin alone did not (Figure 7D). Rac1 inhibitor decreased this IL-1β release in a dose-dependent manner, indicating that, also in primary cells, statin-induced IL-1β release is Rac1-dependent.

To further confirm these findings, we wanted to establish whether administration of the Rac1 inhibitor would also be able to inhibit IL-1β secretion by PBMCs from MKD patients. PBMCs were isolated from 2 MKD patients. These cells were cultured for 24 hours in the presence or absence of LPS and the Rac1 inhibitor (Figure 7E). As expected, inhibition of Rac1 strongly reduced IL-1β release by MKD PBMCs, suggesting that Rac1 is a potential novel target for therapeutic intervention.

MKD is a metabolic disease, caused by a genetic defect in isoprenoid biosynthesis.^4,5  Since the identification of mevalonate kinase as the affected enzyme, research has been directed toward elucidating the molecular mechanism underlying mevalonate kinase deficiency-induced inflammation. Previous studies have established that patient PBMCs secrete very high levels of IL-1β on endotoxin stimulation compared with healthy PBMCs^12,13  and that this is thought to be caused by a lack of nonsterol isoprenoid products, specifically of geranylgeranyl-pyrophosphate.^10,,–13  Indeed, we have recently shown that a shortage of geranylgeranylated proteins leads to activation of caspase-1, the enzyme responsible for processing proIL-1β into the active and secreted form.¹⁹  This suggests that an impaired isoprenoid biosynthesis pathway results in hyperactive caspase-1. Where healthy monocytic cells would respond to pattern-associated molecular patterns, such as LPS, or damage-associated molecular patterns by generating intracellular stores of proIL-1β protein,^34,35  cells containing hyperactive caspase-1 would process the generated proIL-1β protein and release the pro-inflammatory, mature IL-1β in a dysregulated manner. This hypothesis provides a rationale for inflammation in mevalonate kinase deficiency: patients have hyperactive caspase-1 because of a shortage of geranylgeranylated proteins and will inappropriately secrete IL-1β whenever they come into contact with pattern-associated molecular patterns or damage-associated molecular patterns resulting in inflammation and fever attacks.

In this study, we investigated the molecular mechanisms underlying simvastatin-mediated activation of caspase-1. Because of the extremely limited number of patients, we have previously described a model using THP-1 monocytic cells to study the disease mechanism in more detail.¹⁹  Using this model, we have now demonstrated that PI3K and Rac1 are required for simvastatin-mediated IL-1β secretion through regulation of caspase-1 activity (Figures 1B, 6C, and 7B), which was confirmed in primary cells (Figure 7D). One of the major intracellular mediators of PI3K activation is PKB.²²  Indeed, we have shown that simvastatin activates PKB (Figure 2) and that ectopic expression of constitutively active PKB significantly increases IL-1β secretion after LPS challenge in the presence as well as in the absence of HMG-CoA reductase activity (Figure 2). Furthermore, Rac1 activity was shown to increase on simvastatin treatment and to act upstream of PKB (Figure 3). We therefore propose a molecular mechanism for IL-1β release, in which simvastatin activates Rac1, which subsequently activates a PI3K/PKB-dependent pathway resulting in activation of caspase-1.

In addition to the simvastatin-mediated activation of caspase-1, we have demonstrated that p38 MAPK and NF-κB are required for LPS-induced IL-1β transcription (Figures 1B, 4A,C). However, inhibition of IL-1β release by the p38 MAPK inhibitor was not dose-dependent and p38 MAPK inhibition also resulted in a delay, rather than complete inhibition, of IL-1β transcription (Figure 3), indicating that additional factors might play a role. These data imply that IL-1β transcription is primarily regulated by p38 MAPK, but other factors possibly contribute, or substitute for p38 MAPK when it is inhibited. Exactly which other factors might be involved remains to be investigated.

Taken together, our data demonstrate that artificial inhibition of the isoprenoid biosynthesis pathway leads to activation of caspase-1. This occurs via activation of the small GTPase Rac1. Exactly how simvastatin treatment induces activation of Rac1 is not entirely clear. However, as previously described, impaired binding of GDIs may result in more rapid switching between GDP- and GTP binding by Rac1, leading to a net increase in activity. The importance of Rac1 in the processing and release of IL-1β is confirmed by the previous finding that Yersinia bacteria can prevent host IL-1β release by targeting Rac1.³⁶  The Yersinia protein YopE is a GTPase-activating protein, which accelerates GTP hydrolysis, thereby switching off the small GTPases Rho, Rac, and cdc42. Macrophages infected with a YopE knockout Yersinia enterolitica strain, so with increased GTPase activity compared with wild-type-infected cells, released significantly higher levels of IL-1β. Furthermore, overexpression of YopE, but not of a catalytically inactive mutant of YopE, inhibited autoprocessing of caspase-1 as well as processing of proIL-1β. These data correlate with our own findings that increased Rac1 activity enhances caspase-1 processing of pro-IL1β.

Our data show that Rac1, PI3K, and PKB mediate simvastatin-enhanced IL-1β secretion. PI3K has been described to serve as an activator as well as an effector of Rac1.^37,38  Lipid products derived from activated PI3K can activate guanine nucleotide-exchange factors for Rac1, thereby activating Rac1, or active Rac1 can regulate the activation and localization of PI3K by binding to its p85 subunit. We demonstrated that Rac1 functions upstream of PKB (Figure 6D) and that PI3K is required for phosphorylation of PKB (Figure 2B), suggesting the sequential activation of Rac1, PI3K, and PKB.

A major question that remains is how PKB activity can regulate caspase-1 autoprocessing. Caspase-1 is synthesized as an inactive zymogen of approximately 45 kDa that, via induced proximity to another caspase-1 zymogen, can undergo autocleavage, creating 10-kDa and 20-kDa subunits. Two p10 and two p20 subunits form the fully functional heterodimeric enzyme. Caspase-1 autoactivates itself in a complex of proteins termed the inflammasome.³⁹  Caspase-1 contains an N-terminal caspase recruitment domain (CARD), which forms a homotypic interaction (CARD-CARD interaction) with apoptosis-associated speck-like protein containing a CARD (ASC). This adaptor protein interacts with other members of the inflammasome⁴⁰  via similar homotypic interactions, enabling oligomerization, and autocleavage of caspase-1. Active caspase-1 is thought to colocalize with proIL-1β in lysosomal compartments, in which processing of proIL-1β into mature IL-1β takes place.³³  Mature IL-1β and the active caspase-1 subunits are subsequently released into the extracellular environment. Because caspase-1 is activated in a multiprotein complex, PKB-enhanced activation of caspase-1 does not necessarily have to involve direct interactions with caspase-1; interactions with other members of the inflammasome could also be responsible for enhanced activation.

A possible connection between PKB and caspase-1 activation is the p21-activated kinase 1 (Pak1). This protein was shown to be activated by Rac1⁴¹  and can directly bind to and phosphorylate caspase-1 on serine 376.⁴²  Although the function of caspase-1 phosphorylation remains unclear, phosphorylation of this residue appears essential to caspase-1 activity because caspase-1 activation was abrogated in LPS-stimulated THP-1 cells transfected with an S376A mutant. In addition, PI3K has been demonstrated to associate with the N-terminal regulatory domain of Pak1, leading to Pak1 activation,⁴³  and PKB was found to phosphorylate Pak1 on serine 21, which enables Pak1 to bind to the adaptor protein Nck.⁴⁴

Possibly, PKB-mediated activation of caspase-1 involves cytoskeletal rearrangements. PKB has been described to bind directly to actin via its N-terminal PH domain.⁴⁵  In addition, Rac1-mediated inhibition of caspase-1 by the Yersinia protein YopE was found to be mediated by LIM kinase-1 (LIMK1), which targets the actin cytoskeleton.³⁶  Indeed, overexpression of constitutive-active LIMK1 promoted activation of caspase-1, whereas dominant-negative LIMK1 could abrogate Rac1-induced activation of caspase-1, suggesting that Rac1-mediated phosphorylation of the actin cytoskeleton is necessary for caspase-1 activation. A potential role for cytoskeletal rearrangements in activation of caspase-1 is also suggested by the molecular mechanism underlying Familial Mediterranean Fever and PAPA syndrome. These 2 autoinflammatory syndromes are strongly related to mevalonate kinase deficiency, with very similar symptoms and also thought to be caused by inappropriate release of IL-1β.^46,47  PAPA syndrome is caused by mutations in the cytoskeleton-organizing protein PSTPIP1. PSTPIP1 can activate the actin-binding protein pyrin, which is the protein affected in Familial Mediterranean Fever. Mutations of both PSTPIP1 and pyrin were shown to facilitate the assembly of multiprotein complexes capable of activating caspase-1. However, a defined role for cytoskeletal rearrangements in activation of caspase-1 requires further research.

The data described in this study demonstrate that simvastatin-mediated IL-1β release is mediated via a Rac1/PI3K/PKB-dependent signal transduction pathway. Whether this signal transduction pathway is also involved in other (auto)inflammatory disorders remains to be investigated. However, the fact that spontaneous activation of caspase-1 seems to be a common mechanism of inflammation suggests that similar pathways may be involved. Currently, treatment of MKD consists mostly of nonsteroidal anti-inflammatory drugs, and more recently cytokine-targeted therapies have been tried (anti-tumor necrosis factor-α and IL-1 receptor antagonist) with various success. These therapies are, however, very costly and do not benefit all patients. The data presented in this study identify Rac1 as a possible new target for MKD therapy (Figure 7D). Interestingly, Rac inhibitors are currently under investigation for use in cancer therapy. Especially, the development of a novel compound that targets a Rac specific guanine nucleotide-exchange factor (NSC23766) appears promising as a Rac specific small molecule inhibitor. This compound was shown to suppress proliferation and the invasive phenotype of prostate tumor cells⁴⁸  and could effectively block Rac GTPase activity after intraperitoneal administration to laboratory mice.⁴⁹  Other approaches for targeted inhibition of Rac1 include inhibition of Rac effector binding and stabilization of Rac-RhoGDI complexes.⁵⁰

In conclusion, our data demonstrate that inhibition of Rac1 can strongly reduce IL-1β release by THP-1 cells and healthy and MKD PBMCs through inhibition of caspase-1 activation. These data suggest that Rac1 inhibition may provide a novel therapeutic strategy for the treatment of MKD.

L.M.K. was supported by the Wilhelmina Children's Hospital Research Fund.

Contribution: L.M.K. designed and performed research, analyzed data, and wrote the manuscript; J.M.B. performed experiments and provided helpful discussion and advice; J.K. performed lightcycler experiments and analyzed the data; H.R.W. provided helpful discussion and advice; and J.F. and P.J.C. designed the research, contributed patient samples and wrote the manuscript.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: Paul J. Coffer, Lundlaan 6, 3584 EA Utrecht, The Netherlands; e-mail: p.j.coffer@umcutrecht.nl.
