Efficient generation, purification, and expansion of CD34⁺ hematopoietic progenitor cells from nonhuman primate–induced pluripotent stem cells

New therapies are needed to treat disease attributed to genetic (ie, Fanconi anemia, hemoglobinopathies) and infectious (ie, HIV/AIDS) hematologic diseases. Autologous or allogeneic HSC transplantation in which the graft has been gene-modified offers a potential cure for hematopoietic or immune system failure. However, appropriate autologous HSCs for genetic modification often are unavailable, and the limited availability of MHC-matched donors significantly restricts allogeneic treatment options.¹  In addition, patients receiving allogeneic grafts also may experience acute and chronic life-threatening complications.²

Induced pluripotent stem cell (iPSC) therapies are a tractable alternative to allogeneic cell transplantation because they represent an unlimited source of autologous, patient-specific cells.^3-7  However, in vivo preclinical models for long-term functional and safety analysis of iPSC-related therapeutics are limited by model organism life span and further compromised in that available infectious disease models fail to recapitulate human disease. Studies in nonhuman primates (NHP) permit the longitudinal evaluation of iPSC-derived hematopoietic progenitor cells (HPCs) in an autologous setting and provide assays for safety validation, therapeutic benefit, and terminal cell fate and function. Furthermore, findings in NHP models generally translate well to human applications.⁸  Thus, to critically evaluate the longitudinal therapeutic benefits, risks, and fate of iPSC-derived HPCs in vivo, an appropriate NHP model is required.

Toward modeling novel therapies for blood-related diseases and HIV/AIDS in the pigtail macaque, we have shown previously stable engraftment of bone marrow and peripheral blood–derived autologous CD34⁺ cells expressing therapeutic and anti-HIV transgenes.^9-11  The CD34-enriched fraction from mobilized blood or bone marrow reconstitutes the hematopoietic system, indicating that enriched CD34^high fraction contains a subset of cells that are long-term repopulating HSCs (LT-HSCs). We also have shown recently that transplantation with HSCs modified to express the anti-HIV protein C46 reduces viral load in simian/human immunodeficiency virus (SHIV)–infected monkeys and supports partial recovery of immune function (H.-P.K., unpublished results, May 2012). Because iPSCs represent an inexhaustible source for the generation of virus-resistant, gene-modified CD34⁺ cells and hematopoietic progeny, the pigtail macaque allows us to test SHIV-specific iPSC-derived hematopoietic cell therapeutics in vivo as well as assess the long-term safety of iPSC hematopoietic progeny.

To address safety concerns, we previously generated and characterized several MniPSC lines^12,13  and engineered MniPSCs to express an inducible suicide gene.¹³  Scale-up and quality control of therapeutic cell production to attain an appropriate cell dose for transplantation in the monkey or a patient must meet the following criteria: (1) a relatively efficient hematopoietic induction protocol, (2) a well-established purification method to enrich for the target therapeutic population (CD34⁺ cells) and simultaneously deplete residual undifferentiated cells, and (3) a strategy to expand primitive CD34⁺ cells without loss of multipotency.

The production of sufficient iPSC-derived HPCs for engraftment will likely require ex vivo expansion. To this end, novel factors that maintain and expand primitive HSCs ex vivo have been identified, including StemRegenin 1 (SR1), an aryl hydrocarbon receptor (AhR) antagonist,¹⁴  and prostaglandin-E₂ (PGE2),¹⁵  both of which are involved in HSC homeostasis. Several groups have shown that bone morphogenetic protein (BMP) and Wnt pathways specify hematopoietic fate and that activation of these pathways impacts lineage development from mouse and human PSCs.^16-19  Here we describe a novel, chemically defined differentiation, expansion, and purification strategy that meets scale-up and quality control criteria and relies on sequential modulation of the BMP, Wnt, and AhR pathways to generate HSC-like cells from MniPSCs. We also describe a method for expansion of enriched CD34^high cells with a putative LT-HSC phenotype and show that these cells exhibit both myeloid and lymphoid differentiation potential ex vivo.

Derivation of MniPSC lines 3 and 7 has been described.¹²  Before differentiation, normal karyotype was validated and phenotype confirmed by flow cytometry and visual assessment of colony appearance. MniPSCs were passaged weekly at ratios of 1:2 to 1:4 on the basis of colony density onto irradiated mouse embryonic fibroblast feeder layers (iMEFs) plated at a density of 6 × 10⁵ cells per well of a 6-well plate. MniPSCs on iMEFs were fed daily with PSC media consisting of 1:1 DMEM/F12 supplemented with 20% knockout serum replacement, 1% MEM nonessential amino acids, 2 mM l-glutamine (all from Life Technologies), 0.1mM 2-mercaptoethanol (Sigma-Aldrich), and 20 ng/mL human basic fibroblast growth factor (bFGF; R&D Systems), and passaged weekly with 200 U/mL collagenase type IV (Life Technologies) in DMEM/F12 containing 100 U/mL Dnase I (Sigma-Aldrich). All undifferentiated iPSC cultures were maintained at 37°C in a humidified incubator (5% CO₂, 20% O₂).

Before passage of MniPSCs to feeder-free conditions, MniPSCs on iMEFs were treated with 10μM Y-27632 rock inhibitor (Calbiochem) for 1 hour and dissociated with 200 U/mL collagenase type IV plus Dnase I. Cells were passaged at ratios of 1:2 to 1:3 onto 6-well plates or 10-cm dishes (Costar) coated with 1:2 GFR matrigel (BD Bioscience) and cultured overnight in PSC media plus 20 ng/mL bFGF and 10μM Y-27632 (Figure 1A). On day −1 relative to differentiation, cells were fed with PSC media plus 20 ng/mL bFGF. On day 0, 75%-90% confluent MniPSC colonies were dissociated with 200 U/mL collagenase type IV plus 200 U/mL Dnase I, washed with DMEM:F12 media, and scraped into clusters. Basal media formulation and BMP4-mediated mesoderm induction has been previously described for hESC differentiation.^20,21  MniPSC aggregates were suspended in complete StemPro (cStemPro) media (StemPro-34 plus supplement [Life Technologies], 2mM l-glutamine, 50 μg/mL ascorbic acid [Sigma-Aldrich], 4 × 10⁻⁴ M 1-thioglycerol [Sigma-Aldrich], and 150 μg/mL transferrin [Roche]), supplemented with 10, 20, or 50 ng/mL BMP4 (Figure 1A), and cultured in low-cluster plates (Costar). cStemPro was supplemented with human cytokines, indicated below and in panel A of each figure. All cytokines were recombinant human cytokines purchased from R&D Systems unless indicated. On day 1, embryoid bodies (EBs) were settled by gravity and suspended in cStemPro with BMP4 (20 ng/mL) and bFGF (10 ng/mL). On day 4, EBs were settled by gravity and suspended in cStemPro with 10 ng/mL each of VEGF and bFGF.

For hematopoietic specification, from day 8 onward cStemPro media were supplemented with SCF (100 ng/mL; Miltenyi Biotech), IL-3 (20 ng/mL; Peprotech), IL-6 (20 ng/mL; Peprotech), IL-11 (50 ng/mL), erythropoietin (EPO, 4 U/mL; Peprotech), thrombopoietin (TPO, 20 ng/mL; Peprotech), and insulin-like growth factor-1 (IGF-1; 25 ng/mL). Cultures were maintained in hypoxia (5% CO₂/5% O₂/90% N₂). In some experiments, 0.75μM SR1 (Cellagen Technology, days 1-21 or 8-21) or 2μM PGE2 (Cayman Chemical, days 1-21 or 1-8) were added at indicated time points (Figures 2A, 3A, 4A, and 5A). The PGE2 concentration used (2μM) has been tested in the context of hESC hematopoietic differentiation.¹⁹  The SR1 concentration (0.75μM) was selected on the basis of our recent optimization studies expanding macaque cord blood, as well as bone marrow and peripheral blood–derived CD34⁺CD38⁻ HSCs ex vivo (H.-P.K., unpublished results, September 2011).

Day 8 EBs were dissociated into single cells with Accutase (Life Technologies). Cells were resuspended in DPBS (Life Technologies) containing 100 U/mL Dnase I, 1% FBS, and 2% chick serum; stained with PE conjugated anti–human CD34 antibody (clone 563; BD Bioscience); and sorted by FACS on a FACS Aria II (BD; Figure 3A) or by magnetic-activated cell-sorting system (MACS; Miltenyi Biotech; see Figure 4A), as described.²²

On day 8, sorted CD34⁺ cells were plated with or without irradiated mouse OP9 stromal cells²³  in 6-well plates and cultured in cStemPro media containing SCF (100 ng/mL), IL-3 and IL-6 (20 ng/mL each), IL-11 (50 ng/mL), EPO (4 U/mL), TPO (20 ng/mL), and IGF-1 (25 ng/mL).

CD34⁺ cells were replated at a density of 40 000 cells per well in 12-well plates (nontissue culture treated; Costar) in cStemPro media supplemented with 0.75μM SR1, IL-11 (50 ng/mL), IGF-1 (25 ng/mL), SCF, and fms-like tyrosine kinase receptor-3 ligand (FL; 100 ng/mL each; see Figure 4A). Cultures were maintained in hypoxia (5% CO₂/20% O₂/90% N₂) or normoxia (5% CO₂/20% O₂) for 1-2 weeks. Media was replaced every 3-4 days.

For short-term colony-forming cell assays, EBs were dissociated with Accutase and suspended in IMDM and single-cell suspensions from unsorted EBs, or sorted CD34^high cells were plated in triplicate in Methocult H4435, H4230, or H4100 (all from StemCell Technologies) at densities of 100 000 or 3000 cells per 3.5-cm² dish, respectively. For H4100 formulation, IMDM was supplemented with 1% H4100 Methocult, 15% plasma-derived serum, 10% protein-free hybridoma media (Gibco), 2mM l-glutamine, 150 μg/mL transferrin, SCF (100 ng/mL), IL-11 (50 ng/mL), IGF-1 (25 ng/mL), TPO, IL-3, IL-6 (20 ng/mL each), bFGF, VEGF (10 ng/mL each), EPO (4 U/mL), and GM-CSF (1 ng/mL). After 14 days, methylcellulose plates were evaluated for colonies by microscopy (Nikon TMS), and myeloid colony-forming units (CFUs) calculated per input 10⁵ cells.

Day 14 HPCs were dissociated and enriched for CD34⁺ cells as described.³³  CD34⁺ cells were plated on mouse OP9 stromal cells that stably express the Notch ligand Delta-Like 1 and green fluorescent protein (OP9DL1-GFP) in freshly prepared α-MEM media (Life Technologies) containing 50 μg/mL ascorbic acid, 100μM 1-monothioglycerol, 20% FBS, 10 ng/mL SCF, 5 ng/mL each of FL and IL-7, maintained, passaged, and analyzed as previously described (see Figure 5A).^24-26

T lymphocytes were activated overnight with IL-2 plus CD3/CD28 magnetic beads (Life Technologies). The following reagents were obtained through the AIDS Research and Reference Reagent Program, Division of AIDS, National Institute of Allergy and Infectious Diseases, National Institutes of Health: HIV-1 89.6²⁷ from Dr Ronald Collman (University of Pennsylvania, Philadelphia, PA); and SHIV KU-1²⁸  from Dr Opendra Narayan and Dr Sanjay Joag (University of Kansas Medical Center, Kansas City, KS); and pNL4-3²⁹  from Dr Malcolm Martin. NL4.3 virus was generated in HEK293T cells as described.²⁹

Myeloid cells isolated from Methocult, unsorted lymphoid-like cells (both derived from MniPSC CD34⁺ cells), Mn CD4⁺ lymphocytes from blood MNCs, and OP9DL1-GFP cells were inoculated with HIV 89.6 (50 μL, primary stock 9.12 × 10³ TCID₅₀/mL), NL4.3 (20 μL, multiplicity of infection of 5), or SHIV KU-1 (50 μL, primary stock 1.04 × 10² TCID₅₀/mL) and incubated for 24 hours. Media was changed 24 hours after inoculation. Then, 2 days later, cell-free supernatant was collected and transferred to Ghost(3) indicator cells. At 3 days after Ghost(3) cell inoculation, cells were collected and analyzed by flow cytometry as described.³⁰  Background GFP levels detected in cells exposed to OP9DL1-GFP cell supernatant were subtracted from GFP percentages observed in MniPSC lymphoid cultures. For HIV p24 and SIV p27 tests, cell-free supernatants were diluted 1:6 or 1:100, respectively, in media and assayed with the p24 Antigen ELISA kit (PerkinElmer) or the p27 Antigen ELISA kit (ZeptoMetrix Corporation), per the manufacturer's instructions, on the Varioskan Flash Multimode Reader with SkanIt RE for Varioskan Flash, Version 2.4.3 software (490 nm; Thermo Scientific).

MniPSC-derived EBs, HPCs, and differentiated cells were dissociated and stained with the following antibodies: CD14-PeCy7, CD31-PE, -APC, CD33-PE, CD34-PE, -APC, CD45-APC, CD45RA-APC-Cy7, CD49f-PerCP Cy5.5, CD90-PeCy7, CCR5-PE, CD235a-PE (Glycophorin A; all from BD); KDR-PE (R&D Systems); CD43-APC-Cy7 (Beckman Coulter), CD38-FITC (StemCell Technologies); and CXCR4-PE (Caltag). The ALDEFLUOR kit (StemCell Technologies) was used to detect aldehyde dehydrogenase. Lymphoid cells were stained with the following antibodies: CD3-PE, -APC, CD4-APC, CD8-PE, CD1a-PE, CD7-PE, CD25-APC (all from BD); CD69-PE, CD27–Pacific Blue (eBioscience); and TCRγδ-PE and TCRαβ-PE (Biolegend). Viability was determined by 7-aminoactinomycin D (eBioscience) staining. Flow cytometry was performed on an LSR-II (BD) and data analyzed with FlowJo Version 9.4.1 (TreeStar) software.

Total RNA was prepared with the RNeasy Plus Kit and treated with RNase-free DNase (all from QIAGEN). RNA was reverse transcribed into cDNA with the use of the Superscript III First-strand Synthesis System kit (Life Technologies) according to the manufacturer's protocol. Macaque-specific (human cross-reactive) primers (Table 1) were designed on the basis of the annotated rhesus macaque genome (synthesized by IDT). For target sequences that lacked annotated confirmed or predicted sequences, oligonucleotides specific for the human sequences were used, with human SCL- and Brachyury-specific primers already described.³  Quantitative PCR (qPCR) was performed with 2X Power SYBR green master mix (Applied Biosystems) on a real-time PCR system machine (Applied Biosystems 7500).

Means and SDs were calculated, and Student t tests and ANOVA statistical tests performed where indicated with the use of Microsoft Excel Version 12.3.2 software.

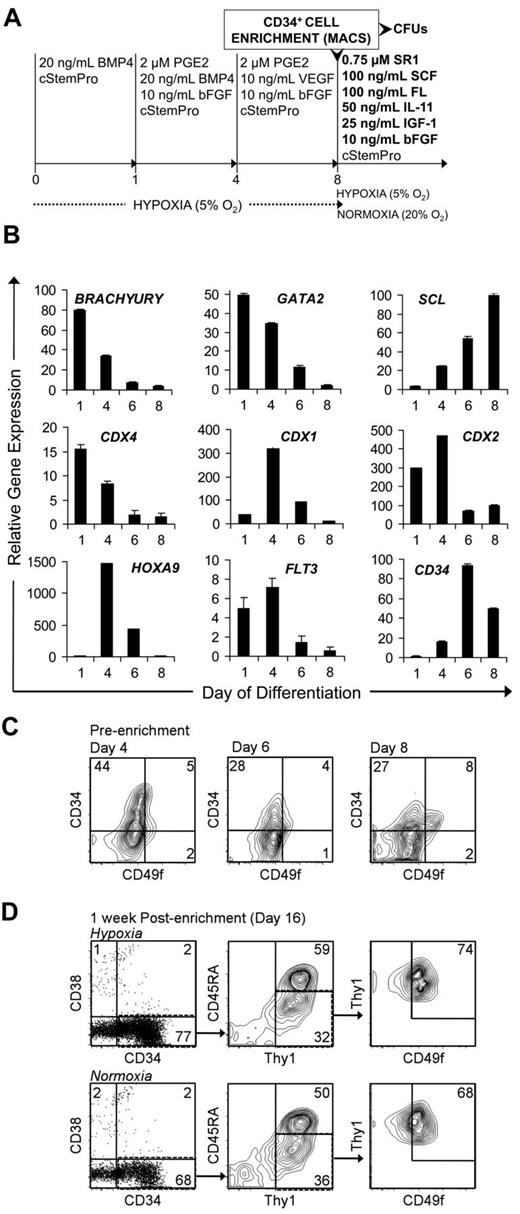

Toward scaling up CD34⁺ cell production, we titrated BMP4 added during day 0 aggregation, which impacts efficiency of mesoderm induction (Figure 1A).³¹  Because the optimal BMP4 concentration may vary depending on the human ESC/iPSC line, we tested 3 BMP4 concentrations (10, 20, 50 ng/mL) on MniPSC lines 3 and 7, which we previously used for inducing hematopoietic mesoderm in hESCs (data not shown). For MniPSC line 3, high BMP4 on day 0 led to robust expression of CD34 (30%-45%) in day 14 and 21 cultures (Figure 1B). For day 14 MniPSC EBs induced with 20 ng/mL BMP4, 1.5 million viable CD34⁺ cells were generated from 1 million undifferentiated MniPSCs (Figure 1C). Although the total percentage of CD34⁺ cells was greater on day 21, the best viable cell yield was achieved on day 14. Only ∼ 5% (< 100 000) CD34⁺ cells coexpressed hematopoietic markers (CD31, CD45). Importantly, CD31, which is expressed on early hematoendothelial precursors, emerged before CD45, which is induced later and is associated with lineage commitment.

We next assessed myeloid and short-term hematopoietic potential in CFU assays. To determine the optimal Methocult formulation for MniPSC-HPCs, we tested 3 different formulations: H4230, historically used with human and pigtail macaque CD34⁺ cells; H4435, used with human ESC-derived hematopoietic progenitors; and a noncommercial formulation used with hESCs that has been previously described.^20,21  MniPSCs induced with 20 ng/mL BMP4 gave rise to significantly more CFUs, displaying a 90% CFU-M and 10% CFU-GM phenotype. Similar CFU numbers and morphologies were noted for the 3 semisolid media tested; therefore, CFU data for the H4435 formulation only is shown (Figure 1D). CFUs peaked on day 14 and were significantly increased for cells induced in 20 ng/mL BMP4, coinciding with the greatest CD34⁺ viable cell yield. BMP4 titration also was tested for hematopoietic induction of MniPSC line 7, and similar results were obtained (data not shown).

We next tested whether PGE2³²  or SR1,¹⁴  which activate downstream pathways implicated in HSC emergence and homeostasis, respectively, would improve HPC formation from macaque iPSCs. We first evaluated the effect of PGE2 or SR1 on hematopoietic differentiation of MniPSC lines 3 and 7 (Figure 2A). We selected a previously published PGE2 concentration used in the context of hESC hematopoietic specification¹⁹  and a SR1 concentration determined to be optimal for expansion of NHP CD34⁺ cells obtained from cord blood, peripheral blood, and bone marrow (data not shown). PGE2 treatment nearly tripled the viable CD34⁺ cell yield in day 14 HPCs generated from MniPSC line 3 cultures (Figure 2B-C). Primitive hematopoietic cell (CD34⁺CD45⁺) yields increased 4- and 2-fold, respectively, in PGE2- and SR1-treated MniPSC cultures with no negative impact on total CD34⁺ cell yield. Importantly, PGE2 treatment restricted to the first 8 days increased CD34⁺ cell yield without compromising CFUs (Figure 2D). Prolonged treatment with PGE2 (14 days) significantly reduced hematopoietic colony-forming potential compared with untreated controls. In contrast, SR1 treatment increased CFUs compared with controls. Similar results were obtained for MniPSC line 7. These findings indicate that short-term treatment with either PGE2 or SR1 improves CD34⁺ cell generation from MniPSCs, but PGE2 is superior on the basis of viable cell yields.

Although PGE2 increased hematopoietic lineage commitment compared with untreated controls, differentiation was relatively inefficient. Flow cytometry analysis revealed persistence of 10%-30% undifferentiated cells after induction. In addition, hematopoietic maturation as indicated by a loss of CD34 in the CD45⁺ population was very low (< 2% CD45⁺CD34⁻). On the basis of these findings, we hypothesized that removal of undifferentiated cells would improve hematopoietic commitment and maturation. To determine whether hematopoietic specification could be improved by isolation of the CD34⁺ fraction, day 8 CD34⁺ cells generated from MniPSC lines 3 and 7 were FACS sorted and replated with or without OP9 stromal cells in hematopoietic expansion medium (Figure 3A). Purified CD34^high cells increased production of primitive hematopoietic cells (30% or 0.3 million CD34⁺CD45⁺ generated from 1 million undifferentiated MniPSCs) and coexpression of hemogenic markers compared with unsorted hematopoietic EBs (Figure 3B-C). MniPSC line 7 CD34^high cells gave rise to more CD45⁺CD34⁻ cells compared with MniPSC line 3 (Figure 3B-C). Hematopoietic colony-forming potential doubled for sorted compared with unsorted HPCs (Figure 3D). CFUs generated from sorted CD34⁺ cells were 2-fold greater for line 7 compared with line 3, consistent with their CD45⁺CD34⁺CD31^low phenotype, which is associated with erythro-myeloid potential³³  (Figure 3E). In contrast, line 3-derived cells had a CD45⁻CD34⁺CD31^high phenotype. Sorted CD34⁺ cells gave rise to ∼ 4-fold more hematopoietic colonies compared with unsorted cells. Purified CD34⁺ cells derived from MniPSC line 7 approached CFU counts obtained from unsorted macaque mobilized bone marrow (Figure 3D). Close to 90% of the hematopoietic colonies had CFU-M morphology, with only 10% of colonies displaying CFU-GM morphology. MniPSC CD34⁺ cells formed hematopoietic zones²⁵  in OP9 stromal cell coculture, which resemble cobblestone area–forming cells (Figure 3F).

On the basis of stage-specific biologic roles of the prostaglandin pathway in early hematopoiesis and AhR signaling in HSC homeostasis, we wanted to determine whether sequential modulation of these pathways with PGE2 and SR1 would enhance the emergence and expansion of putative HSCs. To clarify the effect of SR1 on HPC homeostasis, we tested whether a novel multistep approach to HSC generation, purification, and expansion would increase HPC yield. We hypothesized that early treatment with PGE2 would boost viable CD34⁺ cell yield, purification of CD34^high cells would enhance hematopoietic commitment by eliminating residual undifferentiated iPSCs, and subsequent SR1 treatment would expand the CD34⁺ putative HSCs (Figure 4A). We also developed a progenitor expansion media, which excludes endothelial (VEGF)–, erythroid (TPO, EPO)–, and myeloid (IL-3, IL-6)–specific cytokines. To expand HPCs, we supplemented basal media with SCF, FL, IL-11, bFGF, and SR1 (Figure 4A).

As the results shown in Figure 3 indicate, MniPSC line 7–derived CD34^high cells have greater hematopoietic mesoderm potential compared with line 3; thus, subsequent studies were conducted with MniPSC line 7. Toward scaling up HPC production, we also switched from a 6-well plate format to 10-cm dishes. To clarify the phenotype of MniPSC-derived primitive HPCs, we included hematopoietic cell-specific gene expression by qRT-PCR (Figure 4B and Table 1) and a multiparametric LT-HSC like phenotype, which has been shown to identify human cord blood–derived SCID-repopulating cells (SRCs; CD34⁺CD38⁻Thy1⁺CD45RA⁻CD49f⁺).³⁴

Gene expression assays for mesoderm and hematopoietic transcription factors showed that Brachyury, CDX4, and GATA2 mRNA peaked on day 1, whereas CDX1, CDX2, and HOXA9 peaked on day 4, followed by SCL on day 8. Cell-surface markers Flt3 and CD34 peaked on days 4 and 6, respectively. On days 4, 6, and 8 of differentiation, all CD34⁺ cells also were CD38⁻ and a fraction of the CD34⁺ cells coexpressed CD49f as determined by flow cytometry (Figure 4C). CD34⁺ cell yield was greatest on day 4 (4.5 million CD34⁺ cells per 10-cm plate) and decreased on days 6 and 8 (2.4 million CD34⁺ cells). The CD34^high fraction was isolated on day 8 and maintained in our novel expansion media. After a 1-week expansion in SR1, the enriched cell fraction maintained a putative LT-HSC phenotype (Figure 4D). However, CD34⁺ cell number cultured under normoxic conditions expanded 3-fold, whereas cells grown in hypoxia maintained their phenotype but did not increase in total cell number. These data clarify a 4-step protocol that expands MniPSC-derived HPCs ex vivo. This optimized hematopoietic specification protocol for MniPSCs includes the following steps: (1) BMP4 mesoderm induction (20 ng/mL BMP4, days 0 and 1); (2) hematopoietic specification with PGE2 (2μM PGE2, days 1-7); (3) purification of CD34^high cells; and (4) CD34⁺ cell expansion in normoxia with SR1.

We next evaluated MniPSC-derived CD34⁺ cell differentiation potential. HPCs were expanded for 14 days and MACS enriched for CD34⁺ cells (Figure 5A). As in previous experiments, the majority of the hematopoietic colonies had a CFU-M phenotype (Figure 5B). Colonies isolated and evaluated by flow cytometry were heterogeneous in phenotype, expressing HPC (CD34, CXCR4)–, myeloid (CD33, CD14, CCR5)–, erythroid (GlyA)–, and lymphoid (CD3, CD19)–specific cell-surface markers (Figure 5B).

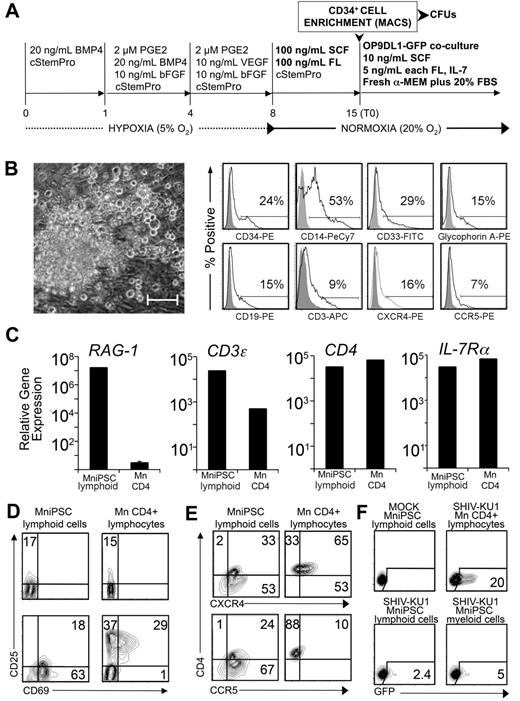

To assess lymphoid potential of the MniPSC-derived CD34^high cells, we induced lymphoid differentiation by OP9DL1-GFP coculture (Figure 5A). GFP⁻ colonies appeared 1 week later (supplemental Figure 1A, see the Supplemental Materials link at the top of the article). CD1a, expressed on early lymphocytes, peaked on day 28 whereas CD3, CD4, CD8, and CD7 expression, acquired later, increased over time. Intracellular CD3ϵ increased to 60% by day 35, with surface expression of CD3ϵ with TCRαβ and TCRγδ represented (supplemental Figure 1B). To validate lymphoid phenotype, RAG-1, CD3ϵ, CD4, and IL7-Rα mRNA levels were compared in day 30 MniPSC lymphoid/OP9DL1-GFP coculture and macaque peripheral blood CD4⁺ cells (Mn CD4) with primers specific for Mn orthologs (Figure 5C and Table 1). Importantly, RAG-1 mRNA was up-regulated 10⁷-fold in MniPSC lymphoid-like cells, suggesting an early lymphoid progenitor state had been achieved (Figure 5C). In contrast, relatively low levels of RAG-1 were detected in Mn CD4⁺-derived mRNA. These findings are consistent with the 2 waves of RAG-1 gene expression previously reported, in which RAG genes are highly expressed in CD25⁺CD4⁻CD8⁻CD3⁻ T lymphocyte progenitors, when TCR loci undergo rearrangement, and then later at the CD4⁺CD8⁺ stage.^35,36

Given that ∼ 4% of the Mn CD4⁺ cells were also CD8⁺, we expected to detect a low level of RAG-1. Relative expression of CD3ϵ, CD4, and IL7-Rα mRNA in MniPSC lymphoid cultures and Mn CD4⁺ cells was 10^3-10⁵-fold greater compared with undifferentiated MniPSCs. Consistent with an immature phenotype, 17% of resting MniPSC lymphoid cultures also expressed CD25 (Figure 4D top). Mn CD4⁺ and day 45 MniPSC lymphoid cultures were then costimulated with CD3/CD28 beads and assayed for up-regulation of the early activation marker CD69 in combination with CD25 (Figure 4D bottom). In costimulated Mn CD4⁺ cells, CD25 increased almost 5-fold with 29% of the cells coexpressing CD69, and CD69 expression was restricted to the CD25⁺ fraction. In contrast, 81% of costimulated day 45 MniPSC lymphoid cultures expressed CD69, a fraction of which expressed CD25. Differential expression of CD69 (63% CD69⁺CD25⁻, 18% CD69⁺CD25⁺) in MniPSC CD4⁺ lymphoid-like cells may indicate emergence of 2 distinct lymphoid subsets, the former consistent with a recently identified nontraditional FoxP3-null regulatory T-cell population (CD69⁺CD4⁺CD25⁻) implicated in tumor immune escape.^37,38

To develop HIV-directed PSC therapeutics and validate bilineage differentiation potential, we next assessed whether MniPSC lymphoid-like cells were susceptible to SHIV infection. Expression of HIV-1 entry coreceptors CXCR4 and CCR5 with CD4 were evaluated by flow cytometry on day 45 (Figure 5E). Costimulated Mn CD4⁺ and MniPSC lymphoid-like cells coexpressed CXCR4 and CD4 (65% and 33%, respectively). Consistent with an activated phenotype,³⁹  10% of costimulated Mn CD4⁺ cells and 24% of MniPSC lymphoid-like cells coexpressed CD4 with CCR5. Given the limited yield of lymphoid cells and differences between ex vivo and in vivo functionality, we focused on testing SHIV infectivity as an indirect measure of hematopoietic maturation and potential in vivo application and did not conduct additional ex vivo functional assays (cytotoxicity, cytokine production). MniPSC-CD34^high derived lymphoid-like and myeloid-like cells were challenged with R5- and X4-tropic 89.6 and X4-tropic NL4.3 HIV-1 isolates.^27,29  Mn CD4⁺ cells, unsorted MniPSC-derived myeloid and lymphoid cells were susceptible to low levels (∼ 1%) of HIV-1 infection, as determined in Ghost(3) cell assays.⁴⁰  HIV p24 was detected in media of infected cells after virus washout and culture, confirming HIV-1 entry and replication (supplemental Figure 1C).

Given the cellular restriction factors (ie, TRIM5α) that block the HIV life cycle in NHP cells,⁴¹  we challenged cells with R4-tropic SHIV-KU1, to which NHP cells should be more permissive.²⁸  Day 45 MniPSC lymphoid-like cells supported SHIV infection (2.4%), at levels 2- and 8-fold less than in MniPSC myeloid cells (5%), and Mn CD4⁺ cells (20%), respectively (Figure 5F). The SIV p27 antigen capture ELISA, which measures viral replication, indicated high p27 levels in the media of both Mn CD4⁺ (2.2 × 10⁴ pg/mL) and MniPSC lymphoid-like cells (2.4 × 10³ pg/mL; ∼ 9-fold difference; supplemental Figure 1D). These results indicate that NHP iPSCs give rise to lymphoid-like cells that respond to costimulation and support SHIV entry and replication ex vivo.

We have developed a novel hematopoietic differentiation, enrichment, and expansion protocol to facilitate the emergence and expansion of HPCs from MniPSCs. We report that sequential treatment with PGE2 followed by SR1 increases production of CD34^high cells, which display a cell-surface marker phenotype similar to putative LT-HSCs. Purified CD34^high cells have bilineage differentiation and substantial hematopoietic colony-forming potential. This protocol is translatable to human PSC differentiation because BMP4,²⁰  PGE2,¹⁹  and SR1¹⁴  interact with BMP, prostaglandin, Wnt, and AhR signaling in human stem cells. To the best of our knowledge, this is the first reported use of SR1 to expand iPSC-derived HPCs.

Transplantation of gene-modified iPSC derivatives has potential for the treatment of hematologic diseases. To test iPSC-derived cell engraftment in an autologous large animal model, we and other groups have generated NHP iPSCs, including pigtail and rhesus macaque,⁴²  cynomolgus monkey,^43,44  and common marmoset.⁴⁵  Toward scaling up hematopoietic differentiation for HPC transplantation, we developed a strategy to expand and purify HPCs from MniPSCs. We present a chemically defined induction protocol that will permit production scale-up of CD34^high cells that have a phenotype associated with SRCs (CD34⁺CD38⁻Thy1⁺CD45RA⁻CD49f⁺).

We show that sequential treatment with BMP4 (days 0-1), PGE2 (days 1-7), and SR1 (days 8-17) supports the emergence and expansion of HPCs with an SRC phenotype. We also show that MniPSC-derived CD34⁺ cells can be purified with the MACS system used for CD34⁺ purification in autologous transplantation studies in our laboratory. This technology allows us to obtain a > 98% pure population of MniPSC-derived CD34^high cells. Second, when sorted CD34⁺ cells are extracted from heterogeneous culture containing undifferentiated MniPSCs, they expand by coculture with SR1 in normoxia and maintain an HSC-like cell surface phenotype. This finding is novel and significant because translation from ex vivo small-scale CD34⁺ cell production to transplantation in a large animal will require extensive expansion of the input cell population. On the basis of our experience transplanting gene-modified autologous HSCs enriched from mobilized blood or bone marrow in the macaque, the minimum threshold CD34⁺ cell dose required for long-term, multilineage repopulation after myeloablative preconditioning is 2 million cells per kilogram of body weight. Our test scale-up in 10-cm plates indicates that to generate 10 million CD34⁺ cells to transplant into a 5-kg monkey, 400 million cells would be required for aggregation.

Although the scale-up for such a transplantation will be a challenge, other issues must be addressed to translate iPSC technology to a larger physiologic system, including selection of the specific iPSC line, the passage number to be used in transplantation, and quality control of the reagents used for differentiation. In our studies, both the passage number and clonal line of iPSCs impacted efficiency of differentiation and cell yield. For each line, it is likely that the expansion protocol will have to be further optimized to reach minimum cell doses for transplantation. In addition, for the small-scale studies presented herein, we have used previously validated batches of reagents. Scale-up for the monkey transplantation will require liters of StemPro media and several grams of cytokines for differentiation.

If human/mouse xenograft data are predictive of engraftment potential of HSCs derived from various sources (ie, umbilical cord blood, bone marrow, iPSCs), then chemical modification, coculture methods, genetic manipulation, and/or greater cell doses will likely be required to approach the therapeutic benefit that is currently achievable with umbilical cord blood and bone marrow–derived HSC transplantation. To this end, in vivo selection or expansion will likely be required for long-term engraftment and contribution to hematopoiesis, which raises additional concerns. Although it is straightforward to gene modify iPSCs, we have observed loss of transgene expression after serial passaging and lineage commitment, which could impede iPSC-related gene therapy applications. Finally, given the somewhat-undefined repopulation potential of PSC-derived putative HSCs, transplantation of a more phenotypically distinct hematopoietic lineage, such as a purified lymphocyte population, may be more easily translatable to a large animal model and eventual patient population, including HIV/AIDS patients.

Although gene modification of somatic HSCs and T lymphocytes from HIV⁺ patients may be complicated because of potential infection, iPSCs can be generated from patient cells that are not of hematopoietic origin (ie, fibroblasts) and not susceptible to HIV infection. Transplantation of iPSC-derived HIV-resistant HPCs and lymphocytes would likely decrease toxicity associated with conventional HSC transplantation because only a low-dose conditioning regimen would be required for successful HIV-resistant autologous cell engraftment.⁴⁶  Given the worldwide impact of HIV infection on human health, iPSC-derived, patient-specific, and HIV-resistant cells for hematopoietic reconstitution is an exciting treatment option. This potential application stems from successful treatment of an HIV⁺ leukemia patient after radiation and transplantation of donor HSC with a mutated HIV coreceptor (CCR5Δ32).⁴⁷  Because matched CCR5Δ32 donors are rare, autologous genetically engineered knockout CCR5 iPSC-derived cells may provide an alternative option for HIV⁺ patients. Nonhuman primate iPSCs provide a preclinical model to test transplantation of virus-resistant cells and other novel therapies.

In summary, our findings establish a reproducible protocol for induction, expansion, and isolation of NHP iPSC-derived HPCs with bilineage differentiation potential, which we will now use to test novel iPSC-based therapeutics for the treatment of hematologic genetic and infectious disease in the pigtail macaque. This protocol may be more broadly applicable to mouse and human PSC systems. Because we engineered our MniPSC lines to express inducible suicide genes (ie, iCaspase9) and selectable markers (ie, MGMTP140K), we now can test the engraftment of MniPSC-CD34^high cells and control their in vivo expansion and elimination in a clinically relevant large animal model.
