2p15-p16.1 microdeletions encompassing and proximal to BCL11A are associated with elevated HbF in addition to neurologic impairment

Chromosome 2p15-p16.1 microdeletions constitute a contiguous gene deletion syndrome characterized by shared phenotypic traits including intellectual disability, growth retardation, and distinct dysmorphisms. To date, 11 microdeletions of discrete lengths have been described, each associated with overlapping subsets of phenotypic features.¹  These deletions collectively encompass approximately 17 protein-coding genes and are accordingly associated with a complex spectrum of physical and mental traits. The smallest microdeletion yet has recently been reported to solely contain the BCL11A gene and is associated with hypotonia, mild intellectual delay, speech disorder, and gross motor impairments.¹

BCL11A is a transcription factor that is highly expressed in the brain, B-lymphocytes, and adult erythroid lineage. It has emerged from several genome-wide association studies as a negative modulator of fetal hemoglobin expression.^2-4  Indeed, BCL11A knockout disrupts developmental silencing of human fetal γ-globin in transgenic mice.⁵  Moreover, BCL11A knockdown in primary human erythroid cells results in increased fetal hemoglobin (HbF),⁶  whereas conditional knockout in adult sickle cell disease transgenic mice leads to reactivation of γ-globin and amelioration of symptoms.⁷  Erythroid-specific abrogation of BCL11A has thus been pursued as an attractive therapeutic for β-hemoglobinopathies.⁸  Although HbF-associated single-nucleotide polymorphisms (SNPs) have been shown to disrupt an erythroid enhancer in the second intron of BCL11A, until recently, coding BCL11A mutations had not been reported.^9-11  Here we have investigated the hematopoietic parameters of 3 patients with distinct de novo, heterozygous deletions encompassing, or proximal to, BCL11A. All display modestly reduced BCL11A expression and considerable HbF elevation. In one patient, a downstream deletion that leaves the BCL11A coding gene intact results in reduced BCL11A transcripts in erythroblasts, alluding to the existence of novel, erythroid regulatory elements within this region.

See the supplemental Data, available on the Blood Web site.

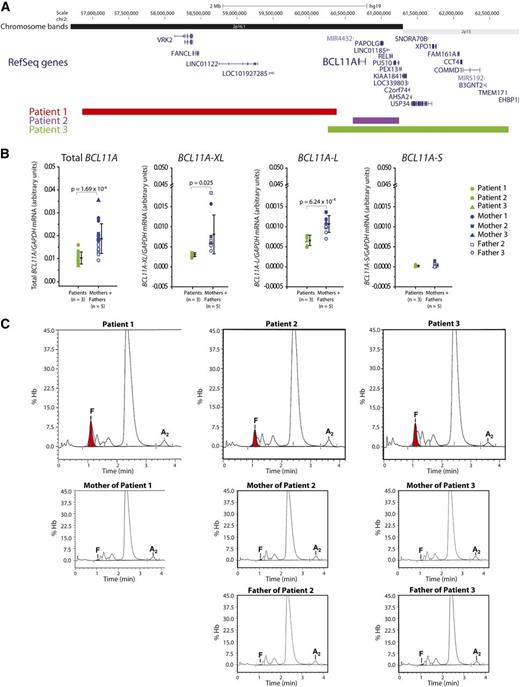

The 3 patients herein have been described previously.^12,13  The first is a 15-year-old female with a 3.5-Mb deletion downstream of BCL11A (Figure 1A).¹³  The second and third are an 8-year-old female and 7-year-old male with 642-kb and 2.5-Mb deletions, respectively, covering the entire BCL11A gene (Figure 1A).¹²  Although their neurological and physical traits have been extensively characterized, their hematopoietic profiles have not been previously assessed.

We first determined the extent to which these heterozygous deletions influence BCL11A expression in erythroblasts derived from the 3 patients. In all cases, BCL11A transcripts were significantly reduced by approximately twofold relative to parental expression (Figure 1B). We also specifically analyzed the abundance of different BCL11A messenger RNA (mRNA) isoforms, and found that those implicated in γ-globin repression (BCL11A-XL and BCL11A-L)^5,6  were significantly downregulated in the patients’ erythroblasts, whereas short transcript variants (BCL11A-S) were not (Figure 1B). Expression of KLF1 and GATA1, erythroid transcription factors that regulate globin expression, was unaltered (data not shown).

Complete blood counts revealed that hematological parameters were largely normal in the 3 individuals (supplemental Table 1). The third patient displayed mildly reduced hematocrit and increased variability in red blood cell size at 5 months of age. These findings were recapitulated in a follow-up count at 7 years of age. This patient also exhibited modest lymphocytosis at this age. BCL11A is highly expressed in B cells and has been implicated in human B-lymphopoiesis.^7,14  It should be noted, however, that the first 2 patients showed normal lymphocyte levels, suggesting that these hypomorphic BCL11A mutations have minimal impact on B-cell numbers.

We next assayed relative amounts of hemoglobin isoforms by high-performance liquid chromatography (HPLC). All 3 patients had markedly elevated fetal γ-globin compared with their unaffected parents (Figure 1C; supplemental Figure 1A). This was reflected both as a fraction of total fetal plus adult β-like globin as well as α-globin (supplemental Figure 1B,C). HPLC analysis of hemoglobin tetramers determined the patients’ HbF levels to be 7.3%, 4.8%, and 6.2%, respectively, compared with that of their parents (0.5%, 0.7% and 0.2%, and 0.2% and 0.6%) (Figure 1C). Quantification of individual globin chains revealed that fetal γ-globin represented 11.5%, 8.2%, and 10.0% of total β-like globin in the 3 patients compared with parental levels of 1.5%, 1.9% and 1.3%, and 1.9% and 2.0% (supplemental Figure 1A). In all individuals, a balanced ratio of β-like globin to α-globin was sustained (supplemental Figure 1D).

These results demonstrate that BCL11A haploinsufficiency has an appreciable effect on HbF expression. This mirrors findings of the master erythroid regulator KLF1, an upstream activator of BCL11A.^15,16  In the short time since a nonsense mutation in KLF1 was initially linked to hereditary persistence of fetal hemoglobin,¹⁵  a raft of additional mutations in the locus have been described resulting from focused sequencing efforts,^17-20  culminating in the recent discovery of a KLF1-null individual.²¹  Thus far, BCL11A coding mutations have not been frequently encountered. Given its implicated B-lymphopoietic and neurological roles, it is possible that BCL11A mutations with erythroid-restricted consequences (ie, elevated HbF) will largely lie in regulatory elements with erythroid activity (as in Bauer et al⁹ ).

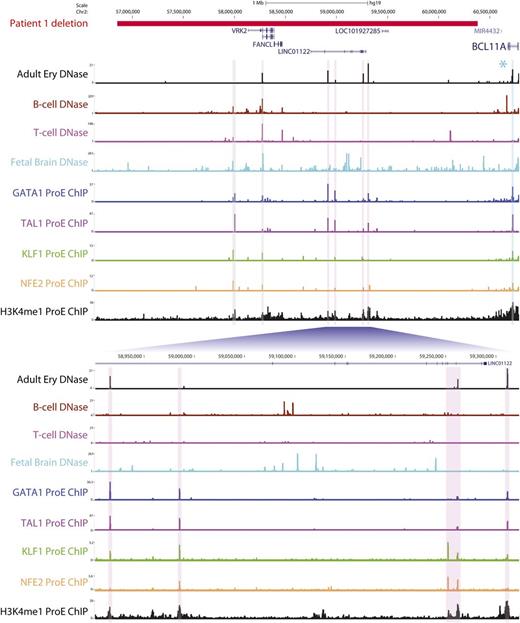

The approximately twofold downregulation of BCL11A mRNA in patients 2 and 3 can likely be attributed to monoalleleic expression arising from BCL11A heterozygosity. However, in the first patient, both BCL11A alleles are intact (Figure 1A). This raises the possibility that downstream regulatory elements within the deleted region are required for full erythroid expression of BCL11A. Inspection of this region revealed several prominent DNase-hypersensitive sites in adult erythroid cells that are cobound by various combinations of key erythroid transcription factors (GATA1, TAL1, KLF1, and NFE2) and are enriched for the active enhancer-associated marker H3K4me1 (Figure 2). These elements represent potential erythroid enhancers, although their functional characterization remains to be determined. It is also plausible that the deletion in patient 1 might result in reduced BCL11A expression through alternative molecular mechanisms, such as downstream heterochromatic regions being brought into the vicinity of BCL11A.

The extent to which BCL11A need be disrupted to induce clinically protective HbF levels in sickle cell and thalassemic sufferers is unknown. The patients here exhibit approximately 5% to 10% HbF and twofold downregulated BCL11A mRNA. In sickle cell sufferers, such HbF levels are associated with reduced major organ failure, but higher amounts (>20%) are required to deter recurrent clinical crises.²²  Further, because of limited availability of tissue samples, we have been unable to ascertain whether the increased HbF in these patients is pancellular or heterocellular. This is an important consideration because pancellular upregulation is predominantly associated with clinical amelioration. Indeed, studies using transgenic, humanized sickle cell mice found that HbF levels of approximately 10% or greater were clinically beneficial when expressed in at least two-thirds of peripheral erythrocytes²³  or higher.²⁴

During the revision of this manuscript, an additional 3 patients were described, each with heterozygous 2p15-p16.1 deletions distinct from those reported here. Each of these patients exhibited a similar reduction in BCL11A expression to the cases here as well as persistence of fetal hemoglobin and unperturbed lymphocytes. However, the reported patients exhibited markedly higher levels of HbF (16.1-29.7%) than those described here. The reason for this discrepancy is unclear, but may be due to modifiers, genetic or otherwise, that influence ethnic or regional variation in HbF levels.¹¹

Last, it is worth noting that several of the genes deleted in the 3 patients are expressed during erythroid differentiation (Figure 1A), and their deletion could thus conceivably contribute to the elevated HbF observed. However, the striking phenotypic similarities of the patients (in terms of both BCL11A and HbF levels) might suggest that the HbF modifier effects of these genes, which are variably deleted in different combinations, are minimal.

Taken together, these findings suggest that modest downregulation of erythroid BCL11A expression results in markedly increased HbF, supporting the utility of erythroid-specific disruption of BCL11A as a therapeutic for β-hemoglobinopathies. That these hypomorphic BCL11A mutations are associated with a spectrum of neurodevelopmental defects further emphasizes the need for such abrogation to be erythroid-specific. We suggest that candidate erythroid regulatory elements, such as those described previously⁹  and here, should be inspected during routine screening of HbF modifiers, and may represent targets for therapeutic intervention.
