Key Points
Deletion of the erythroid enhancer of Bcl11a from the mouse genome does not affect viability or Bcl11a expression in nonerythroid lineages.
Elevated levels of γ-globin in Bcl11a enhancer–deleted mice are comparable to those in erythroid-specific Bcl11a gene knockout mice.
Abstract
BCL11A, a repressor of human fetal (γ-)globin expression, is required for immune and hematopoietic stem cell functions and brain development. Regulatory sequences within the gene, which are subject to genetic variation affecting fetal globin expression, display hallmarks of an erythroid enhancer in cell lines and transgenic mice. As such, this enhancer is a novel, attractive target for therapeutic gene editing. To explore the roles of such sequences in vivo, we generated mice in which the orthologous 10-kb intronic sequences were removed. Bcl11a enhancer–deleted mice, Bcl11a(Δenh), phenocopy the BCL11A-null state with respect to alterations of globin expression, yet are viable and exhibit no observable blood, brain, or other abnormalities. These preclinical findings provide strong in vivo support for genetic modification of the enhancer for therapy of hemoglobin disorders.
Introduction
The transcriptional repressor BCL11A is a principal regulator of the developmental switch from γ- to β-globin accompanying the fetal to adult erythropoiesis transition. Increased γ-globin reduces the clinical severity of the β-hemoglobinopathies, sickle-cell disease, and β-thalassemia caused by mutation or decreased expression of β-globin, respectively. Reactivation of γ-globin beyond the residual ∼1% fetal hemoglobin (HbF) (α2γ2) in normal adults is the most attractive therapeutic strategy. Genome-wide association studies identified BCL11A as a modifier of HbF level.1-3 Subsequent experiments in conditional mouse mutants and CD34+ primary human hematopoietic stem/progenitor cells validated BCL11A as a potent γ-globin repressor.4,5 In contrast to other regulators of γ-globin (GATA1, KLF1, and MYB6-8 ), BCL11A is dispensable for erythropoiesis and, in principle, is manipulatable for therapy. BCL11A in mice, however, is required for immune cells, hematopoietic stem cell (HSC) function and brain development.9-15 Rare patients who are haploinsufficient for BCL11A have appreciably increased HbF levels, but no other apparent hematopoietic disturbances, although they suffer from intellectual disability.16,17
The genome-wide association study–identified single-nucleotide polymorphisms associated with HbF levels reside within intron-2 of BCL11A. This region exhibits hallmarks of potential regulatory sequences, including DNase I hypersensitivity, characteristic epigenetic signature, and erythroid transcription factor binding.18 Human sequences (12 kb) from the intron function as an erythroid enhancer in human erythroid cell lines and transgenic mice.18,19 Deletion of the orthologous 10-kb mouse sequences in erythroleukemia cells leads to profound reduction in Bcl11a expression, whereas no effect is apparent in a Pro B-cell line. Whereas the human region has 3 DNase I hypersensitive sites (DHSs), the corresponding mouse region has 2. Additionally, the dominant functional sequences differ between the species. The human +58DHS is most potent, whereas in mouse it is the +62DHS ortholog.19
Primarily on the basis of ex vivo findings attesting to the specificity of enhancer sequences, the region has been proposed as a target for therapeutic gene editing in genetic management of the hemoglobin disorders. Potential requirements of the enhancer for nonerythroid cellular functions within or beyond the hematopoietic system cannot be formally excluded by prior cell studies. Although the human and mouse enhancers are evolutionarily and structurally distinct within the composite element, their general function as an erythroid regulatory element appears conserved. Here we present in vivo characterization of the mouse Bcl11a intronic enhancer element that demonstrates strict specificity for the erythroid lineage.
Study design
All animal experiments were approved by the Boston Children’s Hospital Institutional Animal Care and Use Committee. Enhancer deletion [Bcl11a (Δenh)] or single +62DHSΔ mice were made through modification of CJ9 mouse embryonic stem cells (ESCs) by transient cotransfection of pX330-Cas9 plasmids (Addgene #80445) containing guide RNA sequences 5′-CCAGGAGCCTCAAGCAAGCC-3′ and 5′-CGACTGGCTGATGACATCAC-3′ or 5′-TCGCTGCCTTCAGTTCTGCT-3′ and 5′-CTATTTCCATTGGTGGATAC-3′, respectively. Chimeric mice were bred with females transgenic for the entire human β-globin gene locus (β-YAC).20
Neonates were transcardially perfused with formaldehyde and brains prepared for immunocytochemistry as previously described.13
Embryonic fetal livers from timed matings, adult peripheral blood from tail vein, and adult bone marrow (BM) were collected, prepared for flow cytometry or RNA extraction, and analyzed as previously described.15,21 Whole BM was transplanted into lethally irradiated first-generation B6Sjl mice (CD45.1; Taconic) crossed with 129SVE (CD45.2; Taconic) hybrids.
Results and discussion
Mouse ESCs with deletion of the 10-kb enhancer were used to generate germ-line transmitting chimeric mice (Figure 1A). In contrast to Bcl11a gene knockout mice that die as neonates,9 mice homozygous for the enhancer deletion allele [Bcl11a(Δenh)] were viable (Figure 1B). Bcl11a(Δenh) mice were indistinguishable from wild-type littermates. Male and female Bcl11a(Δenh) mice bred unremarkably, and mothers were able to nurse pups to maturity, indicating functional mammary development.22 To further explore any extrahematopoietic effects, neonatal brains were analyzed by immunocytochemistry. Importantly, Bcl11a expression was unchanged in the neocortex of Bcl11a(Δenh) mice (Figure 1C). Moreover, although Bcl11a null mice exhibit defects in cortical projection neuron subtype identity, leading to altered thickness of cortical layers V and VI,12,13 these abnormalities are not present in Bcl11a(Δenh) mice.
Bcl11a is expressed in several hematopoietic lineages. We first assessed the distribution of the mature hematopoietic lineages in the peripheral blood of adult mice using flow cytometry. There were no significant differences between wild-type and Bcl11a(Δenh) mice (Figure 1D). Most relevant, B-cell numbers were unaffected by enhancer loss. In addition, analysis of the (BM) lymphoid compartment revealed normal distribution of differentiating B-cell progenitors and HSC frequency (Figure 1E-F). Bcl11a RNA expression was unchanged in Bcl11a(Δenh) HSCs (Figure 1G). To interrogate the fitness of Bcl11a(Δenh) HSCs, whole BM cells were transplanted into lethally irradiated recipient mice. Engraftment was >90% 16 weeks after transplantation (Figure 1H). Under similar conditions, Bcl11a−/− HSCs exhibited poor contribution to hematopoiesis with barely detectable BM donor chimerism at 13 weeks posttransplant.10,11,15
To determine the extent to which Bcl11a expression in different lineages is dependent on the enhancer, we obtained embryonic day 16.5 (E16.5) wild-type, heterozygous, and homozygous Bcl11a(Δenh) fetuses. B cells and erythroid cells were sorted from the fetal liver based on double positive staining for CD19/B220 or CD71/Ter119, respectively. In addition, cortex tissue was dissected from the fetal brain. Bcl11a expression in erythroid cells of homozygous Bcl11a(Δenh) mice was reduced >30-fold (Figure 1I). In stark contrast, Bcl11a RNA expression was unchanged in cortex and sorted B cells upon enhancer deletion.

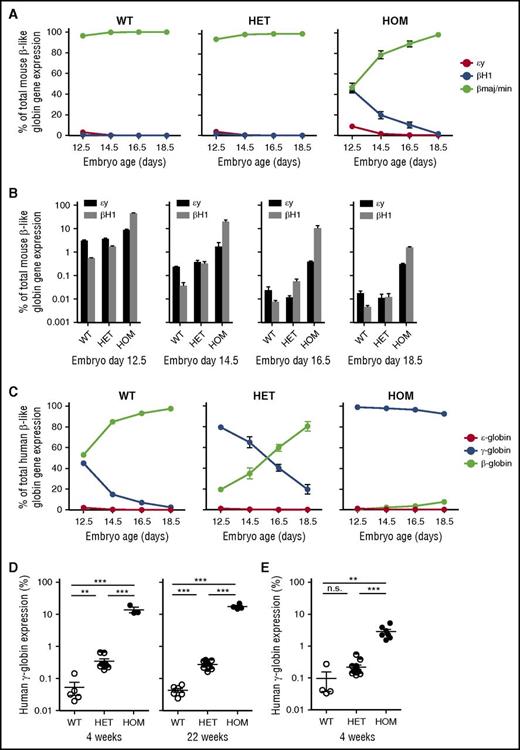

To evaluate the consequence of deleting the 10-kb enhancer on mouse globin gene expression, we harvested fetal liver at several developmental stages. RNA analysis revealed a delay in the silencing of the 2 embryonic globin genes, εy and βH1 (Figure 2A-B). To assess the effect of enhancer deletion on human globin gene levels in an in vivo mouse model, we bred Bcl11a(Δenh) mice to mice transgenic for the entire human β-globin gene locus (β-YAC).20 During normal β-YAC mouse development, γ-globin is expressed in yolk sac and silenced by E16.5. Analysis of Bcl11a(Δenh) embryos showed an absence of γ-globin gene silencing during development (Figure 2C). At 4 and 22 weeks, γ-globin was silenced to 20% of total human globin expression; however, wild-type β-YAC mice expressed 100-fold less γ-globin (Figure 2D). These derepressed levels were similar to those seen in conditional gene knockout mice.21 Mice harboring a deletion of the +62DHS, which accounts for a substantial portion of enhancer function in a murine erythroid cell line, exhibited less robust repression of γ-globin, suggesting that the remaining upstream +55DHS in the mouse enhancer contributes to overall enhancer activity (Figure 2E).
The data presented here establish exquisite erythroid in vivo lineage specificity of the Bcl11a intronic enhancer. Sequences within the 10-kb region are not required for proper brain or B-cell development. Most notable is the ostensibly normal development and function of HSCs in the absence of the intronic enhancer. These findings are encouraging with respect to the proposed strategy of genome editing of the Bcl11a enhancer in the context of HSCs for induction of HbF in the major hemoglobinopathies.
One caveat to our findings is that, by necessity, in vivo studies have assessed the specificity of the in situ mouse Bcl11a enhancer, rather than that of human. Although the detailed architectures of the mouse and human enhancers differ,19 evidence to this point indicates that the orthologous regions subserve similar functions for the species. The human 12-kb enhancer directs lineage- and stage-restricted expression in transgenic mice, providing support for functional conservation.18 The current studies constitute comprehensive examination of regulatory sequences as part of preclinical assessment of potential risks associated with gene editing of the BCL11A enhancer for therapy of the β-hemoglobinopathies.
