SOD2 V16A amplifies vascular dysfunction in sickle cell patients by curtailing mitochondria complex IV activity

Although sickle cell disease (SCD) is ascribed to a single point mutation in β-globin gene, cardiovascular presentation among patients remains highly variable. For example, pulmonary hypertension occurs in 6% to 11% of adult SCD patients and predicts early death^1,2 whereas 24% of patients exhibit signs of stroke by 45 years of age.³ Although several factors contribute to cardiovascular deviation among SCD patients, genetic variability and oxidative stress are key elements driving phenotype heterogeneity.

Mitochondria dysfunction contributes to SCD pathogenesis by increasing reactive oxygen species (ROS).⁴ Mitochondria uncoupling increases superoxide (O₂^•-) formation, which is managed by superoxide dismutase 2 (SOD2), a mitochondrial matrix protein that catalyzes dismutation of O₂^•- to hydrogen peroxide (H₂O₂). A valine-to-alanine substitution (SOD2^V16A, rs4880) in the mitochondria leader sequence is found in 45% of people with African ancestry, 65% of Latinos, 54% of South Asians, and 52% of Europeans.⁵ In SCD, SOD2^V16A associates with acute splenic sequestration and vaso-occlusive crises in children⁶ and increased risk of stroke in adults.⁷ However, the impact of SOD2^V16A on cardiovascular severity remains unclear, and rigorous functional studies defining the impact of SOD2^V16A remain elusive. This stems from contradictory results suggesting enzymatic activity of SOD2^V16A can be increased⁸ or decreased.⁶ We hypothesized that SOD2^V16A drives mitochondria dysfunction, increases mitochondrial ROS production, and can be used as a prognostic genetic biomarker for vasculopathy in SCD patients.

SCD patients from the Treatment of Pulmonary Hypertension and Sickle Cell Disease With Sildenafil Therapy (walk-PHaSST) trial were recruited for genetic analysis (approved under University of Pittsburgh Institutional Review Board Protocol STUDY19060255).⁹ Genotyping of rs4880 was performed using Taqman genotyping assay (C___8709053_10), and methods were performed as described and adjusted for age, gender, BMI, hemoglobin, pulse rate, antihypertensive treatment, α-globin deletion, and study site.¹⁰

Polyhistidine-tagged human SOD2 rs4880 (A) encoding valine on the 16th amino acid position (SOD2^WT) or SOD2 rs4880 (G) encoding alanine on the 16th amino acid position (SOD2^V16A) was placed on a bicistronic lentiviral vector that also coexpressed green fluorescent protein (GFP) as previously described.¹¹ Human pulmonary artery endothelial cells (HPAECs) were incubated with lentivirus and 1 ug/mL polybrene for 8 hours in a 6-well plate (250 000 cells per well) to achieve a twofold increase over endogenous SOD2. Experiments were performed 72 hours postlentiviral transduction. HPAECs were transfected with 0.5 µg SOD2^WT or SOD2^V16A conjugated with APEX2 using Nucleofector; experiments were conducted 24 hours posttransfection. APEX2 assays were performed as previously described.¹²

Data were expressed as mean ± standard deviation from the mean unless otherwise specified. The n values represent biological replicates. A Student t test was used to determine significance using GraphPad Prism version 8 software. A value of P < .05 was considered significant.

Please see extended methods in the supplemental Material, available on the Blood Web site.

To evaluate the impact of SOD2^V16A on cardiovascular phenotypes, we genotyped 410 SS genotype SCD patients from the walk-PHaSST trial.⁹ Using multiple linear regression analysis across genotype, we found increased tricuspid regurgitant velocity (TRV, a marker of pulmonary hypertension), systolic blood pressure, and systolic right ventricular area (Figure 1A-C) along with decreased 6-minute walk distance (Figure 1D) correlated with the rs4880 genotype. These clinical parameters are suggestive of reduced pulmonary and cardiovascular function and heightened dysfunctional endothelium. A strong trend toward decreased hemoglobin concentration and a significant increase in the hemolytic index were observed, indicating a potential role for anemia and hemolysis (supplemental Table 1). Plasma lactate dehydrogenase LDH, a marker of hemolysis,¹³ also strongly correlated with TRV in rs4880G homozygous patients (Figure 1E). Extracellular activity of LDH increases due to cell membrane perturbation by lipid peroxidation.¹⁴ Thus, LDH is used as a clinical biomarker of oxidative stress and inflammation.^13,14 Historically, elevated LDH levels in SCD patients associate with increased TRV and pulmonary hypertension.¹³ Although we did not observe increased LDH levels in rs4880G homozygotes (supplemental Table 1), these data suggest that rs4880G associates with worse cardiovascular outcomes in the presence of oxidative stress and inflammation. It is also possible that increased oxidative stress exacerbates hemolysis increasing TRV.

To investigate the impact of endothelial SOD2^V16A, we coexpressed either valine or alanine SOD2 and GFP (Figure 1F) in HPAECs. Using GFP as an expression control, we found no difference in the exogenous SOD2 protein levels, suggesting that SOD2^V16A did not affect protein stability (Figure 1F-G). Next, we tested whether SOD2^V16A impacted enzymatic activity by measuring H₂O₂ production in HPAECs. Although there was no difference in H₂O₂ production at baseline, the SOD2^V16A variant exacerbated antimycin A, a complex III inhibitor, induced H₂O₂ production compared with SOD2^WT(Figure 1H). Inhibiting catalase failed to correct the differences in H₂O₂ levels between SOD2 variants (supplemental Figure 1A). Furthermore, SOD2^V16A did not alter catalase or SOD1 protein expression (supplemental Figure 1B-C), suggesting that the difference in H₂O₂ production was independent of catalase and SOD1. These results indicate that SOD2^V16A exacerbates H₂O₂ formation in HPAECs under stressed conditions.

Although enzymatic dismutation by SOD is the most efficient method of dismutation, O₂^•− can spontaneously dismutate to H₂O₂ independent of SOD.¹⁵ Therefore, we tested if increased mitochondrial O₂^•− production could be the source of increased H₂O₂. We found increased mitochondrial O₂^•− levels both at baseline and with antimycin A treatment in the SOD2^V16A-transduced HPAECs (Figure 1I). Increased mitochondria O₂^•− could indicate compromised SOD2 activity. However, when inhibiting SOD1, the only other intracellular SOD isoform, we found SOD activity remained the same between the variants, indicating that SOD2^V16A did not alter SOD2 activity (supplemental Figure 2A-B).

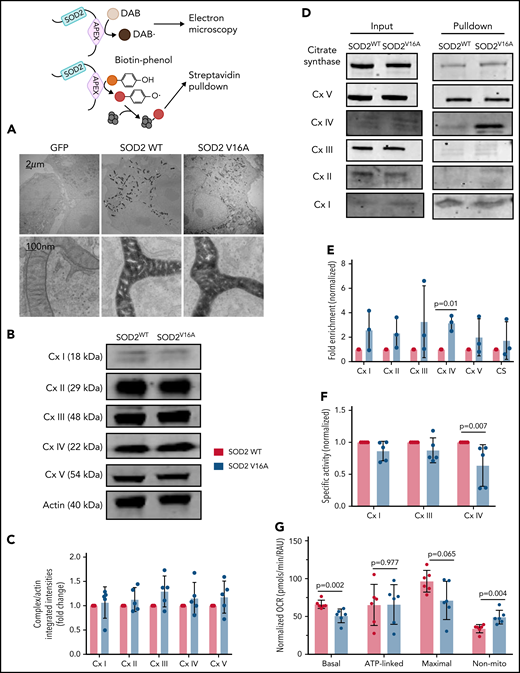

Because SOD2^V16A retained normal activity, we hypothesized that SOD2^V16A mislocalizes within HPAECs, considering that the V16A mutation resides in the mitochondria leader sequence. To examine SOD2 subcellular location, we fused APEX2, a peroxidase used for electron microscopy and identifying protein-protein interactions, to the C terminus of the 2 SOD2 variants.¹² We observed no difference in localization between SOD2-APEX2 variants within the mitochondrial matrix (Figure 2A; supplemental Figure 2C). Because neither activity nor localization of SOD2^V16A were affected, the most likely explanation for the elevated mitochondrial O₂^•− is enhanced production. The respiratory chain is the predominant source of mitochondrial O₂^•− generation. Therefore, we investigated whether SOD2^V16A disrupted respiratory chain complex formation or activity. Although the protein expression of respiratory chain complexes was not affected by SOD2^V16A (Figure 2B-C), the variant interacted significantly more with complex IV (Figure 2D-E). Specifically, SOD2^V16A interacted more with subunit 2, part of the catalytic domain of complex IV, and showed significantly lower complex IV activity (Figure 2F). Inhibited complex IV activity impairs mitochondrial respiration.¹⁶ Indeed, we found that basal oxygen consumption was lower in SOD2^V16A-expressing HPAECs, indicating suppressed mitochondrial respiration (Figure 2G). Additionally, there was a compensatory increase in glycolysis and fatty acid oxidation (supplemental Figure 2D-E).

Despite the compromised complex IV activity, SOD2^V16A-expressing HPAECs maintained normal adenosine triphosphate (ATP) production and mitochondrial potential (supplemental Figure 3A-B). However, we observed increased mitochondrial hyperfusion (supplemental Figure 3C-D). This is consistent with the previous observation that reduced complex IV activity results in mitochondria hyperfusion as a mechanism to maintain ATP production.¹⁷ These data suggest that SOD2^V16A expressed in HPAECs preserve ATP production by hyperfusing mitochondria but does so at the expense of generating more mitochondrial O₂^•−. This increase in ROS production, however, did not result in a change in endothelial cell proliferation and migration, cell survival, or HIF-2α expression. However, we found increased nitrite production and endothelial nitric oxide synthase activation (supplemental Figure 4), possibly due to increased H₂O₂.¹⁸ Increased nitric oxide reacts with mitochondrial O₂^•−, forming peroxynitrite, which may exacerbate mitochondria dysfunction. In summary, we have shown that in vivo SOD2^V16A is a strong predictor of cardiovascular dysfunction in SCD patients; in vitro, we have demonstrated that SOD2^V16A overassociates with complex IV of the respiratory chain, reducing complex activity and resulting in increased mitochondrial O₂⁻ and extracellular H₂O₂ production.

Mechanistically, 1 limitation remains unsolved: how does SOD2^V16A with normal enzymatic activity and subcellular location result in lower complex IV activity? SOD2 is embedded within the mitochondria supercomplex I:III:IV, stabilizing and protecting the supercomplex from mitochondrial O₂^•− damage.¹⁹ In this supercomplex, complex IV requires 14 subunits to maintain its activity.²⁰ Subunit 4 has redox-sensitive cysteine residues that have been proposed to regulate complex IV conformation and activity under oxidative stress.²¹ Elevated mitochondrial O₂^•− likely enhances H₂O₂ formation, leading to thiol oxidation and possible conformational changes in complex IV, reducing its activity. However, the mechanism driving the interaction between SOD2^V16A and complex IV remains elusive. SOD2 acetylation has been shown to increase mitochondrial O₂^•− production²²; however, we found no increase in SOD2^V16A acetylation at baseline or after treatment with antimycin A (supplemental Figure 5). Future studies examining endogenous SOD2^V16A in endothelial cells and other cell types like platelets from SCD patients are needed.⁴

This study may better inform SCD patient management by using SOD2^V16A as a genetic biomarker to determine efficacy to therapeutics and may help guide precision medicine approaches for SCD, particularly those therapies that reduce mitochondrial O₂⁻.²³ Current antioxidant therapies such as l-glutamine²⁴ and hydroxyurea²⁵ may be more effective in patients carrying the SOD2^V16A polymorphism.
