Factor XII interacts with the multiprotein assembly of urokinase plasminogen activator receptor, gC1qR, and cytokeratin 1 on endothelial cell membranes

Investigations reveal that high molecular weight kininogen (HK) alone or in complex with prekallikrein (PK) assembles on a multiprotein receptor complex on endothelial cells.1This multiprotein receptor complex consists of gC1qR, urokinase plasminogen activator receptor (uPAR), and cytokeratin 1 (CK1).2-7 Although previously controversial, recent studies show that gC1qR is constitutively expressed on the membrane of unperturbed, cultured endothelial cells.1,7-10 When PK is bound to HK bound to this multiprotein receptor complex, PK becomes activated to kallikrein.11 Formed kallikrein digests its receptor HK to liberate bradykinin.11,12 The released bradykinin then binds to the bradykinin B2 receptor to stimulate nitric oxide formation.12 Released bradykinin also stimulates tissue plasminogen activator release and prostacyclin formation from endothelial cells.13 14

Activation of PK when assembled on HK on endothelial cells is independent of factor XII (FXII) and its activated forms.11,15 In certain circumstances, FXII activation on endothelial cells is dependent upon prior PK activation.15,16 Activated FXII increases the rate and extent of kallikrein formation on endothelial cells and initiates FXI activation in certain circumstances.10,15-17 FXII specifically binds to the endothelial cell membrane, and HK blocks FXII binding.18 FXII also binds to gC1qR.2 3 The expression of FXII on endothelial cells may be closely localized to the receptor complex for HK. The following investigations reveal that FXII by its amino-terminal region binds to gC1qR, uPAR, and CK1 on endothelial cells. However, this interaction is highly restricted by plasma concentrations of HK and the availability of free Zn²⁺.

Human FXII with a specific activity of 37 to 54 U/mg, single-chain HK with a specific activity of 13 U/mg, and human PK and human FXI with a specific activity of 22 U/mg or 200 U/mg, respectively, were purchased from Enzyme Research Laboratories (South Bend, IN). Recombinant soluble uPAR (suPAR) was generously provided by Dr Douglas B. Cines of the University of Pennsylvania, Philadelphia. Urokinase (no. 128) was purchased from American Diagnostica, Greenwich, CT. Vitronectin was purchased from Molecular Innovations, Southfield, MI. A biotinylating kit, ImmunoPure streptavidin horseradish peroxidase, and peroxidase-specific fast-reacting substrate, 3,3′, 5,5′ tetramethylbenzidine dihydrochloride (turbo-TMP), were supplied by Pierce Chemical (Rockford, IL). Nanogold and fluorescein isothiocyanate (FITC) protein labeling kits were purchased from Nanoprobes (Yaphank, NY) and Molecular Probes (Eugene, OR), respectively. Purified recombinant cytokeratins (rCK1₃₁, rCK1₂₈, and rCK1₁₄ [recombinant CK1 at 31, 28, and 14 kd, respectively]) were prepared as previously reported.6 Human umbilical vein endothelial cells (HUVECs), endothelial cell growth medium, trypsin–ethylenediaminetetraacetic acid (EDTA), and trypsin-neutralizing solutions were purchased from Clonetics (San Diego, CA).

The sequential synthetic peptides I(1)PPWEAPKEHKYKAEEHTV(19) (IPP19), F(30)PFQYHRQL(37) (FPF9), or Y(39)HKCTHKGR(47) (YHK9) to the N-terminal region of the heavy chain of FXII and scrambled YHK9 peptide, GYKTKHCRH (GYK9), were synthesized at Multiple Peptide Systems (San Diego, CA). Peptide from domain 5 of the kininogen, H(479)KHGHGHGKHKNKGKKNGKH(498) (HKH20), was synthesized and purified in the Protein and Carbohydrate Structure Facility of the University of Michigan (Ann Arbor, MI). The numbering for the peptides from FXII and HK start from the amino-terminal end of the mature protein.19 Peptide G(143)PVCSPGGIQEVTINQSLLQ(162) (GPV20) from human CK1 was used to immunize goats for the production of antisera (anti-GPV20) at Quality Controlled Biochemicals (Hopkinton, MA).1 6 Monoclonal antibody to gC1qR (clone 74.5.2) was purchased from Covance Research Products (Richmond, CA). A monoclonal antibody against uPAR (3B10FC) was generously provided by Dr Robert F. Todd III at the University of Michigan. Monoclonal antibodies to von Willebrand factor and intercellular adhesion molecule-1 (ICAM-1) were purchased from Enzyme Research Laboratories and Bio-Source Laboratories (Camarillo, CA), respectively.

FXII with a specific activity of 37 to 54 U/mg in 4 mM sodium acetate–HCl and 0.15 M NaCl, pH 5.3, was dialyzed against 0.01 M sodium phosphate, 0.15 M NaCl, pH 7.4, and biotinylated according to the procedure of Pierce Chemical.20 Biotin-FXII had a specific activity of 43.3 U/mg.

FXII was fluorescein labeled according to the procedure of Molecular Probes. A specific activity of 36 U/mg for FITC-FXII was measured by coagulant and protein assays, and the integrity of the protein was checked by 10% sodium dodecyl sulfate–polyacrylamide gel electrophoresis. No activation of FXII occurred during the labeling procedure.

FXII was Nanogold labeled according to the procedure of Nanoprobes. The specific activity of Nanogold-FXII was 53 U/mL by coagulant assay, and on reduced 10% sodium dodecyl sulfate–polyacrylamide gel electrophoresis there was no evidence of activation of FXII during the labeling procedure.

HUVECs were obtained and cultured according to Clonetics' recommendations. Cells between the first and fifth passage were subcultured onto fibronectin-treated (1 μg per well) 96-well plates 24 hours prior to the start of the experiment. The endothelial cell line EA.hy926, provided by Dr Cora-Jean S. Edgell of the Department of Pathology, University of North Carolina, Chapel Hill, was cultured as previously reported.1

Fresh whole blood was collected from individual healthy volunteers into one-tenth volume of 10 μM Phe-Pro-Arg-chloromethyl ketone in saline (Calbiochem, San Diego, CA) and centrifuged at 180g for 20 minutes at room temperature. Collection of blood from healthy donors took place after their informed consent and with the approval of the Institutional Review Board of the University of Michigan. The platelet-rich plasma was removed; its pH was adjusted to 6.5; and prostaglandin I₂, 1 μM final concentration, was added. The platelet-rich plasma was then centrifuged at 1200g for 10 minutes at room temperature. After removing the plasma, the platelet pellet was resuspended in HEPES carbonate buffer (HCB) (137 mM NaCl, 3 mM KCl, 12 mM NaHCO₃, 14.7 mM HEPES, 5.5 mM dextrose containing 0.1% gelatin, 2 mM CaCl₂, and 1 mM MgCl₂), pH 6.5, containing 250 μM Arg-Gly-Asp-Ser (Sigma) and centrifuged again at 1200gfor 10 minutes. The final platelet pellet was resuspended in HCB, pH 7.4, and the platelets were counted in a Z1-series Coulter counter (Beckman Coulter, Miami, FL). In all studies, the platelets were examined for their ability to aggregate (Chrono-Log aggregometer, Hatboro, PA) to 5 μg/mL collagen (Nycomed Arzneimittel, Munchen, Germany).

A biotin-FXII binding assay to confluent monolayers of HUVECs on 96-well microtiter plates was established. After washing with HCB, pH 7.4, the cells were usually incubated with 10 nM biotin-FXII in the presence or absence of 10 μM Zn²⁺. After incubation, the cells were washed 3 times with HCB. The relative biotin-FXII binding to the cells was determined using ImmunoPure streptavidin horseradish peroxidase conjugate (Pierce) and turbo-TMP (Pierce) as previously described.20 Bound biotin-XII was determined by measuring the absorbance of the reaction mixture at 450 nm using a microplate autoreader EL 311 from Bio-Tek Instruments (Winooski, VT).

An FITC-FXII binding assay to HUVECs in suspension also was established. HUVECs were detached from culture plates with a trypsin-EDTA solution (GIBCO, Grand Island, NY) and washed and resuspended with HCB, pH 7.4. Usually binding was performed with 70 nM FITC-FXII in the presence or absence of 10 μM Zn²⁺. HUVECs (4 × 10⁴ cells per well) in suspension in HCB in a 96-well filtration plate were incubated on a prewetted hydrophilic polyvinylidene fluoride (PVDF) membrane (pore size 1.2 μm) with low protein-binding capacity (Millipore, Bedford, MA) for 2 hours at 37°C.21 At the end of the incubation, the cells were washed and filtered using multiScreen Separation System Vacuum Manifold from Millipore. The fluorescence of cell-bound FITC-FXII to HUVECs bound to the PVDF membrane of the filtration plate was measured on CytoFluor4000 fluorescence plate reader from PerSeptive Biosystems (Framingham, MA) with 485 nm excitation and 530 nm emission filters.

Biotin-FXII (10 nM) in HCB, pH 7.4, was added to confluent HUVEC monolayers in the presence of increasing concentrations of platelets (0.1 × 10⁹ to 3.5 × 10⁹/mL) and in the presence or absence of 5 μg/mL collagen. The cells were incubated for 90 minutes at 37°C on a rotating mixer maintained at 50 rpm. After completion of the incubation, the cells were washed 3 times with binding buffer, and the relative amount of biotin-FXII bound to the adherent HUVECs was determined as described above. In certain experiments, the gelatin in the HCB was removed and was substituted with 3.5 mg/mL or 40 mg/mL bovine serum albumin. In these cases, the albumin-containing buffers were supplemented with 50 μM and 3 mM Zn²⁺, respectively.

HUVECs grown on microscope slides were used in laser scanning confocal microscopy experiments as previously reported.1The cells were incubated with 300 nM FITC-FXII in the presence or absence of 10 μM Zn²⁺ or 100-fold molar excess of unlabeled FXII. In other experiments, cells were incubated simultaneously with 300 nM FITC-FXII in the presence of 10 μM Zn²⁺ and goat immunoglobulin G (IgG) (300 μg/mL), mouse IgG (4 μg/mL), affinity-purified goat anti-GPV20 (300 μg/mL), mouse anti-uPAR (4 μg/mL), mouse anti-gC1qR (4 μg/mL), or mouse anti-ICAM (anti-CD54) (4 μg/mL) antibodies for 1 hour at 37°C. At the end of the incubation, cells were washed and incubated with an Alexa Fluor 594–labeled donkey antigoat IgG (H+L) conjugate (10 μg/mL) or Alexa Fluor 594–labeled goat antimouse IgG conjugate (10 μg/mL) for 1 hour at room temperature while protected from light. The slides were covered with an antifading prolong mounting medium from Molecular Probes and were visualized by using a confocal fluorescence microscope (Bio-Rad, Richmond, CA). Optical scanning and digital processing of the images were performed to determine the topographic distribution of the FITC or Alexa Fluor/IgG associated with HUVECs as previously reported.1

Subconfluent EA.hy926 endothelial cells were made into cell suspensions by treating the cells with a solution containing 0.05% trypsin, 0.53 mM EDTA, dissolved in Hanks balanced salt solution for 2 to 4 minutes. The trypsin was inactivated by washing the cells with Dulbecco modified Eagle medium containing 10% fetal bovine serum followed by washing 3 times for 5 minutes each with HCB, pH 7.4, containing 10 μM ZnCl₂. Next, the cells were incubated with 210 nM Nanogold-FXII for various times (5, 15, 30, 60, and 120 minutes) at 37°C in a humidified atmosphere containing 5% CO₂. After incubation, the cells were washed 3 times with the same buffer and fixed with 2.5% glutaraldehyde for 30 minutes. The small 1.4-nm gold particles coupled to FXII were enhanced by incubating the cells with IntenSEsilver enhancement kit (Amersham Life Science, England) for 20 minutes at 22°C. Before enhancement the cells were exhaustively washed with buffer to remove all traces of fixative and with distilled water to eliminate buffer salts. When the silver enhancement procedure was completed, aliquots of the cells were visualized at the light microscopic level or were postfixed with 0.25% osmium tetroxide for 1 hour at 4°C and dehydrated and embedded according to standard procedures in an epon-araldite mixture. Thin sections prepared from this material were contrasted with lead citrate and observed in a Hitachi H-700 electron microscope.

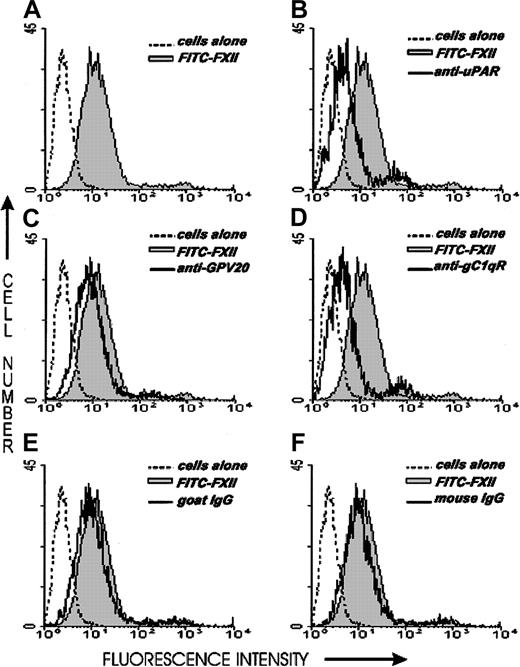

Flow cytometry was performed with HUVECs (5 × 10⁶/mL). A total of 100 μL of the detached HUVECs was incubated with 200 nM FITC-XII in HCB containing 1 mg/mL human γ-globulin in the presence or absence of 10 μM Zn²⁺. In other experiments HUVECs were incubated with FITC-XII in the presence or absence of goat IgG (300 μg/mL), mouse IgG (4 μg/mL), affinity-purified goat anti-GPV20 (300 μg/mL), anti-uPAR (4 μg/mL), or anti-gC1qR (4 μg/mL) antibodies in binding buffer containing 10 μM Zn²⁺ and 1 mg/mL human γ-globulin with occasional gentle mixing for 1 hour at 37°C as described previously.1 At the end of the incubation, HUVECs were washed 3 times by centrifigation at 400g and resuspended in the same buffer. The bound FITC-labeled FXII to HUVECs was monitored with an Epics-C flow cytometer (Coulter Electronics) as previously reported.1

HUVECs (4 × 10⁴ per well) in suspension in HCB were incubated with 70 nM FITC-FXII in 96-well filtration plates in the presence or the absence of mouse anti-gC1qR (1.2 μM), mouse anti-uPAR (1.2 μM), mouse anti–von Willebrand factor (1.2 μM), mouse anti-ICAM (1.2 μM), goat anti-GPV20 (2.5 μM), mouse IgG (1.2 μM), or goat IgG (2.5 μM). In other experiments, the cells were incubated with 70 nM FITC-FXII in 96-well filtration plates in the presence or the absence of 100 μM of peptides YHK9, GYK9, FPF9, IPP19, or HKH20. After 2 hours of incubation at 37°C, the cells were washed and filtered using multiScreen Separation System Vacuum Manifold from Millipore, and the fluorescence of cell bound FITC-FXII to HUVECs was measured on a fluorometer as described above.

Biotin-FXII (10 nM) was added to confluent monolayers of HUVECs in the presence or the absence of increasing concentrations of mouse IgG (0-500 nM), mouse anti-gC1qR (0-500 nM), or mouse anti-uPAR (0-500 nM) antibodies. Similarly, the influence of peptides YHK9, GYK9, FPF9, IPP19, or HKH20 at 100 μM each on 10 nM biotin-FXII binding to confluent monolayers of HUVECs was determined after 90 minutes incubation at 37°C. The relative biotin-FXII binding of binding to the cells was determined as described above.20

HUVECs were detached and washed with binding buffer. The cells were then resuspended in the same buffer in the presence or absence of 10 μM Zn²⁺. The suspension of HUVECs (4 × 10⁴ per well) was incubated with 70 nM FITC-FXII in the absence or the presence of increasing concentrations of suPAR (0.01-6 μM) and/or rCK1₃₁ (0.01-10 μM) on prewetted hydrophilic PVDF membranes. The relative level of FITC-FXII binding was determined as described above.

HUVECs were grown in endothelial cell growth medium containing human FXII–deficient serum. Confluence monolayers of HUVECs then were washed 3 times with HCB containing 10 μM ZnCl₂. In the PK activation assay, 10 nM HK, 10 nM PK, and 20 nM FXII were simultaneously added to HCB in the presence or absence of 100 μM of peptides YHK9 or FPF9 and incubated for 1 hour at 37°C. At the end of the incubation, the cells were washed, 1 mM S2302 (DiaPharm, Franklin, OH) was added in HCB, and hydrolysis proceeded for an additional hour. The generated S2302 hydrolytic activity was quantified by measuring the absorbance at 405 nm using a microplate autoreader EL 311 (Bio-Tek Instruments). In the FXI activation assay, the cells were incubated with 10 nM HK, 5 nM FXI, and 20 nM FXII in binding buffer in the presence or absence of 100 μM of peptides YHK9, FPF9, or IPP19 for 1 hour at 37°C.16 22 At the end of the incubation, the cells were washed, 0.8 mM S2366 (DiaPharm) was added in HCB, and hydrolysis proceeded for an additional hour. The generated FXIa was quantified by measuring the absorbance of the reaction mixture at 405 nm.

The concentration of released Zn²⁺ from the same collagen-stimulated platelets that were used in the biotin-FXII binding experiments to HUVECs was measured by colorimetric assay.23 These platelet samples were prepared simultaneously with the performance of the binding experiments. A Zn²⁺ standard curve was determined by adding 10 μL of known amount of Zn²⁺ (0.1-30 μM) or samples of collagen-treated platelet releasates with 90 μL of 20 μM 5-Br-PAPS (2-(5-bromo-2-pyridylazo)-5-(propyl-N-sulfopropylamino)-phenol sodium salt) (Wako Chemicals, Richmond, VA) in 0.01 M Tris, 0.15 M NaCl, pH 7.4. The absorbance was monitored at 552 nm that arises from the complex formation of Zn²⁺ with 5-Br-PAPS.

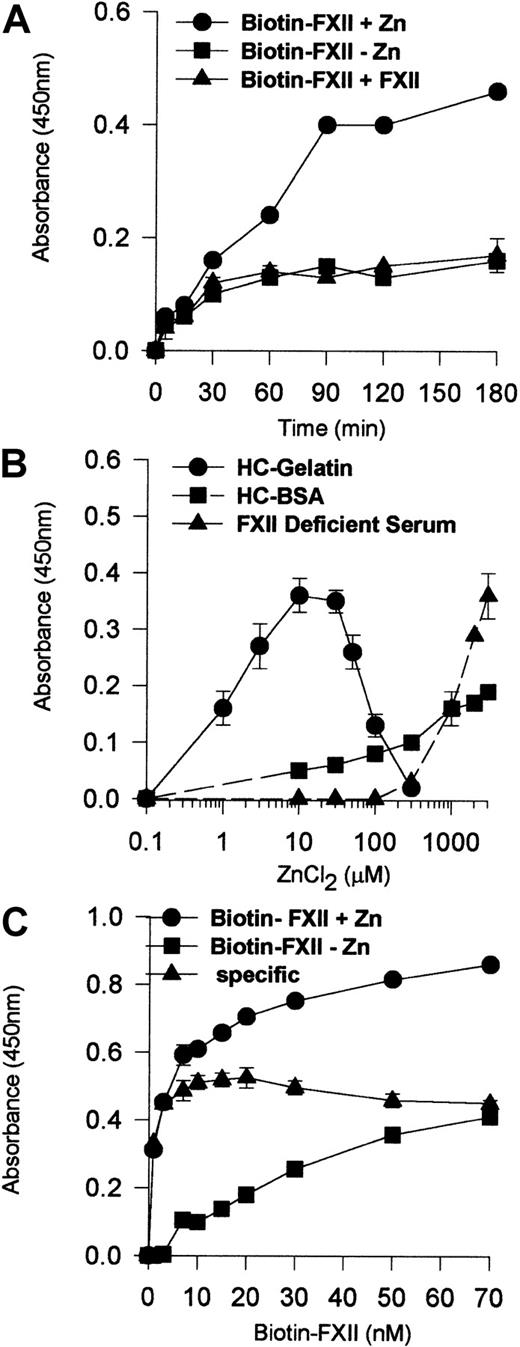

Experiments determined the characteristics of FXII binding to HUVEC monolayers (Figure 1). No Zn²⁺ or 200-fold molar excess of unlabeled FXII demonstrated specific biotin-FXII binding to HUVECs (Figure 1A). The degree of biotin-FXII binding to HUVEC monolayers depended upon the ambient free Zn²⁺ concentration that varied depending upon the carrier protein (Figure 1B). Using gelatin, a carrier protein that does not bind Zn²⁺,15 the optimal Zn²⁺ concentration for biotin-FXII binding was 10 μM. When 40 mg/mL bovine serum albumin was substituted for gelatin in the same buffer, 3 mM added Zn²⁺ was necessary for specific binding. When biotin-FXII binding was performed in FXII-deficient serum, 3 mM added Zn²⁺ also was necessary to observe specific binding as seen with gelatin buffer. These data indicate that the ambient free Zn²⁺ concentration modulated biotin-FXII binding to HUVECs. Last, the addition of 10 nM biotin-FXII was optimal for specific FXII binding to HUVEC monolayers (Figure 1C).

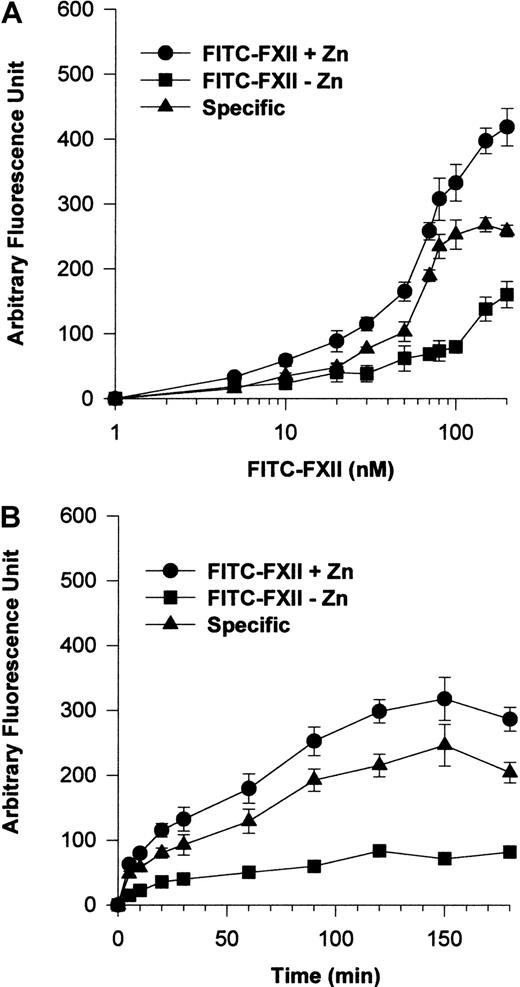

Additional investigations were performed to establish a specific FITC-FXII binding assay to suspensions of HUVECs (Figure2). The addition of 70 nM FITC-FXII in the presence of 10 μM Zn²⁺ was found to be optimal for detection of specific FXII binding to suspensions of HUVECs (Figure2A). Under these conditions, FITC-FXII binding to HUVECs was maximal at 90 minutes' incubation in the presence of 10 μM Zn²⁺(Figure 2B).

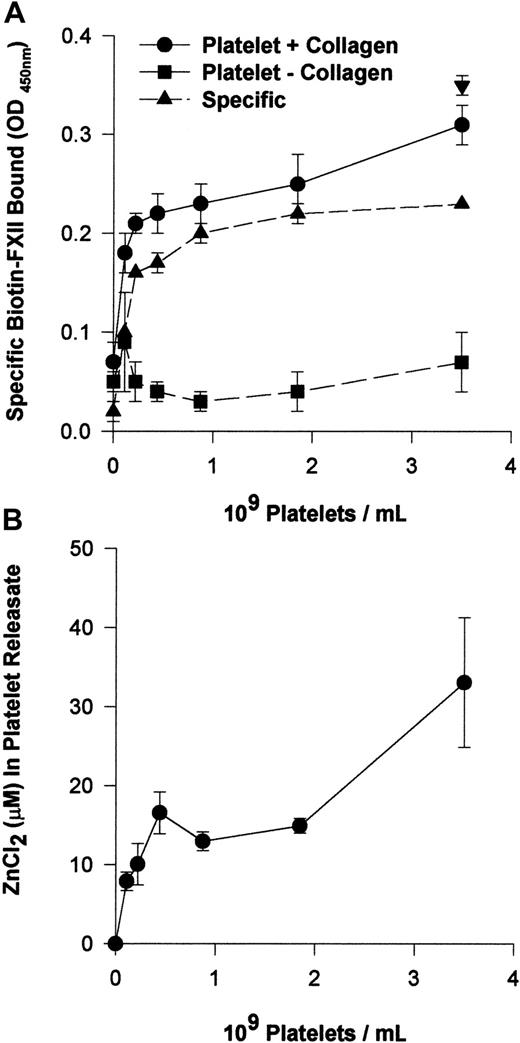

The requirement for 10 μM Zn²⁺ to support FXII binding suggested that FXII binding is distinguished from HK binding to HUVECs that required only 0.3 μM Zn²⁺.12Investigations determined if activated platelets that contain high concentrations of intracellular Zn²⁺ provided this divalent cation to support FXII binding.24 Washed human platelets in varying concentrations (0.1 × 10⁹ to 3.5 × 10⁹/mL) and 10 nM biotin-FXII in HCB were incubated over monolayers of HUVECs in the presence or absence of collagen (Figure 3A). Specific biotin-FXII binding to HUVECs was detected when at least 2.2 × 10⁸ platelets per milliliter were activated by collagen. These data suggested that activation of physiologic concentrations of platelets provided sufficient Zn²⁺ to support specific FXII binding to HUVECs in this buffer. When the releasates of 2.2 × 10⁸ collagen-activated platelets per milliliter were examined for the ambient Zn²⁺concentration, it was found to be about 10 μM (Figure 3B). This value was consistent with the required divalent cation concentration necessary to support biotin-FXII binding to HUVEC monolayers in buffer alone (Figure 1B).

Investigations were performed to characterize FXII expression on HUVECs and determine the protein(s) it bound to. On laser scanning confocal microscopy, FITC-FXII diffusely bound to endothelial cell surfaces (Figure 4). The binding of FITC-FXII to HUVECs was specific because 100-fold molar excess of FXII or FITC-FXII added to HUVECs in the absence of Zn²⁺ did not specifically bind to the cells (Figure 4). The use of Nanogold-FXII demonstrated the binding of this molecule to endothelial cells at the electron microscopic level (Figure 5). On light microscope cell examination, there was an intense labeling with Nanogold-FXII that was marked on the cell periphery (Figure 5A). Nanogold-FXII binding was detected as early as 5 minutes of incubation at 37°C. After 20 minutes of silver enhancement, the 1.4-nm gold particles coupled to FXII increased irregularly in size to reach 100 to 200 nm in diameter. The ultrastructural analysis showed that most of the gold-labeled probe was associated to the endothelial cell membrane, though some of the particles were observed in cytoplasm vesicles (Figure 5B,C).

Investigations next were performed to determine if the same proteins that make up the HK binding site on HUVECs, CK1, gC1qR, and uPAR also contributed to FXII binding to HUVECs. The relative contribution of uPAR, gC1qR, and CK1 to FXII binding to HUVECs was determined by flow cytometry (Figure 6). On flow cytometry, FITC-FXII alone bound to the HUVEC membrane (Figure 6A). The presence of a monoclonal antibody to uPAR or gC1qR decreased the extent of expression of FITC-FXII on the membrane of HUVECs in suspension (Figure6B,D). The presence of a polyclonal antibody to CK1 directed to the HK binding site blocked FITC-FXII binding less (Figure 6C). These data suggested that uPAR and gC1qR and perhaps CK1 were FXII binding sites on HUVECs.

The colocalization of FXII and uPAR or gC1qR on the HUVEC membrane was examined by laser scanning confocal microscopy (Figure7). Like FXII, both gC1qR and uPAR antigen diffusely stained the surface of HUVECs although not to the same extent as FITC-FXII. Mouse IgG had no staining on these cells as previously reported1 (data not shown). When both fluorescent probes were examined simultaneously, FXII and gC1qR or uPAR were simultaneously localized to a central juxtanuclear position (Figure 7). However, the external rim of the HUVECs stained only for FXII. These data indicated that the membrane localization of FXII and uPAR or gC1qR was overlapping.

Additional investigations determined the colocalization of FXII and CK1 (Figure 8). CK1 antigen diffusely stained the endothelial cell, whereas FITC-FXII was more central in location (Figure 8). The pattern of distribution of FXII and CK1 was overlapping, with some colocalization in the perinuclear region although much less so than that seen with uPAR or gC1qR. The pattern of distribution of ICAM-1 and FXII also showed some colocalization of the 2 proteins around the nucleus (Figure 8). These combined data suggested that gC1qR and uPAR colocalized with the membrane expression of FXII. CK1 antigen was found to be associated with FXII to a lesser extent.

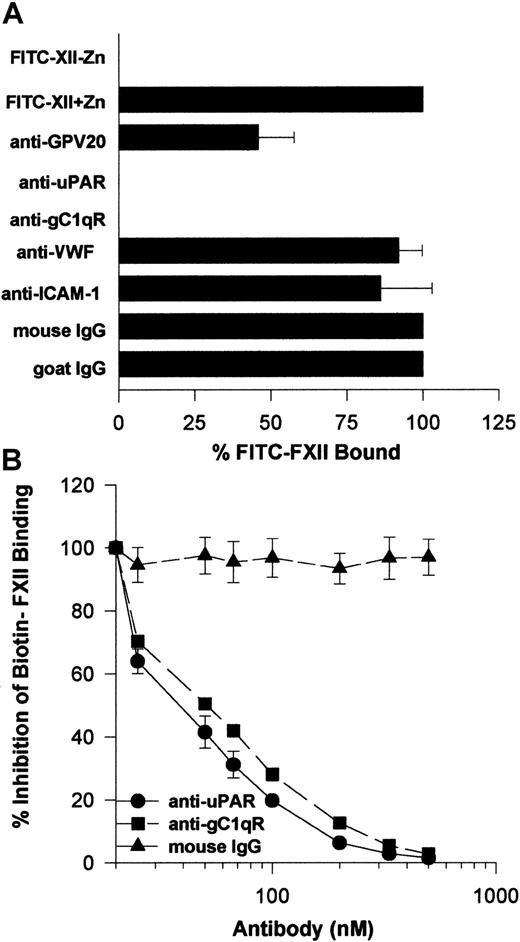

Further investigations determined that the monoclonal antibodies to uPAR or gC1qR used to describe the membrane expression of these proteins completely blocked FITC-FXII binding to HUVEC suspensions (Figure 9A). Alternatively, mouse IgG and monoclonal antibodies to von Willebrand factor or ICAM had no influence on FITC-FXII binding. Goat antibody to the HK binding site on CK1 also inhibited FITC-FXII binding about 50% under the conditions of the assay. Further studies confirmed these findings in a biotin-FXII binding to HUVEC monolayers assay (Figure 9B). Increasing concentrations of monoclonal antibodies to uPAR and gC1qR blocked biotin-FXII binding with a 50% inhibitory concentration (IC₅₀) of 400 and 500 nM, respectively. These data suggested that the same proteins that serve as the HK binding site on HUVECs also participate in FXII expression in these cultured cell-binding assays.

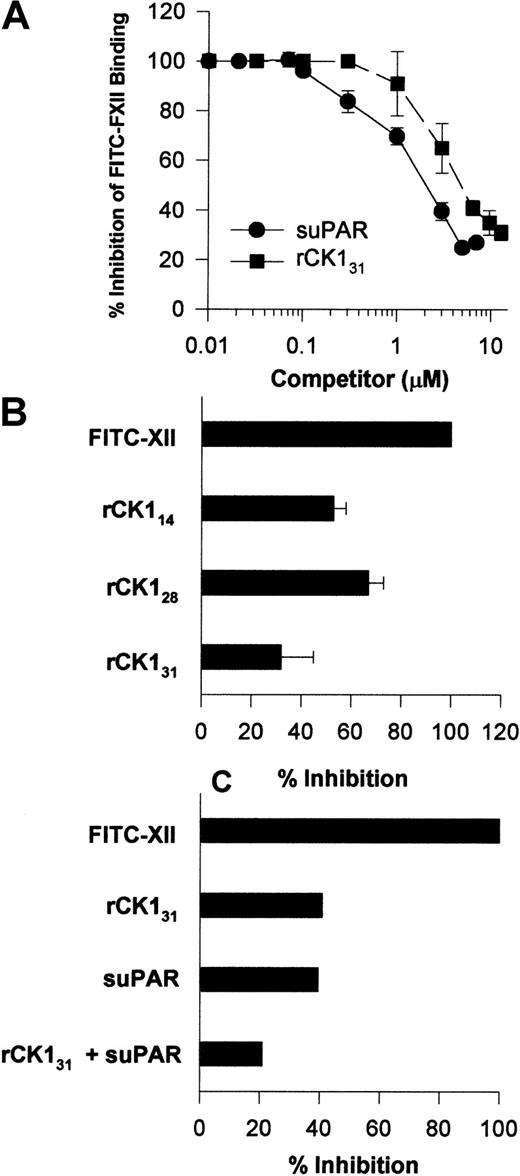

Investigations were performed to determine a physical interaction between FXII and uPAR or CK1. Increasing concentrations of suPAR blocked FITC-FXII binding to HUVECs in suspension with an IC₅₀ of 2 μM (Figure10A). Likewise, increasing concentrations of rCK1₃₁ blocked FITC-FXII binding to HUVECs in suspensions with an IC₅₀ of 5 μM (Figure 10A). The FXII binding site on CK1 was partially mapped. Sequential 20 amino acid peptides from protein coded by exons 1, 2, and a small part of 3 of CK1 did not inhibit FITC-FXII binding to suspensions of HUVECs (data not shown). However, in addition to rCK1₃₁, which consists of protein coded by exons 1 to 7, rCK1₂₈ or rCK1₁₄, which consists of protein coded by exons 1 to 5 and 3 to 5, respectively, also blocked FITC-FXII binding to HUVECs in suspension (Figure 10B). These data indicated that the FXII binding region on CK1 is contained within a 100–amino acid section of protein coded by exons 3 to 5.6 Last, when the IC₅₀ of suPAR and IC₅₀ of rCK1₃₁ were combined, FITC-FXII binding to HUVECs was blocked by 80% (Figure 10C).

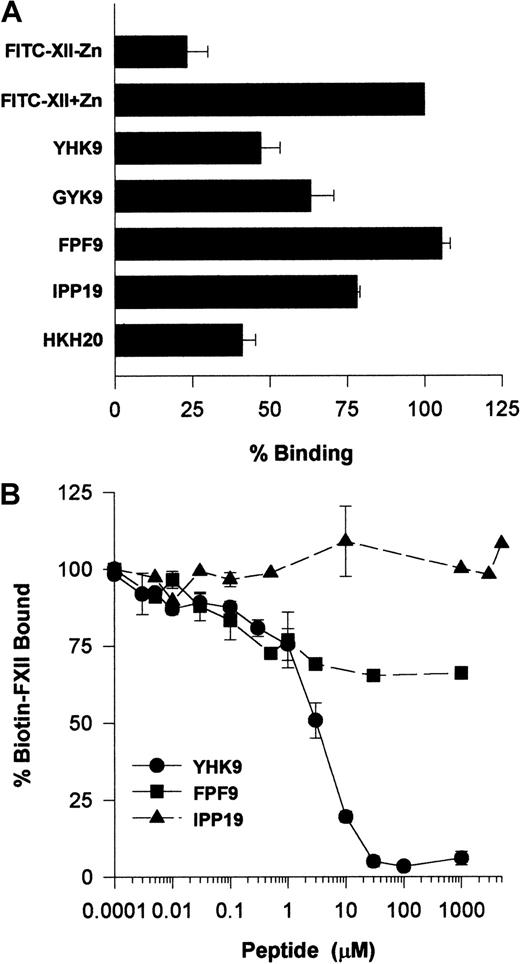

Investigations ascertained what region on FXII interacted with HUVECs. Recent investigations indicated that certain highly charged amino acids on the N-terminal region of FXII interacted with artificial negatively charged surfaces.22 Studies examined whether peptides of this region also interfered with FXII binding to HUVECs in suspension (Figure 11A). Peptide YHK9 of the fibronectin type II domain of FXII inhibited FITC-FXII binding to HUVECs 50%. No inhibition occurred with an adjacent peptide FPF9 (Figure 11A). The inhibition of FXII binding by peptide YHK9 was not sequence-specific. A scrambled form of peptide YHK9, peptide GYK9, also inhibited binding 40%. In addition, a peptide from HK's domain 5 binding site, HKH20, blocked binding to the same extent as peptide YHK9. This latter result could have arisen from the charge of peptide HKH20 or its ability to bind to the same receptor proteins on HUVECs that FXII bound.1 Last, peptide IPP19, to the first 19 amino acids on the N-terminal region of FXII, blocked binding 25%.

Additional studies determined if peptide YHK9 blocked biotin-FXII binding to HUVEC monolayers (Figure 11B). At 30 μM, peptide YHK9 blocked biotin-FXII binding to HUVECs completely, whereas its adjacent peptide, FPF9, inhibited binding only 30% at 1 mM. Alternatively, peptide IPP19 did not inhibit biotin-FXII binding to HUVEC monolayers at concentrations above 1 mM.

Investigations determined if interference with FXII binding to HUVECs influenced its activated forms' catalytic activity on PK and FXI. Using HUVECs grown in human FXII-deficient serum and concentrations of HK and PK that were suboptimal for endogenous PK activation, the catalytic activity of formed FXIIa on PK activation was examined11 (Figure 12A). The addition of FXII to HK and PK increased the extent of hydrolytic activity measured (Figure 12A). When peptide YHK9 was present, FXII binding was blocked and the catalytic activity of activated forms of FXII on PK was inhibited (Figure 12A). Alternatively, peptide FPF9 that had no ability to inhibit FXII binding to HUVECs did not inhibit the catalytic activity of formed FXIIa on PK (Figure 12A).

Surface-bound FXII was catalytic for FXI activation.17 The addition of FXII was essential for activation of FXI on HUVECs when cultured in FXII-deficient serum.17 Peptide YHK9 from the fibronectin type II domain of FXII inhibited the catalytic role of activated forms of FXII on FXI activation (Figure 12B). Peptide FPF9 from an adjacent region also inhibited FXIIa activation of FXI by 38%. Alternatively, peptide IPP19 from the extreme N-terminal region of FXII that has been reported as the FXI binding region on FXII25inhibited FXIIa-catalyzed FXI activation by only 6%. The interference of FXII binding to HUVECs blocked its catalytic role in PK and FXI activation.

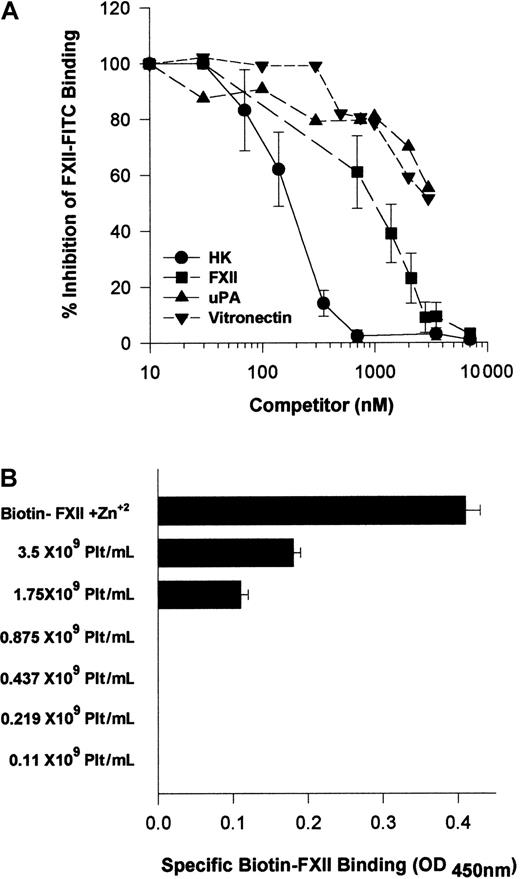

Because HK and FXII bound to the same multiprotein receptor and HK is known to block FXII binding,18 investigations were performed to determine which protein, HK or FXII, would take precedence in binding to HUVECs. Increasing FXII concentrations blocked FITC-FXII binding with an IC₅₀ of 900 nM (Figure13A). HK, however, was a more potent inhibitor of FITC-FXII binding to suspensions of HUVECs because it blocked FXII binding with an IC₅₀ of 180 nM (Figure 13A). At plasma concentrations of HK (600 nM), FITC-FXII binding to HUVECs is completely inhibited. Further, plasma concentrations of vitronectin (2.5 μM) inhibited FITC-FXII binding 50%. Similarly, 2.5 μM urokinase also blocked FITC-FXII binding 50%. These data indicated that normal plasma concentrations of HK and vitronectin blocked FXII binding, suggesting that HK in plasma had precedence in binding to this multiprotein receptor on HUVECs.

Additional investigations were performed to determine if there were other physiologic modifiers of FXII binding to HUVECs. Because FXII binding to HUVECs required a higher free Zn²⁺ concentration than HK, and human plasma contains a high concentration of albumin, studies were performed to determine if the plasma albumin concentration modulated the level of free Zn²⁺ available for FXII binding. Biotin-FXII was incubated with collagen-activated washed platelets over HUVECs in the presence of 3.5 mg/mL bovine serum albumin (Figure 13B). Unlike the results seen when there was a carrier protein present that did not bind Zn²⁺ (Figure 3), more than 1 × 10⁹ collagen-activated platelets per milliliter were necessary to provide sufficient Zn²⁺ to support specific FXII binding in the presence of 3.5 mg/mL albumin (Figure13B). Likewise, when the ambient albumin concentration was made 40 mg/mL as seen in plasma, there was no specific FXII binding when incubated with collagen-activated platelets (data not shown). These data indicated that under physiologic conditions, FXII binding was secondary to HK binding and highly regulated by plasma proteins and the ambient free Zn²⁺ concentration.

These investigations indicate that FXII interacts with the same multiprotein receptor complex on HUVECs that assembles the HK-PK complex.1 The investigations by Reddigari et al show Zn²⁺-dependent binding of FXII to HUVECs and that FXII blocks HK binding to HUVECs.18 Our investigations indicate the proteins that FXII binds on HUVECs and a region on FXII that participates in cell binding. Confirmation that FXII and HK interact with the same proteins on HUVECs is shown by the finding that all the antibodies that block HK binding to HUVECs also interfere with FXII binding. Using antibodies to gC1qR and uPAR, FXII binding to HUVECs is completely blocked. Previous studies indicate that FXII binds to gC1qR.2 3 It was not expected that uPAR would also bind FXII. Confirmation that uPAR interacts with FXII was shown by the observation that suPAR competes FXII binding to HUVEC suspensions. It is also unexpected that CK1 inhibits FXII binding to HUVECs. The antibody to CK1 is not as effective an inhibitor to binding as antibodies to uPAR or gC1qR because it is an antipeptide antibody raised to the unique peptide sequence on CK1 that HK binds on protein coded by exon 1. Inhibition studies with variously sized recombinant CK1 indicate that the FXII binding region on CK1 is on protein coded by exons 3 to 5. This interpretation may explain why FITC-FXII and anti-CK1 antibody to the HK binding site colocalizes less than that seen with other FXII-HUVEC binding proteins. Last, when suPAR and rCK1 are combined, FXII binding is reduced further than when either protein alone is used as an inhibitor.

FXII binding to HUVECs appears to be highly restricted. It has several properties that distinguish it from HK binding. Zinc ion is an essential divalent cation for HK binding to HUVECs.26Recent investigations indicate that only 0.3 μM Zn²⁺ is necessary to support HK binding to HUVECs when the carrier protein is gelatin and not bovine serum albumin.12,15 The reason for this difference is due to the fact that albumin binds zinc ion and gelatin does not.15 Alternatively, specific FXII binding to HUVECs requires 10 μM added Zn²⁺ in gelatin buffer. This zinc ion requirement is identical to the Zn²⁺requirement for FXI binding to HK on HUVECs in the same buffer.17 Under physiologic conditions some activation state must occur to liberate zinc ion from some storage repository to promote FXII binding to its putative receptors.27 28Activated platelets provide sufficient Zn²⁺ to support FXII binding in gelatin buffer. However, plasma concentrations of albumin restrict the availability of released platelet-free Zn²⁺ to support binding. Physiologic concentrations of collagen-activated platelets provide insufficient free Zn²⁺ to support FXII binding in buffers containing plasma levels of albumin. Thus, regulation of the ambient Zn²⁺ concentration modulates FXII binding to HUVECs. Other factors also regulate FXII binding to HUVECs. Plasma concentrations of HK and vitronectin prevent FXII binding. In plasma, HK would preferentially bind to endothelium over FXII. Because FXII binding to endothelial cells is restricted, physiologic PK and FXI activation on HUVECs must proceed by mechanisms other than activated forms of FXII.

The role of FXII in the revised hypothesis for assembly and activation of the proteins of the plasma kallikrein/kinin system needs better definition. PK activation on endothelial cells proceeds in the absence of added FXII by an endothelial cell–associated serine protease that specifically activates PK.11,15,16 Recent preliminary evidence suggests that this protease is prolyl carboxypeptidase, an enzyme previously known only to degrade angiotensin II to angiotensin II_1-7.29 The presence of FXII potentiates the activation of membrane-associated PK, similar to what is accepted on artificial surfaces. When suboptimal concentrations of HK and PK for PK activation are incubated with HUVECs cultured in FXII-deficient serum, FXII activation by a small amount of formed kallikrein amplifies the activation of PK. The fact that the fibronectin type II domain of FXII contains a cell-binding region may be important in understanding the functional activity or activities of FXII on the HUVEC membrane. The expression of FXII on HUVECs may have growth-promoting activities as previously suggested.30,31It is of interest that the same region of FXII that participates in binding of the protein to artificial, negatively charged surfaces also contributes to its binding to cell membranes.22 This region is charge-specific and not sequence-specific.22These results are similar to those found for peptides derived from HK's domain 5. Peptide HKH20 of HK, a charge-specific sequence from domain 5, is the best region to bind to artificial, negatively charged surfaces and HUVEC membranes to inhibit HK binding and angiogenesis.32 33 Because FXII binding to HUVECs is secondary to that of HK, further studies are needed to fully understand the physiologic role of FXIIa in events associated with PK activation on endothelial cell membranes.

We thank Dr Cora-Jean Edgell of the University of North Carolina for providing the EA.hy926 cells.
