MRI R2 and R2^* mapping accurately estimates hepatic iron concentration in transfusion-dependent thalassemia and sickle cell disease patients

Hepatic iron concentration (HIC) is used as a surrogate for total iron balance to guide chelation therapy in transfusion-dependent patients.^1,2  Unfortunately, liver biopsy is invasive and provides only indirect information regarding other organ systems. Biomagnetic susceptibility measurements by superconducting quantum interference device, or SQUID, have been used as surrogates by some, but only 4 such devices are currently operating worldwide.^3-7  The use of magnetic resonance imaging (MRI) relaxation time techniques to estimate liver iron concentration has been studied for nearly 20 years.^8-15  Iron shortens T1, T2, and T2^* relaxation times measured by MRI, darkening images in the presence of iron. Since MRI is ubiquitous, it offers great potential for widely accessible, noninvasive estimation of HIC.¹⁶

The reciprocals of T2 and T2^*, known as R2 and R2^*, are directly proportional to iron and demonstrate the most promising results. Most investigators have described a linear rise in R2 with iron^8-15 ; however, these studies have been criticized for their small size, limited dynamic range, and interstudy calibration variability.^16,17  In a study of more than 100 patients, St Pierre et al found a curvilinear R2 relationship between R2 and biopsy HIC over the entire clinically relevant range.¹⁸  More importantly, that study demonstrated measurement stability between multiple imaging platforms. R2 changes have also been qualitatively associated with cardiac iron deposition.^9,14

There are fewer studies of R2^* for iron quantitation. Anderson et al¹⁹  demonstrated a negative log-linear correlation between liver T2^* and HIC of 0.93 in nonfibrotic livers. The slope of this relationship was -1.07, predicting a nearly linear rise of R2^* with iron. They also demonstrated clinical correlation between cardiac T2^* measurements and cardiac function.¹⁹  R2 and R2^* methods theoretically have different sensitivities to subcellular iron distribution, such as might be seen at different iron loads and in cirrhosis or other liver diseases.^19-23  Some investigators have even proposed that the difference between R2^* and R2, called R2′, may be a more specific marker of tissue iron.^24,25  To our knowledge, there has been no systematic simultaneous comparison of liver R2 and R2^* methods in identical patients.

Using MRI settings optimized for liver iron estimation, we compared the relationship of R2 and R2^* values to one another in 102 patients with iron overload and 13 healthy controls. MRI was validated to biopsy-measured iron concentration in 22 of the iron overload patients having a liver iron load ranging from 1.3 mg/g to 57.8 mg/g (dry weight).

One hundred and two patients underwent a total of 132 comprehensive iron evaluations between August 2002 and August 2004. Patients were primarily referred for cardiac T2^* and cardiac function analysis but consented to MRI HIC assessment as well. The study was approved by the institutional review board at Children's Hospital Los Angeles. Informed consent was provided according to the Declaration of Helsinki. Iron overload was assessed in patients with thalassemia major (n = 57), sickle cell disease (n = 34), thalassemia intermedia (n = 6), aplastic anemia (n = 3), hemochromatosis (n = 1), and heme-metabolism defect (n = 1). Twenty two (of the 102) patients were scheduled to have their MRI examinations during or immediately following a clinically indicated liver biopsy. Mean time between biopsy and MRI examination was 4.3 ± 9.5 days (range, 0-32 days). Two patients had repeat biopsies in the study interval. Biopsy indications were thalassemia major (n = 9), sickle cell disease (n = 10), thalassemia intermedia (n = 2), and Blackfan-Diamond syndrome (n = 1).

Liver biopsy and iron quantitation were performed according to standard clinical practice (Mayo Medical Laboratory, Rochester, MN). One complete core was sent fresh in a trace element-free container. Sample wet weight was obtained in 4 patients and was 5.4 ± 0.6 mg (range, 5.1-6.3 mg).

Liver iron concentrations in the patient population were quite high. We were unable to obtain HIC estimates from patients with nontransfusional iron overload, as was done in a previous study,²⁶  because of ethical and institutional restrictions. Therefore, to better define calibration curves at low iron concentrations, liver R2 and R2^* were collected from 13 healthy volunteers (9 male, 4 female), ages 29.3 ± 12.3 years (range, 12-50 years). Since liver biopsy was not performed in these subjects, it was necessary to estimate HIC from population norms. The upper limit of normal (95%) for HIC is 55.8 × age (units of μg/g dry weight; John Butz, Director, Mayo Medical Laboratory, Rochester, MN). We used an estimated coefficient of variation of 20% to translate the 95% confidence interval to an expected mean value, that is, [Fe]^μ = [Fe]^95%/(1 + 1.96 [COV]), with COV indicating coefficient of variation. This yielded an age-matched mean iron estimate of 1.17 mg/g dry weight for our healthy control population.

MRI measurements were performed using a 4-element torso coil on a 1.5 T General Electric CVi scanner (General Electric Medical Systems, Milwaukee, WI). Liver R2^* was measured from a single midhepatic slice using a single echo, gradient echo sequence; echo time (TE) was automatically stepped at 0.25-millisecond intervals from 0.8 to 4.8 milliseconds in a single breath-hold. Other imaging parameters included a field of view of 48 × 24, a flip angle of 20°, a repetition time (TR) of 25 milliseconds, a matrix of 64 × 64, a slice thickness of 15 mm, and a bandwidth of 83 kHz. Two seconds of dummy scans were performed to achieve longitudinal steady-state prior to data acquisition. Liver R2 was measured from 4 slices using a single echo, 120°-120° Hahn echo, using TEs of 3.5, 5, 8, 12, 18, and 30 milliseconds. A Hahn echo yielded significantly shorter echo times than a conventional 90°-180° pulse combination; this allowed iron characterization over a much greater range. A single TE was acquired per 15-second breath-hold. Other imaging parameters included a field of view of 48 × 24, a TR of 300 milliseconds, a matrix of 64 × 64, a slice thickness of 15 mm, a gap of 5 mm, and a bandwidth of 32 kHz. One patient did not have R2 measurements because of technical difficulties with the MRI scanner.

The gradient echo (R2^*) and spin-echo (R2) images were fit to monoexponential equations with a variable offset: S(TE) = Ae^{-TE · R2*} + C (equation 1).

The constant, C, was necessary to compensate for contributions from instrumentation noise and effects from iron-poor species such as blood and bile. Equation no. 1 was fit to every pixel in the image. A region of interest was drawn around the entire liver boundary, excluding obvious hilar vessels. Mean, standard deviation, and standard error were calculated from all pixels within the region of interest.

Linear calibrations between R2^*, R2, R2′, and iron were estimated using univariate regression. Regression analysis yielded linear calibrations of the following form: [Fe]_R2^* = .0254 × R2^* + 0.202 (equation 2), [Fe]_R2-L = 0.148 × R2 - 6.51 (equation 3), and [Fe]_R2′ = 0.0329 × R2′ (equation 4), where R2′ is R2^* - R2, [Fe]_R2^* is the HIC estimated from R2^*, [Fe]_R2-L is the HIC estimated from R2 using a linear fit, and [Fe]_R2′ is the HIC estimated from R2′.

To better characterize the nonlinear relationship of R2 versus iron, R2 was plotted against [Fe]_R2^* for all 132 iron examinations (102 patients). This relationship was curvilinear but was well described by the nonlinear calibration proposed by St Pierre et al,¹⁸  given by the following: R2 = 6.88 + 26.06[Fe]^0.701 - 0.438[Fe]^1.402 (equation 5).

Estimates of liver iron by the St Pierre et al¹⁸  R2 calibration, [Fe]^R2-SP, can be achieved from equation no. 5 by completing the square and algebraic manipulations to yield the following (equation 6):

Agreement between all calibrations and HIC was assessed using 95% prediction intervals from the linear regression and by Bland-Altman analysis. The Bland-Altman statistic, formed by the difference of 2 measurements divided by the mean of 2 estimates, characterizes both systematic differences (bias) and random fluctuations (variance). Two-sample t test was used to decide whether bias between measurement methods was significant. Confidence interval widths for the different MRI methods were compared with one another using a 2-sample variance test. To preserve statistical independence, repeat MRI examinations were excluded from all statistical calculations (regression and Bland-Altman analysis), although values were included in the data graphs.

R2 and R2^* measurement reproducibility was assessed in 9 iron-overloaded patients and 3 controls scanned 1 to 3 weeks apart. Identical examinations were performed. Slice-to-slice variability was examined in 4 adjacent slices. For R2^*, this required 3 additional breath-holds and was performed in 5 patients. The R2 method generates 4 slices with the routine examination, so slice-to-slice variability could be generated in every biopsied patient (n = 22).

Liver biopsies were performed without complication. One biopsy specimen for iron quantitation was rejected from analysis prior to iron quantitation because of poor specimen quality. Pathologic analysis demonstrated mild, periportal fibrous expansion in 11 patients and minimal fibrosis in the remainder. Biopsy-measured HIC was uniformly distributed from 1.3 to 32.9 mg/g dry weight except for 1 patient with an HIC of 57.8 mg/g dry weight. This point was a significant outlier with respect to iron concentration and MRI values, and was excluded from statistical analysis.

MRI-estimated iron concentration in the 102 iron-overloaded patients (using average HIC calculated from equations 2 and 6) was 13.1 ± 12.3 mg/g dry weight (range, 1.2-57.3 mg/g dry weight). The patients who underwent liver biopsy tended to have higher MRI HICs: 17.7 ± 12.1 mg/g dry weight (range, 2.1-46.4 mg/g dry weight). Although not statistically different, this likely represents referral bias from physicians regarding the urgency of liver biopsy.

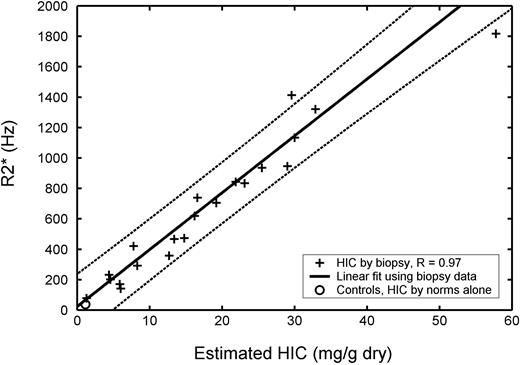

Figure 1 demonstrates R2^* as a function of biopsied HIC. The highest iron concentration is an outlier, but linear agreement between R2^* and HIC was excellent from 1.3 to 32.9 mg/g dry weight. Regression analysis yielded a correlation coefficient of 0.97, a slope of 37.4 Hz per mg/g dry weight, and a y-intercept of 23.7 Hz. Healthy controls had a mean R2^* of 39.9 Hz ± 2.8 (SEM); this was plotted against their estimated HICs (1.17 mg/g dry weight). The R2^* fit passes near this point, suggesting reasonable extrapolation to very low liver iron levels. Bland-Altman agreement of [Fe]_R2^* and biopsy-derived HICs is shown in Table 1. There was no significant bias, and confidence intervals were -46% to 44%, comparable with a recently published R2 methodology.¹⁸

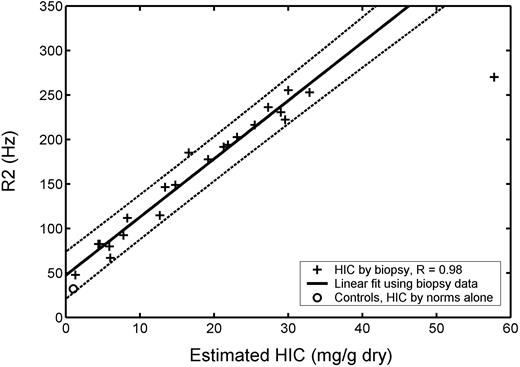

Figure 2 demonstrates the corresponding relationship between R2 and liver iron concentration. The R2 value for the liver biopsy value of 57.8 was a significant outlier, but the R2-iron relationship appeared close to linear up to 32.9 mg/g. Linear regression between R2 and iron demonstrate a slope of 6.54 Hz per mg/g dry weight, a y-intercept of 47.4 Hz, and a correlation coefficient of 0.98. Limits of agreement between [Fe]_R2-L demonstrates statistically insignificant bias (-4%, P = .48) and comparable 95% confidence intervals (-55%-46%, P = .40) to the work of St Pierre et al.¹⁸  Healthy controls had a mean R2 of 38.2 Hz ± 1.4 (SEM), plotted again at an estimated HIC of 1.17 mg/g dry weight. Notice that a linear R2 versus iron relationship does not extrapolate well to the healthy controls (55.1 Hz compared with 38.2 Hz, P < .001).

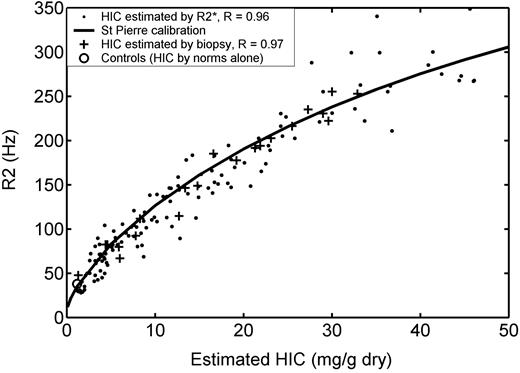

Further evidence that the R2 calibration curve is nonlinear comes by plotting the R2-iron relationship for all 132 iron examinations. Figure 3 demonstrates R2 as a function of HIC, measured by biopsy (+ signs) and by [Fe]_R2^* (solid dots). With the additional examinations, the nonlinear trend is quite obvious. Curvature is pronounced only for HICs less than 7 mg/g, but the trend passes through the healthy control estimates. The bold line in Figure 3 represents the calibration curve proposed by St Pierre et al¹⁸  (equation 5). This curve fits the low-iron behavior well, with a correlation coefficient of 0.97 with respect to biopsy HIC and 0.96 with respect to HIC by R2^*. The limits of agreement between [Fe]_R2-SP and [Fe]_biopsy were smaller than for a linear calibration, -46% to 34% versus -55% to 46%, although this difference was not statistically significant (P = .15). Linear fit to the R2^*-estimated HIC produces comparable R value to the nonlinear fit (0.95) but still has a y-intercept (50.2 Hz) that badly overestimates R2 values in healthy controls.

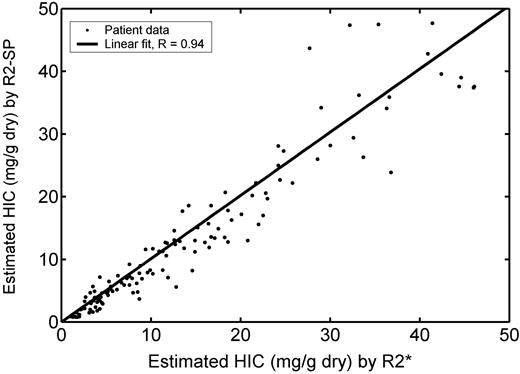

Agreement between [Fe]_R2^* (equation 2) and [Fe]_R2-SP (equation 6) is demonstrated by scattergram in Figure 4, along with its regression line. Both [Fe]_R2^* and [Fe]_R2-SP estimate rise at the same rate (slope = 1.01 ± 0.02), and the correlation between them is 0.94. Despite this, [Fe]_R2-SP exhibited a -11% bias toward [Fe]_R2^* and confidence intervals were broad (-66%-43%). The bias is greatest between HICs of 7 and 25 mg/g dry weight, suggesting that flatter calibration curvature would yield a better fit to our data in this region. In general, variability increased with estimated HIC but is notably larger for HICs more than 30 mg/g.

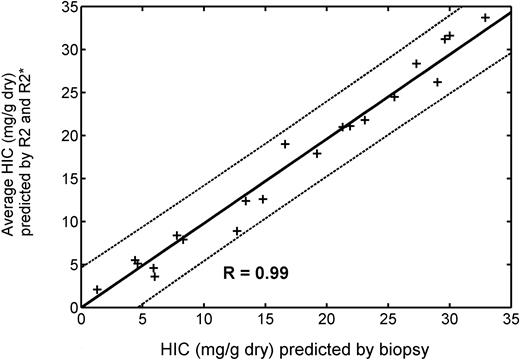

Since HIC estimates by R2 and R2^* measurements exhibit greater disagreement with one another than with biopsy, we examined whether averaging these measurements would improve HIC estimation relative to either technique alone. Figure 5 demonstrates predicted HIC calculated from the average of equations 2 and 6 compared with biopsied HIC values. Correlation coefficient is 0.99 with a slope of 0.98. However, neither 95% prediction intervals nor Bland-Altman limits of agreement were significantly improved relative to either individual measurement (Table 1).

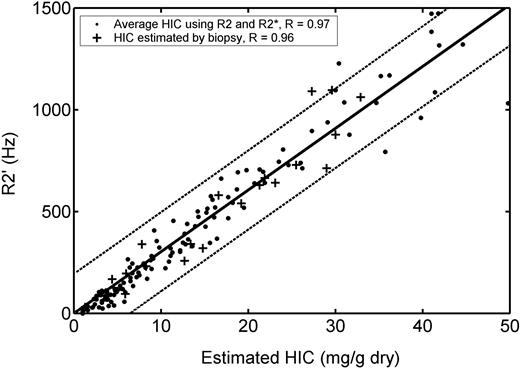

An alternative means to combine R2^* and R2 measurements is to calculate their difference (R2^* - R2), also known as R2′. Figure 6 demonstrates R2′ as a function of HIC estimated by biopsy (+ signs) and by the average of R2^* and R2 iron estimates (solid dots). R2′ rises linearly with HIC, with a correlation coefficient of 0.97 when HIC was estimated by MRI and 0.96 when measured by biopsy. Observed R2′ is less than predicted for a linear relationship when HIC is less than 7 mg/g, corresponding to the greatest nonlinearity in R2 measurements. Bland-Altman agreement of [Fe]_R2′ (equation 3) with biopsy values is comparable with R2 and R2^* measurements alone; again, combined measurement yielded no improvement.

A practical assessment of MRI efficacy is illustrated in Table 2. Table 2 compares estimated liver irons by HIC, R2, R2^*, R2′, and average (R2, R2^*). Using the biopsy HIC value, patients were stratified into 4 classes according to the algorithm of Olivieri and Brittenham² : (1) HIC less than 3.2 mg/g indicates concerns for chelator toxicity; (2) HIC of 3.2 to 7.0 mg/g, optimal chelation range; (3) HIC of 7 to 15 mg/g, elevated hepatic iron levels; and (4) HIC more than 15 mg/g, markedly increased iron levels and potential cardiotoxicity. For this population, which was somewhat skewed toward heavy iron overload, there was only one classification “error” with a patient having an HIC by biopsy of 7.8 mg/g classified by R2 as being within the “optimal” range. Thus, in this relatively small cohort, MRI would have generated nearly identical therapeutic decisions as liver biopsy.

R2 and R2^* estimates varied between imaging slices in any given patient. This variability was larger in the R2^* measurements, having a mean coefficient of variation of 7.8%, compared with 4.6% for R2. Both techniques were quite reproducible from exam to exam. Paired R2^* measurements demonstrated a mean difference of 4.0% and a standard deviation of 8.3%. R2 measurements had a mean difference of - 0.6% and a standard deviation of 7.4%. The patient subset studied for reproducibility had an MRI-estimated HIC of 15.9 ± 13.9 mg/g dry weight (range, 1.5-41 mg/g dry weight, which is comparable to the iron burden observed in the general population).

R2 and R2^* methods have theoretical advantages and disadvantages compared with one another. R2 techniques are insensitive to the size and shape of the imaging “voxel” as well as external magnetic inhomogeneities, such as metal clips and air interfaces, while R2^* methods can be influenced by these factors. In contrast, R2^* measurements are more robust to variations in the length scale of iron deposition (ie, they more accurately reflect bulk magnetic susceptibility of tissues).^20,27,28  R2^* measurements can also be performed in a single breath-hold, while R2 methods take 5 to 20 minutes (depending on technique). However, in this paper, we demonstrate that both techniques produce comparable, clinically useful, noninvasive estimates of HIC. Limits of agreement for [Fe]_R2 of -46% to 34% and [Fe]_R2^* of -46% to 44% compare favorably with the limits of agreement of -56% to 50% found by St Pierre et al¹⁸  for their R2 method. Despite improved agreement, we do not claim technical superiority, only comparability. Our study had many advantages that would tend to improve both liver biopsy and MRI accuracy, for example, inclusion of younger patients; absence of hepatitis C or significant liver fibrosis in patients; the use of an entire, fresh liver core for assessment; and performance of examinations at a single center. We also had a proportionally greater number of patients with liver irons more than 10 mg/g in which our MRI techniques were quite accurate. In fact, similarities between the 2 studies are far more striking than the differences. Despite using different magnets, different MRI pulse sequences, and different fitting algorithms, we independently generated data consistent with St Pierre et al's¹⁸  nonlinear calibration curve (Figure 3). These results reinforce the portability and reproducibility of R2 techniques if proper care is taken in data collection and analysis. Although our data suggest a slightly flatter calibration curvature for HICs between 7 and 25 mg/g, the behavior at both low and high extremes is quite consistent.

So why have some investigators found linear R2-HIC relationships and others have found nonlinear calibrations? The most likely explanation lies in inspection of Figures 2 and 3. Curvilinear relationships (in the presence of measurement error) are very difficult to demonstrate unless they are examined over a large range of values (iron concentrations) and large numbers of patients. In Figure 2, the R2-iron relationship appears well described by a line; the only problem with this fit is its poor extrapolation to low iron. However, when the same relationship is viewed over 132 examinations spanning HICs of 1 to 50 mg/g, the curvilinearity is obvious. Other factors could also play a role in the observed interstudy variation. Some were performed at different magnetic field strengths; this has a profound effect on the magnitude and shape of the calibration curve.²⁹  R2 measurements using a train of echoes (also known as Carr-Purcell-Meiboom-Gill, or CPMG, sequences) will be lower than those performed by single spin-echo techniques and will vary with echo-spacing.³⁰  Finally, choice of fitting algorithm can impact the estimated R2 or R2^*.³¹

The curvilinear nature of R2 is easy to explain. Both R2 and R2^* depend upon the size and distribution of magnetic inhomogeneities.^20,27  R2 should rise linearly with iron only if the size and cellular distribution of liver iron deposits are independent of HIC. In particular, R2 becomes progressively less sensitive to magnetic fluctuations greater than the cellular scale because water molecules travel slowly across membrane boundaries. If severe iron loading produces proportionally greater magnetic inhomogeneities on the order of 100 micrometers or larger, then one would expect R2 to “plateau” at high HIC. R2^* measurements are robust to long-range magnetic disturbances, thus one would expect a linear relationship between R2^* and iron over the entire physiologic range of iron deposition.²⁷

There is much less published data on using liver R2^* to estimate liver iron. Anderson et al¹⁹  found a negative logarithmic relationship between T2^* (the reciprocal of R2^*) and biopsied liver iron concentration. Translated to R2^* values, their data implied a near-linear rise of R2^* with HIC and slope double that observed in our study. However, the confidence intervals on their regression analysis were sufficiently broad that this slope difference was not statistically significant. Their study was limited by a minimum echo time of 2.2 milliseconds, compared with 0.8 milliseconds in our study. Inappropriately long echo times severely degrade estimates of liver T2 or T2^* at high iron loads.^16,31  We believe that our improved agreement with liver biopsy and the high concordance between R2^* and nonlinear R2 HIC estimates support our R2^* versus iron calibration. R2^* measurements also appear to have acceptable intermachine reproducibility,^32,33  although larger-scale validations will be necessary to determine whether R2^* measurements can be performed with the same machine independence recently demonstrated for R2 measurements.¹⁸

Combined R2^* and R2 HIC estimates were no more accurate than either alone, either by using R2′ estimation or by simple averaging of the R2 and R2^* HIC predictions. However, our study was relatively small and underpowered to detect changes less than 33% in confidence interval size. Whether or not it represents a statistically improved liver iron estimate, we find that R2 and R2^* estimates tend to “bracket” the biopsied value, and having both estimates provides an additive degree of user confidence in the MRI prediction. Disparate R2 and R2^* estimates prompt careful review of the patient's images for artifacts and flag the resultant value with a larger degree of uncertainty.

Despite the strong agreement of all the MRI methods with liver biopsy, the 95% confidence intervals for regression and Bland-Altman analyses appear large. The source of the error is at least 3-fold. (1) MRI measurements of R2 and R2^* are imperfect. This effect is relatively small until iron concentrations exceed 30 mg/g. In general, MRI techniques have low interstudy variation (7.4%-8.3%). This value is comparable with iron measurement errors (COV, 7%) on reference iron standards (John Butz, Mayo Medical Laboratory; personal oral communication, January 2005). (2) Sensitivity of R2 and R2^* to liver iron has some patient specificity because of interpatient variations in the size and susceptibility of iron deposits. (3) Liver biopsy is a relatively poor marker of “average” hepatic iron burden because of sampling variation. How large is this effect? Previous studies suggest a COV for liver biopsy ranging from 15% to 25% in healthy livers^34,35 ; higher values have been described in diseased livers.^36,37  Our patient population was young and free from hepatitis C or significant fibrosis. Assuming a COV of only 15%, Bland-Altman confidence intervals for 2 biopsies from the same patient would be expected to be -41% to 41%. These limits of agreement are similar to the results obtained by the MRI techniques in this paper (Table 1). Therefore, much of the disagreement between MRI and biopsy arises from the heterogeneity of iron deposition within the liver.

So is MRI a more accurate indicator of liver iron than biopsy? Probably not, at least not for patients with minimal liver disease. Even with perfect measurements of liver R2 and R2^*, the calibration curve between R2 and R2^* with iron is patient specific and may vary, subtly, with time or iron chelation. These patient-specific variations in the calibration curve are significantly larger than the measurement error. The magnitude of this error can be inferred by the limits of agreement between MRI estimates (-66%-43%); the limits of agreement are significantly larger than between MRI technique or liver biopsy alone (R2^*, -46%-44%; R2, -46%-34%). Comparable confidence intervals would be observed for a technique having a COV of 20%; hence, one must conclude that the sum of the patient-specific and measurement errors for MRI is of similar magnitude to the intrinsic variability of biopsy. This observation is in agreement with in vitro studies of R2 HIC estimation in which iron sampling error was eliminated.²³

However even if MRI has only comparable accuracy to liver biopsy, it has many advantages. Interstudy variability is low, making it a good tool for serial evaluation of chelation efficacy. In our experience, patients are much more likely to agree to annual MRIs than annual biopsies, leading to closer monitoring. It is relatively inexpensive (∼ $500) and can be performed at the same time as cardiac function and cardiac iron evaluation (T2^* or signal intensity ratio). From a pragmatic standpoint, management decisions do not rely on perfect determination of liver iron (Table 2). For this reason, liver biopsy for the sole purpose of iron determination has essentially disappeared from our institution. Biopsy is still indicated when tissue histology is important for patient management. Furthermore, MRI HIC determination does not preclude liver biopsy if the HIC determination does not make clinical “sense” or is near an important therapeutic “boundary.”

Both R2 and R2^* MRI measurements using modified gradient and spin-echo imaging sequences produced highly accurate noninvasive estimates of hepatic iron over the entire clinically relevant range. HIC measurements by R2 and R2^* had equivalent accuracy, but combined measurements were not better than either one alone. We found a nonlinear R2-iron relationship consistent with the calibration curve observed by St Pierre et al,¹⁸  demonstrating that MRI measurements of R2 and R2^* are robust and instrument-independent estimators of HIC. Using commonly available instrumentation, MRI measurement of R2 and R2^* provides a rapid, robust, and accurate method for estimation of hepatic iron concentration suitable for diagnosis and management of transfusional iron overload.
