Antigen recognition induces phosphatidylserine exposure on the cell surface of human CD8⁺ T cells

Most eukaryotic cells exhibit an asymmetric distribution of phospholipids (PLs) in their plasma membrane with phosphatidylcholine and sphingomyelin concentrated in the outer leaflet and phosphatidylethanolamine and phosphatidylserine (PS) predominantly located in the cytosolic leaflet.¹  PS is the only PL thereof that is completely restricted to the inner membrane layer.

This PL asymmetry is maintained by an energy-dependent flippase, known as the aminophospholipid translocase (APTL), that uses ATP hydrolysis to catalyze a fast, inward-directed transport of aminophospholipids PS and phosphatidylethanolamine across the plasma membrane.²  A second class of ATP-dependent lipid transporters, the floppases, mediates outward-directed PL transfer. In contrast to these energy-dependent lipid transporters the activation of a Ca²⁺-dependent PL scramblase, a putative membrane protein facilitating a rapid equilibration of PLs between the 2 plasma-membrane leaflets, causes the disruption of lipid asymmetry. The appearance of PS at the cell surface as a consequence of the loss of lipid asymmetry is described predominantly during early apoptosis and is reported to be a phylogenetically conserved process.^3-6  For apoptotic lymphocytes PS exposure has been ascribed to an inhibition of the APTL activity in parallel to an activation of the PL scramblase. Both processes rapidly lead to a randomization of the trans-bilayer lipid distribution.^7-9

Annexin V (annV) is a member of a large family of Ca²⁺- and PL-binding proteins.¹⁰  In the presence of physiologic concentrations of Ca²⁺ annV has a high affinity for PS. Fluorescence-labeled annV is widely used to detect early apoptotic cells by flow cytometry.^11,12  However, an externalization of PS is not restricted to apoptotic cells but has also been described for several cell types including platelets,¹³  neutrophils,¹⁴  B cells,¹⁵  erythrocytes,¹⁶  mast cells,¹⁷  and T-cell hybridomas¹⁸  on cellular activation. Stimulation of the particular cell type leads to an elevated cytoplasmic Ca²⁺ level followed by an induction of the PL scramblase and an accelerated PL movement. Williamson et al¹⁸  investigated the PL scramblase activation in murine T-cell hybridoma cells and found that apoptosis and activation, fundamentally different processes, both result in the activation of the same PL scramblase.

Functional implications of activation-induced PS exposure have been described in detail for procoagulant platelets, on which external PS strongly propagates the coagulation cascade.^19,20  Moreover, for mast cells and neutrophils it is hypothesized that PS exposure influences granular exocytosis.^14,17  An involvement of PS has been reported for the formation of myotubes during muscle development²¹  and for the adhesion of erythrocytes to endothelium.^22,23  For other cell types including T cells, the biologic function of activation-induced PS exposure is largely unclear. Recently, Elliott et al²⁴  described a potential role of PS distribution in the modulation of transport proteins, shedding of CD62L, and T-cell migration in nonapoptotic CD4⁺ murine T lymphocytes.

In this report, we investigated the role of activation-induced PS exposure on human antigen (Ag)–specific CD8⁺ T cells recognizing an HLA-A2–binding 10-mer Melan-A peptide. Melan-A is a melanocyte differentiation Ag and frequently overexpressed on melanoma cells.²⁵

We found that PS exposure in Ag-experienced effector CD8⁺ T cells is linked to T-cell activation and may play a more profound role at the immunologic synapse.

T cells were cultured in supplemented RPMI 1640 medium (Gibco, Karlsruhe, Germany) plus 10% human AB serum (PAN Biotech, Aidenbach, Germany). The following recombinant human cytokines were used: 50 U/mL or 200 U/mL interleukin-2 (IL-2; Chiron, Muenchen, Germany) and 2000 U/mL interferon-γ (IFN-γ; PromoCell, Heidelberg, Germany). Preparation of T-cell growth factor (TCGF) was described previously.²⁶  The HLA-A2–binding peptides Melan-A_26-35 (ELAGIGILTV) and gp100_280-288 (YLEPGPVTA) were used (Clinalfa, Laeufelfingen, Switzerland).

Phycoerythrin (PE)–conjugated HLA-A*0201 tetramer folded around Melan-A_26-35 was from Beckman Coulter (Fullerton, CA). The following monoclonal antibodies (mAbs) were used: CD4-APC, CD8-APC, CD69-FITC, CD25-PE, CD45RO-PE, CD95-PE, HLA-DR-FITC (all from BD PharMingen, Heidelberg, Germany), T-cell receptor (TCR) αβ-PE, and CD71-FITC (Immunotech, Krefeld, Germany). For blocking studies a defined supernatant of anti–MHC class I mAb (W6/32) was used. For apoptosis induction, cytotoxic T lymphocytes (CTLs) were treated with anti-fas mAb (CH-11, Biomol, Hamburg, Germany).

Peripheral-blood mononuclear cells (PBMCs) were obtained by leukapheresis of healthy donors, followed by density gradient centrifugation (Biocoll, Biochrom, Berlin, Germany). The study was approved by the University of Regensburg Institutional Review Board. Informed consent was obtained in accordance with the Declaration of Helsinki. Melan-A–specific CTL lines were generated as described previously²⁷  and used for all experiments if not indicated otherwise. Briefly, CD8⁺ T cells were enriched magnetically from PBMCs (Miltenyi Biotec, Bergisch-Gladbach, Germany). Mature monocyte-derived dendritic cells (DCs)²⁷  were pulsed with 30 μg/mL Melan-A_26-35 peptide and 10 μg/mL human β₂-microglobulin for 2 hours at 37°C in serum-free medium. CD8⁺ T cells (6 × 10⁶) were restimulated weekly with 2 × 10⁶ autologous peptide-loaded DCs in 96-well U-bottom plates. Complete medium supplemented with 3% TCGF was replenished twice a week. CTLs were used for experiments 4 to 7 days after last restimulation. The Melan-A–specific CTL clone S2Cl14 was expanded by stimulation with irradiated allogeneic PBMCs and PHA-L (Sigma, Steinheim, Germany) in Iscove medium (Biochrom) supplemented with 50 U/mL IL-2.

The transporter associated with antigen processing (TAP)–deficient T2 cell line²⁸  was cultured in complete medium plus 10% FCS. T2 cells were kept for 6 hours at room temperature (RT) in X-Vivo 15 medium (Cambrex, Verviers, Belgium) and were pulsed overnight with 5 μg/mL Melan-A peptide (if not indicated otherwise) and 10 μg/mL β₂-microglobulin in serum-free medium. After Ag loading, T2 cells were washed 4 times with complete medium to remove redundant free peptide. HLA-A2⁺ melanoma cell lines MeI493 (Melan-A⁺) and Na8 (Melan-A^–)²⁹  were cultured in complete medium plus 10% FCS.

Prior to flow cytometric analysis, cells were stimulated either with cytokines (IL-2, IFN-γ), anti-CD3/CD28–coated DynaBeads (CTL/bead ratio of 1:1; Dynal Biotech, Oslo, Norway), ionomycin, melanoma cells, or Melan-A–pulsed T2 cells. Depending on the respective experiment, cells were stained with Melan-A tetramers (30 minutes at 37°C), then with mAbs, and finally with 5 μL annV-FITC in 150 μL annV-binding buffer (both from BD PharMingen) for 15 minutes at RT in the dark. Propidium iodide (PI; 0.1 μg/150 μL; Calbiochem, Laeufelfingen, Switzerland) was added immediately prior to fluorescence-activated cell scanning (FACS) analysis. Cytokines were quantified using the Th1/Th2 cytokine bead array (BD Biosciences, San Diego, CA) following the manufacturer's instructions. Flow cytometry was performed on a FACSCalibur (BD Biosciences). Data were analyzed with CellQuest (BD Biosciences) or WinMDI software (J. Trotter, Scripps Institute, San Diego, CA). For cell sorting (FACSAria, BD Biosciences) CTLs were stained with anti-CD8 mAb and annV-FITC and resuspended in annV-binding buffer. Gated vital CD8⁺ T cells were sorted for annV^int and annV^high binding. Labeling of CTLs with membrane dye PKH-26 has been described previously.³⁰

The terminal transferase-mediated DNA nick end labeling (TUNEL) assay (BD PharMingen) was performed according to the manufacturer's instructions. Briefly, cells were fixed for 45 minutes with 1% paraformaldehyde (PFA; Sigma), washed twice, and stored overnight in 70% ethanol at –20°C. Fixed cells were incubated for 60 minutes at 37°C with the terminal deoxynucleotidyl-transferase enzyme and FITC-dUTP solution to label 3′ end DNA fragments. Samples were then subjected to flow cytometry.

Palmitoyl-[6-[(7-nitro-2-1,3-benzoxadiazol-4-yl)amino]hexanoyl]-sn-glycero-3-phospho-l-serine (NBD-PS) was from Avanti Polar Lipids (Alabaster, AL). For determination of PS outward transport, 5 × 10⁶ CTLs were labeled with 3 μM NBD-PS for 15 minutes at 37°C. During this period, analogues redistributed to the cytoplasmic membrane leaflet mediated by an inward-directed flippase activity present in the plasma membrane. Hydrolysis of analogues was blocked by addition of 1 mM Pefabloc (Serva, Heidelberg, Germany) to all labeling and washing buffers. After incubation for 15 minutes, NBD-PS remaining on the cell surface was extracted by washing cells 3 times with Hanks buffer containing 10% HSA(Octapharma, Dessau, Germany). Subsequently, CTLs were resuspended in Ca²⁺-containing medium (1% HSA, 1 mM CaCl₂; Sigma), stimulated with 5 μM ionomycin or Melan-A–loaded T2 cells (stained with anti-CD4–APC to allow out-gating of T2 cells) at a CTL/T2 ratio of 3:1. After various time points, aliquots were analyzed flow cytometrically after addition of 10 mM freshly dissolved sodium dithionite to quench NBD fluorescence in the medium. Immediately prior to flow cytometry, 0.1 μg/150 μL PI was added for 1 minute.

For determination of PS inward transport, cells were preincubated in 5 μM ionomycin for 15 minutes or with Melan-A–loaded T2 cells (CTL/T2 ratio of 3:1) or left untreated for 45 minutes at 37°C in serum-free medium containing 1 mM CaCl₂ and subsequently labeled with NBD-PS (5 minutes on ice). An anti-CD8–APC staining was performed to allow gating of T cells. Noninserted analogues were removed by washing with ice-cold Hanks buffer. Inward redistribution of analogues was initiated by incubation at 37°C. Before flow cytometric analysis, HSA (final 2%) and freshly dissolved sodium dithionite (final 10 mM) were added to extract and reduce NBD lipids from the cell surface. The relative amount of NBD-PS present in the HSA/dithionite-treated sample (% nonaccessible) was calculated as a percentage of the total amount present in a control sample not treated with HSA/dithionite. Immediately prior to flow cytometry, 0.1 μg/150 μLPI was added for 1 minute.

CTLs were stimulated with anti-CD3/CD28–coated DynaBeads (Dynal) for 4 hours at a ratio of 1:1. After magnetic depletion of beads, CTLs were stained for lipid rafts with 1 μg/mL cholera toxin B (CTx-B) followed by an incubation with a 1:200 dilution of an anti–CTx-B–AlexaFluor594–conjugated rabbit serum (both from Molecular Probes, Eugene, OR). Exposed PS was detected by staining with 1.3 × 10⁶ cells with 20 μL annV-FITC in annV-binding buffer (both from BD PharMingen) for 30 minutes at RT. Cells were fixed with 2% PFA in annV-binding buffer, applied onto slides coated with poly-l-lysine (Sigma), and mounted (DakoCytomation, Hamburg, Germany). As a control, CTLs were treated with an apoptosis-inducing anti-fas mAb for 24 hours. For visualization of immunologic synapses, Melan-A–specific CTLs were labeled with an anti–MHC-I mAb followed by a goat anti–mouse 9-amino-6-chloro-2-methoxyacridine (AMCA)–conjugated secondary antibody to allow discrimination between T cells and APCs prior to lipid raft staining. CTLs were then cocultured with Melan-A–pulsed T2 cells for 2 hours. Finally, cells were harvested, stained with annV-FITC, transferred onto poly-l-lysin–coated glass slides, and mounted. Images were acquired with an Axioscope2plus fluorescence microscope equipped with an AxioCam-HR CCD camera using a Plan-Neofluar 100 ×/1.3 oil objective (all from Zeiss, Goettingen, Germany).

CTLs were cocultured with peptide-pulsed T2 cells at a ratio of 3:1 in complete medium containing 1.5 mM CaCl₂ and 6.55 mM HEPES (Sigma) in 96-well U-bottom plates. Unconjugated annV (BD PharMingen) was added into the culture at a final concentration of 50 μg/mL to block exposed PS during the assay. Control cocultures were treated with PBS. Transmission light images of cluster formation were taken with an Axiovert25 microscope (Zeiss) after 24 hours.

Melan-A–specific CTL lines recognizing the Melan-A_26-35 peptide were generated by weekly stimulation with autologous Melan-A–pulsed mature DCs. The frequency of Melan-A–specific T cells as determined by Melan-A–MHC tetramer staining was greater than 90% among total CD8⁺ T cells (data not shown).

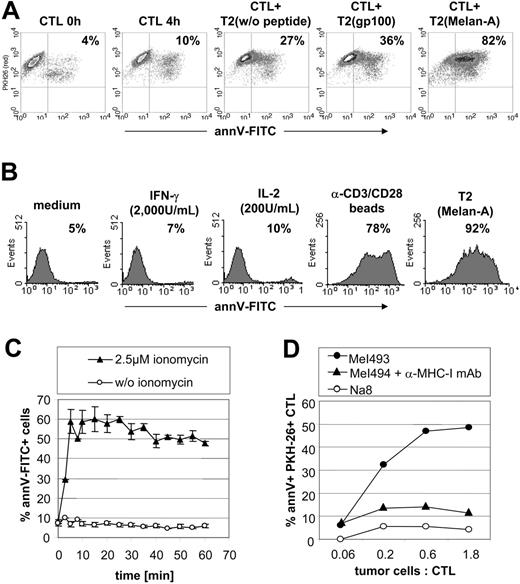

We investigated the phenomenon of PS exposure on Melan-A–specific CTLs after 4 hours of stimulation with Melan-A–loaded T2 cells demonstrating a marked exposure of PS as determined by annV-FITC staining, a highly specific PS-binding protein (Figure 1A). PS exposure was Ag-specific (> 80% annV⁺ T cells) but control peptide (gp100) pulsed and unpulsed T2 cells also induced a background PS exposure on Melan-A–specific CTLs. Furthermore, Melan-A–specific CTLs did not show a significant PS exposure on stimulation with 200 U/mL IL-2 or 2000 U/mL IFN-γ stimulation (Figure 1B). However, stimulation of CTLs with anti-CD3/CD28–coated beads led to the induction of annV⁺ CTLs (Figure 1B). This finding indicates that only TCR/CD3 complex ligation is able to induce PS exposure on Ag-specific CTLs. As expected, ionomycin, an ionophore that increases the intracellular Ca²⁺ concentration, mimicking the result of TCR ligation, also induced PS exposure on Melan-A–specific CTLs (Figure 1C). Furthermore, an HLA-A2⁺, Melan-A⁺ melanoma cell line was used to analyze if endogenously processed and presented Melan-A Ag is also able to induce PS exposure in Ag-specific CTLs. Indeed, after 4 hours of coculture with HLA-A2⁺ Melan-A⁺ melanoma cells (MeI493), CTLs exhibited an annV-FITC⁺ phenotype, whereas no PS exposure could be detected after coincubation with HLA-A2⁺ Melan-A^– tumor cells (Na8; Figure 1D). Pretreatment of MeI493 with a neutralizing anti–MHC-I mAb completely inhibited PS exposure on Melan-A–specific CTLs (Figure 1D).

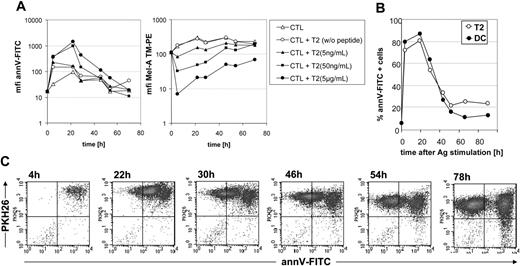

Next, we studied the kinetics and reversibility of PS exposure in parallel to TCR internalization, which is accepted as an indicator for MHC-peptide recognition.³¹  T2 cells were loaded with increasing concentrations of the Melan-A peptide and used as stimulator cells for Melan-A–specific CTLs. We found that high amounts of the peptide (5 μg/mL) provoked a strong PS exposure on CTLs (determined by mean annV-FITC binding) for more than 30 hours, whereas lower amounts of peptide (5 ng/mL) only induced a moderate PS exposure on CTLs (Figure 2A). This phenomenon is also reflected by an increase in the percentage of annV-FITC⁺ cells (data not shown). In parallel, we determined TCR internalization via Melan-A–MHC tetramer binding (Figure 2A) and found that both PS exposure and TCR internalization occur in parallel. To exclude that PS exposure is caused by an artificial overstimulation by peptide-loaded T2 cells, we analyzed the PS exposure on Melan-A–specific CTLs after stimulation with autologous peptide-pulsed DCs. Therefore, mature DCs were loaded with 30 μg/mL Melan-A peptide. In comparison to T2 cells (5 μg/mL), a higher amount of peptide is necessary for loading of DCs to replace endogenously processed peptides bound on MHC complexes. Data demonstrate that Melan-A–pulsed DCs induce PS exposure on CTLs to a similar extent and with similar kinetics as peptide-pulsed T2 cells (Figure 2B). Together these data demonstrate that CTLs pass through an annV⁺ state as a result of Ag recognition.

To follow more precisely the fate of annV⁺ CTLs after Ag-specific stimulation, we labeled Melan-A–specific CTLs with the membrane dye PKH-26 and isolated all annV⁺ PKH-26⁺ CTLs 4 hours after stimulation with Melan-A–loaded T2 cells by cell sorting. We could demonstrate that the annV⁺ T-cell population is heterogenous; whereas the annV^high T-cell population retained the annV^high phenotype, the annV^int T-cell population revealed a constant decrease of annV binding and became annV^neg at 54 to 72 hours after stimulation (Figure 2C).

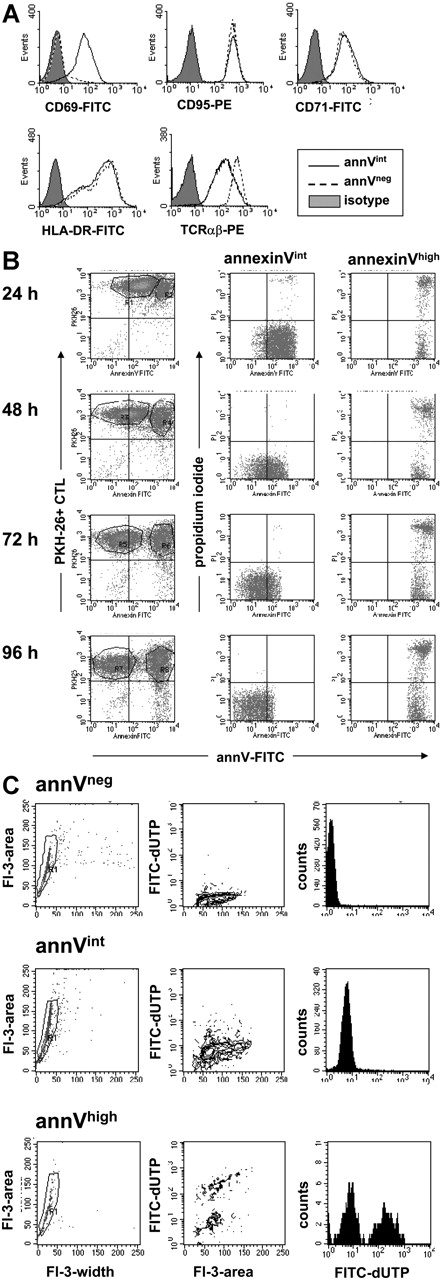

We hypothesized that the annV^high CTL population consists mainly of apoptotic cells, whereas the annV^int CTL population is composed of vital T cells that transiently expose PS on activation. To prove this hypothesis, we characterized annV^int CTLs in more detail. Phenotypic analysis of annV^int cells in Melan-A–specific CTLs was performed at 4 hours after Ag-specific stimulation. Cells were gated on annV^int CTLs and analyzed for expression of CD69, CD71, CD95, HLA-DR, and TCRαβ (Figure 3A). We found that annV^int CTLs exhibit a phenotype that is typical for early T-cell activation: an up-regulation of the early activation marker CD69 and a down-regulation of the TCRαβ chain due to TCR internalization. Moreover, annV^int CTLs expressed other markers of an activated, mature phenotype: CD71, CD95, HLA-DR. Note that most of these Ags are constitutively expressed on unstimulated annV^neg Melan-A–specific CTLs due to weekly in vitro restimulation in the course of T-cell expansion (Figure 3A dashed line).

To further prove the hypothesis that annV^int CTLs are nonapoptotic T cells, we determined the percentage of late apoptotic/necrotic cells in both, annV^int and annV^high T cells via PI staining. To avoid contamination with Melan-A nonresponsive T cells, we used the Melan-A–specific CTL clone (S2Cl14) for these experiments. The CTL clone was labeled with the membrane dye PKH-26, stimulated with Melan-A–loaded T2 cells, and analyzed for up to 96 hours after stimulation. PI⁺ dead cells could only be detected in the annV^high T-cell population, whereas annV^int cells were completely negative (Figure 3B). We cannot exclude that a certain percentage of stimulated CTLs die from activation-induced cell death and are found at later time points in the annV^high subpopulation, but cells with a stable annV^int phenotype apparently are vital.

In addition, we sorted annV^high and annV^int CTLs stimulated overnight with Melan-A–pulsed T2 cells and performed a TUNEL assay to detect DNA rupture in both cell populations. In line with PI staining we could demonstrate that FITC-dUTP⁺ cells in a late stage of apoptosis are found only in the annV^high CTL subpopulation (Figure 3C). AnnV^neg CTLs from an unstimulated sample served as a negative control. These T cells exhibited a typical slightly decreased background FITC-dUTP fluorescence intensity (Figure 3C). To confirm these data we determined the presence of active caspase-3 in annV^high and annV^int CTLs and found, in line with previous findings, that active caspase-3 could only be detected in annV^high but not in annV^int T cells (data not shown).

Next, we analyzed the spatial distribution of exposed PS on Ag-specific T cells after stimulation and performed fluorescence microscopy to clarify if exposed PS is distributed homogenously over the cell membrane or is located in distinct membrane regions. Melan-A–specific CTLs were stimulated for 4 hours with anti-CD3/CD28–coated beads followed by annV-FITC staining. In all samples we found a certain percentage of annV^high CTLs probably deriving from activation-induced cell death. However, annV^int CTLs with a patchy PS distribution could only be observed in anti-CD3/CD28–stimulated T cells (Figure 4A middle). This population was completely absent in the samples treated with anti-fas mAb containing predominantly annV^high apoptotic/dead CTLs with a strong PS exposure (Figure 4A right). As a negative control, unstimulated CTLs were stained with annV-FITC (Figure 4A left). We next addressed the question whether PS exposure is colocalized with membrane lipid raft regions, special microdomains of the cell membrane rich in cholesterol and signal-transducing molecules. We visualized the cell-surface distribution of these lipid rafts via CTx-B, a protein that binds to ganglioside GM-1 and is thus enriched in lipid rafts. Hence, CTLs were stimulated for 4 hours with anti-CD3/CD28–coated beads and consecutively stained with CTx-B, anti–CTx-B–Alexa594 rabbit serum, and finally with annV-FITC. Overlays of green and red fluorescence revealed a colocalization of PS exposure and lipid raft regions (Figure 4B yellow color). These data suggest that PS exposure occurs predominantly in membrane patches that are involved in signal transduction, indicating a profound relevance of exposed PS for T-cell function. To further visualize the PS exposure at the immunologic synapse Melan-A–specific CTLs were labeled with an anti–MHC-I mAb to allow discrimination between T cells and T2 cells (blue fluorescence in Figure 4C). After an additional lipid raft staining with Alexa594-conjugated CTx-B (red fluorescence), CTLs were cocultured for 2 hours with Melan-A–pulsed T2 cells. Subsequent annV-FITC staining (green fluorescence) revealed that PS externalization predominantly occurs at the contact side between CTLs and T2 cells. PS as well as raft domains are concentrated at the immunologic synapse (Figure 4C yellow color). Of note, Ag-loaded T2 cells are also annV⁺ most probably due to the cytotoxic attack by Ag-specific CTLs.^30,32

It has been reported that PL transport proteins regulate distribution of PS between the inner and the outer leaflet of the plasma membrane. To answer the question whether an increased outward or a decreased inward transfer of PS is responsible for the accumulation of PS molecules on the cell surface, we used fluorescent NBD-PS to follow its transport.

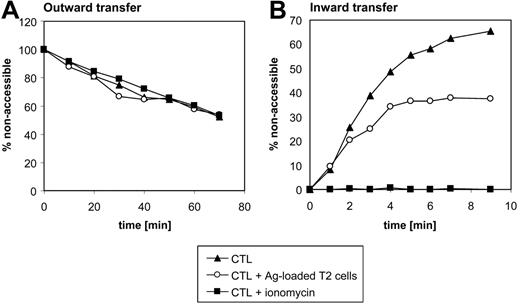

To study outward transport, Melan-A–specific CTL lines (> 90% Melan-A tetramer positive) were intracellularly labeled with NBD-PS and its transport back to the exoplasmic leaflet at 37°C was followed by continuous incubation in HSA-containing medium. HSA acts as an extracellular sink for short-chain lipids by rapidly extracting NBD-lipid analogues, thereby excluding analogues from inward transport via the APTL. The kinetics of outward redistribution (Figure 5A) revealed that about 50% of analogues originally located intracellularly became accessible to HSA within 70 minutes. However, stimulation with T2 cells or ionomycin (Figure 5A) in the presence of Ca²⁺ ions did not accelerate PS exposure, ruling out that an increased outward transfer by a Ca²⁺-dependent scramblase is the main reason for PS exposure in Ag-stimulated CTLs.

Next, we investigated the inward NBD-PS transport. After a preincubation with T2 cells or ionomycin, NBD-PS was introduced into the outer membrane leaflet and the amount of inward transported NBD-PS, which is protected from HSA extraction and dithionite-mediated quenching, was determined flow cytometrically at various times of incubation at 37°C. CTLs stimulated with ionomycin in the presence of Ca²⁺ exhibited an abrogated PS inward transfer (Figure 5B). Stimulation of Ag-specific CTLs with Ag-loaded T2 cells induced a 50% inhibition of the flippase activity (Figure 5B). These findings clearly indicate that Ag stimulation affects CTLs in their ability to restrict PS molecules to the inner membrane leaflet by inhibition of the flippase activity.

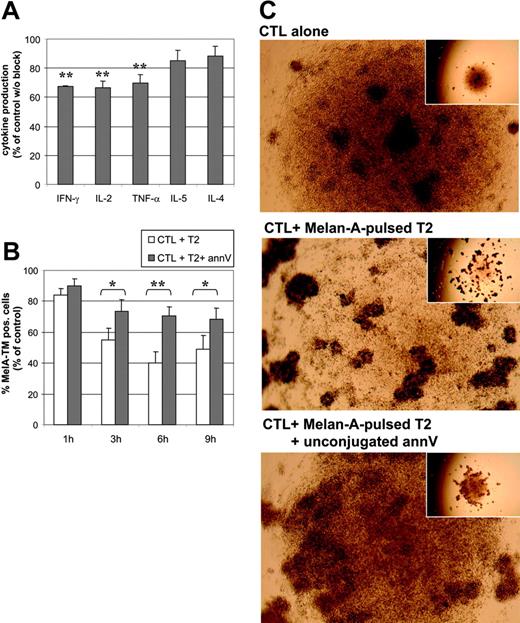

Next, we attempted to elucidate the biologic relevance of PS exposure and to define functional consequences of PS exposure in Ag-specific CTLs. Melan-A–pulsed T2 cells were used as stimulators for Melan-A–specific CTLs in the presence or absence of 50 μg/mL unconjugated blocking annV. Because unconjugated annV is present during the whole coincubation period, PS molecules arising straight after Ag recognition on the cell surface were blocked. We found that the blockade of exposed PS resulted in a significant reduction of secreted Th1 cytokines (IFN-γ, IL-2, TNF-α; Figure 6A), whereas secretion of IL-5 and IL-4 was only marginally inhibited (Figure 6A). Moreover, blocking of exposed PS on CTLs during Ag recognition led to a diminished TCR internalization. (Figure 6B). In contrast, the activation-induced up-regulation of CD69 expression is not influenced by the blockage (data not shown).

Of interest, we found noticeable differences in the formation of cell clusters between annV-treated and untreated cocultures after 24 hours of incubation (Figure 6C). Although widespread light impermeable clusters could be observed in cocultures of CTLs with Melan-A–pulsed T2 cells, the cluster formation was inhibited in annV-treated cocultures. These data indicate that PS may significantly modulate the intercellular contact formation between T cells and APCs.

Here we show that human CD8⁺ Ag-specific CTLs transiently expose PS on the cell membrane after cognate Ag recognition. The exposure of PS on T cells, a PL being restricted to the inner membrane leaflet under vital conditions, is Ag-dependent. Of note, Ag-independent APC contact leads to a background PS exposure on Ag-specific CTLs. We ascribe this finding to the phenomenon of Ag-independent synapse formation and intracellular Ca²⁺ responses.^33-35

It is a well-known phenomenon that mature T cells can undergo apoptosis by activation-induced cell death. Besides death receptor-dependent cell death (eg, TNFR/fas), the TCR/MHC interaction can trigger diverse apoptotic programs and plays a crucial role in the control of immune homeostasis.^36-38  We demonstrate here that activated human CTLs with an annV^int phenotype are nonapoptotic. Using 3 independent assays for apoptosis we found that annV^int T cells are PI^–, do not exhibit DNA strand breaks, and contain no active caspase-3 (data not shown). In contrast, annV^int CTLs revealed a strongly activated phenotype indicated by an up-regulation of CD69 expression and down-regulation of the TCRαβ chain expression.

Moreover, we found that activation-induced PS exposure as well as the recovery from PS exposure in annV^int CTLs strongly depend on the amount of presented Ag. Whereas high amounts of Ag led to extensive PS exposure with a prolonged recovery period (3-4 days), low amounts of Ag induced a reduced PS exposure with fast recovery in the range of 1 to 2 days. Comparison of PS exposure and TCR internalization determined by Melan-A–MHC tetramer staining revealed similar kinetics. However, it seems as if PS exposure on Ag-specific CTLs reflects more sensitively the activation state of CTL than TCR down-regulation (Figure 2A).

To confirm that PS exposure is a characteristic feature of CTL activation and not the result of overstimulation by peptide-pulsed APCs, we used Melan-A–expressing tumor cell lines as stimulator cells and found that also endogenously processed and presented Melan-A peptide induces PS exposure on Melan-A–specific CTLs. Together with our data from CD4⁺ T-cell lines, which also expose PS on Ag recognition (data not shown), we demonstrate for the first time that PS exposure on Ag-specific CTLs is linked to T-cell activation and not an exclusive marker for early apoptosis.

Activation-induced PS exposure has been described for different immune cells such as stimulated platelets,¹³  B cells after anti-IgM cross-linking,¹⁵  fMLP-stimulated neutrophils,¹⁴  erythrocytes,¹⁶  mast cells during IgE signaling,¹⁷  and murine T-cell hybridoma cells and Jurkat T cells after ionophore treatment.¹⁸  Adequate stimulation of the particular cell type leads to an elevated cytoplasmic Ca²⁺ level followed by an rapid trans-bilayer redistribution of PL. By using a fluorescent lipid analogue, we determined a constitutive outward transfer of PS molecules in Melan-A–specific CTLs, reflecting the effector-memory phenotype of CTLs that had been restimulated on a weekly basis. Due to slow spontaneous transmembrane diffusion of PL in biologic membranes,¹  we suggest that outward transport proteins in effector-memory CTLs are already active. The constitutive PS outward transport is not further enhanced after ionomycin treatment or Ag stimulation, indicating that in CTL the scramblase activity is not further inducible or another type of floppase activity might be present. In sharp contrast, the inward transporting flippase is strongly inhibited in stimulated CTLs. We postulate that both inward and outward PS transfer processes contribute to activation-induced PS exposure. The constitutive outward PS transfer in CTLs is normally antagonized by efficient inward-directed flippases. During TCR ligation and the concurrent rise of the intracellular Ca²⁺ level,³⁹  inward-directed flippases become heavily suppressed, a process that results in an accumulation of PS molecules on the cell surface. For apoptotic cells, it has been reported that an increased outward PS transfer occurs in parallel to a decreased inward PS transfer, which are both responsible for the strong PS exposure during cell death.^7-9  We assume that one reason for the moderate PS exposure in annV^int CTLs is the lack of an additional increase of the outward PS transfer compared to apoptotic cells.

One interesting point that needs to be considered is the question whether activated annV^int CTLs can be recognized by phagocytes via their PS receptors. It is a widely accepted phenomenon that macrophages engulf annV⁺ apoptotic immune cells well before the final stages of apoptosis via PS receptors.^40-42  So far, such a new mechanism of down-regulating adaptive immune responses by cells of the innate immune system cannot be excluded. Nevertheless, suggestions from the literature indicate that a threshold for PS recognition as an engulfment signal does exist. In this case the amount of exposed PS on annV^int T cells may be too low for clustering PS receptors on phagocytes.^43,44

Signaling by the TCR is orchestrated at specific plasma-membrane microdomains, referred to as lipid rafts, which contain a multitude of signaling molecules such as Src, Lck, and LAT.⁴⁵  Most notably, fluorescence microscopic analyses of anti-CD3/28-stimulated CTLs revealed a patchy membrane distribution of exposed PS colocalizing with the lipid raft marker CTx-B. A predominant occurrence of PS molecules in lipid rafts has been reported elsewhere.^15,46  These data indicate the spatial proximity of exposed PS to signaling molecules. Indeed, analysis of the immunologic synapses between CTLs and APCs revealed an accumulation of externalized PS on CTLs at the APC contact side. These findings raise the question whether exposed PS may contribute significantly to events at the immunologic synapse, for example, by influencing membrane fluidity or cell-to-cell adhesion. The observation that cluster formation is diminished during PS blockade supports the assumption that exposed PS may be involved in T cell-APC interactions. Accordingly, Elliot et al defined a role of exposed PS in adhesion and migration processes in murine CD4⁺ T cells.²⁴

Moreover, blocking of exposed PS during Ag recognition resulted in a significant inhibition of IFN-γ, IL-2, and TNF-α secretion as well as TCR internalization. Of note, because unconjugated annV binds not only to exposed PS on CTLs but also to PS on Ag-loaded T2 cells after cytotoxic attack by the T cells, we cannot exclude that PS molecules on APCs are also involved in T-cell activation and cell clustering. Nevertheless, these data suggest that exposed PS is somehow necessary for a profound CTL activation. One possible explanation is the existence of APC-resident PS-binding receptors that sustain T-cell activation. The question whether PS exposure influences signal transduction in human Ag-specific CTLs, as suggested for murine CD4⁺ T cells, remains to be elucidated.²⁴

Together, these data suggest that PS may play a crucial role in T-cell immunology. Basic knowledge about the impact of PLs on adaptive immune responses will open new routes for membrane-targeted therapies that aim at the down-regulation of T-cell responses.

Contribution: K.F., S.V., T.P., and A.M. contributed to the study concept and design; K.F., S.V., and J.B. did research and analyzed data; R.A. provided administrative and material support; and all authors participated in the analysis and interpretation of data and the drafting and critical revision of the manuscript.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

This work was supported in part by the Deutsche Forschungsgemeinschaft (MA 1351/5-1) and the German José Carreras Leukemia Foundation.

We gratefully thank Dr Petra Hoffmann and Dr Krishna Mondal for critically reading the manuscript.
