Expression of the outcome predictor in acute leukemia 1 (OPAL1) gene is not an independent prognostic factor in patients treated according to COALL or St Jude protocols

The prognosis of childhood acute lymphoblastic leukemia (ALL) has improved remarkably in the past 4 decades due to the introduction of effective risk-adapted combination chemotherapies. Conventional factors used to stratify patients are clinical and biologic parameters such as age at diagnosis, initial white blood cell (WBC) count, immunophenotype, the presence of specific genetic abnormalities,¹  and early response to treatment.²  Newer approaches include in vitro drug resistance profiles³  and measurement of minimal residual disease after induction of initial remission.^4,5

The use of DNA microarrays enables investigators to simultaneously assess the expression of thousands of genes. In previous studies of childhood ALL, microarray analysis was successfully applied to identify known genetic and phenotypic subtypes^6-8  as well as treatment-specific changes in gene expression⁹  and genes related to drug resistance.¹⁰  Recently, this technology was used to identify 3 novel genes, referred to as G0, G1, and G2, that were highly predictive of outcome in 254 patients with childhood ALL enrolled in Pediatric Oncology Group (POG) treatment protocols.^11-13  The top discriminating gene, G0, was fully cloned and named OPAL1 (outcome predictor in acute leukemia 1). The function of OPAL1 is unknown, although the presence of a cytochrome c–like heme-binding site and a transmembrane domain suggested OPAL1 may be involved in the mitochondrial electron transport chain.¹⁴  We initially identified this gene as one of the top-ranked class discriminating genes that was overexpressed in ALL cells positive for the TEL-AML1 gene fusion.^7,8  In the POG study, OPAL1 was expressed at higher levels in ALL subgroups with a favorable prognosis (ie, ALL with t(12;21)/TEL-AML1, normal and hyperdiploid karyotypes) compared with a subgroup with an unfavorable prognosis (ie, ALL with t(9;22)/BCR-ABL) and another subgroup previously associated with an unfavorable prognosis in (ie, ALL with t(1;19)/E2A-PBX1).¹²  High OPAL1 expression was shown to be highly predictive of a favorable outcome in the total ALL group, but also in ALL subgroups, such as T-lineage ALL and t(12;21)/TEL-AML1–positive B-lineage ALL. Finally, low OPAL1 was significantly related to induction failures.¹²

To validate these interesting results independently, we analyzed in depth the expression pattern of OPAL1 in 2 independent cohorts of children with newly diagnosed ALL treated on protocols of the Cooperative Study Group for Childhood Acute Lymphoblastic Leukemia (COALL; n = 180) and the St Jude Children's Research Hospital (St Jude; n = 257). OPAL1 expression was investigated in relation to in vitro resistance to 4 widely used drugs in the treatment of childhood ALL (ie, prednisolone, vincristine, l-asparaginase, and daunorubicin). In addition, OPAL1 expression was tested as a predictor of clinical outcome in childhood ALL, where ALL subtypes as well as other known prognostic factors were included in a multivariate analysis.

Bone marrow and peripheral blood samples were obtained after informed consent from children with newly diagnosed ALL who were enrolled on either the COALL-92/97 protocol (n = 180)^10,15,16  or the St Jude Total Therapy 13 protocol (n = 257).^7,8,17,18  These 2 independent trials used similar chemotherapeutic agents. Approval was obtained from the Erasmus MC/Sophia Children's Hospital or St Jude Children's Research Hospital institutional review boards for these studies. If necessary, peripheral blood or diagnostic bone marrow samples were enriched for leukemic blasts to be 90% or more as previously described.^10,19

In COALL patients, responsiveness of leukemia cells to prednisolone (PRED; Bufa Pharmaceutical Products, Uitgeest, The Netherlands), vincristine (VCR; TEVA Pharma, Mijdrecht, The Netherlands), l-asparaginase (ASP; Paronal, Christiaens, Breda, The Netherlands), and daunorubicin (DNR; Cerubidine, Rhône-Poulenc Rorer, Amstelveen, The Netherlands) was determined by the 4-day in vitro MTT drug resistance assay.³  The concentration ranges tested for these drugs were: PRED, 0.008 to 250 μg/mL (n = 167); VCR, 0.05 to 50 μg/mL (n = 166); ASP, 0.003 to 10 IU/mL (n = 166); and DNR, 0.002 to 2.0 μg/mL (n = 140). The drug concentration lethal to 50% of the ALL cells (LC₅₀ value) was used as the measure of cellular drug resistance.^3,20

The mRNA expression levels of OPAL1 and glyceraldehyde-3-phosphate dehydrogenase (GAPDH) as a reference were determined using quantitative real-time polymerase chain reaction (RTQ-PCR) analysis on the ABI Prism 7700 sequence detection system (Applied Biosystems, Foster City, CA) as previously described.^21-24  All PCR reactions were performed with an amplification efficiency of more than 95%. OLIGO 6.22 software (Molecular Biology Insights, Cascade, CO) was used to design primer and probe combinations within OPAL1 (NM_017787) and GAPDH (NM_2046). Primer sequences used were 5′-TCCTTTTGGGTCTTAGACAG-3′ (sense) and 5′-TTGGCAAAAACCTGAAAT-3′ (antisense) for OPAL1 and 5′-GTCGGAGTCAACGGATT-3′ (sense) and 5′-AAGCTTCCCGTTCTCAG-3′ (antisense) for GAPDH. Probe sequences used were 5′-ACAGTCTCAGTGCTGCAACTACTACTATGA-3′ for OPAL1 and 5′-TCAACTACATGGTTTACATGT TCCAA-3′ for GAPDH. For each sample, the comparative cycle time (C_t) value of the OPAL1 PCR was normalized by subtracting the C_t value of the GAPDH PCR (ΔC_t).²¹  From this ΔC_t value the relative OPAL1 expression to GAPDH in arbitrary units (AU) was calculated using the following formula: relative mRNA expression = 2^–ΔCt × 100%. We observed a significant correlation between OPAL1 mRNA expression assessed by RT-PCR and microarray (r_s = 0.35, P = .003, n = 72).

Total RNA was hybridized to U133A (COALL) and U95Av2 (St Jude) GeneChip oligonucleotide microarrays, according to the manufacturer's protocol (Affymetrix, Santa Clara, CA). Data analysis was performed as described before and gene expression data of the leukemic samples included in this present study were previously published.^8,10  Briefly, gene expression values were scaled to the target intensity of 2500, using Affymetrix Microarray Suite (MAS) 5.0 software, and were log₂ transformed. To analyze the expression of OPAL1, we used the U133A probe set 202808_at (COALL), which covers the same DNA sequence (99.8% sequence identity) as the Affymetrix U95Av2 GeneChip probe set 38652_at (St Jude); the latter was also used by Mosquera-Caro et al. and Yeoh et al.^8,12  More information on these probe sets and its target sequences is available at Affymetrix NetAffx Analysis Center (http://www.affymetrix.com/analysis/index.affx). OPAL1 expression determined with both the U133A and U95Av2 arrays was highly correlated and available for a subset of St Jude patients (r_s = 0.58, P < .001, n = 92).

The duration of disease-free survival (DFS) was defined as the time from diagnosis until the date of leukemia relapse (event), the last follow-up, or secondary events other than relapse (censored). DFS curves were calculated according to the Kaplan-Meier method or a modification thereof in the presence of competing events.^25,26  Because no cut-off for OPAL1 expression was provided by Mosquera-Caro et al,¹²  we performed survival analyses in 2 different ways: OPAL1 expression was treated either as a continuous variable or as a categorical variable (OPAL1 expression was divided into 3 equal-sized groups by the 33rd and 67th percentile of expression; that is, low [bottom third], intermediate [intermediate third], and high [top third]). The predictive value of OPAL1 expression in 3 groups (2 degrees of freedom [df]) and of OPAL1 expression as a continuous variable was analyzed by log-rank test and by a Cox proportional hazard regression model (adjusted for competing events in all analyses of the St Jude cohort).^27,28  The association of OPAL1 expression with DFS considering other known prognostic factors was assessed in univariate and in multivariate analyses. The model for multivariate analysis included conventional risk factors (ie, WBC count, age, immunophenotype, and genetic abnormalities). Differences in OPAL1 expression between ALL subgroups were tested using the Mann-Whitney U test. The Spearman correlation test was used to compare the expression of OPAL1 by microarray with the expression data obtained by RTQ-PCR and to relate OPAL1 expression to in vitro drug resistance. All statistical tests were performed at a 2-tailed significance level of .05. When applicable, Bonferroni correction was applied to correct for multiple comparisons.

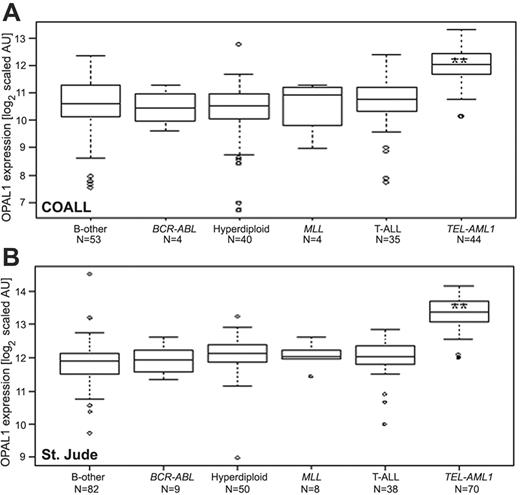

The association of OPAL1 expression with prognostic features in ALL was tested in 2 cohorts of children with ALL. High OPAL1 expression was consistently observed in TEL-AML1–positive ALL in both patient cohorts (Figure 1, Table 1; 2.8-fold, P < .001). There was no further evidence of a significant relation between OPAL1 expression and any other prognostic features in COALL patients, whereas low OPAL1 expression was related to ages older than 10 years, and high OPAL1 expression was related to a hyperdiploid karyotype among St Jude patients (Table 1). The frequency distribution of these risk categories between the 2 cohorts was comparable, except for WBC count, where we observed a trend toward higher counts in the COALL cohort (P = .004; 2-sample Kolmogorov-Smirnov test). The likely reason for these differences between the St Jude and COALL patients is that patients with higher WBC counts were more likely to have enough cells for in vitro drug resistance testing.

Because drug resistance is a major cause of treatment failure, we investigated in the COALL cohort whether OPAL1 expression was related to in vitro drug resistance for any of 4 drugs that form an integral component of contemporary chemotherapeutic protocols for children with ALL. No correlation was observed between in vitro drug resistance and OPAL1 expression for PRED (r_s < 0.001, P = .99), ASP (r_s =–0.02, P = .81), and DNR (r_s = 0.05, P = .54). By contrast, VCR resistance showed a significant positive correlation with OPAL1 expression (r_s = 0.34, P < .001), which is opposite of what would be expected if high OPAL1 expression is related to a good prognosis, as previously reported.¹²  Nevertheless, this observation is concordant with a 3.6-fold increased VCR resistance among TEL-AML1–positive ALL compared with non–TEL-AML1 B-lineage ALL (P < .001; median LC₅₀ = 0.697 μg/mL and 0.193 μg/mL, respectively).

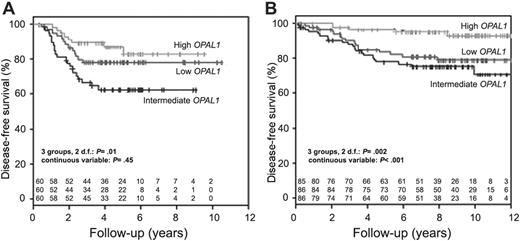

The relation between OPAL1 expression and treatment outcome was subsequently investigated in both cohorts. Of the 180 patients who were part of the COALL cohort, 42 had disease-related events and 6 had competing events (2 secondary malignancies and 4 deaths in remission). Of the 257 patients included in the St Jude study Total Therapy 13, 42 had disease-related events and 20 had competing events (16 secondary malignancies and 4 deaths in remission).^18,28  In the COALL cohort, OPAL1 expression was significantly associated with DFS when the patient population was divided into 3 equally sized groups based on the individual rank in OPAL1 expression (2 df, P = .01; Figure 2A) but not when OPAL1 expression was treated as a continuous variable (P = .45), or when the top 33% of patients with high expression were compared with the bottom 33% of patients with low expression (P = .28; Table 2). In contrast, as reported in a preliminary analysis of the St Jude cohort by others,^11-13 OPAL1 expression was significantly associated with DFS among the St Jude cohort, whether patients were divided into 3 equally sized groups (2 df, P = .002; Figure 2B), OPAL1 expression was treated as a continuous variable (P < .001), or the top third of patients with high expression were compared with the bottom third with low expression (P = .01; Table 2).

The clinical value of OPAL1 expression was further studied within major prognostically important ALL subtypes (Table 2). In both cohorts the opposite (although not statistically significant in St Jude patients) correlation was observed in T-ALL (ie, a low OPAL1 expression correlated with a favorable DFS) (Table 2). This result differs from our results for the total group of ALL patients (Figure 2; Table 2) as well as those obtained for the initial POG cohort,^11-13  where high OPAL1 expression was found to be a favorable outcome predictor in patients with T-ALL.

Among patients with B-lineage ALL, higher expression of OPAL1 was only significantly related to a favorable prognosis in the St Jude cohort, both as a continuous variable (P < .001) and when expression was applied as a categorical variable for the top third (P = .02; Table 2).

Among patients with TEL-AML1–positive B-lineage ALL treated on the COALL protocols, OPAL1 expression was not significantly associated with DFS (Table 2; P = .61, P > .89). When all patients with TEL-AML1–positive patients treated on the St Jude protocols (Total Therapy 13A and 13B) were analyzed, the association between high OPAL1 expression and higher DFS was only significant when the expression was analyzed as a continuous variable (P < .001). Interestingly, OPAL1 expression treated as a continuous variable had no prognostic significance among the 36 TEL-AML1–positive patients treated in study 13A (P = .32), but was significant among the 34 TEL-AML1–positive patients treated in study 13B (P < .001). Notably, because of different criteria for assigning patients to the low-risk versus high-risk treatment in protocols Total 13A versus Total 13B, 35 of 36 (97%) patients with TEL-AML1–positive ALL enrolled in the Total 13A, compared with only 10 of 34 (29%) patients in Total 13B, were treated according to the high-risk arm of the respective protocols, suggesting that the prognostic impact of OPAL1 expression may be treatment dependent. When the outcome analyses were limited to the St Jude high-risk protocols, OPAL1 expression was not significantly related to DFS (P > .05). In contrast, among patients treated on the Total 13B low-risk protocol (n = 70), OPAL1 expression was significantly related to DFS in the univariate analysis (P = .021, hazard ratio [HR] = 0.54), and when other prognostic factors were considered, (ie, age, WBC count, hyperdiploid karyotype, and TEL-AML1 gene fusion; P = .017, HR = 0.28). No association of OPAL1 expression and DFS was detected within patients treated according to the COALL high-risk and low-risk protocols. It should be noted that TEL-AML1 status was not a criteria for treatment stratification in COALL protocols.

Most importantly, when known risk factors (ie, age, WBC count, immunophenotype, and genetic subtypes) were included in a multiple regression model, OPAL1 expression was no longer predictive of prognosis in ALL in the COALL or in the St Jude study groups (P > .25, continuous variable; Table 3; P > .10, categorical variable; data not shown).

Recently, we identified expression signatures associated with cellular drug resistance and outcome in ALL.¹⁰  In our prior study, OPAL1 was not among the top 124 most discriminating genes for cellular drug resistance that were also associated with treatment outcome. This, per se, does not exclude a predictive role for OPAL1 in childhood ALL, as this gene may be significant at a lower level than the cut-off P values used for the construction of our resistance signature models, or may be directly related to treatment outcome, as the selection of genes in our earlier study was focused on in vitro drug resistance profiles and not directly on outcome. Therefore, we analyzed the expression patterns of OPAL1 in leukemic cells at initial diagnosis of ALL of 2 independent groups of 180 COALL and 257 St Jude patients, and assessed the relation between the expression of this gene to age, WBC count, sex, immunophenotype, genetic subtype, in vitro drug resistance, and clinical outcome. The COALL and St Jude protocols represent 2 independent protocols that use similar chemotherapeutic agents.

We observed a 2.8-fold higher OPAL1 expression in children with TEL-AML1–positive B-lineage ALL in both patient cohorts. This is consistent with the higher OPAL1 expression levels observed in TEL-AML1–positive cases as initially reported by our group⁸  and by Mosquera-Caro et al.¹² OPAL1 expression was elevated in hyperdiploid B-lineage ALL samples in the St Jude, but not the COALL cohort. This is in disagreement with the previous POG report, which describes a consistently higher expression of OPAL1 in hyperdiploid ALL.¹²  In the St Jude patient group, higher levels of OPAL1 expression were found in hyperdiploid ALL, and lower levels of OPAL1 expression were found in patients older than 10 years. With the exception of TEL-AML1–positive ALL, OPAL1 expression was not associated with any other prognostic factor in COALL patients. However, interpretation of associations in some subgroups may be difficult due to limited sample size. Taken together, with the exception of TEL-AML1–positive ALL these data suggest that, in contrast to the observation made by Mosquera-Caro et al,¹²  high OPAL1 expression was not consistently related to ALL subgroups with a favorable prognosis in these 2 cohorts.

In vitro sensitivity to several drugs is related to favorable outcome.^3,20,29,30  Based on the previously observed relation between high OPAL1 expression and favorable prognosis,^12,13  we tested the relation between high OPAL1 expression and in vitro drug sensitivity. However, in the present study we observed no relation between a high OPAL1 expression and sensitivity to PRED, ASP, and DNR, and only a weak positive correlation with VCR resistance, which is in the opposite direction of what would be expected if high OPAL1 expression is related to a good prognosis. This indicates that OPAL1 may not be a major determinant of cellular drug sensitivity.

We found no evidence of an association between low OPAL1 expression and worse outcome in T-lineage and TEL-AML1–negative B-lineage ALL patients treated according COALL and St Jude protocols. In fact, in our univariate analysis of patients with T-lineage ALL, a worse outcome was consistently associated with high OPAL1 expression. This contradicts the results reported by Mosquera-Caro et al.¹²  The significant association between high OPAL1 expression and favorable DFS in TEL-AML1–positive ALL patients treated at St Jude may depend on the risk-group stratification applied to these patients. OPAL1 expression was only significant within TEL-AML1–positive ALL patients treated on the Total 13B protocol, where most patients (24 of 34) were stratified in the low-risk treatment arm. In contrast, OPAL1 expression had no predictive value in Total 13A–treated patients, where most (35 of 36) TEL-AML1–positive patients were treated according to a high-risk protocol.

These data indicate that OPAL1 expression may be prognostic in patients with TEL-AML1–positive ALL treated with reduced-intensity chemotherapy. The same remission induction and reinduction treatment was used in all St Jude protocols, but the main difference was the reduced number of antileukemic agents (4 versus 7 [for protocol 13B; 8 for protocol 13A]) used in the continuation phase of the low-risk protocol (ie, mercaptopurine, methotrexate, PRED, VCR) compared with the high-risk protocol (ie, mercaptopurine, methotrexate, dexamethasone [or PRED], VCR, etoposide, cyclophosphamide, cytarabine [and for protocol 13A, ASP]).

No association of DFS and OPAL1 expression in patients treated on either low- or high-risk protocols was found for the COALL group. Overall, both COALL protocols use the same medications for the treatment of low- and high-risk patients, but treatment for low-risk patients was reduced by 1 or 2 doses per drug. Furthermore, in comparison with the 13B low-risk regimen, all COALL patients had an additional intensification phase (6 to 7 antileukemic agents for 4 to 8 weeks). This again points to a relation of OPAL1 expression and DFS only if patients are treated with lower-intensity chemotherapy, (ie, fewer antileukemic agents), such as the low-risk arm of St Jude protocol 13B. Importantly, in both COALL and St Jude cohorts, the relationship of OPAL1 expression with DFS was not independent of known risk factors (ie, age, WBC count, and ALL subtype) in a multivariate analysis. In addition, increased OPAL1 expression was not independently associated with in vitro drug sensitivity of COALL-treated children with ALL (MTT data were not available for St Jude patients).

In conclusion, previously reported prognostic properties of OPAL1 expression in childhood ALL may be related to the relatively modest intensity of treatment given to the patients in whom this observation was previously made and may not be significant when other known risk factors are included or when more intensive chemotherapy is given. The present data thus indicate that OPAL1 expression is not universally predictive of treatment outcome in childhood ALL, particularly in the context of contemporary treatment protocols.

Members of the COALL Study Group: Prof Dr J. Otte, Dr N. Jorch, Krankenanstalten Gilead Kinderklinik, Bielefeld; Dr H. J. Spaar, Dr T. Lieber, Zentralkrankenhaus St-Jürgen-Strasse, Prof Hess Kinderklinik, Bremen; Prof Dr U. Göbel, Dr G. Janßen, Universitätsklinikum Klinik für Kinder-Onkologie, -Hämatologie, und -Immunologie, Düsseldorf; Prof Dr J. F. Beck, Dr S. Weigel, Universitätsklinikum Zentrum für Kinder- und Jugendmedizin Abteilung Pädiatrische Onkologie und Hämatologie, Greifswald; Dr Streitberger, Kreiskrankenhaus Kinderabteilung, Heide; Dr W. Nürnberger, Klinik für KMT und Hämatologie/Onkologie, Pädiatrische Hämatologie/Onkologie, Idar-Oberstein; Dr C. von Klinggräff, Dr K. Westerbeck, Städtisches Krankenhaus Klinik für Kinder- und Jugendmedizin, Kiel; Dr P. Thomas, Dr S. Völpel, Städtisches Krankenhaus Zentrum für Kinder- und Jugendmedizin, Krefeld; Prof Dr D. Körholz, Dr U. Bierbach, Universitätsklinik für Kinder und Jugendliche Abteilung für Hämatologie/Onkologie, Leipzig; Dr P. Gutjahr, Universitätsklinikum Kinderklinik, Mainz; Dr W. Müller, Dr I. Althaus, Krankenhaus Neuwerk Klinik für Kinder- und Jugendmedizin, Mönchengladbach; Prof Dr R. Roos, Dr P. Klose, Städtisches Krankenhaus Harlaching Abteilung für Kinder- und Jugendmedizin, Munich; Dr U. Graubner, Dr I. Schmidt, Klinikum der Universität Dr von Haunersches Kinderspital, Munich; Dr H. Müller, Dr R. Kolb, Klinikum Oldenburg Zentrum für Kinder- und Jugendmedizin, Oldenburg; Dr J. Wolff, Dr O. Peters, Klinik St Hedwig Klinik für Kinder- und Jugendmedizin, Regensburg; Dr J. Weber, Dr-Horst-Schmidt-Kliniken Klinik für Kinder- und Jugendmedizin, Wiesbaden; and Dr Dohrn, Helios Klinikum Zentrum für Kinder- und Jugendmedizin Kinderonkologie, Wuppertal, Germany.

We thank Drs Cheng Cheng, Wenjian Yang, and Renée X. de Menezes for helpful discussion, and Susan C. J. M. Peters for her technical assistance. We are indebted to all clinical staff at St Jude and the COALL centers of all who cared for these patients and to the patients and parents for their participation in these studies.
