RNA silencing of the mitochondrial ABCB7 transporter in HeLa cells causes an iron-deficient phenotype with mitochondrial iron overload

Iron is essential in all eukaryotes for various vital functions including respiration, gene regulation, and DNA replication and repair. However, iron is also potentially toxic and dysregulation of its homeostasis may contribute to various hematologic, metabolic, and neurodegenerative diseases.¹  Mitochondria play a central role in iron metabolism, since the mitochondrion is the place of synthesis of heme and iron sulfur (Fe/S) proteins,²  and dysregulation of mitochondrial iron is associated with certain diseases.³  Among them is Friedreich ataxia, which is caused by deficiency of frataxin, a protein involved in mitochondrial iron trafficking⁴ ; the X-linked sideroblastic anemia (XLSA) associated with deficiency of the erythroid-specific ALAS2⁵ ; and XLSA/A, X-linked sideroblastic anemia with ataxia associated with defects of the ABC transporter ABCB7.⁶  Most of our understanding of mitochondrial iron trafficking comes from the extensive studies done on S cerevisiae that showed that the organelle is the only site for the synthesis of Fe/S clusters, and that this activity is essential for the cell.^2,7  This biochemical pathway necessitates more than 10 different components, which include the cysteine desulphurase Nfs1p; the scaffold proteins Isu1p/Isu2p; chaperones; and the redox enzymes Arh1p, Yah1p, and glutaredoxin-5.²  The functionality of Fe/S biosynthesis is essential also for the assembly of extramitochondrial Fe/S enzymes, including Leu1p and Rli1p, the latter involved in ribosome biogenesis^8,9 ; but biosynthesis requires a set of accessory proteins that include the ABC transporter named Atm1p, the sulphydryl oxidase Erv1p of mitochondrial intermembrane space, glutathione, the cytosolic P-loop NTPase Cfd1p/Nbp35p, and the cytosolic iron-only hydrogenase-like Nar1p.¹⁰  The centrality of mitochondria in cellular iron homeostasis is also indicated by the evidence that yeast iron-regulon depends on Fe/S biogenesis.^11,12  The inactivation of any of the proteins for mitochondrial Fe/S biosynthesis causes a massive mitochondrial iron deposition, up to 30-fold above the normal; the alteration or inhibition of mitochondrial Fe/S enzymes such as aconitase and succinate dehydrogenase (SDH); the lack of growth on nonfermentable media; and signs of oxidative damage.¹³  In contrast, the inactivation of the proteins for Fe/S export, such as Atm1p, causes mitochondrial iron accumulation without major effects on mitochondrial enzymes.⁷  Most of these proteins have homologs in mammalian cells, but relatively little work has been dedicated to the study of Fe/S biogenesis in these cells, with the exception of frataxin.¹⁴  Recently, it was shown that some key enzymes of Fe/S pathway, the cysteine desulphurase ISCS, and the scaffold proteins ISCU and NFSU show alternative splicing that produces cytosolic as well as mitochondrial proteins.^15-17  The cytosolic forms have been isolated and found to be functional, and it was demonstrated that cytosolic ISCU proteins participate in the synthesis of cytosolic Fe/S proteins such as the IRP1/c-aconitase.^15,16  However, other reports showed that the depletion of mitochondrial Nfs1 inhibited the formation of cytosolic Fe/S proteins in mammalian cells,^18,19  and the defect was not rescued by the expression of a cytosolic form of the cysteine desulphurase.¹⁸

ABCB7 is the human ortholog of Atm1p, and its expression in yeasts rescued the defects of Atm1p deficiency.²⁰  Three different mutations of ABCB7 are associated with sideroblastic anemia with ataxia and hypoplasia of the cerebellum (XLSA/A, OMIM 301310). They consist of missense mutations (I400M, E433K, and V411L) at the border of putative transmembrane domains of the protein and were found to rescue only partially the defects of Atm1p-deficient yeasts.⁶  A study on erythroid cells showed that ABCB7 expression increases the activity of ferrochelatase by binding to its C-terminus.²¹  The recent study of mice deficient in ABCB7 showed that the protein is essential in early gestation. The systemic and tissue-specific deletion of ABCB7 in most organs, including CNS and bone marrow, was lethal, with the notable exception of liver and endothelial cells.²²  Liver-specific ABCB7 deletion caused periportal hepatocellular iron deposition with characteristic round structures, the origin of which was unclear; a strong up-regulation of TfR1 expression, consistent with the activation of IRP1; and a paradoxical minor increase of ferritin.²²  Surprisingly, mitochondrial iron overload was not observed, and the activity of mitochondrial enzymes with Fe/S complexes such ferrochelatase, m-aconitase, and succinate dehydrogenase was only marginally affected, while that of cytosolic enzymes such as c-aconitase or xanthine oxidase was strongly reduced.²²  These results confirm that the transporter has a major role in cellular iron homeostasis but do not clarify why ABCB7 deficiency may cause sideroblastic anemia and movement disorders. We used a simpler approach to analyze the effects of ABCB7 deficiency in cultured HeLa cells. We describe the conditions to silence the protein by using siRNAs, and we found that ABCB7 inhibition caused a strong reduction in cell proliferation, and a cytosolic iron deprivation accompanied by a large iron deposition in the mitochondria that was not available to mitochondrial ferritin. Protoporphyrin accumulation and the reduced availability of the mitochondrial iron may partially explain the development of anemia.

To produce double-stranded siRNAs by in vitro transcription, we followed the procedure described in Donze and Picard.²³  Briefly, we produced desoxy-oligonucleotides in which 22 nucleotides (nts) of sense or antisense sequence were flanked at 3′ by the TATAGTGAGTCGTATTA sequence, complementary to T7 promoter. The sense sequences were the following: ABCB7-871 (at 871 nt from start codon), GTGCCCAGTTTGCTTTGGTAAC; ABCB7-792 (at 792 nt from start codon), CTGAGTGCTTTGGTATTTAATC; and ABCB7-1663 (at 1663 nt from start codon), ATGCTGTCCTCTTCCATAATAC. All the sequences terminated with G and C, necessary for T7 polymerase activity. The oligonucleotides were annealed with the primer for T7 polymerase, and the enzyme was added. The 2 complementary transcripts were annealed, analyzed on polyacrylamide electrophoresis, and used for transfection. In most experiments, we used synthetic double-strand ABCB7-792 siRNA, which, like scrambled siRNA, was produced by Qiagen-Xeragon (Germantown, MD).

HeLa cells were grown in RPMI medium (Life Technologies, Invitrogen, Bethesda, MD), 10% fetal bovine serum (Clontech, Palo Alto, CA), 100 U/mL penicillin, 100 mg/mL streptomycin, and 1 mM l-glutamine. With in vitro–transcribed siRNAs, 10⁵ cells/well were seeded in the 12-well plates, transfected the following day with 100 pmol ds-siRNAs using Oligofecatmine (Invitrogen, Paisley, United Kingdom) following the manufacturer's instructions, grown for 72 hours, and then harvested and analyzed. With a synthetic siRNA (ABCB7-792), the HeLa cells were subjected to 2 rounds of transfection at day 1 and day 4 and harvested at day 7. To verify transfection efficiency, HeLa cells were transfected under the same conditions with control, nonsilencing ds-siRNA labeled with rhodamine (Qiagen-Xeragon), and inspection under the fluorescence microscope showed that more than 90% of the cells were labeled.

To evaluate cell viability, the HeLa cells at day 7 after transfection were counted and the cells were grown for 3 days. Then all the cells were counted and evaluated for trypan blue exclusion. Alternatively, at day 6 after transfection, 2 × 10⁴ cells were seeded in 96-well plates and grown for another 24 hours at 37°C in 0.1 mL medium, and then 10 μL methyl-thiazoltetrazolium solution, 5 mg/mL in phosphate-buffered saline (MTT; Sigma, St Louis, MO), was added and incubated for 3 hours, and the developed color was read at 570 nm. The cytotoxicity of H₂O₂ was studied as described.²⁴  Briefly, at day 6 after transfections, 2 × 10⁴ cells per well were seeded in 96-well plates, grown for 18 hours, and then washed and treated with different concentrations of H₂O₂ for 2 hours in serum-free medium. The plates were washed twice, and cellular viability was measured after 3-hour incubation with MTT, as above under “HeLa cell transfection.”

HeLa cells at day 7 after transfections were incubated for 3 hours with 2 μCi/mL (0.074 MBq) (⁵⁵Fe) ferric ammonium citrate (FAC) as previously described.²⁵  The cells were washed, lysed in 0.2 mL lysis buffer, and centrifuged, and 5 μL of the soluble fraction was mixed with 1 mL of ready safe liquid scintillation cocktail (Beckman, Hialeah, FL) and counted in a scintillation counter for 5 minutes. For the isolation of mitochondrial and postmitochondrial fractions, the cells were treated with 0.01% digitonin followed by 2 differential centrifugations, as described.²⁶  The soluble proteins were run on 7% nondenaturing polyacrylamide gel electrophoresis (PAGE), and the dried gels were exposed to autoradiography. The intensity of ferritin subunit bands was quantified by densitometry in the linear range.

L-ferritin levels were determined with a commercial serum ferritin assay, following the manufacturer's instructions (Abbott Laboratories, Abbott Park, IL). H-ferritin levels were evaluated by an enzyme-linked immunosorbent assay (ELISA) based on a specific monoclonal antibody and recombinant H-ferritin.²⁷  In immunoblot experiments, 30 μg soluble proteins was loaded on 12% SDS-PAGE. After transfer, the nitrocellulose filters were incubated for 16 hours with specific antibodies, washed, and further incubated for 1 hour with secondary peroxidase-labeled antibody (Dako, Glostrup, Denmark). Bound activity was revealed by advance enhanced chemiluminescence (ECL) kit (Amersham, Uppsala, Sweden) and detected using KODAK Image Station 440CF (Kodak, Rochester, NY). The primary antibodies used were mouse anti-TfR1 antibody (1:1000; Zymed, South San Francisco, CA), rabbit anti–poly(adenosine diphosphate-ribose) polymerase (anti-PARP) p85 fragment (1:700; Promega, Madison, WI), rabbit antiactin antibody (1:1000; Sigma), rabbit antiferritin antibody (1:2000; Sigma), mouse anti-MtF antibody, rabbit anti-MnSOD antibody (1:4000; Upstate, Billerica, MA), and rabbit antifrataxin antibodies (1:2000).²⁸

For the determination of ATP levels, 1 × 10⁴ cells were plated in 96-well culture black plates (Corning, Corning, NY) and lysated with the same volume of CellTiter-Glo Luminescent Cell Viability Assay (Promega), and the luminescence was analyzed. For the determination of the activity of aconitase, citrate synthase, succinate dehydrogenase, and superoxide dismutase, we followed previously described methods.^29-32  Cell apoptosis was measured by flow cytometry, using the ANNEXIN V:FITC assay kit (Serotec, Martinsried/Munich, Germany), following the manufacturer's instructions. Mitochondrial membrane potential (ΔΨ) was measured using the red fluorescent dye JC-1 (Invitrogen–Molecular Probes, Eugene, OR). Protoporphyrin content was evaluated by flow cytometry as in Luksiene et al.³³

RNA was purified from cells using the guanidinium thiocyanate–phenol–chloroform method according to the manufacturer's instructions (RNAwiz; Ambion, Austin, TX). DNase-treated total RNA (1 μg) was used to synthesize the first strand of cDNA with the ImProm-II Reverse Transcription System (Promega), using oligo dT. For real-time PCR analysis, Assays-on-Demand products (20 ×) and TaqMan Master Mix (2 ×) from Applied Biosystems (Foster City, CA) were used, according to the manufacturer's instructions, and the reactions were run on ABI PRISM 7700 Sequence Detection System (Applied Biosystems) in a final volume of 25 μL for 40 cycles. We analyzed the expression levels of ABCB7 and frataxin, and we normalized the results to GAPDH levels in each sample.

Comparison of values between mock and transfected cells was performed by Student t test for unpaired data. Differences were defined as significant for P values less than .05.

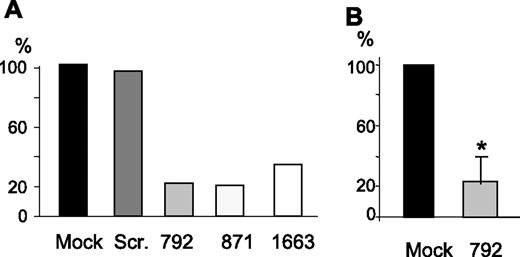

We initially produced by in vitro transcription 3 ds-siRNAs for ABCB7 silencing and set up the conditions for their transfection in HeLa cells. The siRNAs targeted mRNA sequences starting at nts 792, 871, and 1663. Real-time RT-PCR analysis of ABCB7 transcript showed that the highest level of inhibition was reached 48 hours after transfection, and that the 3 siRNAs used at the concentration of 100 pmol/well were efficient, leaving a residual level of transcript below 30% of the control and mock-transfected cells (Figure 1A). The most potent of them, named 792, was produced by chemical synthesis and its use optimized. At a concentration of 100 pmol/well, it caused up to 90% of inhibition of ABCB7, and by performing 2 sequential transfections the suppression could be maintained for up to 7 days (Figure 1B). These conditions, which imply transfection with siRNA-792 at day 1 and day 4 and cell harvesting at day 7, have been used in the following studies.

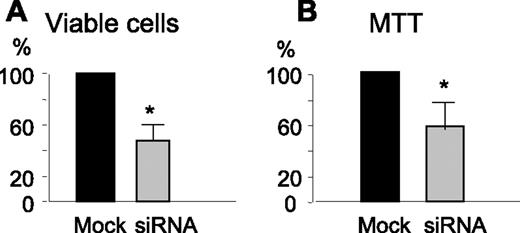

The first evident effect of ABCB7 silencing was a reduction of cell growth. The cells transfected with any of the 3 siRNAs, after both the first and second round of transfection, reached confluence later than the matched mock-transfected cells (not shown). Trypan blue–positive cells accounted for 4% of the total cells both in the silenced and control cells, indicating the siRNAs did not cause cell death. Therefore, we analyzed the number of the viable cells that excluded the dye, 3 days after the second round of transfection. In the silenced cells, this was about 50% of the mock-transfected control cells plated and grown under the same conditions (Figure 2A). When the same amounts of cells were seeded and grown for 24 hours, the MTT viability of the silenced cells was only approximately 60% of that of the controls (Figure 2B). Immunoblotting with specific antibodies did not show PARP fragmentation nor did flow cytometry show activation of annexin V (not shown), both of which are accepted signs of apoptosis. Moreover, we did not observe significant release of LDH, used as a sign of active necrotic processes (not shown). Thus, the reduction in cell viability in the silenced cells seemed to be caused by a reduction of cell proliferation rate, rather than by an increase of cell death.

Cytosolic aconitase/IRP1 is a Fe/S enzyme, and therefore it was of interest to evaluate if its activity was inhibited by ABCB7 silencing. In initial analysis, we measured aconitase activity in the total cellular extracts and in the postmitochondrial fraction to find that both of them were reduced in the silenced cells to about 50% and 40%, respectively (Figure 3A). For a more accurate analysis, the cellular extracts were separated in nondenaturing PAGE and the aconitase activity was developed.¹⁷  The slower and more abundant band recovered in the mitochondrial fraction represented the mitochondrial aconitase (m-aco), while the faster band recovered in the postmitochondrial fraction consisted of the cytosolic aconitase (c-aco) (Figure 3B). ABCB7 silencing caused a reduction of approximately 50% of m-aco, and more than 80% of c-aco (Figure 3B) without a reduction of c-aco protein, determined by Western blotting (not shown). A similar effect was obtained by treating the cells for 18 hours with the iron chelator desferrioxamine (DFO, 1 mM), as already described.¹⁷  We also treated the cells for 18 hours with carbonyl cyanide m-chloro phenyl hydrazone (CCCP, 30 μM), under conditions to abolish mitochondrial membrane potential and inhibit iron uptake in the organelle.⁷  This resulted in an inhibition of m-aco and of c-aco similar to that observed with ABCB7 silencing. When the silenced cells were treated with CCCP or with DFO, the activity of m-aco was further inhibited more than 80%, and that of c-aco became almost undetectable. The treatments with DFO and CCCP increased the proportion of unviable cells that detached from the plates (about 20% and 50%, respectively). We analyzed only the viable cells, which showed a protein pattern in SDS-PAGE indistinguishable from the one of the control, untreated cells (not shown). This finding suggests that ABCB7 deficiency inhibits the formation of Fe/S in c-aco by reducing the transit of iron through mitochondria.

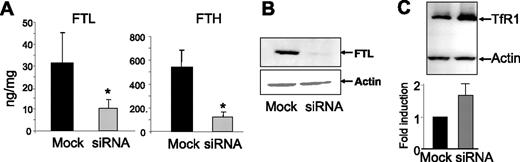

The reduction of c-aco activity in the silenced cells was an index of cellular iron starvation. H- and L-ferritins are other reliable indices of iron status, and their levels, determined by ELISAs, were less than one third in the silenced cells compared with the controls (Figure 4A). The decrease in ferritin level was even more evident in immunoblotting with an antibody specific for L-ferritin (Figure 4B). Blotting showed also that the level of transferrin receptor 1 (TfR1) increased by 2-fold in the silenced cells (Figure 4C). Thus, all the indices showed that ABCB7 silencing caused an iron-deficient phenotype. To analyze more directly cellular iron homeostasis, the cells were incubated for 3 hours with radioactive ferric ammonium citrate, ⁵⁵Fe-FAC, and then analyzed. The total iron incorporation in the silenced cells was about 20% lower than in the control cells, but the major difference was found in the subcellular distribution. ⁵⁵Fe accumulated mostly in the cytosolic fraction of the control cells, while it was similarly distributed in the cytosolic and mitochondrial fraction in the ABCB7-silenced cells. For example, the ratio of ⁵⁵Fe concentration in the postmitochondrial and mitochondrial fraction was higher than 7:1 in the controls and approximately 0.7:1 in the silenced cells (Figure 5A), indicating a major shift of iron from cytosol to mitochondria. Next, the homogenates were fractionated on nondenaturing PAGE and exposed to autoradiography. This showed a single band that corresponded to the cytosolic ferritin, the density of which was about 2-fold higher in the control than in the silenced cells, both in the total homogenate and in the postmitochondrial fraction (Figure 5B). The mitochondrial fractions displayed only a minor band corresponding to the cytosolic ferritin, probably a contaminant, while mitochondrial ferritin was undetectable (Figure 5B). Thus, ABCB7 silencing in HeLa cells caused a decrease of ferritin-bound iron in cytosol and a major increase of mitochondrial iron not firmly bound to any specific protein, without inducing the expression of mitochondrial ferritin (not shown).

To verify if ABCB7 silencing and mitochondrial iron deposition affected the resistance to oxidative damage, the cells were incubated for 2 hours with various concentrations of H₂O₂, and then analyzed for cell viability with MTT assay. The 2 plots so obtained were statistically different (P = .009), with that of the ABCB7-silenced cells being steeper than that of the mock-transfected control cells. The value of 50% inhibition was about 500 μM for the controls and less than 200 μM H₂O₂ for the silenced cells (Figure 5C). Thus, ABCB7 deficiency causes a significant increase of sensitivity to H₂O₂.

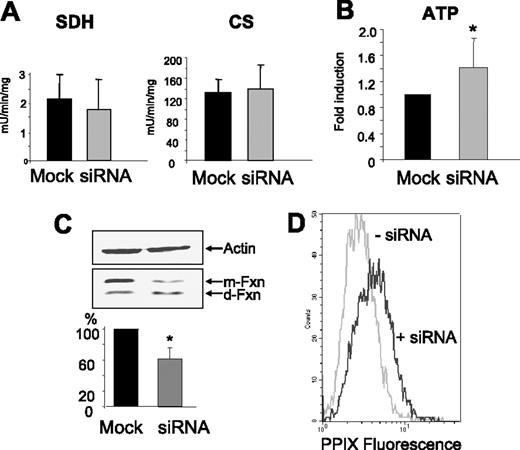

An increase in protoporphyrin IX is characteristic of XLSA/A, thus we evaluated if this occurred in the silenced cells. Protoporphyrin level was evaluated by flow cytometry taking advantage of the fluorescent properties of the molecule.³³  The basal level of fluorescence in the control cells was low, consistent with the low level of porphyrin synthesis in the HeLa cells, but it increased in the silenced cells. In 4 different experiments, we found a mean increase of the signal of 1.33-fold; P = .008 (Figure 6D). The activity of succinate dehydrogenase, a mitochondrial Fe/S enzyme, was reduced by about 20% in the silenced cells, but the difference was not statistically significant. The activity of citrate synthase, a mitochondrial iron-free enzyme, was not affected by ABCB7 silencing (Figure 6A). Staining with JC-1 did not show evident modification of mitochondrial membrane potential (not shown), while total ATP content was higher (∼ 1.5-fold) in the silenced cells than the controls (Figure 6B). These data suggest that mitochondrial functionality was not impaired by ABCB7 deficiency. Since it has been reported that in yeast the suppression of Atm1 caused a down-regulation of frataxin, both at the mRNA and protein level,³⁴  we evaluated if the same occurred in our system. Quantitative real-time RT-PCR did not show significant modifications of the levels of frataxin and ferrochelatase mRNAs (data not shown). However, blotting with antifrataxin antibodies revealed that ABCB7 silencing caused a significant reduction of the mature form of the protein accompanied by a relative increase of the lighter degradation product (Figure 6C). This suggests a decrease of frataxin, probably due to faster degradation.

The expression of mitochondrial ferritin in HeLa cells was previously shown to cause a shift of iron from cytosol to mitochondria,^25,35,36  similar to that caused by ABCB7 silencing. Thus, it was of interest to compare the 2 cellular models. To this aim, we silenced ABCB7 in parallel in parent HeLa cells and in the HeLa clone expressing MtF (MtF clone). The cells were incubated for 3 hours with ⁵⁵Fe, and the total iron incorporation in the 2 clones was not significantly different (not shown). The homogenates were fractionated, the iron content of mitochondrial and postmitochondrial fraction was analyzed, and the data were plotted as percentage of mitochondrial over the total cellular iron. This accounted for about 10% in the control HeLa cells, and it increased to 45% after ABCB7 silencing. Mitochondrial iron was about 40% in the MtF clone, and it was not affected by ABCB7 silencing (Figure 7A), possibly because the mechanism of mitochondrial iron incorporation was saturated. The silencing caused a reduction of iron bound to cytosolic ferritin (Figure 7B) and of H-ferritin protein (Figure 7B), similar to what has been observed in the HeLa cells (Figure 5B). Surprisingly, the band intensity of MtF-bound iron in the total cell homogenate and in the mitochondrial fraction was strongly reduced in the ABCB7-silenced cells (Figure 7B), without a significant decrease of MtF protein (Figure 7C). This indicates that the iron excess was not available to the ferritin. We analyzed superoxide dismutase activity in the cells, since it was shown that the activity of the mitochondrial Mn-SOD (SOD2) is affected by mitochondrial iron load in yeast.³⁷  The cytosolic SOD1 was not altered by ABCB7 silencing, while SOD2 was strongly inhibited in the parent HeLa cells but only marginally reduced in the MtF clone. Blotting with a specific antibody showed that SOD2 protein level was not affected, and thus ABCB7 silencing causes an inhibition of SOD2 activity (Figure 7D). Thus, as it occurs in yeast, the iron excess caused by ABCB7 silencing probably competes with Mn for binding to SOD2.

ABCB7 is a functional homolog of the yeast Atm1, a mitochondrial membrane protein involved in the maturation of cytosolic Fe/S proteins.^20,38  Mouse models showed that the absence of ABCB7 in most tissues, including CNS and bone marrow, is lethal, except for the liver and endothelial cells,²²  but did not clarify how its deficiency affected heme synthesis or produced neuronal defects. Thus, ABCB7's role in the development of sideroblastic anemia with ataxia (XLSA/A) remains obscure. We found conditions for an efficient inhibition of ABCB7 in HeLa cells by transfecting different specific siRNAs. All the siRNAs we developed were functional, inducing a decrease of the transcript level up to about 10% of the control. The silencing caused a large decrease in cellular proliferation, which hampered the possibility to obtain stable clones. For a better characterization of the phenotype, we extended the suppression of the protein up to 7 days by performing sequential siRNA transfections. A growth defect in cultured mammalian cells was already described for the depletion of the mitochondrial cysteine desulphurase m-Nfs1^18,19  and of frataxin,³⁸  and in yeast for the depletion of Atm1p^39,40  and of other proteins involved in Fe/S biogenesis.⁷  This was attributed to a defect in the maturation of cytosolic/nuclear Fe/S proteins involved in protein synthesis, such as Rli1p.^8,9  The growth defect caused by ABCB7 deficiency was not reversed by iron supplementation with 0.1 or 1 mM FAC, indicating that it was not due to iron deficiency, but possibly to the deregulation of the biosynthesis of cytosolic Fe/S proteins, and might contribute to the lethality of the model mice.

Another important effect of ABCB7 deficiency was a major accumulation of iron in the mitochondria, about 6-fold above control. This is similar to what has been found in the Atm1p-deficient yeast cells, where mitochondrial iron accumulation was up to 30-fold above control,⁷  confirming that the 2 proteins are functional homologs involved in iron efflux from the organelle.³⁹  A mitochondrial iron deposition was not observed in the mouse livers in which ABCB7 was specifically inactivated,²²  a finding that was attributed to the unique control of iron metabolism in the liver or to a tissue-specific high expression of the ABCB6 mitochondrial transporter.²²  However, ABCB6 was recently shown to be a porphyrin transporter located on mitochondrial outer membrane,⁴¹  and thus it should not contribute to Fe/S transport. Similarly to what occurs in yeast⁷  and in mouse liver,²²  ABCB7 deficiency in HeLa cells did not cause major defects in mitochondrial activity, since SDH activity, membrane potential, and ATP content were not lower than those of the control cells. However, the massive iron loading of the mitochondria was expected to promote oxidative damage in HeLa cells. In fact, we could observe an increase of the sensitivity to H₂O₂ toxicity, but the background levels of oxidation seemed normal. This is consistent with the low respiratory activity of these cultured mammalian cells, which consume little oxygen and have a small production of ROSs that would react with free iron to produce toxic-free radicals. Thus, the lack of evident oxidative damage in our cell model is not a demonstration that mitochondrial iron excess is harmless in vivo, particularly in cells with high iron needs and respiratory activity like those of the basal ganglia of the brain.⁴²  ABCB7 deficiency in HeLa cells and mouse liver caused major modification of cellular iron homeostasis, with activation of the IRE-BP activity of IRP1/c-aco and up-regulation of TfR1. In HeLa cells, this corresponded to an evident iron-deficient phenotype with a strong suppression of ferritin synthesis, partially attributed to the shift of iron from cytosol to mitochondria that could not be compensated by transferrin-iron uptake. In mouse hepatocytes, the cytosolic ferritin level was marginally increased, possibly due to the high iron influx due to constitutive activation of TfR1 that has access to circulating Fe-transferrin, or to other compensatory mechanisms.²²

In XLSA/A, microcytic anemia is accompanied by mitochondrial iron overload and accumulation of erythrocyte protoporphyrin, mostly as Zn-protoporphyrin.^6,43-45  Thus, defective heme synthesis occurs even in the presence of excess of the 2 components of heme molecule. Different hypotheses have been proposed. One is that ABCB7 binds ferrochelatase and increases its activity,²¹  but this contrasts with the observation that most erythrocyte protoporphyrin in the patients is bound to Zn,^43,44  an association catalyzed by ferrochelatase,⁴⁶  and that ferrochelatase activity was not inhibited in the mouse model.²²  The second is that ABCB7 deficiency causes activation of IRP1, thus down-regulating the IRE containing ALAS2 and therefore heme synthesis.²²  This was found to occur in the Shiraz zebrafish model with glutaredoxin 5 deficiency, which also shows mitochondrial iron accumulation in erythroid cells, but this was accompanied by inhibition of protoporphyrin.⁴⁷  An activation of IRP1 seemed to occur in our silenced cells, but it did not inhibit protoporphyrin synthesis. A role of IRPs in heme synthesis is suggested by the finding that IRP2^−/− mice accumulate erythrocyte protoporphyrin,⁴⁸  but this is probably as a result of local iron deficiency. A more likely explanation for the anemia is that the iron that accumulates in ABCB7 deficiency cannot be efficiently used for heme synthesis. This hypothesis is supported by the present finding that the iron excess in the ABCB7-silenced cells was poorly available to mitochondrial ferritin (MtF), in contrast with that of the mock-transfected control cells. This indicates that ABCB7 deficiency limits the pool of free Fe(II) ions available to MtF and to ferrochelatase, with a consequent increase of free protoporphyrin. The reduction of frataxin stability we observed may also be caused by an accumulation of apo-protein, possibly less stable than the Fe-bound form. The existence of biologically different mitochondrial iron pools has been recently demonstrated in yeast by the analysis of the mitochondrial Mn-SOD (SOD2).³⁷  One pool, termed SOD2-reactive, which competes with mitochondrial Mn to inactivate SOD2, increased in strains deleted of mitochondrial transporters and of proteins for Fe/S biosynthesis such as glutaredoxin-5 or ssq1, thus causing local iron accumulation. The other pool, termed SOD2-inert, did not affect SOD2 activity and was prominent in wild-type and frataxin-deficient cells.³⁷  We found that mitochondrial iron overload in the ABCB7-silenced cells inhibited SOD2 activity, indicating that a SOD2-reactive pool exists also in mammalian cells. Our findings raise the possibility that the SOD2-reactive pool is made of iron committed for Fe/S synthesis and therefore is not available to ferritin or ferrochelatase, a hypothesis that needs to be proved.

Mitochondrial iron accumulation is particularly evident in erythroid cells, where most of body iron transits for hemoglobin synthesis. The formation of ringed sideroblasts (or siderocytes in mice) is probably caused by various different mechanisms. In the most common, acquired forms of sideroblastic anemia (SA), the refractory anemia with ringed sideroblasts (RARS), the sideroblasts express high levels of MtF.^49-51  Since this was found also in XLSA with defects of ALAS2,⁴⁹  it was initially thought that MtF expression was common to the different forms of SA. Our data indicate that MtF expression is not simply induced by mitochondrial iron accumulation, and in cultivated bone marrow erythroid cells from patients with RARS the expression of MtF was found to occur at early stages of differentiation before evident iron deposition.^50,51  Thus, in these forms of SA, MtF may contribute to mitochondrial iron deposition while protecting the organelle from the iron excess. In a mouse model of XLSA, the erythroid expression of MtF mRNA was not observed,⁵²  thus other mechanisms besides MtF expression contribute to this form of mitochondrial iron accumulation. Very little is known about the other genetic forms of SA, all of which seem to affect proteins with mitochondrial localization. They include mitochondrial DNA deletions in Pearson syndrome,⁵³  defects of pseudouridine synthase 1 (PUS1) in mitochondrial myopathy and sideroblastic anemia,⁵⁴  and defects of the mitochondrial transporters sideroflexin 1 in flexed tail mice,⁵⁵  while for the defects of SOD2 in mice, the anemia and mitochondrial iron deposition was attributed to oxidative damage.⁵⁶  XLSA/A is characterized by an excess of erythrocyte protoporphyrin, at variance with all the other types of genetic SA, and we propose it is caused by the accumulation of an iron form not readily usable for heme synthesis. Possibly, this may contribute to other forms of SA, such as RARS, that also often show excess of erythrocyte protoporphyrin.⁵⁷  ABCB7 is ubiquitous, and its deficiency may cause mitochondrial iron deposition and sensitivity to oxidative damage in most cells, but the ones most sensitive seem to be those of the basal ganglia⁴²  whose degeneration may cause ataxia and movement disorders, similar to what occurs in Friedreich ataxia⁴  and Pank2 disease.⁵⁸
