Identification of an NK/T cell–restricted progenitor in adult bone marrow contributing to bone marrow– and thymic-dependent NK cells

All blood cell lineages are derived from hematopoietic stem cells (HSCs) that reside in the adult bone marrow (BM).¹  Lineage commitment, or restriction, is the process by which a multipotent stem or progenitor cell becomes increasingly restricted in its lineage potentials, to ultimately develop into a fully committed progenitor of a single-cell lineage. The characterization of lineage-restricted progenitors represents an important step toward a better understanding of the cellular pathways and molecular regulation of lineage commitment of the different hematopoietic lineages. Decades of extensive research have provided solid evidence that the lineage restriction process from multipotent HSCs to lineage-committed progenitors occurs as a stepwise process; however, the cellular pathways by which lymphoid lineage restriction occurs remain the subject of debate and continued investigation.^1-4  This is of particular interest for the T-cell lineages, in which it remains unclear which stages of lineage restriction occur in the BM and subsequently in the thymus.^5-7

The recently identified lymphoid primed multipotent progenitor (LMPP), which lacks erythroid/megakaryocyte potentials but maintains combined lymphoid and granulocyte-monocyte potentials,⁸  and the common lymphoid progenitor⁹  represent lymphomyeloid and lymphoid-restricted candidate thymus seeding progenitors in adult BM. Both of these, however, are shared progenitors between the T- and B-cell lineages, of which the B-cell commitment is finalized in the BM, whereas the final stages of T-cell commitment are thought to take place predominantly or exclusively in the thymus.^5,7,10,11  Thus, an important question is whether in adult BM also occurs lineage restriction toward bipotent progenitors with combined lineage potentials for T cells and other lineages thought to be derived in part in the thymus.

Natural killer (NK) cells, large granular lymphocytes, a lymphoid lineage distinct from B and T cells, are major components of innate immunity and play an important role in eliminating tumor cells as well as in the defense against viral infections.^12,13  Despite significant progress in understanding NK-cell biology, the early stages of NK-lineage commitment from multipotent progenitors remain unclear. In adult mice and humans, BM is the main site of NK-cell development^14-16 ; however, recent studies have demonstrated the existence of another distinct thymic-dependent adult NK-cell developmental pathway.¹⁷  The finding that in adult mice T cells as well as a fraction of NK cells are generated in the thymus implicates a possible close link between T- and NK-cell development; however, the source of thymic NK cells remains unknown.¹⁷

Studies supporting the existence of bipotent NK/T progenitors during early development support the prethymic restriction of thymus seeding progenitors during development, but the existence and location of NK/T lineage-restricted progenitors as a lineage commitment step in adult hematopoiesis have yet to be identified.^18-20

A candidate NK lineage-restricted progenitor (NKP) has been identified in adult mouse BM as having a Lin⁻CD122⁺NK1.1⁻DX5⁻ phenotype,²¹  although the lineage potentials of this NKP progenitor have not been extensively studied and its in vivo lineage-reconstituting potential has yet to be evaluated. Thus, we further investigated whether the Lin⁻CD122⁺NK1.1⁻DX5⁻ NKPs in adult mouse BM are truly NK cell–restricted or whether they maintain other blood cell lineage potentials. Herein, we show that, although Lin⁻CD122⁺NK1.1⁻DX5⁻ cells lack B and myeloid cell potential, they sustain a combined NK- and T-cell potential in vivo and in vitro at the single-cell level. These BM bipotent NK-/T-cell progenitors can generate both thymic and BM-dependent NK cells, through Notch-independent mechanisms, whereas their T-cell generation is strictly Notch-dependent. Taken together, our data demonstrate the existence of bipotent NK/T progenitors in adult BM providing direct evidence for NK/T lineage restriction taking place prethymically in adult BM.

C57BL/6 mice were used at 6 to 10 weeks of age for isolation of thymic progenitors, and 10- to 12-week-old mice were used for purification of BM and thymic progenitors. Mice deficient in Il2rg expression^22,23  purchased from The Jackson Laboratory were used as recipients in transplantation experiments. Genotyping was performed by polymerase chain reaction (PCR) on genomic DNA derived from the tails,²²  and C57BL/6 mice were used as wild-type (WT) controls and sorting in all experiments. All mice were maintained under specific pathogen–free conditions at the Lund University Animal Facility. The Ethical Committee at Lund University approved all performed experiments. Tissues were collected as previously described.^24,25

Before staining single-cell suspensions with antibodies against specific surface markers, Fc receptors were blocked by incubation with 2.4G2 (anti-FcRIII). All antibodies were from BD Biosciences unless otherwise indicated. Monoclonal antibodies (conjugated with different fluorochromes) used to stain cell-surface antigens were: B220 (RA3-6B2), CD19 (1D3), KIT (2B8), SCA-1 (E13-161.7), FLT3 (AZF10.1), T-cell receptor-β (TCR-β; H57-597), CD11c (N418), CD3 (17A2), CD122 (TM-β1), CD49b (DX5), NK1.1 (PK136), CD11b/Mac-1 (M1/70), CD127 (A7R34), Ly49D (4E5), CD25 (3C7, 7D4), Ter119 (LY-76), Gr-1 (RB6-8C5), CD45.1 (A20), CD45.2 (104), CD4 (H129.19), CD8-α (53-6.7), Thy1.2 (53-2.1), TCR-δγ (GL3), CD27 (LG.7F9), CD94 (18d3), NKp46 (29A1.4), and Ly49mix included Ly49G2 (AT8) plus Ly49C/I/F/H (14B11) plus Ly49A (A1). Isotype-matched controls labeled with appropriate fluorochromes were used. Biotinylated antibodies were visualized by streptavidin-phycoerythrin or streptavidin-phycoerythrin Cy7 and purified antibodies by polyclonal goat antirat-Tricolor (both from Caltag). 7-Amino-actinomycin D (Sigma-Aldrich), TO-PRO-1 iodide, 1mM (Invitrogen), and propidium iodide (1.0 mg/mL; Invitrogen) were used to exclude dead cells from the analysis. For the evaluation of NKP and NK-cell compartments in BM, the mixture of the following antibodies was used to define the lineage-negative (Lin⁻) population: anti-CD19, Gr-1, Mac-1, CD3, CD4, CD8, and Ter119. Samples were analyzed on LSR II (BD Biosciences), between 50 000 and 500 000 events were collected, and analysis was performed using FlowJo software (Version 8.8.6; TreeStar).

For sorting the Lin⁻CD122⁺NK1.1⁻DX5⁻ NK progenitors, BM cells were first enriched for CD122⁺ cells by incubation with anti-CD122 biotinylated antibody, antibiotin Micro beads (Miltenyi Biotec), and then positive selection was done on 25 LS MACS column (Miltenyi Biotec). The enriched CD122⁺ cells were next stained with directly conjugated antibodies against lineage markers: anti-CD19, Gr-1, Mac-1, CD3, CD4, CD8, and Ter119 as well as anti-NK1.1 and DX5.

The sorting of the Lin⁻KIT^highCD25⁻ thymic progenitors was performed as follows: thymocyte single-cell suspension was first incubated with low concentration of purified anti-CD4 and CD8-α antibodies, and double-negative (DN) cells were isolated on a magnetic particle concentrator (MPC-6; Dynal) after incubation with antibodies and subsequent incubation with sheep anti–rat IgG (Fc)–conjugated immunomagnetic beads (Dynal). The DN cells were then stained with goat F(ab)2 antirat Ig(H+L) tricolor conjugate (Caltag) to visualize remaining positive cells and directly conjugated antibodies against lineage markers: CD19, Gr-1, Mac-1, TCR-β, CD8-α, Ter119, NK1.1, CD11c, as well as CD25 and KIT.

The Lin⁻SCA-1⁺KIT⁺FLT3^high LMPPs were sorted as previously described^8,26  and used as a positive control. All sorts for indicated cell phenotypes were performed on BD FACSAria (BD Biosciences) with purities greater than 98%.

Sublethally irradiated (350 cGy) 10- to 12-week-old CD45.2 Il2rg^−/− recipient mice were transplanted with 1300 NKPs sorted from 10- to 12-week-old WT CD45.1 donors.

At 14, 21, and 28 days after transplantation, recipient mice were analyzed for mutilineage donor-derived reconstitution by fluorescence-activated cell sorter (FACS). The peripheral blood (PB), spleen, and BM cells were stained with antibodies against CD45.1, CD45.2 (to distinguish donor and recipient); Mac-1, Gr-1 (myeloid cells, also defined as negative for NK1.1); CD19 (B cells); CD3, CD4, and CD8-α (T cells); and NK1.1 and DX5 (NK cells).

The OP9 and OP9-DL1 cells were kindly provided by J. C. Zúñiga-Pflücker (Department of Immunology, University of Toronto, Sunnybrook Research Institute, Toronto, ON) and cultures were carried out as previously described.^8,27  The 20, 10, 5, or single-sorted NKP and DN1 cells were plated on previously established, approximately 80% confluent stroma cell monolayers in 48-well plates in 1 mL of Opti MEM plus Gluta Max 1 time medium (Invitrogen) containing 10% fetal calf serum (FCS; Sigma-Aldrich), 1% penicillin/streptomycin (Sigma-Aldrich), 1% 10⁻²M 2-mercaptoethanol (Sigma-Aldrich) supplemented with cytokines with final concentrations: FLT3 ligand (FL, 25 ng/mL), interleukin-7 (IL-7, 20 ng/mL), KIT ligand (KL, 25 ng/mL), IL-15 (25 ng/mL), and IL-2 (50 ng/mL) (all cytokines purchased from PeproTech). Cells were cultured at 37°C for 14 to 21 days, and half of the coculture medium was replaced weekly. At indicated days, cells were harvested and analyzed by FACS for B (CD19⁺), T (CD3⁺CD4⁺/CD8⁺NK1.1⁻, NK1.1⁻CD25⁺TCR-β⁺Thy1.2⁺, NK1.1⁻CD25⁺Thy1.2⁺, TCR-β⁺CD4⁺/CD8⁺NK1.1⁻, or TCR-β⁺CD25⁻NK1.1⁻CD122⁻), NK (CD3⁻NK1.1⁺DX5⁺, TCR-β⁻NK1.1⁺DX5⁺, Lin⁻CD122⁺CD25⁻NK1.1⁺IL-7Rα⁻, or CD3⁻NK1.1⁺Mac-1⁺), NK.1.1⁺TCR⁺ (TCR-β⁺NK1.1⁺ DX5⁺, CD3⁺NK1.1⁺, or TCR-β⁺NK1.1⁺), or thymic NK (Lin⁻CD122⁺CD25⁻NK1.1⁺Ly49D⁻IL-7Rα⁺) committed progeny.

Purified single Lin⁻CD122⁺NK1.1⁻DX5⁻ NK progenitors and Lin⁻SCA-1⁺KIT⁺FLT3^high LMPPs (used as positive controls) were sorted directly into Terasaki plates containing serum-free medium (X-vivo 15; Lonza Walkersville) with 0.5% bovine serum albumin (StemCell Technologies), 10% FCS (Sigma-Aldrich), 1% penicillin/streptomycin (Sigma-Aldrich), 1% l-glutamine (Sigma-Aldrich), and 1% 10⁻²M 2-mercaptoethanol (Sigma-Aldrich), supplemented with cytokines with final concentrations: FL (50 ng/mL), KL (50 ng/mL), thrombopoietin (50 ng/mL), IL-3 (10 ng/mL), granulocyte colony-stimulating factor (50 ng/mL), and granulocyte-macrophage colony-stimulating factor (20 ng/mL) and cultured for 12 days at 37°C. After 8 and 12 days, cultures were evaluated under the inverted microscope, and the size of proliferating clones was scored.

Clones generated from single Lin⁻CD122⁺NK1.1⁻DX5⁻ NKPs in OP9DL1 stroma cocultures that were positive for the NK- and T-cell lineage potentials by FACS were analyzed for the T lineage specific gene expression. Thymocytes were used as positive control, and OP9DL1 stroma cells cultured without hematopoietic cells were used as negative control. RNA extraction and reverse-transcribed (RT)–PCR were performed as previously described.²⁶  The primers used for nested muliplex RT-PCR were as follows:

Hprt-1: 5′GGGGGCTATAAGTTCTTTGC; Hprt-2: 5′GTTCTTTGCTGACCTGCTGG; Hprt-3: 5′TGGGGCTGTACTGCTTAACC; Hprt-4: 5′TCCAACACTTCGAGAGGTCC.

Ptcra-1: 5′CTCTACCATCAGGCATCG; Ptcra-2: 5′GGCAGTGCCCTAGACGCC; Ptcra-3: CTCCTGGCTGTCGAAGATTCC; Ptcra-4: 5′GAAGCAGTTTGAAGAGGAGC.

Cd3e-1: 5′CCTCAGAAGCATGATAAGC; Cd3e-2: 5′GTTGACATCTGTATCACTCTGG. Cd3e-3: 5′ACTGCTCTCTGATTCAGGC; Cd3e-4: 5′AGCAAGGTTCTAGGACACG. Primers 1 plus 4 and 2 plus 3 are outer and inner primer pairs, respectively.

All results are expressed as mean (SD). The statistical significances between groups were determined using the Student t test.

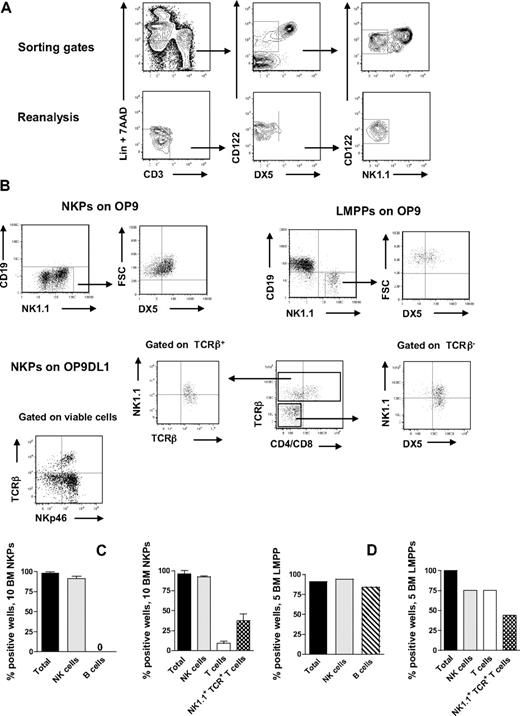

NKPs have been identified in the BM of adult mice as having a Lin⁻CD122⁺NK1.1⁻DX5⁻ phenotype.²¹  However, previous in vitro characterization of the lineage potentials of NKPs was pursued using large cell numbers, and the T-cell potential was evaluated using a fetal thymic organ culture,²¹  whereas more efficient T-cell assays have since been developed and applied at the single-cell level with high efficiency.^8,27,28  To further investigate the lineage potentials of Lin⁻CD122⁺NK1.1⁻DX5⁻ cells, we first optimized the culture conditions by testing different cytokine combinations known to support in vitro NK-cell generation.^14,29  In agreement with previous studies,^21,30  approximately 40% of BM NKPs expressed IL-7Rα, 60% of NKPs were Thy1.2⁺, and there was no CD25 expression detectable within NKPs (supplemental Figure 1, available on the Blood Web site; see the Supplemental Materials link at the top of the online article). When as few as 10 NKPs were cocultured on OP9 or OP9DL1 stroma cell lines for 14 days in the presence of KL, FL, IL-7 (first week only), IL-2, and IL-15, essentially all wells, contained large numbers of TCR-β⁻NK1.1⁺DX5⁺ NK cells (Figure 1A-C). To further confirm the NK-cell phenotype, the generated clones were evaluated for the expression of NKp46 (the most specific NK-cell marker)^31,32  and essentially all wells in which NKPs were cocultured on O9DL1 stroma with cytokines contained TCR-β⁻NKp46⁺ NK cells (Figure 1B). In agreement with previous studies,²¹  NKPs did not produce any detectable levels of CD19⁺ B cells (Figure 1A-C). Notably, however, approximately 10% of the wells seeded with 10 Lin⁻CD122⁺NK1.1⁻DX5⁻ cells on OP9DL1 stroma contained a distinct population of TCR-β⁺NK1.1⁻CD4⁺/CD8⁺ T cells, and 37% of the wells contained TCR-β⁺NK1.1⁺DX5⁺ cells (Figure 1B-D). Previous studies have identified a subset of T cells that coexpress TCR together with NK1.1 and DX5 molecules.³³  However, NK T cells and NK-like T cells represent heterogeneous populations, and the exact characteristics of TCR⁺NK1.1⁺ T cells produced from NKPs here remain to be established.

Importantly, NKPs cocultured on OP9DL1 stroma produced both TCR-αβ and TCR-γδ T cells (supplemental Figure 2).

Taken together, these results suggest that a fraction of Lin⁻CD122⁺NK1.1⁻DX5⁻ NKPs, although having lost B-cell potential (in contrast to control multipotent LMPPs⁸ ) sustain the ability to produce T cells (Figure 1B,D).

To test the myeloid potential of NKPs, we performed a single-cell myeloid culture assay (“Teraski culture assay to detect myeloid potential”), again using multipotent LMPPs as a positive control. In agreement with previous studies,²¹  no myeloid cells were generated from Lin⁻CD122⁺NK1.1⁻DX5⁻ cells, regardless of the different time points evaluated, confirming their loss of myeloid potential (Table 1). Taken together, these data demonstrate that Lin⁻CD122⁺NK1.1⁻DX5⁻ NKPs, in addition to having an extensive NK-cell potential, also sustain an ability to produce T cells.

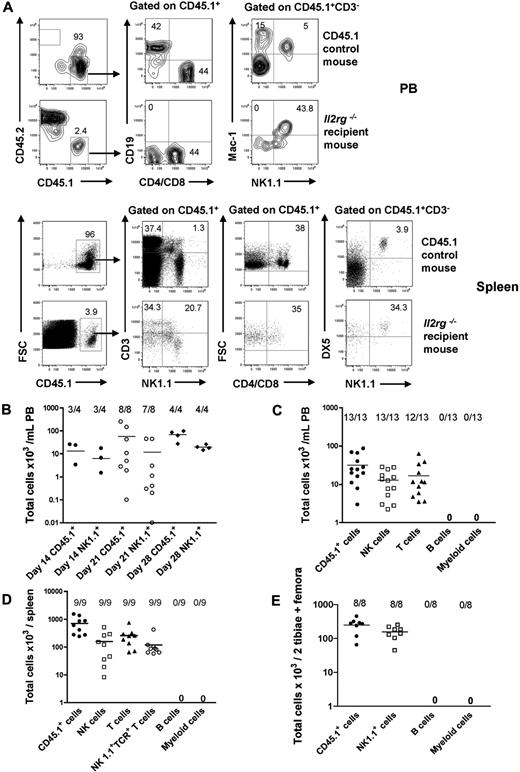

As the lineage potentials of Lin⁻CD122⁺NK1.1⁻DX5⁻ NKPs have not previously been investigated in vivo, we next examined the ability of NKPs to reconstitute different lineages, with a particular emphasis on whether Lin⁻CD122⁺NK1.1⁻DX5⁻ NKPs could reconstitute physiologically relevant numbers of T cells. Specifically, NKPs sorted from CD45.1 BM were injected intravenously into sublethally irradiated CD45.2 Il2rg^−/− recipients. Evaluation of CD45.1 donor reconstitution in PB showed a maximum reconstitution at 21 days after transplantation (Figure 2A-B). At 21 days, all the recipient mice showed donor-derived NK-cell reconstitution (CD45.1⁺CD3⁻NK1.1⁺DX5⁺) in the PB and in the spleen, and as many as 12 of 13 and 9 of 9 recipients also demonstrated T-cell reconstitution (CD45.1⁺CD4⁺/CD8⁺NK1.1⁻) in the PB and in the spleen, respectively (Figure 2A,C-D). In addition, in all the recipient mice, donor-derived NK1.1⁺TCR⁺ T cells (CD45.1⁺CD3⁺NK1.1⁺) were present in the spleen at 21 days after transplantation (Figure 2B,D).

Furthermore, and in line with the findings from the in vitro studies, transplanted NKPs did not contribute to detectable B-cell (CD45.1⁺CD19⁺) and myeloid (CD45.1⁺NK1.1⁻Mac-1⁺) reconstitution, not in the PB (Figure 2A,C), the spleen, or the BM (Figure 2E; supplemental Figure 3). These data demonstrate that Lin⁻CD122⁺NK1.1⁻DX5⁻ NKPs engraft and generate NK cells in vivo after transplantation; and consistent with the data from in vitro studies, NKPs also have a considerable potential to reconstitute T cells but lack the ability to produce cells of the B and myeloid lineages.

To establish whether the combined NK- and T-cell potentials of Lin⁻CD122⁺NK1.1⁻DX5⁻ BM cells reflect the existence of separate NK and T cell-restricted progenitors within the Lin⁻CD122⁺NK1.1⁻DX5⁻ compartment, or the existence in adult BM of a bipotent NK-/T-cell progenitor, we further optimized the cell culture conditions to efficiently promote generation of NK cells and T cells from single Lin⁻CD122⁺NK1.1⁻DX5⁻ cells.

Previous studies have shown that the generation of T cells in OP9DL1 cultures is IL-7 dose dependent³⁴  and that high levels of IL-7 block T-cell generation.^35,36  Therefore, IL-7 was excluded from the medium, and the time of the culture was extended to 21 days based on previous studies.²⁷  In addition, T-cell potential was in agreement with previous studies,³⁷  defined as generation of cells with coexpression of CD25 and Thy1.2, and/or CD4⁺/CD8⁺TCR-β⁺ T cells. Under these conditions, as much as 42% of single Lin⁻CD122⁺NK1.1⁻DX5⁻ cells generated sizable clones, which could be analyzed by multicolor FACS. As much as 25% of Lin⁻CD122⁺NK1.1⁻DX5⁻ cells (60% of the clones) produced NK1.1⁺DX5⁺TCR-β⁻ NK cells and 14% NK1.1⁻CD25⁺Thy1.2⁺ T cells (34% of the clones; most of them also coexpressing TCR-β) (Figure 3A-B; supplemental Figure 4).

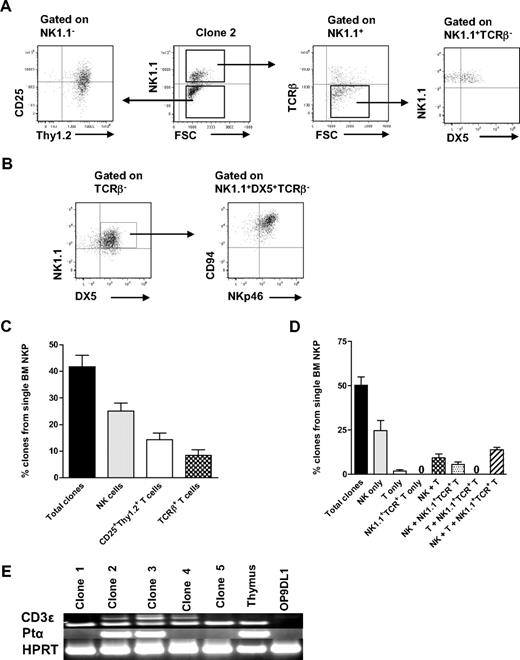

In addition, essentially all the NK1.1⁺DX5⁺TCR-β⁻ NK cells generated from single NKPs coexpressed NKp46 and CD94, further supporting their NK-cell identity (Figure 3B). The T-cell identity of clones containing NK1.1⁻CD25⁺Thy1.2⁺ cells was also verified through expression of Cd3ϵ and Ptcra by RT-PCR (Figure 3A,D; supplemental Figure 4). The fact that not all clones expressed both Cd3e and Ptcra but expressed TCR-β most probably reflects the different maturation stages of cells generated from individual clones, as it has been shown that Ptcra expression is down-regulated at the DN4-ISP transition.³⁸  Thus, the cells that show expression of Cd3e but lack Ptcra probably had already reached the later stage.

Importantly, almost all single Lin⁻CD122⁺NK1.1⁻DX5⁻ cells generating T cells also produced NK cells (Figure 3C), demonstrating the existence of Lin⁻CD122⁺NK1.1⁻DX5⁻ bipotent NK-/T-cell progenitors in adult BM.

Although the BM is the main site of NK-cell development, a distinct thymic-dependent NK pathway has recently been identified.¹⁷  Thymic and BM-dependent NK cells have different phenotypes and properties, but the developmental relationship between these 2 NK-cell populations remains to be established.

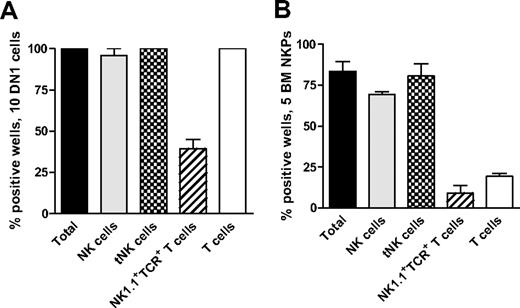

Recent studies have shown that early thymic progenitors (ETPs; Lin⁻CD25⁻Kit^high) are multipotent^10,11  and both double-negative 1 (DN1) and double-negative 2 (DN2) thymocytes can generate NK cells.³⁹  Thus, we used the ETP population to establish the optimal conditions to generate thymic NK (tNK) cells in vitro. When 10 ETPs were plated on OP9DL1 stroma with KL, FL, and IL15, essentially all the wells were positive and contained BM-dependent NK and tNK cells as well as T cells and NK1.1⁺TCR⁺ T cells (Figure 4A).

Next, we applied the same culture conditions to test whether tNK cells can be generated from Lin⁻CD122⁺NK1.1⁻DX5⁻ BM NKPs. When 5 sorted BM NKPs were cocultured on OP9DL1 stroma with KL, FL, and IL-15, 83% of wells were positive and contained both BM NK cells and tNK cells (80% and 69%, respectively; Figure 4B).

Importantly, tNK cells generated in vitro from NKPs and ETPs maintained the same phenotype as NK cells in the thymus, in that they expressed IL-7Rα, lacked the expression of Ly49 receptors, and coexpressed CD94, NKp46, and high levels of CD27¹⁷  (supplemental Figure 5).

Taken together, these data demonstrate that BM as well as tNK cells can be efficiently generated from BM NKPs as well as ETPs, and their generation depends on the presence of specific cytokines, implicated to be key regulators of NK-cell development.^{14,15,24,29,30}

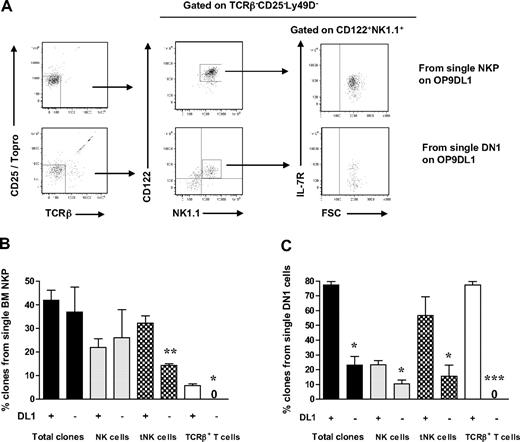

Whereas Notch signaling is critical for T-cell development,^40,41  it is not clear whether Notch might be involved in regulation of distinct stages of NK-cell development. To investigate whether Notch signaling is required for generation of BM and thymic-dependent NK cells, single BM Lin⁻CD122⁺NK1.1⁻DX5⁻ NKPs, or ETPs, were directly sorted onto OP9 stroma cells expressing Notch ligand Delta1 (DL1) or not, in the presence of KL, FL, and IL-15. Approximately 40% of single NKPs generated clones irrespective of the expression of DL1, and also the contribution toward the generation of BM-dependent NK cells was Notch-independent (Figure 5A-B). Although reduced, BM Lin⁻CD122⁺NK1.1⁻DX5⁻ cells also generated tNK cells in the absence of DL1, whereas T-cell generation from BM Lin⁻CD122⁺NK1.1⁻DX5⁻ cells was strictly Notch-dependent (Figure 5A-B). In contrast to BM NKPs, single ETPs showed reduced overall clonal growth in the absence of DL1 (Figure 5B-C). Notably, although not strictly dependent on DL1 activation, tNK-cell production from ETPs was enhanced in the presence of DL1, whereas T-cell generation from ETPs was entirely DL1-dependent. Taken together, both Lin⁻CD122⁺NK1.1⁻ DX5⁻ NKPs and ETPs contribute to generation of thymic and BM-dependent NK cells in vitro; and unlike the T-cell generation from these progenitors, the generation of both of these NK developmental pathways appears to be largely Notch-independent.

The present studies investigated and established several important and novel aspects of NK-cell lineage restriction and development. Although there is strong evidence that the lineage commitment of HSCs occurs as a stepwise process, the cellular pathways and restriction sites to generate bipotent and unipotent progenitors of lymphoid lineages remain the subject of debate and investigation.^1-4  Of relevance for our studies, it has remained an unresolved question whether adult multipotent hematopoietic progenitors become NK/T-cell lineage-restricted already in the BM or in the thymus.^5,6  In the present studies, using highly sensitive and specific assays, down to the single-cell level, we demonstrate that, although adult BM Lin⁻CD122⁺NK1.1⁻DX5⁻ progenitors have lost B and myeloid cell potentials, they sustain a combined NK- and T-cell potential in vivo and in vitro at the single-cell level. Interestingly, these NK/T progenitors contribute to both thymic and BM-dependent NK-cell pathways, and this process is neither suppressed, as the B-cell fate of progenitors with combined B- and T-cell potential, nor dependent on Notch signaling, as the T-cell potential of these bipotent NK-/T-cell progenitors.

Although it has been previously suggested that the BM Lin⁻CD122⁺NK1.1⁻DX5⁻ NKP population might be heterogeneous,^21,30  previous in vitro evaluation of the lineage potentials did not indicate that the candidate NKP committed Lin⁻CD122⁺NK1.1⁻DX5⁻ progenitors sustained any ability to generate blood cell lineages other than NK cells.²¹  Our finding that a large fraction of BM Lin⁻CD122⁺NK1.1⁻DX5⁻ progenitors also sustain T-cell potential might be explained by the fact that we have used the OP9DL1 stroma culture assay, which allows detection of the T-cell potential with very high efficiency at the single-cell level,^8,27  compared with the fetal thymic organ culture used in previous studies.²¹  In addition, the use of more optimal cytokine combinations, promoting both NK- and T-cell development from Lin⁻CD122⁺NK1.1⁻DX5⁻ progenitors, might have been important. This might also explain why BM Lin⁻CD122⁺NK1.1⁻DX5⁻ NKPs cultured in vitro at the single-cell level had a very high cloning efficiency and extensive NK-cell potential in the present studies, whereas in previous studies only one in 12 sorted BM Lin⁻CD122⁺NK1.1⁻DX5⁻ NKPs formed clones.²¹  The potential differences between cells generated from NKPs and LMPPs (used as a positive control in our studies) could reflect the developmental hierarchical relationship between LMPPs and NKPs, but most probably differences in in vitro kinetics of NK-cell generation and differentiation between the 2 progenitor types, and potentially also the impact of the other lymphoid cells generated in cultures of LMPPs. Importantly, NK cells generated in vitro from NKPs expressed multiple NK-cell specific markers, including NKp46, CD94, and a variety of Ly49 receptors, further supporting their NK-cell identity. To demonstrate that the combined NK- and T-cell potential did not reflect the existence of Lin⁻CD122⁺NK1.1⁻DX5⁻ NK cell as well as T-cell committed progenitors, single cell experiments were critical. The analysis of the lineage potentials of Lin⁻CD122⁺NK1.1⁻DX5⁻ cells cultured as single cells demonstrated that a majority of the clones that generated T cells also produced NK cells, indicating that the Lin⁻CD122⁺NK1.1⁻DX5⁻ NKP population contains a large fraction of bipotent NK-/T-cell progenitors.

Importantly, phenotypic and gene expression analysis was used to confirm that clones generated from single NKPs contain cells committed to the T-cell lineage (CD25⁺Thy1.2⁺ cells that coexpress CD4 and CD8 as well as TCR-β, CD3ϵ, and Ptα). The potential to generate T cells from NKPs is further supported by transplantation studies, clearly showing in vivo donor-derived reconstitution of CD3⁺CD4⁺CD8⁺NK1.1⁻ and CD4⁺CD8⁺NK1.1⁻ T cells from NKPs.

Previous studies did not evaluate the lineage potentials of candidate NKPs in vivo.²¹  Herein, by evaluating the progeny derived from transplanted BM Lin⁻CD122⁺NK1.1⁻DX5⁻ progenitors, we confirmed in vivo the combined NK- and T-cell potential (and lack of myeloid and B-cell potential). In addition to donor-derived NK and T cells, reconstituted recipient mice had a donor-derived CD3⁻NK1.1⁻ population in the spleen. Although the identity of these cells is unknown, they may represent transplanted undifferentiated NKPs or transitional NKPs.

NKT cells represent a sublineage of T cells with unique properties that play an important role against microbial, viral, and parasitic infections and are defined as T cells expressing the NK lineage receptors, such as NK1.1 as well as αβT cell receptors (TCRs).^42,43  The “true” mouse NK T cells are characterized by CD1d reactivity that can be identify either by the positive staining of the TCR with the aGC-loaded CD1d tetramer or the detection of invariant Vα14-Jα18: Vβ8.2, 7 2 TCR.^33,44  In the adult mouse, only 1% of the T cells in the spleen is aGC-CD1d-tetramer positive. The experimental setup used in our studies, with analysis of the progeny of cells generated from very low numbers of precursors, would not allow us to conclusively determine whether CD1d-restricted NK T cells are generated from NKPs. Therefore, the exact identity and functional properties of the NK1.1⁺TCR⁺ T cells generated from NKPs remain to be established. It is possible that NK1.1⁺ TCR⁺ T cells might be a fraction of T cells expressing NK1.1 or NK T cells. Regardless of whether the NK1.1⁺TCR⁺ cells represent NK1.1⁺ T cells or CD1d-restricted NK T cells, their generation from BM NKPs further substantiates that Lin⁻CD122⁺NK1.1⁻DX5⁻ NKPs are not NK lineage-restricted in their potential and can generate not only NK cells but also cells of non-NK lineage, such as different subset of T cells (conventional NK1.1⁻ TCR⁺ T cells and NK1.1⁺ TCR⁺ T cells). Separate studies using the CD1d-deficient mice will help to conclusively establish whether CD1d-restricted NK T cells can be generated from NKPs and to address the developmental relationship between NK and NK T cells.

The identification of bipotent NK-/T-cell progenitors in adult BM demonstrate that this prethymic lineage restriction is not unique during development but remains an important lineage restriction point in adult BM hematopoiesis.^18-20

The recent finding that in adult mice a distinct population of NK cells is produced by a thymic-dependent pathway is also compatible with the prethymic lineage restriction of bipotent NK-/T-cell progenitors, although the identity of the progenitors capable of producing thymic NK cells has not been established.¹⁷

The origin of the thymic NK cells remains unclear and controversial. Whereas the data from Vosshenrich et al¹⁷  support that the IL-7Rα⁺ NK cells are thymus-derived, studies by Stewart et al⁴⁵  demonstrated that these NK cells are also present in athymic mice, suggesting that the thymus might not be essential for the development of IL-7Rα⁺ NK cells, and might also be generated in secondary lymphoid tissues, for example, in the lymph nodes, before they reenter the thymus. In addition, a fraction of γδ T cells coexpress NK1.1 and IL-7Rα, and these “NK- like γδ T cells” highly resemble the thymic NK-cell phenotype.⁴⁵

In agreement with previous studies, approximately 40% of Lin⁻CD122⁺NK1.1⁻DX5⁻ NKPs expressed IL-7Rα. Studies using mice deficient in IL-7R signaling have shown that, whereas BM NK-cell development is IL-7–independent, thymic NK cells are IL-7–dependent.^24,30

Here we show through in vitro studies that the same BM Lin⁻CD122⁺NK1.1⁻DX5⁻ NKPs might contribute to both BM- and thymic-dependent NK pathways. However, it remains unclear whether thymic NK cells can be generated from NKPs after in vivo transfer and whether their development depends on the thymus. In studies in which we transplanted NKPs intravenously into IL-2rg–deficient recipient mice (data not shown), the thymus remained rudimental, not allowing conclusive analysis of IL-7Rα⁺ NK cells in the thymus, and there were also no detectable donor-derived IL-7Rα⁺ NK cells present in the spleen. However, even in steady state, IL-7Rα⁺ NK cells represent only 1% to 5% of total NK cells in the spleen¹⁷  (and data not shown). We also performed intrathymic transfers of NKPs as well as whole BM cells but failed to detect any NK-cell reconstitution in the thymus or in the periphery (data not shown). The inability to reconstitute thymic NK cells upon transplantation appears to be a general problem, probably reflecting technical limitations. Therefore, further studies are required to address whether Lin⁻CD122⁺NK1.1⁻DX5⁻ cells may represent thymic immigrants or whether the IL-7Rα⁺ NK cells reenter the thymus from the lymph nodes.

The critical role of Notch signaling in T-cell development is well established,^40,41,46  whereas the role of Notch in regulation of NK lymphopoiesis is unclear, although in vitro studies have suggested that Notch might be important for the NK lineage.⁴⁷  Herein, we demonstrate that, in contrast to B-cell development,^40,41  in vitro generation of BM as well as thymic NK cells from bipotent NK-/T-cell progenitors is neither restricted nor dependent on Notch signaling, whereas the generation of T cells from BM Lin⁻CD122⁺NK1.1⁻DX5⁻ NK-/T-cell progenitors is entirely Notch-dependent.

Our studies identify Lin⁻CD122⁺NK1.1⁻DX5⁻ cells in adult BM as bipotent NK-/T-cell progenitors, contributing to thymic as well as BM-dependent NK developmental pathways. The identification of a distinct NK-/T-cell progenitor will facilitate the identification of the molecular determinants of the lineage restriction of these progenitors from multipotent progenitors in the BM to NK and T cell-restricted progenitors in the BM and thymus.

The authors thank Drs Susanna Cardell, David Bryder, and William Agace for helpful discussions and Lilian Wittmann, Zhi Ma, and Shabnam Kharazi for expert advice and technical assistance.

This work was supported by the Swedish Medical Research Council, the Swedish Cancer Society, the Swedish Pediatric Cancer Society, and the Hemato-Linne grant. E.S. has an Assistant Professor position from the Swedish Cancer Society. H.N.C. is supported by the Iranian Ministry of Health. The Lund Stem Cell Center is supported by a Center of Excellence grant from the Swedish Foundation for Strategic Research.

Contribution: H.N.C. and E.S. designed and conceptualized the research, analyzed the data, and wrote the manuscript; H.N.C., Y.T., M.C., and C.M.C. purified cell populations, performed in vitro cultures and transplantation studies, and analyzed the data; and S.E.W.J. participated in the study design, analysis, and discussions of data and wrote the manuscript.
