In vivo structure/function and expression analysis of the CX₃C chemokine fractalkine

Chemokine (CX₃C motif) ligand 1 (CX₃CL1), also known as fractalkine or neurotactin,^1,2  and its receptor CX₃CR1³  have been assigned their own CX₃C chemokine family. This classification is based on the 3 amino acid gap between its N-terminal cysteines in CX₃CL1, with no spacing in CC chemokines and only one intervening amino acid in CXC chemokines.⁴  CX₃CL1 is furthermore structurally unique in that it is synthesized as a type I transmembrane protein with the CX₃C chemokine domain presented on an extended stalk.^1,2  Both CX₃CL1 and CX₃CR1 are widely expressed throughout the organism; but in given tissues, expression is often highly cell type-specific. Taking advantage of mice that harbor a targeted replacement of the CX₃CR1 gene by a GFP reporter,⁵  we could, for instance, show that CX₃CR1 expression in the brain is restricted to microglia. CX₃CR1 expression in the gut was found limited to lamina propria macrophages and CX₃CR1 expression in the blood is largely restricted to monocytes, which are uniform CX₃CR1 positive, albeit with discrete expression levels.⁶  CX₃CR1 is furthermore expressed by macrophage/dendritic cell precursors,⁷  various dendritic cell (DC) progenitors, a nonclassic CD8α⁺ DC subset,⁸  and plasmacytoid DCs. Aside from the prominent expression in the mononuclear myeloid compartment, CX₃CR1 receptor expression has been reported for an NK cell subset^3,9  and certain T-cell populations.^3,10,11  The in vivo expression pattern of the ligand CX₃CL1 remains less well defined and controversial¹²  but has been reported for neurons,¹³  intestinal epithelium,¹⁴  and inflamed endothelium.²  Notably, in humans eotaxin-3/CC chemokine ligand 26 was recently reported to be a functional ligand for CX₃CR1¹⁵ ; in mice, the CCL26 gene, however, is a pseudogene.

The analysis of CX₃C receptor and ligand knockout mice^5,16  has revealed a number of phenotypes resulting from the lack of CX₃CR1/CX₃CL1 interactions.^17-20  However, in-depth knowledge of the physiologic role of the CX₃C axis, including mechanistic insights, is missing. A key to understanding the biologic function of the CX₃C chemokine family probably lies in the unique structure of the ligand CX₃CL1. Whereas classic small peptide chemokines are secreted and form gradients by binding to ECM proteoglycans,²¹  CX₃CL1 is synthesized as a transmembrane protein with the CX₃C chemokine domain presented on an extended highly glycosylated mucin-like stalk.^1,2  To date, CX₃CL1 shares this unique membrane anchorage only with one other chemokine, the CXCR6 ligand CXCL16.²²  Expression of the CX₃C transmembrane chemokine on endothelial and epithelial cells was shown to mediate tight, pertussis toxin-resistant and integrin-independent interactions with CX₃CR1-expressing leukocytes.^23,24  Moreover, the adhesive interactions of CX₃CR1 and CX₃CL1 were found to be sufficient to support the recruitment of leukocytes through the endothelium of inflamed vasculature.²⁵  Proteolytic cleavage by the disintegrin-like metalloproteinase ADAM10 results in constitutive release of different-sized soluble CX₃CL1 entities.²⁶  Moreover, under inflammatory conditions, CX₃CL1 shedding is also promoted by ADAM17/TACE.^27,28  Cleavage could be required for the detachment of cells tethered by the CX₃CL1/ CX₃CR1 bond. Furthermore, ecto-domain shedding of CX₃CL1 generates a potential chemoattractant that could also actively interfere with additional CX₃CL1/ CX₃CR1 interactions. However, specific contributions of the membrane-tethered versus shed CX₃CL1 isoforms to the known in vivo activities of the CX₃C chemokine family remain to be established.

To gain further insight into the physiologic role of the CX₃C chemokine family, we used bacterial artificial chromosome (BAC) transgenesis to explore the in vivo expression pattern of CX₃CL1 and perform a structure/function analysis of shed and membrane-anchored CX₃CL1 entities. Here we report CX₃CL1^cherry:CX₃CR1^gfp mice that harbor fluorescent reporter genes embedded in the CX₃CL1 and CX₃CR1 loci and establish differential in vivo activities of tethered and shed CX₃CL1 isoforms.

This study involved the use of cx₃cr1^gfp mice⁵  and cx₃cl1^−/− mice¹⁶  on C57BL/6 background. For generation of BM chimeras, the indicated recipient animals were lethally irradiated with 950 cGy and subsequently reconstituted with 5 × 10⁶ donor BM cells. Chimeric animals were analyzed 8 weeks after transplantation. All mice were maintained under specific pathogen-free conditions and handled under protocols approved by the Weizmann Institute Animal Care Committee according to international guidelines.

For the generation of the transgenic mice, the RP24–147I16 BAC clone (Roswell Park Cancer Institute) spanning 120 kb, including the murine CX₃CL1 locus, was modified as described previously using the pDelsac shuttle vector strategy²⁹  or using Red/ET recombineering.³⁰  The sequences of the CX₃CL1^105Δ and CX₃CL1^395AA BAC transgenes can be found in supplemental Figure 4 (see the Supplemental Materials link at the top of the article). Expression of the CX₃CL1^105Δ transgene can be monitored according to detection of myc-tagged protein. The CX₃CL1^395AA transgene harbors a silent mutation introducing an Xho1 site. Its expression can therefore be assessed and compared with the expression of endogenous CX₃CL1 by quantification of Xho-resistant and -sensitive RT-PCR products. The BAC DNA (1 ng/μL) was injected into the fertilized CB6F1 oocytes; transgenic mice were established and backcrossed to C57BL/6 mice (generations > 8). CX₃CL1^105Δ mice are typed by PCR using the forward primer 5′-CCAGGCTGGCTATGGTCCAACTG-3′ and the reverse (myc) primer reverse 5′-GAGATGAGTTTTTGTTCGGGCC-3′. CX₃CL1^395AA mice are typed by PCR using the forward primer 5′-CCAGGCTGGCTATGGTCCAACTG-3′ and the reverse primer 5′-CACTGGCACCAGGACGTATG-3′ that amplify a 1.3-kb fragment from the WT and transgenic CX₃CL1 loci; the product of the CX₃CL1^395AA gene is cleavable by Xho1 into a 300-bp and 1-kb fragment. CX₃CL1^cherry mice are typed by PCR using the forward primer 5′-CCAGCCGCGAGTGACTAC-3′ and the reverse primer 5′-CCCCAGGGAGATGCAGTC-3′, yielding a 1-kb product from the transgenic locus and a 300-bp product from the endogenous CX₃CL1 locus.

For the isolation of lung cells, lobes were cut and incubated in PBS containing Ca²⁺ and Mg²⁺ (Sigma-Aldrich) supplemented with 4 mg/mL of collagenase D (Roche Diagnostics) for 1 hour at 37°C. Kidneys were minced and incubated in RPMI 1640 supplemented with 2 mg/mL of collagenase D and 1 mg/mL of dispase II (Roche Diagnostics) for 1 hour at 37°C. After erythrocyte lysis in ACK buffer (0.15M NH₄Cl and 0.01M KHCO₃), cells were passed through a 100-mm mesh and centrifuged at 300g for 5 minutes at 4°C. For the flow cytometric analysis, cells were suspended with PBS supplemented with 2mM EDTA, 0.05% sodium azide, and 1% of fetal calf serum.

To obtain intestinal epithelial cells and lamina propria cells, large intestine was longitudinally sectioned and cut into small pieces. Colonic epithelial cells were isolated by incubation in 5 mL HBSS containing 10mM HEPES and 5mM EDTA (pH 8.0) at 37°C on a shaking incubator and collected by passing through a 100-mm mesh. For the isolation of lamina propria cells, remnant colon pieces were digested by 5 mL HBSS containing 10% FBS, 1 mg/mL of dispase II (Roche Diagnostics) and 0.5 mg/mL of collagenase D (Sigma-Aldrich) at 37°C shaking incubator for 1 hour. Completely digested colon was passed through a 100-mm mesh and collected by centrifugation.

Total RNA was extracted from the terminal ileum of CX3CL1^105Δ BAC transgenic mice using a software-controlled sealed homogenization system (gentleMACS dissociator) and RNA tissue kit (5′). cDNA synthesis was performed with 1 μg of total RNA by Masterscript RT-PCR kit (5′) with exon-spanning primers for HPRT, CX₃CL1, and with myc epitope primers for the CX₃CL1^105Δ transgene.

The 293T cells cultured in serum-free media were transiently transfected with pCDNA3 vector encoding the CX₃CL1^105Δ protein by polyethylenimine. After 24 hours, cells were lysed and incubated on ice for 20 minutes, and then centrifuged at 20 000g for 30 minutes. Colonic epithelial cells from CX3CL1^105Δ mice were lysed and incubated on ice for 20 minutes and then centrifuged at 20 000g for 30 minutes. Protein samples and supernatant were separated on 15% SDS-PAGE and blotted onto a nitrocellulose membrane (GE Healthcare). Detection was performed using mouse anti-cMyc antibody (9E10) and goat anti–mouse HRP (1:10 000, The Jackson Laboratory). Blots were developed with the ECL kit.

Intestine, kidneys, and lungs were obtained from CX₃CL1^cherry:CX₃CR1^gfp mice. Intestine swiss rolls³¹  and kidney samples were fixed overnight with 2% paraformaldehyde (PFA) at 4°C. Whole lungs were swollen by the injection of 1 mL of 2% PFA into trachea and fixed overnight with 2% PFA at 4°C. Samples were incubated in 30% sucrose at 4°C for 2 to 3 days, embedded in Tissue-Tek optimum cutting temperature compound (Sakura Finetechnical), and frozen in a bath of liquid nitrogen (N₂) cold isopentane. Frozen intestine, kidney, and lung tissues were sectioned into 10- to 12-mm sections using a Leica cryo-microtome. Intestinal sections were stained using the periodic acid-Schiff staining protocol³²  for goblet cell detection. Brains were fixed overnight with 2.5% fresh PFA at 4°C and soaked in 30% sucrose for 2 to 3 days, frozen, and cut into 25-mm sections using a sliding microtome. Lung sections were stained for Clara cell secretory protein (CCSP) using rabbit anti-CCSP, followed by Dylight 488 conjugated anti–rabbit (The Jackson Laboratory). Brain sections were stained with anti-NeuroN (NeuN) or anti-DCX followed by Cy5-conjugated anti–rabbit Ab or eFluor488 conjugated anti–rabbit Ab. Spinal cord was fixed with 2.5% fresh PFA at 4°C for 2 days and decalcified by 12.5% EDTA (pH7.4) at 4°C for 2 to 3 days. Spinal cord was incubated in 30% sucrose for 2 to 3 days, and lumbar regions (L3-L5) were embedded in optimal cutting temperature (OCT). Frozen L3 to L5 was sectioned into 10-mm sections using a sliding microtome. Sections were stained with biotin anti-calcitonin gene–related peptide (CGRP), followed by streptavidin-conjugated aminomethyl coumarin acetate.

Sections of kidney, lung and brain were imaged from LSM 510 confocal microscopy (Carl Zeiss) equipped with serial tile scanning. Image acquisition was processed with Zeiss LSM Image Browser Software and Adobe Photoshop CS5. Naïve tissue of terminal ileum and intestinal swiss roll sections were also analyzed with LSM 510 confocal microscopy. Spinal cord pictures were taken using a Zeiss Axioskop II fluorescent microscope.

Before imaging, mice were anesthetized by intraperitoneal injection of 100 mg ketamine, 15 mg xylazine, and 2.5 mg acepromazine per kilogram. After a midway section through the abdominal wall and peritoneum, the ileum was externalized carefully and immobilized using a custom-built imaging chamber. The lumen was exposed using a cautery (AARON Medical) and carefully flushed with PBS to remove fecal material. During imaging, mice were supplied with oxygen and their core temperature was maintained at 37°C with a warming plate. Imaging was performed using the Ultima 2-photon microscope fitted with a Ti-sapphire Deep-sea Mai Tai pulsed laser with a water immersed 20× objective, the excitation wavelength was set to 970 nm. To create time-lapse sequences, we typically scan 5 to 30 μm of tissue depth, at 5-μm Z-steps every 20 to 40 seconds. The movement of the cells was visualized using Volocity 6.0 software (Improvision Ltd).

The following fluorochrome-labeled monoclonal antibodies and staining reagents were used according to the manufacturer's protocols: PE-conjugated anti-CD115 (eBioscience), allophycocyanin-conjugated anti-Gr1 (Ly6C/G, eBioscience), and peridinin chlorophyll protein-conjugated anti-CD11b (eBioscience) were used for blood monocyte staining. Pacific blue-conjugated anti-CD45.2 (eBioscience) was used for intestinal cell staining. CD45-allophycocyanin (eBioscience) was used for kidney and lung staining. Cells were analyzed on a LSR cytometer (BD Biosciences) using FlowJo 7.6 software (TreeStar).

For the specific detection of transgene-encoded CX₃CL1, it was captured from the serum by rat anti–mouse CX₃CL1 (4 μg/mL, R&D Systems). As a secondary antibody, we used biotinylated chicken anti-cMyc (1:5000, Immunology Consultant Laboratories) and streptavidin-HRP. IL-6 and endogenous and transgene-encoded CX₃CL1 from the serum were measured by ELISA kit (DuoSet ELISA kit, R&D Systems) following the manufacturer's protocol.

Indicated mice were challenged by oral gavage with Aspergillus conidia (300 μL of 1-2 × 10⁸ conidia/mL). The following day, the mice were killed and analyzed by microscopic analysis for the presence of transepithelial dendrites (TEDs). Only TEDs that reached the lumen were considered for the quantification.

Mice received one cycle (7 days) of dextran sulfate sodium salt (DSS, MP Biomedicals, C-160110) treatment (1.5% in drinking water). For continuous monitoring of colitis, we used a high-resolution murine video endoscopic system (Karl Storz). Endoscopic quantification of colitis was graded as described.³³

The results were analyzed by 1-way ANOVA followed by Bonferroni Multiple Comparison and are expressed as mean ± SEM or SD.

In-depth understanding of the physiologic role of the CX₃C chemokine family requires the definition of the cell types that express the receptor/ligand pair in vivo. Analysis of CX₃CL1 expression has so far, however, been restricted to in situ hybridization and immunohistochemistry,^13,34,35  which provide limited resolution and preclude the analysis of live tissue. To map the distribution of CX₃CL1-expressing cells in tissue context, we hence adopted a reporter gene approach we had previously applied to the CX₃CR1 receptor.⁵  Specifically, we used homologous recombination to replace the first exon of the CX₃CL1 gene in a BAC spanning the CX₃CL1 locus (RP24–147I16) with a cherry reporter gene³⁶  (Figure 1A). The modified CX₃CL1 BAC DNA was then injected into fertilized oocytes of CB6F1 mice to establish transgenic CX₃CL1^cherry reporter animals, which were found healthy and fertile.

To simultaneously analyze the distribution of CX₃CL1- and CX₃CR1-expressing cells in tissue context, CX₃CL1^cherry reporter mice were crossed onto the CX₃CR1^gfp background.⁵  Confirming earlier reports based on in situ hybridization,^13,34,35  fluorescent microscopy analysis of brain sections of CX₃CL1^cherry mice revealed prominent CX₃CL1 expression in the NeuN⁺ mature neurons (Figure 1B-D) but not in the DCX⁺ neuronal precursors (Figure 1E). In steady state, CX₃CL1 expression was absent from the brainstem, midbrain, and cerebellum (supplemental Figure 1A) in CX₃CL1^cherry:CX₃CR1^gfp mice but restricted to the hippocampus (supplemental Figure 1C), striatum (supplemental Figure 1D), and cortical layer II (supplemental Figure 1E). CX₃CR1 was found exclusively expressed by microglial cells. Moreover, CX₃CL1 expression was also readily detectable in neurons in the dorsal horn (Figure 1G), but not in CGRP-positive somata in the dorsal root ganglia (Figure 1H).

In the lung, CX₃CL1 was found expressed on both alveolar and bronchial epithelial cells, including CCSP⁺ Clara cells (Figure 2A-B). Flow cytometric analysis of unchallenged lungs revealed CX₃CL1/Cherry expression confined to nonhematopoietic (CD45⁻) cells, whereas CX₃CR1/GFP expression was restricted to CD45⁺ cells (Figure 2C).

Analysis of kidneys revealed CX₃CL1 expression by tubular epithelial cells and glomeruli, alongside with CX₃CR1-expressing DCs³⁷  (Figure 2D-E). Again, flow cytometric analysis of CX₃CL1^cherry:CX₃CR1^gfp mice indicated ligand and receptor expression in CD45⁻ and CD45⁺ cells, respectively (Figure 2F).

In the intestinal lamina propria, CX₃CR1 is known to be prominently expressed by a monocyte-derived macrophage population.^20,38  Intestinal CX₃CL1 expression, on the other hand, was reported for the epithelial cell layer.¹⁴  Analysis of CX₃CL1^cherry:CX₃CR1^gfp mice confirmed this discrete expression pattern (Figure 3A). Interestingly, however, closer examination of tissue sections revealed a heterogeneous expression of the CX₃CL1 reporter in the intestinal epithelia. (Figure 3B-D). Analysis combined with periodic acid-Schiff staining established that the epithelial cells expressing constitutively high CX₃CL1 levels were mucus-secreting goblet cells (Figure 3E). Consistent with the changing abundance and location of goblet cells along the proximal and distal gastrointestinal tract, CX3CL1/Cherry-positive cells were found in crypts or superficially in close contact with the gut lumen (supplemental Figures 2 and 3). CX3CL1/Cherry-positive epithelial cells, in particular goblet cells, and CX3CL1/GFP-positive macrophages in the underlying lamina propria were readily detectable by 2-photon microscopy in intravital studies (supplemental Video 1). Taken together, CX₃CL1^cherry:CX₃CR1^gfp mice provide a novel powerful tool to investigate the interface of the CX₃C chemokine family in tissue context and live animals.

CX₃CL1 is synthesized as a large 373-amino acid type I transmembrane protein with the CX₃C chemokine module presented on top of a highly glycosylated stalk.^1,2  Cleavage by metalloproteases can subsequently result in the generation of shed CX₃CL1 fragments that, depending on the cleavage site, retain or lack the stalk³⁹  (A.L., unpublished observations, August 2010). CX₃CL1 can thus potentially act as membrane-anchored adhesion molecule or as classic diffusible chemoattractant; experimental evidence for both activities has been reported.^23,24,40  Specific contributions of the membrane-anchored versus shed CX₃CL1 isoforms to established in vivo activities of the CX₃C chemokine family, however, remain to be shown.

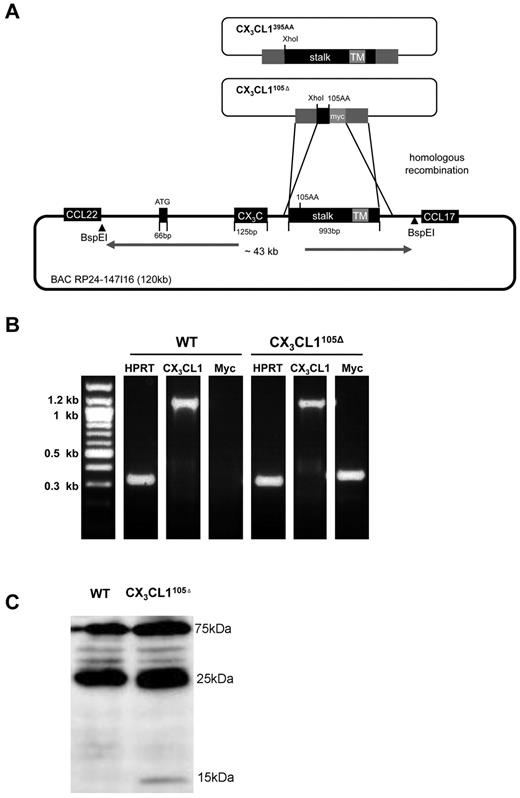

To test for physiologic functions of membrane-tethered and secreted CX₃CL1 entities, we decided to perform a structure/function analysis by generating mice that exclusively express a soluble CX₃CL1 isoform. Specifically, we used the aforementioned BAC transgenesis approach to introduce into CX₃CL1-deficient mice¹⁶  a CX₃CL1 locus modified to encode an obligatory secreted, truncated CX₃CL1 protein lacking the mucin stalk (CX₃CL1^105Δ). To allow for subsequent detection of the CX₃CL1^105Δ protein, a C-terminal c-myc epitope was added (Figure 4A; supplemental Figure 4A). In parallel, we reconstituted CX₃CL1^−/− mice with a BAC transgene encoding a WT CX₃CL1 (CX₃CL1^395AA) harboring a silent mutation for detection (supplemental Figure 4B).

After confirming expression of the respective constructs in vitro (supplemental Figure 5A), we established BAC transgenic mice and backcrossed them to WT C57BL/6 mice. To confirm physiologic transgene expression, we performed RT-PCR analysis of intestinal tissue that revealed the expression of the transgenes in parallel to the endogenous CX₃CL1 (Figure 4B). RT-PCR analysis of intestinal tissue of CX₃CL1^395AA mice revealed comparative expression levels of transgene-encoded CX₃CL1 and endogenous CX₃CL1, according to similar quantities of Xho cleavable and resistant PCR products (supplemental Figure 5B). Expression of the myc-tagged CX₃CL1^105Δ protein was furthermore confirmed by Western blot analysis of intestinal epithelia cells (Figure 4C).

CX₃CR1 is prominently expressed by all circulating blood monocytes, both in human and mice.⁶  Levels of CX₃CR1 expression are, however, notably distinct between the main monocyte subsets (ie, Ly6C^lo/CD14^dimCD16⁺ and Ly6C^hi/CD14⁺CD16^+/− cells) in the mouse and human.⁶  We recently showed that engagement of CX₃CR1 by its ligand provides a critical survival signal, in whose absence (in CX₃CR1^gfp/gfp or CX₃CL1^−/− mice) the number of circulating Ly6C^lo CX₃CR1^hi monocytes is significantly reduced.⁴¹  This finding provided a potential mechanistic explanation for the relative protection of CX₃CR1 or CX₃CL1-deficient animals from atherosclerosis and complications after arterial injury.^19,42,43  To probe for a role of the shed CX₃CL1 isoform in the control of monocyte survival, we investigated whether introduction of our CX₃CL1^105Δ BAC transgene would rescue Ly6C^lo monocyte survival in CX₃CL1^−/− mice. To confirm the exposure of leukocytes to the secreted CX3CL1 entity in CX₃CL1^105Δ:CX₃CL1^−/− mice, we took advantage of the fact that shed, presumably neuronal-derived CX₃CL1 becomes detectable in serum, when CX₃CR1 is absent from the peripheral hematopoietic compartment (Figure 5A).⁴⁴  Accordingly, the myc-tagged CX₃CL1 isoform was readily detectable by a myc-epitope directed ELISA in the serum of [CX₃CR1^gfp/gfp > CX₃CL1^105Δ:CX₃CL1^−/−] chimeras (Figure 5B). However, only the CX₃CL1^395AA transgene encoding full-length CX₃CL1 restored Ly6C^lo monocyte frequencies to WT levels (Figure 5C). In contrast, the Ly6C^lo monocyte compartment remained reduced in CX₃CL1^105Δ:CX₃CL1^−/− mice. This finding was corroborated by the analysis of BM chimeras generated by transferring CX₃CR1^gfp/+ BM into CX₃CL1^105Δ:CX₃CL1^−/− and CX₃CL1^395AA:CX₃CL1^−/− mice. Again, only the membrane-anchored but not the secreted CX₃CL1 isoform resulted in a significant rescue of Ly6C^lo monocytes (supplemental Figure 6A).

Collectively, these results suggest that the survival signal for circulating Ly6C^lo CX₃CR1^hi monocytes depends on their encounter of membrane-anchored CX₃CL1.

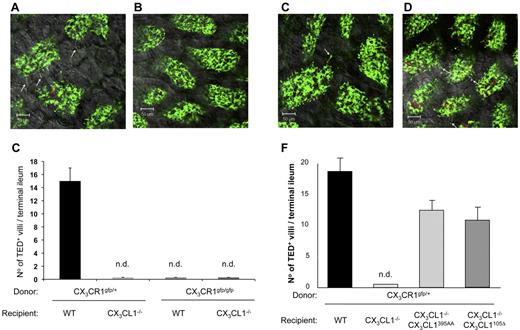

Rescigno et al were the first to report that intestinal mononuclear phagocytes could penetrate epithelial tight junctions to reach the gut lumen for content sensing.⁴⁵  Taking advantage of CX₃CR1^gfp mice,⁵  we subsequently demonstrated these extensions in tissue context and established that formation of TEDs by what are now considered CX₃CR1-expressing macrophages⁴⁶  required the CX₃CR1 chemokine receptor.²⁰  In light of a report challenging this notion⁴⁷  and to confirm the dependence of TED formation on CX₃CR1/L1 interaction in ligand mutants, we generated mixed BM chimeras by transferring heterozygote and homozygote mutant CX₃CR1^gfp BM into lethally irradiated WT and CX₃CL1^−/− mice. TED formation in the respective chimeras was further boosted by oral gavage with A fumigatus conidia.⁴⁸  As seen in Figure 6A-C, TEDs were readily formed in the terminal ileum of [CX₃CR1^gfp/+ > WT] mice but were undetectable in [CX₃CR1^gfp/+ > CX₃CL1^−/−] animals, as well as in [CX₃CR1^gfp/gfp > WT] controls. Collectively, this confirms the requirement of CX₃CR1/CX₃CL1 interactions for their formation.

Having established the absence of TEDs in CX₃CL1-deficient mice, we next asked whether their formation could be restored by introduction of the obligatory secreted CX₃CL1 isoform. To this end, CX₃CR1^gfp/+ BM was transferred into irradiated BAC transgenic CX₃CL1^395AA:CX₃CL1^−/− mice and CX₃CL1^105Δ:CX₃CL1^−/− mice, as well as nontransgenic CX₃CL1-deficient animals. Seven weeks after BM transfer, the animals were gavaged with A. fumigatus conidia and analyzed for the presence of TEDs in their terminal ileum. As expected, TEDs were absent from CX₃CL1^−/− recipient mice. Introduction of the BAC transgene encoding the WT CX₃CL1 restored TED formation (Figure 6D), albeit at slightly reduced numbers (Figure 6F), thus validating our approach. More importantly, however, TEDs were also readily observed in (CX₃CR1^gfp/+ > CX₃CL1^105Δ:CX₃CL1^−/−) chimeras (Figure 6E-F), establishing that epithelial expression of a secreted CX₃CL1 entity was sufficient to allow lamina propria CX₃CR1-expressing macrophages to extend protrusions toward the lumen.

Collectively, these results establish that TED formation can be promoted by a secreted, potentially diffusible CX₃CL1 entity lacking the glycosylated stalk and is hence independent of signaling by the transmembrane CX₃CL1 ligand toward the intestinal epithelial cells.

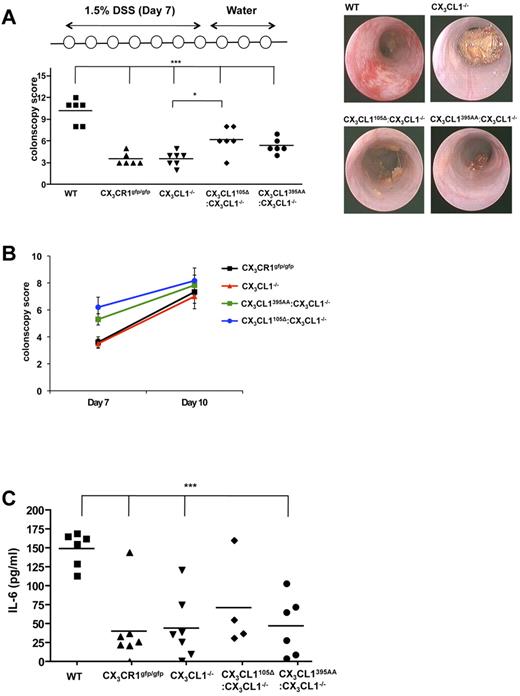

CX₃CR1-deficient mice have been reported to display altered sensitivity to protocols inducing gut inflammation.^49-51  However, in none of the cases, it has been tested whether the observed phenotype was specifically because of impaired TED formation by CX₃CR1⁺ intestinal macrophages. To investigate this issue, we challenged WT mice, CX₃CR1^gfp/gfp mice, CX₃CL1^−/− mice, and CX₃CL1^−/− mice harboring the CX₃CL1^395AA or CX₃CL1^105Δ BAC transgenes by oral administration of DSS. This established colitis model is characterized by ulceration and submucosal inflammation provoked by disruption of the epithelial barrier and exposure to luminal microbiota.⁵²  As previously reported,⁴⁸ CX₃CR1^−/− mice displayed a relative protection toward the DSS challenge compared with littermate controls, as did CX₃CL1^−/− mice judged by endoscopic scores and their serum IL-6 levels (Figure 7). Interestingly, however, when TEDs where restored in CX₃CL1^−/− mice by introduction of the CX₃CL1^395AA and CX₃CL1^105Δ transgenes, the animals developed more severe colitis, as judged by endoscopy and histologic grading (Figure 7A-B; and data not shown). Notably, repeated endoscopy showed that the effect was more pronounced in early stages of colitis development (day 7) compared with a later time point (day 10; Figure 7C). Given the fact that the secreted CX₃CL1 failed to reconstitute monocyte survival, these data suggest a direct link of the ability of CX₃CR1 macrophages to reach the gut lumen (ie, their formation of TEDs) and the propensity to develop DSS-induced colitis.

Here we used a BAC transgenesis approach to study the in vivo expression pattern and structure/function aspects of the unique CX₃C chemokine CX₃CL1, known as fractalkine. Specifically, we generated reporter animals that harbor genes encoding red and green fluorescent reporter proteins under the control of the CX₃CR1 and CX₃CL1 promoter control, respectively. Furthermore, we probed for distinct activities of membrane-tethered and shed entities of the CX₃CL1 ligand by testing their potential to reconstitute known phenotypes resulting from CX₃CL1 deficiencies.

CX₃CL1^cherry:CX₃CR1^gfp mice provide a unique tool to study the CX₃C interface under various physiologic conditions, including steady state, the main focus of our present study, as well as inflammatory and pathologic conditions. Using a combination of flow cytometric, immunohistochemical, and intravital microscopic approaches, we show that, in all tissues analyzed under homeostasis, CX₃CR1 and CX₃CL1 expression is confined to hematopoietic and nonhematopoietic compartments, respectively.

In the healthy brain, CX₃CL1 expression was found in hippocampal neuronal somata, as well as neurons in the striatum and specific cortical layers. CX₃CL1/Cherry expression was absent from neuronal bodies in the brain stem, hypothalamus, midbrain, and cerebellum. CX₃CL1/Cherry expression was detected in NeuN⁺ mature neurons, but absent from DCX⁺ neuronal precursors. In the spinal cord, CX₃CL1 expression was observed in neurons in the dorsal horn, but not the dorsal root ganglia. Expression of the receptor CX₃CR1 is restricted to microglial cells throughout the brain and spinal cord, as previously reported.⁵  No prominent colocalization of CX₃CR1- and CX₃CL1-expressing cells was observed. Of note, however, expression of the cherry and gfp transgenes in CX₃CL1^cherry:CX₃CR1^gfp mice reports on the respective promoter activities but not the actual presence of the receptor/ ligands, as would be the case with fusion proteins. This fact could be particularly relevant with respect to axon and dendrite-bearing neurons and the highly ramified microglia,⁵³  which might well interact through CX₃CL1 and CX₃CR1 expressed on extensions distant from the actual cell body.

CX₃CL1/R1-based neuronal-microglia communication has been proposed to affect the severity of neurodegenerative diseases. Thus, several research groups showed a neuroprotective function of CX₃CL1 in vitro.^54-56  Furthermore, CX₃CR1 deficiency was reported to cause microglial neurotoxicity⁵⁷  and to promote τ-associated neurodegenerative diseases (tauopathies).⁵⁸  CX₃CR1-deficient mice seem also less sensitive to neuropathic pain.⁵⁹  Supporting a role of the CX₃C axis in pain sensation, we found CX₃CL1/Cherry expressed by dorsal horn interneurons. However, in contrast to a previous report,⁶⁰  CX₃CL1 expression was in steady state absent from the dorsal root ganglia sensory neurons that project CGRP fibers to these interneurons. CX₃CL1^cherry:CX₃CR1^gfp mice should be instrumental in future studies to define the functional roles of the CX₃C chemokine family under pathologic conditions in the central nerve system.

In the healthy lung, we found CX₃CL1 expressed by bronchial and alveolar epithelial cells, whereas CX₃CR1 expression was confined to resident lung myeloid cells. In humans, CX₃CL1 was reported to be induced on bronchial epithelial cells and smooth muscle cells by inflammatory cytokines.⁶¹  CX₃CR1 is expressed by alveolar DCs that arise under inflammatory conditions from blood monocytes.⁶²  Furthermore, CX₃CR1 expression and curiously also CX₃CL1 expression can reportedly be triggered on alveolar macrophages by exposure to cigarette smoke.^63,64  Moreover, a recent study suggested that under inflammatory conditions CX₃CL1 acts as survival factor for CX₃CR1⁺ T_H2 cells affecting lung pathology.¹¹

CX₃CR1 is expressed by renal DCs and macrophages that form a contiguous network throughout the entire kidney.³⁷  Analysis of the CX₃CL1^cherry:CX₃CR1^gfp reporter mice revealed constitutive CX₃CL1 expression by glomerular endothelial cells and renal tubular epithelial cells. Notably, CX₃CL1 expression was reported to be up-regulated in renal failure and a lupus nephritis model.^65,66  Moreover, CX₃CR1-deficient mice were reported to be relatively protected in a renal ischemic-reperfusion injury model because of reduced myeloid inflammatory cell infiltrates and reduced fibrosis.^67,68  Collectively, CX₃C interactions seem to play a critical role in inflammations both affecting leukocyte recruitment and local intercellular communication and CX₃CL1^cherry:CX₃CR1^gfp mice should prove useful to decipher the specific role of the CX₃C chemokine family in these processes.

Analysis of CX₃CL1^cherry:CX₃CR1^gfp double reporter mice corroborated earlier reports of CX₃CL1 expression by intestinal columnar epithelial cells in terminal ileum, colon, and cecum. Moreover, our immunohistochemical and intravital microscopic analysis revealed that CX₃CL1 expression was especially prominent in mucus-secreting goblet cells in ileum and colon. The physiologic significance of this CX₃CL1 expression by goblet cells and its relevance in their potential cross-talk with CX₃CR1-expressing intestinal macrophages remain to be studied.

CX₃CL1 is a unique chemokine in that it is synthesized as type I membrane protein and thus membrane-anchored with the CX₃C chemokine domain displayed on an extended mucin-like stalk.^1,2  Subsequent cleavage by metalloproteases, such as ADAM 10 and ADAM 17, can however result in the release of a shed CX₃CL1 isoform.^26-28  To probe for distinct functions of these membrane-tethered and soluble CX₃CL1 entities, we generated BAC transgenic mice expressing a WT or an obligatory secreted chemokine variant and introduced them onto a CX₃CL1-deficient genetic background.¹⁶  We then asked whether these transgenes would be able to reconstitute known deficiencies caused by the absence of CX₃CL1/R1 interactions.

We had previously shown that human and mouse monocytes depend on CX₃CR1 engagement as a survival signal.⁴¹  In that study, recombinant soluble CX₃CL1 was able to protect human CD14⁺⁺CD16⁻ monocytes from death induced by serum deprivation in vitro.⁴¹  In contrast, in the present study, only the membrane anchored full-length CX₃CL1 was able to rescue the Ly6C^lo CX₃CR1^hi blood monocytes in [CX₃CR1^gfp/+ > CX₃CL1^395AA:CX₃CL1^−/−] BM chimeras. However, interactions of CX₃CR1 and soluble CX₃CL1 were insufficient to restore monocyte survival in CX₃CL1^105Δ:CX₃CL1^−/− mice. In vivo monocytes seem hence to require the encounter of membrane-anchored CX₃CL1, rather than shed CX₃CL1 for their survival. Notably, there is no general CX₃CL1/Cherry expression detectable on vascular endothelium of CX₃CL1^cherry:CX₃CR1^gfp mice in steady state. We hence speculate that circulating monocytes encounter CX₃CL1 on their transient passage through specific CX₃CL1-decorated vascular compartments, such as the choroid plexus, the lung capillaries, or the kidney glomeruli.

Intestinal lamina propria resident CX₃CR1⁺ macrophages have been reported to extend TEDs to sense and potentially sample luminal pathogens in the lamina propria. We had previously shown that TED formation was dependent on CX₃CR1.²⁰  However, Chieppa et al subsequently demonstrated that certain, albeit morphologic distinct, extensions might be formed in the absence of CX₃CR1 but rather relied on MyD88-dependent TLR signaling by epithelial cells.⁴⁷  Here we show, by establishing the absence of TEDs in both CX₃CR1- and CX₃CL1-deficient mice, that their formation indeed depends on the CX₃CL1/R1 axis. Moreover, transgenic expression of both a full-length (CX₃CL1^395AA) and a truncated, obligatory secreted CX₃CL1 entity (CX₃CL1^105Δ) in CX₃CL1-deficient mice restored the ability of CX₃CL1⁺ macrophages to extend dendrites toward the lumen. The physiologic relevance of TEDs is under debate; and, specifically, it remains to be shown how they are related to reported gut-related phenotypes of CX₃CR1 KO mice.^49-51,69  Interestingly, we establish that TEDs, probably by allowing CX₃CR1⁺ macrophages to sense the gut lumen, can contribute to the robustness of gut homeostasis toward a colitis challenge.

By demonstrating that distinct activities of the CX₃C axis, such as the promotion of TED formation and monocyte survival, depend on the presence of shed and membrane-anchored CX₃CL1 entities, respectively, we establish, for the first time, unique in vivo activities of the structurally discrete CX₃CL1 isoforms. Notably, the anchorage of the CX₃C domain might be particularly critical in the circulation, where shed moieties would be expected to be rapidly diluted and might hence not reach critical local concentrations. In the tissue context, however, the soluble CX₃C entity might be able to build the required local gradient and hence suffice.

Collectively, the accumulating evidence from our study and the literature suggests CX₃CR1/L1 interactions as critical components in the development of inflammatory diseases in diverse organs, including the lung, intestine, and kidney, as well as neurodegenerative diseases. Although much remains to be elucidated, the CX₃C family remains an interesting therapeutic target, and the future study on molecular mechanism of the CX₃C axis might well provide new avenues for the treatment of inflammatory diseases.
