In 2007 and 2009, the regulatory approval of the first-in-class complement inhibitor eculizumab revolutionized the clinical management of 2 rare, life-threatening clinical conditions: paroxysmal nocturnal hemoglobinuria (PNH) and atypical hemolytic uremic syndrome (aHUS). Although being completely distinct diseases affecting blood cells and the glomerulus, PNH and aHUS remarkably share several features in their etiology and clinical presentation. An imbalance between complement activation and regulation at host surfaces underlies both diseases precipitating in severe thrombotic events that are largely resistant to anticoagulant and/or antiplatelet therapies. Inhibition of the common terminal complement pathway by eculizumab prevents the frequently occurring thrombotic events responsible for the high mortality and morbidity observed in patients not treated with anticomplement therapy. Although many in vitro and ex vivo studies elaborate numerous different molecular interactions between complement activation products and hemostasis, this review focuses on the clinical evidence that links these 2 fields in humans. Several noninfectious conditions with known complement involvement are scrutinized for common patterns concerning a prothrombotic statues and the occurrence of certain complement activation levels. Next to PNH and aHUS, germline-encoded CD59 or CD55 deficiency (the latter causing the disease complement hyperactivation, angiopathic thrombosis, and protein-losing enteropathy), autoimmune hemolytic anemia, (catastrophic) antiphospholipid syndrome, and C3 glomerulopathy are considered. Parallels and distinct features among these conditions are discussed against the background of thrombosis, complement activation, and potential complement diagnostic and therapeutic avenues.

The biological process of hemostasis seals injuries in blood vessels by thrombus formation and initializes repair achieving conservation of vital blood components and blockage of invading pathogens. Host defense mechanisms by clot formation go beyond simply plugging a hole. Bacteria become cross-linked and thus entrapped in fibrin fiber networks.1 This mechanism is reminiscent of the ones in arthropods in which clot formation of the hemolymph is 1 key mechanism to serve conservation and defense at the same time.2,3 In mammals, blood conservation and pathogen defense are organized in the response units of hemostasis and immunity. However, both units are often required simultaneously when addressing injured vasculature. Because of coevolution, it seems obvious that multiple physiologic links between these 2 units reinforce each other.3-5 At the heart of this intercommunication are the 2 serine protease networks of the coagulation cascade and the complement system that act as first responders to diverse danger signals6-8 (for a topical representation of the complement cascade, see Figure 1A). Crucial cellular surfaces also link these 2 fields. Many studies have identified different complement-based avenues that activate platelets, endothelium, and/or leukocytes to promote prothrombotic cell activation, but diverse findings prohibit to pinpoint which complement effectors are most critically involved in inducing a prothrombotic state (for selected studies, see Table 1). Yet, the contrary direction of events is also feasible. Cell activation (eg, platelets and endothelium), by other means than complement can promote complement activation at the cell surface via P-selectin expression, thus enhancing immune surveillance at the site of vascular injury.9,10 As instrumental as these molecular interactions studies are for our mechanistic understanding, they often cannot precisely predict the impact of selected interactions on inducing a prothrombotic phenotype in vivo and sometimes do not align with the situation in vivo.11,12 In addition to such molecular interaction studies, the overlap between thrombosis and complement is also strongly supported by several clinical phenomena. Rather than focusing on in vitro findings in a bottom-up approach, here we use a top-down approach and dissect the interactions between complement and the induction of a prothrombotic state by mainly evaluating clinical data and their implications by focusing on pathophysiologic conditions substantially driven by aberrant complement activation.

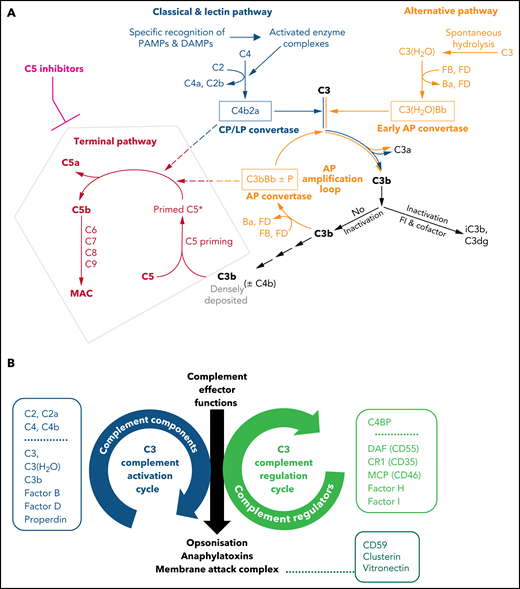

Figure 1.

Illustrations of key features of the complement system. (A) Schematic drawing of the complement cascade. The complement initiation pathways of the CP and LP are triggered through recognition of danger signals by soluble pattern recognition molecules in blood cumulating in the assembly of the bimolecular C3 convertase C4b2a. Spontaneous hydrolysis of C3 (tick-over activation) assembles the early AP convertase autonomously of any danger signal. The C3 convertases activate C3 into the anaphylatoxin C3a and the opsonin C3b, which can auto-amplify via the AP amplification loop. Strong activation of CP/LP and/or impaired inactivation of C3b and convertases lead to a high surface density of C3b (±C4b). The latter recruits C5 and induces conformational changes (called priming) that allow the convertases to proteolytically activate primed C5 into the anaphylatoxin C5a and C5b initiating the terminal pathway. C5b launches the assembly of the MAC. Complement inhibitors targeting C5 hinder C5 priming and/or block convertase mediated activation of C5. Although TP is blocked in the presence of C5 inhibitors, the complement routes upstream of C5 continue to function. The figure is reproduced from Mannes et al,122 with modifications. (B) C3 activation and regulation cycles under physiologic conditions. The opposite directionality of the complement activation and regulation cycle maintain a fine-tuned balance controlling the unleashing of the 3 main effector functions of the complement cascade. The C3 activation cycle summarizes all routes and complement components that assemble the complement convertases, whereas the regulatory cycle is built from the convertase-directed regulators that decay the convertase (decay accelerating function) and/or proteolytically inactivate C3b (cofactor activity). Key components of each cycle are indicated in the respective boxes next to the cycles. Components and regulators associated purely with the CP and LP are displayed separately at the top of the boxes. The opsonization with C3 fragments and release of anaphalytoxins are directly effectuated and controlled by the C3 activation and regulation cycles, respectively. The formation of the membrane attack complex (initiated by C5 activation) is a consequence of strong C3 deposition by convertases and hence is indirectly regulated by the C3 regulation cycle. However, direct regulators of C5b-9 assemble exist in forms of the GPI-anchored CD59 on host surfaces and the 2 soluble plasma proteins Clusterin and Vitronectin (also called S protein) as indicated.

Figure 1.

Illustrations of key features of the complement system. (A) Schematic drawing of the complement cascade. The complement initiation pathways of the CP and LP are triggered through recognition of danger signals by soluble pattern recognition molecules in blood cumulating in the assembly of the bimolecular C3 convertase C4b2a. Spontaneous hydrolysis of C3 (tick-over activation) assembles the early AP convertase autonomously of any danger signal. The C3 convertases activate C3 into the anaphylatoxin C3a and the opsonin C3b, which can auto-amplify via the AP amplification loop. Strong activation of CP/LP and/or impaired inactivation of C3b and convertases lead to a high surface density of C3b (±C4b). The latter recruits C5 and induces conformational changes (called priming) that allow the convertases to proteolytically activate primed C5 into the anaphylatoxin C5a and C5b initiating the terminal pathway. C5b launches the assembly of the MAC. Complement inhibitors targeting C5 hinder C5 priming and/or block convertase mediated activation of C5. Although TP is blocked in the presence of C5 inhibitors, the complement routes upstream of C5 continue to function. The figure is reproduced from Mannes et al,122 with modifications. (B) C3 activation and regulation cycles under physiologic conditions. The opposite directionality of the complement activation and regulation cycle maintain a fine-tuned balance controlling the unleashing of the 3 main effector functions of the complement cascade. The C3 activation cycle summarizes all routes and complement components that assemble the complement convertases, whereas the regulatory cycle is built from the convertase-directed regulators that decay the convertase (decay accelerating function) and/or proteolytically inactivate C3b (cofactor activity). Key components of each cycle are indicated in the respective boxes next to the cycles. Components and regulators associated purely with the CP and LP are displayed separately at the top of the boxes. The opsonization with C3 fragments and release of anaphalytoxins are directly effectuated and controlled by the C3 activation and regulation cycles, respectively. The formation of the membrane attack complex (initiated by C5 activation) is a consequence of strong C3 deposition by convertases and hence is indirectly regulated by the C3 regulation cycle. However, direct regulators of C5b-9 assemble exist in forms of the GPI-anchored CD59 on host surfaces and the 2 soluble plasma proteins Clusterin and Vitronectin (also called S protein) as indicated.

Close modal
Table 1.

Selected studies demonstrating a mechanistic link between complement activation and induction of coagulation and/or prothrombotic cell activation in vitro or in animal models

First author/referenceMain findingProthrombotic state induced via activation ofComment
Zimmerman130
  • • Blood coagulation ex vivo in rabbit blood is substantially accelerated by diverse complement activation triggers

  • • Acceleration of coagulation depends on C6


C5-C9 However, such effects were not reproduced in blood form a C6 deficient and a C7 deficient patient.131,132
Polley133
  • • Thrombin-mediated platelet activation is substantially increased in presence of purified components C3, C5, C6, C7, C8, and C9; these components adhere to the platelet surface

  • • Adherence of TP components to cell surfaces in absence of convertases happens on activated platelets but not on RBCs


C3 and C5-C9
Also
Purified C5-C9 components alone (to a smaller extent)
The activated platelet surface can acquire complement proteins even in absence of convertases leading to increased platelet activation.
C3 was probably acquired as C3(H2O). More recently contact activation of C3134-136 has been described that could explains this phenomenon.
Polley137
  • • C3a and C3a-desArg activate human platelets


C3 Suggests the presence of C3a receptors on human platelets that upon ligation by C3a/C3a-desArg lead to platelet activation
Wiedmer138,139
  • • Assembly of purified sublytic C5b-9 on the platelet membrane increases

    • - platelet prothrombinase activity

    • - rate of plasma clot formation


C5-C9 C5b-9 assembly on platelets accelerate platelet-catalyzed thrombin generation
Sims140
  • • C5b-9 causes release of micro-vesicles from platelets that exhibit prothrombinase activity


C5-C9 Properties previously allocated to the activated platelet surface may rather or in addition be caused by platelet microparticles
Hattori141
  • • C5b-9 induces secretion of large von Willebrand factor (vWF) multimers from endothelial cells


C5-C9 C5b-9 stimulate endothelial cells to secrete prothrombotic, platelet adhesive vWF protein
Foreman142
  • • C5a causes expression of endothelial P-selectin, secretion of von vWF and adhesiveness for neutrophils


C5 By promoting adhesive interactions between neutrophils and endothelial cells C5a induces acute inflammatory responses
Ritis143
  • • C5a induces tissue factor (TF) expression on neutrophils associated with enhanced procoagulant activity


C5 Neutrophils may link complement activation to coagulation pathways; TF is not upregulated on monocytes in response to C5a alone144
Gushiken145
  • • C3 deficient mice: increased tail-bleeding time and decreased platelet aggregation in vivo or ex vivo, respectively.


C3
(and possibly* C5-C9)
C3 deficiency in mice leads to abnormal platelet function
Subramaniam146
Asfarhar-Kharghan147
  • • C3 deficient mice: prolongation of tail-bleeding parameters in vivo; and ex vivo decrease in platelet activation

  • • C5 deficient mice: milder tail-bleeding phenotype (than C3−/−), but no decrease in platelet activation ex vivo

  • • C5-dependent membrane perturbations specifically lead to prothrombotic TF release


Mainly via C3 regarding platelets
Via C5 regarding leukocytes
Suggests a prominent role for C3 and its activation products in platelet activation independent of TP activation.
C5 activation acts procoagulantly by inducing TF release
Sauter148
  • • Stimulation of the C3a- C3aR axis on platelets leads to prothrombotic activation

  • • In C3aR−/− (but not C5−/−) mice time to vessel occlusion was significantly prolonged in a model in vivo


C3 A functional role for C3aR on platelets is proposed
First author/referenceMain findingProthrombotic state induced via activation ofComment
Zimmerman130
  • • Blood coagulation ex vivo in rabbit blood is substantially accelerated by diverse complement activation triggers

  • • Acceleration of coagulation depends on C6


C5-C9 However, such effects were not reproduced in blood form a C6 deficient and a C7 deficient patient.131,132
Polley133
  • • Thrombin-mediated platelet activation is substantially increased in presence of purified components C3, C5, C6, C7, C8, and C9; these components adhere to the platelet surface

  • • Adherence of TP components to cell surfaces in absence of convertases happens on activated platelets but not on RBCs


C3 and C5-C9
Also
Purified C5-C9 components alone (to a smaller extent)
The activated platelet surface can acquire complement proteins even in absence of convertases leading to increased platelet activation.
C3 was probably acquired as C3(H2O). More recently contact activation of C3134-136 has been described that could explains this phenomenon.
Polley137
  • • C3a and C3a-desArg activate human platelets


C3 Suggests the presence of C3a receptors on human platelets that upon ligation by C3a/C3a-desArg lead to platelet activation
Wiedmer138,139
  • • Assembly of purified sublytic C5b-9 on the platelet membrane increases

    • - platelet prothrombinase activity

    • - rate of plasma clot formation


C5-C9 C5b-9 assembly on platelets accelerate platelet-catalyzed thrombin generation
Sims140
  • • C5b-9 causes release of micro-vesicles from platelets that exhibit prothrombinase activity


C5-C9 Properties previously allocated to the activated platelet surface may rather or in addition be caused by platelet microparticles
Hattori141
  • • C5b-9 induces secretion of large von Willebrand factor (vWF) multimers from endothelial cells


C5-C9 C5b-9 stimulate endothelial cells to secrete prothrombotic, platelet adhesive vWF protein
Foreman142
  • • C5a causes expression of endothelial P-selectin, secretion of von vWF and adhesiveness for neutrophils


C5 By promoting adhesive interactions between neutrophils and endothelial cells C5a induces acute inflammatory responses
Ritis143
  • • C5a induces tissue factor (TF) expression on neutrophils associated with enhanced procoagulant activity


C5 Neutrophils may link complement activation to coagulation pathways; TF is not upregulated on monocytes in response to C5a alone144
Gushiken145
  • • C3 deficient mice: increased tail-bleeding time and decreased platelet aggregation in vivo or ex vivo, respectively.


C3
(and possibly* C5-C9)
C3 deficiency in mice leads to abnormal platelet function
Subramaniam146
Asfarhar-Kharghan147
  • • C3 deficient mice: prolongation of tail-bleeding parameters in vivo; and ex vivo decrease in platelet activation

  • • C5 deficient mice: milder tail-bleeding phenotype (than C3−/−), but no decrease in platelet activation ex vivo

  • • C5-dependent membrane perturbations specifically lead to prothrombotic TF release


Mainly via C3 regarding platelets
Via C5 regarding leukocytes
Suggests a prominent role for C3 and its activation products in platelet activation independent of TP activation.
C5 activation acts procoagulantly by inducing TF release
Sauter148
  • • Stimulation of the C3a- C3aR axis on platelets leads to prothrombotic activation

  • • In C3aR−/− (but not C5−/−) mice time to vessel occlusion was significantly prolonged in a model in vivo


C3 A functional role for C3aR on platelets is proposed
*

“Possibly” is written when an involvement because of the known complement pathways is logical and likely could have occurred but was not formally tested or controlled for.

Next to strong complement activation by microbial invaders, complement also activates mildly on host particles like apoptotic bodies to maintain body homeostasis, thereby keeping effector functions restricted to C3 opsonization in absence of terminal pathway (TP) activation.13 To accommodate for such different activation levels, the complement cascade is fine-tuned, keeping the delicate balance between 2 opposing C3 regulatory circuits14: the complement C3 activation and regulation cycles (Figure 1B). At the heart of the activation cycle are the complement convertases that are assembled via any of the 3 initiating pathways. Convertases proteolytically activate the central complement components C3 and consecutively C5 inducing their effector functions. At the core of the inactivation cycle is a set of preformed, convertase-directed regulators that inhibit the convertases in a catalytic fashion (by decay acceleration and cofactor activities; other inhibitors are also available to inhibit other complement effector molecules15,16). Thus, too much activation or too little regulation can independently result in inappropriate and damaging complement effector functions. Overdrive of the complement activation pathways also happens in infectious diseases such as COVID-19. It is conceivable that during SARS-CoV-2 infections, next to signaling in response to pathogenic patterns, exuberant complement activation has a role in prothrombotic cell activation.17-21 However, this review focuses on noninfectious diseases with aberrant complement activation/regulation.

Paroxysmal nocturnal hemoglobinuria

Paroxysmal nocturnal hemoglobinuria (PNH) has been described as the “most vicious acquired thrombophilic state known in medicine.”22 Mechanistically, a hyperreactivity of the complement alternative pathway (AP) against blood cells drives the pathophysiology of classical PNH. Because of somatic mutations in the PIG-A gene, affected HSCs and their progeny either lack or have diminished numbers of Glycosylphosphatidylinositol (GPI)-anchored proteins at their surfaces.23,24 This includes the 2 important GPI-anchored complement regulators CD55 (or DAF) and CD59 leading to aberrant AP and consecutively TP activation on affected cells resulting in cytolysis (Figure 2A). Leading clinical features of classical PNH are, among others, anemia caused by hemolysis, smooth muscle dystonia, and thrombosis. Next to the different complement activation products and their impact on inducing a prothrombotic phenotype (Table 1), hemolysis-associated hemoglobin release diminishes free nitric oxide. Depletion of nitric oxide induces smooth muscles contraction and activation and aggregation of platelets.25,26 All plausible mechanisms inducing a prothrombotic phenotype in PNH are summarized here.27 Lately, it was demonstrated that complement mediated hemoglobin release may propagate a vicious cycle as free hemoglobin activates complement.28 Overall, the question remains whether complement activation products, cytolysis, or both events together are the main drivers of thrombotic complications in PNH. Cytolysis by itself may be sufficient to induce a prothrombotic state (eg, via injured cells exposing phosphatidylserine aiding the formation of the tenase complex),29 release of hemoglobin from erythrocytes, and/or leaking of the intracellular danger signals like ADP.30

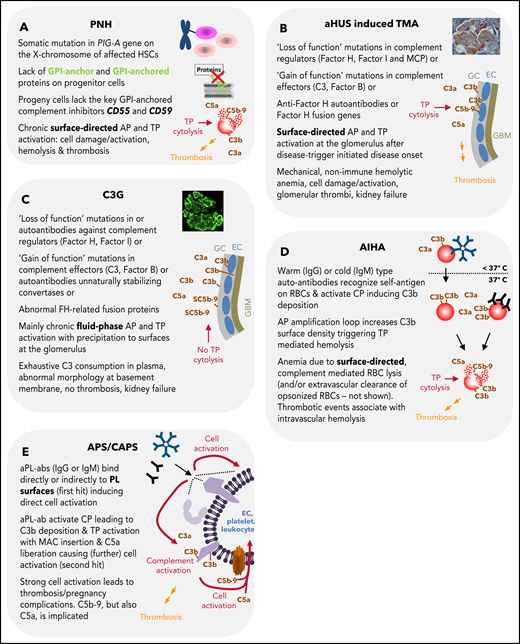

Figure 2.

Summary of features for diseases with substantial complement involvement. (A) PNH. Acquired somatic mutations in the PIG-A gene (encoding a glycosyl transferase essential for the synthesis of GPI anchors) of hematopoietic stem cells result in a loss of or in reduced numbers of GPI anchored proteins on the surface of progenitor cells (erythrocytes, platelets, leukocytes, lymphocytes). Consequences thereof are highlighted in the figure. (B) aHUS-induced TMA. Different heterozygous mutations are linked to causing the disease. Gain-of-function mutations in complement components, loss of function mutilations in complement regulators, loss of function because of hybrid genes of the regulator factor H, or autoantibodies directed against factor H are the main contributors to aHUS inducing an imbalance in complement activation/regulation after a complement activation trigger (eg, infection, surgery; DGKE type aHUS is not covered). Key events in aHUS-induced TMA are summarized in the figure. GC, glycocalyx; EC, endothelial cells; GBM, glomerular basement membrane. (C) C3G. Like in aHUS, gain-of-function mutations of complement effector proteins or loss of function mutations in regulators are described. In addition, FH-related fusion proteins and autoantibodies either stabilizing the intrinsic short-lived convertases complexes or impairing complement regulators are reported. This leads to AP dysregulation in the fluid phase, which precipitates onto surfaces apparently without inflicting widespread cytolysis. Although TP activation products are identified in the glomeruli of patients, the C5b-9 complexes appear to be inhibited by the fluid phase inhibitors vitronectin (S protein) and/or clusterin yielding SC5b-9, which cannot insert into membrane bilayers. (D) AIHA. Cold-type autoantibodies bind to erythrocytes at temperatures lower than 37°C and induce covalent C3b deposition that is amplified via the AP amplification loop. At 37°C, the low-affinity IgM antibodies regularly dissociate. If high enough C3b densities are reached, TP-mediated cytolysis occurs via MAC. The sequence of events is similar for warm-type antibodies (usually IgG); however, these (high-affinity) antibodies bind and remain bound to red blood cells (RBCs) at 37°C. Not all IgG antibodies can activate the CP (strong enough) to lead to MAC formation and intravascular hemolysis. If not lysed, IgG and/or C3-fragment positive RBCs are recognized by phagocytes of the reticuloendothelial system (RES), resulting in extravascular removal of such RBCs without intravascular hemolysis (data not shown). Erythrocyte lysis within the vasculature is associated with thrombotic events. (E) APS/CAPS. aPL-abs are a heterogenous group of autoantibodies (mostly IgG and IgM, but IgA also occur) targeting complexes of PLs and PL-binding proteins. Occurrence of aPL-ab– and antibody binding–induced cell activation is considered first hit. Complement activation and signaling via TP activation products C5b-9 and C5a are considered second hit. The role of complement activation in augmenting thrombotic is well documented but may not explain all thrombotic events in APS.

Figure 2.

Summary of features for diseases with substantial complement involvement. (A) PNH. Acquired somatic mutations in the PIG-A gene (encoding a glycosyl transferase essential for the synthesis of GPI anchors) of hematopoietic stem cells result in a loss of or in reduced numbers of GPI anchored proteins on the surface of progenitor cells (erythrocytes, platelets, leukocytes, lymphocytes). Consequences thereof are highlighted in the figure. (B) aHUS-induced TMA. Different heterozygous mutations are linked to causing the disease. Gain-of-function mutations in complement components, loss of function mutilations in complement regulators, loss of function because of hybrid genes of the regulator factor H, or autoantibodies directed against factor H are the main contributors to aHUS inducing an imbalance in complement activation/regulation after a complement activation trigger (eg, infection, surgery; DGKE type aHUS is not covered). Key events in aHUS-induced TMA are summarized in the figure. GC, glycocalyx; EC, endothelial cells; GBM, glomerular basement membrane. (C) C3G. Like in aHUS, gain-of-function mutations of complement effector proteins or loss of function mutations in regulators are described. In addition, FH-related fusion proteins and autoantibodies either stabilizing the intrinsic short-lived convertases complexes or impairing complement regulators are reported. This leads to AP dysregulation in the fluid phase, which precipitates onto surfaces apparently without inflicting widespread cytolysis. Although TP activation products are identified in the glomeruli of patients, the C5b-9 complexes appear to be inhibited by the fluid phase inhibitors vitronectin (S protein) and/or clusterin yielding SC5b-9, which cannot insert into membrane bilayers. (D) AIHA. Cold-type autoantibodies bind to erythrocytes at temperatures lower than 37°C and induce covalent C3b deposition that is amplified via the AP amplification loop. At 37°C, the low-affinity IgM antibodies regularly dissociate. If high enough C3b densities are reached, TP-mediated cytolysis occurs via MAC. The sequence of events is similar for warm-type antibodies (usually IgG); however, these (high-affinity) antibodies bind and remain bound to red blood cells (RBCs) at 37°C. Not all IgG antibodies can activate the CP (strong enough) to lead to MAC formation and intravascular hemolysis. If not lysed, IgG and/or C3-fragment positive RBCs are recognized by phagocytes of the reticuloendothelial system (RES), resulting in extravascular removal of such RBCs without intravascular hemolysis (data not shown). Erythrocyte lysis within the vasculature is associated with thrombotic events. (E) APS/CAPS. aPL-abs are a heterogenous group of autoantibodies (mostly IgG and IgM, but IgA also occur) targeting complexes of PLs and PL-binding proteins. Occurrence of aPL-ab– and antibody binding–induced cell activation is considered first hit. Complement activation and signaling via TP activation products C5b-9 and C5a are considered second hit. The role of complement activation in augmenting thrombotic is well documented but may not explain all thrombotic events in APS.

Close modal

Evidence from clinical practice indicates the cytolytic TP as major driver of thrombosis. Thromboembolism was mainly responsible for the mortality in patients with PNH (up to 67%) before anti-C5 therapy with eculizumab (Table 2). Diagnosis of thrombosis at first presentation of patients with PNH was associated with survival rates at 4 years as low as 40%.27 Thrombotic complications can manifest at various sites alone or simultaneously and include cerebral, hepatic, mesenteric, lower extremities, pulmonary, and dermal veins,31 but also cerebral and coronary arteries.32,33 Although platelet activation (or even a hyperreactivity) is supported by in vitro analysis and seems to coincide with the rate of hemolysis in patients,34 antiplatelet therapy was not usually used. As a result, no conclusive clinical data exist on the effect of antiplatelet drugs in PNH. In contrast, anticoagulation by heparin preparations and/or vitamin K antagonists was regularly administered to patients with PNH characterized by a high risk of or a known history of thromboses.35 However, thrombotic complications often occurred despite therapeutic anticoagulation.27 Only therapeutic intervention at the level of C5 with eculizumab could efficiently prevent thromboembolic events, establishing eculizumab and later ravulizumab (an eculizumab derivative with superior pharmacokinetic features) as the standard of care.27,36-43 Diagnostic ex vivo studies support these findings demonstrating that commencement of eculizumab treatment led to a substantial decrease in thrombin and endothelial cell activation markers in patients with PNH, which coincides with a decrease in the hemolysis marker lactate dehydrogenase (LDH).44,45

Table 2.

Studies demonstrating a reduction in thrombotic events in PNH and aHUS

First author/ referenceDiseaseRate of TE under best supportive therapy (number of patients)Rate of TE under complement inhibition by eculizumab (number of patients)Comment
Hillman38  PNH prevalence: ∼13 per million149  7.37 events/ 100 patient-years (195)
10.61 events/100 patient-years on antithrombotic therapy (103)
1.07 events/100 patient-years (195)
0.62 events/100 patient-years on antithrombotic therapy (103)
  • • Although TEs under eculizumab therapy are significantly reduced they may still occur

  • • Overall, a similar positive response is expected for other C5 (or other appropriate complement) inhibitors in clinical trials

  • • Percentage of patients with thrombosis correlates with PNH clone size or LDH levels as marker for intravascular hemolysis33,150


Kelly40   5.6 events per 100 patient-years (79) 0.8 events per 100 patient-years (eculizumab)
Loschi151   27% of patients (191) 4% of patients (123)
Legendre152  aHUS prevalence: ∼5 per million153  100% since diagnosis of TMA is per se a thrombotic event (37 of 37 patients) 19% (7 of 37) did not reach complete TMA-free statues during 62-64 wk of treatment
  • • Similar response is expected for other C5 inhibitors in clinical trials


First author/ referenceDiseaseRate of TE under best supportive therapy (number of patients)Rate of TE under complement inhibition by eculizumab (number of patients)Comment
Hillman38  PNH prevalence: ∼13 per million149  7.37 events/ 100 patient-years (195)
10.61 events/100 patient-years on antithrombotic therapy (103)
1.07 events/100 patient-years (195)
0.62 events/100 patient-years on antithrombotic therapy (103)
  • • Although TEs under eculizumab therapy are significantly reduced they may still occur

  • • Overall, a similar positive response is expected for other C5 (or other appropriate complement) inhibitors in clinical trials

  • • Percentage of patients with thrombosis correlates with PNH clone size or LDH levels as marker for intravascular hemolysis33,150


Kelly40   5.6 events per 100 patient-years (79) 0.8 events per 100 patient-years (eculizumab)
Loschi151   27% of patients (191) 4% of patients (123)
Legendre152  aHUS prevalence: ∼5 per million153  100% since diagnosis of TMA is per se a thrombotic event (37 of 37 patients) 19% (7 of 37) did not reach complete TMA-free statues during 62-64 wk of treatment
  • • Similar response is expected for other C5 inhibitors in clinical trials



TE, thromboembolism.

Overall, these observations concerning PNH stress that thrombophilia coincides with cytolytic complement activation and is resistant to treatment with anticoagulants but can be prevented by complement TP inhibition blocking C5 activation.

Isolated germline deficiencies of CD59 or CD55

Isolated CD59 (MIM: 612300) or CD55 (MIM: 226300) deficiency is each caused by homozygous germline mutations in the corresponding genes, giving rise to 2 distinct autosomal recessive disorders characterized by infantile onset and association with consanguineous parents.

Typical symptoms of CD59 deficiency include, among others, recurrent intravascular hemolysis, polyneuropathy, and frequently severe/fatal thromboembolic events,46-49 showing substantial overlap with PNH (Table 3). This is further underlined by a remarkable clinical benefit in these patients through C5 inhibition by eculizumab.49,50 CD59 is a well-characterized and crucial membrane fixed regulator inhibiting membrane attack complex (MAC) formation on host cells (Figure 1B). Thus, absence of CD59 predisposes to TP-mediated cell damage. However, with all proximal convertase-directed complement regulators still in place, the question arises how complement is dysregulated in the proximal pathways to arrive at C5 activation. Possible explanations include complement-amplifying conditions like infections or trauma or a hypothetical indirect role for CD59 in modulating CR1 function, because both regulators have been found to colocalize on ectosomes.51 Thrombotic events next to a pronounced neurologic phenotype were also described for patients with inherited PIG-M deficiency, resulting in global lack of GPI anchors.52,53

Table 3.

Studies analyzing the coincidence of cytolysis and thrombotic events in CD59-deficient patients

First author/referenceNumber of patientsClinicThromboembolic eventsComment
Yamashina46,154 Intravascular hemolytic anemia TE was communicated to have occurred Untypical presentation in comparison with other patients with CD59 because of lack of polyneuropathy as symptom
Nevo,47 Ben-Zeev,48 Mevorach49  5 (plus 2 deceased historic cases) Intravascular hemolytic anemia and polyneuropathy Two of 7 had fatal cerebrovascular events Four patients treated with eculizumab
Höchsmann50  Intravascular hemolytic anemia and polyneuropathy TE documented EEculizumab herapy initiated with overall improvement of the patient; within 78 mo after onset of anticomplement therapy no further TE*
Haliloglu155  Intravascular hemolytic anemia and polyneuropathy Three of 3 had cerebrovascular events (1 fatal) EEculizumab herapy initiated with overall improvement of the patient
Klemann156  Intravascular hemolytic anemia and polyneuropathy Fatal recurrent cerebrovascular events
First author/referenceNumber of patientsClinicThromboembolic eventsComment
Yamashina46,154 Intravascular hemolytic anemia TE was communicated to have occurred Untypical presentation in comparison with other patients with CD59 because of lack of polyneuropathy as symptom
Nevo,47 Ben-Zeev,48 Mevorach49  5 (plus 2 deceased historic cases) Intravascular hemolytic anemia and polyneuropathy Two of 7 had fatal cerebrovascular events Four patients treated with eculizumab
Höchsmann50  Intravascular hemolytic anemia and polyneuropathy TE documented EEculizumab herapy initiated with overall improvement of the patient; within 78 mo after onset of anticomplement therapy no further TE*
Haliloglu155  Intravascular hemolytic anemia and polyneuropathy Three of 3 had cerebrovascular events (1 fatal) EEculizumab herapy initiated with overall improvement of the patient
Klemann156  Intravascular hemolytic anemia and polyneuropathy Fatal recurrent cerebrovascular events

Disease: isolated germline encoded homozygous CD59 deficiency (prevalence: too low to calculate). TE, thrombotic event.

*

From then onward, no further information available (B. Höchsmann, Institute of Transfusion Medicine, University of Ulm, personal communication via email, 12 February 2021).

Complement hyperactivation, angiopathic thrombosis, and protein-losing enteropathy (CHAPLE) is caused by CD55 deficiency and predominantly is a gut condition characterized by abdominal pain and diarrhea, primary intestinal lymphangiectasia, hypoproteinemic edema, and malabsorption.54,55 This leads to bowel inflammation and hypogammaglobulinemia, followed by recurrent respiratory infections. Frequently, severe, often fatal, angiopathic thromboembolic events occur (Table 4). Not all people with CD55 deficiency develop CHAPLE.30,56 Clinically significant in vivo hemolysis has not been reported in individuals with the Inab phenotype (ie, CD55 deficiency), although erythrocytes lack the convertase directed regulator CD55.57-59 However, under laboratory conditions, erythrocytes of the Inab phenotype were demonstrated to be slightly more susceptible to complement mediated lysis.59,60 However, 1 case with an acquired transient Inab phenotype was reported, characterized by intravascular hemolysis and thromboembolic disease (splenic infarctions).30 Substantial complement-mediated hemolysis appears unlikely to be the driver of thromboembolism in CHAPLE, although it cannot be completely excluded that during strong complement amplifying conditions (eg, infection or surgery), some hemolysis may occur. A prothrombotic status in patients with CHAPLE may also be induced by enteric loss of anticoagulation factors and hypoalbuminemia.54 However, several lines of evidence show that complement TP activation and cytolyses occur (independently of hemolysis) in patients with CHAPLE: (1) duodenal biopsy specimens revealed MAC complexes in submucosal arterioles61; (2) elevated C5a and sC5b-9 levels were detected in plasma55; and (3) C3 fragments and MAC were detected on peripheral blood leukocytes.54,62 Supported by these biomarkers, treatment with eeculizumab esulted in fast and sustained improvement of symptoms. Thrombotic events did not reoccur during eeculizumab reatment in 1 study.54 In another study, the proportion of patients with thromboembolism was reduced alongside an overall reduction of D-dimers averaged across all patients, but thromboembolic disease was not corrected for all.55

Table 4.

Studies on thrombotic events in CD55-deficient patients

First author/referenceNumber of patientsClinical presentationThromboembolic eventsRate of TE under complement inhibition by eculizumabComment
Matthes30  Intravascular hemolytic anemia
Abdominal pain
Multiple
Splenic infarctions
NA
  • • Acquired, transient loss of CD55 on RBCs; other peripheral blood cells had weaker than normal CD55 level; CD55 reoccurred during follow-up

  • • Thrombotic complications and hemolysis were absent in other case with transient loss of CD55157


Kurolap54,62 Chaple
No hemolysis, but elevated MAC
deposition on white blood cells
Three of 6 with repeated TEs Only 3 patients treated, but within 18 mo of follow-up, hyper-coagulopathy events did not reoccur after treatment initiation
  • • Coagulation investigation did not reveal a commonly known cause for prothrombotic disposition

  • • Response to eeculizumab herapy initiated in 3 patients suggests MAC involvement in pathophysiology


Ozen61  11 (plus 2 deceased historic cases) Chaple
No hemolysis, but elevated MAC deposition on submucosal arterioles
Five of 13 with multiple thrombi at different sites; in total 3 fatalities caused by thrombosis NA
  • • For one case resis tance to anticoagulation was mentioned

  • • Biopsy revealed erythrocyte to endothelium interactions


Hagin158  Chaple
Evidence of hemolysis
Repeated mesenteric vein thrombosis NA Eculizumab herapy improved abdominal symptoms, increased hemoglobin levels; LDH levels did not normalize completely; months after start of Ecu a malignancy was diagnosed and Ecu stopped; patient died of sepsis coinciding with antineoplastic therapy
Ozen55  16 Chaple
No hemolysis, but elevated MAC deposition on submucosal arterioles
Six of 16 (38%) with thrombotic complications Four of 16 (25%) with thrombotic complications Eculizumab herapy
  • • Normalizes plasma C5a and sC5b-9 levels

  • • Substantially reduces pathophysiology including D-dimers and thrombotic events, but not in all patients


First author/referenceNumber of patientsClinical presentationThromboembolic eventsRate of TE under complement inhibition by eculizumabComment
Matthes30  Intravascular hemolytic anemia
Abdominal pain
Multiple
Splenic infarctions
NA
  • • Acquired, transient loss of CD55 on RBCs; other peripheral blood cells had weaker than normal CD55 level; CD55 reoccurred during follow-up

  • • Thrombotic complications and hemolysis were absent in other case with transient loss of CD55157


Kurolap54,62 Chaple
No hemolysis, but elevated MAC
deposition on white blood cells
Three of 6 with repeated TEs Only 3 patients treated, but within 18 mo of follow-up, hyper-coagulopathy events did not reoccur after treatment initiation
  • • Coagulation investigation did not reveal a commonly known cause for prothrombotic disposition

  • • Response to eeculizumab herapy initiated in 3 patients suggests MAC involvement in pathophysiology


Ozen61  11 (plus 2 deceased historic cases) Chaple
No hemolysis, but elevated MAC deposition on submucosal arterioles
Five of 13 with multiple thrombi at different sites; in total 3 fatalities caused by thrombosis NA
  • • For one case resis tance to anticoagulation was mentioned

  • • Biopsy revealed erythrocyte to endothelium interactions


Hagin158  Chaple
Evidence of hemolysis
Repeated mesenteric vein thrombosis NA Eculizumab herapy improved abdominal symptoms, increased hemoglobin levels; LDH levels did not normalize completely; months after start of Ecu a malignancy was diagnosed and Ecu stopped; patient died of sepsis coinciding with antineoplastic therapy
Ozen55  16 Chaple
No hemolysis, but elevated MAC deposition on submucosal arterioles
Six of 16 (38%) with thrombotic complications Four of 16 (25%) with thrombotic complications Eculizumab herapy
  • • Normalizes plasma C5a and sC5b-9 levels

  • • Substantially reduces pathophysiology including D-dimers and thrombotic events, but not in all patients



Disease: isolated germline encoded homozygous CD55 deficiency (prevalence: too low to calculate). NA, not applicable; TE, thrombotic events.

Atypical hemolytic uremic syndrome

In contrast to the more common typical hemolytic uremic syndrome (HUS) triggered by bacterial infections, the rare atypical form (approximately 10% of cases) is associated with heterozygous germline mutations mostly affecting genes of the complement cascade (Figure 2B).63,64 Hallmarks of atypical HUS (aHUS) include nonimmune microangiopathic hemolytic anemia, thrombocytopenia, and acute kidney injury often characterized by glomerular thrombotic microangiopathy. Although predominantly a renal disease, patients with aHUS can also present with multiorgan involvement including seizures, strokes, and gastrointestinal manifestations, among others. Before anti-C5 therapy, end-stage renal disease developed in about half of the patients within 5 years after onset. Thrombotic microangiopathy (TMA) develops in aHUS mostly through AP dysregulation on endothelial cell surfaces. Fluid phase AP regulation is not greatly perturbed. These circumstances lead to MAC deposition and damage on the endothelium. Plasma complement levels (eg, C3, C5a, SC5b-9) are only substantially affected in half of the patients, making their diagnostic analysis impracticable for diagnosis.65,66 An elegant murine aHUS study identified the C5a pathway to be instrumental for macrovascular thrombosis and chronic inflammation, whereas the C5b-9 pathway drives the especially fatal renal thrombotic microangiopathy.67 With both C5 activation products being implicated in fueling the thrombotic phenotype, it is not surprising that C5 inhibition is a very effective treatment of aHUS for stopping thrombotic complications (Table 2).

C3 glomerulopathy

C3 glomerulopathy (C3G) is a rare renal disease driven by dysregulation of the complement AP, ultimately inducing glomerulonephritis featuring proteinuria, hematuria, and hypertension.68 C3G is an umbrella term for the 2 slightly different subgroups of C3G (ie, dense deposit disease and C3 glomerulonephritis).69 In both subtypes, chronic AP activation fosters progressive glomerular inflammation leading to irreversible tissue damage and end-stage renal disease. In contrast to aHUS where AP dysregulation progresses mainly at the surfaces of the glomerular microenvironment (ie, glomerular endothelial cells, endothelial glycocalyx, and extracellular matrix components), in C3G, AP dysregulation sets off in the fluid phase and secondarily precipitates into the glomerular microenvironment. Several acquired or genetic factors either overdrive the C3 activation cycle or choke off its regulatory counterpart (Figure 1B). Causes for the former frequently include autoantibodies against complement convertases or gain-of-function mutations in convertase components unnaturally stabilizing these short-lived enzymatic complexes. Impairment of AP regulation results from loss-of-function mutations in the crucial regulators factor I and factor H (FH), autoantibodies against these regulators or from genetic rearrangements that produce unnatural FH-related fusion proteins affecting AP control by FH (Figure 2C).68 The molecular pathophysiology of FH exemplifies that AP dysregulation in aHUS is skewed toward impairment of regulation at the surface, whereas in C3G, fluid phase control is affected. In aHUS, associated autoantibodies and mutations affecting FH map mostly to the C-terminal FH domains, which are crucial for positioning the soluble plasma protein FH on host surfaces.70-75 In contrast, in patients with C3G, mutations and autoantibodies often affect the N-terminal FH domains harboring the AP regulatory functions and thus substantially impair fluid phase AP regulation next to control at host surfaces.76-78

In agreement with major AP dysregulation in the fluid phase in C3G, C3 consumption in plasma and prominent C3 deposition in glomeruli (in absence of immunoglobulin deposits) are observed commonly cumulating into TP activation.79,80 Sethi et al79 found that all analyzed glomeruli from patients with dense deposit disease contained TP proteins in addition to C3. The TP component C9 was prominently detected and, importantly, coincided with the detection of the soluble TP inhibitors clusterin and vitronectin (ie, S protein). These 2 regulators are plasma proteins and bind to assembling membrane attack complexes (C5b-7, C5b-8, C5b-9) inhibiting the formation of a functional, lipid-bilayer penetrating pore by blocking C9 polymerization. Bound by clusterin, vitronectin, or both inhibitors simultaneously, the hydrophobic patches in C5b-9 are shielded, and thus membrane insertion, but also protein aggregation in plasma, is prevented.81,82 This results in soluble terminal complement complexes or SC5b-9 (which stand for S protein solubilized C5b-9), which cannot inflict cytolysis. These findings are congruent to a diagnostic test in which sera from patients with aHUS but not from patients with C3G lead to MAC insertion on cultured endothelial cells.66

Taken together, fluid-phase dysregulation of the AP in C3G leads to substantial fluid phase C3 consumption and C3 deposition in the glomerular microenvironment, likely involving the glycocalyx and the glomerular basement membrane, which lack lipid bilayer–fixed complement regulators. Speculatively, this may provide the microenvironment where C5 activation occurs and where forming C5b-9 complexes are quenched by the soluble regulators clusterin and vitronectin before substantial amounts of C5b-9 precipitate to the endothelium.

C5 activation seems to contribute to glomerular inflammation in C3G, but the most prominent pathophysiologic driver is fluid phase C3 activation causing C3 deposition in the glomerular microenvironment and eventually inducing morphologic changes to basement membrane proteins. To what exact extent the anaphylatoxin and chemoattractant C5a and the cytolytic-inactive SC5b-9 complexes contribute to the glomerular inflammation in human C3G remains unclear thus far. Two murine studies clearly indicated a more prominent role for C5a rather than for terminal complement complexes or MAC: (1) absence of C5, but not C6, alleviated glomerular pathology in a C3G model indicating C5a as driver of disease83; and (2) C5a in absence of C5b-9 drove chronic inflammatory injury resulting in glomerular disease reminiscent of C3 glomerulonephritis while presence of the C5b-9 pathway caused renal TMA reminiscent of aHUS.67 This argues that MAC-inflicted cytolysis and not C5a liberation is the major driver of thrombosis in these animal models. In a therapeutic approach in the former murine C3G model, C5 activity was blocked,83 ameliorating the disease severity in mice but failing to prevent C3 glomerulopathy. Overall, these murine studies align with clinical findings. Although no disease-specific treatment options are available yet, several case studies involving a few patients with C3G investigated the therapeutic potential of C5 inhibition (off-label) with mixed results. Although some patients benefited from anti-C5 therapy to various degrees, a huge proportion had no clinical response.68

Taken together, preclinical and initial clinical data suggest that C3 deposition in the glomerular microenvironment is the driver of C3G pathophysiology with contributions from C5a liberation, whereas soluble and noncytolytic SC5b-9 complexes probably do not contribute substantially.

The comparison of the disease phenotypes across the 3 AP-mediated diseases PNH, aHUS, and C3G provides for a compelling difference. Although AP dysregulation leading to C5 activation is a common pathophysiologic feature early in the course of all 3 diseases, only in PNH and aHUS does complement activation cause thrombotic events associated with severe morbidity and mortality, whereas thrombotic complications in C3G are not a typical feature.

Autoimmune hemolytic anemia

Autoimmune hemolytic anemia (AIHA) is a rare disease characterized by autoantibodies against erythrocytes with diverse clinical/serologic presentations.84,85 AIHA is idiopathic in about half of cases or secondary to conditions such as lymphoproliferative diseases, autoimmune disorders (often systemic lupus erythematosus [SLE]), (viral) infections, or nonlymphoid neoplasms.86,87 Depending on the autoantibody, which often are of polyclonal origin,84 AIHA is classified by warm (wAIHA) or cold (called: cold agglutinins disease [CAD]) antibodies according to their thermal amplitude or into a mixed type if cold (mostly immunoglobulin M [IgM]) and warm (mostly IgG) are present simultaneously. Although complement clearly drives the pathophysiology of CAD, its involvement in wAIHA is less well understood. The direct antiglobulin test (DAT; or Coombs test) for wAIHA is regularly positive detecting either autoantibodies alone or together with the complement activation fragment C3dg/C3d (Figure 1A). In CAD, often only C3d deposits are detected. Such antibodies bind only in the cold and lead to classical pathway (CP) activation inducing C3 deposition. Then cold-type antibodies detach when affected erythrocytes transit from the extremities back to systemic circulation, but C3d remains covalently fixed on the erythrocyte. Atypical AIHA characteristics are as follows: DAT negativity, DAT positivity for IgA only, warm IgM, or mitogen-stimulated DAT.86

Both intravascular and/or extravascular hemolysis occur in AIHA depending on if and to what extent autoantibodies can activate the CP, which may be tested in a human system in vitro as described by Anliker et al.88 Cells of the reticuloendothelial system recognize IgG and C3 activation products fixed on erythrocytes and clear those in a comparatively slow process.89 Potent CP activation, however, pushes the C3 activation cycle into a strong overdrive and overwhelms the preformed erythroid complement regulators leading to dense C3b deposition and TP-mediated intravascular hemolysis (Figures 1A-B and 2D).

Thrombotic events are evident in patients with AIHA86,90 and correlate with splenectomy91 and antiphospholipid antibodies (aPL-abs; such as lupus anticoagulants and anticardiolipin autoantibodies).29,85,92 Patients with CAD have an increased risk of thromboembolisms compared with a matched non-CAD population.93 Thrombotic complications in patients with AIHA also occur in absence of aPL-abs or splenectomy, underlining that AIHA per se is a risk factor for thromboembolism (Table 5).85-87,94-96 Strikingly, thromboembolism is associated with severe active intravascular hemolysis in these patients, also leading to fatal outcomes.86 Multiple organs are affected by thrombi including venous and arterial sites.86,96 In a first prospective trial, eeculizumab as administered to 13 patients with CAD and reduced hemolysis, transfusion dependency, and the median D-dimer concertation in most patients.97 No thromboembolic events occurred during the therapy period of 26 weeks, whereas thromboembolism had occurred in several patients within months before enrollment. This indicates that blocking of the TP may be sufficient to stop thromboembolic events in CAD, although the proximal complement cascade continues to run unaltered. Firm conclusions, however, necessitate trials with longer duration irrespective of C5, C1s, or other complement inhibitors being investigated.97-99

Table 5.

Selected studies analyzing the coincidence of cytolysis and thrombotic events in patients with AIHA

First author/referenceAIHA typeRate of TE under best supportive therapy (number of patients)Signs for cytolysis during thromboembolic eventsComment
Pullarkat29  Not defined 27% (8 of 30) TE associated with hemolysis (in 7 of 8) Of 8 patients with TE
  • • 6 with aPL-abs


Hendrick95  w 80%,
c 10%,
m 10%
21% (6 of 28) 100% with signs of intravascular hemolysis (i.e, bilirubin, haptoglobin) Of 6 patients with TE
  • • 0 with aPL-abs


Baek94  w 97%,
c 3%
16% (5 of 32) >90% of patients with TE had intravascular hemolysis (LDH, bilirubin) Most patients with AIHA are found to have SLE during follow-up
Barcellini86  w 60%,
c 27%,
m 8%,
a 5%
11% (33 of 308) TE associated with intravascular
hemolysis (LDH)
Of 33 patients with TE
  • • 8 with splenectomy

  • • no association with aPL-abs


Roumier96  w 54%,
m 46%
20% (12 of 60) TE occurred with active hemolysis in all (haptoglobin/LDH/bilirubin) Of 12 patients with TE
  • • 4 with splenectomy

  • • no association with aPL-abs


Lecouffe-Desprets85  w 100%
(inclusion criterium)
20% (8 of 40) TE associated with severe hemolytic flare’ Of 8 patients with TE
  • • 3 with splenectomy

  • • 0 with aPL-abs


Prabhu87  w 48%,
c 46%,
a 6%
6% with life-threating TE (2 of 33) NS Of 2 patients with TE
  • • 0 with splenectomy

  • • 0 with aPL-abs


First author/referenceAIHA typeRate of TE under best supportive therapy (number of patients)Signs for cytolysis during thromboembolic eventsComment
Pullarkat29  Not defined 27% (8 of 30) TE associated with hemolysis (in 7 of 8) Of 8 patients with TE
  • • 6 with aPL-abs


Hendrick95  w 80%,
c 10%,
m 10%
21% (6 of 28) 100% with signs of intravascular hemolysis (i.e, bilirubin, haptoglobin) Of 6 patients with TE
  • • 0 with aPL-abs


Baek94  w 97%,
c 3%
16% (5 of 32) >90% of patients with TE had intravascular hemolysis (LDH, bilirubin) Most patients with AIHA are found to have SLE during follow-up
Barcellini86  w 60%,
c 27%,
m 8%,
a 5%
11% (33 of 308) TE associated with intravascular
hemolysis (LDH)
Of 33 patients with TE
  • • 8 with splenectomy

  • • no association with aPL-abs


Roumier96  w 54%,
m 46%
20% (12 of 60) TE occurred with active hemolysis in all (haptoglobin/LDH/bilirubin) Of 12 patients with TE
  • • 4 with splenectomy

  • • no association with aPL-abs


Lecouffe-Desprets85  w 100%
(inclusion criterium)
20% (8 of 40) TE associated with severe hemolytic flare’ Of 8 patients with TE
  • • 3 with splenectomy

  • • 0 with aPL-abs


Prabhu87  w 48%,
c 46%,
a 6%
6% with life-threating TE (2 of 33) NS Of 2 patients with TE
  • • 0 with splenectomy

  • • 0 with aPL-abs



Prevalence: 170 per 1 million.159 a, atypical; c, cold; m, mixed; NS, not specified; TE, thrombotic events; w, warm.

(Catastrophic) antiphospholipid syndrome

Antiphospholipid syndrome (APS) is a systemic autoimmune disease characterized by arterial and/or venous thrombosis or pregnancy morbidity in the presence of persistent aPL-abs (ie, anticardiolipin, anti–β-2 glycoprotein I, or lupus anticoagulant).100-103 There can be an overlap between APS and the HELLP (ie, hemolysis, elevated liver enzymes and low platelets) syndrome,104,105 which recently was also linked to complement dysregulation (but is not covered here).106 Thrombotic complications in APS are frequently resistant to anticoagulation.107 In most cases, APS is either idiopathic or develops on the background of SLE. In about one third of patients with catastrophic APS (CAPS), there is evidence for hemolysis.101 About 1% of patients with APS develop the often fatal (>30% mortality despites therapy101) CAPS, affecting multiple organs simultaneously within a short time frame.108-110 aPL-abs bind (directly or indirectly) to phospholipid surfaces inducing multifactorial mechanisms (eg, aPL-abs were described to interfere with natural anti- and procoagulant regulators and/or lead to direct prothrombotic activation of endothelial cells, platelets, monocytes, and neutrophils).111 Also, complement activation has a well-documented role in the pathogenesis of aPL-abs inducing thrombosis and/or pregnancy morbidity (key findings are summarized in Table 6). The precise mechanism how aPL-abs induce complement activation remains incompletely understood, but blocking this interaction, which potentially is upstream of prothrombotic cell activation, is an attractive avenue. Clinical observations and results from animal models indicate that in addition to aPL-abs, a second hit in the form of a complement-amplifying condition (like pregnancy, surgery, or infection) is necessary to trigger thrombotic complications.112,113 Supported by many animal studies, patient-derived diagnostic data indicate TP in APS/CAPS pathophysiology (Table 6). EEculizumab as successfully used as salvage therapy in several life-threating refractory cases.114,115 This provides circumstantial clinical evidence for the TP- and MAC-mediated cell damage propagating morbidity in APS/CAPS. However, the experimental nature of anti-C5 therapy needs to be acknowledged. Yelnik et al116 reported a small cohort of patients with CAPS responding inconsistently to eculizumab, with responders typically suffering from lower platelet counts and more frequent microangiopathic hemolytic anemia than nonresponders. To conclude, complement and especially TP activation are playing a critical role in obstetric or/and thrombotic APS, at least in a substantial subset of patients. Further clinical investigations on anticomplement therapy are warranted.

Table 6.

Selected studies describing complement activation in the pathogenesis of aPL-induced pregnancy morbidity or thrombosis

First author/referenceExperimental/clinical settingImportant findingsComment
Davis160  Analysis of complement activation levels in stroke patients with and without aPL-abs C5b-9 levels were higher in sera of patients with aPL and stroke when compared with stroke in absence of aPL-abs TP activation seems to be implicated in the pathophysiology of aPL-ab–associated stroke
Holers161
  • • Murine model of aPL-ab induced fetal loss

  • • Pregnant mice injected with human IgG containing aPL-abs


C3 activation is required for aPL-ab induced intrauterine growth restriction and/or fetal loss in mice C3 KO mice or mice treated with complement inhibitor Crry are protected from fetal loss
Girardi162
  • • Murine model of APS induced fetal loss

  • • Pregnant mice injected with human IgG containing aPL-abs


Protected from fetal loss by
  • • blocking C5 function (ie, C5 KO mice or applying anti-C5 mAb)

  • • blocking C5a receptor signaling (C5aR KO)


  • • Indicates TP to be necessary for pathophysiology since proximal complement activation occurs unhindered in C5 KO mice

  • • Suggests that C5a drives fetal loss via C5a mediated chemotaxis of neutrophils


Girardi163  Murine model of aPL-ab induced fetal loss treated with anticoagulants Heparin but not other anticoagulants (like fonda-parinux or hirudin) prevents aPL-ab–induced fetal loss unfractionated or low-molecular-weight heparin prevented complement activation in vitro and in vivo while other anticoagulants failed to do so
Fischetti164
  • • Rat model of APS induced thrombosis (including C6 KO rats)

  • • Administration of human anti–β2-glycoprotein I with or without inflammatory priming with LPS


Thrombus formation induced by antibodies to β2-glycoprotein I requires complement TP activation and a priming factor
  • • C3 and C9 colocalize with aPL IgG on the thrombotic lesions

  • • Indicates MAC (and not C5a) in the pathophysiology since C6 KO protects similarly well than anti-C5 blocking mAb


Carrera-Marín165
  • • Rat model of APS induced thrombosis

  • • Administration of human aPL-abs in mice (including C6 KO mice)


C6 knock-out mice are protected from thrombophilia mediated by aPL-abs Indicates MAC (and not C5a) as a main driver of pathophysiology in addition to direct cell activating effects of aPL-abs
Agostinis166
  • • Rat model of APS induced thrombosis (including C6 KO rats)

  • • CH2-domain lacking anti–β2-glycoprotein I antibodies used as therapeutic approach


An engineered antibody that efficiently binds PL but cannot activate complement fails to induce vascular thrombosis and fetal loss (even after LPS priming)
  • • Antibody lacking the “comp lement activating” CH2 domain can prevent blood clot formation and fetal loss induced by aPL

  • • aPL binding to its epitope alone has no/minor pathophysiological relevance


Meroni167  Patient with recurrent thrombotic complications (despite anticoagulation) was treated with Ecu to prevent rethrombosis after vascular surgery First report demonstrating
colocalization of aPL-ab and complement (C1q; C4, C3 and C5b-9 or MAC) in the arterial wall of an APS patient
Suggests activation of complement classical pathway and involvement of MAC in pathophysiology
Arachchillage168  Complement activation markers were compared in APS patients treated with anticoagulants Complement activation markers were elevated in warfarin anticoagulated thrombotic APS patients, but decreased when switching to rivaroxaban sC5b-9 plasma levels decreased when warfarin was substituted with rivaroxaban indicating that FXa may activate complement proteins fueling the cross-activation of inflammatory and prothrombotic pathways
Rand169  Novel 2-stage assay that detects the complement activation potential in patients with aPL-abs Highly sensitive assay system using patient plasma to distinguish APS from other inflammatory and thrombotic disorders that are not associated with aPL-abs
  • • APS-associated aPL-abs activate CP/LP and AP on anionic phospholipid surfaces leading to C5 activation

  • • This test can be useful for detecting patients with aPL-abs who have a high risk for thrombotic complications


Kim170  Complement activation markers were determined in pregnant patients with SLE and/or antiphospholipid antibodies Complement activation levels predict adverse pregnancy outcome sC5b-9 plasma levels detectable early in pregnancy are strongly predictive of adverse pregnancy outcomes
Tinit114,
Skoczynska115
Nauseel171
Each: a case report of CAPS and optional systematic review of the literature for other case reports TP inhibition by Ecu can be a salvage therapy for CAPS refractory to conventional
therapy
  • • Clinical evidence for a contribution of C5 activation in CAPS pathophysiology

  • • Yelnik et al116 discover that not all refractory CAPS cases respond to Ecu treatment; responders have lower platelet counts and microangiopathic hemolytic anemia when compared with nonresponders


Chaturvedi172  Sera and genetic information were investigated for the propensity to activate complement in patients suffering from APS, CAPS, and SLE
  • • A modified Ham assay detects complement activation propensity in APS and CAPS patients which associates with thromboembolism

  • • Patients with CAPS harbor rare germline mutations in complement regulator genes


Anti–β2-GP-I antibodies trigger
  • • complement activation mainly via CP

  • • induced MAC (ie, C5b-9) deposition on test cells in modified Ham assay


First author/referenceExperimental/clinical settingImportant findingsComment
Davis160  Analysis of complement activation levels in stroke patients with and without aPL-abs C5b-9 levels were higher in sera of patients with aPL and stroke when compared with stroke in absence of aPL-abs TP activation seems to be implicated in the pathophysiology of aPL-ab–associated stroke
Holers161
  • • Murine model of aPL-ab induced fetal loss

  • • Pregnant mice injected with human IgG containing aPL-abs


C3 activation is required for aPL-ab induced intrauterine growth restriction and/or fetal loss in mice C3 KO mice or mice treated with complement inhibitor Crry are protected from fetal loss
Girardi162
  • • Murine model of APS induced fetal loss

  • • Pregnant mice injected with human IgG containing aPL-abs


Protected from fetal loss by
  • • blocking C5 function (ie, C5 KO mice or applying anti-C5 mAb)

  • • blocking C5a receptor signaling (C5aR KO)


  • • Indicates TP to be necessary for pathophysiology since proximal complement activation occurs unhindered in C5 KO mice

  • • Suggests that C5a drives fetal loss via C5a mediated chemotaxis of neutrophils


Girardi163  Murine model of aPL-ab induced fetal loss treated with anticoagulants Heparin but not other anticoagulants (like fonda-parinux or hirudin) prevents aPL-ab–induced fetal loss unfractionated or low-molecular-weight heparin prevented complement activation in vitro and in vivo while other anticoagulants failed to do so
Fischetti164
  • • Rat model of APS induced thrombosis (including C6 KO rats)

  • • Administration of human anti–β2-glycoprotein I with or without inflammatory priming with LPS


Thrombus formation induced by antibodies to β2-glycoprotein I requires complement TP activation and a priming factor
  • • C3 and C9 colocalize with aPL IgG on the thrombotic lesions

  • • Indicates MAC (and not C5a) in the pathophysiology since C6 KO protects similarly well than anti-C5 blocking mAb


Carrera-Marín165
  • • Rat model of APS induced thrombosis

  • • Administration of human aPL-abs in mice (including C6 KO mice)


C6 knock-out mice are protected from thrombophilia mediated by aPL-abs Indicates MAC (and not C5a) as a main driver of pathophysiology in addition to direct cell activating effects of aPL-abs
Agostinis166
  • • Rat model of APS induced thrombosis (including C6 KO rats)

  • • CH2-domain lacking anti–β2-glycoprotein I antibodies used as therapeutic approach


An engineered antibody that efficiently binds PL but cannot activate complement fails to induce vascular thrombosis and fetal loss (even after LPS priming)
  • • Antibody lacking the “comp lement activating” CH2 domain can prevent blood clot formation and fetal loss induced by aPL

  • • aPL binding to its epitope alone has no/minor pathophysiological relevance


Meroni167  Patient with recurrent thrombotic complications (despite anticoagulation) was treated with Ecu to prevent rethrombosis after vascular surgery First report demonstrating
colocalization of aPL-ab and complement (C1q; C4, C3 and C5b-9 or MAC) in the arterial wall of an APS patient
Suggests activation of complement classical pathway and involvement of MAC in pathophysiology
Arachchillage168  Complement activation markers were compared in APS patients treated with anticoagulants Complement activation markers were elevated in warfarin anticoagulated thrombotic APS patients, but decreased when switching to rivaroxaban sC5b-9 plasma levels decreased when warfarin was substituted with rivaroxaban indicating that FXa may activate complement proteins fueling the cross-activation of inflammatory and prothrombotic pathways
Rand169  Novel 2-stage assay that detects the complement activation potential in patients with aPL-abs Highly sensitive assay system using patient plasma to distinguish APS from other inflammatory and thrombotic disorders that are not associated with aPL-abs
  • • APS-associated aPL-abs activate CP/LP and AP on anionic phospholipid surfaces leading to C5 activation

  • • This test can be useful for detecting patients with aPL-abs who have a high risk for thrombotic complications


Kim170  Complement activation markers were determined in pregnant patients with SLE and/or antiphospholipid antibodies Complement activation levels predict adverse pregnancy outcome sC5b-9 plasma levels detectable early in pregnancy are strongly predictive of adverse pregnancy outcomes
Tinit114,
Skoczynska115
Nauseel171
Each: a case report of CAPS and optional systematic review of the literature for other case reports TP inhibition by Ecu can be a salvage therapy for CAPS refractory to conventional
therapy
  • • Clinical evidence for a contribution of C5 activation in CAPS pathophysiology

  • • Yelnik et al116 discover that not all refractory CAPS cases respond to Ecu treatment; responders have lower platelet counts and microangiopathic hemolytic anemia when compared with nonresponders


Chaturvedi172  Sera and genetic information were investigated for the propensity to activate complement in patients suffering from APS, CAPS, and SLE
  • • A modified Ham assay detects complement activation propensity in APS and CAPS patients which associates with thromboembolism

  • • Patients with CAPS harbor rare germline mutations in complement regulator genes


Anti–β2-GP-I antibodies trigger
  • • complement activation mainly via CP

  • • induced MAC (ie, C5b-9) deposition on test cells in modified Ham assay



Disease: APS/CAPS (prevalence APS: 500 per 1 million173; CAPS about 1% of APS).

Ecu, eculizumab.

Basic and clinical evidence demonstrate that exuberant complement activation can lead to severe thromboembolic complications. Almost all mechanistic studies implicate TP activation in promoting a prothrombotic phenotype (Table 1). Clinical findings also demonstrate an instrumental role for TP in complement-mediated thromboembolism. In PNH, isolated CD59 deficiency and AIHA thrombotic complications associate with complement-mediated hemolysis. C5 inhibition by eeculizumab educes erythrocyte lysis and thrombotic events simultaneously (of note, definitive clinical data are not available for AIHA and CD59 deficency; Tables 2, 3, and 5). Thrombotic events in patients with PNH are drastically reduced but not completely absent during anti-C5 therapy (Table 2). This could imply a role for C3 activation products in inducing prothrombotic cell activation, because during therapeutic C5 block, C3 activation proceeds unhindered in patients with PNH.117-119 An alternative explanation is that C5 inhibition is not complete in some patients with PNH, which has already been shown for various C5 inhibitors.120-123 In PNH, this is clinically documented by residual but chronic C5 activation and sporadic but severe hemolytic events during complement-amplifying conditions like infections.124-126 Severe hemolytic events in presence of excess amounts of C5 inhibitors are explained by a pharmacodynamic breakthrough mechanism.122,124,127

Other diseases discussed here either do not exhibit hemolysis as a cardinal feature (ie, CHAPLE and APS/CAPS101), or hemolysis is caused by mechanical stress (aHUS) rather than by MAC assembly. However, thrombotic events still associated with TP activation are corrected or mitigated by therapeutic inhibition of C5 activation. In CHAPLE, elevated MAC deposition on white blood cells and submucosal arterioles was demonstrated, and circumstantial clinical evidence suggests benefits by C5 inhibition including the rate of thromboembolic events (Table 4). In APS/CAPS, there is strong preclinical evidence linking TP activation to vascular thrombosis, particularly indicating MAC in the pathophysiology. This is supported by successful eeculizumab reatment (as salvage therapy) for patients with refractory CAPS (Table 6). However, it has been shown that not all refractory patients with CAPS benefit from C5 inhibition, calling for further and more detailed clinical investigations.116 In aHUS, complement dysregulation mainly affects the glomerular capillaries leading to MAC deposition and TMA. Next to PNH, there is also definitive clinical evidence that C5 activation and cytolysis are critical drivers of the pathophysiology in aHUS. Inhibition of C5 prevents the fatal thrombotic events in aHUS, despite proximal complement not being inhibited (Table 2).

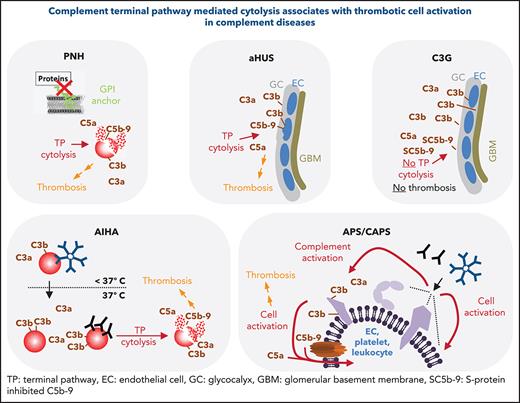

Comparison of the 3 AP-mediated diseases PNH, aHUS, and C3G illustrates that TP activation per se is not sufficient to induce prothrombotic cell activation. In patients with C3G, TP activation is evident but appears not to result in the formation of cytolytic MAC complexes. Instead C5b-9 complexes detected in the glomerular microenvironment were reported to be complexed by vitronectin, rendering the resultant SC5b-9 complexes inactive for membrane penetration. This situation is reminiscent of the molecular events induced by cobra venom factor (CVF) treatment. In animal models, CVF is used to deplete animals of complement activity. Depending on the type of CVF involved, consumptive activation of C3 and/or C5 proceeds in the fluid phase, without ill effect (including thrombotic complications) on the organism. Safe complement depletion by CVF has been achieved for sustained duration up to 30 days and includes tests in several mammals such as mice, rats, and nonhuman primates.128,129 The unifying features of complement-induced thromboembolism, among diseases discussed here, are TP activation and MAC-inflicted damage of plasma membranes involving the endothelium and/or cells within the vasculature. Such cell surface–directed activation, in contrast to fluid phase complement dysregulation, does not regularly lead to exhaustive consumption/activation of complement components. Thus, the global plasma concentrations of nonactivated components (eg, C3, C5) or activation products (eg, C3a, C5a, SC5b.9) are often normal or only slightly altered, rendering those plasma markers useless for diagnostic purposes because they fail to securely report whether devastating but locally confined complement activation occurs on cell surfaces in a patient. This point is emphasized by the fact that some diseases discussed here require a second trigger (ie, a complement-amplifying condition such as during infections, vaccination, pregnancy, and surgery) in addition to the underlying complement dysregulation before severe complement damage is inflicted. Recognized by different groups, sensitive assays were developed to assess whether patient plasma/serum can inflict severe surface-directed complement damage (Table 7): a strategy that may provide an additional rational for starting anticomplement therapy.

Table 7.

Studies describing assay systems that can detect cellular/surface directed complement activation

First author/referenceSetup of testMain findingOther interesting findingsComment
Noris66  Cultured and stimulated HMEC-1 are exposed to patient sera; C5b-9 (or MAC) deposition is detected
  • • Identifies cell surface-restricted C activation in serum of aHUS patients in acute disease or remission (supporting the second hit theory)

  • • Monitors effectiveness of C inhibition in patients in an ex vivo assay


  • • aHUS serum regularly leads to cell-surface C5b-9 deposition, whereas C3G sera do not

  • • Stimulation of HMEC-1 cells with ADP, LPS or thrombin is equally effective to sensitize cells for complement deposition


These assays are not expected to detect aHUS associated with alterations in DGKE, MCP or THBD genes or function
Gavriilaki174  Engineered PIG-A-null reagent cell line is exposed to patient sera and viability (or insertion of C5b-9) is detected
  • • Identifies cell surface-restricted C activation in serum of aHUS patients in acute disease or remission (supporting the second hit theory)

  • • Monitors effectiveness of C inhibition in patients in an ex vivo assay


  • • Test was shown to distinguish aHUS from other TMAs like TTP

  • • Test setup was shown to identify APS patients at higher risk to develop thrombotic events172


These assays are not expected to detect aHUS associated with alterations in DGKE, MCP or THBD genes or function
Rand170  Phospholipid vesicles pre-incubated with APS plasmas (1st step) are analyzed for C5b-9 insertion when exposed to NHS (2nd step). Distinguishes APS from other inflammatory and thrombotic disorders not associated with aPL-abs Plasma levels of C5a and sC5b-9 were higher in APS patients but not significantly increased when compared with healthy controls Artificially produced PL vesicles appear especially suitable and are easily available
Anliker88  RBCs of patients
with a PNH III RBC clone >20% exposed to plasma with allo- or autoantibodies (first step) and analyzed for MAC mediated hemolysis in NHS (second step)
  • • The potency of 174 different patient-derived RBC antibodies to activate complement was correlated to their antigen specificity

  • • Allows to identify antibodies that likely inflict complement-mediated hemolysis


The C5 inhibition abrogated mild but not strong complement TP activation in vitro. However, residual TP activity could be further depressed by combining C5 inhibitors with proximal C inhibitors Limiting applicability: ABO matched reagents (or RBCs with ABO ‘O’) are needed; PNH RBCs can be frozen, but supply of PNH RBCs is sparse
First author/referenceSetup of testMain findingOther interesting findingsComment
Noris66  Cultured and stimulated HMEC-1 are exposed to patient sera; C5b-9 (or MAC) deposition is detected
  • • Identifies cell surface-restricted C activation in serum of aHUS patients in acute disease or remission (supporting the second hit theory)

  • • Monitors effectiveness of C inhibition in patients in an ex vivo assay


  • • aHUS serum regularly leads to cell-surface C5b-9 deposition, whereas C3G sera do not

  • • Stimulation of HMEC-1 cells with ADP, LPS or thrombin is equally effective to sensitize cells for complement deposition


These assays are not expected to detect aHUS associated with alterations in DGKE, MCP or THBD genes or function
Gavriilaki174  Engineered PIG-A-null reagent cell line is exposed to patient sera and viability (or insertion of C5b-9) is detected
  • • Identifies cell surface-restricted C activation in serum of aHUS patients in acute disease or remission (supporting the second hit theory)

  • • Monitors effectiveness of C inhibition in patients in an ex vivo assay


  • • Test was shown to distinguish aHUS from other TMAs like TTP

  • • Test setup was shown to identify APS patients at higher risk to develop thrombotic events172


These assays are not expected to detect aHUS associated with alterations in DGKE, MCP or THBD genes or function
Rand170  Phospholipid vesicles pre-incubated with APS plasmas (1st step) are analyzed for C5b-9 insertion when exposed to NHS (2nd step). Distinguishes APS from other inflammatory and thrombotic disorders not associated with aPL-abs Plasma levels of C5a and sC5b-9 were higher in APS patients but not significantly increased when compared with healthy controls Artificially produced PL vesicles appear especially suitable and are easily available
Anliker88  RBCs of patients
with a PNH III RBC clone >20% exposed to plasma with allo- or autoantibodies (first step) and analyzed for MAC mediated hemolysis in NHS (second step)
  • • The potency of 174 different patient-derived RBC antibodies to activate complement was correlated to their antigen specificity

  • • Allows to identify antibodies that likely inflict complement-mediated hemolysis


The C5 inhibition abrogated mild but not strong complement TP activation in vitro. However, residual TP activity could be further depressed by combining C5 inhibitors with proximal C inhibitors Limiting applicability: ABO matched reagents (or RBCs with ABO ‘O’) are needed; PNH RBCs can be frozen, but supply of PNH RBCs is sparse

C, complement; DGKE, diacylglycerolkinase-ɛ; HMEC-1, human microvascular endothelial cells; MCP, membrane cofactor protein or CD46; THBD, thrombomodulin; TTP, thrombotic thrombocytopenic purpura.

In aggregate, TP inhibition is a proven or a promising strategy to prevent thromboembolism driven by exuberant complement activation associated with C5 activation and cytolysis. It should be noted that one does not necessarily need to inhibit the TP to prevent it from being activated. Next to C5 inhibitors, other more proximal complement inhibitors are in clinical development99 and are expected to efficiently block C5 activation. The key role of TP and MAC in PNH, CHAPLE, CD59 deficiency, aHUS, AIHA, and APS/CAPS does not necessarily mean that proximal complement activation products do not have a role in hemostasis at all. For example, it may be possible that in thrombotic conditions driven by other means than complement activation (eg, vascular stenosis), proximal complement activation products could have an augmenting prothrombotic effect. Finally, despite the established cross talk between complement and hemostasis, the former is not strictly necessary for stopping blood loss via hemostasis. This is consistent with complement inhibition not leading to bleeding complications during clinical trials or practice.

This work was supported by Deutsche Forschungsgemeinschaft grant SCHM 3018/2-2 to C.Q.S.

Contribution: C.Q.S., H.S., and D.K. discussed the concepts and wrote the manuscript.

Conflict-of-interest disclosure: C.Q.S. and H.S. are inventors of patent application(s) that describes the use of complement inhibitors for therapeutic applications. C.Q.S. has received research funding from Takeda Pharmaceutical. C.Q.S. and H.S. received honoraria for speaking at symposia organized by Alexion Pharmaceuticals. H.S. served on an advisory committee for and received research funding from Alexion Pharmaceuticals. H.S. served on an advisory committee for Ra Pharmaceuticals, Sanofi, Novartis, Apellis and Alnylam. D.K. is a director of and scientific advisor to Gyroscope Therapeutics. D.K. received advisory board payments from Idorsia, Novartis, ChemoCentryx, Alexion, Apellis, Biomarin, and Sarepta. D.K.’s spouse works for GSK.

Correspondence: Christoph Q. Schmidt, The Institute of Pharmacology of Natural Products and Clinical Pharmacology, Ulm University, Helmholtzstraße 20, D-89081 Ulm, Germany; e-mail: christoph.schmidt@uni-ulm.de.

1.
Loof
TG
,
Mörgelin
M
,
Johansson
L
, et al
.
Coagulation, an ancestral serine protease cascade, exerts a novel function in early immune defense
.
Blood.
2011
;
118
(
9
):
2589
-
2598
.
2.
Dushay
MS
.
Insect hemolymph clotting
.
Cell Mol Life Sci.
2009
;
66
(
16
):
2643
-
2650
.
3.
Engelmann
B
,
Massberg
S
.
Thrombosis as an intravascular effector of innate immunity
.
Nat Rev Immunol.
2013
;
13
(
1
):
34
-
45
.
4.
Keragala
CB
,
Draxler
DF
,
McQuilten
ZK
,
Medcalf
RL
.
Haemostasis and innate immunity—a complementary relationship: a review of the intricate relationship between coagulation and complement pathways
.
Br J Haematol.
2018
;
180
(
6
):
782
-
798
.
5.
Arneth
B
.
Coevolution of the coagulation and immune systems
.
Inflamm Res.
2019
;
68
(
2
):
117
-
123
.
6.
Markiewski
MM
,
Nilsson
B
,
Ekdahl
KN
,
Mollnes
TE
,
Lambris
JD
.
Complement and coagulation: strangers or partners in crime?
Trends Immunol.
2007
;
28
(
4
):
184
-
192
.
7.
Amara
U
,
Rittirsch
D
,
Flierl
M
, et al
.
Interaction between the coagulation and complement system
.
Adv Exp Med Biol.
2008
;
632
:
71
-
79
.
8.
Conway
EM
.
Reincarnation of ancient links between coagulation and complement
.
J Thromb Haemost.
2015
;
13
(
Suppl 1
):
S121
-
S132
.
9.
Del Conde
I
,
Crúz
MA
,
Zhang
H
,
López
JA
,
Afshar-Kharghan
V
.
Platelet activation leads to activation and propagation of the complement system
.
J Exp Med.
2005
;r
201
(
6
):
871
-
879
.
10.
Morigi
M
,
Galbusera
M
,
Gastoldi
S
, et al
.
Alternative pathway activation of complement by Shiga toxin promotes exuberant C3a formation that triggers microvascular thrombosis
.
J Immunol.
2011
;
187
(
1
):
172
-
180
.
11.
Keshari
RS
,
Silasi
R
,
Lupu
C
,
Taylor
FB
Jr
,
Lupu
F
.
In vivo-generated thrombin and plasmin do not activate the complement system in baboons
.
Blood.
2017
;
130
(
24
):
2678
-
2681
.
12.
Schmidt
CQ
,
Verschoor
A
.
Complement and coagulation: so close, yet so far
.
Blood.
2017
;
130
(
24
):
2581
-
2582
.
13.
Verbovetski
I
,
Bychkov
H
,
Trahtemberg
U
, et al
.
Opsonization of apoptotic cells by autologous iC3b facilitates clearance by immature dendritic cells, down-regulates DR and CD86, and up-regulates CC chemokine receptor 7
.
J Exp Med.
2002
;
196
(
12
):
1553
-
1561
.
14.
Lachmann
PJ
.
The amplification loop of the complement pathways
.
Adv Immunol.
2009
;
104
:
115
-
149
.
15.
Schmidt
CQ
,
Lambris
JD
,
Ricklin
D
.
Protection of host cells by complement regulators
.
Immunol Rev.
2016
;
274
(
1
):
152
-
171
.
16.
Ricklin
D
,
Hajishengallis
G
,
Yang
K
,
Lambris
JD
.
Complement: a key system for immune surveillance and homeostasis
.
Nat Immunol.
2010
;
11
(
9
):
785
-
797
.
17.
Fletcher-Sandersjöö
A
,
Bellander
B-M
.
Is COVID-19 associated thrombosis caused by overactivation of the complement cascade? A literature review
.
Thromb Res.
2020
;
194
:
36
-
41
.
18.
Noris
M
,
Benigni
A
,
Remuzzi
G
.
The case of complement activation in COVID-19 multiorgan impact
.
Kidney Int.
2020
;
98
(
2
):
314
-
322
.
19.
Conway
EM
,
Pryzdial
ELG
.
Is the COVID-19 thrombotic catastrophe complement- connected?
J Thromb Haemost.
2020
;
18
(
11
):
2812
-
2822
.
20.
Gavriilaki
E
,
Brodsky
RA
.
Severe COVID-19 infection and thrombotic microangiopathy: success does not come easily
.
Br J Haematol.
2020
;
189
(
6
):
e227
-
e230
.
21.
Chouaki Benmansour
N
,
Carvelli
J
,
Vivier
E
.
Complement cascade in severe forms of COVID-19: recent advances in therapy
.
Eur J Immunol.
2021
;
51
(
7
):
1652
-
1659
.
22.
Luzzatto
L
,
Gianfaldoni
G
,
Notaro
R
.
Management of paroxysmal nocturnal haemoglobinuria: a personal view
.
Br J Haematol.
2011
;
153
(
6
):
709
-
720
.
23.
Parker
CJ
.
The pathophysiology of paroxysmal nocturnal hemoglobinuria
.
Exp Hematol.
2007
;
35
(
4
):
523
-
533
.
24.
Brodsky
RA
.
Paroxysmal nocturnal hemoglobinuria
.
Blood.
2014
;
124
(
18
):
2804
-
2811
.
25.
Radomski
MW
,
Palmer
RM
,
Moncada
S
.
An L-arginine/nitric oxide pathway present in human platelets regulates aggregation
.
Proc Natl Acad Sci USA.
1990
;
87
(
13
):
5193
-
5197
.
26.
Rother
RP
,
Bell
L
,
Hillmen
P
,
Gladwin
MT
.
The clinical sequelae of intravascular hemolysis and extracellular plasma hemoglobin: a novel mechanism of human disease
.
JAMA.
2005
;
293
(
13
):
1653
-
1662
.
27.
Hill
A
,
Kelly
RJ
,
Hillmen
P
.
Thrombosis in paroxysmal nocturnal hemoglobinuria
.
Blood.
2013
;
121
(
25
):
4985
-
4996, quiz 5105
.
28.
Merle
NS
,
Grunenwald
A
,
Rajaratnam
H
, et al
.
Intravascular hemolysis activates complement via cell-free heme and heme-loaded microvesicles
.
JCI Insight.
2018
;
3
(
12
):
96910
.
29.
Pullarkat
V
,
Ngo
M
,
Iqbal
S
,
Espina
B
,
Liebman
HA
.
Detection of lupus anticoagulant identifies patients with autoimmune haemolytic anaemia at increased risk for venous thromboembolism
.
Br J Haematol.
2002
;
118
(
4
):
1166
-
1169
.
30.
Matthes
T
,
Tullen
E
,
Poole
J
, et al
.
Acquired and transient RBC CD55 deficiency (Inab phenotype) and anti-IFC
.
Transfusion.
2002
;
42
(
11
):
1448
-
1457
.
31.
Ziakas
PD
,
Poulou
LS
,
Rokas
GI
,
Bartzoudis
D
,
Voulgarelis
M
.
Thrombosis in paroxysmal nocturnal hemoglobinuria: sites, risks, outcome. An overview
.
J Thromb Haemost.
2007
;
5
(
3
):
642
-
645
.
32.
Audebert
HJ
,
Planck
J
,
Eisenburg
M
,
Schrezenmeier
H
,
Haberl
R
.
Cerebral ischemic infarction in paroxysmal nocturnal hemoglobinuria report of 2 cases and updated review of 7 previously published patients
.
J Neurol.
2005
;
252
(
11
):
1379
-
1386
.
33.
Lee
JW
,
Jang
JH
,
Kim
JS
, et al
.
Clinical signs and symptoms associated with increased risk for thrombosis in patients with paroxysmal nocturnal hemoglobinuria from a Korean Registry
.
Int J Hematol.
2013
;
97
(
6
):
749
-
757
.
34.
Gralnick
HR
,
Vail
M
,
McKeown
LP
, et al
.
Activated platelets in paroxysmal nocturnal haemoglobinuria
.
Br J Haematol.
1995
;
91
(
3
):
697
-
702
.
35.
Hall
C
,
Richards
S
,
Hillmen
P
.
Primary prophylaxis with warfarin prevents thrombosis in paroxysmal nocturnal hemoglobinuria (PNH)
.
Blood.
2003
;
102
(
10
):
3587
-
3591
.
36.
Hillmen
P
,
Hall
C
,
Marsh
JCW
, et al
.
Effect of eeculizumab n hemolysis and transfusion requirements in patients with paroxysmal nocturnal hemoglobinuria
.
N Engl J Med.
2004
;
350
(
6
):
552
-
559
.
37.
Hillmen
P
,
Young
NS
,
Schubert
J
, et al
.
The complement inhibitor eeculizumab n paroxysmal nocturnal hemoglobinuria
.
N Engl J Med.
2006
;
355
(
12
):
1233
-
1243
.
38.
Hillmen
P
,
Muus
P
,
Dührsen
U
, et al
.
Effect of the complement inhibitor eeculizumab n thromboembolism in patients with paroxysmal nocturnal hemoglobinuria
.
Blood.
2007
;
110
(
12
):
4123
-
4128
.
39.
Brodsky
RA
,
Young
NS
,
Antonioli
E
, et al
.
Multicenter phase 3 study of the complement inhibitor eeculizumab or the treatment of patients with paroxysmal nocturnal hemoglobinuria
.
Blood.
2008
;
111
(
4
):
1840
-
1847
.
40.
Kelly
RJ
,
Hill
A
,
Arnold
LM
, et al
.
Long-term treatment with eeculizumab n paroxysmal nocturnal hemoglobinuria: sustained efficacy and improved survival
.
Blood.
2011
;
117
(
25
):
6786
-
6792
.
41.
Lee
JW
,
Sicre de Fontbrune
F
,
Wong Lee Lee
L
, et al
.
Ravulizumab (ALXN1210) vs eeculizumab n adult patients with PNH naive to complement inhibitors: the 301 study
.
Blood.
2019
;
133
(
6
):
530
-
539
.
42.
Kulasekararaj
AG
,
Hill
A
,
Rottinghaus
ST
, et al
.
Ravulizumab (ALXN1210) vs eeculizumab n C5-inhibitor-experienced adult patients with PNH: the 302 study
.
Blood.
2019
;
133
(
6
):
540
-
549
.
43.
Risitano
AM
,
Marotta
S
,
Ricci
P
, et al
.
Anti-complement treatment for paroxysmal nocturnal hemoglobinuria: time for proximal complement inhibition? A position paper from the SAAWP of the EBMT
.
Front Immunol.
2019
;
10
:
1157
.
44.
Helley
D
,
de Latour
RP
,
Porcher
R
, et al;
French Society of Hematology
.
Evaluation of hemostasis and endothelial function in patients with paroxysmal nocturnal hemoglobinuria receiving eculizumab
.
Haematologica.
2010
;
95
(
4
):
574
-
581
.
45.
Weitz
IC
,
Razavi
P
,
Rochanda
L
, et al
.
EEEculizumab herapy esults in rapid and sustained decreases in markers of thrombin generation and inflammation in patients with PNH independent of its effects on hemolysis and microparticle formation
.
Thromb Res.
2012
;
130
(
3
):
361
-
368
.
46.
Yamashina
M
,
Ueda
E
,
Kinoshita
T
, et al
.
Inherited complete deficiency of 20-kilodalton homologous restriction factor (CD59) as a cause of paroxysmal nocturnal hemoglobinuria
.
N Engl J Med.
1990
;
323
(
17
):
1184
-
1189
.
47.
Nevo
Y
,
Ben-Zeev
B
,
Tabib
A
, et al
.
CD59 deficiency is associated with chronic hemolysis and childhood relapsing immune-mediated polyneuropathy
.
Blood.
2013
;
121
(
1
):
129
-
135
.
48.
Ben-Zeev
B
,
Tabib
A
,
Nissenkorn
A
, et al
.
Devastating recurrent brain ischemic infarctions and retinal disease in pediatric patients with CD59 deficiency
.
Eur J Paediatr Neurol.
2015
;
19
(
6
):
688
-
693
.
49.
Mevorach
D
,
Reiner
I
,
Grau
A
, et al
.
Therapy with eeculizumab or patients with CD59 p.Cys89Tyr mutation
.
Ann Neurol.
2016
;
80
(
5
):
708
-
717
.
50.
Höchsmann
B
,
Dohna-Schwake
C
,
Kyrieleis
HA
,
Pannicke
U
,
Schrezenmeier
H
.
Targeted therapy with eeculizumab or inherited CD59 deficiency
.
N Engl J Med.
2014
;
370
(
1
):
90
-
92
.
51.
Hess
C
,
Sadallah
S
,
Hefti
A
,
Landmann
R
,
Schifferli
JA
.
Ectosomes released by human neutrophils are specialized functional units
.
J Immunol.
1999
;
163
(
8
):
4564
-
4573
.
52.
Almeida
AM
,
Murakami
Y
,
Layton
DM
, et al
.
Hypomorphic promoter mutation in PIGM causes inherited glycosylphosphatidylinositol deficiency
.
Nat Med.
2006
;
12
(
7
):
846
-
851
.
53.
Pode-Shakked
B
,
Heimer
G
,
Vilboux
T
, et al
.
Cerebral and portal vein thrombosis, macrocephaly and atypical absence seizures in Glycosylphosphatidyl inositol deficiency due to a PIGM promoter mutation
.
Mol Genet Metab.
2019
;
128
(
1-2
):
151
-
161
.
54.
Kurolap
A
,
Eshach Adiv
O
,
Hershkovitz
T
, et al
.
EEculizumab s safe and effective as a long-term treatment for protein-losing enteropathy due to CD55 deficiency
.
J Pediatr Gastroenterol Nutr.
2019
;
68
(
3
):
325
-
333
.
55.
Ozen
A
,
Kasap
N
,
Vujkovic-Cvijin
I
, et al
.
Broadly effective metabolic and immune recovery with C5 inhibition in CHAPLE disease
.
Nat Immunol.
2021
;
22
(
2
):
128
-
139
.
56.
Hue-Roye
K
,
Powell
VI
,
Patel
G
, et al
.
Novel molecular basis of an Inab phenotype
.
Immunohematology.
2005
;
21
(
2
):
53
-
55
.
57.
Telen
MJ
,
Hall
SE
,
Green
AM
,
Moulds
JJ
,
Rosse
WF
.
Identification of human erythrocyte blood group antigens on decay-accelerating factor (DAF) and an erythrocyte phenotype negative for DAF
.
J Exp Med.
1988
;
167
(
6
):
1993
-
1998
.
58.
Telen
MJ
,
Green
AM
.
The Inab phenotype: characterization of the membrane protein and complement regulatory defect
.
Blood.
1989
;
74
(
1
):
437
-
441
.
59.
Reid
ME
,
Mallinson
G
,
Sim
RB
, et al
.
Biochemical studies on red blood cells from a patient with the Inab phenotype (decay-accelerating factor deficiency)
.
Blood.
1991
;
78
(
12
):
3291
-
3297
.
60.
Merry
AH
,
Rawlinson
VI
,
Uchikawa
M
,
Daha
MR
,
Sim
RB
.
Studies on the sensitivity to complement-mediated lysis of erythrocytes (Inab phenotype) with a deficiency of DAF (decay accelerating factor)
.
Br J Haematol.
1989
;
73
(
2
):
248
-
253
.
61.
Ozen
A
,
Comrie
WA
,
Ardy
RC
, et al
.
CD55 deficiency, early-onset protein-losing enteropathy, and thrombosis
.
N Engl J Med.
2017
;
377
(
1
):
52
-
61
.
62.
Kurolap
A
,
Eshach-Adiv
O
,
Hershkovitz
T
, et al
.
Loss of CD55 in eculizumab-responsive protein-losing enteropathy
.
N Engl J Med.
2017
;
377
(
1
):
87
-
89
.
63.
Noris
M
,
Remuzzi
G
.
Atypical hemolytic-uremic syndrome
.
N Engl J Med.
2009
;
361
(
17
):
1676
-
1687
.
64.
Noris
M
,
Remuzzi
G
.
Glomerular diseases dependent on complement activation, including atypical hemolytic uremic syndrome, membranoproliferative glomerulonephritis, and C3 glomerulopathy: core curriculum 2015
.
Am J Kidney Dis.
2015
;
66
(
2
):
359
-
375
.
65.
Noris
M
,
Caprioli
J
,
Bresin
E
, et al
.
Relative role of genetic complement abnormalities in sporadic and familial aHUS and their impact on clinical phenotype
.
Clin J Am Soc Nephrol.
2010
;
5
(
10
):
1844
-
1859
.
66.
Noris
M
,
Galbusera
M
,
Gastoldi
S
, et al
.
Dynamics of complement activation in aHUS and how to monitor eeculizumab herapy
.
Blood.
2014
;
124
(
11
):
1715
-
1726
.
67.
Ueda
Y
,
Miwa
T
,
Ito
D
, et al
.
Differential contribution of C5aR and C5b-9 pathways to renal thrombic microangiopathy and macrovascular thrombosis in mice carrying an atypical hemolytic syndrome-related factor H mutation
.
Kidney Int.
2019
;
96
(
1
):
67
-
79
.
68.
Smith
RJH
,
Appel
GB
,
Blom
AM
, et al
.
C3 glomerulopathy: understanding a rare complement-driven renal disease
.
Nat Rev Nephrol.
2019
;
15
(
3
):
129
-
143
.
69.
Pickering
MC
,
D’Agati
VD
,
Nester
CM
, et al
.
C3 glomerulopathy: consensus report
.
Kidney Int.
2013
;
84
(
6
):
1079
-
1089
.
70.
Noris
M
,
Bresin
E
,
Mele
C
,
Remuzzi
G
.
Atypical Hemolytic-Uremic Syndrome.
GeneReviews
;
1993
. https://www.ncbi.nlm.nih.gov/books/NBK1367/
71.
Heinen
S
,
Sanchez-Corral
P
,
Jackson
MS
, et al
.
De novo gene conversion in the RCA gene cluster (1q32) causes mutations in complement factor H associated with atypical hemolytic uremic syndrome
.
Hum Mutat.
2006
;
27
(
3
):
292
-
293
.
72.
Loirat
C
,
Noris
M
,
Fremeaux-Bacchi
V
.
Complement and the atypical hemolytic uremic syndrome in children
.
Pediatr Nephrol.
2008
;
23
(
11
):
1957
-
1972
.
73.
Maga
TK
,
Nishimura
CJ
,
Weaver
AE
,
Frees
KL
,
Smith
RJH
.
Mutations in alternative pathway complement proteins in American patients with atypical hemolytic uremic syndrome
.
Hum Mutat.
2010
;
31
(
6
):
E1445
-
E1460
.
74.
Schmidt
CQ
,
Herbert
AP
,
Hocking
HG
,
Uhrín
D
,
Barlow
PN
.
Translational mini-review series on complement factor H: structural and functional correlations for factor H
.
Clin Exp Immunol.
2008
;
151
(
1
):
14
-
24
.
75.
Dopler
A
,
Guntau
L
,
Harder
MJ
, et al
.
Self versus nonself discrimination by the soluble complement regulators factor H and FHL-1
.
J Immunol.
2019
;
202
(
7
):
2082
-
2094
.
76.
Blanc
C
,
Togarsimalemath
SK
,
Chauvet
S
, et al
.
Anti-factor H autoantibodies in C3 glomerulopathies and in atypical hemolytic uremic syndrome: one target, two diseases
.
J Immunol.
2015
;
194
(
11
):
5129
-
5138
.
77.
Osborne
AJ
,
Breno
M
,
Borsa
NG
, et al
.
Statistical validation of rare complement variants provides insights into the molecular basis of atypical hemolytic uremic syndrome and C3 glomerulopathy
.
J Immunol.
2018
;
200
(
7
):
2464
-
2478
.
78.
Zhang
Y
,
Ghiringhelli Borsa
N
,
Shao
D
, et al
.
Factor H autoantibodies and complement-mediated diseases
.
Front Immunol.
2020
;
11
:
607211
.
79.
Sethi
S
,
Gamez
JD
,
Vrana
JA
, et al
.
Glomeruli of dense deposit disease contain components of the alternative and terminal complement pathway
.
Kidney Int.
2009
;
75
(
9
):
952
-
960
.
80.
Sethi
S
,
Vrana
JA
,
Fervenza
FC
, et al
.
Characterization of C3 in C3 glomerulopathy
.
Nephrol Dial Transplant.
2017
;
32
(
3
):
459
-
465
.
81.
Jenne
D
,
Stanley
KK
.
Molecular cloning of S-protein, a link between complement, coagulation and cell-substrate adhesion
.
EMBO J.
1985
;
4
(
12
):
3153
-
3157
.
82.
Jenne
DE
,
Tschopp
J
.
Molecular structure and functional characterization of a human complement cytolysis inhibitor found in blood and seminal plasma: identity to sulfated glycoprotein 2, a constituent of rat testis fluid
.
Proc Natl Acad Sci USA.
1989
;
86
(
18
):
7123
-
7127
.
83.
Pickering
MC
,
Warren
J
,
Rose
KL
, et al
.
Prevention of C5 activation ameliorates spontaneous and experimental glomerulonephritis in factor H-deficient mice
.
Proc Natl Acad Sci USA.
2006
;
103
(
25
):
9649
-
9654
.
84.
Gehrs
BC
,
Friedberg
RC
.
Autoimmune hemolytic anemia
.
Am J Hematol.
2002
;
69
(
4
):
258
-
271
.
85.
Lecouffe-Desprets
M
,
Néel
A
,
Graveleau
J
, et al
.
Venous thromboembolism related to warm autoimmune hemolytic anemia: a case-control study
.
Autoimmun Rev.
2015
;
14
(
11
):
1023
-
1028
.
86.
Barcellini
W
,
Fattizzo
B
,
Zaninoni
A
, et al
.
Clinical heterogeneity and predictors of outcome in primary autoimmune hemolytic anemia: a GIMEMA study of 308 patients
.
Blood.
2014
;
124
(
19
):
2930
-
2936
.
87.
Prabhu
R
,
Bhaskaran
R
,
Shenoy
V
,
G
R
,
Sidharthan
N
.
Clinical characteristics and treatment outcomes of primary autoimmune hemolytic anemia: a single center study from South India
.
Blood Res.
2016
;
51
(
2
):
88
-
94
.
88.
Anliker
M
,
Schmidt
CQ
,
Harder
MJ
, et al
.
Complement activation by human red blood cell antibodies: hemolytic potential of antibodies and efficacy of complement inhibitors assessed by a sensitive flow cytometric assay
.
Transfusion.
2018
;
58
(
12
):
2992
-
3002
.
89.
von Zabern
I
,
Ehlers
M
,
Grunwald
U
,
Mauermann
K
,
Greinacher
A
.
Release of mediators of systemic inflammatory response syndrome in the course of a severe delayed hemolytic transfusion reaction caused by anti-D
.
Transfusion.
1998
;
38
(
5
):
459
-
468
.
90.
Yusuf
HR
,
Hooper
WC
,
Grosse
SD
,
Parker
CS
,
Boulet
SL
,
Ortel
TL
.
Risk of venous thromboembolism occurrence among adults with selected autoimmune diseases: a study among a U.S. cohort of commercial insurance enrollees
.
Thromb Res.
2015
;
135
(
1
):
50
-
57
.
91.
Allgood
JW
,
Chaplin
H
Jr
.
Idiopathic acquired autoimmune hemolytic anemia. A review of forty-seven cases treated from 1955 through 1965
.
Am J Med.
1967
;
43
(
2
):
254
-
273
.
92.
Hoffman
PC
.
Immune hemolytic anemia–selected topics
.
Hematol Am Soc Hematol Educ Program.
2009
;
2009
;
80
-
86
.
93.
Broome
CM
,
Cunningham
JM
,
Mullins
M
, et al
.
Increased risk of thrombotic events in cold agglutinin disease: A 10-year retrospective analysis
.
Res Pract Thromb Haemost.
2020
;
4
(
4
):
628
-
635
.
94.
Baek
S-W
,
Lee
M-W
,
Ryu
H-W
, et al
.
Clinical features and outcomes of autoimmune hemolytic anemia: a retrospective analysis of 32 cases
.
Korean J Hematol.
2011
;
46
(
2
):
111
-
117
.
95.
Hendrick
AM
.
Auto-immune haemolytic anaemia: a high-risk disorder for thromboembolism?
Hematology.
2003
;
8
(
1
):
53
-
56
.
96.
Roumier
M
,
Loustau
V
,
Guillaud
C
, et al
.
Characteristics and outcome of warm autoimmune hemolytic anemia in adults: new insights based on a single-center experience with 60 patients
.
Am J Hematol.
2014
;
89
(
9
):
E150
-
E155
.
97.
Röth
A
,
Bommer
M
,
Hüttmann
A
, et al
.
EEculizumab n cold agglutinin disease (DECADE): an open-label, prospective, bicentric, nonrandomized phase 2 trial
.
Blood Adv.
2018
;
2
(
19
):
2543
-
2549
.
98.
Jäger
U
,
D’Sa
S
,
Schörgenhofer
C
, et al
.
Inhibition of complement C1s improves severe hemolytic anemia in cold agglutinin disease: a first-in-human trial
.
Blood.
2019
;
133
(
9
):
893
-
901
.
99.
Ricklin
D
,
Mastellos
DC
,
Reis
ES
,
Lambris
JD
.
The renaissance of complement therapeutics
.
Nat Rev Nephrol.
2018
;
14
(
1
):
26
-
47
.
100.
Lim
W
.
Complement and the antiphospholipid syndrome
.
Curr Opin Hematol.
2011
;
18
(
5
):
361
-
365
.
101.
Rodriguez-Pintó
I
,
Espinosa
G
,
Cervera
R
.
Catastrophic antiphospholipid syndrome: the current management approach
.
Best Pract Res Clin Rheumatol.
2016
;
30
(
2
):
239
-
249
.
102.
Kazzaz
NM
,
McCune
WJ
,
Knight
JS
.
Treatment of catastrophic antiphospholipid syndrome
.
Curr Opin Rheumatol.
2016
;
28
(
3
):
218
-
227
.
103.
Cohen
H
,
Cuadrado
MJ
,
Erkan
D
, et al
.
16th International Congress on Antiphospholipid Antibodies Task Force Report on Antiphospholipid Syndrome Treatment Trends
.
Lupus.
2020
;
29
(
12
):
1571
-
1593
.
104.
Le Thi Thuong
D
,
Tieulié
N
,
Costedoat
N
, et al
.
The HELLP syndrome in the antiphospholipid syndrome: retrospective study of 16 cases in 15 women
.
Ann Rheum Dis.
2005
;
64
(
2
):
273
-
278
.
105.
Tufano
A
,
Coppola
A
,
Maruotti
GM
,
Martinelli
P
,
Cerbone
AM
,
Di Minno
G
.
HELLP syndrome and its relation with the antiphospholipid syndrome
.
Blood Transfus.
2014
;
12
(
1
):
114
-
118
.
106.
Bazzan
M
,
Todros
T
,
Tedeschi
S
, et al
.
Genetic and molecular evidence for complement dysregulation in patients with HELLP syndrome
.
Thromb Res.
2020
;
196
:
167
-
174
.
107.
Pengo
V
,
Ruffatti
A
,
Legnani
C
, et al
.
Clinical course of high-risk patients diagnosed with antiphospholipid syndrome
.
J Thromb Haemost.
2010
;
8
(
2
):
237
-
242
.
108.
Cervera
R
,
Piette
J-C
,
Font
J
, et al;
Euro-Phospholipid Project Group
.
Antiphospholipid syndrome: clinical and immunologic manifestations and patterns of disease expression in a cohort of 1,000 patients
.
Arthritis Rheum.
2002
;
46
(
4
):
1019
-
1027
.
109.
Cervera
R
,
Bucciarelli
S
,
Plasín
MA
, et al;
Catastrophic Antiphospholipid Syndrome (CAPS) Registry Project Group (European Forum On Antiphospholipid Antibodies)
.
Catastrophic antiphospholipid syndrome (CAPS): descriptive analysis of a series of 280 patients from the “CAPS Registry”
.
J Autoimmun.
2009
;
32
(
3-4
):
240
-
245
.
110.
Cervera
R
,
Serrano
R
,
Pons-Estel
GJ
, et al;
Euro-Phospholipid Project Group (European Forum on Antiphospholipid Antibodies)
.
Morbidity and mortality in the antiphospholipid syndrome during a 10-year period: a multicentre prospective study of 1000 patients
.
Ann Rheum Dis.
2015
;
74
(
6
):
1011
-
1018
.
111.
Meroni
PL
,
Ronda
N
,
De Angelis
V
,
Grossi
C
,
Raschi
E
,
Borghi
MO
.
Role of anti-beta2 glycoprotein I antibodies in antiphospholipid syndrome: in vitro and in vivo studies
.
Clin Rev Allergy Immunol.
2007
;
32
(
1
):
67
-
74
.
112.
Chaturvedi
S
,
Braunstein
EM
,
Brodsky
RA
.
Antiphospholipid syndrome: complement activation, complement gene mutations, and therapeutic implications
.
J Thromb Haemost.
2021
;
19
(
3
):
607
-
616
.
113.
Pierangeli
SS
,
Girardi
G
,
Vega-Ostertag
M
,
Liu
X
,
Espinola
RG
,
Salmon
J
.
Requirement of activation of complement C3 and C5 for antiphospholipid antibody-mediated thrombophilia
.
Arthritis Rheum.
2005
;
52
(
7
):
2120
-
2124
.
114.
Tinti
MG
,
Carnevale
V
,
Inglese
M
, et al
.
EEculizumab n refractory catastrophic antiphospholipid syndrome: a case report and systematic review of the literature
.
Clin Exp Med.
2019
;
19
(
3
):
281
-
288
.
115.
Skoczynska
M
,
Crowther
MA
,
Chowaniec
M
,
Ponikowska
M
,
Chaturvedi
S
,
Legault
K
.
Thrombotic microangiopathy in the course of catastrophic antiphospholipid syndrome successfully treated with eculizumab: case report and systematic review of the literature
.
Lupus.
2020
;
29
(
6
):
631
-
639
.
116.
Yelnik
CM
,
Miranda
S
,
Mékinian
A
, et al
.
Patients with refractory catastrophic antiphospholipid syndrome respond inconsistently to eculizumab
.
Blood.
2020
;
136
(
21
):
2473
-
2477
.
117.
Risitano
AM
,
Notaro
R
,
Marando
L
, et al
.
Complement fraction 3 binding on erythrocytes as additional mechanism of disease in paroxysmal nocturnal hemoglobinuria patients treated by eculizumab
.
Blood.
2009
;
113
(
17
):
4094
-
4100
.
118.
Hill
A
,
Rother
RP
,
Arnold
L
, et al
.
EEculizumab revents intravascular hemolysis in patients with paroxysmal nocturnal hemoglobinuria and unmasks low-level extravascular hemolysis occurring through C3 opsonization
.
Haematologica.
2010
;
95
(
4
):
567
-
573
.
119.
Höchsmann
B
,
Leichtle
R
,
von Zabern
I
,
Kaiser
S
,
Flegel
WA
,
Schrezenmeier
H
.
Paroxysmal nocturnal haemoglobinuria treatment with eeculizumab s associated with a positive direct antiglobulin test
.
Vox Sang.
2012
;
102
(
2
):
159
-
166
.
120.
Peffault de Latour
R
,
Fremeaux-Bacchi
V
,
Porcher
R
, et al
.
Assessing complement blockade in patients with paroxysmal nocturnal hemoglobinuria receiving eculizumab
.
Blood.
2015
;
125
(
5
):
775
-
783
.
121.
Harder
MJ
,
Kuhn
N
,
Schrezenmeier
H
, et al
.
Incomplete inhibition by eculizumab: mechanistic evidence for residual C5 activity during strong complement activation
.
Blood.
2017
;
129
(
8
):
970
-
980
.
122.
Mannes
M
,
Dopler
A
,
Zolk
O
, et al
.
Complement inhibition at the level of C3 or C5: mechanistic reasons for ongoing terminal pathway activity
.
Blood.
2021
;
137
(
4
):
443
-
455
.
123.
Wehling
C
,
Amon
O
,
Bommer
M
, et al
.
Monitoring of complement activation biomarkers and eeculizumab n complement-mediated renal disorders
.
Clin Exp Immunol.
2017
;
187
(
2
):
304
-
315
.
124.
Harder
MJ
,
Höchsmann
B
,
Dopler
A
, et al
.
Different levels of incomplete terminal pathway inhibition by eeculizumab nd the clinical response of PNH patients
.
Front Immunol.
2019
;
10
:
1639
.
125.
Röth
A
,
Nishimura
JI
,
Nagy
Z
, et al
.
The complement C5 inhibitor crovalimab in paroxysmal nocturnal hemoglobinuria
.
Blood.
2020
;
135
(
12
):
912
-
920
.
126.
Schols
S
,
Nunn
MA
,
Mackie
I
, et al
.
Successful treatment of a PNH patient non-responsive to eeculizumab ith the novel complement C5 inhibitor coversin (nomacopan)
.
Br J Haematol.
2020
;
188
(
2
):
334
-
337
.
127.
Risitano
AM
.
Dissecting complement blockade for clinic use
.
Blood.
2015
;
125
(
5
):
742
-
744
.
128.
Vogel
C-W
,
Fritzinger
DC
,
Gorsuch
WB
,
Stahl
GL
.
Complement depletion with humanised cobra venom factor: efficacy in preclinical models of vascular diseases
.
Thromb Haemost.
2015
;
113
(
3
):
548
-
552
.
129.
Gopalakrishnakone
P
.
Snake Venoms.
New York
:
Springer
;
2016
.
130.
Zimmerman
TS
,
Müller-Eberhard
HJ
.
Blood coagulation initiation by a complement-mediated pathway
.
J Exp Med.
1971
;
134
(
6
):
1601
-
1607
.
131.
Heusinkveld
RS
,
Leddy
JP
,
Klemperer
MR
,
Breckenridge
RT
.
Hereditary deficiency of the sixth component of complement in man. II. Studies of hemostasis
.
J Clin Invest.
1974
;
53
(
2
):
554
-
558
.
132.
Boyer
JT
,
Gall
EP
,
Norman
ME
,
Nilsson
UR
,
Zimmerman
TS
.
Hereditary deficiency of the seventh component of complement
.
J Clin Invest.
1975
;
56
(
4
):
905
-
913
.
133.
Polley
MJ
,
Nachman
R
.
The human complement system in thrombin-mediated platelet function
.
J Exp Med.
1978
;
147
(
6
):
1713
-
1726
.
134.
Hamad
OA
,
Nilsson
PH
,
Wouters
D
, et al
.
Complement component C3 binds to activated normal platelets without preceding proteolytic activation and promotes binding to complement receptor 1
.
J Immunol.
2010
;
184
(
5
):
2686
-
2692
.
135.
Hamad
OA
,
Mitroulis
I
,
Fromell
K
, et al
.
Contact activation of C3 enables tethering between activated platelets and polymorphonuclear leukocytes via CD11b/CD18
.
Thromb Haemost.
2015
;
114
(
6
):
1207
-
1217
.
136.
Eriksson
O
,
Mohlin
C
,
Nilsson
B
,
Ekdahl
KN
.
The human platelet as an innate immune cell: interactions between activated platelets and the complement system
.
Front Immunol.
2019
;
10
:
1590
.
137.
Polley
MJ
,
Nachman
RL
.
Human platelet activation by C3a and C3a des-arg
.
J Exp Med.
1983
;
158
(
2
):
603
-
615
.
138.
Wiedmer
T
,
Esmon
CT
,
Sims
PJ
.
Complement proteins C5b-9 stimulate procoagulant activity through platelet prothrombinase
.
Blood.
1986
;
68
(
4
):
875
-
880
.
139.
Wiedmer
T
,
Hall
SE
,
Ortel
TL
,
Kane
WH
,
Rosse
WF
,
Sims
PJ
.
Complement-induced vesiculation and exposure of membrane prothrombinase sites in platelets of paroxysmal nocturnal hemoglobinuria
.
Blood.
1993
;
82
(
4
):
1192
-
1196
.
140.
Sims
PJ
,
Faioni
EM
,
Wiedmer
T
,
Shattil
SJ
.
Complement proteins C5b-9 cause release of membrane vesicles from the platelet surface that are enriched in the membrane receptor for coagulation factor Va and express prothrombinase activity
.
J Biol Chem.
1988
;
263
(
34
):
18205
-
18212
.
141.
Hattori
R
,
Hamilton
KK
,
McEver
RP
,
Sims
PJ
.
Complement proteins C5b-9 induce secretion of high molecular weight multimers of endothelial von Willebrand factor and translocation of granule membrane protein GMP-140 to the cell surface
.
J Biol Chem.
1989
;
264
(
15
):
9053
-
9060
.
142.
Foreman
KE
,
Vaporciyan
AA
,
Bonish
BK
, et al
.
C5a-induced expression of P-selectin in endothelial cells
.
J Clin Invest.
1994
;
94
(
3
):
1147
-
1155
.
143.
Ritis
K
,
Doumas
M
,
Mastellos
D
, et al
.
A novel C5a receptor-tissue factor cross-talk in neutrophils links innate immunity to coagulation pathways
.
J Immunol.
2006
;
177
(
7
):
4794
-
4802
.
144.
Landsem
A
,
Fure
H
,
Krey Ludviksen
J
, et al
.
Complement component 5 does not interfere with physiological hemostasis but is essential for Escherichia coli-induced coagulation accompanied by Toll-like receptor 4
.
Clin Exp Immunol.
2019
;
196
(
1
):
97
-
110
.
145.
Gushiken
FC
,
Han
H
,
Li
J
,
Rumbaut
RE
,
Afshar-Kharghan
V
.
Abnormal platelet function in C3-deficient mice
.
J Thromb Haemost.
2009
;
7
(
5
):
865
-
870
.
146.
Subramaniam
S
,
Jurk
K
,
Hobohm
L
, et al
.
Distinct contributions of complement factors to platelet activation and fibrin formation in venous thrombus development
.
Blood.
2017
;
129
(
16
):
2291
-
2302
.
147.
Afshar-Kharghan
V
.
Complement and clot
.
Blood.
2017
;
129
(
16
):
2214
-
2215
.
148.
Sauter
RJ
,
Sauter
M
,
Reis
ES
, et al
.
Functional relevance of the anaphylatoxin receptor C3aR for platelet function and arterial thrombus formation marks an intersection point between innate immunity and thrombosis
.
Circulation.
2018
;
138
(
16
):
1720
-
1735
.
149.
Jalbert
JJ
,
Chaudhari
U
,
Zhang
H
,
Weyne
J
,
Shammo
JM
.
Epidemiology of PNH and real-world treatment patterns following an incident PNH diagnosis in the US
.
Blood.
2019
;
134
(
Supplement_1
):
3407
-
3407
.
150.
Schrezenmeier
H
,
Muus
P
,
Socié
G
, et al
.
Baseline characteristics and disease burden in patients in the International Paroxysmal Nocturnal Hemoglobinuria Registry
.
Haematologica.
2014
;
99
(
5
):
922
-
929
.
151.
Loschi
M
,
Porcher
R
,
Barraco
F
, et al
.
Impact of eeculizumab reatment on paroxysmal nocturnal hemoglobinuria: a treatment versus no-treatment study
.
Am J Hematol.
2016
;
91
(
4
):
366
-
370
.
152.
Legendre
CM
,
Licht
C
,
Muus
P
, et al
.
Terminal complement inhibitor eeculizumab n atypical hemolytic-uremic syndrome
.
N Engl J Med.
2013
;
368
(
23
):
2169
-
2181
.
153.
Yan
K
,
Desai
K
,
Gullapalli
L
,
Druyts
E
,
Balijepalli
C
.
Epidemiology of atypical hemolytic uremic syndrome: a systematic literature review
.
Clin Epidemiol.
2020
;
12
:
295
-
305
.
154.
Motoyama
N
,
Okada
N
,
Yamashina
M
,
Okada
H
.
Paroxysmal nocturnal hemoglobinuria due to hereditary nucleotide deletion in the HRF20 (CD59) gene
.
Eur J Immunol.
1992
;
22
(
10
):
2669
-
2673
.
155.
Haliloglu
G
,
Maluenda
J
,
Sayinbatur
B
, et al
.
Early-onset chronic axonal neuropathy, strokes, and hemolysis: inherited CD59 deficiency
.
Neurology.
2015
;
84
(
12
):
1220
-
1224
.
156.
Klemann
C
,
Kirschner
J
,
Ammann
S
, et al
.
CD59 deficiency presenting as polyneuropathy and Moyamoya syndrome with endothelial abnormalities of small brain vessels
.
Eur J Paediatr Neurol.
2018
;
22
(
5
):
870
-
877
.
157.
Yazer
MH
,
Judd
WJ
,
Davenport
RD
, et al
.
Case report and literature review: transient Inab phenotype and an agglutinating anti-IFC in a patient with a gastrointestinal problem
.
Transfusion.
2006
;
46
(
9
):
1537
-
1542
.
158.
Hagin
D
,
Lahav
D
,
Freund
T
, et al
.
Eculizumab-responsive adult onset protein losing enteropathy, caused by germline CD55-deficiency and complicated by aggressive angiosarcoma
.
J Clin Immunol.
2021
;
41
(
2
):
477
-
481
.
159.
Eaton
WW
,
Rose
NR
,
Kalaydjian
A
,
Pedersen
MG
,
Mortensen
PB
.
Epidemiology of autoimmune diseases in Denmark
.
J Autoimmun.
2007
;
29
(
1
):
1
-
9
.
160.
Duarte-García
A
,
Pham
MM
,
Crowson
CS
, et al
.
The epidemiology of antiphospholipid syndrome: a population-based study [correction published in Arthritis Rheumatol. 2020;72(4):597]
.
Arthritis Rheumatol.
2019
;
71
(
9
):
1545
-
1552
.
161.
Davis
WD
,
Brey
RL
.
Antiphospholipid antibodies and complement activation in patients with cerebral ischemia
.
Clin Exp Rheumatol.
1992
;
10
(
5
):
455
-
460
.
162.
Holers
VM
,
Girardi
G
,
Mo
L
, et al
.
Complement C3 activation is required for antiphospholipid antibody-induced fetal loss
.
J Exp Med.
2002
;
195
(
2
):
211
-
220
.
163.
Girardi
G
,
Berman
J
,
Redecha
P
, et al
.
Complement C5a receptors and neutrophils mediate fetal injury in the antiphospholipid syndrome
.
J Clin Invest.
2003
;
112
(
11
):
1644
-
1654
.
164.
Girardi
G
,
Redecha
P
,
Salmon
JE
.
Heparin prevents antiphospholipid antibody-induced fetal loss by inhibiting complement activation
.
Nat Med.
2004
;
10
(
11
):
1222
-
1226
.
165.
Fischetti
F
,
Durigutto
P
,
Pellis
V
, et al
.
Thrombus formation induced by antibodies to beta2-glycoprotein I is complement dependent and requires a priming factor
.
Blood.
2005
;
106
(
7
):
2340
-
2346
.
166.
Carrera-Marín
A
,
Romay-Penabad
Z
,
Papalardo
E
, et al
.
C6 knock-out mice are protected from thrombophilia mediated by antiphospholipid antibodies
.
Lupus.
2012
;
21
(
14
):
1497
-
1505
.
167.
Agostinis
C
,
Durigutto
P
,
Sblattero
D
, et al
.
A non-complement-fixing antibody to β2 glycoprotein I as a novel therapy for antiphospholipid syndrome
.
Blood.
2014
;
123
(
22
):
3478
-
3487
.
168.
Meroni
PL
,
Macor
P
,
Durigutto
P
, et al
.
Complement activation in antiphospholipid syndrome and its inhibition to prevent rethrombosis after arterial surgery
.
Blood.
2016
;
127
(
3
):
365
-
367
.
169.
Arachchillage
DRJ
,
Mackie
IJ
,
Efthymiou
M
, et al
.
Rivaroxaban limits complement activation compared with warfarin in antiphospholipid syndrome patients with venous thromboembolism
.
J Thromb Haemost.
2016
;
14
(
11
):
2177
-
2186
.
170.
Rand
JH
,
Wu
X-X
,
Wolgast
LR
,
Lei
V
,
Conway
EM
.
A novel 2-stage approach that detects complement activation in patients with antiphospholipid antibody syndrome
.
Thromb Res.
2017
;
156
:
119
-
125
.
171.
Kim
MY
,
Guerra
MM
,
Kaplowitz
E
, et al
.
Complement activation predicts adverse pregnancy outcome in patients with systemic lupus erythematosus and/or antiphospholipid antibodies
.
Ann Rheum Dis.
2018
;
77
(
4
):
549
-
555
.
172.
Nauseef
JT
,
Lim
HI
,
DeSancho
MT
.
Successful outcome with eeculizumab reatment in a patient with antiphospholipid syndrome presenting with an unusual thrombotic storm
.
J Thromb Thrombolysis.
2020
.
173.
Chaturvedi
S
,
Braunstein
EM
,
Yuan
X
, et al
.
Complement activity and complement regulatory gene mutations are associated with thrombosis in APS and CAPS
.
Blood.
2020
;
135
(
4
):
239
-
251
.
174.
Gavriilaki
E
,
Yuan
X
,
Ye
Z
, et al
.
Modified Ham test for atypical hemolytic uremic syndrome
.
Blood.
2015
;
125
(
23
):
3637
-
3646
.
Sign in via your Institution
