Lymphocyte-Specific Protein 1 Expression in Eukaryotic Cells Reproduces the Morphologic and Motile Abnormality of NAD 47/89 Neutrophils

LYMPHOCYTE-SPECIFIC protein 1, also called LSP1, is a 52- to 54-kD protein originally identified in murine lymphocytes1,2 and subsequently found in hematopoetic cells, including human polymorphonuclear neutrophils (PMNs) and monocytes.3 LSP1 is postulated to be a cytoplasmic actin-binding protein because it binds F-actin in vitro4 and, in murine lymphocytes, LSP1 is found in the triton insoluble cytoskeleton and cocaps with the IgM receptor.5 However, the in vivo functions of the protein remain largely unknown.

In 1994, LSP1 was identified as the 47-kD protein overexpressed in PMNs from patients with a novel neutrophil motility disorder, neutrophil actin dysfunction with 47-kD and 89-kD protein abnormalities (NAD 47/89).6,7 These patients suffer from recurrent bacterial infections caused by functionally impaired neutrophils deficient in several motile behaviors, including random and directed migration, phagocytosis, and spreading on glass. In situ, NAD 47/89 neutrophils fail to increase actin polymerization in response to chemotactic factors and, perhaps most strikingly, display numerous thin, hairlike, F-actin rich filamentous projections on their plasma membrane surfaces.6

The discovery that LSP1 is overexpressed in these neutrophils implied that the protein might be responsible for the morphologic and motile abnormalities of these cells. To investigate this hypothesis, and thus possibly shed light on the protein's in vivo function, human LSP1 was expressed in several eukaryotic cell lines and its effect on cell morphology and motility was assayed. We found that in all cell lines, the expression of LSP1 led to the emergence on the cells of multiple, thin, hairlike projections morphologically similar to those observed on NAD 47/89 PMNs. Projections are highly enriched for LSP1 and contain tightly packed bundles of actin filaments that have unique branching architecture. In addition, expression of LSP1 inhibited the locomotion of normally motile human melanoma cells. Thus, the changes in morphology and motility found in the cells expressing LSP1 duplicate the phenotypic characteristics of PMNs in the NAD 47/89 syndrome, making it the first disorder of human PMN motility caused by a defined abnormality in an actin binding protein. The results also suggest that LSP1 acts as an actin filament bundling protein in vivo, and is capable of promoting unique actin bundle-based cytoskeletal architecture.

The eukaryotic (pMEP and pREP), and baculoviral (pBlueBacHisC) expression vectors and Ni²⁺ affinity columns were purchased from Invitrogen (San Diego, CA); the baculovirus used for recombination was purchased from Stratagene (La Jolla, CA). All other supplies were obtained from Sigma Chemical Co (St Louis, MO), unless otherwise noted.

The LSP1 cDNA was cloned into the pBlueBacHisC baculoviral recombination vector at the BamHI, HindIII sites and shown to be in frame with the gene and the six histidines in the N-terminal leader sequence by dideoxy sequencing.8-10 The resultant plasmid (pBlueBacHisC-LSPl) was expanded and purified for cotransfection with linearized BacPak6 (BstIe) into Sf9 insect cells (5 μg DNA of each vector) in serum-free medium for 2 hours as per the manufacturer's instructions.9-12 The infected cells were then overlaid with Xgal impregnated agarose and plaques observed over 7 days for the development of blue color, indicating β-galactosidase activity. Blue clones were picked, serially expanded, and titered by limiting dilution. A control baculovirus which expresses chloramphenicol acetyl transferase (CAT) with the same N-terminal polyhistidine leader sequence was also prepared by infecting Sf9 with linearized pBacPak6 (BstIe) virus and the CAT cDNA cloned into pBlueBacHisC (each 5 μg) followed by screening for β-galactosidase positive recombinants under agarose.

For bulk preparation of LSP1, the recombinant human LSP1 (huLSP1) were expressed as a polyhistidine fusion protein, thus allowing purification by Ni²⁺-affinity chromatography.9,13,14Briefly, 500-mL cultures of 10⁶ cells/mL of Sf9 cells in spinner bottles were infected with 5 plaque-forming units (pfu)/cell, cultured for 48 hours, then obtained as pellets from 50-mL aliquots of suspension. Lysing a small aliquot of cells, separating the polypeptides by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE), and immunoblotting documented the expression of LSP1 or CAT.15 16

Immunoblots of cells and purified protein samples were performed with monoclonal and polyclonal anti-human LSP17 in accordance with the method of Towbin et al16 or by chemiluminescence. For immunofluorescence microscopy, cells were fixed with 3.2% formaldehyde and permeabilized with 0.25% Triton X-100. LSP1 was localized by incubating with IgG₁ mouse monoclonal anti-huLSP1 primary antibody followed by fluorescein tagged goat anti-mouse IgG secondary. Intracellular F-actin was visualized by staining with rhodamine phalloidin (0.67 × 10^-7mol/L) (Molecular Probes, Eugene, OR). Cell staining was visualized and photographed on a Leitz Optiphot microscope (Wetzlar, Germany) equipped for epifluorescence.

Cells were permeabilized with PHEM-0.75% Triton X-100 buffer17 containing 5 μmol/L phallacidin and protease inhibitors for 2 minutes at 20°C, and then the adherent cytoskeletons washed twice in PHEM buffer containing 0.1 μmol/L phalloidin and fixed in PHEM containing 1% glutaraldehyde for 10 minutes. The cytoskeletons were extensively washed with distilled water, rapidly frozen, freeze-dried at −80°C, and rotary coated with 1.4 nm of tantalumtungsten and 2.5 nm of carbon in a Cressington CFE-50 apparatus (Cressington Inc, Watford, UK).18

Coverslips with adherent cytoskeletons were prepared as described above in the presence of phallacidin but without fixation. The coverslips were incubated with 5 μmol/L skeletal muscle myosin S1 in PHEM for 10 minutes at room temperature, washed twice with PHEM buffer, and then fixed with a solution of 0.2% tannic acid, 1% glutaraldehyde, and 10 mmol/L sodium phosphate buffer, pH 7.5. They were rapidly frozen, freeze-dried, and metal coated as described above.

The filamentous projections on Sf9 cells expressing huLSP1 were purified from 48-hour cultures of Sf9 cells infected at multiplicity of infection 5 pfu/cell with recombinant baculovirus. Cells were gently washed from tissue culture flasks, then passed through a 29-gauge needle four times with constant pressure. The shearing process was monitored by phase and differential interference contrast (DIC) microscopy. Sf9 cell bodies were sedimented by 10-minute centrifugation at 500g. The hairlike filamentous projections were then sedimented from the 500g supernatant by 13,000g × 5-minute centrifugation and careful removal of all except the last drops of supernatant. The hairlike projections were resuspended in PHEM. DIC and phase microscopy showed enrichment of hairlike projections that were then processed for negative staining with 2% uranyl acetate with or without prior Triton X-100 treatment.19

To express huLSP1 in CV1-COS cells (LSP1 negative by immunoblot and immunofluorescence in the nontransfected state), the huLSP1 cDNA was cloned into pCDM8 expression vector, which allows high levels of transient expression,20 and pCDM8 vector alone (25 μg CsC1 purified pCDM8) or the pCDM8 vector with huLSP1 (25 μg CsC1 purified pCDM8-huLSP1) was transfected by calcium phosphate precipitation into CV1-COS cells at low density. The cells were cultured for 48 to 72 hours and then analyzed by indirect immunofluorescence for huLSP1.

To express huLSP1 in human cells, the LSP1-negative human A7 melanoma cells were used.21 The full-length huLSP1 cDNA was cloned into both the pMEP mammalian expression vector, which places expression under the control of the divalent metal (Zn²⁺) inducible metallothionein promoter, and the pREP constitutive expression vector. Control transfection using pREP or pMEP alone were also performed. Resistant clones from each transfection were expanded and checked for LSP1 expression by quantitative immunoblots with anti-LSP1. To induce increased LSP1 expression in the cells transfected with pMEP-LSP1, 50-50-100 μmol/L ZnSO₄ was added to the cell media and the cells incubated for 4 to 8 hours.22-25

Migration through a nucleopore membrane in response to a chemoattractant was assayed as previously described with the use of a 48-well, two-compartment chamber (Nucleopore, Pleasanton, CA).21 In each assay the bottom wells of the chamber were filled with either cell-conditioned media or buffer, then 5 × 10⁴ cells suspended in serum-free media were loaded into the top wells with a polycarbonate membrane with 5 μm uniform pore size as the barrier between the two wells. After a 3-hour incubation at 37°C, the membrane was removed from the chamber and scraped on the top well side to remove adherent cells. The cells on the other side of the membrane were then those that had migrated through the membrane during the incubation period and were stained, and counted for each well on a Nikon inverted microscope (Tokyo, Japan) with a ×10 objective. All values are given as the average of at least eight determinations ± SEM for each condition.

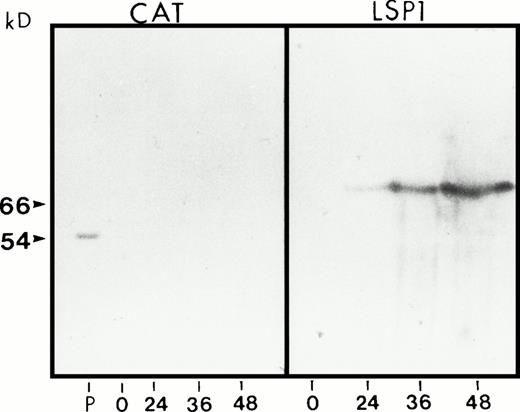

Sf9 insect cells were transfected with a recombinant baculovirus expressing human LSP1 as a fusion protein with six histidines at the amino terminal end to allow purification by Ni²⁺ affinity chromatography. Protein expression was verified by LSP1 immunoblotting of cell lysates (Fig 1). Separate control inoculations were also performed using a recombinant baculovirus expressing CAT with the identical amino terminal polyhistidinylated leader sequence found in the LSP1 vector. Cell lysates from these control inoculations were negative for LSP1 by immunoblotting (Fig 1).

Forty-eight to 72 hours after inoculation with LSP1 baculovirus, 65% to 80% of the Sf9 cells develop extensive, hairlike projections from the surface of the cells as shown in Fig 2B and C. These filamentous projections are thin (0.1 to 0.3 μm diameter) and branch extensively. At many points along their length and at their ends, the filamentous projections are decorated with small nodes or bumps. The projections are F-actin rich and LSP1 colocalizes with the F-actin (Fig 3) in the projections. In contrast, no hairs were observed in CAT-vector infected cells (Fig 2A).

Electron micrographs of cytoskeletons from Sf9 cells infected with the human LSP1 recombinant baculovirus and prepared with Triton X-100 in the presence of phalloidin show networks of bundled 10-nm filaments (Fig 4a and Fig5a). Decoration with the myosin S1 subfragment shows that individual bundles, which can be 100 to 200 nm in diameter, are composed of tightly packed actin filaments of mixed polarity (Fig 4b and c). Most strikingly, a bundle network is formed by interbundle filament exchanges, ie, individual filaments weave in and out at branch points between bundles (Fig 5a). Large bundles tend to divide into two or three smaller bundles near the cell periphery and some of these bundles continue to form the core of the long projections that extend from the cell's surface. The filamentous projections and the interlaced pattern of F-actin bundles were not observed in Sf9 cells infected with the control CAT recombinant baculovirus (data not shown).

To verify that F-actin bundles form the core of the hairs that extend from these cells' surfaces, the hairlike projections were sheared with low shear forces from huLSP1 recombinant baculovirus infected Sf9 cells. The projections were purified by differential centrifugation, then were negatively stained (Fig 5b and c show the structure of these dissociated projections). Dissociated projections are membrane bound, rounded at the end, and contain one or more F-actin bundles that splay into individual 10-nm filaments at the projections' end.

To confirm that this unique actin architecture can be induced in mammalian cells as well as invertebrate cells, the human LSP1 cDNA was cloned into the pCMD8 transient expression vector and transfected into CV1-COS cells. Sixty hours after transfection, the cells were fixed and stained for F-actin with rhodamine-phalloidin and for LSP1 by indirect immunofluorescence. Thirty percent of the pCMD8-huLSP1 transfected CV1-COS cells were LSP1 positive by indirect immunofluorescence, and these cells displayed thin, hairlike projections that stained for both F-actin and LSP1 (Fig 6).

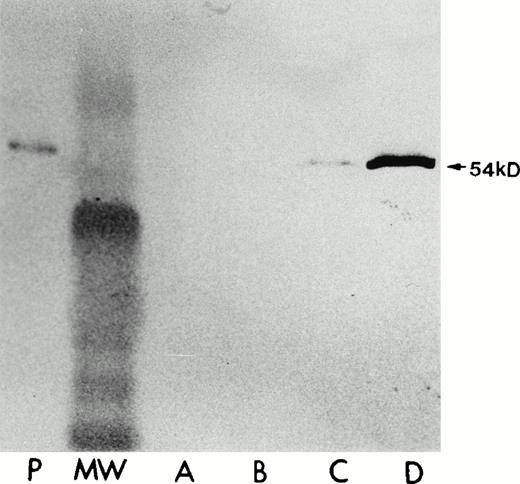

Because the expression of high levels of cellular LSP1 by transient transfection was capable of inducing the formation of hairlike projections in Sf9 and CV1-COS cells, we then investigated whether the morphologic effect depends on LSP1 level. The huLSP1 cDNA was cloned into the mammalian expression vector pMEP that encodes hygromycin B resistance and allows for selection of stably transfected cell lines. Expression by the pMEP vector is under control of the Zn²⁺ inducible methallothionein promoter allowing Zn²⁺ regulation of LSP1 level in cells.22-25The pMEP-LSP1 was transfected into the A7 melanoma cell line21 that normally does not express LSP1. Hygromycin B resistant clones were selected, expanded, and quantitated for LSP1 expression and morphology in the presence and absence of Zn²⁺ was observed. As a control, stably transfected A7 melanoma cells were similarly established by transfections with pMEP vector alone. As shown (Fig 7), one cell line (A7ML1) constituitively expresses low LSP1 levels (20% to 50% of the LSP1 level in PMNs) and markedly increased LSP1 levels upon exposure to Zn²⁺. Neither the parent A7 melanoma line nor the control A7 melanoma line transfected with the pMEP vector alone expresses LSP1 in the presence or absence of Zn²⁺. The A7ML1 cells with low constituitive LSP1 expression have a smooth edge interrupted only by occasional irregularities. However, after Zn²⁺ induction of LSP1 expression, the A7ML1 cell line develops extensive, branching surface hairlike projections (Fig 8). Therefore, the morphologic effect of human LSP1 depends on LSP1 level in cells.

Figure 9 shows the structure of actin filaments in hairlike projections formed in the LSP1 transfected A7 cell line A7ML1. With induction of protein expression by Zn²⁺, these cells develop multiple thin, hairlike projections as described above. The cytoskeleton of these cells exhibits some of the same branching bundles seen in the Sf9 cells, although bundle organization is considerably less uniform. However, actin filaments core the projections extended from these cells similar to those in the Sf9 cells. Like the Sf9 cells, the projections derive from the branching of actin bundles from the underlying cytoskeletal network.

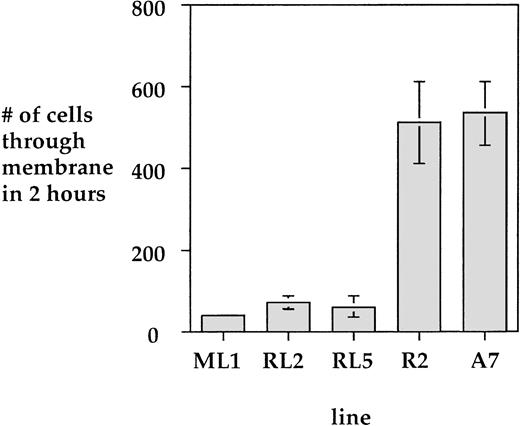

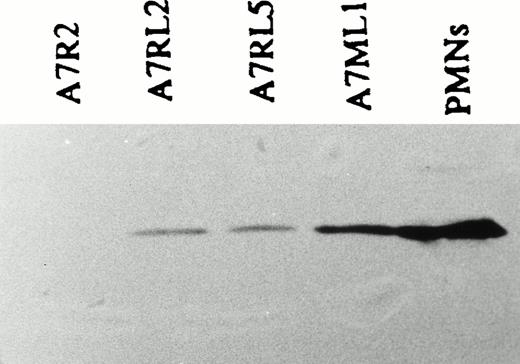

To investigate the effect of LSP1 on cell motile function we analyzed the motility of parental A7 melanoma cells and stably transfected A7 melanoma cells which constituitively express human LSP1. The cell lines used for motility studies express LSP1 either from the pMEP-LSP1 vector in the A7ML1 line described above or from a related pREP mammalian expression vector that places LSP1 expression under control of the constituitive RSV promoter in the A7RL2 and A7RL5 cell lines. The A7RL5 and A7RL2 were prepared with the pREP-LSP1 vector as described above for the A7ML1 line. As shown (Fig 10), A7ML1, A7RL5, and A7RL2 express LSP1 at levels 20% to 50% of those found in PMNs, and A7R2, a control line stably transfected with pREP vector alone, does not express LSP1. The motility of A7 cells has been well documented in a two-compartment modified Boyden chamber.21 Using this system, we compared the motility of the A7ML1, A7RL2, and A7RL5 LSP1 positive lines and control A7R2 and A7 parental cells. The number of cells able to migrate through the membrane in a 3-hour period was markedly reduced in each of the LSP1 expressing lines when compared with both the parent A7 line and the control A7R2 line (Fig 11). Note that this reduction in motility was seen in the A7ML1 line at constituitive levels of LSP1 expression. With induction of A7ML1 with Zn²⁺ to a twofold to fourfold increase in LSP1 expression, motility ceased completely so that no cells crossed the chamber membrane (not shown).

Although the gene defect in NAD 47/89 is not known, neutrophils from patients with NAD 47/89 syndrome are phenotypically characterized by three distinguishing features: (1) the appearance of numerous F-actin-rich filamentous projections (“hairs”) on their surface; (2) their inability to crawl in response to chemoattractants; and (3) increased levels of LSP1.3,4 In this report we have shown that the expression of LSP1 reproduces these phenotypic characteristics in a variety of eukaryotic cells. Results in transfected cells show that the increased LSP1 levels cause the motile and morphologic abnormalities in NAD 47/89 cells. Other types of F-actin-based filamentous projections including microvilli and filopodia can be found on the surface of many eukaryotic cells and have been associated with the overexpression of specific actin-associated proteins. For example, microvilli in epithelial cells are formed from the interaction of F-actin and villin, an actin bundling protein with two actin-binding domains. Villin can form microvilli when either transfected26 or microinjected27,28 into mammalian cells. However, villin expression has no effect on surface motility or cell locomotion.27 Because the expression of LSP1 to levels insufficient for hair formation led to marked inhibition of cell locomotion, it is likely that the interaction of LSP1 with actin filaments leads not only to F-actin bundling, but the results also suggest these bundles may interfere with normal actin turnover required for cell motility.

Analysis of the hairs formed by LSP1 provides clues to its interaction with actin filaments. LSP1-induced hairs are distinguished from normal microvilli or villin-induced microvilli by their long length (up to 50 μm), diameter (0.1 to 0.3 μm), and tendency to branch. Not only did cells expressing LSP1 have hairs but they also displayed an internal network of branching F-actin bundles that fuse and split to generate a unique curvilinear nodal unit linked in a three-dimensional network as illustrated in Fig 5. The results suggest LSP1 may create branching F-actin bundles. Such a network differs from the single continuous F-actin bundle formed by villin or α-actinin or the three-dimensional orthogonal network formed by ABP-280.21,27,29 How LSP1 binding to F-actin alone would create such an extensive network or where LSP1 binds along the actin filaments is not clear. Further, the induction of bundles by LSP1 suggests that this protein, if monomeric, possesses two or more actin binding sites, or self-associates to dimers or higher oligomers. One actin-binding domain in mouse LSP1 has been defined by truncation and resides in the carboxyl one-half of the protein.5 More recently a possible second and third actin-binding domains have been identified (unpublished observation, December, 1996). Bundling with purified mouse LSP1 has been previously observed in vitro, although the mouse LSP1 protein may have been aggregated by the purification procedure.5

Critically, the level of LSP1 expression that inhibits cell motility is far below that found in PMNs, which are quite motile cells, suggesting that neutrophils are able to regulate the binding of LSP1 to actin in ways not available to other cells. One intriguing possibility is that the 89-kD protein decreased in NAD 47/89 disorder may play a role in the regulation of LSP1, so that the characteristics of these neutrophils are a result of both LSP1 overexpression and 89-kD underexpression. Alternatively, LSP1 is a highly phosphorylated protein and its effect on actin may be regulated by phosphorylation. These important facts of LSP1 regulation await further elucidation.
