Regulation of fetal versus embryonic gamma globin genes: appropriate developmental stage expression patterns in the presence of HS2 of the locus control region

Two developmental switches in gene activity characterize the human beta-like globin cluster. At the end of embryonic life, the ε gene is silenced, and the γ genes are up-regulated. A second switch after birth involves the silencing of γ genes and the activation of δ and β genes. The embryonic-to-fetal (ε-to-γ) switch is particularly interesting because it is not seen in most other mammals. In nonprimate mammals and in nonsimian primates (such as galago), the γ gene exhibits an embryonic expression pattern and is silent in the fetal liver.1,2 Thus, a single globin switch (from embryonic ε and γ expression to adult δ and β expression) is observed in these species. The recruitment of the γ gene to a fetal expression profile occurred approximately 58 to 40 million years ago (MYA),2 sometime after the separation of nonsimian and simian primates but before the divergence of the 2 major groups of simian primates—the catarrhines (Old World Monkeys, apes, and humans) and the platyrrhines (New World Monkeys). All species of catarrhines and platyrrhines studied exhibit fetal γ expression patterns.2

Thus, the galago and the lemur are the species most closely related to human that still express γ in the embryonic and not the fetal time period. Previously, we showed that the distinct characteristic expression patterns of galago and human γ genes can be reproduced in transgenic mice.3 Using constructs in which the hypersensitive site 3 (HS3) region of the human locus control region (LCR) was linked to the human ε gene plus either the human or the galago γ genes, we found that the galago γ gene was expressed at high levels in the embryonic yolk sac and was silenced in the fetal liver, whereas the human γ gene was expressed at high levels in the fetal liver.3 These results suggest that elements responsible for the distinct expression patterns of the human and galago γ genes are linked to the genes themselves. However, the question of whether HS3 was required to observe these distinct expression patterns was not addressed.

Here, we confirm that HS2, like HS3, supports the embryonic profile of the galago γ gene and the fetal expression pattern of the human γ gene. Thus, HS2 and HS3 fragments behave in a redundant fashion; elements responsible for stage-specific expression patterns of γ are, therefore, located within the 4-kb γ fragments themselves.

The HS2-ε^humγ transgenic construct was described earlier.4 Here, we generated HS2-ε^galγ in which galago γ sequences (spanning 10508 to 14995 of GenBank M73981, the Galago crassicaudatus β globin cluster) were substituted for the human γ sequences. The HS2 fragment (described earlier4) was derived from the human globin cluster. Purified insert DNA fragments were microinjected by the University of Michigan Transgenic Animal Core team.

All restriction enzymes (SphI, ClaI,EcoRV, PstI, BamHI, NheI, and XbaI) came from New England Biolabs, Beverly, MA. Polymerase chain reaction genotyping primers, 5′-CAAATTGTTATTATTCCAGGCCACTGAATT (3′ end of the HS2 fragment) and 5′-TAGTTATTGTGAATCAAATATTTATCTT-GCAGGTGG (2 kb upstream of the ε cap site), detected an 800–base-pair (bp) product in transgenic animals. For copy number determination, genomic DNA was digested withSphI, which cuts once within the construct, and Southern blots were probed with a ClaI-EcoRV fragment from the human ε gene.5

RNA was extracted as described previously3,4 from 10.5- and 12.5-day yolk sacs and from fetal liver of 12.5- and 14.5-day F₂ concepti. S1 nuclease protection was used to quantitate mRNA levels. The probe for mouse ζ was described previously.4 To enable multiplexing, a human ε probe was generated from human ε exon 2 sequence; afterBamHI digestion and end labeling, the probe protects a 159-bp band. The mouse α probe was labeled at a PstI site within a NheI-BamHI genomic fragment (116-bp protected fragment).4 The galago γ probe was a 435-bpXbaI-BamHI genomic fragment labeled at theBamHI site in exon 2 (204-bp protected fragment). S1 analyses were quantitated using a Bio-Rad PhosphorImager with Multi-Analyst software (Bio-Rad, Hercules, CA).

Of 3 founder animals carrying the HS2-ε^galγ transgene, 2 passed the transgene to progeny and were used in these studies. Transgene copy numbers of 8 (line 1) and 57 (line 2) were determined by Southern blot analysis; transgenes were intact (data not shown).

S1 nuclease assays (Figure 1) revealed that the galago γ gene was, like the human ε gene, expressed at high levels in the embryonic time period and at considerably reduced levels in the 14.5-day fetal liver, consistent with the known embryonic expression pattern of the galago γ gene. This is in contrast to the clear activation of the human γ gene in the fetal liver (Figure1).4

HS2 and HS3 contain the most powerful enhancers in the LCR.6,7 Although both can drive high-level expression of linked globin genes in transgenic mice, possible functional differences have been noted: (1) HS3, but not HS2, harbors a dominant chromatin opening activity8; (2) HS2 and HS3 drive different developmental patterns of γ and β expression7,9; and (3) HS3 may be essential for specific parts of the switching program. Embryonic expression of ε (but not γ) was disrupted by deletion of the core of HS3 in a human β-locus YAC.10 Because these investigations indicate that HS2 and HS3 could differ in their ability to interact with the various globin promoters, it was important to establish whether the distinct stage-specific patterns of gene expression, observed for galago and human γ genes in an earlier study,3 could also be detected when the genes were linked to HS2. Here we show that this is indeed the case, confirming that fetal versus embryonic expression of γ is attributed to changes in cis elements linked closely to the genes proper.

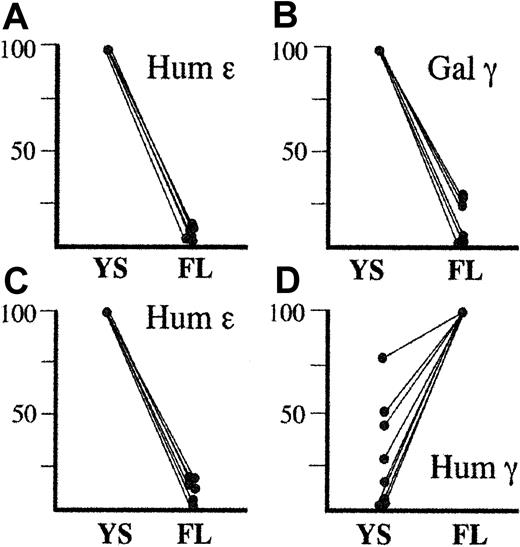

Although the constructs we have used in these 2 studies are relatively small (11-12 kb) and are subject to position effect, our combined experience (summarized in Figure 2) provides compelling evidence that the human and galago γ genes are indeed regulated differently in the context of the sametrans environment (the mouse fetal liver). Moreover, the data indicate that HS3 and HS2 are able to activate γ in the context of the fetal environment because the human γ gene is highly expressed in the 14.5-day fetal liver regardless of whether it is linked to HS2 or HS3. However, the fact that the galago γ gene cannot form a productive interaction with the LCR in the fetal stage suggests thatcis elements within the human γ gene facilitate productive interaction with the LCR or that cis elements within the galago γ gene prohibit productive interaction. In either case, eventual identification of these elements will provide insights into developmental regulation and promoter–LCR interactions.
