Dynamic change of transcription pausing through modulating NELF protein stability regulates granulocytic differentiation

Hematopoietic cell differentiation is initiated by hematopoietic stem cells, a rare cell population with the capacity to self-renew and differentiate through hierarchically organized progenitor stages to generate all mature blood lineages including erythrocytes, platelets, granulocytes, monocytes, and lymphocytes. This well-characterized differentiation process has provided a powerful model to study transcriptional mechanisms in cellular differentiation and lineage-fate selection.

Transcription mechanisms controlling hematopoietic differentiation can regulate different steps of transcription, including the pausing of RNA polymerase II (Pol II) during early transcription elongation. Unveiled by biochemical and genomic studies, transcriptionally engaged Pol II frequently pauses after initiation and accumulates at 20 to 60 nucleotides downstream of the promoter region, stabilized by pausing factors.^1,2  The most extensively studied pausing factors are the DRB sensitivity-inducing factor (DSIF) and the negative elongation factor (NELF) complex.^3-5  Release of paused Pol II into productive elongation is triggered by the recruitment of the positive transcription elongation factor b (P-TEFb), which phosphorylates NELF, DSIF, and the Pol II C-terminal domain, leading to the conversion of DSIF into an elongation-stimulating factor and the dissociation of NELF.^6-8  Unlike DSIF that has function in both pausing and elongation,⁹  NELF is proposed mainly as a pausing factor to hold engaged Pol II within the promoter-proximal region.¹⁰  Composed of 4 subunits (A, B, C/D, and E), NELF executes its role in Pol II pausing beyond simply inhibiting transcription. Studies of transcription profiles in NELF-depleted cells revealed more downregulated genes than upregulated genes, suggesting a positive role of NELF in maintaining gene expression.¹¹  This was further supported by studies showing that NELF depletion causes either nucleosome reassembly on promoters or less recruitment of transcription initiation factors,^11-14  suggesting a role of paused Pol II in maintaining gene expression by facilitating initiation and generating a permissive chromatin state around the promoter region.

Despite the well-established role of NELF in regulating transcription pausing, the cellular regulation and function of NELF-mediated pausing in lineage differentiation remains to be explored. Using hematopoietic differentiation systems, here we identified a downregulation of NELF protein abundance upon induction of granulocytic differentiation from human and mouse hematopoietic progenitor cells. Genomic analyses further revealed a genome-wide change of transcription pausing correlated with NELF abundance. Manipulation of NELF expression demonstrated an inhibitory role of NELF-mediated Pol II pausing in granulocytic differentiation. Our studies unveil a novel regulation of NELF that is tightly linked to the biological function of pausing in cellular differentiation.

Human hematopoietic CD34⁺ progenitor cells isolated from peripheral blood of granulocyte colony-stimulating factor (G-CSF)–mobilized healthy volunteers were obtained from the Fred Hutchinson Cancer Research Center. Before differentiation, cells were expanded in StemSpan SFEM II medium (StemCell Technologies Inc) with 1× CC100 cytokine mix (StemCell Technologies Inc) and 2% penicillin-streptomycin (P/S) for 5 to 6 days. At the end of the expansion period, cells were reseeded in differentiation medium for up to 14 days with media change every other day. Erythroid differentiation medium contains SFEM II plus 2% P/S, 20 ng/mL stem cell factor, 1 U/mL erythropoietin (Epo), 5 ng/mL interleukin-3 (IL-3), 2 μM dexamethasone, and 1 μM β-estradiol. Myeloid differentiation was done by culturing CD34⁺ cells in Iscove modified Dulbecco medium (IMDM) supplemented with 2% P/S, 10% fetal bovine serum (FBS), 100 ng/mL IL-3, and 100 ng/mL stem cell factor for 2 days, followed by addition of 10 ng/mL G-CSF on day 3. Flavopiridol (Sigma-Aldrich) treatment was done by adding 50 nM flavopiridol into differentiation medium.

Mouse 32Dcl3 cells were maintained in IMDM supplemented with 2% P/S, 10% FBS, and 5 ng/mL IL-3. Differentiation was induced by culturing cells in IMDM supplemented with 2% P/S, 15% FBS, and 100 ng/mL G-CSF.

Control and NELF short interfering RNAs (siRNAs) were purchased from Thermo Fisher. siRNAs were introduced into expanded CD34⁺ cells by the Neon transfection system (Fisher) following the manufacturer’s protocol.

The mouse Nelf-E complementary DNA (cDNA) was cloned in-frame into the pEF-Flag-Biotag vector¹⁵  to generate an N-terminal Flag fusion molecule. 32D cells were transfected by the Neon transfection system with empty vector or pEF-Flag-NelfE and cultured in medium with 1 μg/mL puromycin to select stably transfected cells.

Differentiating granulocytes were first incubated in 5.4 mM diisopropyl fluorophosphate for 15 minutes on ice to prevent protein degradation caused by neutrophil-derived protease.¹⁶  Washed cells were then lysed directly in 1× sodium dodecyl sulfate loading buffer followed by immediate boiling in the presence of 100 mM dithiothreitol for 10 minutes before loading on sodium dodecyl sulfate–polyacrylamide gel electrophoresis for western blotting. Antibodies used were: anti-glyceraldehyde-3-phosphate dehydrogenase (GAPDH) (Bethyl), anti-NELFA (Bethyl), anti-NELFB (Bethyl), anti-NELFD (Santa Cruz Biotechnology), anti-NELFE (Santa Cruz Biotechnology), anti-Flag (Sigma-Aldrich).

RNA was isolated using the TRIzol reagent (Thermo Fisher), and subsequently treated with the DNA-free kit (Thermo Fisher). cDNA was synthesized with the SuperScript III kit (Thermo Fisher). Nascent RNA extraction was performed using the Click-iT Nascent RNA capture kit (Thermo Fisher) following the manufacturer’s protocol. Quantitative polymerase chain reaction (qPCR) was performed on a Roche LightCycler 480 real-time PCR machine using the iQ SYBR Green Mastermix (Bio-Rad). Gene expression was analyzed relative to β-actin using the ∆∆ cycle threshold method. Primer sequences are available upon request.

Nuclei isolation, nuclear run-on, and library preparation were performed as previously described.¹⁷  The global run-on sequencing (GRO-seq) data were analyzed using the groHMM software package described previously.¹⁸  Further details about GRO-seq, including sample preparation and data analyses, can be found in the supplemental Methods.

To study the function of NELF in hematopoietic differentiation, we first examined NELF expression in hematopoietic progenitors and differentiated cells. Using human CD34⁺ hematopoietic stem and progenitor cells (HSPCs) derived from mobilized adult peripheral blood, we followed published protocols^19,20  to differentiate HSPCs into either erythroid or granulocytic lineage induced by EPO or G-CSF, respectively. After confirming efficient differentiation of both lineages by May-Grünwald-Giemsa (MGG) staining (supplemental Figure 1A), cells at different stages of differentiation were examined for NELF protein by western blot analysis. Surprisingly, although NELF protein levels remained unchanged upon erythroid differentiation (supplemental Figure 1B), granulocytic differentiation induced an evident decrease of NELF protein starting from early stages of differentiation (Figure 1A). Consistent with previous studies that NELF subunits are interdependent for their protein stability,²¹  all NELF subunits showed decreased protein levels with NELF-E protein showing the largest reduction (Figure 1A; supplemental Figure 1C). Quantitative reverse transcription PCR (qRT-PCR) analysis revealed no obvious change at the transcription level of NELF genes during early differentiation (Figure 1B), suggesting that NELF expression in differentiating granulocytes is regulated by a posttranscriptional mechanism. To test whether NELF is regulated by proteasome-mediated protein degradation, differentiating granulocytes were treated with the 26S proteasome inhibitor MG132. This treatment markedly enhanced NELF protein levels, especially the level of NELF-E (Figure 1C; supplemental Figure 1D). Because NELF-E is reduced faster than other subunits (Figure 1A; supplemental Figure 1C), these results suggest that NELF-E might be the primary target for protein turnover triggered by granulocytic differentiation.

To test whether differentiation-induced change of NELF is specific to human cells, we examined NELF expression in a mouse myeloblastic cell line, 32Dcl3, which can be induced to neutrophils by G-CSF. Similar to human cells, differentiation induced a sharp decrease of NELF at the protein level but not the transcription level (Figure 1D-E). Again, NELF-E is the most downregulated subunit (supplemental Figure 1E). Finally, we tested whether NELF expression is differentially expressed in vivo during normal myeloid differentiation. Western blot analysis of cells isolated from mouse bone marrow revealed lower NELF protein levels in Gr-1⁺ granulocytes compared with lineage-negative (Lin⁻) progenitor cells, whereas no such differences was detected in Ter119⁺ erythroid cells (Figure 1F). Collectively, these results suggest an evolutionarily conserved regulation of NELF protein abundance during granulocytic differentiation that may play a physiological function in hematopoiesis in vivo.

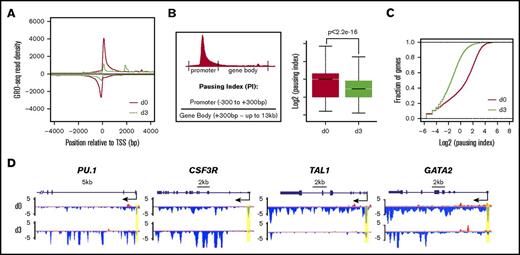

NELF is identified as a major transcription pausing factor. Downregulation of NELF upon granulocytic differentiation prompted us to ask whether there is a reduction of transcription pausing in differentiating granulocytes. To test this, we performed GRO-seq in CD34⁺ HSPCs (day 0) and early differentiated (day 3) granulocytes. GRO-seq measures nascent RNA transcription from transcriptionally engaged RNA polymerase in isolated nuclei, thus reflecting a high-resolution distribution map of transcriptionally competent Pol II.²²  We conducted GRO-seq in 2 biological replicates and confirmed the reproducibility by correlation analysis (supplemental Figure 2A). Consistent with previous studies that Pol II pauses at the majority of metazoan genes,^23-25  metagene analysis of GRO-seq data from progenitor cells (day 0) revealed a typical genome-wide distribution pattern of transcriptionally engaged Pol II with high signals around the transcription start site (TSS) representing promoter-proximal–paused Pol II, and low signals along the gene body representing elongating Pol II (Figure 2A). In contrast, metagene analysis of early differentiated granulocytes (day 3) revealed a drastic reduction of Pol II occupancy around the TSS, suggesting a genome-wide reduction of Pol II pausing upon granulocytic differentiation (Figure 2A). To further verify metagene results, we calculated the pausing index (PI), a ratio of Pol II occupancy between the promoter (−300 bp ∼ +300 bp centered at the TSS) and the gene body (+300 bp ∼ up to 13 kb). Higher PI indicates stronger pausing. Consistent with the metagene analysis, PI is significantly decreased in granulocytes compared with progenitor cells (Figure 2B). Moreover, the cumulative distribution function analysis revealed that >85% of genes in granulocytes have decreased PI (Figure 2C). We concluded from these data that there is a genome-wide reduction of transcription pausing upon granulocytic differentiation, in line with the reduced abundance of NELF protein.

The elongating Pol II within gene bodies reflects the transcription strength of a gene. To identify genes that are differentially transcribed upon differentiation, we compared gene-body–associated Pol II (+300 bp ∼ 13 kb) between progenitor cells and granulocytes. In total, 1779 genes were identified with at least a twofold change, including 471 upregulated (up) genes and 1308 downregulated (down) genes (P < .0001). Gene-ontology (GO) analysis confirmed that upregulated genes contain several pathways involved in granulocyte function, such as cell migration, cell adhesion, proteolysis, and chemotaxis (supplemental Figure 2B). As expected, many genes involved in granulocytic differentiation, such as myeloid differentiation regulator genes PU.1 and CSF3R, and granulocytic primary granule genes (MPO, ELANE, AZU1, and PRTN3) appear to be upregulated with increased gene-body–associated Pol II and a mild decrease of promoter-associated Pol II, suggesting enhanced Pol II release on these genes upon differentiation (Figure 2D; supplemental Figure 2C). In contrast, progenitor-related genes such as GATA2 and TAL1 have a dramatic reduction of Pol II occupancy from both promoters and gene bodies (Figure 2D), consistent with the expected downregulation of progenitor genes during myeloid differentiation.

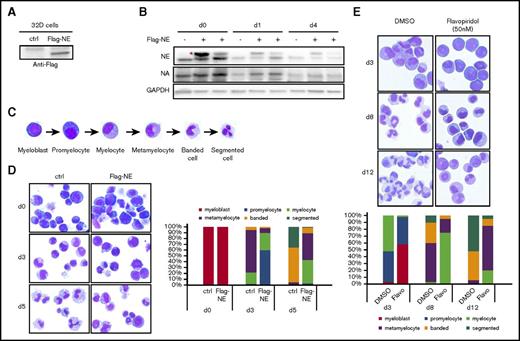

The downregulation of NELF protein in differentiating granulocytes suggests an inhibitory role of NELF in granulocytic differentiation. To test this, we ectopically expressed NELF-E, which is the most downregulated subunit upon granulocytic differentiation (Figure 1C; supplemental Figure 1D), in the murine 32Dcl3 myeloblastic cells. A Flag-tagged Nelf-E construct was stably transfected into cells and the expression of exogenous NELF-E was detected by anti-Flag antibody (Figure 3A). Transfected cells were induced to differentiation by adding G-CSF. Similar to the endogenous protein, differentiation caused a gradual reduction of the exogenous NELF-E (Figure 3B), further supporting rapid turnover of NELF-E protein triggered by differentiation. Notably, the level of endogenous NELF-A is mildly increased in cells overexpressing NELF-E (Figure 3B), supporting the view that NELF-E is the limiting subunit and increased NELF-E stabilizes other NELF components. Importantly, although the exogenous NELF-E level cannot be maintained at a high level due to rapid protein turnover, neutrophil differentiation was still severely blocked (Figure 3D), strongly suggesting that sustained NELF expression inhibits granulocytic differentiation.

To further distinguish whether the inhibitory role of NELF is through regulating transcription pausing and subsequent elongation, or reflects a pausing-independent function of NELF, we asked whether transcription elongation is required for granulocytic differentiation. Indeed, we found that treating differentiating granulocytes with flavopiridol, an inhibitor of the essential transcription elongation factor P-TEFb, severely blocked granulocytic differentiation of human HSPCs (Figure 3E). Together, these results suggest that granulocytic differentiation requires proper Pol II elongation, which could be promoted by reducing NELF-mediated pausing.

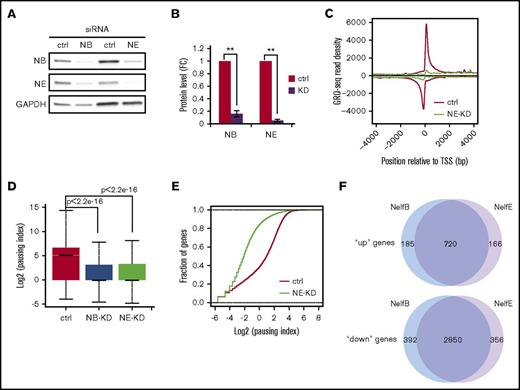

The results detailed in the previous sections suggest that downregulation of NELF-mediated pausing is necessary for proper granulocytic differentiation. We then asked how NELF depletion would affect progenitor cells. Using siRNAs targeting the NELF-B or -E subunit in human CD34⁺ HSPCs, >80% knockdown efficiency was achieved at the protein level (Figure 4A-B). Moreover, knocking down NELF-B leads to a reduction of NELF-E, and vice versa (Figure 4A), consistent with the interdependency of NELF subunits. GRO-seq was conducted in cells transfected with a scramble siRNA or either of the NELF-siRNAs. High correlations between biologic replicates were observed (supplemental Figure 3A). Metagene analysis of GRO-seq data revealed a near complete abolishment of Pol II pausing in progenitor cells depleted with either NELF-B or -E (Figure 4C; supplemental Figure 3B). PI calculation and cumulative distribution plot assays further confirmed the genome-wide loss of Pol II pausing in NELF-depleted cells (Figure 4D-E; supplemental Figure 3C), in line with a view that NELF is a major pausing factor in HSPCs.

We clustered differentially transcribed genes with more than a twofold change of gene-body–associated Pol II level in NELF-depleted cells into “up” and “down” groups. In NELF-E knockdown cells, 886 genes were identified as “up” genes and 3206 genes were identified as “down” genes (P < .0001), respectively. A similar number of genes were also found in NELF-B knockdown cells (905 for “up” genes and 3242 for “down” genes). Importantly, there is a tremendous overlap (80% for “up” genes and 88% for “down” genes) of dysregulated genes between NELF-B and -E knockdown cells (Figure 4F), verifying the specificity of NELF knockdown.

Notably, metagene analysis revealed a relatively mild reduction of promoter-associated Pol II along with increased gene-body–associated Pol II on upregulated genes (supplemental Figure 3D), consistent with enhanced release of Pol II into elongation upon NELF knockdown. In contrast, the promoter-associated Pol II is almost completely abolished on downregulated genes along with reduced gene-body–associated Pol II (supplemental Figure 3D), indicating a complete loss of pausing on these genes upon NELF depletion. Moreover, “down” genes appear to be highly paused with significantly higher PI than “up” genes in control cells (supplemental Figure 3E). These results suggest that genes with high levels of pausing may require paused Pol II to maintain promoter accessibility for their transcription and therefore are prone to downregulation when pausing is lost. In contrast, genes with a relatively low level of pausing may not rely on paused Pol II to maintain an open promoter, and are more likely to be upregulated through enhanced elongation in the absence of pausing.

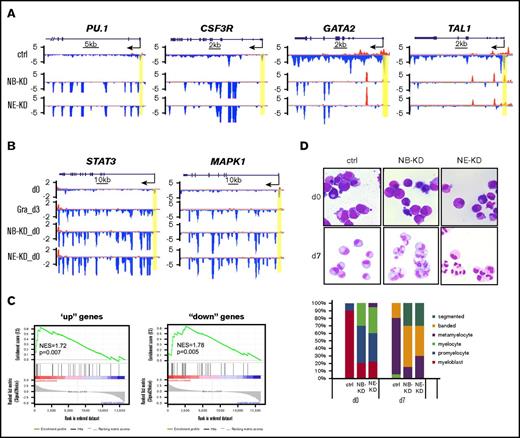

To test whether loss of pausing by NELF depletion is sufficient to activate granulocyte gene transcription in progenitor cells, we examined Pol II levels on hematopoietic genes. We found that NELF depletion in HSPCs causes similar transcription changes as those in early differentiated granulocytes (Figure 2D), with an increase of gene-body–associated Pol II on granulocyte markers PU.1, CSF3R, ELANE, AZU1, and PRTN3, but an overall reduction of Pol II signal on progenitor genes (GATA2 and TAL1) (Figure 5A; supplemental Figure 4A). In addition, consistent with the activation of JAK2/STAT3 and MEK/ERK pathways during myeloid differentiation, regulators of these pathways are also activated in both granulocytes and NELF-depleted HSPCs (Figure 5B; supplemental Figure 4B). The GRO-seq results were validated by qRT-PCR on nascent transcripts (supplemental Figure 4C). Moreover, comparison of differentially regulated gene lists revealed that many dysregulated genes are shared between early differentiated granulocytes and NELF-depleted HSPCs (supplemental Figure 4D). This is further supported by gene-set enrichment analysis, which revealed that “up” genes in NELF-depleted cells are markedly enriched for genes induced by granulocytic differentiation, whereas “down” genes in NELF-depleted cells are significantly enriched for genes inhibited by differentiation (Figure 5C). Together, these data strongly suggest premature activation of the granulocytic transcription program in progenitor cells when NELF is depleted.

Consistent with the change of transcription profile, MGG staining revealed that NELF-depleted progenitor cells morphologically resemble early-stage granulocytes (Figure 5D). Moreover, when induced to differentiation, NELF-depleted cells showed more accelerated maturation than control cells (Figure 5D). In summary, these data indicate that removing Pol II pausing by depleting NELF promotes granulocytic differentiation.

Transcription pausing has emerged as a crucial control point downstream of transcription initiation in transcription regulation.^26,27  As a major pausing factor, the NELF complex has been shown to play an important role in regulating the pattern of gene expression during development,^24,28  however, little is known of how this complex is manipulated to selectively affect gene transcription in different tissues. By combining high-resolution genomic analysis of transcriptionally competent Pol II with a functional dissection of NELF activity in mammalian hematopoietic progenitors, our current work has identified a dynamic change of transcription pausing via regulating NELF protein stability as a novel mechanism regulating hematopoietic differentiation. In both murine myeloblastic cell line and human primary HSPCs, induction of granulocytic differentiation triggers a rapid turnover of NELF protein mediated by the proteasome, leading to a genome-wide reduction of transcription pausing. Functional studies revealed that sustained expression of NELF inhibits granulocytic differentiation, whereas depleting NELF in HSPCs causes loss of Pol II pausing accompanied by activation of granulocytic transcription program and diminished expression of progenitor markers, resulting in accelerated granulocytic differentiation. Thus, our studies not only reveal a cellular intrinsic requirement for altering NELF-mediated Pol II pausing during granulocytic differentiation, but also unveiled a cell-context–specific mechanism regulating pausing via modulating NELF protein stability.

NELF subunits are interdependent for their protein stability.²¹  Our western blot analysis revealed that NELF-E is the most prominently downregulated subunit in both human and mouse cells, suggesting it as the primary member among the 4 subunits targeted for active protein turnover upon granulocytic differentiation. Supporting this view, overexpression of NELF-E alone was sufficient to block granulocytic differentiation and partially restore the expression of other subunits. Regulation of protein stability has been found as a mechanism affecting other regulators of Pol II elongation, including the components in the super elongation complexes such as AFF1, AFF4, and ELL2, which are regulated by Siah1-mediated polyubiquitination.²⁹  The fact that NELF downregulation is found in granulocytes but not erythrocytes suggests the existence of lineage-specific regulators. There are multiple ubiquitin E3 ligases highly expressed in granulocytes. Testing these factors in future will help identify the regulators of NELF protein.

NELF and transcription pausing have been proposed to play both positive and negative roles in transcription. On some genes, loss of pausing leads to gene activation by increasing release of Pol II into their gene body.⁹  On the other hand, previous studies also found that paused Pol II is required for gene expression by antagonizing nucleosome assembly around the promoter to maintain a permissive chromatin state.^11,12  The identification of both upregulated and downregulated genes in our study is consistent with the dual role of pausing in transcription regulation. Moreover, our results extend previous studies by suggesting that whether pausing inhibits or promotes gene expression may depend on the level of pausing on the target genes. Genes with a high pausing level may rely more on paused Pol II to maintain transcription than genes with a low level of pausing, possibly because high-level paused Pol II competes better with nucleosomes to maintain promoter accessibility.

An important role of preloaded, paused Pol II is to keep genes in a poised state for rapid and synchronized activation upon receipt of developmental cues.^30-33  A major mechanism to achieve rapid release of paused Pol II is through the recruitment of P-TEFb,^27,34-36  which leads to NELF phosphorylation and subsequent dissociation from chromatin. Our finding provides an alternative mechanism for rapid pause release, which is through modulating NELF abundance. To our knowledge, this is the first study showing such a regulation mechanism of NELF. Although this novel regulation of pausing was found in granulocytes but not in erythroid cells, it is known that erythroid differentiation also requires rapid pause release, which is mediated by P-TEFb recruitment as reported in our previous studies.³⁷  Thus, both mechanisms (P-TEFb recruitment and NELF modulation) are used in hematopoiesis to regulate lineage differentiation. It will be interesting to investigate how distinct mechanisms are selected to regulate different blood lineages. Notably, regulation of Pol II pausing by modulating the abundance of pausing or elongation factors is certainly not limited to hematopoietic tissues. A recent study revealed differential expression of some super elongation complex components between neural stem cells and their differentiated progeny.³⁸  Moreover, a variety of human cancer cells have altered expression of NELF subunits.^39-41  Our work is in line with these studies, suggesting that regulating the abundance of pausing/elongation factors may play an important role in normal and malignant cellular development. Understanding the mechanisms involved in these regulation processes is therefore of the upmost importance for understanding and treating human disease associated with dysregulated transcription elongation.
