Rap1 binding to the talin 1 F0 domain makes a minimal contribution to murine platelet GPIIb-IIIa activation

Platelet aggregation, which is essential for normal hemostasis,¹  is initiated by agonists, such as thrombin or collagen, resulting in activation of glycoprotein IIb-IIIa (GPIIb-IIIa; integrin αIIbβ3) to bind fibrinogen with high affinity.²  GPIIb-IIIa activation depends on binding of talin 1 to the integrin β3 cytoplasmic tail.³  Rap1 GTPases are important intermediaries in integrin activation. In particular, mice deficient in Rap1b, the most abundant isoform of Rap1 in platelets, or its main activator CalDAG-GEF1, exhibit impaired GPIIb-IIIa activation.^4,5  Moreover, platelet-specific deletion of Rap1a and Rap1b leads to a profound defect in GPIIb-IIIa activation and hemostasis.⁶  RIAM is a Rap1 effector that recruits talin 1 to integrin αIIbβ3 in a model nonhematopoietic system.^7-9  However, genetic ablation of RIAM in mice does not affect hemostasis or GPIIb-IIIa activation, indicating that it is not the relevant Rap1 effector in platelets.^10-12

The N-terminal talin 1 head domain (THD) is an atypical FERM domain with an F0 domain, in addition to the 3 characteristic subdomains (F1, F2, F3). The structure of the F0 domain resembles that of the Ras-association domain in RalGDS, and Rap1 binds weakly to talin 1 F0 (dissociation constant [K_d] ∼140 μM) in a guanosine triphosphate–dependent manner.¹³  In Dictyostelium, Rap1 binds to the Ras-association domain of talinB to mediate cellular adhesion during morphogenesis.¹⁴  The low-affinity binding of talin 1 F0 to Rap1 was confirmed by a recent study that suggested that this was the Rap1–talin 1 interaction that mediates platelet GPIIb-IIIa activation.¹⁵  Here, we analyzed the effect of F0 mutations that disrupt Rap1 binding on the ability of THD to activate integrin αIIbβ3 in a CHO cell system. These mutations did not affect αIIbβ3 activation, nor did they alter the effect of manipulation of Rap1 activity on αIIbβ3 activation. We generated Tln1^R35E/R35E mice harboring a mutation that significantly reduces the affinity of talin 1 F0 for Rap1. Initial platelet GPIIb-IIIa activation and hemostasis were similar in Tln1^R35E/R35E mice and wild-type littermates; however, platelet aggregation in response to low doses of agonists was reduced. Thus, Rap1 binding to talin 1 F0 cannot account for the dramatic effects of the loss of Rap1 activity on GPIIb-IIIa activation and hemostasis.

Prostacyclin (PGI₂), adenosine 5′-diphosphate, thrombin, and calcium ionophore A23187 were from Sigma-Aldrich. Protease-activated receptor 4–activating peptide (PAR4-AP, AYPGKF-NH₂) was from GenScript. Cross-linked collagen-related peptide (CRP-XL) was from the University of Cambridge (Department of Biochemistry). Fibrillar collagen type I was from Chrono-log. U46619 was from Cayman Chemical.

The murine talin 1 residues 1-85 (F0) were cloned into the expression vector pETM-11 (His-tagged, EMBL) and expressed in Escherichia coli BL21 Star (DE3) cultured in minimal medium for ¹⁵N-labeled samples for nuclear magnetic resonance (NMR). Briefly, recombinant His-tagged F0 was purified by nickel-affinity chromatography, the His-tag was removed by cleavage with Tobacco Etch Virus protease overnight, and the protein was further purified by size-exclusion chromatography using a Superdex 75 (26/600) column (GE Healthcare). The column was pre-equilibrated and run with (NMR buffer) 20 mM sodium phosphate, 50 mM NaCl, 3 mM MgCl₂, 2 mM dithiothreitol, pH 6.5. Human Rap1 isoform Rap1b (residues 1-167) cloned into pTAC vector in the E coli strain CK600K was the generous gift of Professor Alfred Wittinghofer (Max Planck Institute of Molecular Physiology, Dortmund, Germany). Untagged Rap1b was purified by ion exchange, followed by Superdex 75 (26/600) gel filtration, as previously described.¹⁶  The column was pre-equilibrated and run with NMR buffer.

Titration curves for the interaction of talin 1 F0 with GMP.PNP-bound Rap1b were determined using 100 μM ¹⁵N-labeled F0 in NMR buffer containing 5% (v/v) ²H₂O. All 2-dimensional (2D) [¹H,¹⁵N]-sfHMQC spectra were recorded at 298 K. Chemical shift changes [Δδ_{obs (HN,N)}] were calculated using CcpNmr Analysis “follow shift changes” function and analyzed with the 1-site binding model to determine the K_d value in Prism 5.0 (GraphPad Software).¹⁷

Cells were cultured in Dulbecco’s modified Eagle medium (Corning) supplemented with 10% fetal bovine serum (Sigma-Aldrich), 100 U/mL penicillin, and 100 μg/mL streptomycin (Gibco). The sequence encoding murine THD (amino acids 1-433) was cloned into pEGFP-N1 (Clontech). Point mutations were incorporated by PCR using gBlocks gene fragment (IDT) as templates. The sequences encoding human Rap1b(Q63E) and Rap1GAP1 were cloned into pDsRed-Monomer-C1 (Clontech). Transient transfection was performed using TransIT-LT1 Transfection Reagent (Mirus), according to the manufacturer's protocol. PAC-1 binding assay was conducted as previously described.¹⁸  Briefly, cells were harvested using trypsin 1 day after transfection and washed once in Hanks balanced salt solution buffer (containing calcium and magnesium; Gibco) supplemented with 1% (w/v) bovine serum albumin (BSA; Sigma-Aldrich). PAC-1 immunoglobulin M (ascites, 1:200) was incubated with cells for 30 minutes at room temperature prior to staining with the appropriate Alexa Fluor 647 secondary antibody (Life Technologies) for 30 minutes on ice. Cells were analyzed by flow cytometry using a FACSAria (BD Biosciences) and gated on double EGFP/DsRed⁺ events. Integrin activation was defined as αIIbβ3-specific ligand binding corrected for αIIbβ3 expression and was calculated as 100 × (MFI_i − MFI₀)/ΔMFI_D57 (MFI_i = mean fluorescence intensity [MFI] of bound PAC-1, MFI₀ = mean fluorescence intensity of bound PAC-1 in the presence of 10 μM eptifibatide, and ΔMFI_D57 = specific fluorescence intensity of anti-αIIbβ3 D57 antibody). PAC1¹⁹  and D57²⁰  antibodies have been previously described.

Tln1^R35E/R35E mice were generated by the CRISPR/Cas9 approach at the University of California Irvine Transgenic Mouse Facility (UCI TMF). Apbb1ip^−/−10,12  and Tln2^−/−21  mice have been described. Eight- to 16-week-old sex-matched wild-type littermates were used as control animals for all experiments. Tln1^R35E/R35E knock-in mice were generated using a CRISPR/Cas9 approach at the UCI TMF. The single guide RNA and the single-stranded oligonucleotides were from IDT. Cas9 mRNA/single guide RNA/tracRNA (3 μM) was mixed with single-stranded oligonucleotides (5 ng/μL) and injected into the pronuclei of B6SJLF2 embryos. Surviving embryos were implanted into ICR pseudopregnant females, and pregnancies went to full term. Tissue biopsies for genomic DNA were taken from pups between 7 and 10 days. Mice were genotyped by polymerase chain reaction using forward primer 5′-gtattctaatgctctgatgctactggc-3′ and reverse primer 5′-aaagtcgttggctaaaagagatggtag-3′, followed by Sanger sequencing. Three founder Tln1^R35E/R35E mice were backcrossed to a C57BL/6 strain to obtain heterozygous Tln1^wt/R35E mice. We used sex-matched Tln1^wt/wt littermates as controls for Tln1^R35E/R35E mutant animals in all experiments. Mice were housed in the animal facilities of the University of California, San Diego. Experimental procedures were approved by the Institutional Care and Use Committee.

Peripheral blood was collected from the retro-orbital plexus and transferred to tubes containing EDTA. Cell counts were performed using a Hemavet 950FS hematology system programmed with mouse-specific settings (Drew Scientific). All samples were tested in duplicate, and the mean for each animal was plotted.

Blood was drawn with heparin-coated capillaries (VWR) from the retro-orbital plexus into tubes containing low-molecular-weight LOVENOX (enoxaparin sodium; Sanofi-Aventis). Whole blood was diluted with modified Tyrode’s buffer (137 mM NaCl, 0.3 mM Na₂HPO₄, 2 mM KCl, 12 mM NaHCO₃, 5 mM N-2-hydroxyethylpiperazine-N′-2-ethanesulfonic acid, 5 mM glucose, pH 7.3) containing 0.35% BSA. Platelet-rich plasma (PRP) was obtained by 2 successive centrifugation steps at 130g for 4 minutes and then at 100g for 5 minutes at room temperature. PRP was centrifuged at 700g for 5 minutes at room temperature in the presence of 5 μM PGI₂ to pellet platelets. Platelets were resuspended in modified Tyrode's buffer, and platelet concentration was adjusted to 5 × 10⁸/mL.

Washed platelets were diluted to 4 × 10⁷/mL in Tyrode's solution containing 1 mM CaCl₂ with agonists in the presence of fibrinogen conjugated to Alexa Fluor 488 (150 μg/mL; Life Technologies). After 10 minutes of incubation, each sample was further diluted 1:40 in phosphate buffered saline (PBS) and analyzed immediately with a BD Accuri C6 Plus flow cytometer (BD Biosciences). For whole-blood assays, blood was diluted 1:12.5 in modified Tyrode's solution containing 1 mM CaCl₂ with agonists in the presence of Jon/A-phycoerythrin (PE) (2 μg/mL) and GPIX labeled with Alexa Fluor 647 (2 μg/mL), incubated for 10 minutes at room temperature, and diluted 1:400 in PBS prior to fluorescence-activated cell sorting. For real-time GPIIb-IIIa activation assay, washed platelets were diluted in modified Tyrode's solution containing 1 mM CaCl₂. After establishing a baseline with unlabeled platelets for 30 seconds, Jon/A-PE and PAR4-AP agonist were added simultaneously in an equal volume of modified Tyrode's solution. Jon/A-PE binding was recorded continuously for 10 minutes. Monoclonal antibodies directed against GPIX (Xia.B4) or activated murine GPIIb-IIIa (Jon/A-PE) were from emfret Analytics. For surface receptor analysis, 2 × 10⁶ platelets in diluted whole blood (modified Tyrode's buffer) were stained for 10 minutes with 2 μg/mL fluorophore-conjugated antibodies and immediately analyzed by flow cytometry. PE-conjugated antibodies against CD41 (MWReg30; control isotype RTK2071) and CD61 (2C9.G2; control isotype HTK888) were from BioLegend. Fluorescein isothiocyanate–conjugated antibody against P-selectin (CD62P, RB40.34; control isotype A110-1) was from BD Biosciences.

PRP was diluted to a concentration of 2 × 10⁸ platelets/mL in modified Tyrode's buffer containing 0.35% BSA and 1 mM CaCl₂. The experiment was performed at 37°C under stirring conditions (1200 rpm). Platelets were stimulated with various concentrations of PAR4-AP. Light transmission was recorded on a Chrono-log 4-channel optical aggregation system (Chrono-log).

Mice were anesthetized, and a 5-mm segment of the tail tip was cut off with a scalpel. The tail was immediately immersed in isotonic saline prewarmed to 37°C. Bleeding times were the time required for bleeding to cease for ≥60 seconds.

Glass coverslips were coated with 100 μg/mL fibrinogen (Sigma-Aldrich) in PBS for 1 to 2 hours at 37°C, washed twice with PBS, and blocked with 5% BSA/PBS for 2 hours at 37°C. Washed platelets were diluted 1:10 in Tyrode's solution containing 1 mM CaCl₂ in the presence of 0.01 U/mL thrombin and left to adhere to fibrinogen-coated glass coverslips for various times. Wells were washed 3 times with Tyrode's solution. Adherent platelets were fixed with formaldehyde, stained with Alexa Fluor 488 phalloidin (Life Technologies), and imaged using an LSM 880 with Airyscan confocal microscope (63×/1.4 oil objective; Carl Zeiss). The number of attached platelets and the spreading area were measured using the ImageJ image analysis software.

Washed platelets were pelleted by centrifugation at 700g for 5 minutes at room temperature and then lysed in Laemmli sample buffer. Lysates were subjected to 4% to 20%–gradient sodium dodecyl sulfate–polyacrylamide gel electrophoresis. For analysis of talin levels, platelet lysates were subjected to 6% sodium dodecyl sulfate–polyacrylamide gel electrophoresis for better protein separation. Antibodies directed against talin 1 (93E12) and talin 2 (68E7) were from Novus Biologicals. Anti-Rap1A/B was from Cell Signaling Technology (#4938). Antibodies against vinculin (hVIN-1) and β-actin (AC-15) were from Sigma-Aldrich. The appropriate IRDye/Alexa Fluor–coupled secondary antibodies were from LI-COR. Nitrocellulose membranes were scanned using an Odyssey CLx Infrared Imaging System, and blots were processed using Image Studio Lite software (both from LI-COR).

Statistical significance was assayed by a 2-tailed Student t test for single comparisons or analysis of variance for multiple comparisons with a Bonferroni post hoc test. P < .05 was considered significant.

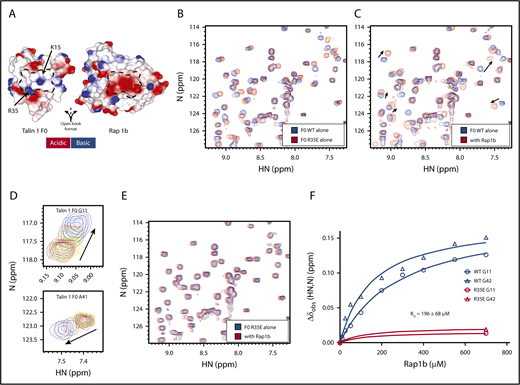

Our molecular modeling and a published NMR structure¹⁵  suggested that talin 1 Lys15 and Arg35 formed crucial salt bridges with an acidic patch on Rap1b (Figure 1A). We prepared K15E and R35E mutants of F0 and noted that the R35E mutant was more stable when expressed in bacteria. Comparison of the NMR 2D-sfHMQC of the F0 wild-type and R35E mutant (Figure 1B) showed only very subtle chemical shift changes; thus, the mutant protein adopts a similar fold to wild-type F0. Addition of GMP.PNP Rap1b to F0 produced specific chemical shift changes detectable at 25 μM GMP.PNP Rap1b (Figure 1C-D,F), whereas addition of GMP.PNP Rap1b to F0(R35E) produced almost none at 700 μM GMP.PNP Rap1b (Figure 1E-F). Furthermore, we mapped specific chemical shifts to amino acids located in the predicted binding interface, including Lys15 and Arg35. NMR titrations, based on the fitting of chemical shift perturbations of amino acids located at the binding interface, showed a weak affinity of talin 1 F0 for Rap1b. Based on this standard method of NMR titration,¹⁵  we calculated K_d = 196 ± 68 μM (Figure 1F, blue lines). The minimal chemical shift perturbations detected in talin 1 F0(R35E) at 700 μM Rap1b (sevenfold excess) precluded calculation of K_d, but it did indicate a dramatic reduction in Rap1b affinity (Figure 1F). Thus, talin 1 F0(R35E) is well folded and binds to activated Rap1b with greatly reduced affinity.

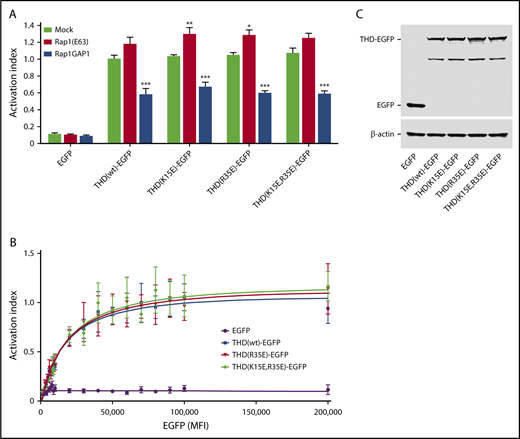

To assess the contribution of the talin 1 F0 interaction with Rap1 on integrin activation, we introduced the mutations K15E and/or R35E into the THD and tested effects on integrin activation in Chinese hamster ovary (CHO) A5 cells stably expressing human αIIbβ3. Expression of wild-type THD induced activation (Figure 2A). Expression of the constitutively activated Rap1b(E63) mutant, which is unable to form the Rap1-Rap1GAP1 complex,²²  increased wild-type THD-mediated αIIbβ3 activation. Inhibition of endogenous Rap1 activity by coexpression of Rap1GAP1 led to a decrease in THD-mediated activation (Figure 2A). THD(K15E), THD(R35E), or THD(K15E,R35E) mutants were similar to wild-type THD in activating αIIbβ3 and in the effect of manipulating Rap1 activity (Figure 2A). Furthermore, we carefully monitored expression of THD-EGFP and its mutants in each cell by flow cytometry and observed no differences in their capacity to activate αIIbβ3, regardless of their abundance (Figure 2B). Immunoblotting confirmed a similar level of expression for all THD mutants (Figure 2C).

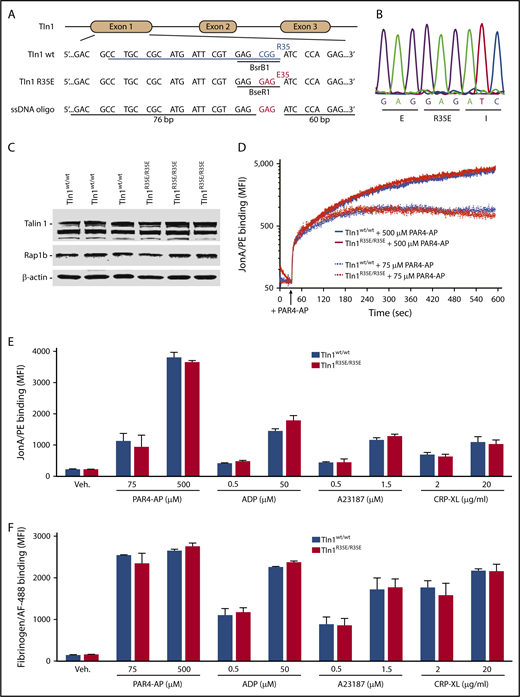

A striking feature of platelets is the abundance of Rap1b and talin 1, with ∼220 000 molecules per platelet.²³  Hence, the low-affinity talin 1–Rap1b interaction could regulate GPIIb-IIIa in platelets. To test this hypothesis, we used CRISPR/Cas9 to generate Tln1^R35E/R35E mice (Figure 3A-B). Homozygous Tln1^R35E/R35E mice were viable and fertile and exhibited no gross developmental abnormalities, with normal platelet and blood cell counts (supplemental Figure 1). Platelet content of talin 1, Rap1b (Figure 3C), and surface integrin GPIIb-IIIa (supplemental Figure 2) was similar to wild-type mice. Thus, Tln1^R35E/R35E mice are suitable for examining the effects of blocking Rap1 binding to the talin 1 F0 domain on platelet integrin function in vivo and ex vivo.

We evaluated activation of GPIIb-IIIa in response to stimulation with PAR4 agonist-peptide (PAR4-AP) by measuring real-time binding of Jon/A²⁴  to washed platelets and observed that Jon/A bound to PAR4-AP–activated Tln1^R35E/R35E platelet GPIIb-IIIa with similar kinetics and to a similar extent as wild-type platelets (Figure 3D). To rule out a platelet-washing artifact, we assessed GPIIb-IIIa activation in whole blood using Jon/A and found that multiple agonists stimulated Jon/A binding to Tln1^R35E/R35E platelets indistinguishably from wild-type platelets (Figure 3E). As a second measure of GPIIb-IIIa activation, we assessed fibrinogen binding to washed platelets and found that binding to Tln1^R35E/R35E platelets stimulated with PAR-AP, adenosine 5′-diphosphate, ionophore A23187, or collagen-related peptide was similar to fibrinogen binding to platelets from wild-type mice (Figure 3F). Thus, these data indicate that Rap1 binding to talin 1 F0 domain is dispensable for GPIIb-IIIa activation in platelets.

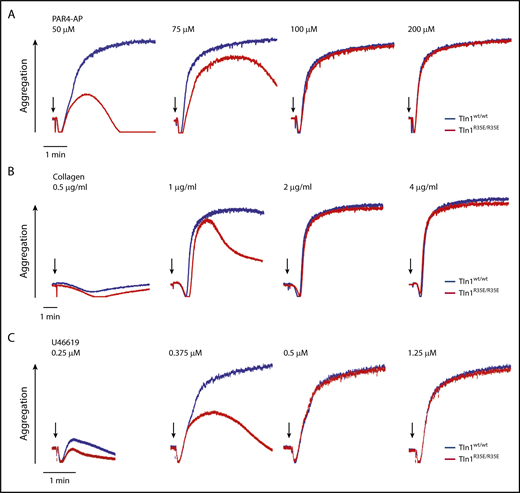

To examine the ability of Tln1^R35E/R35E platelets to form aggregates, we stimulated diluted PRP in a standard optical aggregometer with various doses of PAR4-AP, collagen, or the thromboxane A2 analog U46619. There was a consistent reduction in the ability of low doses of agonists to induce Tln1^R35E/R35E platelet aggregation (Figure 4). Surface expression of P-selectin in Tln1^R35E/R35E platelets was similar to platelets from wild-type mice (Figure 5A), indicating no defect in α-granule secretion. In addition, as an independent measure of GPIIb-IIIa function in Tln1^R35E/R35E platelets, we quantified platelet adhesion and spreading on fibrinogen-coated coverslips in response to stimulation with thrombin. There was no difference in the number of adhered platelets (Figure 5B). Tln1^R35E/R35E platelets spread and extend lamellipodia to a similar extent as wild-type platelets (Figure 5C). Importantly, there was a slight, but insignificant, prolongation of tail bleeding times in Tln1^R35E/R35E mice (Figure 5D), indicating largely intact hemostasis. Together, these data confirm that the activation and hemostatic functions of GPIIb-IIIa are largely intact in Tln1^R35E/R35E platelets.

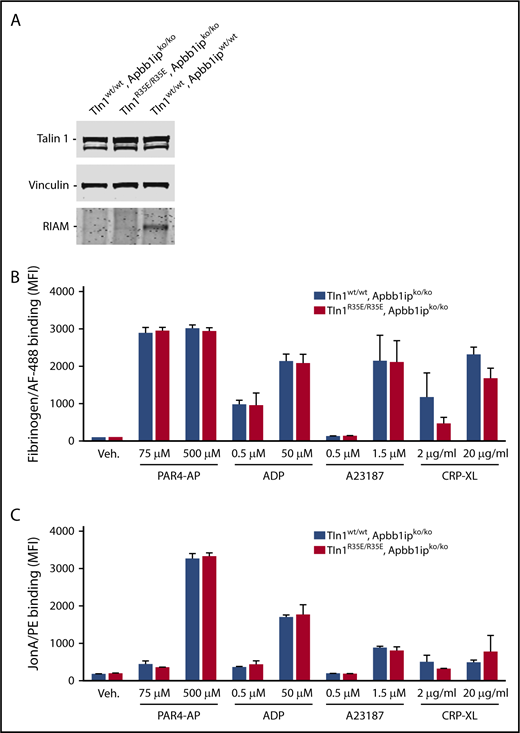

Platelets express little RIAM.^10,15,23  However, it is possible that upregulation of RIAM bridges Rap1 to talin 1(R35E), thereby compensating for the blockade of the direct Rap1/talin 1 interaction. Tln1^R35E/R35E platelets exhibited no increase in RIAM expression. Platelets from Tln1^R35E/R35E-Apbb1ip^−/− mice, lacking RIAM, exhibited normal GPIIb-IIIa activation (Figure 6). These data exclude a compensatory role for RIAM. Furthermore, we examined whether talin 2, which is structurally similar to talin 1, could compensate for the Tln1^R35E/R35E mutation. We could not detect talin 2 expression in platelets, confirming previous reports,^25,26  and its expression was not increased in response to the Tln1^R35E/R35E mutation (Figure 7). Furthermore, initial GPIIb-IIIa activation in Tln1^R35E/R35E;Tln2^−/− platelets was indistinguishable from control Tln1^wt/wt;Tln2^+/+ platelets (Figure 7).

Rap1 GTPases play a critical role in triggering talin-mediated platelet GPIIb-IIIa activation. Our studies have critically examined the role of the binding of Rap1 to the talin 1 F0 domain,¹³  which has been proposed¹⁵  to account for the link between Rap1 and talin. Using the structure of the Rap1-F0 complex, we created a single F0 point mutant that did not alter F0 folding and documented that it significantly reduced the affinity of the interaction. Using the well-established CHO system, we showed that this mutation did not affect the capacity of THD to activate recombinant αIIbβ3 across a wide range of expression of THD, nor did it alter the effects of manipulating Rap1 activity. To directly test the role of the Rap1–F0 interaction, we generated Tln1^R35E/R35E mice and observed negligible effects on GPIIb-IIIa activation by a wide variety of agonists and on resulting hemostasis; however, we observed a mild defect in platelet aggregation. In sum, our studies show that the talin 1 F0–Rap1 interaction makes a minor contribution to the capacity of Rap1 to trigger GPIIb-IIIa activation and resulting hemostasis.

The interaction of talin 1-F0 with Rap1b plays no evident role in THD-induced recombinant αIIbβ3 activation in CHO cells. These cells, termed A5 cells,²⁷  have come into wide use and were instrumental in showing the role of THD in activation²⁸  and how RIAM linked Rap1 to talin to activate integrins.⁷  Indeed, when Goult et al¹³  first reported the Rap1–F0 interaction, we tested a series of mutants predicted to block the interaction, with no effect on αIIbβ3 activation. In repeating these experiments, with careful quantification of THD expression on a per-cell basis by flow cytometry, we have confirmed our earlier results (Figure 2B). A recent study¹⁵  reported conflicting results; however, differences in experimental methods should be noted. In particular, that study used a THD(K15A,R35A) double mutant. We used the acidic Glu mutations because of the predicted stronger effects of charge repulsions between talin 1 F0 and the acidic patch on the surface of Rap1b that mediates their interaction (Figure 1A). Secondly, we carefully monitored the folding of the R35E mutant (Figure 1B), which was a particular concern in light of the instability of the K15E mutant in our hands. This concern also led to a careful assessment of the expression of mutant and wild-type THD (Figure 2B-C), a feature notably absent from the study by Zhu et al.¹⁵  Thus, in A5 cells, a mutant that drastically reduces the Rap1-F0 affinity has little effect on the capacity of THD to activate recombinant αIIbβ3.

The talin 1(R35E) mutant has little effect on platelet GPIIb-IIIa activation or hemostasis. In the present study, we did not observe any consistent effect of Tln1(R35E) on GPIIb-IIIa activation by several agonists that use distinct receptors in washed platelets, as assessed by the binding of fibrinogen or Jon/A, or in whole blood by Jon/A binding. These results were confirmed by the minor effects on platelet aggregation and bleeding time and are in striking contrast to the profound effects of loss of Rap1 activity⁶  or talin 1^26,29  or of mutations of β3 that block talin binding.³⁰  Importantly, our studies definitively exclude the possibility that upregulation of talin 2 or RIAM expression could account for the lack of effect of this mutation. The mild defect in platelet aggregation at low doses of agonist, in the presence of intact GPIIb-IIIa activation, suggests that the talin 1 F0–Rap1 interaction helps to stabilize the capacity of the platelet aggregates to resist the shear forces in the platelet aggregometer; hence, future studies to explore whether this mild aggregation defect confers an antithrombotic benefit seem warranted.

What is the nature of the Rap1 effector that controls talin 1-dependent integrin activation in platelets? Clearly, F0 binds Rap1 with low affinity and, in Dictyostelium, appears to have an important functional role.^13-15  The extraordinary abundance of Rap1 and talin 1 in platelets and the absence of any stoichiometrically reasonable Rap1 effector²³  provided a compelling rationale for considering talin 1 F0 as the logical Rap1 effector¹⁵ ; however, our results seem to preclude this idea and leave this critical question open. Zhu et al’s comprehensive study reported that Rap1 interaction with talin 1 F1 or kindlin2 F0 could not be detected,¹⁵  appearing to rule out these likely candidates. Vinculin interaction with talin 1 can lead to talin 1–integrin interaction and integrin activation³¹ ; however, vinculin-null platelets exhibit no reduction in GPIIb-IIIa activation,³²  and vinculin-RIAM double-knockout platelets also exhibit no such defect (Brian G. Petrich and M.H.G., unpublished observations). Thus, future studies could be directed at the possibility that Rap1 can influence the talin 1–integrin interaction by triggering a catalytic event that results in a change of membrane lipid composition or a posttranslational modification of talin 1. The present work would exclude the Rap1–talin 1 F0 interaction as playing a critical role in GPIIb-IIIa activation.

The authors thank Markus Moser for helpful discussions and the UCI TMF for design help and production of CRISPR-modified mice.

This work was supported by American Heart Association Career Development Award 18CDA34110228 (F.L.), postdoctoral fellowship 17POST33660181 (H.S.), and Grant-In-Aid 16GRNT29650005 (A.R.G.); National Institutes of Health, National Heart, Lung, and Blood Institute grants HL 078784 and HL 139947 (M.H.G.), HL 130404 (W.B.), and HL 56595 (S.J.S.); Biotechnology and Biological Science Research Council grant BB/N007336/1; Human Frontier Science Program grant RGP00001/2016 (B.T.G.); and the University of California, San Diego School of Medicine Microscopy Core (P30 NS047101 from the National Institutes of Health, National Institute of Neurological Disorders and Stroke). The UCI TMF is a shared resource funded in part by Chao Family Comprehensive Cancer Center Support Grant (P30CA062203) from the National Institutes of Health, National Cancer Institute.

Contribution: F.L., A.R.G., and M.H.G. conceived the study, designed experiments, interpreted data, and wrote the manuscript; F.L., A.R.G., D.S.P., A.J.V., and M.N.C. performed and analyzed experiments; F.L. designed the CRISPR/Cas9 approach to generate Tln1^R35E/R35E mutant mice; H.S. and M.A.L.-R. provided vital reagents and critical expertise; and B.T.G., S.J.S., and W.B. provided decisive expertise and critical advice and edited the manuscript.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: Mark H. Ginsberg, Department of Medicine, University of California, San Diego, 9500 Gilman Dr, La Jolla, CA 92093; e-mail: mhginsberg@ucsd.edu.
