Two distinct HLA-A0201–presented epitopes of the Wilms tumor antigen 1 can function as targets for leukemia-reactive CTL

Wilms tumor antigen 1 (WT1) is a transcription factor essential for embryonic development, but after birth low-level expression is restricted to few cell types including hemopoietic stem cells, myoepithelial progenitor cells, renal podocytes, and some cells in testis and ovary.1-5 Recent studies have demonstrated that WT1 is overexpressed in several types of leukemia and that overexpression may be required for the uncontrolled proliferation and defective differentiation of leukemic cells.6-8

Tumor elimination is most effectively accomplished by high-avidity antigen-specific cytotoxic T lymphocytes (CTLs).9However, the described low-level expression of WT1 in normal cells would be expected to cause partial or complete tolerance of high-avidity CTLs. In the past, we have developed the allo-restricted CTL approach as a tool to circumvent immunologic tolerance to proteins expressed in normal cells.10 Using this approach we have recently generated high-avidity allo-restricted CTLs against an HLA-A0201 (A2)–presented, WT1-derived peptide, called WT126. We now describe high-avidity allo-restricted CTLs specific for a new A2-presented epitope, WT235, and show that CTLs against both epitopes can recognize immature CD34⁺ cells from patients with chronic myelogenous leukemia (CML).

Myeloid leukemia lines BV173, LAMA81, U937, SD-1, BAF-3, KU-812, 697, and T2 cells (deficient in transporter associated with antigen processing [TAP] and thus incapable of endogenous peptide loading) were maintained in RPMI plus 10% fetal calf serum (FCS).

Allo-restricted CTLs were first stimulated in bulk cultures with peptide-loaded, TAP-deficient cells, followed by plating in 96-well plates under limiting dilution conditions to identify and expand peptide-specific CTL lines.11 The WT235-specific CTL line 4 expanded best and was used in all experiments. The⁵¹Cr-release assays were done as previously described.11

The local ethics committee approved the use of clinical samples and patient consent was obtained. Normal CD34⁺ cells were purified from adult bone marrow (n = 1), mobilized peripheral blood, or cord blood (n = 7). Using the MiniMACS system (Miltenyi Biotec, Bisley, United Kingdom), leukemic CD34⁺ cells were purified from peripheral blood of CML patients in chronic phase who were not treated with interferon-α for at least 3 months. The cell purity was assessed by fluorescence-activated cell sorting (FACS) staining with fluorochrome-labeled anti-CD34 antibodies (clone 581, BD-Pharmingen, Oxford, United Kingdom) and ranged from 80% to 99%. Cells were cryopreserved and defrosted for each experiment. Granulocyte-macrophage colony-forming unit (CFU-GM) assays were performed as previously described.11 Cells were assayed for long-term culture-initiating cells (LTC-ICs) in a 5-week 2-stage culture at 33°C in LTC medium (Iscove modified Dulbecco medium [IMDM] plus 10% FCS, 10% horse serum, and 10⁻⁶mol/L hydrocortisone). M2-10B4 cells (kindly donated by C. Eaves, Vancouver, BC, Canada) were used as feeder cells. Cultures were fed weekly for 5 weeks and LTC-ICs were determined as total CFU-GM output.

Using the T2 whole cell–binding assay, we found that the peptide WT235 (CMTWNQMNL; single-letter amino acid codes) showed similar A2-binding activity as the previously published WT126 peptide (RMFPNAPYL; data not shown). We explored whether the WT235 peptide could stimulate specific CTLs in vitro, using responder lymphocytes from healthy individuals. We have chosen the allo-restricted approach because of concerns that self-restricted T cells may be devoid of high-avidity CTLs due to tolerance.

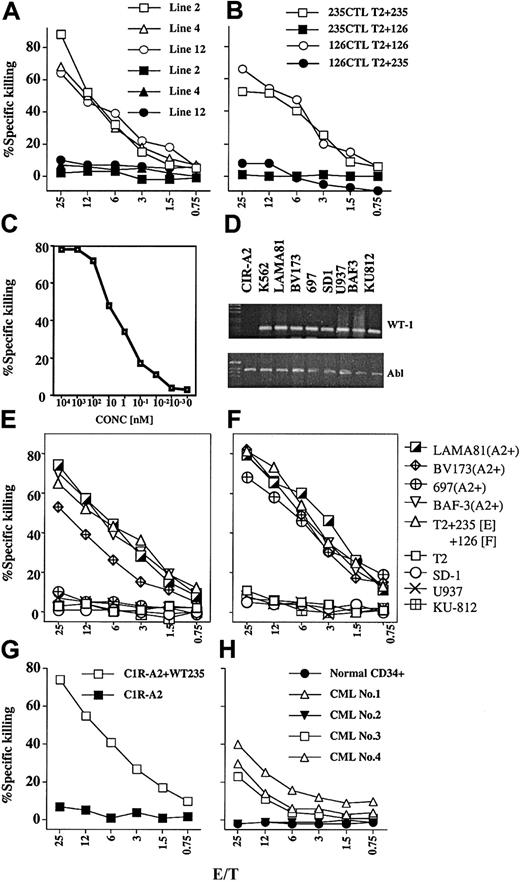

Figure 1A shows the specificity of 3 allo-restricted CTLs raised against WT235 peptides. The killing of TAP-deficient T2 targets was dependent on T2 coating with WT235 peptides, whereas coating HLA-A2–binding control peptides did not result in CTL killing. Next, we tested CTLs raised against the WT235 and the previously described WT126 epitope11 against T2 target cells coated with WT235 peptide and WT126 peptide, to show that there was no cross-recognition of the 2 WT1-derived peptide epitopes (Figure 1B). The peptide titration curve suggested that WT235-specific CTLs were high avidity because they recognized low picomolar peptide concentrations (Figure 1C).

Next, the CTLs were tested against a panel of leukemia cell lines. Reverse transcription-polymerase chain reaction (RT-PCR) analysis showed that all leukemia cell lines expressed WT1 RNA endogenously (Figure 1D). Figure 1E shows that the WT235-specific CTLs killed leukemia cell lines, provided they were A2⁺. The WT126-specific CTLs were tested in the same experiment against the same panel of leukemia cell lines (Figure 1F). The killing specificity of the 2 CTL populations was similar except for one interesting exception. The WT1-expressing, A2⁺ leukemia cell line 697 was killed by WT126-specific CTLs but not by WT235-specific CTLs. The possibility that a WT1 mutation or an intracellular processing defect in 697 cells fails to produce WT235 peptides without affecting the production of the WT126 epitope needs to be explored further.

WT235-specific CTLs failed to kill the A2⁺ lymphoblastoid cell line C1R-A2, indicating that WT1⁻ hematopoietic cells do not express any CTL-recognized peptides and were killed only after coating with WT235 peptides (Figure 1G). Finally, we tested the killing activity of WT235-specific CTLs against fresh CD34⁺ cells isolated from a healthy donor and from patients with CML. The results indicated that normal A2⁺ CD34⁺ cells were not recognized by WT235-specific CTLs, whereas low-level killing was observed against CD34⁺ cells from A2⁺ CML patients, but not against A2⁻ CML samples. The low level of killing indicated that only a subpopulation of CD34 cells was recognized by the CTLs, which has been observed previously with WT126-specific CTLs,11 and is probably due to heterogeneity of WT1 expression among CD34⁺ cells.

Purified CD34⁺ cells from patients with chronic-phase CML were exposed to WT235-specific CTLs for 4 hours and then plated in the CFU-GM assay. Colony formation was inhibited by 95% to 100% in the 6 A2⁺ CML patients analyzed (Figure2A). In contrast, there was no significant inhibition of colony formation when A2⁻ CML cells or A2⁺ CD34⁺ cells from healthy donors were treated with CTLs.

These results are analogous to those achieved by Molldrem et al using CTLs against proteinase-3, which inhibited the CFU-GM activity of bone marrow cells from CML patients expressing elevated levels of proteinase-3, without affecting CFU-GMs of normal bone marrow.12 However, proteinase-3 is a differentiation antigen that is expressed in hematopoietic cells of the myeloid lineage. Thus, CTLs would be expected to be effective in the killing of committed CFU-GM progenitors and mature myeloid cells, but less effective against more immature cells.

We used the LTC-IC assay to test if WT1-specific CTLs can recognize immature cells present in the CD34⁺ population from CML patients. In 3 independent experiments, 86% to 100% inhibition of colony formation was observed after treating CML CD34⁺cells with CTLs specific for the WT126 or WT235 epitopes (Figure 2B). In contrast, 7 independent experiments showed that the same CTLs did not inhibit the LTC-IC activity of normal A2⁺CD34⁺ cells (Figure 2C).

A study in patients with acute myelogenous leukemia (AML) showed that leukemia cells with the immature CD34⁺HLA-DR⁻phenotype expressed significantly more WT1 than leukemia cells with the more mature CD34⁺HLA-DR⁺phenotype.7 This study also showed that immature CD34⁺ cells from leukemia patients expressed at least 10-fold more WT1 than equivalent normal CD34⁺ cells. This may explain why WT1-specific CTLs can selectively kill immature CD34⁺ cells from patients with CML.

We have not found any other examples in the literature showing selective CTL killing of LTC-ICs of leukemia patients. Furthermore, a comparison of the CTL-mediated CFU-GM inhibition described here and published results with the bcr/abl tyrosine kinase inhibitor imatinib13 indicates that the CTLs are far superior in their ability to discriminate between leukemic and normal progenitor cells. Together, the LTC-IC and CFU-GM data suggest that WT1-specific CTLs are probably the most promising reagents to attack selectively leukemia progenitor/stem cells without causing damage to normal CD34⁺ cells.

The HLA-mismatch between CTL donor and recipient, which may lead to the rejection of infused CTLs, is a major drawback of immunotherapy with allo-restricted CTLs in patients who did not previously receive an allogeneic stem cell transplant. These limitations can be overcome using T-cell receptor (TCR)–based gene transfer. We have recently shown that retroviral transduction can be used to transfer TCRs into human CD8 T cells and that the transduced cells displayed the same specificity as the CTL from which the TCR was isolated.14 This strategy should allow us to equip autologous human CD8 T cells with the specificity of TCRs derived from allo-restricted CTLs.

We thank Dr F. Ramirez for helpful discussion, and Prof R. Lechler for critical review of the manuscript.
