CD43 is a ligand for E-selectin on CLA⁺ human T cells

Human T cells exhibit tropism for specific tissues mediated by cell-surface receptors that interact with counter ligands differentially expressed on the vascular endothelium.¹  The complement of receptors expressed by subsets of T cells, in turn, determines the tissues those cells can enter. Naive T cells, for example, emigrate from blood into peripheral lymph nodes (PLNs) via the sequential interaction of the leukocyte receptors L-selectin (CD62L), CCR7, and leukocyte function antigen 1 (LFA-1) with their ligands peripheral node addressin (PNAd), secondary lymphoid tissue cytokine (SLC) (CCL21), and ICAM-1, respectively, presented on high endothelial venules (HEVs). T cells that lack one or more of the receptors for the ligands expressed at a particular site will not be able to complete the adhesion/emigration process and return to the blood flow. Memory T cells, for example, that lack L-selectin or CCR7 cannot enter PLNs.²  In a similar fashion, patterns of receptor/counter-receptor expression regulate the recruitment of T cells to other secondary lymphoid tissues as well as to peripheral tissues.

T-cell recruitment to skin is a central feature of many acute and chronic cutaneous inflammatory conditions, including eczema, psoriasis, vitiligo, and alopecia areata.^3-5  The subgroup of human effector/memory T cells that participate in immune responses in skin can be identified by expression of the cutaneous lymphocyte-associated antigen (CLA). CLA, a carbohydrate epitope, functions as a T-cell receptor for E-selectin expressed on postcapillary venules in skin. Although not an exclusive homing receptor, CLA is expressed at high levels on the T cells in inflammatory lesions in skin and is generally absent on T cells infiltrating other tissues.^6,7  P-selectin glycoprotein ligand-1 (PSGL-1) on CLA⁺ T cells has been shown to bear CLA carbohydrate epitope and is the only E-selectin and P-selectin ligand previously described on these cells.^8,9  In this study, we demonstrate that sialomucin CD43 (leukosialin) on T cells can also be decorated with CLA epitope and, in contrast to PSGL-1, that CLA⁺ CD43 serves as an E-selectin ligand but does not have P-selectin binding activity.

Peripheral blood mononuclear cells (PBMCs) were prepared by density gradient separation (Ficoll-Histopaque 1.077; Sigma-Aldrich, St Louis, MO) of peripheral blood from healthy donors. All blood samples for these studies were collected under protocols approved by the Brigham and Women's Hospital institutional review board. Informed consent, where required, was provided according to the Declaration of Helsinki. The generation of CLA⁺-cultured T cells using XVIVO15 medium (BioWhittaker, Walkersville, MD) and CLA^--cultured T cells using RPMI medium (Mediatech, Herndon, VA) was performed as described.⁹  CLA⁺ peripheral blood T cells were obtained from fresh PBMCs by depletion of non-T cells using a Pan T cell kit (Miltenyi Biotec, Auburn, CA) followed by positive selection of CLA⁺ T cells with anti-CLA monoclonal antibody (mAb) HECA-452 and mouse anti-rat kappa magnetic beads (Miltenyi Biotec), following the manufacturer's instructions.

The preparation of cell lysates using 1% N-octyl glucoside (Roche, Indianapolis, IN), reducing sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE), and Western blotting techniques were all performed as described.⁹  The nonreducing SDS-PAGE loading buffer used in these studies was composed of 100 mM Tris-Cl, 4% SDS, 0.2% or less bromophenol blue, and 20% glycerol. Molecular weight markers were purchased from Amersham Pharmacia Biotech (Piscataway, NJ): high range (220, 97, 66, 45, 30, 20.1, and 14.3 kDa) and full range (250, 160, 105, 75, 50, 35, 30, 25, 15, and 10 kDa). All gels except immunoprecipitation (IP) studies were loaded with 50 μg total protein per lane.

Anti-CLA mAb HECA-452, anti-CD43 mAb 1G10 and mAb L60, anti-CD62E mAb 68-5H11, anti-CD62L mAb DREG-56, and anti-CD62P mAb AK-4 antibodies were purchased from BD Pharmingen (San Diego, CA). Anti-PSGL-1 CD162 mAbs PL-1 and PL-2 were purchased from Beckman Coulter (Miami, FL) and KPL-1 was purchased from BD Pharmingen. Anti-PSGL-1 mAb 4H10 was generously provided by Genetics Institute (Cambridge, MA). Anti-CD43 mAb MT-1, rat IgM, and goat anti-mouse IgG alkaline phosphatase were obtained from Zymed (South San Francisco, CA). Mouse IgG1, mouse IgG2a, rat IgG2a, goat anti-mouse Ig FITC, goat anti-rat IgM alkaline phosphatase, goat anti-rat IgM FITC, rabbit anti-rat IgG alkaline phosphatase, and Neutralite Streptavidin alkaline phosphatase were all purchased from Southern Biotechnology (Birmingham, AL). Anti-CD43 mAb 1D4 was purchased from Medical and Biological Laboratories (Watertown, MA). Anti-CD43 mAb DF-T1 was obtained from Neomarkers (Fremont, CA). Anti-CD43-biotin mAb DF-T1 and mouse IgG1-biotin were obtained from Ancell (Bayport, MN). Anti-CD44 mAb Hermes-1 was purchased from Pierce Biotechnology (Rockford, IL).

Immunoprecipitation protocols were performed as previously described.⁹  IP reactions used either anti-PSGL-1 mAb 4H10 or anti-CD43 mAb 1G10, as indicated.

The blot-rolling assay allows for real-time observation of selectin-mediated interactions with cellular glycoproteins segregated by molecular weight and immobilized on Western blots. The parallel plate flow chamber system, maintenance and processing of transfected Chinese hamster ovary (CHO) cells, and use of the blot-rolling assay have been described in detail.^9-12  Briefly, lysates of CLA⁺ T cells were subjected to SDS-PAGE under reducing or nonreducing conditions, blotted onto PVDF membranes, and immunostained using standard methods. Equilibration of the stained membranes in media with 10% glycerol alters the opacity of the membrane sufficiently to allow transmission of light and the direct visualization of cells interacting with the surface of the blot by standard light microscopy. A parallel plate laminar flow chamber, used routinely for observing real-time interactions under controlled shear conditions of cells with substrates immobilized on glass or plastic, can be mounted directly on the blots via a low-pressure vacuum seal, with the entire apparatus placed on the stage of an inverted microscope. CHO cells expressing defined levels of E- or P-selectin, as well as control mock-transfected CHO cells, are then introduced into the chamber under controlled shear conditions and monitored for interaction with the blot surface by direct observation. At areas of blots bearing known or unknown selectin ligands, cells can be observed in real-time tethering to the upstream edge of the stained area, rolling across the band, and releasing from the downstream edge. Although this assay is nonphysiologic by design, employing vascular selectins on nonadherent cells and immobilizing the leukocyte glycoproteins, the rolling behavior of bound cells is qualitatively similar to that observed in traditional binding assays employing leukocyte binding to glass- or plastic-immobilized selectin. All experiments are videotaped for offline analysis. Results shown in Figures 1, 4, and 6 were obtained at a wall shear stress value of 0.53 dyne/cm². Although blot-bound ligands can support rolling in the physiologic shear range if present in sufficient quantity, the surface of the membranes is irregular on the cellular scale and causes turbulence that limits observations at higher shear levels. These experiments are routinely performed at low shear to enhance sensitivity while allowing easy differentiation of cells rolling on the substrate (selectin-mediated behavior) from unbound and firmly attached (nonspecific) cells. Video analysis was performed manually or using Cell Motion software (Ed Marcus Laboratories, Newton, MA).

Substrate spots for the antigen capture assay were prepared as follows. First, 0.4 μg purified anti-CD43 mAb 1G10 or mouse IgG1 (20 μL at 20 μg/mL in PBS) was applied to plastic Petri dishes and incubated at 37°C for 2 hours. Next, the bulk of the antibody solution was removed and 100 μg human serum albumin (HSA; 50 μL at 2 mg/mL in phosphate-buffered saline [PBS]) was added and incubated at 4°C overnight. The HSA solution was then removed, cloning chambers were applied to the plastic dishes using silicone vacuum grease, and 12.5 μg CLA⁺- or CLA^--cultured T-cell lysates (50 μL at 250 μg/mL in 1% N-octyl glucoside lysis buffer) or 1% N-octyl glucoside lysis buffer alone was applied and incubated overnight at 4°C. All incubations were conducted inside a “humidity chamber” consisting of a large sealed dish containing a moist paper towel to prevent drying of the spots. Prior to use, the cloning chambers were removed, silicone grease was wiped away with a cotton swab, and the plates were rinsed and filled with Ca²⁺-free and Mg²⁺-free Hanks balanced salt solution (HBSS) supplemented with 10 mM Hepes (H/H). H/H buffer supplemented with 2 mM CaCl₂ (H/H/Ca²⁺) or with 5 mM EDTA (H/H/EDTA) was used during the flow assays. CHO cells were prepared and loaded into the parallel plate flow chamber in the same fashion as described for the blot-rolling assay. The results shown in Figure 5 were obtained at a wall shear stress value of 0.56 dyne/cm².

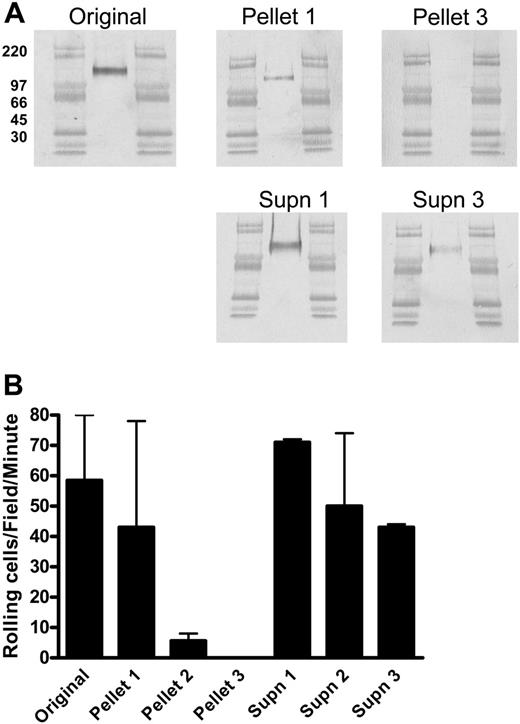

As we have shown previously, CLA appears as a single band of approximately 140 kDa on Western blots of CLA⁺ T-cell lysates separated by reducing SDS-PAGE (Figure 1A Original).⁸  IP of CLA⁺ T-cell lysate with antibodies directed to the protein core of PSGL-1 yields a 140-kDa HECA-452-reactive protein (Figure 1A Pellet 1) that has strong E-selectin (Figure 1B Pellet 1) and P-selectin ligand (not shown) activity assessed by the blot-rolling assay.⁹  However, the presence of a strong HECA-452-reactive band (Figure 1A Supn 1) and E-selectin ligand activity (Figure 1B Supn 1) remaining in the supernatant of this IP reaction suggested that the removal of PSGL-1 was incomplete. Exhaustive IP of PSGL-1, documented after 3 rounds by the absence of a PSGL-1-reactive band in the supernatant (not shown) as well as the absence of a HECA-452-reactive band or selectin ligand activity in the PSGL-1 immunoprecipitated pellet (Figure 1A-B Pellet 3), did not eliminate HECA-452-reactive material or E-selectin ligand activity from the residual supernatant (Figure 1A-B Supn 3). This result indicated the presence of another HECA-452-decorated glycoprotein in the lysates of CLA⁺ T cells that comigrates with PSGL-1 in reducing SDS-PAGE. Consistent with this hypothesis, Western blots of CLA⁺ T-cell lysates separated by nonreducing SDS-PAGE showed 3 distinct HECA-452-reactive bands (Figure 2) migrating at apparent molecular weights of approximately 240 kDa, 140 kDa, and 125 kDa. The 140-kDa and 240-kDa bands correspond to the predicted molecular weights of monomer and dimer PSGL-1, respectively, and were identified by immunoblotting with anti-PSGL-1 mAb (Figure 3). Identical Western blots stained with anti-L-selectin and anti-CD44 mAb showed that the 125-kDa band did not correspond to any of the reported ligands for E-selectin on human leukocytes or hematopoietic progenitor cells. Staining for CD43, a surface sialomucin similar in structure to PSGL-1, showed 2 bands, one of approximately 125 kDa that comigrates with the HECA-452-reactive band and an additional band at 115 kDa that did not stain with HECA-452. These bands are known to represent differential glycosylation and decoration of CD43 with core-2-branched carbohydrates in response to T-cell activation and maturation.¹³  This modified form of CD43 can be identified on human cells by reactivity with monoclonal antibody 1D4.¹⁴  As seen in Figure 3, staining with this antibody identified the 125-kDa CD43 band that comigrates with the HECA-452-reactive band on nonreducing SDS-PAGE.

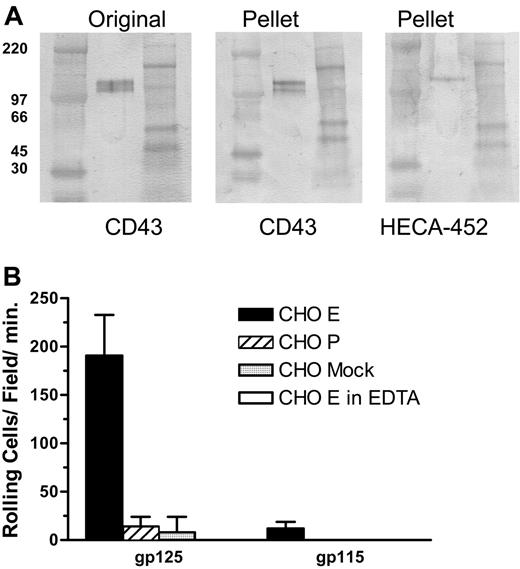

To confirm that CD43 on human T cells is decorated with HECA-452-reactive carbohydrates and can serve as an E-selectin ligand, we immunoprecipitated CD43 from lysates of CLA⁺ T cells and analyzed the product by Western blot and blot-rolling assay. CD43 immunopurified from CLA⁺ T-cell lysate migrates in nonreducing SDS-PAGE as 2 bands of apparent molecular weights of 115 and 125 kDa (Figure 4A Pellet, CD43 stain). An identical blot stained with HECA-452 (Figure 4A Pellet, HECA-452 stain) showed that only the 125-kDa form is decorated with the CLA epitope. Blot-rolling analysis showed that the 125-kDa CLA⁺ glycoform of CD43 has E-selectin ligand activity but not P-selectin ligand activity, in contrast to CLA⁺ PSGL-1, which binds both P- and E-selectin.⁹  The 115-kDa CLA^- glycoform did not support either E-selectin- or P-selectin-mediated rolling (Figure 4B). While published studies document isoforms of PSGL-1 that bind P-selectin or P-selectin and E-selectin,^8,9,15  this is the first report of a T-cell ligand that selectively binds E-selectin and not P-selectin.

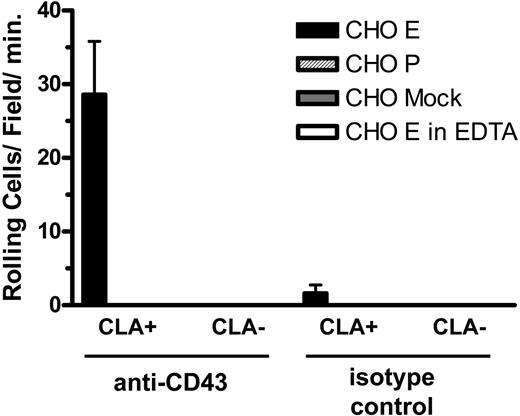

Since the blot-rolling technique involves denaturation of the core protein, we designed an assay of nondenatured material to confirm these findings. For this assay, anti-CD43 and control antibodies were adsorbed to a plastic plate and used to capture antigen from lysates of CLA⁺ and CLA^- T cells. These substrates were then incorporated into the parallel plate flow chamber and assayed for the ability to support binding and rolling of selectin-expressing cells in shear flow. CD43 immunoadsorbed from CLA⁺ T-cell lysates, but not from CLA^- T-cell lysates, supported E-selectin- but not P-selectin-mediated attachment and rolling functions (Figure 5). Control substrates and cells showed no selectin ligand activity. These results confirm the observations seen by blot rolling and support the conclusion that CD43 on CLA⁺ T cells is an E-selectin ligand.

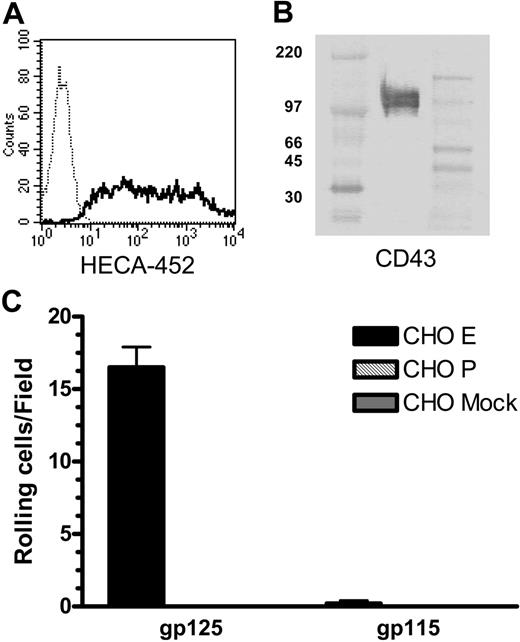

As cultured T cells may produce altered glycosylation products, we also isolated CLA⁺ T cells from fresh peripheral-blood CD3⁺ cells using mAb HECA-452 and magnetic beads (Figure 6A). Western blots of CD43 immunoprecipitated from lysates of unstimulated circulating CLA⁺ T cells show bands of 125 kDa and 115 kDa apparent molecular weight (Figure 6B) corresponding to core-2-modified and non-core-2-modified forms of CD43 (data not shown) as seen in cultured T cells. Blot-rolling analysis confirmed that 125-kDa CD43 from fresh, resting human CLA⁺ T cells can support E-selectin- but not P-selectin-mediated binding and rolling in shear flow (Figure 6C).

In this report we show that CD43 on CLA⁺ T cells can be decorated with the CLA epitope and serves as an E-selectin, but not a P-selectin, ligand on these cells. This is the first demonstration of a selectin ligand function for CD43 on T cells and the first functional description of a T-cell E-selectin ligand other than PSGL-1. The existence of at least 2 distinct selectin ligands on T cells, and the evidence for differential glycosylation of both CD43 and PSGL-1 protein scaffolds, suggests that these separate structures serve different functions and may be implicated in distinct inflammatory conditions.

The presence of a neutrophil E-selectin ligand distinct from PSGL-1 has been suggested in studies using PSGL-1-deficient (PSGL-1^-/-) mice,^16,17  although the identity of this residual activity is not known. A recent report has indicated that CD44 may have E-selectin ligand function on murine and human neutrophils.¹⁸  The absence of CLA epitope and E-selectin binding activity in the region of CD44 on the blots examined in this report suggests that CD44 is not a major selectin ligand on human CLA⁺ T-cell populations. The absence of selectin ligand functions in mice deficient in the fucosyltransferase IV and VII, in contrast, indicates that the biosynthetic pathway for producing the appropriate glycans on CD43 is similar, if not identical, to that used to decorate PSGL-1.¹⁹

Although CD43 (leukosialin) is known as one of the most abundant T-cell surface proteins, its function(s) has not been clearly defined. CD43 is expressed exclusively on hematopoietic cells, where it is the major sialic acid-bearing surface glycoprotein.^20-22  Similar to other sialomucins, extensive O-linked glycosylation holds CD43 in an extended rodlike structure that extends up to 45 nm above the plasma membrane.²³  These features make CD43 an ideal candidate for interaction with other cells and support its function as a regulator of immune responses. CD43 is known to be decorated with a diverse set of carbohydrate epitopes, some of which are expressed continuously, whereas others vary during leukocyte development or in response to activation, suggesting that they may be involved in T-cell function.^24,25

CD43 has been reported to be involved in cell migration,^26-28  thymocyte maturation,²⁹  signal transduction,^30-32  regulation of T-cell receptor (TCR) activation,³³  and inhibition of TCR-CD3-mediated apoptosis.³⁴  Interestingly, CD43 has been proposed both as a leukocyte adhesion molecule and as an antiadhesive molecule.^26,27,35-37  Inhibition of cellular interactions by CD43 has been suggested to be due to steric hindrance²⁶  or to the net negative surface charge resulting from the abundant sialic acid present on CD43.^38,39  CD43 is also shed by proteolytic cleavage after cellular activation, hypothetically reducing these antiadhesive properties and promoting T-cell immune functions.^38,40  Recent reports suggest that CD43 may regulate cell adhesion by modulating the formation of the immune synapse and regulating the interactions of integrins with their ligands.^33,41-43

In contrast, treatment of T cells with mAb to CD43 has been shown to induce activation, cytokine production, and proliferation^44-46  and may enhance costimulatory signaling.⁴⁷  Anti-CD43 mAbs have been shown to reduce T-cell binding to PLNs and Peyer Patch HEVs, inhibit emigration into LNs, and reduce leukocyte recruitment to tissues in a number of inflammatory models, suggesting that CD43 is a positive promoter of leukocyte adhesion in these systems.^27,28,48  Siglec-1 (CD169), a sialic acid-binding lectin expressed on macrophages in peripheral lymphoid tissues,⁴⁹  has been shown to bind CD43 on murine T cells (both core-1- and core-2-modified glycoforms) and is thought to be important in promoting T-cell contact with macrophages in lymph nodes.⁵⁰  CD43 has also been reported to bind ICAM-1,⁵¹  although this finding has not been supported in other studies.^27,52,53

Studies using CD43-deficient mice (CD43^-/-) also present somewhat conflicting results. In vitro studies using leukocytes from CD43^-/- mice have shown increased tethering and rolling on both L-selectin²⁶  and E-selectin,⁵⁴  consistent with an antiadhesive role. In vivo migration studies, however, have shown both increased emigration of CD43^-/- leukocytes into PLNs²⁶  and decreased emigration into the peritoneum and brain.^54-56  Reports of response to viral infection are also mixed, with reports showing both increased proliferation and enhanced cytotoxic T lymphocyte (CTL) responses to vaccinia infection³⁶  and reduced T-cell expansion to murine lymphocytic choriomeningitis virus (LCMV) and allogeneic skin transplantation.⁵⁵  The authors of this latter study have suggested that the role of CD43 may be different in activated versus nonactivated T cells and proposed that differential glycosylation may result in opposing adhesive effects in different stages of CD8 T-cell responses.

As binding to vascular selectins is required for T-cell emigration to skin, altered binding of T cells to E-selectin may have implications for the development of inflammatory skin disorders. It is interesting to note that Wiskott-Aldrich syndrome (WAS), a disorder characterized by T-cell immune dysfunction and extensive eczema, is associated with increased expression of a high-molecular-weight (130 kDa) core-2-decorated isoform of CD43 on T cells.^57-60  While CD43 does not appear to be directly implicated in the functional defects seen in T cells from WAS patients,^61,62  cross-linking of CD43 can modulate signaling cascades that target the WAS protein.^32,63,64  Expression of CD43 and proliferation of T cells in response to CD43 stimulation are also increased in atopic dermatitis.⁶⁵  It is interesting to speculate that expression of excess E-selectin ligand activity or increased activation of skin-homing T cells via CD43 may result in the prominent eczema seen in WAS patients.

In summary, we have shown that CD43 on CLA⁺ T cells is decorated with CLA epitope and can function as an E-selectin ligand. We propose that CLA⁺ CD43 may play a key role in inflammatory skin diseases in which differential glycosylation of CD43 may regulate a balance between antiadhesive and proadhesive functions of CD43 and contribute to the regulation of both physiologic and pathologic skin inflammation.
