Excessive exposure to anionic surfaces maintains autoantibody response to β₂-glycoprotein I in patients with antiphospholipid syndrome

Antiphospholipid syndrome (APS) is an autoimmune disorder characterized by arterial and venous thrombosis as well as recurrent intrauterine fetal loss in the presence of antiphospholipid antibodies.¹  β₂-glycoprotein I (β₂GPI) is the most common antigenic target recognized by the antiphospholipid antibodies, and anti-β₂GPI antibodies are shown to be strongly associated with thrombosis and other clinical manifestations of APS.^2,–4  β₂GPI is a plasma protein that binds various anionic substances, including phospholipids (PLs), lipoproteins, and activated platelets and endothelial cells.^5,–7  Several lines of evidence accumulated from animal models suggest that anti-β₂GPI antibodies are directly involved in the pathogenic processes of APS.^8,9

We have recently identified CD4⁺ T cells responsive to β₂GPI in patients with APS.^10,–12  β₂GPI-reactive T cells can promote production of pathogenic immunoglobulin G (IgG) anti-β₂GPI antibodies from autologous B cells in vitro. These T cells respond to bacterially expressed recombinant β₂GPI fragments and chemically reduced β₂GPI, but fail to respond to native β₂GPI,¹⁰  indicating that the epitopes recognized by β₂GPI-reactive T cells are cryptic determinants that are not generated through processing of native β₂GPI under normal circumstances. One of the major cryptic determinants recognized by β₂GPI-reactive T cells is the region spanning amino acids (AAs) 276-290, which contains the major PL-binding site at AA 281-288,^13,14  in the context of HLA-DRB4*0103 (DR53).¹¹  In our recent study employing β₂GPI-reactive CD4⁺ T-cell clones generated from patients with APS, dendritic cells or macrophages pulsed with β₂GPI-bound phosphatidylserine (PS) liposome induced a response of T-cell clones specific for a peptide encoding AA 276–290 (p276-290) in HLA-DR–restricted and antigen-processing–dependent manners. In contrast, those pulsed with β₂GPI or PS liposome alone failed to induce a response.¹⁵  Together these findings indicate that specialized antigen-presenting cells (APCs) capturing β₂GPI-coated anionic PLs efficiently present a disease-relevant cryptic T-cell determinant of β₂GPI as a result of antigen processing.

In patients with APS, anti-β₂GPI antibody levels are usually stable for many years. However, it remains unclear what mechanisms are responsible for the sustained presentation of the dominant cryptic β₂GPI determinant that activates β₂GPI-reactive T cells to subsequently produce pathogenic anti-β₂GPI antibodies. To elucidate these mechanisms, we examined the cellular and molecular factors required for the sustained activation of β₂GPI-reative T cells in patients with APS.

This study examined 5 patients, and all fulfilled the revised Sapporo criteria for APS proposed by the International Workshop.¹⁶  These patients were selected based on the presence of DRB4*0103 (DR53), which is known to present a p276-290 peptide to T cells,¹¹  and positive IgG anti-β₂GPI antibody. The HLA class II alleles, including DRB1 and DRB4, were determined by restriction fragment length polymorphisms combined with locus-specific polymerase chain reaction using peripheral blood granulocyte-derived genomic DNA as a template.¹⁷  IgG anti-β₂GPI antibody levels were measured with a commercial enzyme-linked immunosorbent assay (ELISA) kit (Yamasa, Choshi, Japan) using immobilized β₂GPI-cardiolipin complex as an antigen source. A commercial kit based on Russell viper venom test (Gradipore, Sydney, Australia) was used to determine the presence of lupus anticoagulant. At the time of blood examination, all the patients were taking low-dose corticosteroids (< 10 mg/day) and low-dose aspirin. Peripheral blood from healthy volunteers was also used as a control source of plasma. All samples were obtained after the patients and control subjects gave their written informed consent in accordance with the Declaration of Helsinki. The study protocol was approved by Keio University International Review Board.

Human β₂GPI was purified from normal pooled plasma,¹⁸  and reduced β₂GPI was prepared by incubating β₂GPI with dithiothreitol as previously described.¹⁰  We generated a panel of recombinant maltose-binding protein (MalBP) fusion proteins expressing full-length β₂GPI (GP-F), domains I and II (GP1), domains III and IV (GP2), and domains IV and V (GP3).¹⁰  MalBP alone was prepared as a control antigen. Two 15-mer peptides, p276-290 and a peptide encoding AA 306–320 of human β₂GPI (p306-320), were synthesized using a solid-phase multiple synthesizer (Advanced ChemTech, Louisville, KY).¹¹

Liposome containing bovine brain-derived PS (Sigma, St Louis, MO), with a composition of dioleoylphosphatidylcholine (Avanti Polar Lipids, Alabaster, AL) at a molar ratio of 3:7, was prepared and adjusted to a final concentration of 1 μmol/mL.^19,20  Low density lipoprotein (LDL) was isolated from freshly prepared normal human plasma by ultracentrifugation, and oxidized LDL (oxLDL) was prepared by incubating LDL with 5 μM CuSO₄ for 8 hours at 37°C.²⁰  LDL and oxLDL were adjusted to 100 μg/mL of apoB equivalent. Human platelets were separated from platelet-rich plasma using a modified gel filtration method²¹  to minimize their activation during an isolation procedure. Resting platelets were then activated by incubation with bovine thrombin (1 U/mL; Mochida, Tokyo, Japan) for 15 minutes. All preparations were incubated with or without native β₂GPI (100 μg/mL) for 30 minutes at room temperature immediately prior to use in the cultures.

Peripheral blood mononuclear cells (PBMCs) were isolated from heparinized venous blood by Lymphoprep (Fresenius Kabi Norge AS, Oslo, Norway) density-gradient centrifugation. In some experiments, PBMCs were depleted of CD14⁺ monocytes or CD19⁺ B cells by incubation with anti-CD14 or anti-CD19 monoclonal antibody (mAb)–coupled magnetic beads (Miltenyi Biotecch, Bergisch Gladbach, Germany), respectively, followed by magnetic cell sorting column separation according to the manufacturer's protocol.

The IgG fraction was purified or depleted from plasma samples using HiTrap protein G (Amersham Biosciences, Uppsala, Sweden) as described previously.²²  Purity of IgG fractions was confirmed to be more than 95% by sodium dodecyl sulfate–polyacrylamide gel electropheresis, followed by densitometry on Coomassie blue–stained gels. In some experiments, purified IgG was treated with pepsin to prepare F(ab′)₂ using a Fab2 preparation kit (Pierce Biotechnology, Rockford, IL). We also prepared IgG fractions depleted of antibodies specific to β₂GPI. Briefly, purified IgG samples were treated 3 times with cardiolipin-coated 96-well immunoplates (Nunc F96Maxisorp, Roskilde, Denmark), which were preincubated with β₂GPI or phosphate-buffer saline for 30 minutes. The supernatants were then collected as anti-β₂GPI antibody–depleted or mock-treated IgG. Removal of anti-β₂GPI antibody was confirmed by complete loss of antibody reactivity on the anti-β₂GPI antibody ELISA.

Antigen-specific T-cell proliferation in the primary cultures was assayed as described previously¹⁰  with some modifications. Briefly, PBMCs (10⁵/well) were cultured with or without antigen in 96-well flat-bottomed culture plates for 7 days. RPMI 1640 supplemented with either 10% fetal bovine serum (FBS; JRH Bioscience, Lenexa, KS) or 8% platelet-poor plasma, which was derived from patients with APS and healthy donors, was used as medium. Prior to use, FBS and plasma samples were heat-inactivated and depleted of β₂GPI by passing the samples through a HiTrap Heparin column (Amersham Biosciences) twice, to eliminate the potential influence of intrinsic β₂GPI on the generation of the antigenic peptides. ³H-thymidine (0.5 μCi [0.0185 MBq]/well) was added to the cultures during the final 16 hours. The cells were harvested, and ³H-thymidine incorporation was measured in a Top-Count microplate scintillation counter (Packard, Meriden, CT). Native β₂GPI, reduced β₂GPI, GP-F, GP1, GP2, GP3, and MalBP were used as antigens at a concentration of 10 μg/mL. In addition, PS liposome (0.1 μmol/mL), LDL, oxLDL (10 μg/mL apoB equivalent), resting platelets, or activated platelets (10⁶/well) were added to the cultures, with or without preincubation with β₂GPI. To exclude nonspecific unresponsiveness of T cells, all experiments included a culture with phytohemagglutinin at a final concentration of 1 μg/mL. In some experiments, purified IgG, F(ab′)₂, or anti-β₂GPI antibody–depleted or mock-treated IgG was added at the initiation of the culture. Anti-FcγRI (clone 10.1; R&D Systems, Minneapolis, MN), anti-HLA-DR (clone L243; Leinco Technologies, Baldwin, MO), or isotype-matched control mAb was also added to the culture at a final concentration of 2.5 μg/mL. All experiments were carried out in duplicate or triplicate, and the values are the mean counts per minute (cpm) plus or minus the standard deviation of multiple determinations. In some instances, a T-cell response specific to β₂GPI-treated PS liposome (β₂GPI/PS) was expressed as the ratio of cpm in the culture with β₂GPI/PS to cpm in the culture with PS liposome alone.

Secondary stimulation of peripheral blood T cells was also performed as described.¹⁰  PBMCs were primed with β₂GPI/PS in medium supplemented with 8% autologous plasma for 10 days. Viable cells were then cultured for an additional 3 days in the presence of 50 U/mL recombinant interleukin-2 (Biogen Idec, San Diego, CA) and irradiated (3000 rad) autologous monocyte-derived dendritic cells in medium supplemented with 10% FBS in the absence or presence of β₂GPI, reduced β₂GPI, GP-F, GP1, GP2, GP3, MalBP (10 μg/mL), p276-290, or p306-320 (5 μg/mL). Frequencies of β₂GPI-reactive T cells in peripheral blood T cells were estimated by limiting dilution analysis using GP-F as an antigen.²³  The recognition of p276-290 by peripheral blood T cells was determined based on the specific response to p276-290 by at least 2 T-cell clones established by repeated stimulation of peripheral blood T cells with GP-F.¹¹

As shown in Table 1, all patients with APS had thrombosis and/or loss of pregnancy, and were positive for lupus anticoagulant. IgG anti-β₂GPI antibody titer was high in all but one patient (APS1). Frequencies of β₂GPI-reactive T cells were variable among patients, and ranged from 2.9 to 12.4 per 10⁴ peripheral blood T cells. In addition, T-cell recognition of p276-290 was detected in all 3 patients examined.

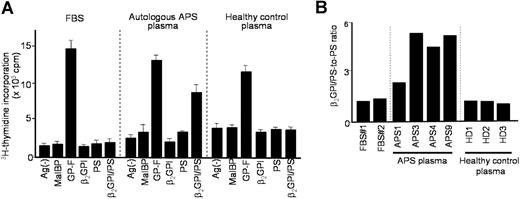

We first examined the responses of peripheral blood T cells to β₂GPI/PS using regular medium supplemented with FBS (Figure 1A). T cells from all 5 patients responded to GP-F, but failed to proliferate in the presence of β₂GPI/PS. Interestingly, a T-cell response to β₂GPI/PS, as well as to GP-F, was detected when a patient's autologous plasma was used instead of FBS to supplement the culture medium. This response was blocked by anti–HLA-DR mAb, but not by control mAb (data not shown). However, a β₂GPI/PS-induced response was not detected in the culture with allogenic plasma from a healthy individual. This finding was reproducible in a total of 7 PBMC samples obtained from 5 patients with APS.

Next, PBMCs from a patient with APS were cultured with β₂GPI/PS or PS liposome alone in medium supplemented with 2 different lots of FBS, plasma samples from 4 patients with APS, or samples from 3 healthy donors (Figure 1B). The β₂GPI/PS-specific response was exclusively detected in cultures with autologous and allogenic plasmas derived from patients with APS, although the degree of response was variable among APS plasmas. Analogous findings were obtained with PBMCs from 3 additional patients with APS. In all cases, the lowest response was detected in the culture supplemented with APS1 plasma, which contained low-titer anti-β₂GPI antibodies.

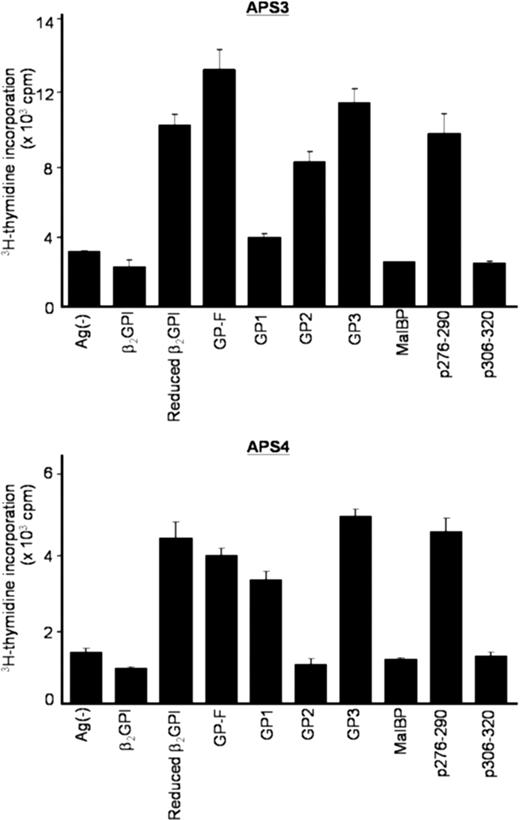

We next sought to confirm whether T-cell responses induced by β₂GPI/PS in cultures with APS plasma were specific to β₂GPI. Peripheral blood T cells primed with β₂GPI/PS in medium supplemented with autologous plasma were further examined for their reactivity to various β₂GPI preparations in the secondary culture with FBS (Figure 2). β₂GPI/PS-primed T cells from all 5 patients specifically responded to reduced β₂GPI, GP-F, and GP3, indicating a specific recognition of β₂GPI-derived peptides. More important, the cryptic p276-290 was efficiently presented by APCs in culture with β₂GPI/PS and APS plasma. T-cell recognition of GP1 was detected in APS2, APS4, and APS9 samples, whereas recognition of GP2 was detected in APS3 and APS9. Taken together, these findings together indicate that a soluble factor(s) contained in plasma from patients with APS, but not in FBS or plasma from healthy individuals, plays an essential role in activation of β₂GPI-specific T cells in bulk PBMC cultures with β₂GPI/PS.

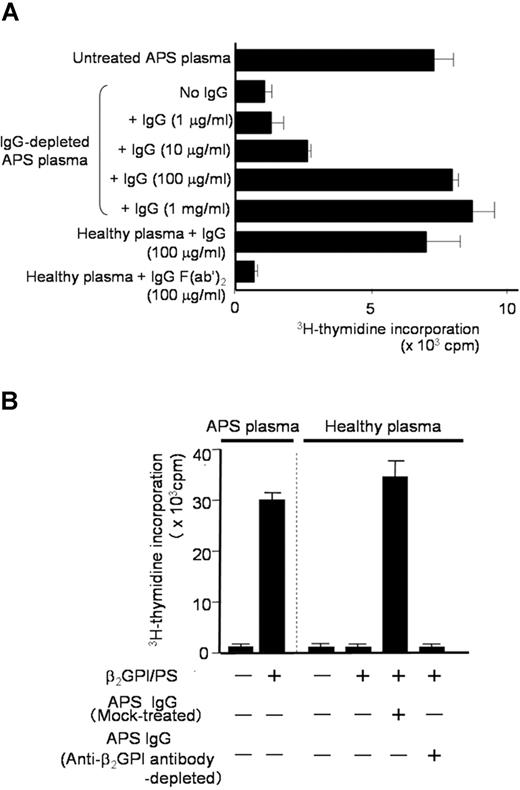

Since the degree of the β₂GPI/PS-specific T-cell response appeared to correlate with IgG anti-β₂GPI antibody titers, we hypothesized that IgG anti-β₂GPI antibodies in APS plasma are required for peripheral blood T cells to respond to β₂GPI/PS. To test this hypothesis, we first prepared IgG-depleted APS plasma samples to evaluate the β₂GPI/PS-induced T-cell response (Figure 3A). Depletion of IgG from APS plasma resulted in complete loss of the β₂GPI/PS-induced T-cell response, but addition of autologous IgG back to the IgG-depleted APS plasma restored the response in a dose-dependent fashion. In contrast, addition of IgG prepared from healthy plasma had no effect (data not shown). Interestingly, β₂GPI/PS-induced T-cell response was also detected in medium supplemented with healthy plasma in the presence of IgG derived from APS plasma. This response was abolished when F(ab′)₂ was used instead of intact IgG, indicating an important role of the Fc portion of IgG.

We further examined the effects of depletion of β₂GPI-specific antibody on the β₂GPI/PS-induced T-cell response in PBMC cultures with APS IgG (Figure 3B). β₂GPI/PS-induced T-cell response was detected in the presence of mock-treated APS IgG, but completely abolished by depletion of β₂GPI-reactive IgG. These findings indicate that IgG anti-β₂GPI antibodies are required for the T cells of patients with APS to respond to β₂GPI/PS in bulk PBMC cultures.

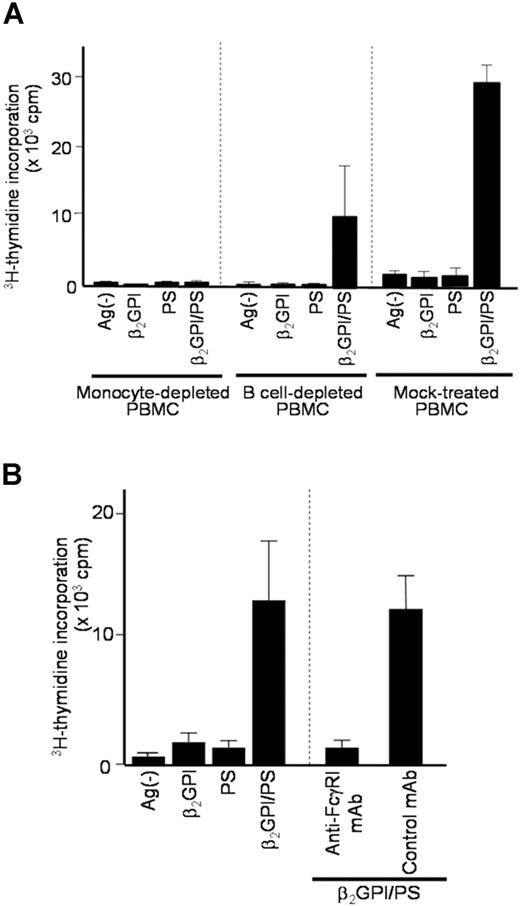

Since anti-β₂GPI antibodies in sera from patients with APS recognize β₂GPI/PS,²⁰  it is likely that β₂GPI/PS is readily opsonized by IgG anti-β₂GPI antibodies in culture with APS plasma. To evaluate which APCs contained in PBMCs capture this immune complex to induce a specific T-cell response to β₂GPI peptides, we analyzed PBMCs depleted of CD14⁺ monocytes, CD19⁺ B cells, or mock-treated in cultures with β₂GPI/PS and autologous plasma (Figure 4A). The β₂GPI/PS-induced T-cell response was completely inhibited by depletion of monocytes, but was partially suppressed by depletion of B cells, suggesting a primary role of monocytes in our system.

We further evaluated the potential involvement of Fcγ receptors in recognition of the immune complex by monocytes, as the anti-β₂GPI F(ab′)₂ was incapable of inducing the T-cell response to β₂GPI/PS. The β₂GPI/PS-induced T-cell response was completely blocked by anti-FcγRI mAb, but not by control mAb (Figure 4B). Together these findings indicate that efficient β₂GPI/PS-induced T-cell response is achieved by monocytes undergoing FcγRI-mediated uptake of β₂GPI/PS opsonized by IgG anti-β₂GPI autoantibodies.

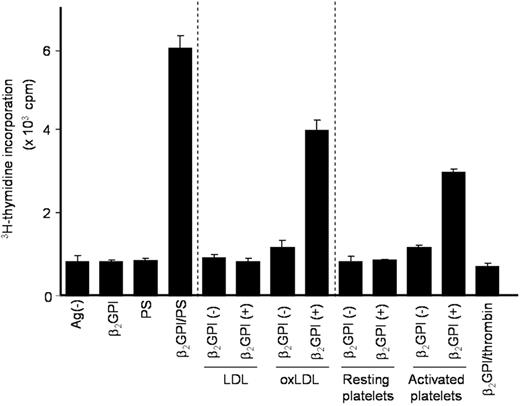

PS liposomes were chemically synthesized, and may not be relevant to patients with APS in vivo. To examine whether anionic substances present in the circulation, such as oxLDL or platelet microparticles, can substitute for PS liposomes in inducing the β₂GPI-specific T-cell response, PBMCs from a representative patient with APS were cultured with various anionic and control substances pretreated with or without β₂GPI in medium supplemented with autologous plasma (Figure 5). OxLDL or activated platelets pretreated with β₂GPI induced a T-cell proliferative response, as observed in cultures with β₂GPI/PS. These responses were specifically inhibited by anti–HLA-DR mAb (data not shown). Thus, oxLDL and activated platelets can be in vivo sources of anionic surfaces that bind β₂GPI and promote the efficient presentation of β₂GPI cryptic peptides by APCs.

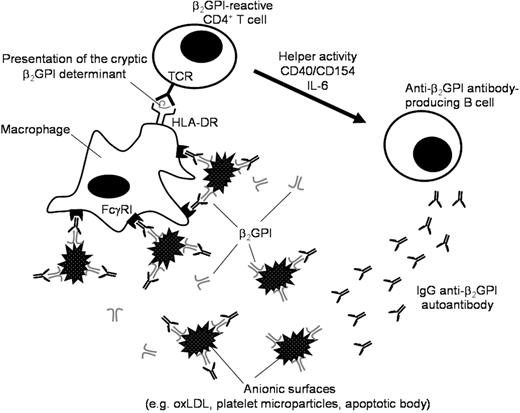

This study evaluated the potential cellular and molecular mechanisms that induce sustained presentation of the dominant cryptic β₂GPI determinant that activates β₂GPI-reactive T cells to subsequently produce pathogenic anti-β₂GPI antibodies in patients with APS. Here we demonstrate that efficient presentation of cryptic determinants recognized by β₂GPI-reactive T cells is achieved by monocytes undergoing FcγRI-mediated uptake of β₂GPI/PS opsonized by IgG anti-β₂GPI antibodies. High avidity IgG anti-β₂GPI antibodies, which were reported to possess high pathogenicity,²⁴  would also have enhanced capacity to promote this process. We propose a model by which a pathogenic loop maintains sustained anti-β₂GPI autoantibody production in patients with APS (Figure 6). This model consists of 3 major players: β₂GPI-reactive CD4⁺ T cells, anti-β₂GPI antibody-producing B cells, and macrophages. Upon recognition of β₂GPI cryptic peptides, such as p276-290, presented by macrophages in the context of HLA-DR, β₂GPI-reactive CD4⁺ T cells are activated and exert helper activity that induces IgG anti-β₂GPI antibody production from B cells. This process can be achieved by T-B cell collaboration through CD40-CD154 engagement and T cell–derived IL-6.¹¹  IgG anti-β₂GPI antibodies subsequently recognize β₂GPI-bound anionic surfaces in circulation, resulting in enhanced phagocytosis of this immune complex by macrophages through FcγRI. In this regard, it has been shown that anti-β₂GPI antibodies in APS sera are predominantly of IgG2 subclass,^25,26  which has low affinity to FcγRI. However, anti-β₂GPI antibodies of IgG1 or IgG3 subclass were also detected in many patients with APS. These low levels of anti-β₂GPI antibodies with high binding affinity to FcγRI may be sufficient to drive the pathogenic loop. We have previously shown that β₂GPI binding to anionic substances promotes the generation of β₂GPI cryptic peptides by protecting the major PL-binding site from protease attack during antigen-processing by dendritic cells or macrophages.¹⁵  Since it has been shown that antibody binding to the antigen boosts the generation of some minor epitopes,²⁷  binding of IgG anti-β₂GPI antibodies to the β₂GPI-anionic substance complex may further amplify generation of previously cryptic β₂GPI peptides. Moreover, this immune complex is likely to stimulate monocytes via FcγRI to secrete tissue factor, which is shown to play an important role in thrombus formation in patients with APS.²⁸  Partial suppression of the β₂GPI/PS-induced T-cell response by depletion of B cells in our system suggests that presentation of cryptic β₂GPI peptides could be mediated through B cells that capture β₂GPI/PS via specific B-cell receptors. This process, however, might have less of an impact on the T-cell response, due likely to low abundance of specific B cells recognizing β₂GPI/PS. The mechanism that triggers anti-β₂GPI antibody response in patients with APS remains unclear, but once this autoimmune loop is established, pathogenic anti-β₂GPI antibodies are continuously produced.

The presence of anionic substances with the capacity to bind β₂GPI is essential to drive the pathogenic loop inducing continuous anti-β₂GPI antibody production in patients with APS. Potential anionic substances in the circulation include apoptotic bodies, microparticles derived from activated platelets and endothelial cells, and oxLDL. Since β₂GPI is abundantly present in the circulation (∼200 μg/mL), excessive exposure to anionic substances would result in the immediate formation of a complex with β₂GPI. In the present study, we have clearly demonstrated that microparticles derived from activated platelets and oxLDL can function as a substitute for the PS liposome that binds to β₂GPI and facilitates presentation of the cryptic epitopes of β₂GPI as a consequence of antigen processing. In addition, some of our group (E.M. and K.K.) reported that stable and nondissociable β₂GPI-oxLDL complexes were frequently detected in sera from patients with APS and/or systemic lupus erythematosus, but not in healthy individuals.²⁹  In addition, β₂GPI is known to have antiatherosclerosis activity by preventing oxLDL uptake by macrophages via scavenger receptor, but binding of IgG anti-β₂GPI antibodies to β₂GPI-oxLDL complexes mediates atherosclerosis by promoting phagocytosis of macrophages via Fcγ receptor.^29,–31  Furthermore, elevated levels of procoagulant microparticles were detected in patients with APS in association with anti-β₂GPI antibodies and lupus anticoagulant.^32,–34  The presence of a large quantity of anionic substances in circulation in patients with APS supports our proposed model.

Based on our model, therapeutic strategies that inhibit pathogenic anti-β₂GPI antibody production should target interrupting the continuous autoimmune loop carried out by macrophages and β₂GPI-reactive CD4⁺ T cells and B cells. These immune cells are already targets of therapies under consideration, such as the anti-CD20 chimeric antibody rituximab.³⁵  Another potential therapeutic approach includes the removal of immune complexes consisting of β₂GPI, anionic substance, and anti-β₂GPI antibodies. Accordingly, plasma exchange and double filtration plasmapheresis, which theoretically remove such immune complexes, are shown to be effective for patients with intractable APS, including catastrophic APS.^36,37  Alternatively, small molecules that inhibit Fc receptor downstream signaling would have beneficial effects in patients with APS by suppressing the generation of β₂GPI cryptic peptides.³⁸

In summary, excessive exposure to anionic surfaces may play a key role in maintaining the pathogenic anti-β₂GPI antibody response in patients with APS. Further studies should focus on mechanisms that prime the autoimmune loop and development of novel therapeutic strategies targeting the pathogenic process.
