IL-21–mediated Foxp3 suppression leads to enhanced generation of antigen-specific CD8⁺ cytotoxic T lymphocytes

Adoptive cellular therapy of cancer involves ex vivo generation of autologous antigen-specific T cells, followed by in vitro expansion and infusion into patients in the hope that transferred T cells will traffic to and eradicate tumor.^1,2  Recent studies have demonstrated tumor regression and measurable clinical benefit in patients who are otherwise refractory to conventional therapy.^3,4  One major obstacle to adoptive therapy has been the feasibility of isolating tumor-reactive T cells. T cells recognizing tumor-associated antigens, which are often normal self-proteins, exist at very low frequency and exhibit predominantly low target avidity^5,6  due to central and peripheral tolerance mechanisms. Moreover, such potentially autoreactive T cells may be suppressed by circulating regulatory cells (T_regs), that can lead to impaired proliferative response to antigenic stimulation.

Regulatory T cells (T_regs) have been shown to play a critical role in controlling immunologic tolerance to self-antigens as well as presenting a major barrier to the development of effective antitumor immunity in animal models.^7,–9  In animal models, tumor antigen–specific CD8 cells failed to undergo normal functional maturation in the presence of T_regs and were rendered incapable of destroying specific tumor targets.¹⁰  Conversely, depletion of regulatory T cells controlled the growth of melanoma in most mice and promoted long-lasting CD8⁺ T-cell–dependent protective immunity,¹¹  possibly through the recruitment of high-avidity antigen-specific cytotoxic T lymphocytes (CTLs).¹²  Recent evidence of elevated T_regs in the peripheral blood of patients with cancer^13,,–16  and the finding that increased prevalence of tumor-associated T_regs in situ as a predictor for reduced survival¹⁷  suggest the importance of regulatory control of the endogenous antitumor immune response. The suppressive mechanisms at play in vivo¹⁸  may also limit the capacity to generate antigen-specific T cells in vitro.

Expression of the forkhead transcription factor, Foxp3, has been linked to the regulatory phenotype. Although Foxp3 is a reliable marker of naturally occurring T_regs, as an intracellular protein, it cannot be used as a practical method of sorting for viable T_regs. Instead, it has been shown that CD4⁺ cells constitutively expressing CD25^hi are also Foxp3^+. We and others have demonstrated that depletion of CD25⁺ cells in vitro can lead to enhanced generation of CD4⁺ T cells recognizing tumor-associated self-antigens,¹⁹  presumably by eliminating the inhibitory influence of CD25⁺ T_regs in the peripheral blood mononuclear cell (PBMC) responder population.

IL-21 belongs to the family of gamma-chain receptor cytokines that includes IL-2, IL-7, and IL-15—cytokines that all deliver their intracellular signal through the shared gamma-chain receptor and influence T-cell activation and differentiation.^20,–22  Recently, we demonstrated that in vitro exposure to IL-21 (in contrast to other gamma-chain receptor cytokines) can lead to the generation of self-antigen–specific CTL in increased numbers and with enhanced avidity and function.²³  In light of work demonstrating that barriers to optimal T-cell development may involve a regulatory component, we postulate that IL-21 may influence the regulatory control of cellular responses to tumor self-proteins in vitro.

This study was approved by the Institutional Review Board of Fred Hutchinson Cancer Research Center, Seattle, WA. Informed consent was obtained in accordance with the Declaration of Helsinki.

Depletion of CD25⁺ T cells was performed using the CliniMACS CD25 MicroBeads (Miltenyi Biotech, Auburn, CA) according to manufacturer's instructions. In brief, the leukapheresis product was washed and resuspended in PBS/EDTA (2 mM; Invitrogen, Frederick, MD) supplemented with 0.5% human serum albumin (Life Technologies, Gaithersburg, MD). Appropriate amount of CD25 MicroBeads was added and incubated for 15 minutes at room temperature with gentle mixing every 5 minutes. Cells were washed, resuspended, and applied to the AutoMACS instrument with the CD25 depletion program selected. Upon completion of the depletion, an aliquot of cell fraction was stained for CD25 following FACScan analysis to check the efficiency of CD25 MicroBeads depletion.

APC-labeled peptide-MHC tetramer was produced in the immune monitoring laboratory at Fred Hutchinson Cancer Center based on previously described protocols.²⁴  For sample analysis, 0.5 × 10⁶ cells in 25 μL of 2% FCS/PBS were first stained with peptide tetramer APC (final concentration of 20 μg MHC/mL) for one hour at room temperature, followed by anti–CD8-FITC or PerCP (BD PharMingen, San Diego, CA) staining for 20 minutes at 4°C to analyze antigen-specific T-cell population. In some experiments, measure for phenotypes was carried out using anti–CD28-APC (BD PharMingen) or anti–CD28-FITC (Caltag Lab, Burlingame, CA), anti–CCR7-PE, and anti-CD45RO or anti–CD45RA-FITC (BD PharMingen) staining. After washing with PBS, cells were resuspended in PBS containing 2% FBS and DAPI was added. Data were acquired using a FACScalibur flow cytometer and CellQuest (BD PharMingen) and analyzed using FlowJo software (Tree Star, San Carlos, CA).

Donor blood was typed by the HLA Typing Lab at the Puget Sound Blood Center (Seattle, WA). HLA-A2⁺ donors were used in the study. MART-1 M26, NY-ESO-1 NY157, and WT-1 WT126 peptide–specific T cells were generated in a manner similar to that previously described.^3,23  Dendritic cells (DCs) were generated by exposing adherent PBMCs to IL-4 (500 U/mL; R&D Systems, Minneapolis, MN) and granulocyte-macrophage colony-stimulating factor (GM-CSF, 800 U/mL; Amgen, Thousand Oaks, CA) in AIM-V medium (Life Technologies) followed by maturation using IL-1β at 2 ng/mL, IL-6 at 1000 U/mL, TNF-α at 10 ng/mL (R&D Systems), and PGE-2 at 1 μg/mL (Sigma, St Louis, MO) for an additional 2 days. The mature DC population contained more than 90% CD83⁺ DCs on day 8 as determined by fluorescence-activated cell sorting (FACS) analysis.

Mature DCs were harvested and pulsed with 40 μg/mL synthesized peptides at 2 × 10⁶ cell/mL in the presence of 3 μg/mL β2 microglobulin (Scripps Lab, San Diego, CA) in PBS with 1% human serum albumin (Life Technologies) for 4 hours at room temperature. After washing 3 times with sterile PBS (Life Technologies), DCs were cocultivated with responder T cells (unmanipulated or CD25 depleted) at 5 × 10⁵ cells/well in 24-well plate in CTL medium, consisting of RPMI 1640 (Gibco, Carlsbad, CA), 25 mM HEPES, 4 mM l-glutamine, 50 μM 2-mercaptoethanol (Gibco), penicillin (50 U/mL), streptomycin (50 mg/mL) (Life Technologies), and 10% pooled human serum from healthy donors., IL-21 (30 ng/mL), was added to the experimental wells at culture initation. In some experiments, IL-2 (10 U/mL), IL-7 (10 ng/mL), or IL-15 (10 ng/mL) was added instead to compare the effect of IL-21. These concentrations of IL-2, IL-7, IL-15, and IL-21 were previously demonstrated to represent optimal dosing; higher concentrations led to no benefit or a detrimental effect in the generation of antigen-specific CTLs²³  (and data not shown). For the second stimulation, irradiated autologous PBMCs pulsed with antigenic peptide were used. A total of 5 donors were evaluated, 3 of them for MART-1–specific responses and 2 other patients (ovarian cancer and NY-ESO–seropositive melanoma) for WT-1 and NY-ESO-1 responses, respectively. Unless otherwise specified, results were obtained at 7 days after the second in vitro stimulation.

Intracellular staining for Foxp3 protein used PE-conjugated antihuman Foxp3 staining set (clone PCH101; eBioscience, San Diego, CA) according to the manufacturer's instructions. Briefly, 10⁶ cells were stained with FITC-conjugated anti-CD4 antibody (BD Pharmingen) first for 20 minutes on ice, washed, then resuspended in fixation/permeabilization buffer and incubated for 60 minutes at 4°C.

Suppression assay was carried out based on the published protocol²⁵  with minor modifications. CD4⁺CD25⁻ and CD8⁺CD25⁻ T cells (5 × 10⁴ cells/well) were cocultured with T_regs (2.5 or 5 × 10⁴ cells/well) with 100 ng/mL anti-CD3 antibody (OKT3) in the presence of irradiated (35 gray) autologous dendritic cells (0.5-1 × 10⁴ cells/well) in a 96-well flat-bottom plate. Proliferation was assessed by [³H]thymidine (1 μCi [0.037 MBq] per well) incorporation.

MART-1–specific CTLs were generated according to methods described in “In vitro generation of human antigen-specific CD8⁺ T cells” under the following conditions: no manipulation (control cultures), IL-21 treatment alone, CD25 depletion alone, and IL-21 treatment with CD25-depleted responder PBMCs. IL-21 was used at a dose of 30 ng/mL, previously shown to be optimal for generating antigen-specific T cells.²⁶  Concentrations of 10 ng/mL or less had no effect, and inhibition was observed when IL-21 concentration was used at 100 ng/mL or greater.

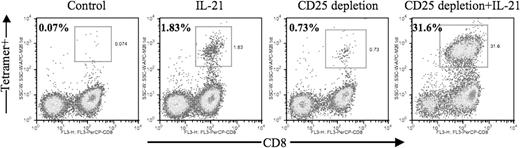

Exposure to IL-21 added once during the first in vitro stimulation led to a marked enhancement in the frequency of MART-1–specific CTLs that could be generated (Figure 1: 1.83% vs 0.07%), confirming our previous findings. CD25 depletion alone led to a 10-fold increase in the frequency of antigen-specific CD8⁺ T cells compared with control cultures (0.73% vs 0.07%). A striking more than 450-fold increase in the frequency of antigen-specific CD8⁺ T cells was observed through the combined use of CD25 depletion and IL-21 treatment (31.6% vs 0.07%). Data from 3 additional patients demonstrated a 160-fold to more than 300-fold increase in the absolute numbers of antigen-specific CTLs that could be generated with combined CD25 depletion and IL-21 treatment (Table 1: 1.45 vs 244.94, 1.68 vs 462.65, 0.45 vs 141.0). Antigen-specific T cells generated by CD25 depletion plus IL-21 demonstrated robust killing activity against antigen-expressing tumor target (> 50% lysis at an E/T ratio of 10:1) and IFN-gamma secretion upon recognition of specific peptide antigen in vitro assay (data not shown).

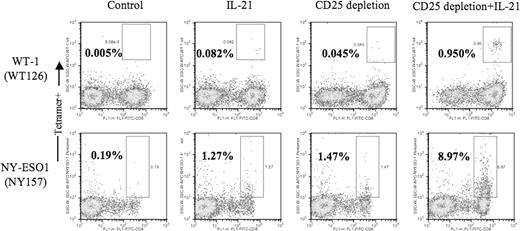

For these initial studies, we used a canonical tumor antigenic epitope: M26 peptide of the melanoma-associated self-antigen, MART-1. To evaluate the generality of this finding, we examined CTL responses to 2 other tumor-associated antigens, WT-1 and NY-ESO-1 in HLA-A*0201⁺ patient donors. Representative results are shown for responses generated from the PBMCs of a patient donor with WT-1⁺ ovarian tumor and the PBMCs of an NY-ESO-1–seropositive patient donor with melanoma (Figure 2 and Table 2) Although the endogenous precursor frequency of CTLs specific for WT-1 (a self-antigen that is prevalent at low levels among normal tissues) is very low and the ability to enrich for this rare population of WT-1–specific CTLs somewhat elusive (0.005% after 2 in vitro stimulations), the positive influence of CD25 depletion and IL-21 exposure is similar to that seen for MART-1–specific CTL responses. An 8- to 20-fold increase in the numbers and frequency of WT-1–specific CTLs is observed with either IL-21 treatment or CD25 depletion alone compared with control, but more than 250-fold greater when cultures receive both CD25 depletion and IL-21 treatment. Similarly, for NY-ESO-1–specific responses, a relative 10-fold increase with either treatment alone increases to 100-fold with combined CD25 depletion and IL-21 exposure.

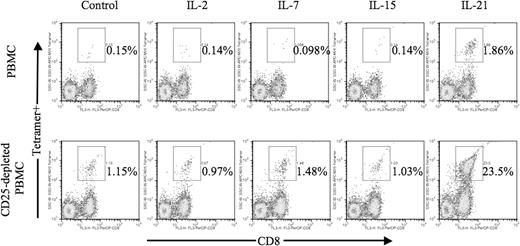

Among the γ-chain receptor cytokines, including IL-2, IL-7, and IL-15, IL-21 provided the greatest effect on antigen-specific CTL expansion following CD25 depletion (Figure 3). When using untreated PBMCs, IL-21 elicited a 10-fold or greater increase in antigen-specific CTLs compared with no cytokine or IL-2–, IL-7–, or IL-15–treated cultures in congruence with our previous results.²³  When using CD25-depleted PBMCs, IL-21–exposed cultures yielded a 20-fold greater increase in antigen-specific CTL frequency compared with other CD25-depleted cultures.

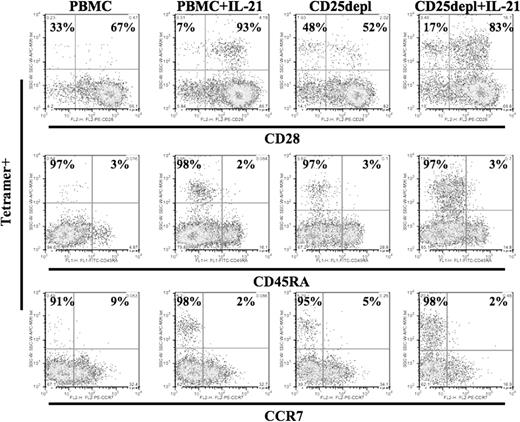

The surface phenotype of antigen-specific CTLs generated in cultures under the 4 conditions (control, IL-21 treatment, CD25 depletion, and combined IL-21 treatment and CD25 depletion) was evaluated by staining for CD28, CCR7, CD45RA expression (Figure 4). A unique memory phenotype, CD28⁺, CCR7⁻, was observed only among the IL-21–exposed cultures (PBMC⁺ IL-21 and CD25depl⁺ IL-2). Results were obtained 7 days after the second in vitro stimulation. This phenotype was stable for more than 4 weeks when maintained with IL-2 and IL-7 and without further exposure to IL-21. These findings are consistent with previous studies we have published demonstrating up-regulation of CD28 expression and helper independence among antigen-specific CTLs generated in IL-21–treated cultures.²³

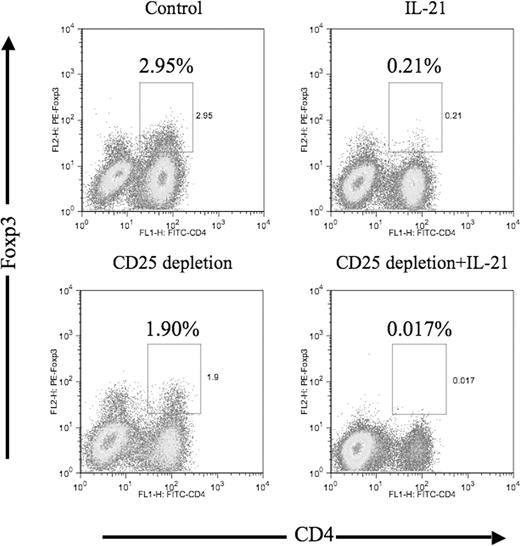

Foxp3⁺ cells were identified by intracellular staining following CD25 depletion and/or IL-21 treatment (Figure 5). CD25 depletion alone led to a measurable decrease in the fraction of Foxp3⁺ cells in culture. IL-21 treatment alone led to a 10-fold decrease in the fraction of Foxp3⁺ cells (2.95% to 0.21%). The combination of CD25 depletion and IL-21 treatment resulted in a drop in the CD4⁺ Foxp3⁺ population to an almost undetectable level (2.95% to 0.017%); further, a substantial decrease in the fraction of CD4⁻ Foxp3⁺ cells was observed that was not seen with either IL-21 treatment or CD25 depletion alone.

To evaluate the possibility that the differential effects of IL-21, compared with the other gamma-chain receptor cytokines, IL-2, IL-7, and IL-15, were associated with cytokine-mediated T_reg proliferation, sorted CD4⁺ 25⁺ T_regs were treated with IL-2, IL-7, IL-15, or IL-21 in the presence or absence of CD3 stimulation (Figure 6A). Anti-CD3 stimulation led to enhanced T_reg proliferation (thymidine uptake) among IL-2, IL-7, and IL-15. IL-15 enhanced T_reg expansion in an antigen-independent manner. IL-21, however, failed to significantly induce T_reg proliferation, even after anti-CD3 stimulation and was no different from the no-cytokine culture.

When added to CD8⁺ T-cell cultures, T_regs inhibit proliferation by up to 66% when evaluated by thymidine incorporation assays (Figure 6B, *P < .01 vs CD8⁺ only). When IL-21 was added at optimal concentration, the suppressive effect of T_regs on CD8 T-cell proliferation was partially reversed (Figure 6B, #P < .01 vs CD8⁺ plus IL-21). Thus, IL-21 not only fails to induce T_reg proliferation, but also reverses T_reg-mediated suppression.

Using a prototypic human self-antigen, we demonstrate for the first time that regulatory T-cell depletion can lead to substantially enhanced generation of tumor-associated antigen-specific CTLs. The combination of CD25 depletion and IL-21 resulted in a more than 100-fold depletion of Foxp3⁺ T_regs and augmented the frequency and absolute number of tumor antigen–specific CD8⁺ CTLs between 150- and 300-fold. This effect is much greater than that expected given the individual contribution of each factor and is unique for IL-21 since the addition of other γ-chain receptor cytokines such as IL-2, IL-7, and IL-15 did not have a similar effect.

Although CD25 T-cell depletion was nearly complete after anti-CD25 immunomagnetic depletion, more than 50% of the Foxp3⁺ population remained, likely due to the presence of Foxp3⁺ T_regs that do not constitutively express CD25. IL-21 treatment had a greater Foxp3-depleting effect (> 90% depletion) and was able to only partially reverse T_reg-mediated suppression of CD8 T-cell proliferation. Perhaps it was the unexpectedly potent combination of both CD25 depletion and IL-21 treatment leading to more than 99.5% depletion of Foxp3⁺ cells that enabled a uniquely robust antigen-specific T-cell response. We also observed a decrease of Foxp3⁺ cells not only in the conventional CD4 compartment, but also among CD8⁺ (CD4⁻) T cells that may represent the putative CD8⁺ regulatory T-cell population recently described.^27,28

The mechanism of action of IL-21 in this model is unclear. Upon activation, both CD4⁺ CD25⁺ T_regs and CD8⁺ T cells up-regulate IL-21 receptor expression but resting T_regs express very low levels of IL-21 receptor²⁹  (and data not shown). Since T_regs are not directly activated in this model, the decrease in Foxp3⁺ cells following IL-21 treatment in vitro may be due to IL-21 engagement of very low-density of surface receptors, the indirect action of IL-21 through intermediate cell types, or expansion of effector cells contributing as a cytokine sink for T_reg survival.

In recent studies, IL-21 appears to be a key element in the induction of Th17 cells responsible for proinflammatory and autoimmune responses.^30,–32  IL-21–deficient T cells failed to differentiate into Th17 cells and were associated with the reciprocal development of Foxp3 T_regs, suggesting a possible role for IL-21 in mediating decreased levels of Foxp3 in our findings by enhancing the development of Th17 cells at the expense of T_regs. A genetic basis for these results involving the IDD3 gene, which regulates the function of T_regs, was suggested.³³  These possible mechanisms are currently under investigation in our model.

The observation that IL-21 treatment leads to depletion of Foxp3⁺ cells contrasts with results recently published describing the absence of any T_reg-depleting effect of IL-21 and no beneficial effect on CD8 T-cell proliferation in the presence of T_regs.²⁹  Our studies have shown that the concentration of IL-21 used may produce confounding results. At concentrations greater or equal to 100 ng/mL, there is no significant beneficial in vitro effect and, in fact, an inhibitory effect. Peluso et al were also unable to address the influence of IL-21 on the generation of antigen-specific CTLs since antibodies were used to nonspecifically trigger the T-cell receptor to reproduce an “inflammatory” state.²⁹  The use of anti-CD3 to stimulate through the TCR fails to address issues associated with the generation of tumor-associated, self-antigen–specific T-cell responses that arise from a naturally occurring low frequency and low avidity T-cell subset.

Our recent experience in human samples demonstrated a beneficial effect of IL-21 on the generation of helper-independent antigen-specific CTLs.²³  The impact of IL-21 on T_regs has only recently been proposed and, until now, not previously shown to directly or indirectly deplete human T_reg population. Neither the means to eliminate Foxp3⁺ cells to such a profound degree nor the capacity to enhance the generation of tumor-associated antigen–specific CTLs has previously been demonstrated. By removing regulatory constraints limiting antigen-specific expansion, this strategy may not only improve the prospects for generating tumor-reactive T cells for adoptive cellular therapy, but also uncover novel, tumor-associated targets that were previously below the threshold for generating in vitro T-cell responses.
