Clonal regulatory T cells specific for a red blood cell autoantigen in human autoimmune hemolytic anemia

There is now compelling evidence from animal models that natural and inducible forms of CD4⁺ regulatory T (Tr) cells play an important role in immunologic tolerance and the control of immune-mediated pathology.^1,,–4  It has been established that such cells also exist in humans,^5,6  and the activation of autoreactive Tr cells in vivo therefore holds out the prospect of safe, effective treatments for clinical autoimmune disease. However, experimental approaches need to be devised to answer fundamental questions about the specificity and phenotype of human Tr cells. These questions could be addressed using cloned autoreactive Tr cells, but such cells, isolated ex vivo, are difficult to expand for further study, particularly when antigen-specific cells are sought.

Natural CD4⁺CD25⁺ Tr cells comprising approximately 5% of CD4⁺ T cells in humans, differentiate into suppressor cells during thymic development and are potent inhibitors of autoreactive effector T-cell responses.^7,8  Regulatory cells with specificity for antigen can also develop in the periphery during the course of an immune response. These inducible Tr cells secrete regulatory cytokines (interleukin-10 [IL-10] and transforming growth factor β [TGF-β]) and can be induced from naive CD4⁺CD25⁻ T cells in the presence of IL-10, vitamin D₃, and dexamethasone or microbial proteins.^9,,,–13  Both natural and inducible Tr cells express increased levels of Foxp3, a transcription factor that seems to be a master regulator of Tr suppressive function. Mutation of FoxP3 leads to immune dysregulation in mice and humans, characterized by lymphoproliferation and autoimmune lesions.^14,15  The normal immune system can therefore rely both on thymically derived Tr cells to broadly maintain immune homeostasis but can also recruit antigen-specific Tr cells to selectively inhibit active effector immune responses.

Autoimmune hemolytic anemia (AIHA) is a classic example of clinical autoimmunity in which to study Tr responses of pathogenic relevance, because the dominant target autoantigens have been well defined, and it was the first human disease in which autoantigen-specific Tr cells were identified. In most patients, pathogenic autoantibody and activated autoreactive CD4⁺ T helper 1 (Th1) cells that secrete interferon-γ (IFN-γ) are specific for the Rh proteins on the red blood cell (RBC) membrane.¹⁶  We have further shown that Tr cells specific for epitopes on the Rh proteins are also present in peripheral blood and spleens of patients with AIHA and that these cells are capable of inhibiting the Th1 effector responses in vitro by secretion of the suppressive cytokine IL-10. These findings, together with the observation that the Tr activity correlates with periods of remission, are consistent with the view that the autoimmune disease reflects an imbalance between pathogenic and regulatory responses.¹⁷

Although human Tr cells secreting the regulatory cytokine IL-10 have been induced in vitro through primary stimulation of peripheral blood T-cell cultures in the presence of exogenous IL-10 and other immunosuppressive components.^9,,,–13  Clones obtained in this way have been derived by biasing naive or uncommitted T cells toward a regulatory phenotype in vitro, and we wanted, instead, to study clones representative of autoreactive Tr cells present in patients in vivo. Cloning autoantigen-specific human Tr cells would allow us to address a number of unresolved questions. First, it will be important to determine the role of T-cell receptor (TCR) specificity in the effective stimulation of regulatory responses. It is generally accepted that Tr cells require activation by the TCR to be suppressive,^18,19  but the nature of the ligands and strength of TCR interaction required need characterization. Second, we wanted to determine whether cells recovered ex vivo with specificity for an autoantigen are phenotypically characteristic of Tr cells, particularly for expression of the FoxP3 transcription factor. Examination of the phenotype could also offer clues to the origin and ontogeny of autoantigen-specific Tr cells. Are such cells induced and derived from genetically related effector T cells associated with autoimmune disease, or are they a discrete population of thymically derived natural Tr cells?

Finally, costimulatory requirements for Tr cell function are yet to be established and, in particular, the role of CTLA-4, an inhibitor of T-cell costimulation²⁰  that is constitutively expressed in higher amounts on Tr cells compared with CD4⁺ T cells.^9,21,22  Antibody blockade or gene deletion of CTLA-4 is associated with loss of tolerance in murine models,²³  but it is not universally acknowledged that CTLA-4 ligation is critical for Tr function.^24,25

Here, we describe ex vivo recovery and cloning of autoantigenic Rh peptide-specific Tr cells from a patient with AIHA. These Tr clones require cognate antigen, but not hyperstimulation to mount an immunosuppressive response and to maintain a phenotype characteristic of previously described Tr cells. We also provide evidence that, despite a distinct Tr phenotype, these cells are related to Th1 cells through expression of the Th1-associated T-bet transcription factor. Finally, we provide evidence that engagement of the T-cell costimulatory receptor, CTLA-4, is important for Tr- cell function.

T cells were obtained from a 71-year-old female patient who underwent splenectomy as part of treatment for AIHA. The patient was RhD positive, and the HLA-DR type was DRB1*0301/0401. Diagnosis was based on positive direct antiglobulin test and clinical evidence of hemolysis. At surgery the patient was not receiving any other form of treatment. The Grampian Health Board and the University of Aberdeen Ethical Committee approved the protocol for investigation, and was obtained in accordance with the Declaration of Helsinki informed consent.

FITC-labeled mouse anti-CD4 (clone 13B.2), and PC5-labeled mouse anti-CD25 (clone B1.49.9) antibodies were purchased from Beckman Coulter (High Wycombe, United Kingdom). Biotin-labeled mouse anti-CD152 (CTLA-4, clone BNI3) were purchased from BD Biosciences (Oxford, United Kingdom) and conjugated to Texas red-labeled streptavidin (Calbiochem, Nottingham, United Kingdom). An IL-10⁺ cell enrichment and detection kit was used to detect IL-10–secreting T cells (Miltenyi-Biotec, Bisley, United Kingdom). Because we were interested solely in cells actively secreting IL-10, monensin or Brefeldin A were not used to enrich intracellular IL-10. Four-color flow cytometry on stained cells used an EPICS XL cytometer (Beckman Coulter), and data were analyzed with Expo v2 software (Applied Cytometry Systems, York, United Kingdom). Anti–human T-bet–FITC (sc-21749) was purchased from Santa Cruz Biotechnology (Autogen Bioclear, Calne, United Kingdom). Anti–human LAG-3 (clone: 11E3) was obtained from Alexis Biochemicals (Nottingham, United Kingdom). An anti–human FoxP3-PE fix, permeabilization, and staining set was obtained from eBioscience (San Diego, CA).

Presence of FoxP3 transcription factor was determined by Western blot. Proteins from whole-cell lysates were fractionated by 12% sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE) gel electrophoresis and blotted overnight (Transphor; Hoeffer, San Francisco, CA) onto PVDF membranes. FoxP3 was detected with 1 μg/mL anti-FoxP3 antibody (Abcam Ltd, Cambridge, United Kingdom) and development using alkaline phosphatase–labeled anti–goat antibody and NBT/BCIP SIGMAFast substrate. Levels of FoxP3 were determined relative to actin by densitometry using a BioRad phosphoimager and Quantity 1 software (Hemel Hempstead, United Kingdom).

Enzyme-linked immunoabsorbent assays (ELISAs) were based on previously published methods.¹⁷  The following antibody pairs were used: purified mouse anti–IFN-γ (clone NIB42) and biotinylated mouse anti–IFN-γ (clone 4S.B3), purified mouse anti–IL-10 (clone JES3–19F1) and biotinylated mouse anti–IL-10 (clone JES3–12G8), purified mouse anti–IL-4 (clone 8D4–8) and biotinylated mouse anti–IL-4 (clone MP4–25D2) (all from BD Biosciences). All recombinant human cytokines (IFN-γ, IL-4, IL-10, and IL-15) were from PeproTech EC Ltd (London, United Kingdom).

Cell proliferation was assessed by ³H thymidine incorporation, as previously described.¹¹

Cells were fractionated with a Dynal CD4⁺ isolation kit, and nonspecific T-cell stimulation and expansion was driven by the Dynabeads CD3/CD28 T-cell expander reagent (Dynal Biotech, Wirral, United Kingdom).

As before,¹⁷  blockade was performed with mouse anti-CD152 F(ab′)₂ fragment (clone ANC152.2/8H5) from Alexis Biochemicals. Choice of an F(ab′)₂ precludes interference from the Fc region.

A complete panel of 42 15-mer peptides, with 5–amino acid overlaps, was synthesized¹⁶  (Department of Biochemistry, University of Bristol, Bristol, United Kingdom), spanning the sequence of the 30-kDa Rh protein associated with expression of the D blood group antigen.²⁶  To ensure purity, peptides were screened by high-performance liquid chromatography and amino acid analysis. Rh protein was purified from RBCs by immunoprecipitation using a monoclonal anti-D (T19; Scottish National Blood Transfusion Service), specific for RhD ep4.²⁷  Rh protein was added to cultures at an estimated concentration of 5 μg/mL.

As previously described, peptides that induce IL-10 secretion were identified using ELISA to screen responses to the panel of Rh peptides.¹⁷  Splenocytes were obtained by cutting up 2-cm³ fractions of splenic tissue into smaller pieces and tamping tissue fragments through a 40μM cell strainer (BD Falcon, Oxford, United Kingdom) into a petri dish containing 10 mL ice-cold HBSS. These crude cell suspensions were collected in 50-mL Falcon tubes on ice, centrifuged (300g for 10 minutes), and resuspended in red cell lysis buffer (17mM Tris buffer, 144mM NH₄Cl, pH 7.2). Cells were gently agitated for 2 minutes to destroy erythrocytes before 3 washes with cold HBSS. Splenocytes were frozen down in a mixture of 50% FCS, 40% HBSS, 10% DMSO, in aliquots of 1 × 10⁸ cells/mL, before being put under liquid nitrogen. Splenocytes were cultured at 1 × 10⁶ cells/well in complete medium containing peptide antigen (10 μg/mL) for 6 days at 37°C, 5% CO₂. IL-10–secreting T cells were isolated with an IL-10⁺ cell enrichment and detection kit (Miltenyi Biotec). Typically, the yield of recovered IL-10⁺ Tr cells was low (≈ 4% of CD4⁺ T cells; in absolute numbers ≈ 20 000-40 000 cells). Isolated IL-10⁺ T cells were cloned by limiting dilution at 1 × 10⁴/mL, 1 × 10³/mL, and 1 × 10² cells/mL together with autologous, irradiated, CD4⁺ cell–depleted splenocytes at 1 × 10⁶ cells/mL as antigen-presenting cells (APCs). Peptide (1-10 μg/mL), together with IL-15 (50 ng/mL)²⁸  was added to cell suspensions, and 20-μL aliquots were dispensed into 384-well plates. After 6 to 14 days of incubation at 37°C, 5% CO₂, potential Tr clones were transferred to round-bottom 96-well plates, and 50 μL of fresh CM containing both IL-15 (50 ng/mL) and 0.125 μL CD3/CD28 T-cell expander beads (expansion medium) were added. Together, these reagents allow CD4⁺ T cells to expand in the absence of APCs. Expanding cell cultures were divided and replenished with fresh expansion medium at 3-day intervals. After 40 days, several million cells were obtained, and their growth rate indicated a trebling in number every 2 days. Samples of DNA were taken from each potential peptide-specific Tr clone for TCR Vβ gene usage analysis as a check for clonality. Potential peptide-specific Tr clones were tested by incubation with Rh peptide (1 μg/mL) or purified Rh protein (≈ 5 μg/mL) and autologous, irradiated 30 Gy [3000 rad]), CD4⁺ cell–depleted splenocytes at 1 × 10⁶ cells/mL as a source of APCs for 48 to 96 hours at 37°C, 5% CO₂. Typically, 5000 to 100 000 cloned cells per well were used in experiments.

To study the role of CTLA-4 in Tr function we used an adherent human embryonic kidney cell line (HEK293) transfected with either wild-type B7.1 ligand (CD80; binds both CD28 and CTLA-4), CTLA-4 binding protein (CTLA-4BP; selectively binds CTLA-4), or CD28 binding protein (CD28BP; selectively binds CD28). These proteins, referred to here collectively as B7.1 shufflants, were kindly donated by Maxygen (Redwood City, CA) and are fully described by Lazetic et al.²⁹  HEK293 is a fetal-derived cell line, commonly used as a vehicle for transfection of genes and gene fragments (no. CRL-1573; ATCC, Manassas, VA). These cells do not express MHC class II molecules, making them ideal for the experiments outlined here. The HEK293 cells were irradiated before use to prevent them from overwhelming cell cultures. Sole engagement with CD28BP/CD28 and CTLA-4BP/CTLA-4 was confirmed with soluble fragments of CD28 and CTLA-4 by flow cytometry. Washed, irradiated cells (50 Gy [5000 rad]; 400 000 per well) were added to 24-well plates and allowed to adhere for 24 hours before the addition of P8(1) clone (100 000 cells/mL). Clones were cultured in the presence or absence of anti-CD3 stimulation at 37°C, 5% CO₂ for 96 hours before cytokine production was measured.

We developed a method for deriving human Tr clones from CD4⁺ populations that secrete IL-10 ex vivo, initially using a large sample of splenic T cells from a patient with AIHA. A key requirement of the technique was that it should not rely on the addition of exogenous IL-10^9,–11  or immunosuppressive compounds¹²  in vitro because clones of such cells are not necessarily derived from, nor representative of, populations that secrete IL-10 in vivo.

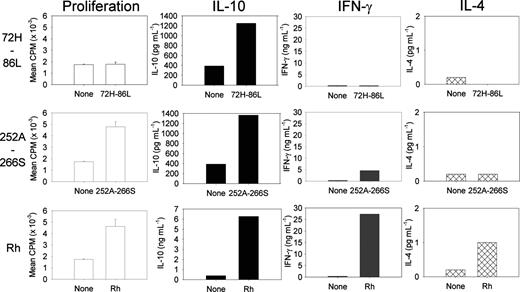

Previous mapping experiments with peptide panels spanning the sequences of the Rh protein autoantigen showed that particular peptides preferentially induced IL-10 responses by Tr cells from peripheral blood or spleen of patients.¹⁷  In 3 separate experiments on splenocytes and peripheral blood mononuclear cells from the current patient, we identified one such peptide, 72H-86L (sequence HSWSSVAFNLFMLAL), which consistently stimulated T-cell IL-10 secretion (Figure 1). Analysis of MHC-binding motifs within peptide 72H-86L, using ProPred prediction software,³⁰  indicated the presence of a putative epitope within the C-terminal region of peptide 72H-86L, restricted by one of the HLA class II molecules expressed by the patient, DR4.

The IL-10–secreting cultures were used to derive CD4⁺ Tr clones specific for the peptide and purified Rh protein. First, cells were stimulated with peptide for 5 days, and then magnetic bead fractionation was used to isolate IL-10–producing cells, which were expanded and cloned by limiting dilution. To overcome problems of inducing Tr cells to proliferate in vitro under standard culture conditions, we developed a protocol to expand splenic Tr cells using IL-15.²⁸  In preliminary experiments IL-15 alone (but not IL-2 or IL-7), at an optimum concentration of 50 ng/mL, preferentially expanded IL-10–secreting cells (data not shown). In 3 separate cloning experiments, we raised 5 Tr clones from a T-cell line specific for peptide 72H-86L, each with similar phenotypic characteristics. The frequency of Tr clones obtained by this method was approximately 0.001% of CD4⁺ T cells. Clonality was confirmed using polymerase chain reaction and flow cytometry analysis of TCR Vβ gene segment usage. Beads coated with IL-15 and anti-CD3/CD28 in the absence of APCs were used to maintain the cloned populations. Despite repeated attempts, we were unable to generate any Tr clones specific for a second peptide 252A-266S, which did not preferentially induce IL-10 secretion. In the absence of the step to select IL-10⁺ regulatory T cells, clones specific for control antigens, including PPD, generated from the peripheral blood of other persons exhibit classic Th effector phenotypes with no evidence of suppressive function. Availability of human autoreactive Tr clones specific for a target of pathogenic relevance in a patient with AIHA enabled, for the first time, a detailed characterization of such cells.

First, because the cloned Tr cells are of known specificity, it was possible to compare the effects of TCR ligation by antigen and nonspecific stimuli on their regulatory responses. ELISAs were used to confirm that recognition of cognate autoantigen induced predominant secretion of IL-10, but little Th1 cytokine IFN-γ and no Th2 cytokine IL-4 (Figure 2A), with no proliferation. However, clones activated with high-affinity anti-CD3/CD28 antibody bound on magnetic beads to allow cross-linking did not induce the Tr1-like cytokine phenotype, and the cells instead mounted a Th0 effector response, with proliferation and secretion of IFN-γ, IL-4, and IL-10. This characteristic, that the regulatory cytokine phenotype is dependent on antigen and masked by high-affinity nonspecific activation, was also exhibited by the other RBC-specific autoreactive Tr clones and lines studied (example shown in Figure 2A).

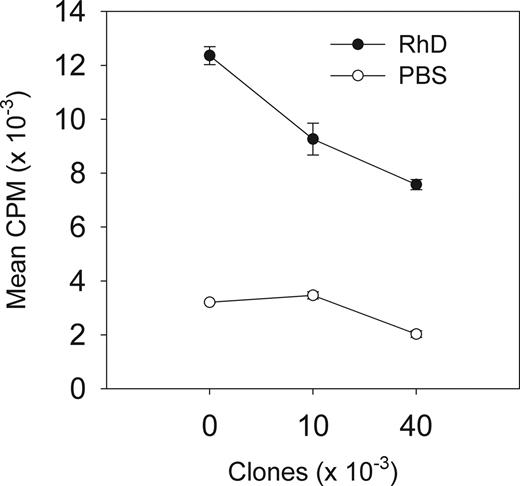

We also confirmed that cloned Tr cells retained their regulatory activity observed in the polyclonal population from which they were derived. Stimulation of clones by APC-presenting Rh protein led to increased numbers of cells actively secreting IL-10 compared with the resting cell population (Figure 2B top panels). The number of cells induced to secrete IL-10 by nonspecific activation (anti-CD3/CD28 antibody) were also increased (from 4.6% to 33.3%). In contrast, autologous purified CD4⁺ T cells stimulated with anti-CD3/CD28 antibody increased the numbers of IL-10–secreting cells from base levels of 0.1% to only 2.3% (data not shown). Further, cloned cells activated by Rh suppressed proliferative responses to the Rh protein mediated by autologous effector Th1 cells (Figure 3). Finally, when compared with other, conventional effector Th1/Th2 T-cell clones available in our laboratory, these cells were less able to proliferate when stimulated with anti-CD3 antibody. For example, there was approximately 100-fold less proliferation of clone P8(1) and 72H-86L–specific cell line compared with human Th1 and Th2 clones specific for Timothy grass allergen, after activation (data not shown).

Differences in expression of particular markers are characteristic of both natural and induced forms of the Tr cell. Having cloned autoreactive human Tr cells, we wanted to determine whether they conformed to either of these currently recognized Tr types based on increased expression of associated phenotypic markers, including CTLA-4, CD25, FoxP3, and LAG-3. CTLA-4 is typically seen as inhibitory for effector cells, but its relevance to Tr function is controversial.²⁵  Cell-surface expression of CTLA-4 was constitutively higher on the clones such as P8(1) than on autologous CD4⁺ T cells (6.1% vs 0.9%), and it was also higher when the clones were incubated either with cognate peptide 72H-86L, Rh autoantigen, or nonspecific stimulation with anti-CD3/CD28 antibody (Figure 4 left panels).

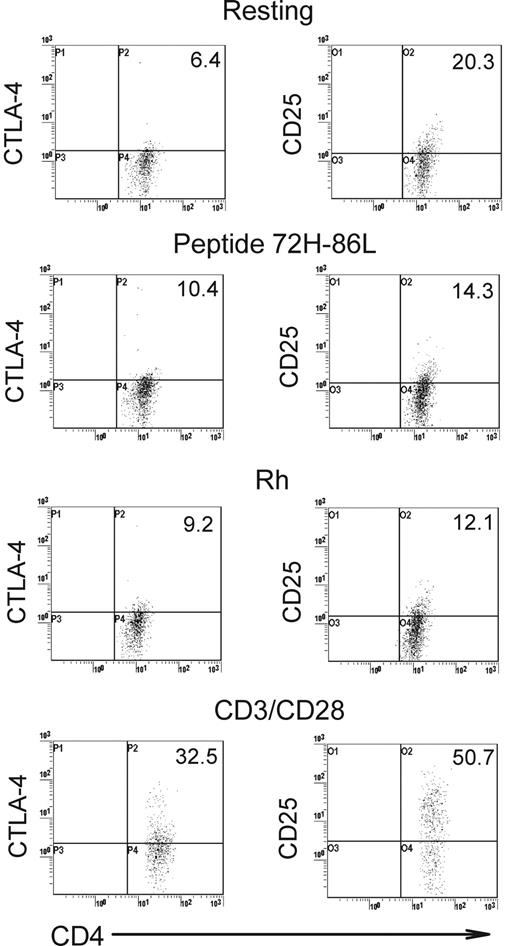

CD25 is expressed constitutively at high levels by the major category of natural Tr cells but is held to be expressed only as an activation marker on the induced form. The CD25 phenotype of clone P8(1) in different activation states was characterized (Figure 4 right panels). At rest, the clone constitutively expressed higher levels of CD25 than did autologous CD4⁺ T cells. As expected, expression of CD25 by P8(1) clone increased after nonspecific stimulation with anti-CD3/CD28 antibodies, but, surprisingly, CD25 levels decreased markedly when the cells were specifically activated with peptide 72H-86L or Rh protein. Thus, the Tr cells that we cloned express high levels of CD25 when expanding nonspecifically, but they down-regulate this marker when they mount a Tr IL-10 response to the autoantigen they recognize. Further analysis of CD25 on the P8(1) clone and 72H-86L Tr cell line by flow cytometry showed increased expression of the FoxP3 transcription factor in CD25^bright cloned cells compared with CD25^lo cells (Figure 5A). Thus, despite clonality the distribution pattern of FoxP3⁺ expression was similar to that of heterologous CD4⁺CD25⁺ T cells. Examination of FoxP3 expression by Western blot showed low but detectable expression in P8(1) clone when resting and after nonspecific anti-CD3/CD28 stimulation, but it was amplified after activation with the cognate antigen, Rh protein (Figure 5B). The semiquantitative Western blot analysis confirms the flow cytometric data showing that the Tr clones are FoxP3⁺. Overall, these results show that FoxP3, but not CD25, expression correlates with antigen-specific induction of Tr function.

Lymphocyte activation gene-3 (LAG-3) is an MHC class II ligand that negatively regulates T-cell activation.³¹  Previous work has shown that expression of LAG-3 is increased on regulatory T-cell populations and could underpin cell-mediated inhibitory processes identified in these cells. Comparison of clonal cell-surface expression of LAG-3 with that of CD4⁺ T cells (Figure 5C) showed cell surface increases in the clonal population, indicating that enhanced LAG-3 production is characteristic of these cells.

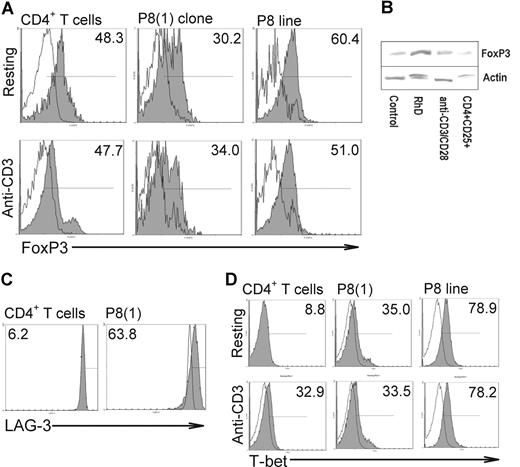

Recent work has suggested that inducible Tr cells can arise from Th1 or Th2 CD4⁺ T cells expressing signature transcription factors such as T-bet and GATA-3.^32,33  Because these clones were derived from a patient with active AIHA, we addressed the question of whether our cloned antigen-specific Tr cells were originally derived from a Th1 effector T-cell population by analyzing expression of the Th1-associated transcription factor T-bet (Figure 5D). As expected, expression levels of T-bet in resting heterologous CD4⁺ T cells was low but increased when cells were stimulated with anti-CD3 mAbs. In contrast, T-bet expression in both the P8(1) clone and the 72H-86L cell line was notably higher than activated heterologous CD4⁺ T cells.

Because CTLA-4 expression was increased in clones, constitutively, and in response to antigen-driven stimulation, experiments were set up to determine the effects of CTLA-4 in the role of these Tr cells. Blockade of CTLA-4 with an anti-CTLA-4 F(a′)₂ fragment deviated the cloned Tr cell response toward Th1, with proliferation and IFN-γ secretion (Figure 6A) and suppressed numbers of cells actively secreting IL-10 in response to the Rh autoantigen presented by autologous APCs (Figure 6B).

To further assess the contribution of CTLA-4 to Tr activity we used HEK293 cell lines transfected with B7.1-like molecules (B7.1 shufflants) that selectively bind either to CD28 or CTLA-4²⁹  and compared responses with wild-type B7.1-transfected cell lines. In effect, these cell lines provide an additional signal either through CD28 (CD28BP), CTLA-4 (CTLA-4BP), or both (B7.1); thus, we were able to determine whether CTLA-4 engagement induced P8(1) to enhance its regulatory phenotype. When P8(1) clones were incubated with the B7.1 shufflants in the absence of a TCR stimulus, each induced low levels of IFN-γ and IL-10, with CD28BP and CTLA-4BP inducing more IFN-γ and IL-10, respectively (Figure 6C). On stimulation with anti-CD3 antibody, both B7.1 and CTLA-4BP induced small increases in IFN-γ and IL-10, whereas cytokine levels increased to a lesser extent when incubated with CD28BP. These data confirm that CTLA-4 contributes to secretion of IL-10 by inducible Tr clones function.

We report here a method that enabled us to recover, expand, and characterize regulatory T-cell clones specific for a dominant autoantigen in a patient with autoimmune disease. The method differs from previously published approaches in that no exogenous IL-10 or immunosuppressive compounds, which can bias undifferentiated Th cells, were added to cultures, and the clones were derived from cells secreting IL-10 ex vivo. These clones therefore provide the first opportunity to characterize human Tr cells representative of regulatory populations in autoimmune disease. Their properties show the importance of antigen-specificity and costimulation in exposing the Tr phenotype.

The autoreactive Tr clones were derived from a patient with AIHA and are specific for a peptide corresponding to residues 72H-86L from the dominant Rh RBC protein autoantigen. The approach was developed using a large sample of splenocytes, but it has now been extended to derive Tr clones from peripheral blood and from other patients. We adapted the cloning method from a technique established for Th1/Th2 effector T cells,³⁴  but we modified it first by acquiring only cells that secrete IL-10 during stimulation with self-peptide and then by adding IL-15 to favor Tr cell expansion.²⁸  Both murine and human naive peripheral CD4⁺ T cells can be deviated into Tr1 cells if stimulated with antigen in the presence of IL-10 or dexamethasone/vitamin D.^9,,,–13  In contrast to these maneuvers, IL-15 allows expansion of IL-10–secreting Tr1 cells²⁸  but does not promote de novo Tr cell differentiation. This approach enabled existing Tr cells, sampled from the periphery and relevant to disease, to be isolated, expanded, and characterized. A number of features of the clones are relevant to the role of Tr cells in self-tolerance and autoimmunity.

First, the ability to expand and clone suppressive Tr cells secreting IL-10, including clone P8(1), confirms the existence of such cells specific for autoantigens of pathogenic relevance in human patients. These cells were derived from an IL-10–secreting population, the activity of which correlates with remission from AIHA,¹⁷  consistent with the view that autoaggressive immune responses can be controlled in vivo by boosting their function or numbers.

Second, the regulatory phenotype, including predominant IL-10 secretion and increased FoxP3 expression, was shown by specific recognition of the Rh autoantigen but not higher avidity TCR stimulation. This shows the importance of studying autoreactive Tr cells in the context of known specificity, because polyclonal stimuli obscure their regulatory phenotype, but it also has implications for the understanding of regulation in vivo. Further studies will allow us to characterize such “tuning” of regulatory responses.³⁵

Analysis of T-bet expression, a transcription factor associated with the Th1 T-cell phenotype, was stably increased in both antigen-specific clone and cell line, compared with resting T cells. This observation suggests that the IL-10 Tr cells we describe here are derived from Th1 T cells and may have arisen as a result of effector T-cell stimulation associated with the chronic autoimmune response underlying AIHA. This is also supported by the observation that inhibition of their regulatory activity and phenotype corresponds with increases in IFN-γ secretion.

Another important feature of Tr cells shown by this study is dependence on ligation of the costimulatory molecule CTLA-4 for regulatory function. The effects of CTLA-4 engagement in providing a negative costimulatory signal in effector T cells are well documented,^20,23  but its role in suppression responses by Tr subsets is debatable. There is, however, both circumstantial and direct evidence that CTLA-4, expressed by regulatory cells, functions to suppress T cell–mediated inflammatory responses. CTLA-4 cell-surface expression is constitutively high on every regulatory T-cell subset so far described^21,22  and, furthermore, blockade of CTLA-4 expressed by regulatory CD4⁺CD25⁺ T cells, but not CD4⁺CD25⁻ T cells, leads to the development of autoimmune disease in mice.³⁶  In other models of autoimmunity, blockade of CTLA-4 accelerates onset and exacerbates disease.^24,37  This active suppression by CTLA-4–expressing Tr cells raises the possibility that CTLA-4 engagement may mediate a positive signal for regulatory function. Evidence from molecules phylogenetically related to the B7 ligand and engineered to selectively bind either CD28 or CTLA-4 (CD28BP and CTLA-4BP, respectively)²⁹  showed that CTLA-4 engagement on T cells resulted in increased IL-10 secretion, whereas CD28 engagement prompted IFN-γ secretion and proliferation. The work we present here confirms this observation, because Rh-specific IL-10 secretion was abolished by CTLA-4 blockade of our autoreactive Tr clones in favor of increased interferon-γ production. This was further supported by our observation that engagement of CTLA-4 by CTLA-4BP enhanced activation of the clone and increased IL-10 production.

In summary, we have cloned human Tr cells associated with AIHA ex vivo. The clonal isolation of such autoantigen-specific Tr cells can now be extended to other diseases, and understanding their properties will be an essential step in the rational design of therapeutic strategies based on the selective stimulation of these cells.
