Tumor-specific Th17-polarized cells eradicate large established melanoma

The role of CD4⁺ cells in antitumor immunity remains controversial and poorly understood.^1,2  They are known to mediate potent therapeutic effect in the setting of hematopoietic stem cell allotransplantation and donor lymphocyte infusion in hematologic malignancy,^3,4  but antigen-specific T helper (Th) cells have been studied to much lesser extent. A lack of clarity regarding CD4⁺ cells is due, in no small part, to the complexity of their biology. CD4⁺ T cells can differentiate into diverse subsets with specific phenotypes that can have self-reinforcing and opposing functions, but these T-cell subsets have not been comprehensively studied in tumor-bearing mice.

Historically, CD4⁺ T lymphocytes have been thought of as mere providers of stimuli to help the putatively more important CD8⁺ effectors, which eliminate cancer by direct cytotoxicity.^5-7  There are several studies showing that CD4⁺ T helper (Th) cells are capable of protecting the host against tumor challenge and even of mediating tumor regression on their own in the setting of either solid or hematopoietic disease.^8-13  Furthermore, protection was maintained against MHC class II–negative multiple myeloma model and involved cross-presentation by professional antigen-presenting cells (APCs) and activation of tumoricidal activity mediated by macrophages secreting IFN-γ.¹⁴  A similar IFN-γ–dependent mechanism was involved in the rejection of MHC class II–negative tumor in severe combined immunodeficient (SCID) mice.¹⁵  In some cases, the ability to reject antigen-expressing tumor by specific naive Th cells was thought to be substantially better than the ability of CD8⁺ cells.¹⁶  Classically, effector CD4⁺ T cells have been categorized into T helper 1 (Th1) and T helper 2 (Th2) subsets.^17,18  Limited studies indicate that both subtypes elicit antitumor effects,^19-21  but the Th1-polarized cells, secreting IFN-γ and capable of enhancing activity of cytotoxic CD8⁺ lymphocytes, have traditionally been regarded as more efficient.^22-25  However, it is also clear that CD4⁺ T regulatory cells (T_regs) can efficiently suppress the function of antitumor CD8⁺ T cells.^5,26-28

Recently, the novel Th17 lineage, generated in the presence of TGF-β and IL-6 and expanded under the influence of IL-23,^29-31  has been associated with responses against certain infections and implicated in the development of autoimmunity in animal models that had been previously linked to Th1-type responses (experimental autoimmune encephalitis, collagen-induced arthritis).^32,33  They also seem to play an important role in the pathogenesis of graft-versus-host disease (GVHD).^34,35  Th17 cells have been found in various tumors, including mycosis fungoides, Sézary syndrome, and prostate cancer.^36,37  Kryczek et al reported the presence of naturally occurring Th17 cells and T_regs in the tumor microenvironment and tumor-draining lymph nodes in both human and mice tumors.³⁸  Proinflammatory cytokines including IL-17A, IL-6, and IL-23 have been described to impair immune surveillance by CD8⁺ T cells, and promote de novo carcinogenesis and neovascularization of tumors via STAT3 signaling and other mechanisms.^39-45  In contrast, some publications have reported antitumor activity of IL-17A or IL-23^46,47  that can be T-cell dependent.⁴⁸  Nevertheless, the role of cancer-specific Th17 cells in cancer immunity has not been elucidated, but their ability to cause inflamma-tion and destruction of tissues might be of interest in the therapy of malignancy.

To compare the antitumor efficacy of in vitro–polarized TCR transgenic Th1, Th17, and nonpolarized Th0 cells, we sought to develop a model that closely resembled human disease. Although several models have been previously described, one of the main flaws of currently available systems is that they usually involve using cancer cells modified to express potentially highly immunogenic foreign or surrogate antigens (eg, OVA or H-Y in female hosts). In other cases, overexpression of potent cytokines, including IFN-γ, by the tumor cells was required to observe antitumor effects. Frequently, only very early, small nonvascularized tumors or unrealistic microscopic hepatic or pulmonary “metastases” could be treated. In other existing tumor models, treatment is given before the tumor challenge. Tumor protection models may not mimic a clinically relevant scenario, and their relevance to human patients with established disease is uncertain.

In the clinical setting, solid tumors are large, vascularized, and poorly immunogenic. Immune responses against cancer can be regarded as an autoimmune process where the targets are often nonmutated self-proteins representing tissue differentiation antigens. As current models of CD4-based anticancer responses, even though valuable, have serious shortcomings and do not approximate a real-life scenario, we sought a novel, more realistic model that closely mimicked human disease. We created a transgenic mouse that expresses a MHC class II–restricted TCR recognizing an endogenous melanocyte differentiation antigen called tyrosinase-related protein 1 (TRP-1 or gp75). TRP-1 is present in normal melanocytes as well as in melanoma cells and therefore is a potential target for immunotherapy in humans.⁴⁹  Using tumor-specific CD4⁺ effector cells, we characterized in vitro Th1- and Th17-polarized subsets and compared them with nonpolarized (Th0) cells. We then adoptively transferred these cells in an effort to treat large, established, unmanipulated B16 melanoma. Thus, we describe for the first time a CD4⁺, MHC class II–restricted immunotherapy model targeting naturally occurring self-antigen.

All animal experimental procedures have been approved by the National Cancer Institute Animal Use Committee.

C57BL/6 and RAG1^−/−B^W TRP-1 TCR transgenic mice were bred at the National Institutes of Health (NIH). RAG1^−/−, IFN-γ^−/−, IFN-γR^−/−, and B6.PL (Thy1.1⁺) mice with C57BL/6 background were obtained from The Jackson Laboratory (Bar Harbor, ME). B16 (H-2^b), a TRP-1⁺ spontaneous murine melanoma, MCA205, a TRP-1⁻ murine methylcholanthrene-induced fibrosarcoma, and EL-4, a TRP-1⁻ murine T-cell leukemia cell line, have been obtained from the National Cancer Institute tumor repository. We generated B16/CIITA cells, which overexpress MHC class II (data not shown) by transfecting B16 cells with a plasmid encoding the mouse MHC class II transactivator (CIITA) that was kindly provided by Peter Cresswell (Yale University School of Medicine, New Haven, CT). All cells were maintained in culture media (CM) composed of RPMI 1640 with 10% heat-inactivated fetal bovine serum (Invitrogen, Frederick, MD), 0.03% l-glutamine, 100 μg/mL streptomycin, 100 μg/mL penicillin, and 50 μg/mL gentamicin sulfate (NIH Media Center).

The TRP-1 TCR was generated from white-based brown mutant mice B^W (cappuccino) mice. The B^W white-based brown mutation is a spontaneous defect in synthesis of TRP-1 protein that arose in irradiated mice. The defect has been characterized as an inversion of exon 1 of the tyrp1 gene and results in a total absence of TRP-1 protein in melanocytes and other tissues. B^W mice were backcrossed for 8 generations onto the C57BL/6 background using a speed congenic-based technique. They were immunized once with 10⁷ plaque forming units (pfu) recombinant TRP-1 vaccinia virus (TRP-1 rVV),⁴⁹  following by 100 μg murine TRP-1 protein 3 weeks later. Four days prior to harvesting organs, mice were boosted with Sindbis virus TRP-1 DNA by gene gun (4 μg/mouse). Lymphocytes were fused with PEG 1500 at a 1:1 ratio to the LacZ inducible hybridoma BWZ.36/CD8a fusion partner, and were plated in HAT selection media.⁵⁰  Fourteen days later, wells were screened against B16/CIITA cell line for reactivity. Clone 7A6 was found the most reactive and further subcloned. Reactivity against TRP-1 protein and truncated TRP-1 peptides was tested using 3 Gy irradiated peptide-pulsed splenocytes as described below. Fluorescence-activated cell sorting (FACS) analysis identified that 7A6 hybridoma expressed Vα3.2 and Vβ14 TCR chains. The method for generating the TCR transgenics is identical to that described for the pmel-1 mice.⁴⁸  Briefly, RNA was isolated from this clone and α and β TCR regions were amplified by 5′-rapid amplification of cDNA ends (5′-RACE; Life Technologies, Bethesda, MD) using constant region antisense primers α1 (5′-GGCTACTTTCAGCAGGAGGA-3′) and β1 (5′-AGGCCTCTGCACTGATGTTC-3′), respectively. 5′-RACE products were amplified with nested TCR α and β constant region primers α2 (5′-GGGAGTCAAAGTCGGTGAAC-3′) and β2 (5′-CCACGTGGTCAGGGAAGAAG-3′), respectively, and cloned into pCR4TOPO TA sequencing vectors (Invitrogen, Frederick, MD). TCR α and β transcripts were sequenced as Vα3.3Jα20 and Vβ14Dβ2Jβ2.5, respectively. The α and β genomic variable domains were PCR amplified (Perkin-Elmer) with primers gα1 (5′-TCTCCCGGGCTTCTCACTGCCTAGCCATGATGAAATCCTTGAGTGTTTC-3′) and gα2 (5′-GTAGCGGCCGCGTAAAATCTATCCTAGTGTTCCCCAGA-3′) or gβ1 (5′-GATCTCGAGAATCTGCCATGGGCACCAG-3′) and gβ2 (5′-GATACCGCGGTTCCTTTCCAAGACCAT-3′), respectively. The genomic variable domains were TA-cloned into pCR4TOPO (Invitrogen), validated by sequencing, subcloned into TCR cassette vectors, and coinjected into fertilized C57BL/6 embryos that yielded 13 founders. Founder number 9, in which the transgene insertion site was found on the Y chromosome, was successfully bred and crossed into RAG1^−/− (black) mice and subsequently into RAG1^−/−B^W (cappuccino) background.

Eyes were enucleated 14 days after adoptive transfer, fixed in 10% formalin, embedded in methylacrylate, sectioned via papillary–optic nerve axis, and H&E stained.

Single-cell suspensions (10⁶ cells/mL) of spleen cells from RAG1^−/−B^W TRP-1 TCR transgenic mice were seeded into 24-well plates in CM with C57BL/6 3000 rad irradiated splenocytes pulsed with TRP-1_106-130 (SGHNCGTCRPGWRGAACNQKILTVR) peptide. Th0 cells were plated in the absence of exogenous cytokines. To obtain highly polarized cells, rmIL-12 (3.3 ng/mL; Peprotech, Rocky Hill, NJ) was added to Th1 cultures and rmIL-6 (5 ng/mL), rhTGF-β1 (10 ng/mL; R&D Systems, Minneapolis, MN), and anti–IFN-γ antibody (10 μg/mL; eBioscience, San Diego, CA) were added to Th17 cultures. T_regs were generated in the presence of rhTGF-β1 (10 ng/mL) and anti–IFN-γ antibody (10 μg/mL). On the third day of culture, CM containing 30 IU/mL rhIL-2 (Chiron, Emeryville, CA) was added to all culture conditions and polarizing cytokines were supplemented. Cells were cultured for 1 week before being used for experiments.

Images were acquired at 100× magnification using the National DC5-163 microscope with integrated digital camera (National Optical & Scientific Instruments, San Antonio, TX) and Motic (Richmond, BC) Image Plus 2.0 software. They were further cropped using PowerPoint software (Microsoft, Redwood, WA).

T cells were tested for secretion of IFN-γ, TNF-α, IL-2, IL-6, IL-10, IL-17A, IL-21, and CCL20 in release assays using R&D Systems antibody pair according to manufacturer's protocol. Irradiated splenocytes (3000 rad) were pulsed with escalating doses of TRP-1_106-130 or 1 μM of an irrelevant peptide (gp100_25-33). In some experiments, different tumor cells lines (B16, B16 CIITA, MCA 205, and EL4) were used as target cells. Effector cells and target cells were incubated in a 0.2-mL culture volume in individual wells of 96-well plates for 24 hours at 37°C. Cytokine secretion was measured in culture supernatants diluted to be in the linear range of the assay.

Antibodies against FoxP3 and IL-17A were purchased from eBioscience. All other antibodies used in this report were purchased from BD Pharmingen (San Diego, CA). For intracellular cytokine staining, cells were stimulated overnight with 50 ng/mL PMA (Sigma-Aldrich, St Louis, MO) and 750 ng/mL ionomycin (Calbiochem, San Diego, CA) or not at all. After 1 hour, GolgiStop (BD Pharmingen) was added to inhibit export of cytokines. Cells were surface stained for 15 to 30 minutes at 4°C with anti-CD4 and anti-Vβ14 antibodies in PBS supplemented with 1% BSA and 0.2% sodium azide. For intracellular staining T cells were fixed and permeabilized with IC Fixation/Permeabilization Buffers (eBioscience) according to the manufacturer's instruction and stained with anti–IL-17A and anti–IFN-γ antibodies. For Foxp3 staining, nonstimulated T cells were stained using the same protocol. Flow cytometry acquisition was performed on a FACS Canto II or FACSCalibur and analyzed with FlowJo software (TreeStar, Eugene, OR).

RNA was isolated from polarized Th0, Th1, and Th17 cells cultured in vitro for 7 to 8 days using RNeasy columns (QIAGEN, Valencia, CA). RNA was indirectly labeled via a single round of linear amplification with Amino Allyl MessageAmp II reagents (Ambion, Austin, TX) with the control Th0-polarized cells serving as a reference. The labeled experimental RNA was combined with labeled control RNA and hybridized overnight to 38 000-spot long oligonucleotide MEEBO arrays (Advanced Technology Center Microarray Facility NCI). Arrays were scanned using a GenePix 4000B scanner (Axon Instruments, Union City, CA) and data were acquired with GenePix Pro 5.1 (Axon Instruments). The data files were imported into GeneSpring GX 7.3.1 (Silicon Genetics, Redwood City, CA) for all analyses. GEO accession number is GSE10814 (http://www.ncbi.nlm.nih.gov/geo/).⁵¹

Mice 6 to 12 weeks of age (n = 5-6 for all groups) were injected subcutaneously with 5 × 10⁵ B16-F10 melanoma cells and treated 10 to 14 days later with adoptively transferred TRP-1–specific CD4⁺ T cells derived from TCR transgenic splenocytes polarized in vitro. Lymphopenia was induced by nonmyeloablative (5 Gy) total body irradiation (TBI) of tumor-bearing mice on the day of cell transfer. Where indicated, a single dose of recombinant TRP-1 vaccinia virus vaccine (TRP-1 rVV) and/or 6 doses of rhIL-2 (36 ng/dose; Chiron) given 12 hours apart were administered by intraperitoneal injection. Tumors were measured using calipers, and the products of the perpendicular diameters were recorded. All experiments were performed in a blinded, randomized fashion and repeated independently at least twice, with similar results. Vitiligo on treated mice was scored on a scale of 0 to 5 as follows: 0 indicates no vitiligo (wild type); 1, depigmentation detected; 2, more than 10% vitiligo; 3, more than 25% vitiligo; 4, more than 50% vitiligo; and 5, more than 75% vitiligo. Mice were evaluated and scored by 2 independent investigators blinded to group at approximately 3 months after adoptive cell transfer.

Polarized TRP-1 cells (Thy1.2) were labeled with 1 μM CFSE (Invitrogen) and adoptively transferred into sublethally irradiated (500 R) B6PL mice (Thy1.1). Spleens were harvested on days 3 and 6 and analyzed by FACS for presence of CFSE fluorescent dye after gating on Thy1.2⁺ CD4⁺ population.

On the days indicated, mice were killed and their organs were harvested and homogenized into a single-cell suspension using the rubber end of a 3-cc syringe and a 40-μm filter cup. Cells were labeled with the following mAbs (BD Pharmingen): FITC-conjugated anti-Vβ14 and PE-conjugated anti-CD4. Samples were analyzed using a FACSCalibur flow cytometer and FlowJo 7.1 software. Samples were enumerated using trypan blue exclusion. The absolute number of TRP-1 T cells was calculated by multiplying the absolute cell count by the total percentage of Vβ14⁺CD4⁺ cells.

Neutralizing antibodies against murine IL-17A and IL-23 were purchased from R&D Systems; antibodies against IFN-γ were obtained from eBioscience. Tumor-bearing C57/BL6 mice were treated with Th17 TRP-1 cells. Mice were injected intraperitoneally with 100 μg neutralizing antibodies starting 24 hours after adoptive cell transfer. Injections were repeated every other day for 5 cycles. The control group received isotype-matched antibody (R&D Systems).

Tumor graphs were compared using analysis of variance. P values less than .05 were considered significant. Statistical analyses comparing frequencies of vitiligo were performed using 1-way ANOVA with Bonferroni correction for multiple comparisons. A P value of .05 or lower was considered significant. Kaplan-Meyer survival curves were compared by Wilcoxon test. A P value of .05 or lower was considered significant. Cell numbers were compared by Student t test. A P value of .05 or lower was considered significant.

We sought to create a realistic model of MHC class II–restricted, CD4⁺ T cells specific for a self-antigen. We had indirect evidence⁴⁹  that a recombinant vaccinia virus (rVV)–based vaccine encoding TRP-1 elicited a Th-dependent response in C57BL/6 mice resulting in antibody-mediated autoimmune vitiligo. We thus attempted to clone CD4⁺ cells reactive to the TRP-1 antigen. Identification of TRP-1–specific CD4⁺ T cells using immunized wild-type mice was not successful (data not shown), most likely due to tolerance-related mechanisms present in TRP-1–positive (black) animals. We thus sought to generate melanocyte-reactive CD4⁺ cells from antigen-negative animals, known as B^w or “white-based brown mutation mice” with characteristic “cappuccino” appearance (Figure 1A). The mutation occurred at the Oak Ridge National Laboratories (Oak Ridge, TN) in C3H male animals exposed to ionizing radiation. The defect has been characterized as an inversion of the first exon of the tyrp-1 gene,⁵²  resulting in complete absence of the TRP-1 protein expression, even in truncated or mutated form, thus B^w mice represent a true immunologic knockout of TRP-1.⁵² B^w mice were backcrossed onto the C57BL/6n background for 8 generations using a speed congenic approach. After multiple rounds of vaccination, T-cell fusion was performed and a hybridoma strongly recognizing the MHC class II–overexpressing B16 melanoma cell line (B16/CIITA) was isolated as described in “Methods.” Further analysis of the recognition of truncated peptides established a minimal TRP-1 epitope corresponding to amino acids 113 to 127 (Figure S1, available on the Blood website; see the Supplemental Materials link at the top of the online article). TCR was identified as Vβ14Vα3.2. It was cloned and expressed in transgenic C57BL/6 mice. A founder with Y-chromosome–linked TRP-1 TCR transgene was identified and bred onto a RAG1^−/− background to eliminate rearrangement of endogenous TCR.

TRP-1–specific TCR was generated from immunized B^w mice that do not have the gp75 protein, and it was thus possible that cells expressing this TCR would be subjected to the negative selection in antigen-positive (black, wild-type) animals. Therefore, transgenic TRP-1 mice were crossed into B^w (antigen negative, cappuccino) RAG^−/− background. We have analyzed the repertoire of CD4⁺ T cells in TRP-1 antigen–positive and –negative RAG1^−/− transgenic animals. Only transgenic animals devoid of TRP-1 antigen (B^w RAG1^−/− TRP-1 TCR Tg⁺) had readily detectable CD4⁺Vβ14⁺ T cells in the peripheral lymphoid organs, while TRP-1 antigen–positive (black) transgenic mice were indistinguishable from their nontransgenic RAG1^−/− counterparts (Figure S2). This suggested that highly avid TRP-1–reactive TCRs were deleted from the T-cell repertoire in C57BL/6 mice.

To evaluate the degree of protection against the growth of melanoma conveyed by TRP-1 cells, we inoculated B^wRAG1^−/−TRP-1 Tg mice with B16 cells. Despite the presence of a large population of melanoma-specific T cells, TCR transgenic animals were not protected against B16 challenge. Tumor take was 100% (7 of 7). The growth of the subcutaneously inoculated melanoma was only minimally delayed in those mice in comparison with nontransgenic C57BL/6, RAG1^−/− (black, wild-type), or B^wRAG1^−/− (cappuccino) littermates (Figure 1B). All animals eventually had to be killed because of rapid disease progression. Similar lack of protection against the tumor has been demonstrated previously in other TCR transgenic models and attributed to immunologic ignorance and lack of costimulatory signaling.^53-55

To evaluate if the CD4⁺Vβ14⁺ T cells found in transgenic animals could mediate biologic activity in vivo, we performed adoptive transfer of CD4-selected splenocytes from TCR transgenic mice into RAG1^−/− black (wild-type) recipients. Rapid development of antigen-specific autoimmunity, as evidenced by extensive vitiligo, was observed in all recipients (Figure 1C). Treated mice also developed ocular injury with massive uveal infiltration and disruption of the retinal architecture (Figure 1D,E). Nearly complete vitiligo was also observed after the adoptive transfer of naive TRP-1 cells into sublethally irradiated C57BL/6 animals, however the degree of ocular damage was not as pronounced (data not shown), perhaps because of the presence of regulatory elements in the immunocompetent hosts. C57BL/6 and RAG1^−/− recipients remained otherwise healthy and survived for more than 12 months in our animal facility.

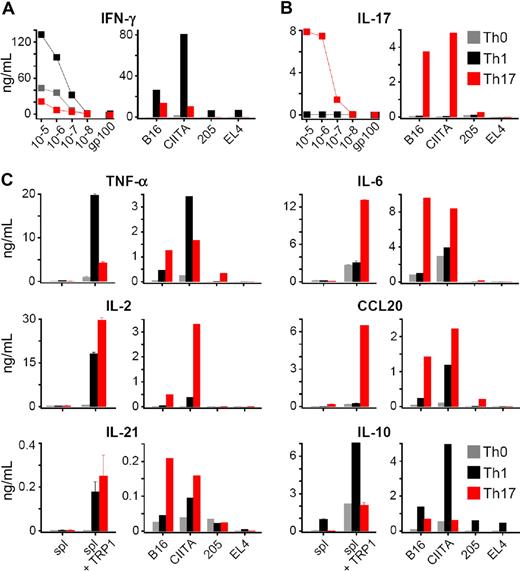

Our observations indicated that TRP-1 CD4⁺ T cells were able to cause massive autoimmunity, thus we sought to use them to treat tumors. Generation of anticancer T cells used in the real-life clinical settings usually involves stimulation and expansion in vitro, therefore culture conditions might be crucial for the therapeutic outcome of the adoptive cell transfer therapy. To investigate this question, we generated different TRP-1 T helper subsets (Th1, Th17, and Th0) by culturing the cells under strictly defined polarizing conditions. The degree of expansion of both Th1 and Th17 was similar and higher in comparison with the neutral (Th0) condition (data not shown). To confirm the subset commitment, we analyzed the cytokine secretion profile, phenotype, and gene expression patterns. Th1 cells produced high quantities of IFN-γ (Figure 2A) upon peptide stimulation. They also produced TNF-α, IL-10, and lower amounts of IL-2 (Figure 2C). As expected, only Th17-skewed cells secreted significant quantities of IL-17A (Figure 2B). They also produced smaller but significant quantities of IFN-γ and TNF-α, as well as high levels of IL-2, IL-6, IL-21, and CCL20 (MIP3-α), which has been implicated in mucosal and skin immunity, as well as in inflammatory-type pathology.^56,57  Nonpolarized Th0 cells secreted IFN-γ at intermediate levels, but were not able to produce IL-17A. A similar cytokine profile was produced for each of the Th subtypes in response to stimulation with B16 melanoma. Recognition was stronger upon exposure to B16/CIITA cell line, engineered to express higher levels of MHC class II molecules. There was no release of cytokines upon incubation with TRP-1–negative tumor cell lines MCA205 and EL-4, confirming the specificity of transgenic T cells (Figure 2A-C). In addition, intracellular staining upon restimulation demonstrated that virtually all Th1 cells produced IFN-γ, while only those cells programmed in TGF-β and IL-6 contained a significant percentage of IL-17A–secreting lymphocytes and a small number of IFN-γ–producing cells (Figure S3) consistent with the other reports.^38,58,59  Taken together, these data indicated that the population of cells polarized using Th17 conditions acquired the specific ability to secrete IL-17A.

Because culturing CD4⁺ T cells in IL-2 might expand the T_regs and their presence might negatively affect in vivo effectiveness of adoptive cell transfer therapy, we analyzed Foxp3 expression in our cells. Flow cytometry demonstrated that T_regs were absent among Th1-skewed TRP-1 cells, while a small population of T_regs was readily detectable in both Th17 and nonpolarized Th0 cell cultures (Figure S4). Cytofluorimetric analysis showed that Th1 T cells retained relatively more naive central memory–like characteristics, with the highest percentage of CD62L^high and CD45RB^high cells. In contrast, virtually the entire population of Th17-skewed T cells was CD62L^low and CD45RB^low, markers that were consistent with an effector memory phenotype. The Th17 population showed higher expression of CD38 and lower levels of SCA-1 (Ly6A) and CD49d (integrin α4, VLA-4) (Figure 3A), suggesting that biologic differences between the subsets were deeper than just their cytokine profiles.

To further elucidate these differences, we performed a transcriptome analysis of in vitro–polarized cell populations. Messenger RNA from Th0 cells was used as a reference to compare Th1 and Th17 gene expression profiles (Figure 3B). The Th17-polarized population showed a striking up-regulation of IL-17A (105-fold difference) and CCL20/MIP3α (95-fold difference). mRNAs encoding IL-17F and IL-22, which are additional markers of Th17 polarization, were also elevated. As suggested by the results of the enzyme-linked immunosorbent assay (ELISA) (Figure 2), mRNA levels for IL-2 and IL-21 as well as another common γ-chain cytokine, IL-9, were higher in Th17-polarized population. As expected, the relative expression of IFN-γ and IFN-α was higher in Th1 cells. We also observed significant differences in mRNA levels of multiple chemokines and chemokine receptors, integrins, and other adhesion molecules, as well as matrix metalloproteinases (MMPs), suggesting important differences in the ability of the polarized cells to migrate and infiltrate target tissues. CD103 (integrin αE), which has been involved in tissue-restricted, anticancer cytotoxic responses, was relatively higher in the Th17 population. Consistent with flow cytometry, the mRNA levels for L-selectin (CD62L), important for the ability to migrate into lymph nodes, was predominant in Th1-polarized lymphocytes. Among the metalloproteinases genes, MMP-13 (collagenase-3) was the most overrepresented in Th1 cells, and MMP-19, a potent basement membrane–degrading enzyme, was the most active in Th17-skewed cells.

Thus, we concluded that in vitro culture conditions greatly modified the biology of the effector T cells. Each Th cell subset not only displayed dissimilar polarization-defining cytokine profiles as tested by ELISA and microarray, but also expressed different chemokines, surface phenotype, and adhesion molecules.

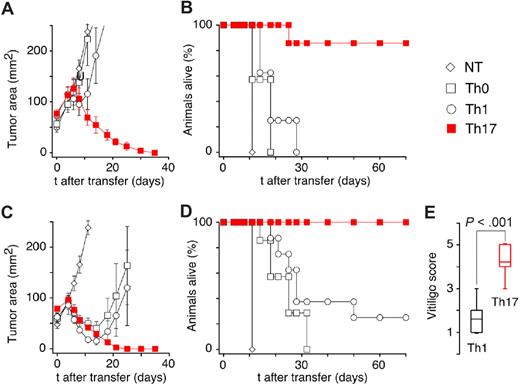

To determine whether the striking differences that we observed in vitro would translate into different efficacy after adoptive transfer in vivo, we treated B16-bearing C57BL/6 mice with adoptively transferred Th0, Th1, or Th17 cells. To mimic a clinically relevant scenario, we allowed the tumor to grow for 10 to 12 days before treatment. Surprisingly, only Th17-skewed cells mediated a significant (P = .001 vs Th0- and Th1-treated groups) tumor regression (Figure 4A) leading to a complete cure and the long-term survival (Figure 4B). In a parallel experiment, we added a potent adjunct regimen consisting of intraperitoneal dose of a recombinant vaccinia vaccine (rVV) encoding TRP-1 peptide given together with IL-2. Without coadministration of specific T cells, this combination does not cause any significant inhibition of melanoma growth. Despite initial tumor shrinkage (Figure 4C), all animals injected with Th0 cells relapsed and eventually had to be killed because of melanoma progression. Similarly, most of the mice treated with Th1 effectors had to be killed because they developed relapsing disease and only a minority survived long-term (Figure 4D). In contrast, animals treated with Th17-polarized TRP-1 T lymphocytes swiftly rejected tumors and remained tumor-free (Figure 4D). Long-term surviving mice developed vitiligo in both Th1- and Th17-treated groups, but the severity of this autoimmune manifestation was far greater in the Th17-treated animals (Figure 4E). Overall, the Th17-polarized TRP-1 CD4⁺ lymphocytes conferred the most effective response against large B16 tumor upon adoptive cell transfer, and more importantly, they did not require coadministration of exogenous IL-2 or antigen-specific vaccination. This result was unexpected and contrary to our initial speculation that Th1-polarized cells would mediate a more potent antitumor effect, as this subtype was able to secrete the highest quantities of IFN-γ, a molecule classically linked to tumor rejection.

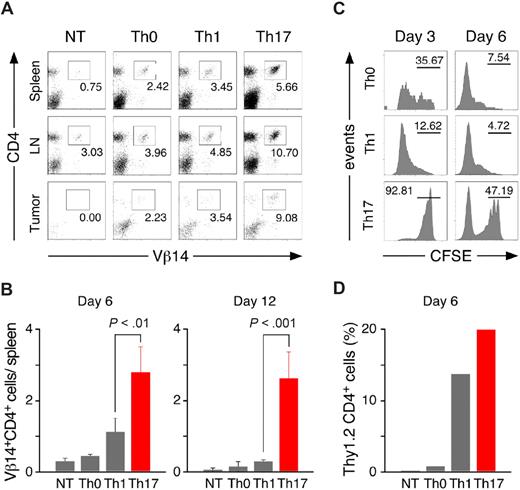

To better understand the differences in treatment outcomes between the groups, we analyzed spleens, lymph nodes, and tumors 6 and 12 days after treatment for the presence of adoptively transferred effector cells. Flow cytometry revealed the highest frequency of Vβ14⁺ CD4⁺ T cells in organs harvested from the Th17 group (Figure 5A). The absolute numbers of Vβ14⁺ CD4⁺ splenocytes recovered after transfer from Th17-treated animals were consistently the highest, indicating persistence and/or proliferation advantage of cells polarized with TGF-β and IL-6 over the other subtypes (Figure 5B). In animals treated with Th0 or Th1 cells, the numbers of Vβ14⁺ CD4⁺ T cells recovered on day 12 were at the level of the background found in untreated C57BL/6 animals. Even more pronounced differences in the persistence of Th0-, Th1-, and Th17-skewed TRP-1 cells were observed after transfer into tumor-bearing RAG1^−/− mice devoid of other T cells with strikingly high frequency of Vβ14⁺ CD4⁺ cells in the tumor-draining lymph nodes (Figure S5).

To further evaluate this phenomenon, we transferred CFSE-labeled polarized TRP-1 cells (Thy 1.2) into B6.PL hosts (Thy1.1). By the third day, most of the Th1 TRP-1 cells found in the spleens have already divided as evidenced by a decrease in their fluorescence intensity, while a majority of Th17-polarized cells retained CFSE labeling (Figure 5C). This difference was even more pronounced by the sixth day, when almost the entire Th1 population was CFSE^low. In contrast, Th17 cells retained more fluorescent dye, suggesting that their enhanced ability to persist was due to a survival advantage rather than to increased proliferation. Moreover, the frequency of Thy1.2 cells recovered from the tumor-draining lymph nodes was higher in mice treated with Th17-skewed lymphocytes than in other groups (Figure 5D). Therefore, improved persistence might be one of the key reasons for better in vivo antitumor efficacy of transferred Th17 population, and the failure of Th1 to control the disease might be due to inability to persist and expand despite the higher ability to secrete IFN-γ in vitro.

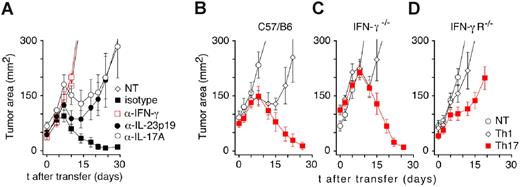

Because the Th17-polarized TRP-1 cells were the most effective in mediating tumor rejection, we hypothesized that proinflammatory IL-17A might be an important factor in this process. To test this assumption, we treated animals with Th17 T cells and subsequently injected them with neutralizing anti–IL-17A antibodies. In the same experiments, other groups received monoclonal neutralizing antibodies against IFN-γ or IL-23, which is known to support the survival of Th17 T lymphocytes. Unexpectedly, tumor rejection was completely inhibited only by anti–IFN-γ treatment. The effect of in vivo neutralization of IL-17A and IL-23 (Figure 6A) did not reach statistical significance (P > .05 vs Th17 isotype control). In other experiments, even the combination of anti–IL-17A and anti–IL-23 neutralizing antibodies did not consistently impair the treatment efficacy of Th17-skewed TRP-1 cells (data not shown).

To further evaluate the role of IFN-γ in our model, we compared treatment outcomes in tumor-bearing wild-type (C57BL/6), IFN-γ deficient (IFN-γ^−/−) mice, and IFN-γ receptor–deficient (IFN-γR^−/−) animals. Therapy with Th17-polarized cells was equally effective in both WT (C57BL/6) and IFN-γ^−/− hosts (Figure 6B-C), while tumor growth in IFN-γR^−/− mice was only minimally delayed, and all treated animals were killed due to the progressive disease (Figure 6E). The latter findings suggested that the IFN-γ secreted by transferred cells was sufficient to mediate treatment, as long as the tumor-bearing host was sensitive to IFN-γ.

This paper describes a new model for the treatment of large poorly immunogenic melanoma based on the adoptive transfer of TCR transgenic CD4⁺ T cells specific for the shared self-/tumor antigen TRP1. Using this murine model, we assessed the therapeutic efficacy of various CD4⁺ T cell subsets—specifically Th1, Th17, and Th0—generated in vitro under well-established polarizing conditions.

Th1 cells are considered the most important CD4⁺ T-cell subset for tumor rejection because of their marked ability to release IFN-γ and to orchestrate type 1 innate and adaptive responses. IFN-γ is well established as a key factor determining rejection of solid tumors and is important for cytotoxic function of CD8⁺ T cells.⁶⁰  It has direct proapoptotic and antiangiogenic effects, activates innate immunity, and up-regulates expression of MHC molecules on the tumor increasing their immunogenicity and susceptibility to immune-mediated lysis.^23,61,62  In the case of the B16 melanoma, IFN-γ potently induces MHC class I and class II molecules, which are normally expressed at very low levels.⁶¹  Despite robust IFN-γ production, Th1-polarized TRP-1 cells were found to be less effective than Th17-skewed population in eliciting tumor rejection in our model. Surprisingly and somehow counterintuitively, we found that Th17-mediated tumor responses were highly dependent on IFN-γ–based mechanisms. Indeed, the effects of Th17-polarized cells were completely abrogated by the administration of IFN-γ–depleting antibodies.

The tumor-eradicating population we describe in the present paper is highly skewed toward Th17 cells. This is evidenced by the specific release of IL-17A, as well as other cytokines characteristic of Th17 including IL-21, IL-17F, IL-22, and CCL20. It should be noted that programming CD4⁺ T cells under the influences of IL-6 and TGF-β did not completely abolish the capacity to secrete IFN-γ by CD4⁺ T cells in our experiments, and the cells described here have some degree of heterogeneity. This is in accordance with other reports describing Th17 polarization.^63-66  It is not clear whether the production of IFN-γ by Th17-skewed cells is part of the evolution of the T-cell subset in vivo or whether IFN-γ is produced by a preformed Th1-like component that subsequently expands and causes tumor rejection. What is clear is that polarization toward high IFN-γ–producing Th1-skewed T cells is less effective in this tumor treatment model. The experiment that would rigorously test the activities of pure IL-17–producing cells within the Th17-polarized population would likely involve a knockin mouse with a fusion protein composed of IL-17 and a fluorescent protein, such as those mice bred by Rudensky and colleagues (Fontenot et al⁶⁷ ) for FoxP3 to identify living T_regs. Such a mouse would enable us to sort viable IL-17–producing cells for in vitro and in vivo experiments. Some clarity could theoretically be also brought to our model using ROR-γt– or T-bet–deficient effector cells, which by default are not able to polarize in a certain directions. Unfortunately, the genetic knockout approach not only eliminates any potential for plasticity in the polarized population, but more importantly can be associated with severe developmental abnormalities of the immune system (eg, ROR-γt deficiency).^68,69  Moreover, initial efforts in the clinical/translational setting are likely to use polarized cells, which will likely be composed of an admixture of Th subtypes capable of evolving after transfer into the host.

The roles of Th1 and Th17 cells in mouse models of autoimmune disease have recently been reviewed.³³  The genetic elimination of Th1-defining transcription factor T-bet appears to be protective against the development of autoimmunity in some models involving Th17 responses,^70-73  while in some other models removal of this transcription factor exacerbated end-organ damage.⁷⁴  In one report, in vivo silencing of T-bet caused inhibition of both Th1 and Th17 pathogenic cells, the latter due to down-regulation of IL-23 receptor.⁷¹  Furthermore, overexpression of IL-23 in a mouse tumor model led to the generation of CD4-dependent antitumor responses involving both IL-17 and IFN-γ.^33,75  Emerging data indicate that Th17-mediated responses might undergo evolution, with the initial phase dominated by proinflammatory IL-17 secretion followed by a gradual increase of IFN-γ production.^65,76  Moreover, recent reports indicate that various cytokines (IL-1α, IL-21, IL-23) might be used for generating Th17 cells in vitro,^58,77-80  and the resulting populations might vary in their biologic properties, plasticity, and the ability to secrete cytokines, including IL-10 or IFN-γ. Further studies using the TRP-1 model described in the present paper might enable the delineation of the molecular components of Th1 and Th17 antitumor immunity.

Analysis of the expansion of adoptively transferred cells clearly showed that Th17-skewed population proliferated less intensely than Th1 cells, but Th17-programmed TRP-1 cells likely had a survival advantage as they were consistently recovered in larger numbers. Some publications have demonstrated that RORγt, a key transcription factor of Th17 differentiation,⁶⁶  elicits an antiproliferative and antiapoptotic influence in thymocytes via bclX_L up-regulation.^68,69,81,82  Conversely, T-bet might impair the long-term persistence of T cells, while promoting their short-term proliferation ability.⁸³  Another factor potentially contributing to the increased survival and functionality of Th17 population is their ability to consistently secrete higher quantities of IL-2, possibly making their therapeutic effect independent from the administration of exogenous cytokines. Th1-skewed T cells might be susceptible to self-suppression by high quantities of secreted IFN-γ and IL-10, which down-regulate type 1–related responses in an autocrine and paracrine negative feedback loop that limits excessive tissue damage during immune response against pathogens.^84,85  Even though IL-10 had been initially described as a primarily Th2-type cytokine, it is now clear that it is produced by many types of cells (dendritic cells [DCs], macrophages, B cells, CD4⁺ and CD8⁺ T cells). Indeed, IL-12–induced Th1 lymphocytes may be the major source of IL-10 in vivo,⁸⁶  and neutralization of IL-10 might be one of the strategies leading to improvement in efficacy of adoptive cell transfer therapy.

In addition to enhanced persistence, other features of Th17 cells may be responsible for their superior anticancer activity. These characteristics include alterations in trafficking patterns, as suggested by the expression of adhesion molecules and MMPs, as well as the ability to produce multiple other homeostatic and proinflammatory cytokines or chemokines, not evaluated in our work, such as IL-9, IL-17F, IL-21, CCL20 (MIP3α), or IL-22. Interestingly, IL-22 has been implied in mediating pathological changes in psoriasis,⁸⁷  but in some other models it has been nonessential or even associated with protective effect against the autoimmune end-organ damage.^88,89  The function of each of these factors in immunity against cancer remains to be elucidated.

The role of polarization-defining IL-17A also remains unclear in our model. IL-17A has been thought to impair immune surveillance and promote tumor growth by several mechanisms,^42,43,90  and Th17 cells have been detected in both murine and human cancers.^37,38  We did not observe tumor growth acceleration after transfer of large numbers of Th17-polarized cells with defined tumor specificity. On the other hand, our attempts at depleting IL-17A as well as IL-23 in vivo yielded only partial and inconsistent results, perhaps due to incomplete effect of the monoclonal antibodies used. IL-17A might deliver a secondary or redundant proinflammatory stimulus or might be a mere cytokine marker of cells programmed with TGF-β and IL-6, which acquire a distinct set of biologic abilities, leading to a greater antitumor potential. It is also quite possible that cancer-promoting and antitumor effects of proinflammatory environment may not necessarily be mutually exclusive, but perhaps might depend on the timing and context as clearly shown in the work of Kryczek et al where dynamic changes between Th17 and Foxp3⁺ T cells were found in the tumor microenvironment.³⁸

In summary, we have demonstrated Th-mediated treatment of large, established solid tumors, where the target is an unmodified self-/tissue differentiation antigen relevant to human disease. For the first time, we compared the therapeutic potential of Th0-, Th1-, and Th17-polarized effectors and unexpectedly found the Th17-skewed cells to be the most effective, although Th1 cells secreted the highest quantities of IFN-γ, a molecule that was indispensable in this model. Our findings indicate that tumor-specific CD4⁺ T cells might be strikingly efficient in mediating the anticancer effect in the absence of antigen-specific vaccination and exogenous administration of IL-2. Importantly, the in vitro programming conditions were crucial for the successful function of the effector cells after adoptive transfer into tumor-bearing host. It is likely that our observations are relevant not only to solid tumors, but to hematologic malignancies as well. Clinical trials comparing various subtypes of tumor-specific T cells can be conducted using lymphocytes genetically engineered to express the appropriate TCR or chimeric receptor. Therefore, proper polarization might be of particular importance for the design of adoptive cell transfer–based immunotherapies of human tumors, where the requirements for the generation of Th17 cells have recently been elucidated.^91-93
