Histone hyperacetylation within the β-globin locus is context-dependent and precedes high-level gene expression

A crucial feature of gene activation is the interaction between transcription factors and chromatin. All eukaryotic genomic DNA, with limited exceptions, is packaged with core histones to form chromatin. The fundamental subunit of chromatin is the nucleosome, consisting of approximately 147 bp of DNA wrapped in approximately 1.75 turns about an octamer of core histones; a variable length of linker DNA extends between nucleosomes and can in turn be partially sequestered by interactions with core histone amino-terminal “tail” regions and/or linker histones, such as histone H1. The resulting structure, when observed on low-salt spreads by electron microscopy, has been termed “beads on a string” based on its appearance.^1,2  At physiologically relevant salt concentrations, however, this structure spontaneously condenses, first to a helical array of nucleosomes termed the 30-nm fiber, then through additional levels of higher-order structure, which are not well understood.³  Nevertheless, this packaging renders the eukaryotic DNA relatively inaccessible to transcription factors.^4-6

The transcriptional machinery possesses mechanisms for modulating chromatin structure. One of these is covalent modification of core histones, including acetylation, methylation, phosphorylation, ubiquitylation, SUMOylation, and ADP ribosylation, in short, the gamut of modifications known to occur on cellular proteins. Different modifications can lead to different functional consequences. Histone acetylation is associated with transcriptional activation; indeed, core histones proximal to active gene promoters are universally hyperacetylated.^7,8  Histone methylation can be associated with activation or repression, depending on the exact residue modified; methylation of lysine 4 of histone H3 is, like hyperacetylation, associated with active promoters, whereas methylation of lysine 9 of histone H3 localizes with repressive heterochromatin.^9,10  Different histone modification patterns can stabilize or destabilize the interaction of transcription factors and thus mediate functional effects.

The transcriptional regulation of the β-globin genes has been the subject of intense study for several decades. The mammalian β-globin genes are confined to a single cluster and are expressed exclusively in erythroid cells. High-level β-globin gene expression requires sequences located 5′ of the genes and termed the locus control region (LCR).¹¹  Expression from within the cluster is developmentally regulated. Initially during embryogenesis, immature primitive erythroblasts derived from the yolk sac enter the bloodstream as nucleated cells and differentiate as a semisynchronous cohort.¹²  Subsequently, definitive erythrocytes, having matured and enucleated within the fetal liver or postnatal marrow, enter the circulation. Corresponding to these changes, mammals undergo a switch in globin gene expression on the transition from primitive to definitive erythropoiesis, and some, including humans, have fetal-specific β-globin genes as well.^13-15

Active β-globin gene promoters in erythroid cells are, as expected, associated with nucleosomes that exhibit hyperacetylation and dimethylation at histone H3K4. Within this locus, however, these modifications are not confined to promoter-proximal regions; each of the active genes resides within blocks of 11 to 12 kb or more within which all sequences are associated with hyperacetylated histones.^15,16  We term these regions “hyperacetylated domains,” although additional modifications, such as H3K4 dimethylation, comap with histone acetylation.¹⁷

Genome-wide studies of histone modifications have demonstrated that hyperacetylated domains are not a general phenomenon.^18,19  To date, all known examples of hyperacetylated domains occur over highly expressed, tissue-specific genes, most of which are also known to be controlled by distal enhancers.^17,20  Within transgenic human growth hormone loci, for example, mutation of a pituitary enhancer approximately 15 kb 5′ of the genes eliminates transcription and the hyperacetylated domain.²¹  In another study, histone modifications at the λ5/VpreB1 locus, active in pre-B lymphocytes, were monitored in cell lines modeling different stages of differentiation. When the genes were maximally active in pre-B cells, they were also located within a hyperacetylated domain. Interestingly, histone hyperacetylation in embryonic stem (ES) cells was limited to a regulatory element located between the 2 genes; in cell lines modeling later stages of differentiation, the region associated with hyperacetylation appeared to spread outward from this site.²²

Other than this correlation with tissue-specific gene activation by distal regulatory elements, our understanding of the formation and function of hyperacetylated domains is limited. We have therefore further examined the hyperacetylated domains that form within the murine β-globin locus in erythroid cells. Our results indicate that domain formation precedes both high-level β-globin expression and commitment to the erythroid lineage, suggesting that they are not a consequence of transcription but instead precede it. Deletions of the β-globin LCR or of individual β-globin gene promoters do not eliminate the domains, implying that DNA sequence requirements for domain formation reside elsewhere. On the other hand, we show that the embryonic β-globin gene promoters are required for suppression of domain formation over the embryonic genes in definitive erythroid cells, where these genes are normally silenced. We also demonstrate that histone hyperacetylation over at least some regions of the locus is not an intrinsic function of DNA sequences within these regions but depends on the presence of other sequences or on relative position within the locus. Coupled with the observation that inhibition of RNA polymerase II elongation has no effect on maintenance of histone hyperacetylation, our work narrows the range of potential models for domain formation and provides support for a mechanism involving spreading of the histone modification signature from specific sequences.

Cell lines were maintained at 37°C in a 5% CO₂-humidified atmosphere. MEL745a cells were cultured in Dulbecco modified Eagle medium containing 10% fetal bovine serum, 1% Glutamax (Invitrogen), and 1% penicillin/streptomycin. For induction, 2% dimethyl sulfoxide (Sigma-Aldrich) was added to the culture medium. Factor-dependent cell Paterson mixed potential cells (FDCP-Mix) were cultured in Iscove modified Dulbecco medium with 20% horse serum (Invitrogen), 1% Glutamax, 1% penicillin/streptomycin, and 10 ng/mL murine IL-3 (PeproTech).

Murine ES cells were differentiated into embryoid bodies (EBs) as previously described.²³  At day 2, 4, 6, and 8 of differentiation, EBs were dissociated with trypsin (Invitrogen) to give single-cell suspensions. These cells were harvested for RNA, chromatin immunoprecipitation assay (ChIP), cell counts, and benzidine staining. Details of these protocols are listed in “Benzidine staining of EBs,” “Quantitative RT-PCR,” and “ChIP.”

Mice were mated overnight and the vaginal plug verified the next morning indicating E0.3. At E12.5 and E14.5, pregnant mice were killed by cervical dislocation for collection of embryonic blood and fetal liver.^12,15  Animal experiments were approved by the University Committee on Animal Resources at the University of Rochester.

To identify heme-containing cells, trypsinized EBs were stained with benzidine dihydrochloride (Sigma-Aldrich) as described²⁴  and counted on a hemocytometer (VWR International).

RNA was isolated using TRIzol (Invitrogen) according to manufacturer recommendations. A total of 1 μg RNA was used to synthesize cDNA using the iScript cDNA synthesis kit (Bio-Rad). Reverse transcription (RT) was also performed without enzyme as a negative control. Primers used amplified ϵy-, βh1-, and combined β1- and β2-globin cDNAs. QuantiTect Primers (QIAGEN) for 18S mRNA were used as an internal control. cDNA was amplified using iQ SYBR green supermix (Bio-Rad) and detected using the MyiQ Single Color Real Time PCR detection system and iCycler (Bio-Rad).

Cells were formaldehyde crosslinked, sonicated and immunoprecipitated, and DNA isolated as previously described.^16,25  Cells were washed with phosphate-buffered saline and crosslinked at room temperature in 10 mL volume containing 1% formaldehyde. After addition of 0.5 mL of 2.5 M glycine and a phosphate-buffered saline wash, cells were resuspended in 3 mL and sonicated for a total of 80 seconds using a Misonix Sonicator 3000 at 36 to 39 W output. An “input” fraction was then removed to serve as a control. Antibodies used for immunoprecipitation were (1) normal rabbit IgG (Upstate-Millipore) as a control; (2) antihistone H3 acetylated at K9 and/or K16 (Upstate-Millipore); (3) antihistone H4 acetylated at K5, K8, K12, and/or K16 (Upstate-Millipore); (4) antihistone H3 dimethylated at K4 (Upstate-Millipore and Abcam); (5) antihistone H3 trimethylated at K4 (Upstate-Millipore); and (6) anti-RNA Pol II (Santa Cruz Biotechnology). Analysis was performed using quantitative polymerase chain reaction (PCR) in “Quantitative RT-PCR.” Primers were designed to amplify regions within the murine β-globin locus, and regions within loci that are inactive in erythroid cells as controls, including amylase, protamine, and T-cell receptor β-chain. Primers and calculation of enrichments were described previously.¹⁵  Error bars represent the SEM from a minimum of 3 independent ChIP experiments. Some enrichment and SEM bars were truncated to demonstrate the significance of lower enrichment levels. These exact numerical values are listed in supplemental Table 1 (available on the Blood website; see the Supplemental Materials link at the top of the online article).

Hyperacetylated domains, each of which is at least 10 kb in extent, encompass the expressed β1- and β2-globin genes in definitive erythroid cells from adult mice.¹⁶  In primitive erythroid cells, where both the adult genes (at low levels) and the embryonic ϵy- and βh1-globin genes are expressed, the individual β1- and β2-globin domains are present, whereas the ϵy- and βh1-globin genes reside within a distinct hyperacetylated domain of more than 19 kb.¹⁵  In these studies, histone modifications were assayed using spleens from anemic adult mice or circulating primitive erythroblasts, both of which consist primarily of late-stage erythroid cells expressing high levels of β-globins.

To assay for hyperacetylated domain formation before high-level β-globin gene expression, we used murine erythroleukemia (MEL) cells. Under normal conditions of cell culture, MEL cells express low levels of the adult β1- and β2-globin genes. When cultured in media containing 2% dimethyl sulfoxide (DMSO), however, MEL cells terminally differentiate, ceasing to proliferate and becoming visibly smaller and red with hemoglobin, reflecting an increase of 75- to 150-fold in adult globin mRNA levels (Figure 1A-B).

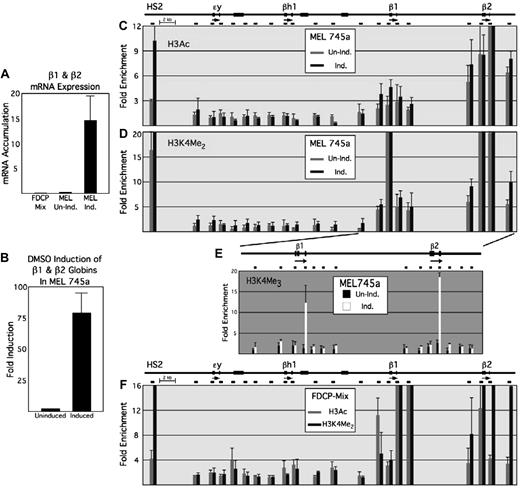

We analyzed histone acetylation and H3K4 dimethylation within the β-globin locus in MEL cells by ChIP before and after differentiation in 2% DMSO (Figure 1C-D). Under both conditions, the pattern of histone modifications across the region containing the adult globin genes was similar to that observed in definitive erythroid cells from fetal liver, with domains of hyperacetylation and H3K4 dimethylation extending across approximately 10 kb encompassing either gene. Notably, with the exceptions of the gene promoters, we observed no significant change in histone modifications on induction of terminal differentiation, despite the increase in expression of these genes.

Lysines can be monomethylated, dimethylated, or trimethylated; and for histone H3K4, these methylation states occur with different patterns across the genome and active gene loci.^9,10  Previously, we have examined solely H3K4 dimethylation, so we determined the pattern of H3K4 trimethylation across the β-globin locus in MEL cells. Unlike the dimethyl H3K4 pattern, we find significant levels of H3K4 trimethylation only within the transcribed regions of the β1- and β2-globin genes, and then only in DMSO-induced MEL cells (Figure 1E). Uninduced MEL cells, expressing low levels of β-globin, show minimal H3K4 trimethylation even within the genes. Probes located at the promoters or downstream of the genes, or anywhere else in the locus, do not exhibit this modification. This indicates that hyperacetylated domains are associated specifically with dimethyl H3K4.

In addition to MEL cells, we have examined histone modifications in FDCP-Mix, a murine bone marrow-derived cell line that is commonly used as a model for multipotential myeloid progenitors.²⁶  These cells are not committed to differentiation along a particular pathway, and can be induced to differentiate into a variety of myeloid cell types, including erythroid; β-globin expression in these cells is extremely low (Figure 1A). In these cells, under nondifferentiating conditions, we again observe hyperacetylated domains over the regions containing the adult β-globin genes (Figure 1F) that do not differ significantly from those observed in primary erythroid cells or MEL cells (Figure 1E). Taken together, these observations suggest that domain formation is independent of high-level β-globin gene expression and indeed precedes commitment to the erythroid lineage.

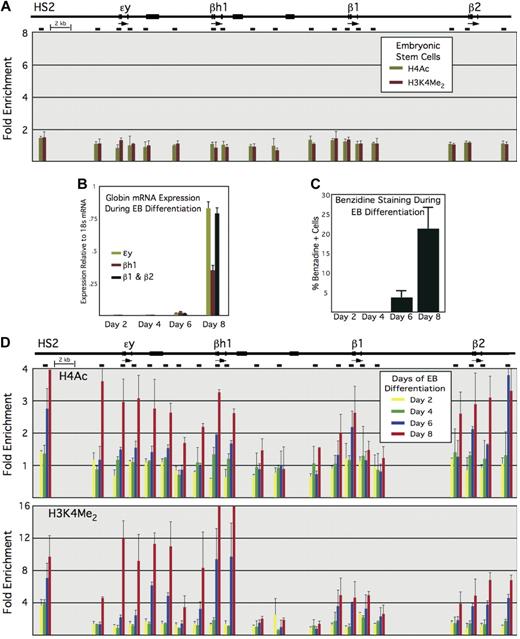

In murine ES cells, we do not observe appreciable enrichments for histone hyperacetylation or H3K4 dimethylation anywhere within the β-globin locus (Figure 2A), indicating that the hyperacetylated domains that form over the LCR and the active β-globin genes are established at a specific stage of development and/or differentiation. To examine this in more detail, we performed in vitro differentiation of murine ES cells by culturing them in suspension, which results in the formation of EBs.²³  Over time in suspension culture, hematopoietic cells begin to appear in differentiating EBs, with benzidine-positive (heme-containing) cells and β-globin mRNA first evident at day 6, albeit at very low levels, and then prevalent by day 8, with nearly 25% of all cells staining benzidine-positive (Figure 2B-C). We similarly find that histone hyperacetylation and H3K4 dimethylation are first evident within the β-globin locus at day 6, when β-globin expression is first detectable (Figure 2D). The data are roughly consistent with results from the MEL and FDCP-Mix cell lines, in that histone hyperacetylation, and by extension domain formation, appear to precede full β-globin expression.

The β-globin LCR is a broadly distributed (25-30 kb) set of regulatory sequences located upstream of the gene cluster. Deletion of this region from the endogenous mouse β-globin locus results in a 25- to 100-fold reduction in β-globin gene expression.¹¹  The LCR is not continuous with the hyperacetylated domains encompassing the adult β-globin genes but does appear to be continuous with the hyperacetylated domain encompassing the embryonic β-globin genes in primitive erythroblasts. Prior studies have shown that deletion of the LCR has no effect on histone modifications at the active β-globin gene promoters,²⁵  but the effect of the LCR deletion on the formation of hyperacetylated domains has not previously been determined.

We examined histone modifications across the β-globin locus in mice homozygous for the LCR deletion; this deletion is lethal in mice but is rescued by a transgenic human β-globin locus.^11,27  ChIP assays were performed using E12.5 embryonic blood (Figure 3A) and E14.5 fetal liver (Figure 3B), representing primitive and definitive erythroid cells, respectively. On β-globin alleles lacking the LCR, histone hyperacetylation and H3K4 dimethylation occur in domains encompassing both the embryonic ϵy- and βh1-globin genes and the adult β1- and β2-globin genes in primitive erythroid cells. In definitive erythroid cells, only the domains encompassing the β1- and β2-globin genes are present.

These patterns of histone modification are similar to those observed at the wild-type β-globin locus (Figure 3), suggesting that the LCR is not required for domain formation over any of the β-globin genes. Notably, however, probes that are normally interposed between the LCR and the ϵy-globin gene are not hyperacetylated in the absence of the LCR in either primitive or definitive erythroid cells (Figure 3). This region exhibits hyperacetylation and H3K4 dimethylation at both developmental stages in the wild-type allele, suggesting that histone modifications associated with these sequences are LCR-dependent. Furthermore, sequences located between the LCR and the ϵy-globin gene are apparently not part of the hyperacetylated domain encompassing the embryonic β-globin genes in primitive erythroblasts, and are part of a distinct domain that includes the LCR.

Based partly on the absence of a role for the LCR, we hypothesize that DNA sequences required for the formation of hyperacetylated domains will reside within or at the boundaries of the domains themselves. The β-globin gene promoters are the most obvious candidate sequences. As such, we examined histone modifications across β-globin loci harboring deletions of the embryonic β-globin gene promoters.

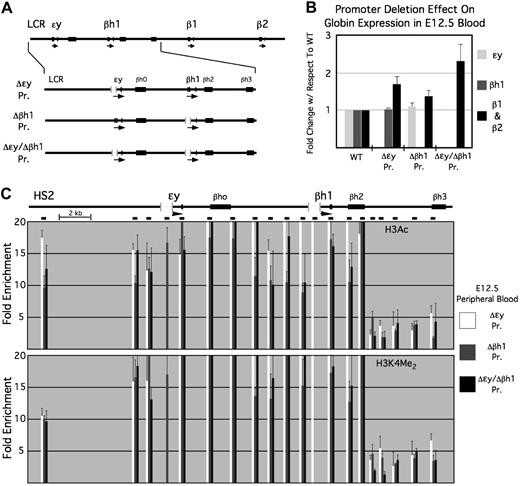

Targeted deletion of the ϵy- and βh1-globin gene promoters, alone and in combination, has been performed previously^28,29  (Figure 4A). In agreement with these studies, we find that each promoter deletion eliminates expression of the corresponding β-globin gene, but expression of the other globin genes is either not affected (ϵy in the βh1 promoter deletion, βh1 in the ϵy promoter deletion), or slightly affected (β1/β2 expression in the ϵy/βh1 double promoter deletion) (Figure 4B).

We performed ChIP analysis of these β-globin alleles using E12.5 circulating primitive erythroblasts to evaluate the hyperacetylated domain encompassing the embryonic β-globin genes. The pattern of histone modifications is identical to the unaltered locus in both single promoter deletions as well as the double deletion (Figure 4C-D); all probes from approximately 2 kb 5′ of the ϵy-globin promoter to approximately 2 kb 3′ of the βh1-globin gene exhibit histone hyperacetylation and H3K4 dimethylation. These results suggest that neither the embryonic β-globin gene promoters nor transcription of either gene is necessary for domain formation.

In definitive erythroid cells, the embryonic β-globin genes are transcriptionally inactive, and the hyperacetylated domain that encompasses these genes in primitive erythroblasts is absent. Incubation with histone deacetylase inhibitors, however, results in an increase in histone H4 acetylation levels over the embryonic genes, implying that deacetylases are actively recruited to the region.³⁰  Because the promoters are known to be sufficient for embryonic β-globin gene silencing in definitive erythroid cells, we examined histone modifications across the β-globin locus in fetal liver from mice harboring deletions of the embryonic gene promoters.

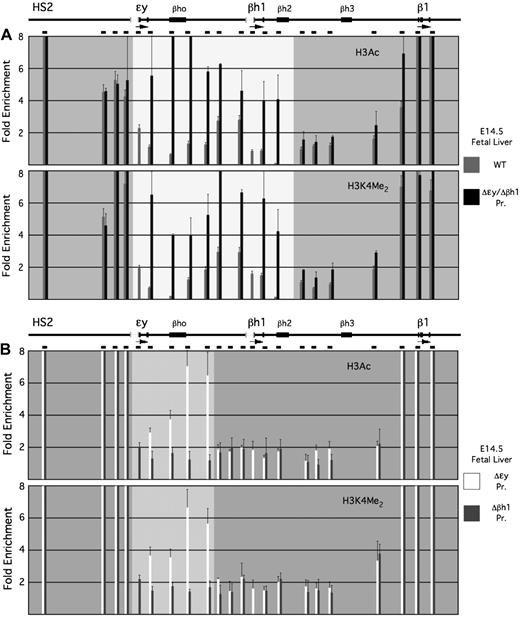

Deletion of both embryonic gene promoters results in the establishment of the hyperacetylated domain, normally specific to primitive erythroblasts, in definitive erythroid cells derived from fetal liver (Figure 5A). Histone hyperacetylation and H3K4 dimethylation are increased throughout the embryonic domain, and the effect is specific to this region because significant changes in histone modifications are not observed elsewhere in the locus. Thus, although the promoters are not required for formation of the embryonic domain in primitive erythroid cells, they are required for suppression of domain formation in definitive erythroid cells.

Deletions of individual embryonic β-globin promoters exhibit distinct phenotypes in definitive erythroid cells (Figure 5B). We observe no significant changes in histone hyperacetylation or H3K4 dimethylation on the allele lacking the βh1-globin promoter, indicating that the ϵy-globin promoter is sufficient to suppress domain formation. Deletion of the ϵy-globin promoter alone, however, does not have the same effect as deletion of both promoters; on this allele, significant enrichments for histone hyperacetylation and H3K4 methylation extend from the ϵy-globin gene to 7 to 8 kb 3′ of the deletion, and no further. This partial restoration of the domain suggests that the βh1-globin promoter suppresses domain formation in definitive erythroid cells, even though its deletion has no effect by itself.

The mouse β-globin allele on which the embryonic β-globin promoter deletions were performed contains an additional gene, βh0, downstream of ϵy-globin. In primitive erythroblasts, βh0 is up-regulated on deletion of the ϵy-, but not the βh1-globin, promoter, which probably reflects transcriptional interference from the ϵy-globin gene.²⁹  In definitive erythroid cells, however, we cannot detect βh0 expression from the allele lacking the ϵy- and βh1-globin gene promoters (data not shown), indicating that domain formation is insufficient for βh0 expression and that βh0 transcription is still suppressed by other mechanisms. This also demonstrates that domain formation is not a consequence of transcription of any of the embryonic β-globin genes.

In considering mechanisms by which a hyperacetylated domain might form, it is possible that all sequences within a domain comprise regulatory regions that recruit histone-modifying complexes; we term this mechanism “mass action.” Histone hyperacetylation and H3K4 dimethylation associated with sequences located between the LCR and the ϵy-globin gene, however, require the presence of the LCR (Figure 3), arguing against this model.

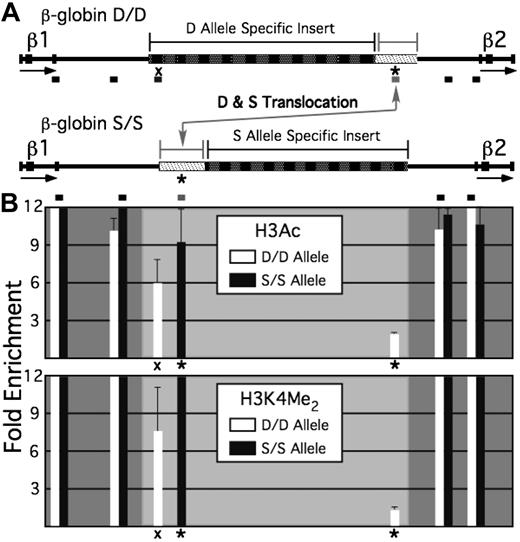

In addition, we tested the “mass action” model by comparison of the naturally occurring D and S alleles of the β-globin locus in mice. Restriction site polymorphisms between these alleles have been used previously to distinguish between transcripts originating from D versus S β-globin loci.¹¹  Such polymorphisms occur within noncoding regions as well, and repetitive sequences (eg, LINE and SINE) occur with different patterns. In particular, a 6-kb insertion is present in the D allele between the β1- and β2-globin genes; this insertion is not present in the S allele, which instead harbors a different insertion between the β1- and β2-globin genes of 7 kb. The insertion sites on the 2 alleles are not identical, resulting in a different location, relative to the 2 adult β-globin genes, for a region of approximately 1.4 kb of unique sequence; this region is located closer to the β2-globin gene on the D allele and closer to the β1-globin gene on the S allele (Figure 6A).

ChIP analysis of the D and S alleles shows that chromatin within this region is differentially modified (Figure 6B). On the D allele, this sequence is located approximately 2 kb 5′ of the β2-globin gene promoter and approximately 10 kb 3′ of the β1-globin gene. In this position, it does not exhibit histone hyperacetylation or H3K4 dimethylation; it is apparently too far 3′ of the β1-globin domain and outside the 5′ boundary of the β2-globin domain. On the S allele, this sequence is located 3 to 4.4 kb 3′ of the β1-globin gene and 8.2 to 9.6 kb 5′ of the β2-globin gene. In this position, it exhibits histone hyperacetylation and H3K4 dimethylation as part of the β1-globin hyperacetylated domain. These data suggest that histone hyperacetylation in erythroid cells is not an intrinsic function of this sequence but is position-dependent and directed by neighboring sequences.

If the modification state associated with some sequences within the domain is not intrinsic to those sequences, it follows that it is a consequence of regulatory phenomena that originate elsewhere and establish a chromatin modification pattern that then spreads to include these sequences. Among potential “spreading” models for domain formation, an attractive possibility involves elongation by RNA polymerase II. This model originates from 2 observations: (1) at the human β-globin locus, and elsewhere, transcription is not limited to the genes but occurs throughout intergenic regions as well, although the function of such transcription is unknown^31-34 ; (2) histone acetyltransferases and methyltransferases interact with elongating RNA polymerase II.^35,36  Thus, hyperacetylated domains could form via transcriptional elongation within the β-globin locus. Previously, however, it has been demonstrated that incubation of MEL cells in dichloro-1-beta-D-ribofuranosyl benzimidazole (DRB), an inhibitor of RNA polymerase II elongation, has no effect on histone modifications over the β1-globin gene in MEL cells.³⁷

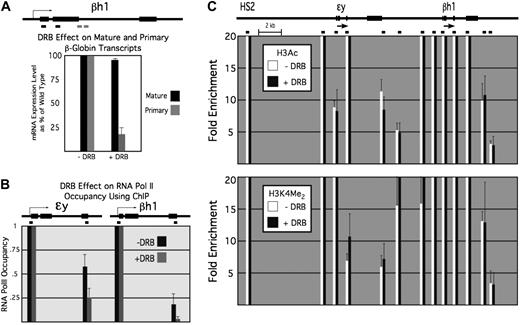

To extend this observation, we isolated E12.5 mouse embryonic blood, which consists almost exclusively of primitive erythroid cells, and incubated them in DRB. Under these conditions, primary βh1-globin transcript levels decreased drastically, whereas mature (spliced) transcript levels were unaffected, as expected given the stability of mature β-globin mRNA (Figure 7A). Occupancy of the β-globin promoters by RNA polymerase II was unaffected, as demonstrated by ChIP, but polymerase levels were reduced within the ϵy- and βh1-globin genes, as expected in the absence of elongation (Figure 7B).

Under these conditions, we observed no significant change in histone hyperacetylation or H3K4 methylation across the embryonic domain, compared with cells in the absence of DRB (Figure 7C). Given the dynamic nature of histone acetylation, this suggests that maintenance of the hyperacetylated domain does not require elongation by RNA polymerase II, and thus that the histone modification pattern characteristic of the hyperacetylated domain spreads by a distinct mechanism.

Based on genome-wide studies of histone modifications in mammalian cells, hyperacetylated domains seem to occur over a small proportion of active gene loci, at least in the cell types examined so far.^18,19  As a general rule, histone hyperacetylation and H3K4 dimethylation occur at active gene promoters, with modification levels returning to background within a few hundred base pairs to either side, suggesting that only the most proximal nucleosomes are modified.^18,19,35  Among published examples of hyperacetylated domains, all are associated with tissue-specific genes under the control of distal regulatory elements, such as enhancers. Perhaps the most striking example of this specificity is provided by the mammalian α-globin gene cluster. This locus is embedded within a region containing several genes that are constitutively expressed in a wide range of tissues. Despite this arrangement, a hyperacetylated domain forms only in erythroid cells, encompassing the α-globin cluster and regulatory elements located within the introns of a neighboring gene.³⁸

The models provided by the MEL and FDCP-Mix cell lines suggest that the hyperacetylated domains within the β-globin locus in erythroid cells are established well before high-level transcription occurs, and even before commitment to the erythroid lineage. This argues against a mechanism in which hyperacetylated domains are a consequence of high-level transcription during terminal differentiation, although it does not rule out a role for transcription per se because the β-globin genes are transcribed at low levels in these cell lines. In addition, the timing of domain formation remains to be determined in primary erythroid cells, which could differ from the immortalized or transformed lines we use here. Nevertheless, coupled with the fact that domain formation is limited to a minority of gene loci, the available evidence suggests that hyperacetylated domains represent a specific and regulated feature of the activation of certain genes.

Our data provide a basis for differentiating between mechanisms for domain formation. The modification state of nucleosomes located 5′ of the ϵy-globin gene promoter is LCR-dependent; we also find that a sequence located between the β1- and β2-globin genes exhibits different histone modification states on different alleles, within which it resides in different relative locations. Thus, the modifications exhibited by histones at specific sequences are dependent on their context. These results suggest that histone modifications associated with these sequences are a downstream consequence of regulatory phenomena that originate elsewhere.

It has been speculated that nongenic/intergenic transcription could account for the spread of histone modifications, but we demonstrate that the domains are unaffected by inhibition of RNA polymerase II elongation with DRB.^31,32,34  Our DRB incubation times (15 minutes in Figure 7; up to 4 hours, data not shown) are sufficient to demonstrate that maintenance of histone hyperacetylation does not require RNA polymerase elongation because this modification is highly dynamic; a typical acetylation event lasts approximately 5 to 15 minutes.^39-41  Hyperacetylated domains are also associated with histone H3K4 dimethylation, however, which is more stable and indeed may not be removed in the absence of cell division.⁹  It is therefore possible that this modification depends on RNA polymerase II elongation, although then the maintenance of histone hyperacetylation would require this or another stable modification, either for active recruitment of histone acetyltransferases or to inhibit histone deacetylases.

We find that the embryonic β-globin gene promoters are not required for formation of the hyperacetylated domain encompassing these genes, suggesting that sequence determinants of domain function reside elsewhere. This result also argues against a role for genic transcription in domain formation, although we cannot rule out a role for transcription per se because the βh0-globin gene is transcribed on the allele harboring the ϵy- and βh1-globin promoter deletions.

Interestingly, we find that a hyperacetylated domain forms over this region in definitive erythroid cells on the allele lacking the ϵy- and βh1-globin gene promoters; on this allele, the βh0 promoter is still intact, but we are unable to detect any transcription. Taken together, the data suggest that the domain is governed by a regulatory sequence distinct from the promoters. This activity is suppressed by the embryonic promoters in definitive erythroid cells; but in the absence of these sequences, it is still functional. The identity of this sequence is not known, but we note that on deletion of the ϵy-globin gene promoter, the domain is partially restored, extending from the gene to a region 7 to 8 kb 3′ of the deletion, where it abruptly ends. This region therefore represents a candidate for a cis-acting sequence element involved in domain formation.

The establishment of a hyperacetylated domain over the embryonic β-globin genes in definitive erythroid cells in the absence of the gene promoters has ramifications for the mechanism by which these genes are developmentally silenced. Previously, it has been shown that incubation of erythroid cells from E14.5 fetal liver with histone deacetylase inhibitors results in an increase in histone acetylation levels at the ϵy-globin promoter, suggesting that histone deacetylase activity is recruited there.⁴²  Our results indicate that the embryonic β-globin gene promoters are required for recruitment throughout the domain. Given that we do not observe any transcription originating from the intact βh0-globin gene promoter, domain formation appears to be insufficient to achieve embryonic β-globin gene activation in definitive erythroblasts. The lack of detectable transcripts, however, suggests that domain formation is a prerequisite to gene activation, not a consequence.

Our results, along with previous studies, suggest that hyperacetylated domains represent a regulated feature of the activation of specific gene loci. Notably, the best-supported model for formation of heterochromatic domains involves the nucleation of heterochromatin at specific sequences, which then spreads bidirectionally to encompass neighboring sequences as well. As yet, however, we cannot conclude that hyperacetylated domains are formed by a completely analogous mechanism. It remains to be determined what cis-acting regulatory sequences govern domain formation and maintenance, and the function they provide in gene activation.
