Identification of an Ire1alpha endonuclease specific inhibitor with cytotoxic activity against human multiple myeloma

Multiple myeloma (MM) is a B-cell neoplasm associated with unregulated/uncontrolled differentiation and proliferation of mature B cells to plasma cells. Despite significant therapeutic advances in recent years, MM remains an incurable disease in most patients.¹

Because of high production of secreted antibodies, MM cells display chronic endoplasmic reticulum (ER) stress, and their survival is dependent on the adaptive Ire1-XBP1 branch of the unfolded protein response pathway.²  Investigators have shown that perturbing the unfolded protein response with proteasome inhibitors can sensitize MM cells to apoptosis.³  The Food and Drug Administration has approved the proteasome inhibitor bortezomib as the first example of an unfolded protein response modulating chemotherapy for the treatment of MM.⁴

Recent in vitro Ire1 kinase and RNase assays have yielded insight into determining the mechanism of Ire1 activation.^5,6  Mutant Ire1 proteins with amino acid substitutions at conserved positions in the kinase domain identified nucleotide binding and kinase-domain phosphorylation as necessary for Ire1 RNase activation.^7-9  However, a report found that an adenosine triphosphate (ATP) competitive inhibitor, 1NM-PP1, could activate Ire1 that contained a mutation in the ATP-binding site. In this context, kinase activity was not required for Ire1 function, suggesting that Ire1 activity may be modulated through an allosteric mechanism.¹⁰  The crystal structure of the cytosolic portion of activated yeast Ire1 revealed a back-to-back configuration of the kinase domain within the Ire1 dimer.¹¹  This structure supported a model in which dimerization (or oligomerization) of Ire1 juxtaposes kinase domains, which facilitates trans-autophosphorylation of the protein, resulting in a competent nuclease pocket and enhanced RNase activity.^8,9  More recently, the flavanoid quercetin was shown to activate Ire1 through a newly described ligand-binding pocket along the Ire1 dimer interface.¹²  These data suggest the pharmacologic potential for multiple ligands to selectively modulate either Ire1 kinase or RNase activity.

We hypothesize that MM cells exist under inherent ER stress and that targeting the adaptive Ire1-XBP1 response could be a promising therapeutic strategy. We report the identification of a novel compound that specifically blocks the endonuclease activity of Ire1 without affecting its kinase activity. In support of our hypothesis, we show that this small molecule demonstrated significant single-agent activity in MM xenograft and human MM ex vivo studies.

The screen was performed in the Stanford High-Throughput Bioscience Center. A detailed protocol is described in supplemental data (available on the Blood Web site; see the Supplemental Materials link at the top of the online article).

hIre1α protein, containing both Ire1 cytoplasmic kinase and RNase domains, was expressed and purified from baculovirus as described.¹³  Autophosphorylation activity was determined by the addition of ³²P-γATP. Endonuclease activity was determined by the addition of radiolabeled HAC1 508-nt RNA substrate synthesized in vitro using α³²P-UTP.⁵  STF083010 was incubated with recombinant hIRE1α protein, radiolabeled HAC1 508 nt RNA, and appropriate buffers. Kinase activity and RNAse cleavage products were quantitated by polyacrylamide gel electrophoresis and ³²P-γATP or ³²P-UTP autoradiography, respectively.

Bone marrow aspirates were obtained from MM patients after obtaining informed consent in accordance with the Declaration of Helsinki with approval from the Institutional Review Board of the University of Ghent, Ghent, Belgium. CD138⁺ plasma cells were selected by positive magnetic bead selection (StemCell Technologies) either after isolation of nucleated cells (patients 1-4) or directly (patients 5-8). Peripheral blood cells were obtained by Ficoll-Hypaque density centrifugation from separate control patients.

Standard assay conditions were used as previously described.^14,15

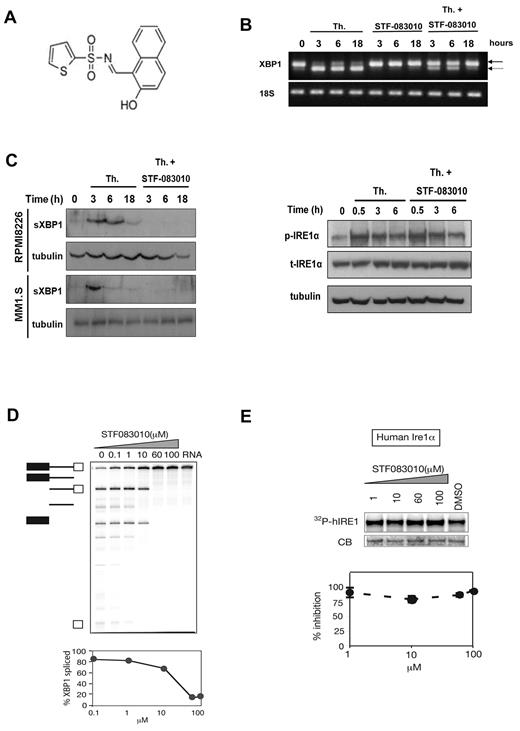

STF-083010 was identified in our cell-based reporter gene, high-throughput screen, and its structure is shown in Figure 1A. To confirm the molecular target, we analyzed the effect of STF-083010 on endogenous XBP1 mRNA splicing levels in control and ER-stressed RPMI 8226 human MM cells (Figure 1B). Incubation with thapsigargin, an inhibitor of ER calcium flux that induces ER stress, resulted in XBP1 splicing. However, with the addition of STF-083010, splicing was almost completely blocked. STF-083010 also inhibited XBP1 splicing activated by other types of ER stress, including tunicamycin treatment, glucose deprivation, or severe hypoxia (data not shown). As expected, inhibiting XBP1 mRNA splicing also inhibited production of active sXBP1 protein (Figure 1C left panel). However, STF-083010 did not inhibit Ire1α kinase activity, as shown in the immunoblot of autophosphorylated Ire1α (Figure 1C right panel). To establish that this effect was the result of a direct interaction between STF-083010 and Ire1α, we analyzed Ire1α enzymatic activity in a cell-free system. STF-083010 blocked Ire1α's endonuclease activity (Figure 1D) without affecting its kinase activity (Figure 1E).

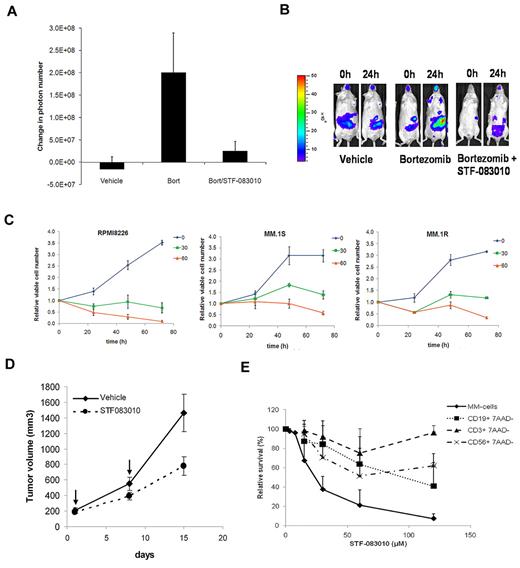

Next, we used transgenic mice harboring the same XBP1-luciferase reporter gene¹⁵  to determine the in vivo efficacy of STF-083010. Treatment of these reporter mice with bortezomib induced ER stress and a commensurate increase in XBP1-luciferase bioluminescent activity. However, when STF-083010 was injected with bortezomib, there was no increase in bioluminescent signal (Figure 2A-B). This inhibition was not the result of cellular toxicity in the animals, as we did not find any histologic effects of STF-083010 after treatment at doses used in these studies (60 mg/kg one time and 30 mg/kg 2 times; supplemental Figure 1 and supplemental Table 1).

To determine antimyeloma activity of STF-083010, first we treated a panel of MM cell lines with increasing concentrations of the compound in vitro and measured viability by trypan blue exclusion (Figure 2C). STF-083010 showed cytostatic and cytotoxic activity in a dose- and time-dependent manner. Next, we treated RPMI 8226 human MM cells grown as tumor xenografts in NSG mice. Intraperitoneal injection of STF-083010 alone (day 1, day 8) significantly inhibited the growth of these tumors (Figure 2D). In addition, we treated fresh CD138⁺ cells isolated from MM patients and compared the ex vivo toxicity to that of cells from 7 control patients (Figure 2E; supplemental Tables 2-3). STF-083010 was selectively cytotoxic to CD 138⁺ cells compared with B (CD19⁺), T (CD3⁺), and NK (CD56⁺) cells.

In conclusion, we have identified a novel compound with the unique property that specifically blocks the endonuclease activity of Ire1 without affecting its kinase function. This small molecule represents a new class of targeted agents with significant anticancer activity in various in vitro and in vivo models of MM. Future studies are necessary to determine how best to integrate Ire1-XBP1-targeted therapies with existing treatments for MM.

This work was supported by the National Institutes of Health (grant PO1 CA67166, A.C.K. and N.C.D.) and the American Cancer Society (M.N.).

National Institutes of Health

Contribution: I.P., M.O., H.V.M., S.L., and A.T. performed experiments; I.P., N.C.D., and A.C.K. conceived the overall study design; and all authors contributed to manuscript writing and editing and helped design experiments and analyze data.

Conflict-of-interest disclosure: A.C.K. is one of the cofounders of Ruga. The other authors declare no competing financial interests.

The current affiliation for M.O. is Edna Williams Cancer Center, Jacksonville, FL.

Correspondence: Albert C. Koong, Department of Radiation Oncology, Stanford School of Medicine, 269 Campus Dr, Rm 1245, Stanford, CA 94305; e-mail: akoong@stanford.edu.
