Fetal hemoglobin in sickle cell anemia

Appreciating the role of fetal hemoglobin (HbF;α2γ2) in sickle cell disease started more than 60 years ago when Janet Watson confirmed that infants with sickle cell disease had few symptoms and that their deoxygenated erythrocytes took longer to sickle and did not deform as extensively as did their sickle cell trait-carrying mother's cells. She attributed these observations to high HbF levels in infant blood. Sickle hemoglobin (HbS) gelation studies showed that HbF did not interact with HbS; it was also reported that compound heterozygotes for sickle cell trait and hereditary persistence of HbF (HPFH) were clinically normal despite having a very high HbS concentration (reviewed in Rodgers and Steinberg¹ ).

HbF is the most powerful modulator of the clinical and hematologic features of sickle cell anemia (defined as homozygosity for glu6val in the β-globin gene or HBB). To protect against various complications of disease, different concentrations of HbF were postulated to be required, although any increment in HbF had a beneficial effect on mortality.^2,3  Higher HbF levels were associated with a reduced rate of acute painful episodes, fewer leg ulcers, less osteonecrosis, less frequent acute chest syndromes, and reduced disease severity. However, HbF level had a weak or no clear association with priapism, urine albumin excretion, stroke and silent cerebral infarction, systemic blood pressure, and perhaps sickle vasculopathy as estimated by tricuspid regurgitant velocity (reviewed in Steinberg et al⁴ ). The failure of HbF to modulate uniformly all complications of sickle cell disease might be related to the pathophysiologic events that impact the likelihood of developing these complications. Many epidemiologic studies suggested that disease complications most closely linked to sickle vaso-occlusion and blood viscosity were robustly related to HbF concentration, whereas complications associated with the intensity of hemolysis were less affected (Kato et al⁵  and references therein), although HbF is protective for leg ulcers, onecomplication closely associated with hyperhemolysis.^6,7  After defining hyperhemolysis by the highest quartile of serum lactic dehydrogenase and controlling for liver disease by examining only patients with normal serum alanine aminotransferase, HbF levels were lower in patients with the highest quartile compared with the lowest quartile of hemolysis.⁸

Even when total HbF levels are high, perhaps the intravascular hemolysis of erythrocytes containing little or no HbF leads to sufficient nitric oxide scavenging by plasma hemoglobin to provoke hemolysis-related complications⁹  (Figure 1).

The Saudi-Indian and Senegal haplotypes of the HBB-like globin gene complex, discussed in “Haplotypes of the HBB-like cluster,” are associated with high HbF levels, and carriers of these haplotypes can have milder disease.^10-14  Some patients who have other HbS-associated haplotypes also have very high HbF. Notwithstanding the high HbF levels of all these patients, acute painful episodes and other symptoms of sickle cell disease still occur, perhaps because the heterogeneous cellular distribution of HbF does not equally protect all erythrocytes from polymerization-induced damage. In contrast, persons who are compound heterozygotes for HbS and gene deletion HPFH (see “HbS-HPFH”), where HbF is more evenly apportioned among erythrocytes or pancellularly distributed, are clinically asymptomatic with nearly normal hemoglobin levels.

HbF is composed of 2 α-globin polypeptide chains and 2 γ-globin chains. The γ-globin chains are encoded by 2 nearly identical genes (HBG2 and HBG1) within the β-globin gene-like cluster on chromosome 11p that differ by a glycine or alanine residue at amino acid position γ136. ^Gγ- and ^Aγ-globins have similar effects on HbS polymerization.¹⁵  With the rapid decrease in the numbers of circulating fetal erythrocytes, the ratio of ^Gγ to ^Aγ-globin falls from 0.7 at birth to 0.4 at age 5 months. This is accompanied by a progressive decline in the number of erythrocytes with measurable HbF, called F cells. In normal adults, HbF is less than 1% of total hemoglobin and is distributed unevenly among erythrocytes. HbF levels in sickle cell anemia range between 5% and 8%. In African Americans with sickle cell anemia, 2% to 80% of erythrocytes were F cells compared with 2.8% ± 1.6% in normal African Americans. Sickle cell trait carriers have a mean HbF of 1.4% and 14.1% ± 7.5% F cells. In sickle cell anemia, F cells survive longer than non-F cells, and this depends on the amount of HbF/F cells.⁴  A high correlation (R² = 0.967) is present between the number of F cells and the percentage of HbF.¹⁶

The pathophysiology of sickle cell disease is dependent on the polymerization of deoxy sickle hemoglobin. Increased levels of HbF retard this process. HbF reduces HbS concentration, but more importantly, both HbF and its mixed hybrid tetramer (α2β^Sγ) cannot enter the deoxy sickle hemoglobin polymer phase. In contrast, the hybrid tetramer-containing β^S and β^A chains has only half the probability of entering the polymer as the HbS molecule, hence the special value of HbF compared with other hemoglobins. The antipolymerization effect of HbF resides primarily in HBG (both γ-globin genes) residues glycine γ87 and aspartic acid γ80. By inhibiting the tendency of deoxy sickle hemoglobin to polymerize, sufficient HbF thwarts the cellular damage evoked by HbS polymer (reviewed in Steinberg et al⁴ ).

Engineering recombinant HbF and HbA by adding additional substitutions can enhance the capacity of the molecule to inhibit polymerization, an approach exploited when devising vectors for gene therapy. Conversely, the natural mutant hemoglobin, HbS-Antilles (HBB glu6val; val23ile), has enhanced polymerization tendencies; contrasted with persons with sickle cell trait, heterozygotes with this variant are symptomatic and homozygotes have severe sickle cell disease.⁴

HbF is the predominant hemoglobin from early gestation until 1 to 2 months postnatally when adult HbA predominates.¹⁷  Although erythroid precursors of normal adults express HBG at a low level,¹⁸  stress erythropoiesis is associated with increased HbF.^19-21  A stochastic model posits that the increase in HbF is the result of recruitment of erythroid progenitor cells that prematurely undergo terminal differentiation and are committed to producing γ-globin.^22,23  The stress signal transduction model suggests that cytokines, such as erythropoietin, stem cell factor, and transforming growth factor-β,²⁴  initiate downstream intracellular signaling pathways that activate HBG expression and is the premise on which HbF induction by cytostatic agents was based (see “HbF-inducing agents”).²⁵

In sickle cell anemia, there is a delayed switch from HBG to HBB expression, and the replacement of HbF by HbS, and HbF levels remain above normal in most patients. The mechanism accounting for this is unknown but might reflect the slower centripetal regression of red, or hematopoietic marrow to the axial skeleton in the presence of expanded erythropoiesis that is the result of sustained hemolysis. The goal of HbF-inducing treatments is to reverse this switch to the largest degree possible. Compound heterozygotes with HbSC disease and HbS-β⁺ thalassemia, who usually have lower levels of hemolysis, most often have HbF levels near normal or only slightly increased.^26,27  This could be a result of less intense hemolysis or a lack of those genetic modulators linked to the HbS gene.

The molecular basis of hemoglobin switching, including more detailed descriptions of the role of many of the genes involved in this process, has been recently reviewed.²⁸

The HbS β-globin gene is found on 4 or 5 common haplotypes reflecting its regions of origin in Africa, the Middle East, and the Indian subcontinent.^29-31  Patients with a Bantu haplotype have the lowest HbF and those with a Senegal or Saudi-Indian haplotype have the highest; persons with a Benin haplotype have HbF levels that are intermediate.^32-34  Carriers of all haplotypes have considerable variance in HbF levels, suggesting the importance of other quantitative trait loci (QTL) modulating HBG expression.

In carriers of Senegal and Saudi-Indian haplotypes, a C-T polymorphism 158 bp upstream of HBG2 (rs7482144), the Xmn1 C-T restriction site polymorphism, is associated with high HbF and ^G γ-globin levels.²⁹  Carriers of the Bantu and Benin haplotypes lack this single nucleotide polymorphism (SNP).^34,35  Most likely, this SNP is in linkage disequilibrium (LD) with functional elements responsible for increased expression of HBG2. Recent studies that sequenced approximately 87 kb within the HBB gene-like cluster suggested that a SNP in LD with rs7482144 (rs10128556; P = 1.2E-09) was more strongly associated with HbF than rs7482144 (P = 3.7E-07); however, the effect (β-coefficients) of the 2 SNPs on HbF was very similar, and the stronger P value may be the result of the higher minor allele frequency of rs10128556. In addition, rs10128556 had an effect on HbF independent of rs7482144 (P = .047), and rs7482144 had no effect on HbF independent of rs10128556 (P = .78).³⁶  However, this determination was based on conditional haplotype tests that excluded uninformative haplotypes. The test excluded less than 10% of the data for rs10128556 but nearly 90% for rs7482144, which severely affected its power and is reflected by the nonsignificant P value for rs7482144. The mechanism whereby this region influences HbF is unclear.

Homozygotes for the Saudi-Indian haplotype, which also includes rs7482144, have HbF levels substantially higher than homozygotes for the Senegal haplotype.¹⁰  These observations suggest that other elements, perhaps linked to these haplotypes, are differentially effecting HBG2 transcription. Although it is likely that the association of a haplotype with the clinical features of sickle cell anemia is mediated by haplotype-related differences in HbF concentration, in nearly all instances the actual functional elements responsible for HbF modulation are unknown.

HbF levels are hereditable.^37-41  Two QTL in addition to the HBB-linked regions discussed in the preceeding section have major influences on HbF expression. These loci are the HBS1L-MYB intergenic region and BCL11A. SNPs in these QTL and in the HBB gene-like cluster explain approximately one-third to one-half of HbF variation in sickle cell anemia, leaving much of the variance in HbF level unexplained. Rare variants probably explain this “missing” heritability but are difficult to detect using genome-wide association studies (GWASs) and will require genomic sequencing.^36,42-44

Polymorphisms in the HMIP region were associated with F-cell levels and accounted for 19.4% of the F-cell variance in normal Europeans. SNPs were distributed in 3 LD blocks called the HMIP blocks 1, 2, and 3; however, the sequences of HBS1 and MYB and other genes in this region were uninformative regarding HbF regulation.⁴⁵  Nevertheless, the expression profile of MYB and HBS1L in adults with nongene deletion HPFH was down-regulated. Overexpression of MYB in K562 cells inhibited HBG expression.⁴⁶  Low levels of MYB were associated with reduced cell expansion and accelerated erythroid differentiation, suggesting that variation in the intrinsic levels of MYB might affect HbF by its effect on the cell cycle. Overexpression of microRNA-15a and -16-1 down-regulated MYB in CD34⁺ erythroid progenitors and increased HbF.⁴⁷  Among persons found to harbor one of 3 rare missense variants in MYB, HbF was 7.5% compared with 6.1% in noncarriers. In another study, only HBS1L expression was correlated with elevated HbF levels.⁴⁸

The HBS1L-MYB intergenic polymorphisms are also highly associated with HbF expression among Chinese β-thalassemia heterozygotes.⁴⁹  It was recently reported that the most significant functional motif accounting for HMIP modulation of HbF is a 3-bp deletion polymorphism, which is in complete LD with the SNP rs9399137 shown by several GWASs to be most significantly associated with HbF in Europeans, Asians, and African Americans. It is located near erythroid-specific DNase I hypersensitive site 2 within the HMIP block 2, 42.6 kb upstream of HBS1L and 83.8 kb upstream of MYB. In close proximity to the 3-bp deletion polymorphism, there is binding of 4 erythropoiesis-related transcription factors, TAL1, E47, GATA2, and RUNX1. Furthermore, the short DNA fragment encompassing the 3-bp deletion polymorphism appears to have enhancer-like activity based on in vitro transient transfection experiments.⁴⁹

The HBS1L-MYB intergenic polymorphism is also associated with HbF among sickle cell anemia patients of African descent,^42,44,50,51  although much less significantly compared with Europeans or Chinese because of their much lower minor allele frequencies.⁴⁹  It could be that there are other HMIP variants associated with HbF level among people of African descent that are not tracked well by SNP rs9399137.^36,50

BCL11A, a zinc finger protein gene, was first associated with lymphoid malignancies in humans. In one of the singular successes of GWASs, BCL11A polymorphisms were strongly associated with HbF concentrations in normal persons and several different populations of patients with β-thalassemia and with sickle cell anemia. By its effects on HbF concentration, BCL11A modified the clinical features of both diseases.^43,44,52,53  Binding sites for BCL11A have been described in HS3 of the LCR, the Aγ-δ intragenic region by chromosome immunoprecipitation assays, and a GGCCGG motif in proximal promoter of HBG and complexes of BCL11A with other proteins might mediate the suppressive effects of BCL11A on HBG expression.

Polymorphism within the 14-kb intron 2 of BCL11A correlated with F-cell numbers in healthy Northern Europeans and Chinese with the β-thalassemia trait. In Chinese with β-thalassemia, Thais with HbE/ β-thalassemia, and Tanzanians and African Americans with sickle cell anemia, polymorphisms in BCL11A were associated with HbF. Individual variants and haplotypes at this locus account for up to 18% of HbF variance in sickle cell anemia.⁵⁴

A QTL at chromosome 8q appeared to interact with the HBG2 -158 C-T SNP to modulate HbF levels.^55-57  This locus did not appear to be associated with HbF in GWASs of patients with sickle cell anemia and β-thalassemia, but these studies were probably underpowered.^43,44,53  Haplotype tagging SNPs were used to probe chromosome 8q in 2 independent sickle cell anemia patient groups. In 1518 persons, 3 SNPs in TOX (8q12.1) were associated with HbF, and 3 additional SNPs in TOX showed significant association in 211 persons used for validation. Joint analysis of all SNPs and covariates confirmed the association of HbF with TOX.⁵⁸  SNPs in TOX were also associated with the HbF response to hydroxyurea treatment in sickle cell anemia.⁵⁹ TOX belongs to a conserved high-mobility group box protein family that binds the minor groove of DNA and might modulate gene expression by an effect on chromatin structure and transcriptional regulatory complexes.⁶⁰

A small guanosine triphosphate-binding protein, secretion-associated, and RAS-related (SAR1A) protein is inducible by hydroxyurea and might play a pivotal role in induction of HBG expression via its role in erythroid maturation. Polymorphisms in the SAR1A promoter were associated with differences in HbF levels or the HbF response to hydroxyurea in sickle cell anemia.^61,62

A putative F-cell production locus was localized between DXS143 and DXS16 within Xp22.3-22.2 and hypothesized to account, in part, for the higher HbF levels in females compared with males, an observation found in both the normal population and in patients with sickle cell anemia.^63,64  GWASs have yet to find a gene or polymorphism in the F-cell production locus at Xp22, the phenotype of which was associated with HbF in sickle cell anemia; probing this region with haplotype-tagging SNPs did not reveal a strong candidate gene.⁵⁸

Other genetic loci as modulators of HbF have been proposed but are less well established.^65-67

We define an “HbSF” phenotype as an HbF concentration of at least 10% in sickle cell anemia patients 4 years of age or older, the time by which HbF levels stabilize.^41,42  After excluding the known causes of the HbSF phenotype, such as point mutations in the HBG promoters or large deletions within the HBB-like globin gene cluster, the molecular basis of this phenotype was studied in African Americans. Twenty “high” HbF patients and 30 “low” HbF controls were first studied, and the results were validated in a replication set with 56 “high” HbF (HbF 20.7% ± 8.2%) patients and 489 “low” HbF (HbF 3.1% ± 1.5%) control patients. The 20 “high” HbF cases were 16.3 ± 8.3 years of age and had a hemoglobin level of 9.0 ± 1.3 g/dL, mean corpuscular volume 87.9 ± 9.0 fL, and HbF 17.2% ± 4.8%. The 30 “low” HbF cases were 19.3 ± 9.8 years of age, had a hemoglobin of 8.6 ± 1.4 g/dL, mean corpuscular volume 81.4 ± 11.1 fL, and HbF of 5.0% ± 2.5% (I.A., personal communication, March 2011). BCL11A rs766432 and HMIP rs9399137 had a higher minor allele frequency in patients with “high” HbF in both datasets and accounted for 20% of HbF variance. The aforementioned 3 bp (TAC) in the HBS1L-MYB intergenic region was present in 18% of total chromosomes in the “high” HbF group, compared with a 3% frequency in the “low” HbF controls and was in complete linkage disequilibrium with rs9399137.

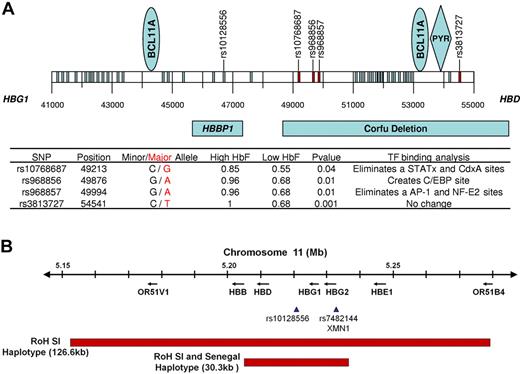

A 14.1-kb DNA fragment between HBG1 and HBD was sequenced in 15 “high” and 15 “low” HbF patients. This fragment included the 7.2-kb Corfu deletion, which was associated with elevated HbF levels and contains binding sites for BCL11A.^68,69  Four SNPs had significant frequency differences between “high” and “low” HbF groups (Figure 2A). Three of the SNPs were between positions 49213 and 49994, and one was at position 54541. In silico analysis showed that the G-A polymorphism at position 49876 (rs968856) created a CCAAT enhancer-binding protein binding site which is not present in the minor allele. The G-A polymorphism at position 49994 (rs968857) eliminated AP-1 and NF-E2 binding sites, which are present in the minor alleles. Any functional significance of these SNPs remains to be explored (Figure 2A).

Sickle cell anemia in Saudi Arabia has population concentrations in the Southwestern and Eastern Provinces. Most Eastern Province patients carry the Saudi-Indian β-globin gene-like cluster haplotype and have very high levels of HbF. Southwestern Province patients have typical African-derived haplotypes and lower HbF levels, albeit higher than comparable haplotype groups of African descent.

The HbS gene in Saudi patients from the Southwestern Province was introduced from Africa and is present on typical African HBB haplotypes. Nevertheless, patients differ from African Americans phenotypically and have fewer episodes of stroke, priapism, and leg ulcers and a higher prevalence of splenomegaly.^14,70-72  This might be related to differences in HbF levels or coinheritance of α-thalassemia.

To examine genetic modifiers of HbF level in patients from the Southwestern Province, the 3 HbF QTLs were genotyped in 77 patients, 17.7 ± 10 years of age, 69% with sickle cell anemia and 31% with HbS-β⁰ thalassemia.⁷³  The distribution of HBB gene cluster haplotypes was: 74% Benin, 22% Bantu, and 4% others. BCL11A was the sole QTL associated with HbF level, but the study was underpowered to detect associations with small effect sizes and with SNPs having a low minor allele frequency similar to those in HMIP and HBB. These findings were compared with 2 studies of African Americans with sickle cell anemia who had a similar distribution of HBB haplotypes. Southwestern Province cases had HbF levels almost twice that of African Americans (P < .0001) after adjusting for the BCL11A genotype. When the genetic population structure of the African Americans and Saudi patients was compared using genome-wide SNP data, African Americans were similar to Yoruban, Mandenka, and Bantu Africans, whereas Saudi patients resembled Arab populations. The commonality of HBB haplotypes coupled with the genetic distance between these populations suggested that additional genetic modifiers have evolved in this population or that unknown environmental influences probably accounted for the higher HbF in these Saudi patients.

In the Eastern Province of Saudi Arabia, sickle cell anemia is usually associated with the Saudi-Indian (sometimes called Arab-Indian) HBB-gene cluster haplotype, high levels of HbF, and a milder, but not asymptomatic clinical course.^10,11,14,74  As in Southwestern patients, splenomegaly is common and stroke and leg ulcers are rare. The rarity of stroke might be a result of the higher hemoglobin concentration and a high incidence of α-thalassemia; little information on the incidence of pulmonary vasculopathy is available. Sickle cell trait carriers or persons with HbA and the Saudi-Indian haplotype did not have high HbF, but the cultured erythroblasts of sickle cell trait patients with the Saudi-Indian haplotype made increased amounts of HbF, suggesting that the kinetics of erythropoiesis played a role in the expression of the high HbF determinant.^39,75,76

HbF levels are higher in Saudi-Indian haplotype patients when they are compared with African Americans homozygous for the Senegal haplotype whose mean HbF was 12.5% ± 5.3%, even though both haplotypes share the 5′ HBG2 C-T polymorphism (rs7482144). Five Saudi families from the Eastern Province, which included 7 patients with sickle cell anemia who had a median HbF of 30.3% (range, 18%-41%), were studied (A.A., personal communication, March 2011).

It was hypothesized that the elements that modify HbF in Eastern Province Saudi patients evolved with and were in LD with the β^S-globin gene. Runs of SNP homozygosity of 160 kb to nearly 2 Mb were present within and surrounding the HBB cluster only in persons with sickle cell anemia (Figure 2B) and were not present elsewhere in the genome. Limited sequencing of the HBD-HBG1 intergenic region and core regions of HS 2, 3, and 4 of the LCR showed that the cores of HS3 and HS4 were identical to the reference sequences, and the core of HS2 contained the 10TA.2CA.2TA.CG.12TA motif associated with the Saudi-Indian haplotype. Polymorphisms were identified in the HBD-HBG1 intergenic region, and many lead to creation or abolition of transcription factor binding sites and some bind transcription factors presumed to have regulatory roles in globin gene expression when examined in silico.

Deep sequencing of more than 800 kb of DNA in all 3 major HbF QTLs has been completed. The results of these studies might uncover variants in Eastern Province sickle cell anemia patients that could be associated with their unusually high HbF level and be candidates for functional and mechanistic studies.

Genetic causes of high HbF in normal adults, when not a result of thalassemia, HBG duplications, or rearrangements within the HBB gene-like cluster are called HPFH. HPFH is phenotypically and genetically diverse and has been divided into nongene deletion and gene deletion types. The former group can be linked or unlinked to the HBB gene-like cluster. Known causes of nondeletion HPFH result from mutations in the HBG promoters and SNPs in the known QTLs that modulate HBG expression. Gene deletion HPFH is caused by large deletions in the HBB gene-like cluster. Compound heterozygotes with HbS-HPFH and sickle cell anemia with nongene deletion HPFH have been reported. Deletion mutants leading to pancellular HbF distribution are associated with a benign phenotype, whereas the heterogeneous cellular distribution of HbF and the lower levels of HbF associated with point mutations and homozygosity for minor alleles in the HbF QTL have the usual disease complication, albeit at what might be a lower rate. A database of reported HPFH mutations is available (www.globin.bx.psu.edu/hbvar/menu.html).

Point mutations associated with nondeletional HPFH were found in 3 regions around positions −114, −175, and −200 in the 5′ promoter regions of HBG2 and HBG1.⁷⁷  The sequences around position −200 have been shown to be a binding site for various erythroid transcription factors.⁷⁸  Heterozygosity for the T-C SNP at −175 in the promoter regions of HBG is associated with HbF levels of 20% to 40%. This region contains the DNA sequences that serve as binding sites for OCT-1 and GATA-1.⁷⁷  The third region involved in nondeletional HPFH is located at positions −114 and −117. The G-A mutation at −117 in the HBG1 promoter affects the CCAAT box, a regulatory element of globin, and other genes. The C-T SNP at position −114 or a 13-bp deletion of this region (from −102 to −114) interferes with erythroid-specific factor NF-E3 and ubiquitous trans-acting factors, such as CP-1 and CDP. These SNPs interfere with the binding of erythroid-specific and ubiquitous transcription factors to HBG promoters and could result in decreased binding affinity of negative regulatory factors or, alternatively, increased interactions with positive regulatory factors. SNPs in the HBG promoters must be very uncommon causes of high HbF in sickle cell anemia; none was present in the selected group of African American patients with high HbF described in “HbF in African Americans.”

At least 8 HPFH-causing deletions within the HBB gene-like cluster of 10 to more than 80 kb have been described. They are associated with HbF levels of 20% to 30%, which is distributed nearly equally among erythrocytes (pancellular). Compound heterozygotes with HbS-gene deletion HPFH have mild microcytosis and do not have features of sickle cell disease. In a recent examination of 28 cases of HbS-HPFH (6 HPFH-1 and 22 HPFH-2), the hemoglobin concentration was 13 ± 1 g/dL, mean corpuscular volume 75 ± 6 fL, and HbF 31% ± 2% (D.N., personal communication, March 2011). The absence of sickle vaso-occlusive events or hemolytic anemia illustrates the critical importance of a pancellular distribution of HbF.

HPFH-1 and HPFH-2 deletions span more than 80 kb and are the most common types of HPFH found in African Americans and Africans. Three possible mechanisms have been proposed to explain the increased HbF associated with these large deletions: (1) the deletion of regulatory sequences affecting HBG expression, (2) juxtaposition of enhancers of HBG normally located downstream of HBB, and (3) LCR interactions with HBG resulting from deletion of HBB.

A form of deletion HPFH has been described in association with Hb Kenya, an abnormal hemoglobin resulting from an approximately 22.5-kb deletion leading to a fusion product composed of the HBG1 and HBB. HbS-Hb Kenya compound heterozygotes had mild microcytic anemia and an average of 10% HbF in a pancellular distribution. These patients had few, if any, sickle cell-related events. HbF and Hb Kenya make up 30% or more of the total hemoglobin, and this might be sufficient to inhibit sickling.⁷⁸

The beneficial effects of high HbF in sickle cell anemia and in β-thalassemia where HbF can substitute for HbA launched an effort to find drugs capable of increasing HbF levels. The DNA-hypomethylating agent 5-azacytidne was used to induce HbF in anemic baboons, a species whose hemoglobin composition and regulation are nearly identical to those of humans. Based on the impressive results of these preclinical studies, this agent was used in sickle cell anemia and β-thalassemia with promising results; however, continued trials were abandoned because of potential carcinogenicity. In these studies, it was unclear whether HbF induction was the result of HBG hypomethylation or the cytotoxic effects of 5′-azacitadine (reviewed in Rodgers and Steinberg¹ ). Therefore, trials of hydroxyurea, an S-phase specific agent without primary hypomethylating activity, with a long history of use in myeloproliferative disorders and with tolerable side effects, were started. The culmination of this work was the Multicenter Study of Hydroxyurea, a double-blind, placebo-controlled study of patients with symptomatic sickle cell disease. Patients randomized to hydroxyurea had fewer pain episodes, less acute chest syndrome, and a lower transfusion requirement than placebo-treated cases, and this agent rapidly received approval for use in sickle cell anemia in the United States and elsewhere. How therapeutic induction of HbF affects less common complications, such as priapism, leg ulcers, pulmonary vasculopathy, and stroke, is not known The average increment in HbF achieved in the Multicenter Study of Hydroxyurea was only 3.6% over the baseline level of 5.1%, but other studies using different dosing regimens found higher increases in HbF.^79-81  Long-term follow-up studies of Multicenter Study of Hydroxyurea patients suggested that mortality was reduced in patients who took this drug and that side effects were minimal^81-84 ; other studies confirmed the benefits of hydroxyurea.⁸⁴

A trial of hydroxyurea in babies has been completed (#NCT00006400). Although the trial's primary endpoints of preservation of renal and splenic function were not met during the relatively brief observation period, treated patients had less pain, higher hemoglobin concentrations, increased HbF, and reduced leukocyte counts, with minimal short-term toxicity.⁸⁵  The long-term effects of hydroxyurea begun in the neonatal period will require careful follow-up.

Not all patients respond to hydroxyurea, and the erythrocytic distribution of HbF in treated patients is heterocellular.⁸⁶  Among responders, the increment in HbF is variable, suggesting the need for additional agents capable of inducing HbF and perhaps broadening its cellular distribution. One class of promising agents are histone deacetylase (HDAC) inhibitors whose inhibition is associated with increased expression of HBG. Arginine butyrate, a short chain fatty acid with HDAC inhibitory activity used as single agent or with hydroxyurea, has been associated with increases in HbF.^87,88  However, a pulsed, or intermittent, dosing regimen was necessary to avoid cytotoxicity from butyrate while retaining the targeted promoter activation. Another oral short chain fatty acid derivative, sodium 2,2 dimethylbutyrate, showed HbF induction in thalassemia in early phase clinical trials (#NCT00842088). Suberoylanilide hydroxaminc acid (Vorinostat), an orally available agent approved for treatment of cutaneous T-cell lymphoma, is an HDAC inhibitor that induced HbF expression in K562 cells.⁸⁹  A phase 1/2 trial of this agent in sickle cell anemia is presently enrolling patients (#NCT01000155).

High throughput screening studies with follow-up of promising candidates have suggested that strong inhibitors of HDAC1 and HDAC2 were associated with substantial increments in both HBG expression and HbF in vitro.⁹⁰ BCL11A has been shown to interact with HDAC1 and HDAC2.⁹¹

Decitabine (5-aza-2′-deoxycytidine), a less toxic and perhaps noncarcinogenic deoxynucleotide, is also associated with DNA hypomethylation and has been used as single-agent therapy and with hydroxyurea in a small number of patients with sickle cell anemia, but phase 2 or 3 studies have not been done.⁹²

The recent studies of BCL11A and HMIP have stimulated a search for new agents that might act by modulating the expression of these genes and their signaling pathways to augment HbF expression in the β-hemoglobinopathies.⁹³

In conclusion, HbF has beneficial effects in sickle cell anemia. The contrast between asymptomatic persons with HbS-gene deletion HPFH and symptomatic patients with sickle cell anemia with similarly high HbF levels suggests that, if it were possible to induce high HbF levels in most sickle erythrocytes and if this could be done before organ damage occurs, one might expect the disease to be “cured.” Presently, this is not possible, but a better understanding of how HbF levels are modulated might suggest new therapeutic approaches and combinations of HbF-inducing agents that could allow this goal to be met.
