Direct Observation of Von Willebrand Factor Elongation and Fiber Formation On Collagen During Acute Whole Blood Exposure to Pathological Flow

Abstract 1070

Under conditions of pathological shear rate, von Willebrand Factor (vWF) undergoes conformational changes and self aggregation. We sought to visualize this phenomenon using a novel microfluidic model of stenosis and understand its role in thrombus formation in elevated shear rate environments. In severe stenosis, vWF experiences millisecond exposures to pathological wall shear rates (g_w). Distinct from shear experiments that last many seconds, we deployed microfluidic devices for single-pass perfusion of whole blood or platelet free plasma (PFP) over fibrillar type 1 collagen (< 50 msec transit time) at pathological g_w or spatial wall shear rate gradient (grad g_w). Using fluorescent anti-vWF, long thick vWF fibers (>20 mm) bound to collagen were visualized at constant g_w > 30,000 s⁻¹ during perfusion of PFP, a process enhanced by EDTA. Rapid acceleration or deceleration of EDTA-PFP at grad g_w = ± 5.5 × 10⁵ to 4.3 × 10⁷ s⁻¹/cm did not promote vWF deposition when g_w < 30,000. At 19,400 s⁻¹, EDTA-blood perfusion resulted in rolling vWF-platelet nets, while blood perfusion (normal Ca²⁺) generated large vWF/platelet deposits that repeatedly embolized and were blocked by anti-GP1b or the a_IIbβ₃ inhibitor GR144053 and did not require shear gradients. Blood perfusion at venous shear rate (200 s⁻¹) produced a stable platelet deposit that was a substrate for massive but unstable vWF-platelet aggregates when flow was increased to 7800 s⁻¹. Supported by collagen and enhanced by platelet GP1b and a_IIbβ₃, vWF fiber formation occurred during acute exposures to pathological g_w but did not require wall shear rate gradients.

Figure 1

View largeDownload slide

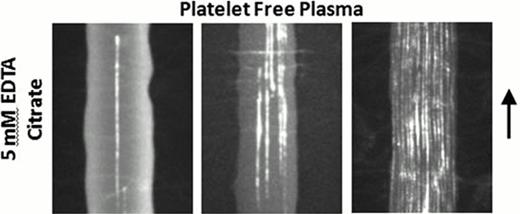

A, Platelet free citrated-plasma was treated with 1 μg/mL fluorescently labeled anti-vWF and 5 mM EDTA. The plasma samples were perfused over a collagen type 1 surface at local wall shear rates of 30,000, 62,400 and 125,000 s⁻¹ from left to right. Long fibers of vWF (>20 μm) appeared at shear rates above ∼30,000 s⁻¹, with more fibers appearing at higher shear rates. The bar indicates 15 μm.

Figure 1

View largeDownload slide

A, Platelet free citrated-plasma was treated with 1 μg/mL fluorescently labeled anti-vWF and 5 mM EDTA. The plasma samples were perfused over a collagen type 1 surface at local wall shear rates of 30,000, 62,400 and 125,000 s⁻¹ from left to right. Long fibers of vWF (>20 μm) appeared at shear rates above ∼30,000 s⁻¹, with more fibers appearing at higher shear rates. The bar indicates 15 μm.
