ABT-199, a new Bcl-2–specific BH3 mimetic, has in vivo efficacy against aggressive Myc-driven mouse lymphomas without provoking thrombocytopenia

Whether cells live or die by apoptosis when confronted with diverse stresses, including radiation and chemotherapy, is determined by interactions between opposing factions of the Bcl-2 family of proteins.¹  Bcl-2 prevents apoptosis, as do Bcl-x_L, Bcl-w, Mcl-1, and A1, but other close relatives Bax and Bak instead provoke apoptosis. Stress signals induce distant relatives known as BH3-only proteins, which bind avidly to a hydrophobic groove on prosurvival proteins, preventing them from restraining any activated Bax or Bak molecules. Certain BH3-only proteins (Bim, cleaved Bid, and perhaps Puma, Noxa) can also bind weakly and transiently to Bax and/or Bak, triggering their conformational change and homo-oligomerization on the outer mitochondrial membrane. As a consequence, cytochrome c is released into the cytoplasm and provokes activation of the proteases (caspases) that demolish the cell.

Chemical mimetics of BH3-only proteins represent an exciting new class of cancer therapeutic. The most promising thus far have been ABT-737 and the related orally available compound ABT-263 (navitoclax), which bind avidly to Bcl-2, Bcl-x_L, and Bcl-w but not to Mcl-1 or A1.^2,3  Both have significant efficacy against human tumor cell lines having high levels of Bcl-2 or Bcl-x_L but little Mcl-1,^4,5  particularly lymphoid malignancies and small cell lung carcinoma.^2,3,6  However, because Bcl-x_L is critical for the survival of platelets,^7,8  ABT-737 and ABT-263 induced transient thrombocytopenia in preclinical trials, and the dose-limiting toxicity for navitoclax proved to be thrombocytopenia.^9,10

Abbott Laboratories has recently developed a high-affinity Bcl-2–selective BH3 mimetic, ABT-199, which spared human platelets in vitro and dog platelets in vivo.¹¹  Tumor regression was achieved for xenografts of human lymphoma cell lines and, excitingly, the first clinical tests for refractory chronic lymphocytic leukemia resulted in rapid tumor lysis in 3 of 3 patients.¹¹

We have investigated the efficacy of ABT-199 in a preclinical model responsive to ABT-737: immunocompetent mice transplanted with lymphomyeloid progenitor cell tumors derived from Eμ-myc/Eμ-bcl-2 (hereafter myc/bcl-2) transgenic mice.¹²  These lymphomas have high levels of Bim, which is thought to be critical for responsiveness.¹³  To test the requirement for Bim, we also generated and treated bim^−/−myc/bcl-2 tumors. In addition, we trialed combination therapy with ABT-737 and either the proteosome inhibitor bortezomib or the cyclin-dependent kinase (CDK) inhibitor purvalanol.

Nonirradiated C57BL/6 mice were injected (intravenously) with 3 × 10⁶ lymphoma cells (3 mice per treatment arm per tumor) and monitored by tail bleed. Starting on day 11, when the white blood cell (WBC) count had become elevated, the BH3 mimetic or relevant vehicle was administered daily for 10 days (ABT-737: Abbott Laboratories (Chicago, IL), 75 mg/kg intraperitoneally in 30% propylene glycol, 5% Tween 80, 10% dimethylsulfoxide, 3.3% dextrose in water, pH 4; ABT-199: Abbott Laboratories, 100 mg/kg, oral gavage in 60% phosal 50PG (standardized phosphatidylcholine concentrate with at least 50% PC and propylene glycol; Phospholipid GmbH, Cologne, Germany), 30% PEG (polyethylene glycol) 400, 10% ethanol).

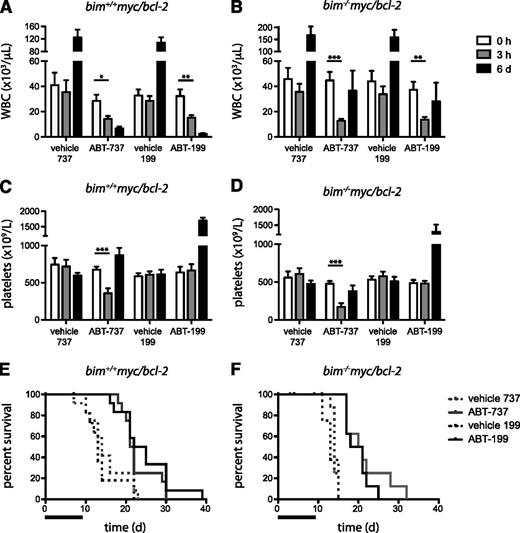

All procedures involving animals were approved by the Walter and Eliza Hall Institute Animal Ethics Committee. Mice were transplanted with bim^+/+ or bim^−/−myc/bcl-2 lymphoma cells, and treatment with ABT-737 or ABT-199 was initiated once WBC counts were elevated (day 11). The impact of ABT-737 and ABT-199 on tumor-bearing mice was rapid, with the WBC count dropping within 3 hours (Figure 1A-B). By day 6, the WBC count had dropped further in most mice, except for 1 bim^−/− lymphoma (no. 324), which had a mixed phenotype (see Figure 1 legend; supplemental Figure 1A, available on the Blood website).

Platelet counts were low prior to treatment, presumably due to the tumor burden (Figure 1C-D). Following the first dose of ABT-737, platelet counts dropped significantly within 3 hours but had rebounded by day 6, as previously reported.⁷  In mice treated with ABT-199, however, there was no drop in platelets at 3 hours and by day 6 they had increased to approximately normal levels, most likely due to the reduction in tumor cells. Thus, as anticipated for a Bcl-2–selective inhibitor, ABT-199 treatment did not cause acute thrombocytopenia.

Mice treated with the BH3 mimetics lived significantly longer than controls (Figure 1E-F). Those transplanted with bim^+/+ lymphomas responded equally well to ABT-737 and ABT-199, their median survival being extended by approximately 10 days (Figure 1E). Indeed, had the treatment been continued, the mice may well have survived longer.

ABT-737 has been thought to act by displacing Bim from Bcl-2, thereby making it available to neutralize Mcl-1 or A1, which would otherwise contribute to resistance.¹³  Surprisingly, however, the bim^−/− tumors responded well to treatment. With ABT-199, survival was only modestly less than for those with bim^+/+ tumors (P = .039) and with ABT-737, the response was comparable (Figure 1E-F). These results indicate that Bim is not essential for apoptosis induced by these BH3 mimetics, at least in this tumor type.

We hypothesized that bim^−/− tumors might have had a compensatory increase in another BH3-only protein. However, the level of Bid, Noxa, and Bad did not vary between tumors and, while some had higher Puma or Bmf than others, there was no consistent difference between the bim^−/− and bim^+/+ tumors (supplemental Figure 1B). Presumably, a combination of other BH3-only proteins had sufficed to replace Bim. It will be important to determine whether these findings extend to other Bcl-2–dependent tumor types, particularly in a clinical setting.

Long-term exposure to ABT-737 in vitro can result in the emergence of resistant clones through upregulation of antiapoptotic Bcl-2–related proteins.¹⁴  To test whether selection was occurring during treatment in vivo, we compared 5 tumors from sick mice that had been treated earlier with a BH3 mimetic or vehicle (supplemental Figure 2). No increase in endogenous Bcl-x_L, Mcl-1, or Bcl-2 was observed but transgenic Bcl-2 was higher in certain treated tumors (bim^+/+, no. 16 and, to a lesser extent, bim^+/+, no. 9). Whether treatment selects those cells having higher Bcl-2 or induces higher expression is unclear. Of note, the duration of treatment used here (10 days) is comparatively short relative to expected clinical regimens.

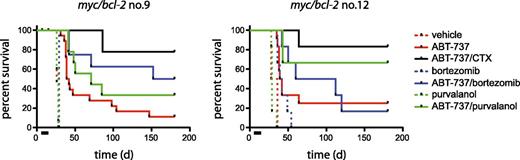

Despite their encouraging response, all mice treated solely with a BH3 mimetic eventually died of their tumors (within 30 days following cessation of treatment). We previously showed striking synergy between ABT-737 and low-dose cyclophosphamide, achieving many complete remissions for mice transplanted with myc/bcl-2 lymphomas, and attributed the synergy to neutralization of Mcl-1 by BH3-only proteins Noxa and Puma induced by cyclophosphamide (via p53).¹²  We have now tested ABT-737 in combination with 2 agents expected to lower Mcl-1 levels: the proteasome inhibitor bortezomib and CDK (1, 2, 4) inhibitor purvalanol A (Figure 2; supplemental Tables 1-2). Although proteasome inhibition can lead to accumulation of Mcl-1,¹⁵  it also results in an increase in Noxa (eg, Gomez-Bougie et al¹⁶ ). CDK inhibitors downregulate Mcl-1 transcription¹⁷  and purvalanol A has been shown to induce apoptosis of Myc-overexpressing cells and extend survival of mice transplanted with Eμ-myc tumors.¹⁸  For direct comparison with the earlier study, treatment was started on day 4 rather than on day 11. None of the lymphomas responded to bortezomib or purvalanol A as single agents. Tumor no. 9 responded better to ABT-737 plus bortezomib than ABT-737 alone (P = .02), the response being comparable (P = .19) to that achieved with ABT-737 and low-dose cyclophosphamide, but ABT-737/purvalanol was not significantly better than ABT-737 alone (P = .12). For tumor no. 12, there was no significant benefit with ABT-737 plus bortezomib versus ABT-737 alone (P = .52), but the outcome with ABT-737/purvalanol was comparable with that achieved with ABT-737/cyclophosphamide (P = .47). For tumor no. 16, ABT-737 produced complete remission as a single agent, with all mice remaining healthy until the experiment was terminated at 150 days (supplemental Table 2); the greater sensitivity may be due to higher levels of Puma and Noxa in this tumor (supplemental Figure 1B). When treated with ABT-737 from day 11 rather than day 4, however, all mice transplanted with tumor no. 16 had died by day 50 (Figure 1E). This dramatic difference in outcome most likely reflects the relative tumor burden at the outset of treatment and longer treatment may have been more effective.

Early clinical trials for treating CLL with navitoclax⁹  and now ABT-199¹¹  show promising potential. In view of our results, combination therapy with cyclophosphamide, bortezomib (velcade), and clinically approved CDK inhibitors would be worth considering. Others have also reported encouraging in vivo synergies with ABT-737^6,19  and, very recently, with ABT-199.¹¹

The authors thank Abbott Laboratories for generously providing ABT-737 and ABT-199; Kylie D. Mason, David C. S. Huang, Clare Scott, and Andrew W. Roberts for useful discussions; G. Siciliano, K. McKenzie, and T. Camilleri for excellent technical assistance; and A. Strasser for reagents.

This work was supported by National Health and Medical Research Council (NHMRC) (Australia) program grant 461221, a NHMRC Career Development Fellowship (C.J.V.), National Institutes of Health National Cancer Institute (NCI) grant CA43540, Leukemia & Lymphoma Society Specialized Center for Research grant 7015-02, the Australian Cancer Research Foundation (Centre for Therapeutic Target Drug Discovery), and infrastructure support to The Walter and Eliza Hall Institute (WEHI) from the NHMRC Independent Research Institute Infrastructure Support Scheme (IRIISS) and the Victorian State Government Operational Infrastructure Support (OIS).

Contribution: C.J.V. and S.C. conceived the studies, planned the experiments, analyzed data, and wrote the manuscript; and C.J.V. performed the experiments.

Conflict-of-interest disclosure: The authors declare no competing financial interests. The Walter and Eliza Hall Institute had a tripartite research collaboration with Genentech Inc and Abbott Laboratories at the time of these studies.

Correspondence: Suzanne Cory, Molecular Genetics of Cancer Division, The Walter and Eliza Hall Institute of Medical Research, 1G Royal Parade, Parkville 3052, VIC, Australia; e-mail: cory@wehi.edu.au.
