Improving The Analysis Of Gene Expression Profiles By Comparing AML Blasts With Their Nearest Normal Counterparts

Acute Myeloid Leukemia (AML) is a form of cancer that affects the cells of the hematopoietic system. The currently applied WHO classification of genetically defined AML subtypes based on cytogenetic and molecular aberrations of known oncogenes and tumor suppressors allows to stratify patients into genetically defined low-, intermediate, and high-risk groups. Yet, this detailed genetic information has rarely resulted in the development of targeted therapies that are directed at the underlying genetic lesions, or even personalized therapies. With the notable exceptions of chronic myeloid leukemia (CML) and acute promyelocytic leukemia (APL), the prognosis for most AML subtypes treated with standard chemotherapy regimens remains for the most part poor with a median overall survival of approximately 18 months.

The development of cancer may have both genetic and epigenetic causes, but what is common to all cancers is a unique gene-expression pattern (GEP) that drives the malignant phenotype and thus partly differs from that of normal cells representing the same type of cells/tissue and developmental stage. Significantly the unique GEP of cancer cells have been illustrated in a multitude of gene-expression profiling studies where mRNA were quantified using microarray or deep sequencing platforms. These technologies have been outstanding to group, diagnose and forecast AML subtypes based on differences in GEPs. However, they have only demonstrated a marginal role in the identification of potential therapeutic targets. This is mainly due to the fact that these studies have compared AMLs with other AMLs and not with corresponding normal cells of the same developmental stages. This is an obvious prerequisite if one wants to define the genes that drives the malignant phenotype of AML cells.

Our hypothesis is that a comparison of the GEPs of AML cells with their closest normal counterparts within the hematopoietic hierarchy will provide a better understanding of AML biology, which we could then use to improve prognostication and as a starting point for the development of targeted therapeutic strategies including combinations of both new drugs or existing ones. To test this hypothesis, we FACS sorted hematopoietic stem and progenitors and generated micro-array based GEPs. Together with other normal hematopoietic cell GEPs derived from public repositories, we generated a gene expression-based map of the hematopoietic system (Frederik Otzen Bagger et al., HemaExplorer: a database of mRNA expression profiles in normal and malignant haematopoiesis., Nucleic acids research (2012); Frederik Otzen Bagger et al., HemaExplorer: a Web server for easy and fast visualization of gene expression in normal and malignant hematopoiesis., 119 Blood 6394–6395 (2012)) , using the first components of a principal component analysis (PCA). Once established, we mapped the AML-patient samples GEP (>1300) into this PCA space to identify the normal populations closest to each individual AML GEP (see Figures 1A and 1B). Finally, gene-expression changes between individual AML samples and their corresponding individual normal counterparts were computed for further analyses, such as gene set enrichment and survival analysis.

Figure 1

View largeDownload slide

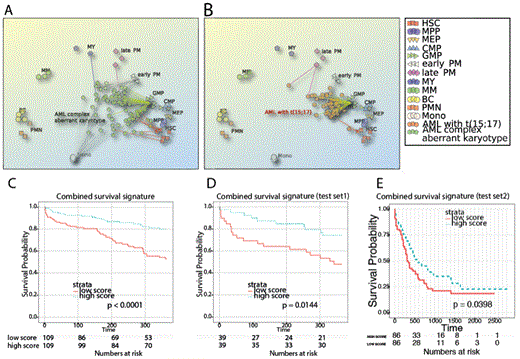

(A, B) PCA plots of individual GEP profiles from two AML subtypes mapped to the normal landscape of hematopoietic differentiation. (C-E) Stratification of three independent patient cohorts with survival gene signature generated by comparison of cancer and direct normal counterpart.

Figure 1

View largeDownload slide

(A, B) PCA plots of individual GEP profiles from two AML subtypes mapped to the normal landscape of hematopoietic differentiation. (C-E) Stratification of three independent patient cohorts with survival gene signature generated by comparison of cancer and direct normal counterpart.

Close modal

Our method resulted in improved clinical prognostication of AML patients and enabled us to identify new potential therapeutic target genes and oncogenic pathways activity that are over-expressed in AML cells as compared to their normal counterparts. Similarly, using the connectivity-map database (a collection of genome-wide transcriptional expression data from cultured human cells treated with bioactive small molecules), we could screen substances that could reverse the aberrant gene-expression signatures; some of these drugs are already in use in AML treatment or in clinical trials, which strengthens the validity of our bioinformatics method. A singularly interesting perspective in this regard is the possibility to tailor individualized drug combinations potentially targeting cancer cells synergistically by combined inhibition of multiple oncogenic targets and pathways.
