Kindlin-3 recruitment to the plasma membrane precedes high-affinity β₂-integrin and neutrophil arrest from rolling

Neutrophils can reach virtually any tissue in the body, where they adhere to inflamed vascular endothelial cells, followed by transendothelial migration.^1,2  In many tissues, adhesion is preceded by selectin-mediated rolling. Neutrophil adhesion occurs when a handful of clusters of β₂-integrins acquire an extended (E⁺) high-affinity (H⁺) conformation that can bind integrin ligands such as intercellular adhesion molecules (ICAMs) to endothelial cells and stop the rolling neutrophil. This process is called arrest and precedes neutrophil spreading and crawling.

Neutrophil arrest is triggered by rapid β₂-integrin activation initiated by ligation of chemokine receptors such as CXCR2. Neutrophils mainly express 2 β₂-integrins: α_Lβ₂, also known as LFA-1 or CD11a/CD18, and α_Mβ₂, also known as Mac-1 or CD11b/CD18. Neutrophil^3-5  and HL-60 cell⁶  arrest has been reconstituted in microfluidic devices coated with P-selectin and ICAM-1 and perfused with physiologic buffers at known wall shear stress.⁷  Arrest is triggered by interleukin-8 (IL-8), the main ligand for CXCR2, which is naturally expressed on human neutrophils and was stably transfected into our HL-60 cell line.⁸  In mouse neutrophils, CXCL1 triggers naturally expressed CXCR2, leading to neutrophil arrest.

Although all integrins can undergo activation, the degree of activation of integrins on blood cells is the most apparent. β₂-Integrins are important adhesion and signaling molecules that are exclusively expressed on leukocytes. For β₂-integrins, a 10 000-fold increase in affinity for ligand has been reported.⁹  Human β₂-integrins express 2 activation epitopes that are recognized by 2 monoclonal antibodies, KIM127 and mAb24.^10,11  The KIM127 epitope is in the knee of β₂ and is not accessible when the integrin is bent; thus, KIM127 binding reports extension (E⁺). Once bound, KIM127 stabilizes the E⁺ conformation.¹²  The mAb24 binds to an epitope in the human β₂ I-like domain that is accessible when the β₂ I-like domain is bound to the internal ligand provided by the ligated αI domain¹³  and thus reports the high-affinity (H⁺) conformation. E⁻H⁻ β₂-integrins have very low affinity for ligands, E⁻H⁺ β₂-integrins bind small molecule ligands¹⁴  and neutrophil cell surface ligands such as ICAM-1 and -3 in cis.^7,15  E⁺H⁻ β₂-integrins support slow rolling but not arrest, and fully activated E⁺H⁺ β₂-integrins mediate arrest.^7,15  Because the epitopes for KIM127 and mAb24 are not conserved in mouse β₂-integrins and no similar antibodies against mouse β₂-integrins are available, most of the work reported here was completed in human HL-60 cells that were differentiated toward neutrophils.^8,16

Activation of β₂-integrins requires kindlin-3, but the sequence of events is not known and the mechanism remains unclear. Kindlin-3 contains a FERM (4.1, ezrin, radixin, moesin) domain consisting of the F1, F2, and F3 subdomains, and an additional atypical F0 domain at the N terminus.¹⁷  Unlike other FERM proteins, a pleckstrin homology (PH) domain is inserted in the F2 domain of kindlin-3. PH domains bind charged membrane phospholipids. The kindlin-3 PH domain has a higher affinity for phosphatidylinositol (3,4,5)-trisphosphate (PI(3,4,5)P₃) than for PI(4,5)P₂.^18,19  Missense or nonsense mutations in the FERMT3 gene encoding human kindlin-3 underlie leukocyte adhesion deficiency-3 syndrome (LAD-3), which is characterized by bleeding caused by defective β₃-integrin activation in platelets and by recurrent infections associated with defective neutrophil recruitment.^20-22  LAD-3 has been recreated in mice by gene targeting with homologous recombination, introducing null mutations in the Fermt3 locus.²³

Although LAD-3 was discovered a decade ago, very little is known about how kindlin-3 works mechanistically. Kindlin-3 binds to β₂- and β₃-integrin cytoplasmic domains, and this binding regulates integrin functions in platelets and neutrophils. One hypothesis is that kindlin-3 helps cluster integrin molecules, supported by the observation that kindlins selectively increase the binding of multivalent ligands to recombinant integrin-α_IIbβ₃ in cells, but not to monomeric integrins in nanodiscs.²⁴  Kindlin-3 binds to an NPxY/F motif (NPKF in human β₂) that is 9 amino acid residues C-terminal to another NPxY/F motif (NPLF in human β₂) that binds talin-1, another important protein in integrin activation.^25,26  The kindlin-3 binding site is in the unstructured portion of the β₂ cytoplasmic tail. Kindlin-3 and talin-1 binding do not influence each other: they are neither synergistic nor cross-inhibitory.^27,28  A second hypothesis is that kindlin-3 may be necessary for extended E⁺ β₂-integrin to attain the high-affinity H⁺ conformation. This is supported by the observation that kindlin-3–deficient neutrophils roll normally, but completely fail to arrest.²⁹  Talin-1–deficient neutrophils show significantly faster rolling and also fail to arrest. The β₂-integrin–dependent reduction in rolling velocity is known to be dependent on E⁺H⁻ β₂-integrin molecules.³⁰  Deletion of talin-1 in HL-60 cells prevented the induction of both E⁺ and H⁺ conformations and cell arrest, a phenotype similar to β₂-knockout cells.³¹  The findings in these studies support the hypothesis that the absence of talin-1 prevents both E⁺ and H⁺ and the absence of kindlin-3 prevents the H⁺ conformation only.^29,30

We recently developed quantitative dynamic footprinting (qDF),^5,32  a total internal reflective fluorescence (TIRF)–based method suitable for live cell imaging that was later modified for simultaneous acquisition of 2 or 3 fluorochromes,^7,33  by using homogeneous binding assays.³⁴  qDF provides ∼10-nm spatial resolution in the vertical z-axis and ∼250-nm spatial resolution in the x- and y-axes with ∼1 frame per second time resolution in live cells.³⁵  When variable-angle TIRF is used, the z-axis can be calibrated and the signal converted to a topographical map showing hills (microvilli) and valleys (areas between the microvilli).⁵  In combination with a β₂-integrin conformation reporter antibody-binding assay in a flow chamber, qDF allows for examination of β₂-integrin activation states in live cells under shear. Exposure of neutrophils to the chemokine IL-8 induces mAb24 binding (H⁺ conformation).⁷

The lack of imaging studies using fluorescence-labeled kindlins has precluded understanding the sequence of kindlin binding relative to integrin activation. In nanodiscs reconstituted with single integrin molecules, adding kindlin had no effect on the exposure of an integrin activation epitope.²⁴  Yet, kindlin is strictly essential for integrin-mediated adhesion of cells.^23,29,36  In Chinese hamster ovary (CHO) cells migrating on 2-dimensional fibronectin substrates, kindlin enters nascent focal adhesions in lockstep with integrins and before talin.³⁷  Unlike CHO cells, leukocytes do not form focal adhesions.

The present study was designed to examine the temporal and spatial relationship between kindlin-3 and the activation of β₂-integrin during chemokine-induced leukocyte arrest from rolling, and the role of the kindlin-3 PH domain.

The conformation-specific antibodies mAb24³⁸  and KIM127³⁹  were conjugated to AlexaFluor 488 or 647 and DyLight 550 (Thermo Fisher Scientific), respectively. C57BL/6J mice (6-8 weeks old) were purchased from The Jackson Laboratory. Kindlin-3–deficient (Fermt3^−/−) mice have been described.³⁶  The plasmid encoding full-length human kindlin-3 protein was a gift from Nancy Hogg.¹⁸  The kindlin-3 coding sequence was tagged with EGFP or TagRFP and cloned into the vector pLVX-Het1 (Clontech) for lentiviral delivery or the pMSCV vector (pMIG; Addgene) for retroviral delivery. Kindlin-3 knockout (K3KO) HL-60 cells were generated with K3-single guide RNA GGGACTACATCGACTCGTCA. HL-60 cells were predifferentiated for 5 to 7 days in the presence of 1.3% dimethyl sulfoxide. Time-resolved antibody binding was recorded with an LSRII flow cytometer (BD). Microfluidic devices^7,31  were coated with human or mouse P-selectin-Fc and ICAM-1-Fc and blocked with casein. Rolling and arrest were recorded by qDF^5,33  on an IX71 inverted TIRF research microscope (Olympus) equipped with a 100× numerical aperture; 1.45 Plan-Apochromatic oil-immersion TIRF microscope objective; and 3-diode–pumped, solid-state lasers (CVI Melles Griot). Images were captured with a DV²  QuadView video coupler (Photometrics) and a 16-bit digital CCD camera (C10600-10B ORCA-R²; Hamamatsu). Three-dimensional (3D) reconstructions were generated by custom scripts in MatLab (MathWorks), as described previously.^5,32  Fetal livers from E15.5-17.5 FERMT3^−/− embryos were obtained by crossing Fermt3^+/− heterozygous mice in timed pregnancies. Hematopoietic stem and progenitor cells (HSPCs) were isolated, expanded for 2 days, and infected with the viral supernatant of pMSCV-EGFP-K3. To reconstitute bone marrow, 8- to 12-week-old C57BL/6J mice were lethally irradiated and reconstituted by intravenous injection of 5 × 10⁶ virally transduced HSPCs. The mouse cremaster muscle was prepared for intravital imaging^40-42  with a 25×/0.95 numerical aperture water-immersion objective on a SP8 confocal microscope (Leica Microsystems). After 1 minute of baseline recording, 300 ng murine CXCL1 was injected through the carotid cannula. For western blot analysis, cells were lysed in Laemmli buffer (Bio-Rad) under reducing conditions. Statistical testing and graph creation were performed with Prism software (GraphPad). Data are expressed as means ± standard error of the mean (SEM). For comparisons between 2 groups, the 2-tailed Student t test was performed. For comparisons between more than 2 groups, 1-way ANOVA and the Tukey post hoc test were used. Differences reaching P < .05 were considered significant. Further details are given in the expanded supplemental Methods (available on the Blood Web site).

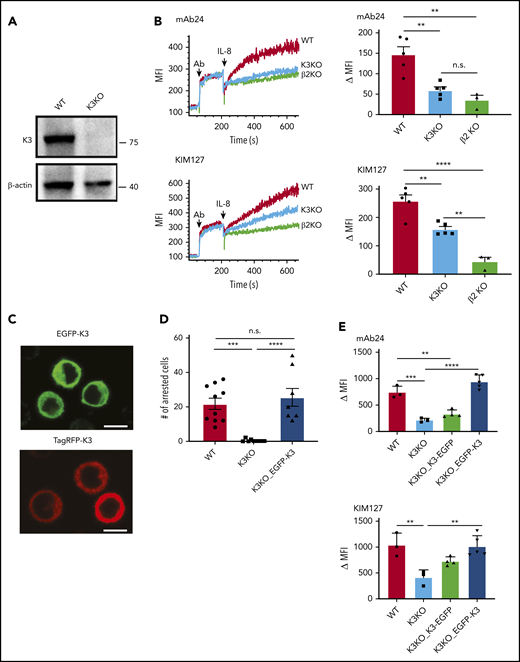

To assess the effect of kindlin-3 on β₂-integrin activation states, we first generated several stable cell lines based on CXCR2-expressing HL-60 cells.⁸  The CXCR2-expressing HL-60 cell line is a good model for chemokine-induced cell arrest and the arrest function is not affected by the CXCR2 overexpression (supplemental Figure 1). In preliminary experiments, we transfected kindlin-3 fusion proteins into wild-type (WT) HL-60 cells. The increase in membrane-proximal kindlin-3 induced by IL-8 was minimal, most likely because the unlabeled endogenous kindlin-3 was sufficient to activate β₂-integrins and trigger arrest (supplemental Figure 2). To remove the endogenous kindlin-3 and to avoid the possible effects of overexpression, all experiments were conducted in HL-60 cells lacking FERMT3 (K3KO; supplemental Table 1; supplemental Figure 3). The deletion of kindlin-3 was confirmed at the protein level by western blot analysis (Figure 1A). Other cell lines included β₂- and talin-1–deficient HL-60 cells.³¹

The expression level of β₂-integrin in K3KO HL-60 cells was similar to that in WT cells (supplemental Figure 4). The absence of kindlin-3 in neutrophil-differentiated HL-60 cells resulted in a complete loss of induction of the mAb24 epitope in response to IL-8, as detected in time-resolved flow cytometry. This defect was complete, down to the level in β₂-integrin–knockout cells³¹  and was indistinguishable from IgG control binding (supplemental Figure 5). Binding of KIM127 was also impaired but not eliminated (Figure 1B). These findings show that kindlin-3–deficient cells have a complete defect in acquiring high affinity (no H⁺) and a partial defect in acquiring β₂-integrin extension (less E⁺).

We reasoned that high-resolution imaging could shed light on the function of kindlin-3. To use qDF, we transfected kindlin-3 fusion proteins with the fluorescent reporter protein EGFP or TagRFP (Figure 1C). These constructs (EGFP-K3 and TagRFP-K3) were expressed in K3KO HL-60 cells. The EGFP- or TagRFP-tagged kindlin-3 expression level was similar to that in the WT cells (supplemental Figure 6). As expected, K3KO cells showed no arrest in response to IL-8. The arrest defect was completely rescued by expression of EGFP-K3 (Figure 1D). Consistent with this, both the high-affinity H⁺ defect and the extension E⁺ defect were completely restored as measured by flow cytometry. Note that the C-terminal EGFP construct (K3-EGFP) did not fully restore kindlin-3 function (Figure 1E). Thus, all subsequent experiments were conducted by using N-terminal fusion.

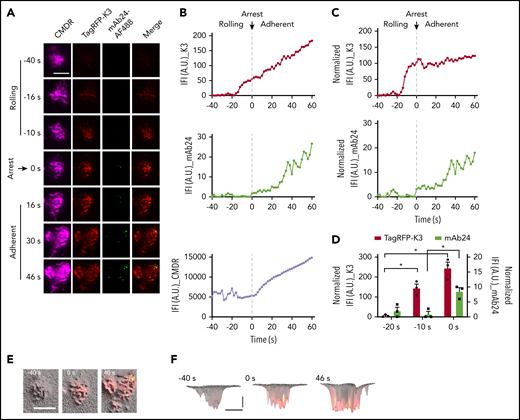

Next, we labeled neutrophil-differentiated TagRFP-K3 HL-60 cells with the membrane label CellMask Deep Red (CMDR) and added Alexa Fluor 488–conjugated mAb24 to the perfusion medium in a microfluidic flow chamber. Smart segmentation image processing was used to remove background and generate binary masks of integrin clusters from raw images, preserving the cluster morphology and intensity with a better signal-to-noise ratio (supplemental Figure 7A-C). The membrane label clearly outlined the microvilli that were preserved during rolling (Figure 2A, first column; supplemental Movie 1) and was used for normalizing the intensities of kindlin-3 fusion proteins and antibodies.

TagRFP-K3 was not visible at −40 seconds, where 0 indicates the moment of cell arrest. Kindlin-3 entered the TIRF field (∼150 nm into the cell footprint) at −20 seconds and continued to increase in a linear fashion before, during, and after arrest (Figure 2A, second column, and 2B, top panel). mAb24 binding did not appear until the time of arrest and then continued to increase after arrest (Figure 2A, third column, and 2B, middle panel). Superimposing the kindlin-3 on the mAb24 signal clearly showed that kindlin-3 recruitment to the area close to the plasma membrane (within 150 nm or closer) occurred before mAb24 binding. The microvilli started to flatten out after arrest (Figure 2A, first column, and 2B, bottom panel). To account for this effect, the kindlin-3 and antibody signals were normalized to the CMDR membrane signal (Figure 2C). Averaging data from 3 experiments showed a highly significant increase in kindlin-3 signal 10 seconds before arrest, but mAb24 signal did not appear until the time of arrest (Figure 2D; t = 0), which suggests that kindlin-3 must reside in the membrane-proximal compartment before β₂-integrins can acquire the high-affinity conformation. Dye switch experiments confirmed this finding with EGFP-K3 and mAb24-DyLight 550 (supplemental Figure 8).

To formally address the relationship of microvilli with kindlin-3 recruitment and high-affinity β₂-integrins, we used the membrane label (Figure 2A) to generate 3D topographical maps of the cell footprint, which is the area at the “bottom” of the cell, within 150 nm of the coverglass of the microfluidic chamber (Figure 2E-F). Superimposing high-affinity H⁺ β₂-integrin as reported by mAb24 binding revealed small clusters of H⁺ integrin in areas that also showed signal for TagRFP-K3. Most of these H⁺ integrin clusters were located on the tips of microvilli. Kindlin-3 in the plasma membrane-proximal zone was much more widely expressed than mAb24 signal. Thus, not all areas with membrane-proximal kindlin-3 expressed the mAb24 epitope, suggesting that membrane-proximal kindlin-3 is required but is not sufficient for inducing the H⁺ integrin conformation.

Membrane-proximal kindlin-3 was arranged in 10 to 20 clusters in each rolling cell. The cluster size increased dramatically in the 10 seconds before arrest and continued to increase slightly after arrest (supplemental Tables 2 and 3). Together, the increased number and size of clusters resulted in a linear increase in the membrane-proximal kindlin-3 signal. The mAb24 signal showed fewer than 5 clusters in rolling cells, which increased at the time of arrest and continued to increase after arrest (supplemental Tables 2 and 3; supplemental Figure 7D-E). mAb24 clusters were ∼10 times smaller than kindlin-3 clusters; their size did not increase during rolling, but dramatically increased after arrest. Thus, the total mAb24⁺ area increased, starting at the time of arrest. We observed similar dynamics of kindlin-3 and mAb24 in dye switch experiments using EGFP-K3 and mAb24-DyLight 550 (supplemental Table 3). Differentiated HL-60 cells express β₂- and β₁-, not β₃- or β₇-integrins.⁴³  We confirm that β₁-integrins were expressed on HL-60 cells (supplemental Figure 9A). However, IL-8 stimulated β₂-integrin activation, but not that of β₁-integrins (supplemental Figure 9B-C).

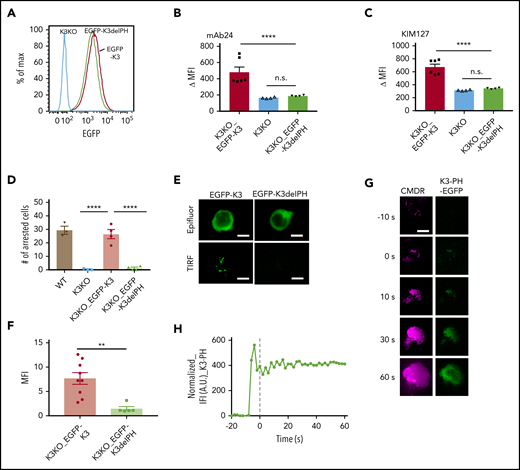

Kindlin-3 contains a PH domain that is inserted in the F2 domain, splitting the F2 domain into F2a and F2b (supplemental Figure 3).^18,19  To test the importance of the inserted PH domain in recruiting kindlin-3 to the membrane-proximal compartment, we expressed an EGFP-tagged kindlin-3 PH domain deletion (EGFP-K3delPH) mutant in K3KO cells (supplemental Table 1). The K3delPH mutant contained a deletion from amino acids 344 to 455 and thus lacked the entire PH domain. The expression levels of EGFP-K3 and EGFP-K3delPH were similar (Figure 3A). Western blot analysis (supplemental Figure 6) showed that EGFP-K3delPH ran at the expected size, suggesting that it folded properly. The K3delPH mutant completely failed to rescue mAb24 binding in response to IL-8. mAb 24 binding of HL-60 cells expressing mutant kindlin-3 was not significantly different from that of K3KO cells, whereas the WT kindlin-3 (positive control) completely rescued mAb24 binding (Figure 3B). The partial defect in KIM127 binding in K3KO cells was also completely rescued by WT kindlin-3, but not by the K3delPH mutant (Figure 3C). Unlike WT K3, the K3delPH mutant was did not restore arrest in K3KO cells under flow (Figure 3D). qDF imaging of EGFP-K3 or -K3delPH showed that EGFP-K3 but not EGFP-K3delPH was recruited to the membrane after IL-8 stimulation (Figure 3E-F). These data show that the PH domain is crucial for kindlin-3 recruitment.

To test whether the kindlin-3 PH domain may be sufficient for targeting to the plasma membrane, we expressed and monitored the EGFP-tagged PH domain in HL-60 cells. Upon exposure to IL-8, the tagged PH domain appeared in the transfected with kindlin-3-TagRFP (TIRF) field, indicating that it went to the plasma membrane in response to IL-8 (Figure 3G-H).

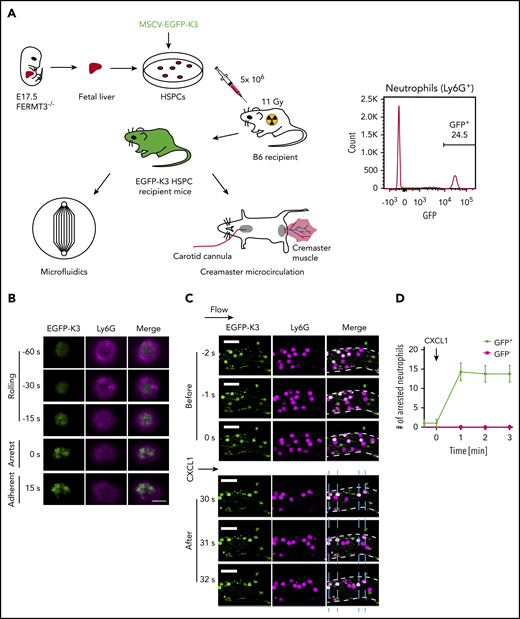

Next, we retrovirally transduced K3KO mouse HSPCs with kindlin-3 and EGFP fusion proteins (EGFP-K3) and reconstituted lethally irradiated mouse recipients (Figure 4A). Similar to neutrophil-differentiated HL-60 cells, primary mouse neutrophils showed recruitment of kindlin-3 to the membrane-proximal compartment before arrest that continued after arrest (Figure 4B). Thus, kindlin-3 in primary mouse neutrophils mirrors the behavior of kindlin-3 in neutrophil-differentiated HL-60 cells during rolling and arrest. To address the in vivo relevance of kindlin-3 recruitment in neutrophil arrest, we performed intravital microscopy experiments in the well-established mouse cremaster model^37,38  (Figure 4C). The neutrophils derived from nontransduced K3KO HSPCs (Figure 4C; purple) were unable to arrest, as expected, whereas all EGFP-K3 transduced neutrophils (Figure 4C; white) arrested in response to 300 ng CXCL-1 (Figure 4D).

Taken together, our results confirm that kindlin-3 is necessary for neutrophil arrest in vitro and in vivo. In our study, kindlin-3 was recruited to the plasma membrane starting at ∼10 to 20 seconds before arrest, and the presence of the kindlin-3 PH domain was necessary for this recruitment.

Our data showed that kindlin-3 was recruited to the plasma membrane of rolling leukocytes before arrest. The lag time between kindlin-3 recruitment and the appearance of high-affinity β₂-integrin as detected by the expression of the mAb24 epitope was ∼10 seconds. Kindlin-3 lacking the PH domain did not restore leukocyte arrest and mAb24 binding, suggesting that kindlin-3 must bind charged membrane phospholipids such as PI(3,4,5)P₃ on the inner leaflet of the plasma membrane.^18,19  When IL-8 ligates CXCR2, G_α dissociates from G_βγ, which activates phosphoinositide-3 kinase (PI3K)-γ and -δ. These enzymes phosphorylate PI(4,5)P₂ to PI(3,4,5)P₃.^44,45  Our data suggest that this transition recruits kindlin-3 to the plasma membrane, where it can interact with both PI(3,4,5)P₃ and the β₂-integrin tail. Our data show that the interaction of kindlin-3 with the charged plasma membrane phospholipids depends on the PH domain, because kindlin-3 without the PH domain fails to rescue the arrest function and the induction of the mAb24 epitope. Conversely, PH domain alone is recruited to the membrane-proximal compartment.

Kindlin-3 in the plasma membrane-proximal zone was much more widely distributed than mAb24 signal. The larger area of kindlin-3 recruited to the membrane and the propensity of the isolated PH domain to be recruited indicates that the K3 recruitment mainly depends on the known conversion of PI(4,5)P₂ to PI(3,4,5)P₃. It further suggests that kindlin-3 alone is necessary but not sufficient for the high-affinity conformation. Indeed, minimal amounts of kindlin-3 suffice for basal platelet and leukocyte functions in mice.⁴⁶  Thus, there is more kindlin-3 than is needed for β₂-integrin activation. It is possible that kindlin-3 binds β₁-integrins, which are known to be expressed in HL-60 cells.⁴³  However, β₁-integrins are not activated in response to IL-8. Our experimental flow chamber system contained no β₁-integrin ligand; thus, β₁-integrins were not involved in arrest under the conditions studied.

Kindlin-3 knockout completely abolished the integrin H⁺ conformation, and partially impaired induction of the E⁺ conformation in response to IL-8. A previous study showed that mAb24 binding were abolished by kindlin-3 knockdown in undifferentiated HL-60 cells.²⁹  In that study,²⁹  constitutively active Rap1 protein was used. It bypasses the chemokine signaling, including the formation of PI(3,4,5)P₃, which provides a likely explanation for the different results. The β₂-integrin E⁺ conformation is already present during rolling without IL-8 stimulation (supplemental Movie 2). The partial defect in E⁺ induction in K3KO cells, but unaltered rolling suggests that the remaining induction of KIM127 reactivity was sufficient to maintain normal rolling.

We know from previous work that not all mAb24⁺ integrin molecules are fully active (extended and high affinity).⁷  The mAb24 signal detected in this study very likely represents both high-affinity–bent (E^-H⁺) and high-affinity–extended (E⁺H⁺) β₂-integrins. Interestingly, β₂-integrins are unable to assume the high-affinity (mAb24⁺) conformation in the absence of kindlin-3, or when kindlin-3 lacks the PH domain. Exactly why this is the case is still unknown. The main defect seems to be a complete loss of mAb24 epitope and a partial reduction of extension as reported by the mAb KIM127. From previous work,^25,26,29,47  it is known that talin-1 is required for integrin activation. Our current data provide evidence that talin-1 is not sufficient. It is known that kindlin-3 and talin-1 binding to integrin are not mutually exclusive.^26,27  Most likely, both kindlin-3 and talin-1 are bound to active integrin simultaneously.

The phenotype of kindlin-3 deficient β₂-integrins is different from the phenotype observed in β₂-integrins, in which a kink mutation was inserted in the β₂ transmembrane domain.³¹  The β₂ kink mutation causes a partial defect in KIM127 binding with no defect in mAb24 binding. The absence of kindlin-3 causes a similar partial defect in KIM127 binding but completely abolishes mAb24 binding. Thus, the high-affinity β₂-integrin conformation requires kindlin-3, but not a stiff β₂ transmembrane domain.

The finding that kindlin-3 recruitment precedes integrin activation is consistent with previous findings in CHO cells,³⁷  where integrins assemble into focal adhesions under static conditions and at a much slower pace than in rolling neutrophils. It is not known whether kindlin-3 can organize integrin clusters consisting of more than 2 integrin molecules. The size and shape of the clusters of high-affinity β₂-integrin, as revealed by superresolution microscopy,¹⁵  suggest that elongated arrays of active β₂-integrin molecules exist. We speculate that these may be multiple subunits of kindlin-3⁴⁸  bound to integrin β₂ chains and aligned by other molecules. Candidates of such molecules indirectly mediating clustering include α-actinin, vinculin, and talin-1.³⁷

Although our data clearly demonstrated that kindlin-3 was recruited to the plasma membrane through its PH domain before integrin activation, our findings still do not resolve the conundrum of the 2 forms of high-affinity β₂-integrin: on activated neutrophils, approximately half of the mAb24⁺ (H⁺) integrin molecules are bent and thus cannot bind ligand in trans,^7,15  and the other half are extended KIM127⁺mAb24⁺ (E⁺H⁺), can bind ICAM-1 in trans, and therefore can mediate cell arrest. Our data suggest that kindlin-3 is necessary for both E⁻H⁺ and E⁺H⁺ β₂-integrin conformations. Neither conformation is detectable when kindlin-3 is absent. Together with previous findings showing that talin-1 is necessary for β₂-integrin extension,²⁹  this suggests a sequential model. First, chemokine binds the chemokine receptor; second, G_α dissociates from G_βγ; third, G_βγ activates PI3K-γ and -δ; fourth, the PI3 kinases produce PI(3,4,5)P₃; fifth, kindlin-3 is recruited to PI(3,4,5)P₃; and sixth, membrane-bound kindlin-3 orients the β₂-integrin molecules relative to each other and enforces a fixed distance. Kindlin-3, in the presence of talin-1, allows for the full activation of β₂-integrins to the E⁺H⁺ conformation. Previous in vivo data on talin-1 knockout and kindlin-3 knockout have shown that talin-1 is important for slow rolling and arrest, whereas kindlin-3 is important for arrest.²⁹  These observations are compatible with a sequential model in which kindlin-3 binding precedes β₂-integrin activation. Future work directly imaging kindlin-3 and talin-1 in the same cell at the same time is needed to determine when talin-1 binding occurs. Such imaging cannot be done using lentiviral technology, because talin-1 is too large to be packaged into a lentivirus. Our model is consistent with the experimentally observed stoichiometry between kindlin, talin, and integrin (1:1:1) in CHO cells.³⁷

In summary, our results showed that kindlin-3 is recruited to the plasma membrane ∼10 seconds before β₂-integrin activation in live rolling and arresting HL-60 cells and primary mouse neutrophils. This process requires the PH domain. Conversely, the isolated PH domain recruited to the plasma membrane in response to IL-8. Our study contributes to the mechanistic understanding of kindlin-3 function in integrin activation and how its absence causes the disease phenotype of LAD-3.
