IgE alone stimulates mast cell adhesion to fibronectin via pathways similar to those used by IgE + antigen but distinct from those used by Steel factor

We recently demonstrated that immunoglobulin E (IgE), in the absence of cross-linking agents, activates signaling pathways in healthy murine bone marrow–derived mast cells (BMMCs) and that this activation enhances BMMC survival, at least in part, via secretion of autocrine-acting cytokines. We report herein that IgE alone also triggers the adhesion of both BMMCs and connective tissue mast cells (CTMCs) to the connective tissue component, fibronectin (FN). This adhesion occurs to the same extent as that triggered by optimal levels of Steel factor (SF) or IgE + antigen (IgE + Ag) and is mediated by an increased avidity of the integrin very late antigen 5 (VLA-5). Moreover, this IgE-induced adhesion, which is prolonged compared with that elicited by SF or IgE + Ag, requires phosphatidylinositol 3-kinase (PI3K), phospholipase C γ (PLCγ), and extracellular calcium but not extracellular-regulated kinase (Erk) or p38. Interestingly, we found, using the calcium channel blocker, 2-APB (2-aminoethoxydiphenyl borate) and Lyn^–/– BMMCs that both IgE- and IgE + Ag-induced adhesion to FN require extracellular calcium entry, whereas SF does not. Furthermore, our data suggest that FN acts synergistically with IgE to prolong intracellular phosphorylation events and to enhance IgE-induced inflammatory cytokine production and BMMC survival.

Mature mast cells are located at the portals between self and nonself, and they serve as frontline defenders against invading bacteria and helminthic parasites.¹  They do this by initiating an acute inflammatory response, which typically consists of a rapid degranulation that releases preformed inflammatory molecules (such as histamine, serotonin, and proteases) and a subsequent secretion of de novo synthesized arachidonic acid metabolites and inflammatory cytokines.^1,2  Unfortunately, this inflammatory response can also be detrimental and lead to immediate-type allergic reactions¹  and other inflammatory disorders like asthma,³  arthritis,⁴  and multiple sclerosis.⁵

Mature mast cells originate from hematopoietic stem cell–derived progenitors in the bone marrow that are recruited out of the circulation and into connective tissues.^6,7  This recruitment, via adhesion of integrins on the surface of mast cell progenitors to components of connective tissue, like fibronectin (FN), is thought to play a critical role in mast cell retention and subsequent proliferation, differentiation, survival, priming, and activation.^8,9  Various stimuli have been shown to induce the adhesion of bone marrow–derived mast cells (BMMCs) to FN, via the integrins α₄ β₁ and α₅ β₁ (very late antigen 4 and 5 [VLA-4 and -5], respectively).¹⁰  These include physiologically relevant stimuli, such as Steel factor (SF)^11,12  and antigen–cross-linking (IgE + Ag [immunoglobulin E + antigen]) of the high-affinity IgE receptor, FcϵRI.¹³  Although the cell surface level of VLA-4 decreases with BMMC differentiation, that of VLA-5 remains high¹⁴  and appears to be the predominant integrin involved in mature mast cell adhesion to FN.¹⁵

We recently demonstrated that IgE, in the absence of cross-linking agents, stimulates multiple signaling pathways in healthy BMMCs grown in suspension cultures and that this leads to an increased survival of these cells in the absence of exogenous cytokines.¹⁶  We went on to show that this enhanced survival is due, at least in part, to IgE maintaining Bcl-X_L levels and up-regulating the production of autocrine-acting cytokines.¹⁶  In the work reported herein we have explored the possibility that IgE alone might also affect biologic responses other than survival. Specifically, we asked whether IgE alone could enhance the adhesion of mast cells to FN.

BMMCs were derived from 4- to 8-week-old SHIP^+/+ (Src-homology 2 domain-containing inositol phosphatase) and ^–/– C57B6 or Lyn^+/+ and ^–/– C57B6 mice as described previously.¹⁷  By 8 weeks in culture, more than 98% of the cells were c-kit and FcϵRI positive, as assessed by fluorescein isothiocyanate (FITC)–labeled anti–c-kit antibodies (BD PharMingen, Mississauga, ON, Canada) and FITC-labeled IgE (anti–erythropoietin 26), respectively.¹⁷  Connective tissue mast cells (CTMCs) were derived from SHIP^+/+ C57B6 BMMCs by coculturing with Swiss 3T3 fibroblasts as described.¹⁸  After 2 weeks of coculture more than 90% of the adherent mast cells were safranin positive.

Unless indicated, mouse monoclonal SPE-7 anti-DNP (2,4-dinitrophenyl) IgE (Sigma, St Louis, MO) or monomeric SPE-7, prepared as described previously,¹⁶  was used throughout. Where indicated, trinitrophenyl (TNP)–lysine affinity purified, mouse monoclonal Liu anti-DNP (H1 26.82),¹⁹  or anti-kappa chain affinity purified, mouse monoclonal anti-Epo26 (anti–erythropoietin 26; StemCell Technologies., Vancouver, BC) was used. All IgEs were titered using an IgE enzyme-linked immunosorbent assay (ELISA; BD PharMingen, San Diego, CA).

The 96-well Nunc Maxisorp plates (NUNC, Naperville, IL) were coated with 50 μg/mL human FN (Sigma) in phosphate-buffered saline (PBS) for 2 hours at 37°C or 16 hours at 4°C, washed 3 times with PBS, blocked with 3% bovine serum albumin (BSA; Sigma) in HBSS (Hanks balanced salt solution-modified; StemCell Technologies.) for 1 hour at 37°C, then washed 3 times with HBSS + 0.03% BSA (assay medium). For stimulation with IgE or SF, BMMCs or CTMCs were washed with RPMI (without phenol red) + 0.1% BSA, resuspended at 1 × 10⁶ cells/mL, and labeled with 3 μg/mL Calcein-am (Molecular Probes, Eugene, OR) for 20 minutes at 37°C. For stimulation with IgE + Ag, BMMCs or CTMCs were preloaded with 1 μg/mL IgE overnight at 37°C in the absence of FN, washed twice to remove unbound IgE, then resuspended and labeled as described earlier. After labeling, cells were washed and resuspended at 1 × 10⁶ cells/mL in assay medium. Assay medium (50 μL) ± IgE, SF, or DNP-HSA (human serum albumin; Sigma) was added to each FN-coated well followed by 50 μL cell mixture and incubated at 37°C for the indicated times. The degree of adhesion was quantitated using a Cytofluor 2300 Microplate Reader (Millipore, Bedford, MA) and is expressed as the percentage of fluorescence remaining in the wells after washing away unbound cells. Treatment of cells with inhibitors or antibodies was carried out by incubating Calcein-am–labeled cells ± DMSO (dimethyl sulfoxide), LY294002, Compound 3 (bisindolylmaleimide I, HCl), PD98059, U0126, apigenin, U73122, SB203580, Gö6976 (all from Calbiochem, La Jolla, CA), 2-aminoethoxydiphenyl borate (2-APB; Sigma), or anti-CD49e (BD PharMingen) for 30 minutes at 37°C (inhibitors) or 23°C (antibodies) prior to the addition of the cells and inhibitors (or antibodies) to the assay plate. The peptides GRGDSP and GRGESP were from Invitrogen Life Technologies (Carlsbad, CA). For experiments without calcium, Calcein-am–loaded cells were washed 3 times with Dulbecco PBS, and the assays were carried out in this medium. A 2-tailed paired Student t test was used to determine statistical significance between adhesion values.

To compare IgE-versus IgE + FN-induced signaling events, BMMCs were starved overnight in Iscoves modified Dulbecco medium (IMDM) + 10% fetal calf serum (FCS), resuspended at 1 × 10⁶ cells/mL in IMDM + 0.1% BSA, divided into aliquots (2 mL/well) into either 6-well tissue culture plates (Falcon, Heidelberg, Germany) or BIOCOAT human FN-coated 6-well tissue culture plates (Falcon), and stimulated with 5 μg/mL IgE for the indicated times. The plates were then placed on ice, 4°C HBSS was added, and in the case of the standard tissue culture plates the cells (which were in suspension) were pelleted and lysed in phosphorylation stabilization buffer (PSB)²⁰  containing 0.5% NP40. For the FN-coated plates, the nonadherent cells were washed away, and the adherent cells were lysed in PSB containing 0.5% Nonidet P40 (NP40). Protein (50 μg) was loaded per lane (based on bicinchoninic acid [BCA] assays; Pierce, Rockford, IL) and separated by sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE).

To test the specificities and potencies of the inhibitors used in the adhesion assays, BMMCs were starved for 4 hours, resuspended at 1 × 10⁶ cells/100 μL IMDM + 0.1% BSA, and incubated for 15 minutes at 37°C with the inhibitors at various concentrations before adding 5 μg/mL IgE or 100 ng/mL SF for 5 minutes. Cells were solubilized by boiling for 1 minute with SDS-sample buffer (using 1 × 10⁶ BMMCs/sample for total cell lysates). The phospho-PKB (protein kinase B) (Ser473), phospho-Erk1/2 (extracellular-regulated kinase 1 and 2), and phospho-p38 antibodies were from Cell Signaling Technologies (Beverly, MA). The Erk1 and 4G10 antibodies were generous gifts from Drs. Steven Pelech (University of British Columbia, Vancouver, Canada) and Brian Druker (Howard Hughes Medical Institute, Portland, OR), respectively.

BMMCs were starved for 4 hours in IMDM + 10% FCS, resuspended at 1 × 10⁶ cells/mL in IMDM + 0.1% BSA, and added to FN- or BSA-coated polystyrene beads (bead-to-cell ratio, 1:1) ± IgE and incubated at 37°C for the indicated times. To coat the beads, Polybead Polystyrene Microsphere 15 μ beads (Polysciences, Warrington, PA) were incubated for 1 hour at 23°C with 1 mg/mL human FN, then blocked with 3% BSA in HBSS for 30 minutes at 23°C or incubated with 3% BSA in HBSS for 1.5 hours at 23°C as described.²¹  Interleukin 6 (IL-6) and tumor necrosis factor α (TNFα) (BD PharMingen) ELISAs were performed with bead supernatants according to the manufacturer's instructions.

BMMCs were washed and resuspended at 5 × 10⁵ cells/mL in IMDM + 0.1% BSA ± 5 μg/mL IgE and incubated in 6-well tissue culture plates or BIOCOAT human FN-coated 6-well plates (1 mL/well) at 37°C for 1 hour or 4 hours. Cells were then harvested, washed once with HBSS + 2% FCS + 0.05% NaN₃ (HFN), resuspended in 50 μL HFN + 1 μg anti-CD49e or an isotype control, and incubated for 30 minutes at 4°C. After washing, the cells were incubated with phycoerythrin (PE)–conjugated anti-rat IgG (Jackson Labs, West Grove, PA) for 30 minutes at 4°C, washed twice, resuspended in HFN, and analyzed using FACSCalibur (Becton Dickinson).

Calcium fluxes were measured as described previously.¹⁷  For stimulation with IgE or SF, BMMCs were incubated with 2 μM fura-2/am (Molecular Probes) in Tyrode buffer at 23°C for 45 minutes, washed twice, resuspended in Tyrode buffer at 5 × 10⁵ cells/mL in a stirring cuvette, and stimulated with the indicated concentrations of IgE or SF. For stimulation with IgE + Ag, 5 μg/mL IgE was added during the fura-2 loading step, followed by stimulation with 20 ng/mL DNP-HSA. For the 2-APB studies, cells were labeled with fura-2 at 37°C in the presence of 50 μM 2-APB, then stimulated as described in “Adhesion assay.” For the EGTA (ethylene glycol tetraacetic acid) studies, 5 mM EGTA was added immediately prior to the addition of the stimulus.

Survival assays were carried out as described previously¹⁶  except that Falcon 1172 96-well flat-bottom plates were first treated for 1 hour at 37°C ± 50 μg/mL FN, and then all the plates treated for 1 hour at 37°C with 3% BSA. The wells were then washed with IMDM + 0.1% BSA, and the BMMCs, after washing with IMDM, were added at 5 × 10⁵ cells/mL in IMDM + 0.1% BSA ± IgE. Viability was assessed by trypan blue exclusion.

We recently demonstrated that monomeric IgE, in the absence of cross-linking agents or exogenous growth factors, was capable of enhancing the survival of BMMCs and did so, at least in part, by maintaining Bcl-X_L levels and by producing autocrine-acting cytokines.¹⁶  To determine whether IgE alone had any other biologic effects on BMMCs we tested its ability to stimulate the adhesion of these cells to the connective tissue component, FN. As can be seen in Figure 1A (top left panel), IgE (SPE-7) alone stimulated the adhesion of Calcein-am–loaded healthy C57B6 mouse-derived BMMCs to FN in a dose-dependent fashion. With the use of a 60-minute adhesion assay, adhesion typically plateaued between 50% and 60% of input cells. The IgE concentration yielding half-maximal adhesion was found to be between 100 and 500 ng/mL IgE. When wells were coated with BSA instead of FN, no adhesion was observed in response to IgE (Figure 1A, top left panel). Similar results were obtained with monomeric IgE, derived by high-performance liquid chromatography (HPLC) fractionation of SPE-7 IgE,¹⁶  indicating that this was not due to low levels of IgE aggregates in the IgE preparation (data not shown). As well, similar results were obtained using the Liu anti-DNP IgE¹⁹  and an anti-erythropoietin IgE (anti-Epo 26),¹⁷  demonstrating that these results were not restricted to the SPE-7 anti-DNP IgE (Figure 1A; top right panel).

For comparison, we carried out dose-response studies with SF (Figure 1A, bottom left panel), and a similar plateau was observed with optimal levels of SF, shown in previous studies to be highly effective at inducing adhesion of BMMCs to FN.¹²  We also found that IgE + Ag was capable of inducing BMMC adhesion to FN (Figure 1A, bottom right panel), in keeping with previous reports.^13,22  For this study, BMMCs were presensitized overnight with 1 μg/mL IgE in the absence of FN, and then, after washing away unbound IgE, DNP-HSA was added at the indicated concentrations. Adhesion reached a plateau similar to that obtained with IgE alone or with SF. As reported previously, the concentrations of SF and antigen that gave half maximal adhesion (ie, approximately 0.5 ng/mL and 1.5 ng/mL, respectively) were far less (10- to 100-fold) than that required for half maximal stimulation of proliferation¹¹  or degranulation,^23,24  respectively. It is worthy to note that the background adhesion of BMMCs to FN varied from one experiment to another (from 4%-18%). This variation primarily reflects differences in the basal level of adhesion between different batches of BMMCs.

It is now well documented that SF and other agents that enhance adhesion of mast cells to FN do so in a transient way.^11,23  We, therefore, carried out time course studies with IgE alone to determine whether the kinetics of adhesion and/or release were similar to that obtained with SF or IgE + Ag. As can be seen in Figure 1B, IgE-induced adhesion of BMMCs to FN was slower (ie, undetectable at 5 minutes) but remained at plateau levels significantly longer than with SF or IgE + Ag. This result may be due in part to the slow on rate of IgE²⁵  and the slow internalization rate of uncross-linked IgE/FcϵRI,²⁶  respectively.

We then asked whether IgE alone could also stimulate the adhesion of CTMCs to FN. As shown in Figure 1C, even though background adhesion was higher with these cells, IgE, as well as SF and IgE + Ag, triggered CTMC adhesion, and the concentration of IgE that gave half maximal adhesion was approximately 500 ng/mL. Thus, IgE-induced adhesion was not restricted to BMMCs.

To gain some insight into the nature of the receptors on BMMCs that bind to FN in response to IgE alone, we carried out adhesion assays in the presence and absence of the peptide GRGDSP (which contains the RGD consensus sequence within FN that binds to a subset of integrins¹⁵ ) or a control peptide, GRGESP. As expected from previous reports,¹²  the RGD-containing peptide completely inhibited SF-induced adhesion, whereas the control RGE-containing peptide did not, and the same results were obtained with IgE (Figure 2A). To hone in on which integrin was involved in IgE-induced adhesion to FN, we next examined the effect of blocking VLA-5 with the anti-α₅ integrin antibody MFR-5 (anti-CD49e) because it had been shown previously that this integrin was involved in SF- and IgE + Ag-induced adhesion of BMMCs to FN.^11,22  As can be seen in Figure 2B, this antibody also inhibited IgE-induced adhesion to FN. However, this antibody did not completely block adhesion; thus, it is possible that another RGD-binding receptor also contributes to IgE- and SF-induced adhesion.

To determine whether IgE, in the absence of Ag, was enhancing BMMC adhesion to FN by up-regulating the cell surface level of VLA-5, we carried out flow cytometry using anti-CD49e. As can be seen in Figure 2C, there was no increase in the cell surface level of α₅ integrin following a 1-hour treatment with IgE (when binding to FN is maximal [Figure 1B]). Thus, IgE alone, similar to what has been reported previously with SF and IgE + Ag,²²  appeared to enhance adhesion not by up-regulating integrin receptors but by increasing the avidity of VLA-5 via “inside-out” signaling. Also, there was no change in the cell surface level of α₅ integrin following a 4-hour treatment with IgE in the presence of either BSA (Figure 2D, top panel) or FN (Figure 2D, bottom panel). This observation demonstrates that the detachment of IgE-stimulated BMMCs from FN at this time was not due simply to a reduction in the level of cell surface VLA-5.

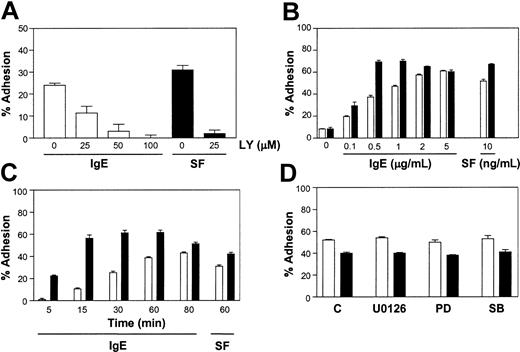

To gain some insight into the intracellular pathways through which IgE alone triggered adhesion to FN we first explored the role of the PI3K pathway because it had been shown previously to be involved in SF- and IgE + Ag-induced BMMC adhesion to FN.^22,27,28  To do this, we tested the PI3K inhibitor, LY294002, and found that it inhibited both SF- and IgE-induced adhesion of BMMCs to FN (Figure 3A). Similar results were obtained with wortmannin (data not shown). We carried out these and subsequent inhibitor studies at times and concentrations of IgE and SF that were suboptimal for adhesion to FN to maximize the sensitivity of the assay to potential inhibitors and minimize exposure of the cells to inhibitors. As well, we titrated the various inhibitors used via Western analyses of BMMCs stimulated for 5 minutes with 5 μg/mL IgE or 10 ng/mL SF, so that we used the lowest concentration that completely inhibited the target pathway (data not shown).

To explore the role of the PI3K pathway further we compared the IgE-induced adhesion of SHIP^+/+ and ^–/– BMMCs to FN because SHIP^–/– BMMCs have been shown to have elevated phosphatidylinositol-3,4,5-trisphosphate (PIP₃) levels.²⁹  Specifically, we carried out dose-response (Figure 3B) and time-course (Figure 3C) studies using SHIP^+/+ and ^–/– BMMCs and found that the SHIP^–/– BMMCs displayed an increased IgE-mediated adhesion at suboptimal IgE concentrations and a more rapid IgE-mediated adhesion than the SHIP^+/+ cells. This observation was also seen when these 2 cell types were stimulated with SF (Figures 3B-C). Consistent with this observation we found that low concentrations of LY294002 delayed IgE-induced adhesion of SHIP^+/+ BMMCs to FN (data not shown). Because the cell surface expression of VLA-5 was comparable on SHIP^+/+ and –/– BMMCs (data not shown), the increased adhesion of SHIP^–/– BMMCs suggests that SHIP plays a role in restraining the increase in VLA-5 avidity.

We then asked whether the Erk or p38 pathways were playing a role in IgE-induced adhesion to FN because they are more active in IgE + Ag-induced SHIP^–/– BMMCs.³⁰  Specifically, we tested the MEK (MAP kinase/Erk kinase) inhibitors, U0126 and PD98059, and the p38 inhibitor, SB203580, using concentrations that totally blocked IgE- or SF-induced Erk and p38 phosphorylation.³⁰  As can be seen in Figure 3D, these inhibitors had no effect on either IgE- or SF-induced adhesion of BMMCs to FN.

Because the binding of calcium to the extracellular domain of the VLA-5 dimer has been shown to be essential for integrin-mediated adhesion induced via inside-out signaling,^24,31  we next asked whether extracellular calcium (⁠

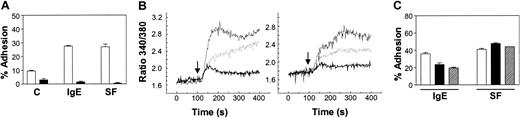

⁠) was also required for IgE-triggered BMMC adhesion to FN. Specifically, IgE alone or SF was added to BMMCs, and adhesion to FN was monitored in the presence and absence of calcium in the medium. As shown in Figure 4A, both agonists required

\(\mathrm{Ca}_{\mathrm{o}}^{++}\)

to trigger adhesion (as did IgE + Ag, data not shown). This observation confirms and extends previous reports showing that

\(\mathrm{Ca}_{\mathrm{o}}^{++}\)

is critical for the SF- and IgE + Ag-induced increase in the avidity of VLA-5.^12,23,24  However, complicating the interpretation of these findings is the fact that

\(\mathrm{Ca}_{\mathrm{o}}^{++}\)

can also enter the cell to enhance classical protein kinase C (PKC) activity as well as other calcium-dependent processes in the cell.²⁴  To determine whether the entry of

\(\mathrm{Ca}_{\mathrm{o}}^{++}\)

⁠, which we have shown previously occurs in response to IgE alone,¹⁷  is required for IgE-mediated adhesion, we tested the calcium channel blocker, 2-APB. This blocker³²  has been shown previously, at the levels we used, to reduce IgE + Ag-induced calcium entry into RBL-2H3 cells.³³  As shown in Figure 4B, 2-APB partially reduced

\(\mathrm{Ca}_{\mathrm{o}}^{++}\)

entry into cells stimulated with either IgE alone or SF (or IgE + Ag, data not shown). However, whereas IgE-induced adhesion to FN (as well as IgE + Ag-induced adhesion, data not shown) was reduced in the presence of 2-APB, SF-induced adhesion was not (Figure 4C). Thus IgE, but not SF, may require an influx of

\(\mathrm{Ca}_{\mathrm{o}}^{++}\)

to increase the avidity of VLA-5 on BMMCs.

To confirm the role of

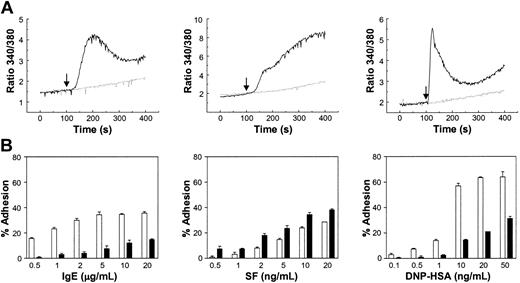

entry in IgE-induced, but not SF-induced, adhesion, we used BMMCs from Lyn^+/+ and ^–/– mice. As shown in Figure 5A, we did not observe any calcium influx into Lyn^–/– BMMCs in response to IgE, SF, or IgE + Ag, whereas responses were normal with Lyn^+/+ BMMCs. This observation corroborates and expands on the very recent findings that IgE + Ag-induced calcium influx is dependent on the presence of Lyn in BMMCs³⁴  and that SF-induced calcium entry is dependent on a Src family kinase.³⁵  We then compared the ability of IgE, IgE + Ag, and SF to induce the adhesion of Lyn^+/+ and ^–/– BMMCs to FN and found, as predicted from our 2-APB results, that IgE- and IgE + Ag-induced adhesion to FN was significantly lower with Lyn^–/– than with Lyn^+/+ BMMCs (Figure 5B). Also in support of our 2-APB findings, the impaired

\(\mathrm{Ca}_{\mathrm{o}}^{++}\)

entry in the absence of Lyn did not reduce SF-induced adhesion of these BMMCs to FN. In fact, we reproducibly observed a slight increase in SF-induced adhesion with Lyn^–/– BMMCs (Figure 5B). It is worthy to note that the cell surface FcϵRI and c-kit levels were similar on Lyn ^+/+ and ^–/– BMMCs (data not shown).

To explore the signaling requirements for IgE-induced adhesion further we tested the phospholipase Cγ (PLCγ) inhibitor, U73122. PLCγ cleaves PI-4,5-P₂ to generate 2 second messengers: diacylglycerol (DAG), which binds and activates a subset of PKC family members,³⁶  and inositol 1,4,5-triphosphate (IP₃), which binds to IP₃ receptors on endoplasmic reticula and mitochondria to release intracellular stores of calcium.³³  This release in turn triggers the entry of

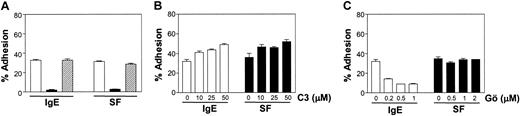

and the subsequent activation of many calcium-dependent processes. As can be seen in Figure 6A, U73122 but not its inactive analog, U73343, markedly inhibited both IgE-induced and SF-induced adhesion of BMMCs to FN. The 1 μM concentration used was shown to block both intracellular calcium release and subsequent

\(\mathrm{Ca}_{\mathrm{o}}^{++}\)

entry (data not shown). This observation suggested that DAG and/or IP₃ (ie,

\(\mathrm{Ca}_{\mathrm{o}}^{++}\)

entry) were required for IgE-induced adhesion and that DAG was required for SF-induced adhesion (because

\(\mathrm{Ca}_{\mathrm{o}}^{++}\)

entry had been ruled out as necessary in the previous experiment).

To probe the role of DAG and calcium further we asked whether one or more of the 12 isoforms of PKC might be involved because both calcium and DAG are known activators of certain PKCs.³⁶  To test this we first added the pan-specific PKC inhibitor, Compound 3 (bisindolylmaleimide I) to our adhesion assay. As shown in Figure 6B, no inhibition was observed with various concentrations of Compound 3, including 25 μM, which completely blocked IgE + Ag-induced phosphorylation of IkB (inhibitor of NF-κB [nuclear factor-κB]) at Ser32.³⁰  In fact, a modest stimulation was consistently observed, both in the absence and presence of IgE alone or SF. This observation is consistent with a previous report demonstrating that Compound 3 did not inhibit SF-induced adhesion of BMMCs.³⁷  Thus, it is likely that one or more isoforms of PKC may actually play a negative role in regulating the avidity of VLA-5 on BMMCs for FN. We then tested the classic PKC inhibitor, Gö6976, at various concentrations and found, consistent with the 2-APB results described earlier, that it potently inhibited IgE-induced (and IgE + Ag-induced) but not SF-induced adhesion to FN (Figure 6C). This observation suggested that a calcium-dependent PKC may positively regulate IgE- but not SF-induced adhesion. Alternatively, Gö6976 may be acting through a different kinase to inhibit IgE-induced adhesion.

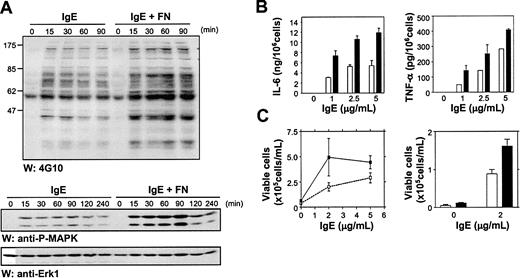

To investigate the downstream ramifications of IgE-induced adhesion of BMMCs to FN we first asked whether there were any apparent differences in intracellular signaling events when cells were stimulated with IgE alone versus IgE + FN (ie, do IgE-induced adherent BMMCs display a different signaling pattern because of input from the activated VLA-5?). To test this question, we first compared the overall tyrosine phosphorylation pattern of BMMCs in suspension versus attached to FN, at different exposure times to IgE. As can be seen in Figure 7A (top panel), tyrosine phosphorylation was substantially prolonged with FN-adherent cells. We then carried out similar time-course studies to specifically examine the effect of IgE alone versus IgE + FN on Erk1 and Erk2 phosphorylation and found that phosphorylation was both prolonged and more intense when the cells were attached to FN (Figure 7A, middle panel). A reprobe with anti-Erk antibodies demonstrated equal loading (Figure 7A, bottom panel).

To look at the biologic ramifications of IgE-induced adhesion to FN we asked whether IgE alone, which does not trigger detectable degranulation in suspension cultures of BMMCs,¹⁶  might now trigger degranulation of FN-adhered cells. However, no significant degranulation was observed (data not shown). We then compared the levels of pro-inflammatory cytokines secreted into the medium from nonadherent versus FN-adherent IgE-treated BMMCs. For these experiments, BMMCs were stimulated with 5 μg/mL IgE for 3 hours in the presence of 15 μ polystyrene beads previously coated with BSA or FN.²¹  IL-6 and TNFα ELISAs revealed that IgE-induced activation of VLA-5 substantially increased the levels of these cytokines (Figure 7B).

Because we had previously shown that the production of autocrine-acting cytokines may contribute to IgE-mediated enhancement of BMMC survival,¹⁶  we next performed survival studies with IgE in the presence and absence of FN. Two concentrations of IgE were initially tested, 2 μg/mL and 5 μg/mL, and viable cells were counted after 4 days. We observed, as seen in Figure 7C (left panel), that adhesion to FN significantly enhanced this IgE-mediated survival, and this enhancement appeared to be greatest at suboptimal concentrations of IgE. Even after 1 week in the presence of 2 μg/mL IgE, for example, IgE-induced binding to FN consistently enhanced BMMC survival approximately 2-fold (Figure 7C, right panel).

Mast cells congregate in connective tissue and are especially numerous beneath the epithelial surfaces of the skin and in the respiratory, gastrointestinal, and genitourinary tracts. This tissue localization, which plays a critical role in enabling mast cells to respond rapidly to invading parasites, bacteria, and environmental antigens, is thought to involve the binding of mast cell progenitors via their integrins to connective tissue components. We demonstrate herein that IgE alone (at approximately 2 μg/mL) is capable of maximally triggering adhesion of both BMMCs and CTMCs to FN and does so to the same extent as optimal levels of SF (approximately 10 ng/mL) or IgE + Ag (5 ng/mL Ag). Interestingly, these levels of SF and Ag are substantially lower than those required to induce BMMC proliferation and degranulation, respectively, confirming earlier reports^11,12,23  and may suggest that, in vivo, low levels of these stimuli play an important role in mast cell recruitment. Relevant to this, the concentration of SF in normal human serum is approximately 3 ng/mL,³⁸  whereas that of IgE ranges from less than 0.1 μg/mL in healthy individuals to more than 30 μg/mL in highly atopic individuals.³⁹  Thus, it is possible that IgE alone only plays a significant role in mediating recruitment, adhesion, and subsequent cytokine production and survival of mast cells during infections or allergic reactions.

The ability of IgE alone to enhance BMMC survival was recently published back to back by our group¹⁶  and Asai et al.⁴⁰  However, although Asai et al⁴⁰  contend that this IgE-induced survival does not involve intracellular signaling, our data strongly implicate signaling. In fact, more recent studies in our laboratory reveal that all IgEs studied to date (including SPE-7, anti-Epo26, and the Liu anti-DNP IgE) can trigger signaling, albeit to different degrees, in normal BMMCs, and the ability of a particular IgE to induce signaling correlates with its ability to promote survival (J.K. et al, unpublished observation, 2003). Importantly, we have found in the current study that, regardless of the IgE used, adhesion can be blocked using intracellular signaling inhibitors (data not shown).

Taken together, our inside-out signaling studies suggest that the activation of both the PI3K pathway and the PLCγ-generated IP₃ pathway (and subsequent draining of intracellular calcium stores,

entry, and perhaps activation of one or more classic PKCs) are critical to IgE-mediated (and IgE + Ag-mediated) adhesion. SF-mediated adhesion, however, appears to be independent of

\(\mathrm{Ca}_{\mathrm{o}}^{++}\)

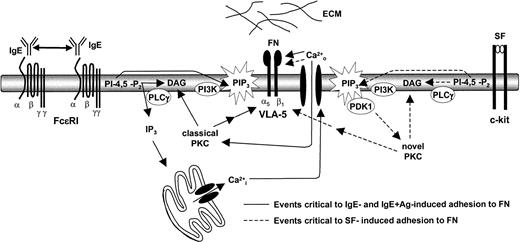

entry but dependent on the activation of both the PI3K pathway and PLCγ-generated DAG (and thus may be positively regulated by one or more calcium independent, DAG-dependent PKCs) (model explained in Figure 8). Of interest, Toker et al³⁶  have shown that PKCϵ is the PKC that is most activated by PIP₃ in vitro, making it a good candidate for mediating SF-induced adhesion. Alternatively, SF-induced production of DAG may lead to an increase in VLA-5 avidity via the activation of other proteins, such as Ras or Rap1 via activation of RasGRPs (guanine-releasing proteins),⁴¹  since we and Dastych et al³⁷  found that SF-stimulated adhesion of BMMCs to FN is unaffected by Compound 3. Specific PKC^–/– BMMCs may be useful in resolving this issue.

Our results are consistent with earlier studies showing that the PI3K pathway plays a critical role in SF- and IgE + Ag-induced adhesion of BMMCs to FN.^22,27,37  Intriguingly, Kinashi et al²²  found that BMMC adhesion to FN could be triggered via a constitutively active PI3K but not a constitutively active Akt/PKB, suggesting that elevated PIP₃ but not the downstream Akt pathway is critical to inside-out signaling. Although Vosseller et al²⁸  concluded that a calcium-independent, PIP₃-dependent PKC might be involved in SF-mediated adhesion to FN, they did not observe calcium entry in response to SF. In keeping with our results, however, Ueda et al³⁵  recently reported that SF does induce calcium entry in c-kit–transfected Ba/F3 cells and that Lyn is a key mediator of this influx. Also relevant to our model, Lorentz et al⁴²  very recently reported that SF-stimulated adhesion of human intestinal mucosa–derived mast cells to FN is blocked with 100 nM wortmannin or 20 μM apigenin but not with 2 μM Gö6976. Apart from their results with apigenin, a putative Erk pathway inhibitor, this is in agreement with our SF findings. Our results with the MEK inhibitors, PD98059 and U0126, suggest that IgE-, SF- and IgE + Ag-induced adhesion does not require the Erk pathway. Moreover, we found that apigenin is not a specific Erk pathway inhibitor. In fact, it inhibits many pathways at 20 μM, including the SF-induced tyrosine phosphorylation of c-kit, whereas at 5 μM it inhibits neither Erk phosphorylation nor SF-induced adhesion (data not shown).

The role that

plays in mast cell adhesion is complicated because it not only binds directly to the extracellular domains of the integrins to modulate heterodimer formation and affinity for FN and other ligands but it can also enter the mast cell to activate various intracellular pathways.^15,24,31,33  As far as the latter is concerned, it has been known for some time that intracellular calcium is involved in the inside-out signaling that leads to integrin-mediated adhesion, and recent studies with lymphocyte function antigen-1 (LFA-1)–mediated adhesion to intercellular adhesion molecule 1 (ICAM-1) suggest, perhaps, a general role for intracellular calcium in increasing the avidity of integrins by activating the calcium-dependent protease, calpain. This protease then cleaves the attachment between the integrin and the cytoskeleton, allowing the integrin to move in the membrane and gather in clusters.³¹  One major question that arises from our data is how SF, which does not appear to require entry of

\(\mathrm{Ca}_{\mathrm{o}}^{++}\)

to increase adhesion, mediates integrin clustering.

Engagement of integrins by their ligands is known to activate various signaling pathways and this is referred to as “outside-in” signaling. These outside-in signals have been shown to modulate signals coming in from other receptors and to alter biologic responses triggered by these other receptors.⁴³  Our observation that tyrosine phosphorylation events are prolonged and of greater intensity when VLA-5 activation acts in concert with IgE stimulation is reminiscent of earlier studies by Hamawy et al⁴⁴  who showed that FcϵRI aggregation–induced adhesion of RBL-2H3 cells to FN increased the tyrosine phosphorylation of focal adhesion kinase (FAK). Furthermore, the enhanced inflammatory cytokine production that we observe with IgE-induced adhesion is somewhat consistent with earlier studies showing that adhesion of mast cells to FN via VLA-5 enhances IgE + Ag-induced degranulation^13,23  and release of inflammatory cytokines.¹³  Interestingly, the enhanced IgE-induced survival we observe with FN-bound BMMCs may explain, at least in part, the elevated mast cell numbers seen in atopic individuals with elevated plasma IgE levels. Related to this, Ra et al¹³  found that the IgE + Ag-induced adhesion of rat- and mouse-cultured mast cells to FN led to greater survival (perhaps via the autocrine action of IL-3) than with IgE + Ag alone. In addition, it is conceivable that the ability of IgE to induce cytokine production could play a role in IgE-induced adhesion. Coward et al,⁴⁵  for example, recently showed that TNFα acts as a positive autocrine signal to augment NFκB activity in human lung mast cells, making it a good candidate for the induction of adhesion in a feedback loop. However, Lorentz et al⁴²  found that TNFα, nerve growth factor (NGF), interferon γ (IFNγ), transforming growth factor β (TGFβ), IL-6, IL-8, IL-10, or IL-13 did not stimulate the adhesion of human intestinal mast cells to FN. As well, apart from preformed TNFα, it is unlikely that IgE-induced cytokine production is rapid enough to contribute significantly to the initial increase in adhesion triggered by IgE. However, it is conceivable that IgE-induced cytokines play a role in IgE-induced adhesion at later time points, and we are currently testing this possibility.

Our findings increase the repertoire of biologic effects elicited by IgE alone and raise the possibility that IgE, in the absence of Ag, may help in vivo to concentrate mast cells at sites of inflammation and promote, in concert with FN, inflammatory cytokine release and mast cell survival.
