MAPK and JNK transduction pathways can phosphorylate Sp1 to activate the uPA minimal promoter element and endogenous gene transcription

In cancer cells, different pathways may be activated and/or different transcription factors may be expressed, resulting in the specific expression of a repertoire of genes in distinct cell types. A good example is the urokinase-type plasminogen activator (uPA) gene, which is expressed at high basal levels in PC3 cells but is not expressed in HeLa or LNCaP cells.^1-3

uPA is a serine protease involved in cell migration in nonpathological (eg, tissue remodeling) and pathological (eg, tumor invasion and metastases formation) events.^4,5  Many human cancers, in fact, overexpress uPA, and reduction of the invasive and metastatic phenotype has been obtained by down-regulating the expression of the gene or by inhibiting the enzymatic activity of this protease.^4,5  The minimal promoter (MP) of the human uPA gene extends approximately 86 bp upstream of the transcription start site^1,6  and contains 5 (high, 3 × GGGCGG; low, 2 × GGGAGG) affinity binding sites for the Sp1-family transcription factors immediately upstream of the TATA box. This cis-acting element binds the transcription factor Sp1 in vivo in PC3 cells, which constitutively express the uPA gene. In this cell line, a uPA minimal promoter–driven reporter construct is 10-fold transcriptionally more active than in HeLa cells.¹  This result correlates with the presence of the phosphorylated form of Sp1 in PC3 cells and with the absence of the phosphorylated transcription factor¹  and the lack of transcription of the endogenous uPA gene in HeLa cells. Thus, the uPA minimal promoter plays a very important role in uPA gene expression, invasion, and metastasis formation in cancer cells.

The expression of the uPA gene is inducible in several cells by stimulating the enhancer, located about 2 kb upstream of the transcription start site,⁶  which binds transcription factors belonging to different families.^7-27  Despite its relevance in these cells, the uPA enhancer appears to have no role (or a very modest one) in uPA expression in PC3 cells, where, instead, transcriptional activity is dependent on the binding of the transcription factor Sp1 to the minimal promoter.¹  Phosphorylation of Sp1 seems to be an absolute requirement, because HeLa cells, which express but do not phosphorylate Sp1, are unable to activate the MP.

Recently, it has been shown that in a CCL39 (Chinese hamster fibroblast)–derivative cell line, which expresses a chimeric, estrogen-inducible Raf:ER chimera, vascular endothelial growth factor (VEGF) expression is under the control of the p42/p44 mitogen-activated protein (MAP) kinase pathway,²⁸  which targets the transcription factor Sp1 and promotes its phosphorylation at residues Thr453 and Thr739.²⁹  The phosphorylated form of Sp1, in turn, drives transcription from the VEGF minimal promoter, which contains 2 binding sites for this transcription factor, which bracket a binding site for the transcription factor AP-2.²⁸  The role of VEGF-MP in the overall expression of VEGF is not known. Interestingly, the constitutive levels of VEGF and uPA mRNA in PC3 and HeLa cells are, in fact, “mirror images,” because PC3 cells have high levels of uPA mRNA and low levels of VEGF mRNA, while HeLa cells have a substantial level of VEGF mRNA but do not express uPA mRNA.^1,30,31

Because both the VEGF and uPA genes appear to depend on their Sp1-driven minimal promoters for expression,^1,29  we have investigated whether phosphorylation of the Sp1 transcription factor was dependent on the same signal transduction pathways.

In this report we show that Sp1 phosphorylation is achieved through the p42/p44 MAP kinase pathway in HeLa cells, through the stress-activated protein kinase/Jun kinase (SAPK/JNK) pathway in PC3 cells, and through both in LNCaP cells. Cotransfection of a dominant negative form of JNK in HeLa and LNCaP cells drastically decreases the transcriptional induction of the MP observed with the kinases of the p42/p44 MAPK and JNK pathways, respectively. Also, transfection of a dominant negative JNK in uPA-producing PC3 cells decreases the basal transcriptional activity of the uPA promoter. Transfected MEK/ERK induces phosphorylation of endogenous Sp1 in HeLa cells, whereas dominant negative JNK causes its dephosphorylation in PC3 cells. In parallel, increased levels of endogenous uPA mRNA in HeLa cells and decreased levels in PC3 cells were also observed. The results indicate that the SAPK/JNK pathway plays a major role both in basal and activated uPA gene expression in these cells.

HeLa, PC3, and HT-1080 cells were grown in Dulbecco modified Eagle medium (DMEM) with the addition of 10% (vol/vol) fetal calf serum (FCS), 100 mM sodium pyruvate, 200 mM glutamine, and 50 000 units of penicillin and streptomycin. LNCaP cells were grown in RPMI with 10% (vol/vol) FCS, 200 mM glutamine, and 50 000 units of penicillin and streptomycin.

Chinese hamster fibroblast (CCL39)–derivative cells have been previously described.²⁹

Transient transfections on HeLa, PC3, and HT1080 cells were performed using Lipofectamin 2000 (Invitrogen, Carlsbad, CA), according to the manufacturer's instructions using a total 1 μg DNA per 80 000 cells in 24-well plates. Transfections on LNCaP cells were performed using 12-well plates with 150 000 cells per well.

Luciferase reporter vectors have been previously described.^1,28  Expression plasmids for the p42/p44 MAP kinase pathway mutants were as described²⁹ ; the expression plasmid for the dominant negative JNK (JNK^DN) mutant was a kind gift from Dr Roger Davis (Case Western Reserve University, Cleveland, OH), and the dominant negative SEK (SEK^DN) was a gift from Dr Dennis Templeton (University of Massachusetts, Worcester). Cells were also transfected with the empty vectors hosting the kinase mutants (pECE; Stratagene, La Jolla, CA) as control. The experiments in Figures 4 and 5B and in Tables 1 and 2 were performed with the GAL4-cJun and GAL4-Elk1 fusion protein expression plasmids, pFC-MEKK, pFC-MEK1, and the GAL4 luciferase reporter vector of the PathDetect Trans Reporting System kit (Stratagene). The MEK1 and 2 (extracellular signal-regulated kinase 1/2 [ERK1/2]) kinase inhibitor UO126 (Sigma, St Louis, MO) was dissolved in dimethyl sulfoxide (DMSO) and was added to the cells at a final concentration of 50 μM or 100 μM 2 hours before the preparation of extracts. Control cells received 5 μLor 10 μL of DMSO alone for the same time.

In all cases, cells were transfected also with a β-galactosidase reporter vector (pCMV-βgal; Clontech, Palo Alto, CA) or with PhRL or pGL3-Promoter vector (Promega, Madison, WI) for normalization. The results shown are the average of at least 2 experiments in triplicate.

Nuclear extracts were prepared by the method of Dignam et al.³²  Aliquots were frozen and kept at –80° C. Phosphatase treatment of nuclear extracts was as described.¹

For Western blots, 10% (wt/vol) polyacrylamide–sodium dodecyl sulfate gels were loaded with 50 μg of nuclear extracts from the different cell lines. Transfer to polyvinylidene fluoride (PVDF) membrane (Millipore, Billerica, MA) was performed in a semidry transfer apparatus (Sigma) for 2 hours at 0.8 mA/cm². Overlay of the blot with the anti-Sp1 antibody (sc-59X; Santa Cruz Biotechnology, Santa Cruz, CA) was performed overnight at 4° C in phosphate-buffered saline (PBS) containing 3% (wt/vol) dried milk as quencher. Secondary antibody reaction (antirabbit immunoglobulin G [IgG]; Amersham, Arlington Heights, IL) was for 1 hour at 4° C in the same buffer. Bands were revealed by chemoluminescence using the SuperSignal kit (Pierce, Rockford, IL).

Total RNA was extracted from HeLa and PC3 cells either transfected with empty vectors (pECE) or with the expression vectors for the MEK/ERK chimeric kinase or for JNK^DN, respectively, with TRIZOL Reagent (Invitrogen), according to the maufacturer's instructions.

Four micrograms of total RNA was used in the reverse transcription step using SuperScript First-Strand Synthesis System for reverse transcriptase–polymerase chain reaction (RT-PCR) (Invitrogen), according to the maufacturer's instructions, using oligo(dT) to prime first-strand synthesis in a total volume of 20 μL.

The product of the 4 reverse transcription reactions (HeLa + empty vector; HeLa + MEK/ERK^A; PC3 + empty vector; PC3 + JNK^DN) were diluted 1:10, and 1 μL of each reaction was used for quantitative real-time PCR reaction with either 500 nM uPA primers (uPA forward [fwd]: 5′-ATCgAACTgTgACTgTCTAAATgg-3′; uPA reverse [rev]: 5′-TCTgTgggCATggTACgTTTgC-3′; spanning nucleotides 140 to 400 of the uPA sequence NM_002658) or 500 nM β-actin primers (β-actin fwd: 5′-ggCATCCTgACCCTgAAgT-3′; β-actin rev: 5′-CggATgTCAACgTCACACTT-3′; spanning nucleotides 260 to 942 of the β-actin sequence NM_001101). The final 20 μL reaction mix also contained 1 × SYBR-green1 mix (inclusive of deoxyribonucleoside triphosphates [dNTPs] and FastStart Taq DNA polymerase; Roche, Milan, Italy) and 4 mM MgCl₂.

Amplifications were run in the Light Cycler 1.0 (Roche) apparatus on triplicate reactions with the following protocol: hot start (denaturation), 95° C for 10 minutes; and amplification (3 steps): denaturation, 95° C for 10 seconds; annealing, 63° C for 0 seconds (for uPA reverse-transcribed samples) or 60° C for 0 seconds (for β-actin samples); extension, 72° C for 20 seconds.

For each sample, the average crossing-point value (number of cycles at which each sample reaches a threshold fluorescence value) was calculated from triplicate reactions and is indicated as Ct. The formula DCt_kinase = Ct_k-uPA – Ct_k-β-actin estimates the difference (expressed as the number of PCR cycles) between uPA and β-actin samples, from kinase-transfected cells, at a fixed fluorescence value, and DCt_{empty vector} = Ct_ev-uPA – Ct_ev-β-actin indicates the difference between the samples in empty vector–transfected cells. Thus, the formula DCt = DCt_kinase – DCt_{empty vector} represents the difference between the normalized value of the uPA sample in kinase-versus empty vector–transfected cells and is used in the formula 2^–DDCt, which indicates the fold increase or decrease of endogenous uPA mRNA in the different transfection conditions and is reported in Table 4. The experiment was repeated twice with triplicate samples.

Northern blots were performed as described.^28,29

We tested whether the p42/p44 pathway affects transcription of a luciferase reporter gene driven by the uPA minimal promoter element. HeLa cells were cotransfected with reporter constructs containing the luciferase gene driven by the uPA minimal promoter and with the constitutively active mutant of MEK (MEK^A) or with a MEK/ERK chimeric kinase,²⁹  and luciferase activity was monitored.

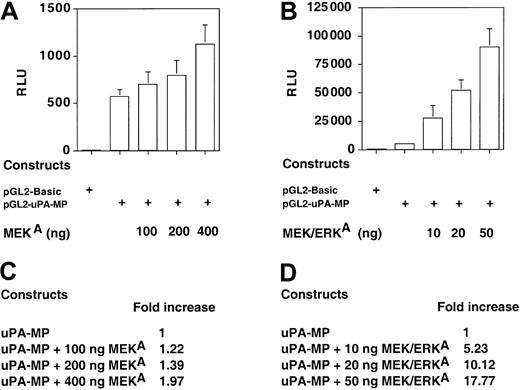

Figure 1A,C shows that transcription of the uPA minimal promoter was stimulated by the MEK^A construct in a dose-dependent manner. The effect observed, however, was modest, increasing only 2-fold.

The use of a chimeric construct in which the active peptides of both the MEK and ERK kinases were fused (MEK/ERK^A) and in which the residues subject to phosphorylation on the MEK portion of the chimera were mutated to aspartic acid to mimic a constitutive activation produced an even more substantial effect of the construct on the the uPA minimal promoter (Figure 1B-D). The values reach an almost 20-fold activation of the reporter constructs at a 10-fold lower concentration of MEK/ERK^A-expressing plasmid with respect to MEK^A.

The results indicate that transcription from the uPA minimal promoter can be induced in HeLa cells by overexpression of constitutively active kinases of the p42/p44 MAPK pathway; however, the effects of the kinases of the p42/p44 kinase pathway on the transcription of the reporter construct were substantially reduced in a dose-dependent fashion by cotransfection with the dominant negative form of JNK, JNK^DN (Figure 2).

We also tested LNCaP cells, in which the uPA gene is not expressed.²  We used the GAL4-cJun and GAL4-Elk1 fusion protein expression plasmids, pFC-MEKK, pFC-MEK1, and the GAL4 luciferase reporter vector of the PathDetect Trans Reporting System kit (Stratagene) to test whether the p42/p44 MAPK and SAPK/JNK pathways were active in this cell line. Table 1 shows that the transcription from the GAL4-luc reporter vector is activated by the GAL4-cJun and GAL4-Elk1 fusion proteins only in the presence of cotransfected MEKK and MEK1 kinases, indicating that both pathways are inactive in this cell line, as previously reported.³³  Interestingly, the GAL4-Elk1 fusion protein was responsive to both cotransfected kinases.

LNCaP cells were therefore transfected with the uPA-MP reporter construct and cotransfected with MEKK and MEK1 constructs, and luciferase activity was monitored as above.

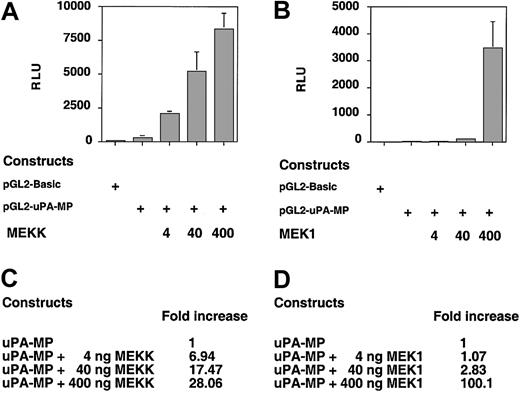

The results in Figure 3A,C show that transcription from the uPA minimal promoter responds in a dose-dependent manner to cotransfection with the MEKK construct. The uPA-MP construct also responds to cotransfection with the MEK1 construct in this cell line (Figure 3B,D). The former was completely inhibitable by cotransfection of JNK^DN, while the latter was not significantly inhibited (Table 2), suggesting that both pathways are able to activate the MP in these cells.

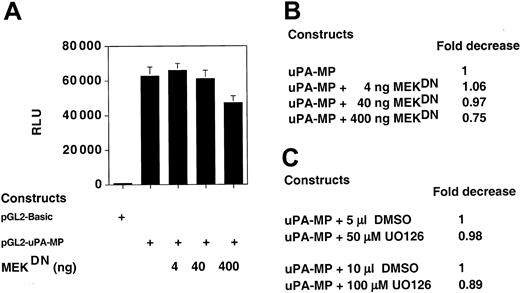

We tested whether the p42/p44 signal transduction pathway was involved in the transcriptional activity of the uPA minimal promoter in the PC3 adenocarcinoma cell line. We expected that a cotransfected dominant negative mutant of MEK (MEK^DN) or treatment of the cells with a specific metabolic inhibitor of this pathway (UO126) would substantially reduce transcription of the reporter construct driven by the uPA promoter element. As shown in Figure 4A-B, the effect of the MEK^DN construct is very modest on the uPA minimal promoter, where transcriptional inhibition reaches 25%. A comparable result was obtained by treating PC3 cells with the MAP kinase inhibitor UO126 (Figure 4C).

The results indicate that, unlike HeLa cells, the basal transcriptional activity of the uPA minimal promoter in PC3 cells line is not, or only minimally, affected by the p42/p44 MAP kinase pathway, suggesting the involvement of a different signal transduction cascade.

Since the transcriptional activity of the uPA minimal promoter in PC3 cells relies on Sp1 phosphorylation,¹  a signaling cascade that is constitutively active in this cell line, different from the p42/p44 MAP kinase pathway must be present. Therefore, fusion proteins containing the GAL4 DNA binding domain and either the Elk1 or cJun activation domains were expressed from cytomegalo-virus (CMV)–driven plasmids, which were cotransfected with a luciferase reporter plasmid carrying 5 GAL4 binding sites in PC3 cells. Transcriptional activation through the GAL4-Elk1 fusion protein is expected to occur if the p42/p44 MAPK pathway is active in PC3 cells, whereas transcriptional activation through the GAL4-cJun fusion protein would occur if the JNK pathway were active.

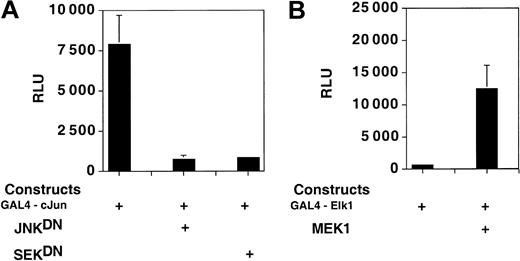

Figure 5A shows that the GAL4-cJun fusion protein was very active in PC3 cells, and when cotransfected with 2 different dominant negative mutants of the SAPK/JNK pathway, transcription was substantially reduced (Figure 5A). Conversely, the construct expressing the GAL4-Elk1 fusion protein did not activate transcription from the reporter construct unless the cells were cotransfected with a plasmid expressing MEK1 (Figure 5B). Thus, the p42/p44 MAP kinase pathway is not constitutively active in PC3 cells and hence is unlikely to constitutively affect Sp1 phosphorylation.

We conclude that the SAPK/JNK signaling cascade is constitutively active in PC3 cells³³  and may be responsible for Sp1 phosphorylation.

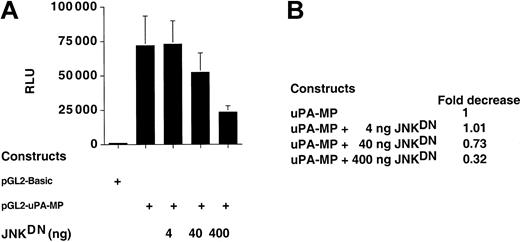

In light of these results, we tested whether the cotransfection in PC3 cells of the expression vector coding for the dominant negative form of JNK (JNK^DN) with the uPA-MP reporter construct would affect its transcriptional activity. Indeed, the uPA minimal promoter was strongly affected by the JNK^DN (Figure 6A), which reduced transcription by approximately 70% (Figure 6B).

Similar results were obtained in HT-1080 cells (Table 3), which also constitutively express the uPA gene (see, for instance, Medcalf ³⁴ ).

We conclude that in PC3 and HT-1080 cells the SAPK/JNK signal transduction pathway is constitutively active and affects the activity of the uPA promoter element, possibly through phosphorylation of Sp1.

In PC3 cells the transcriptional activator Sp1 in its phosphorylated form is required for the function of the uPA minimal promoter element.^1,28  To unveil a direct link between the p42/p44 MAPK and JNK signal transduction pathways and Sp1 phosphorylation, we established the state of Sp1 phosphorylation in HeLa and PC3 cells.

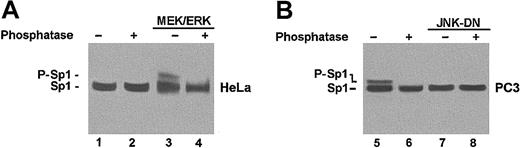

The results in Figure 7A show that in HeLa cells a phosphorylated band of Sp1 appears only in the presence of MEK/ERK^A; in PC3 cells (Figure 7B) phosphorylated Sp1 disappears in the presence of JNK^DN.

Our results indicate that Sp1 phosphorylation (or the lack of it) affects the activity of reporter genes driven by the uPA minimal promoter. We asked then whether transfection of HeLa and PC3 cells with the MEK/ERK constitutively active kinase and with the JNK^DN mutant, respectively, would also affect the level of endogenous uPA mRNA in these cell lines.

Total mRNA from mock-transfected or MEK/ERK^A-transfected HeLa cells and JNK^DN-transfected PC3 cells was extracted, reverse transcribed, and subjected to real-time PCR with specific uPA and β-actin mRNA primers.

The variation of endogenous uPA mRNA was calculated from the number of PCR cycles necessary for each template to reach the same fluorescence value, normalized to β-actin values, used as internal standard, and expressed as fold increase or decrease as compared with the values obtained from cells transfected with an empty vector.

The MEK/ERK^A-transfected HeLa cells had a 3.5-fold higher level of endogenous uPA mRNA over the level detected in mock-transfected cells (Table 4). In PC3 cells, where the uPA gene is constitutively expressed and has a high basal level of mRNA,¹  the transfection of the JNK^DN kinase reduced the level of endogenous uPA mRNA by 20% as compared with mock-transfected cells (Table 4).

Thus, the endogenous uPA promoter promptly responds to the p42/p44 MAPK and JNK signal transduction pathways in HeLa and PC3 cells, respectively.

To establish a causal connection between uPA gene expression and Sp1 phosphorylation, we have used CCL39-derivative cells stably transfected with a Raf:ER chimera under the control of an estradiol-inducible promoter. In these cells, VEGF expression depends on the p42/p44 MAP kinase pathway,²⁸  which targets Thr453 and Thr739 of the transcription factor Sp1.²⁹

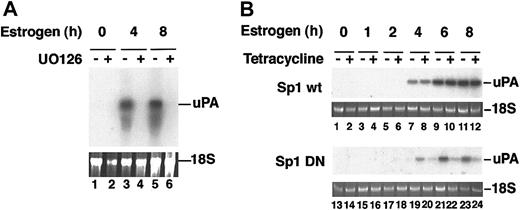

We first established the involvement of the p42/p44 pathway in endogenous uPA expression by treating CCL39 derivatives with estradiol in the presence or absence of UO126, a specific inhibitor of the MAPK pathway. Total RNA from estradiol- and/or UO126-treated CCL39 Raf:ER cells was extracted, fractionated, and a Northern blot was probed with the murine uPA cDNA. As shown in Figure 8A, induction of Raf:ER induced uPA mRNA, and treatment with the kinase inhibitor completely abolished uPA mRNA transcription.

We then asked whether Sp1 phosphorylation was the effector for Raf:ER induction of uPA transcription, as for VEGF.²⁹  CCL39 Raf:ER cells were transfected with a wild-type or dominant negative (mutated in the phosphorylatable residues) Sp1 transcription factor under the control of a tetracycline-inducible promoter.²⁹  Following estradiol treatment and tetracycline induction, total RNA was extracted, fractionated, and probed as above. The uPA mRNA was detected after 4 hours of estradiol treatment and remained high after 6 and 8 hours (Figure 8B, lanes 8-12). When a mutant Sp1, unable to undergo phosphorylation by p42/p44 MAP kinases,²⁸  was overexpressed upon tetracycline treatment, the induced endogenous level of uPA mRNA was drastically reduced (Figure 8B, compare lanes 20, 22, and 24 with lanes 19, 21, and 23). However, tetracycline induction of the wild-type form of Sp1 did not affect the endogenous uPA mRNA levels (Figure 8B, compared lanes 8, 10, and 12 with lanes 7, 9, and 11).

We conclude that the p42/p44 pathway affects uPA gene expression through phosphorylation of the transcription factor Sp1.

Transcription of the uPA gene in human cells is controlled by a large 5′ regulatory region, in which 2 elements, the minimal promoter (–86/+1) and the enhancer (–1976/–1880), have been thoroughly studied.^{1,6-18,21-24,26,35-37}  The intervening sequence (–1879/–87) is not well characterized, although it is known to contain a putative negative regulatory element.³⁸  By comparing a uPA-nonproducing, primary tumor cell line (HeLa) with a constitutively high-level uPA-producing, metastatic cell line (PC3), we discovered that the uPA minimal promoter was active only in the latter.¹  This difference could be attributed mainly to the transcription factor Sp1, which has 5 binding sites within the minimal promoter region.¹  The Sp1 protein in both cell lines is expressed at approximately equal levels, but only in PC3 cells is it phosphorylated and bound to the uPA minimal promoter chromatin.¹

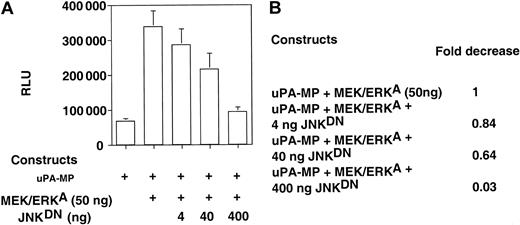

Here we have analyzed the signaling pathways leading to uPA minimal promoter activation and Sp1 phosphorylation. An unanticipated result was that cotransfection of the dominant negative form of JNK with the constitutively active kinases of the p42/p44 pathway substantially diminished, in a dose-dependent fashion, the activity of the transfected, uPA minimal promoter–driven reporter construct both in HeLa and LNCaP cells. Evidence that the JNK pathway is involved in the transcriptional up-regulation of the uPA gene has been gathered mostly in murine cells and point to the enhancer (specifically the AP-1 sites) as the key element through which activation takes place,^19,27,39-42  whereas this element has drawn attention for its responsiveness to the protein kinase C (PKC) pathway in human cell lines.^12,43,44  Our results indicate that the minimal promoter of the uPA gene may also be a target of the SAPK/JNK pathway and suggest a model in which coregulation of enhancer and minimal promoter may promote gene activation.

Our findings also suggest that a “crosstalk” occurs between the p42/p44 and JNK pathways in HeLa cells, because the dominant negative form of JNK decreases in a dose-dependent manner the uPA-MP–activated response elicited by MEK/ERK. This is in line with recent findings that have shown the negative modulation of the p42/p44 MAP kinase pathway by effectors of the JNK pathway.⁴⁵  This opens the possibility that crosstalk between the p42/p44 MAPK and the SAPK/JNK may represent a further level of regulation of gene expression, suggesting that a tight control on uPA transcription may be achieved upstream of the protein-DNA interaction level.

In PC3 cells we have observed that the use of the dominant negative form of a kinase of the p42/p44 MAPK pathway only minimally affected the activity of the reporter construct. Indeed, the transcriptional activation of the uPA-MP reporter construct is elicited by the constitutively active SAPK/JNK pathway in this cell line. This molecular mechanism is not limited to PC3 cells, because we find that also in another uPA-producing, HT-1080 fibrosarcoma cell line, transcriptional activation of the uPA-MP construct is affected by cotransfection with the dominant negative form of JNK.

In the uPA-nonproducing LNCaP cells, the uPA-MP element is responsive both to the p42/p44 MAPK and to the SAPK/JNK pathways. However, differently from what is observed in HeLa cells, the pathways do not seem to merge, because JNK^DN has no effect on the cotransfected MEK1, as it does on MEK/ERK in HeLa cells.

Phosphorylation of Sp1 seems to be the key element in the transcription of the uPA gene, at least from the minimal promoter element, as also suggested by the results in CCL39-derivative cells. Thus, signals leading to uPA gene expression through the minimal promoter element are channeled to their Sp1 target by at least 2 signal transducing pathways: the p42/p44 and the SAPK/JNK. Whether these pathways perform separate actions or merge seems to depend strongly on the cell line context. However, it seems likely that the SAPK/JNK pathway plays a dominant role at least in prostate cancer–derived cell lines.
