The regulatory T-cell response during acute retroviral infection is locally defined and controls the magnitude and duration of the virus-specific cytotoxic T-cell response

Cytotoxic CD8⁺ T cells (CTLs) are critical for the control of viral replication in many virus infections. Thus, viruses that establish chronic infections have developed mechanisms to evade destruction by CTLs. We and others have recently described that retroviruses induce the expansion of regulatory T cells (Treg), which might be a strategy to suppress antiviral CTL responses.^1-5  This CTL suppression is likely to be a mechanism of immune regulation of the host during infections to avoid immunopathology induced by activated CTLs. In fact, there are viral infections in which the pathology induced by the host's immune response is far more detrimental than the cytopathic consequences of the virus infection itself.^6-8  Thus, for the health of an infected person, it might be more important to control acute CD8⁺ T cell–mediated immunopathology than to prevent persistent viral infection. In contrast, a Treg response during a virus infection itself has to be controlled in some way or a general immunosuppression of the host would be the consequence of such a response. Previous studies with parasites suggest that compartmentalization might be a mechanism to restrict Treg to sites of infection, where CTL responses have to be dampened to prevent immunopathology.⁹  However, studies on localization and suppressive potential of Treg during an ongoing infection in vivo were mainly performed in animal models in which Treg could not be selectively depleted because all known Treg surface markers are shared with other cell subsets of the immune system. The only unique Treg marker in the mouse is Foxp3, an intracellularly expressed transcription factor.¹⁰  In this study, we used Foxp3 transgenic mice expressing the diphteria toxin (DT) receptor under the control of the Foxp3 promoter that allows to selectively deplete Treg in vivo and thus to clarify the relevance of Treg for antiviral CD8⁺ T-cell responses during an ongoing retroviral infection.

We have previously used the Friend virus (FV) model to study the interaction of retroviruses with CTLs and Treg.^5,11,12  FV is a retroviral complex that induces erythroleukemia in susceptible mice. In contrast, resistant strains, like the C57BL/6 mice that were used in the current study, develop potent immune responses during acute infection that allow recovery from disease.^13,14  CD8⁺ T cells are a key component of the immune response that is critical for this recovery, as animals lacking CD8⁺ T cells do not control viral replication and develop severe leukemia.^15-17  These CD8⁺ T cells use the cytotoxic molecules perforin, granzyme A, and granzyme B to kill FV-infected cells and suppress viral replication by release of interferon γ (IFNγ).^18,19  However, these virus-specific CD8⁺ T cells lose their ability to produce cytotoxic molecules¹¹  and to secrete IFNγ⁵  during chronic FV infection. The functional suppression is mediated by CD4⁺ Foxp3⁺ Treg, which expand during the late phase of acute FV infection.^5,12

In the current study, we analyzed the local restriction of the Treg response during FV infection, and used the model of DT-induced depletion of Treg in the living mouse to determine the role of Treg in controlling the magnitude and duration of a virus-specific CTL response during an acute retroviral infection.

Inbred C57BL/6 and DEREG²⁰  mice were maintained under pathogen-free conditions. Experiments were done using mice (H-2^b/b, Fv1^b/b, Fv2^r/r) or transgenic mice backcrossed on C57BL/6 background that are resistant to FV-induced leukemia. All mice were females of 8 to 16 weeks of age at the beginning of the experiments. All animal studies were approved by the institutional review board at the University of Duisburg-Essen.

The FV stock used in these experiment was FV complex containing B-tropic Friend murine leukemia helper virus and polycythemia-inducing spleen focus-forming virus.²¹  The stock was prepared as a 10% spleen cell homogenate from BALB/c mice infected 14 days previously with 3000 spleen focus-forming units (SFFU) of noncloned virus stock. Experimental mice were injected intravenously with 0.5 mL phosphate-buffered saline (PBS) containing 25 000 SFFU of FV. The virus stock was free of lactate dehydrogenase-elevating virus.

Infectious center assays were performed as described previously.²²

Cell-surface staining was performed using BD Biosciences reagents. T-cell antibodies were as follows: anti-CD43 (1B11), anti-CD4 (RM4-5), anti-CD8 (53-6.7), and anti-CD107a (1D4B). Dead cells (7-aminoactinomycin D positive) were excluded from analyses. Intracellular granzyme A (polyclonal rabbit anti–mouse granzyme A immunoglobulin G, protein A purified) and granzyme B (monoclonal anti–human granzyme B antibody allophycocyanin [APC] conjugated, clone GB12; Caltag Laboratories) staining was performed as described.¹²  Foxp3 expression was detected by intracellular staining using the anti–mouse/rat Foxp3 antibody (clone FJK-16s) and the Foxp3 staining set (eBioscience). Data were acquired on a LSR II flow cytometer (BD Biosciences) from 100 000 to 300 000 lymphocyte-gated events per sample. Analyses were done using CellQuest Pro and FACSDiva software (BD Biosciences).

CD8⁺ T-cell depletions were performed essentially as described.²³  Briefly, mice were inoculated 4 times intraperitoneally with 0.5 mL of supernatant fluid obtained from hybridoma cell culture for the CD8a-specific monoclonal antibody 169.4. The treatment depleted more than 95% of the CD8⁺ cells in all investigated organs (at 10 days postinfection).

To deplete Treg, DEREG mice were injected with diphtheria toxin (DT; Merck), diluted in endotoxin-free PBS. A total of 1 μg DT was inoculated 4 times every other day starting on the day of FV infection. The treatment depleted more than 97% of the CD4⁺ enhanced green fluorescent protein (GFP)⁺ T cells in all investigated organs of DEREG mice (at 10 days postinfection).

For detection of D^b-GagL–specific CD8⁺ T cells, nucleated lymph nodes, spleen, and bone marrow cells were stained with APC-labeled anti-CD8 (Ly-2), fluorescein isothiocyanate–labeled CD43 (1B11; BD Biosciences), and phycoerythrin-labeled major histocompatibility complex (MHC) class I H2-D^b tetramers specific for FV GagL peptide^24,25  (Beckman Coulter).

The in vivo CTL assay described by Barber et al²⁶  was modified to measure cytotoxicity in FV-infected mice. Splenocytes from naive mice were loaded with 1 μM D^bGagL peptide.²⁵  These loaded cells were then stained with 200 nM 5-(and 6-)carboxyfluorescein diacetate succinimidyl ester (CFSE; Molecular Probes). As control, spleen cells without peptide were stained with 2 nM CFSE. Splenocytes were transferred intravenously (i.v.; 10⁷ cells of each population) into naive or FV-infected mice. Two hours after the transfer of cells, lymph nodes, spleen, and bone marrow were harvested, and cell suspensions were prepared. Target cells were distinguished from recipient cells and from one another based on CFSE staining. The percentage of killing was calculated as follows: 100 − ([(% peptide pulsed in infected/% unpulsed in infected)/(% peptide pulsed in uninfected/% unpulsed in uninfected)] × 100).

Bromodeoxyuridine (BrdU; Sigma-Aldrich) was dissolved in water, and mice were then exposed to BrdU (0.8 mg/mL) through drinking water from day 7 up to day 10 post-FV infection. Ten days postinfection (dpi) mice were killed, and single-cell suspensions from lymph nodes, spleen, and bone marrow were prepared. BrdU incorporation was detected using the BrdU flow kit protocol (BD Biosciences). In brief, cells were surface stained for CD4 (RM4-5) and CD25 (PC61), fixed, permeabilized, refixed, and treated with DNase. After that, cells were intracellularly stained with BrdU-specific monoclonal antibody and anti–mouse/rat Foxp3 antibody (FJK-16s; eBioscience). Staining of cells with the isotype control anti–mouse immunoglobulin G1-APC and staining of cells from mice, which were not exposed to BrdU, was used as negative control. Data were acquired from 150 000 lymphocyte-gated events per sample.

Statistical data were derived using the nonparametric Student t test (GraphPad Prism software; GraphPad).

In previous studies on FV-specific immunity, viral replication and immune responses were mainly determined in the spleens of infected mice. However, FV can infect various cells of the haematopoetic system,²⁷  and infected cells have been found in several organs of the lymphatic system.⁵  In this study, we compared the kinetics of viral replication in the bone marrow, spleen, and lymph nodes after infection of C57BL/6 mice with 25 000 SFFU of FV. During acute infection, virus-infected cells were detected as early as 2 dpi, and peak viral loads were reached at 7 dpi in all 3 lymphatic organs (Figure 1A). Thereafter, viral loads decreased steadily until a persistent low-level infection was established at 60 dpi. The highest level of persistent virus was measured in the spleen, but the virus was detectable in all 3 organs during chronic infection. During peak viral loads at 7 dpi, the highest levels of infection were found in the bone marrow. It was more than 15 times higher compared with the spleen and almost 300 times higher than in lymph nodes (Figure 1A).

To compare the kinetics of FV replication with antiviral CD8⁺ T-cell responses, effector CD8⁺ T cells were analyzed in the spleen, lymph nodes, and bone marrow. As a marker for effector CD8⁺ T cells, the activation-associated glycoform of CD43 was used.^11,12  In previous studies, CD8⁺ CD43⁺ T cells from FV-infected mice also expressed the other effector cell markers, CD44 and CD69, and were negative for CD62L.¹²

In FV-infected mice, the absolute numbers of CD43⁺ cells among the CD8⁺ T-cell population increased over time until it peaked in the spleen at 10 dpi and in the bone marrow and lymph nodes at 12 dpi (supplemental Figure 1A, available on the Blood website; see the Supplemental Materials link at the top of the online article). Reflecting the levels of viral loads in the different organs, the highest absolute number of CD8⁺ CD43⁺ T cells was found in the bone marrow, which was more than 2 times higher than in the spleen and approximately 2.5 times higher compared with lymph nodes. To assure viral specificity of this CD8⁺ T-cell response, effector T cells were stained with a MHC class I tetramer specific for the H-2D^b–restricted Friend murine leukemia helper virus–glycosylated gag epitope.²⁴  CD8⁺ tetramer⁺ T cells were not detected during the first 7 dpi (Figure 1B). However, shortly thereafter at 10 dpi, the CD8⁺ tetramer⁺ T-cell response peaked in the spleen and bone marrow. Peak tetramer⁺ CD8⁺ T-cell numbers in lymph nodes were observed at 15 dpi. All tetramer⁺ cells were also positive for the effector cell marker CD43⁺ (data not shown). The peak virus-specific CD8⁺ T-cell response against the FVgag epitope in the bone marrow was nearly 3 times higher than in the spleen and more than 20 times higher than in lymph nodes. After peak expansion of virus-specific CD8⁺ T cells, a contraction phase of the CD8⁺ T-cell response was found in all organs, but CD8⁺ tetramer⁺ T cells remained detectable throughout the chronic phase of infection in the spleen and bone marrow (Figure 1B).

To analyze functional properties of effector CD8⁺ T cells during FV infection, production of the cytotoxic molecules granzyme A and B and surface expression of the degranulation marker CD107a^28,29  were determined (Figure 1C-D and supplemental Figure 1B). The highest numbers of CD8⁺ CD43⁺ T cell–expressing granzymes were measured within the first 2 days after the peak virus-specific CD8⁺ T-cell response (Figure 1C and supplemental Figure 1B). In addition, at 12 dpi, peak degranulation of cytotoxic molecules by effector CD8⁺ T cells was found by analyzing CD107a expression (Figure 1D). The highest number of granzyme or CD107a-expressing CD8⁺ CD43⁺ T cells was again detected in the bone marrow, followed by the spleen and the lymph nodes. The cytotoxic potential of the CD8⁺ T cells was analyzed by an in vivo CTL assay (Figure 1E). Spleen cells from a noninfected mouse were loaded with the FV-specific D^bGagL peptide, labeled with CFSE, and injected i.v. into FV-infected recipient mice at 10 dpi. As negative control, CFSE-labeled cells without peptide were cotransferred. In the infected recipient mice, approximately 32% of the labeled cells were eliminated in the lymph nodes after 2 hours. The average killing in the spleen and bone marrow was significantly higher with 60% and 73%, respectively. These results demonstrate that there was a clear correlation between the magnitude of the CD8⁺ T-cell response in the 3 different organs and the magnitude of target cell killing. Kinetic studies of the CTL-mediated killing in the spleen (Figure 1F) and bone marrow (Figure 1G) revealed that it was still very effective at 15 dpi, but decreased at 20 dpi. This was slightly delayed in comparison with the decrease in granzyme and CD107a expression by CD8⁺ T cells, which might be explained by the high effector to target cell ratio in the described in vivo CTL assay.

The results indicate that the expansion of virus-specific CD8⁺ T cells and their functional properties in different organs of FV-infected mice were strictly correlated to the levels of viral replication. In addition, as reported previously,¹²  between the second and the third week postinfection, a functional impairment of the effector CD8⁺ T cells developed.

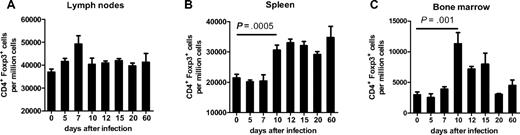

We have previously reported that Treg expand in the spleen after FV infection and that this expansion correlates with suppression of CD8⁺ T-cell responses.^5,12  In this study, the kinetics of Treg responses in various lymphatic organs were compared. Treg were stained for the intracellular expression of Foxp3, the only unique marker for Treg. In naive mice, almost 4% of the total lymph node cells were Foxp3⁺ (Figure 2A). In contrast, only 2% of the splenocytes were Foxp3⁺ and less than 0.5% of the cells in the bone marrow of uninfected mice were Treg (Figure 2B-C). After FV infection, very little expansion of the Treg in comparison with naive mice (P > .05 at 7 dpi) was detected in lymph nodes (Figure 2A). In the spleen, a significant expansion of Treg was found at 10 dpi (P = .0005) and thereafter, which was shortly after peak viral loads in this organ. The most pronounced expansion of Treg after FV infection was detected in the bone marrow (P = .001). At 10 dpi, an expansion of almost 300% of the Foxp3⁺ cell population was found. This was 3 days after peak viral loads and contemporaneous with the peak of the CD8⁺ T-cell response. Thus, the magnitude of Treg expansion was associated with the level of viral replication and the strength of the CD8⁺ T-cell response in the different lymphatic organs. To determine whether or not different viral loads within the same organ can influence the magnitude of Treg expansion, we infected mice with various inoculation doses of FV. As expected, the challenge dose influenced the viral loads in all 3 lymphatic organs, with highest levels of infection being detected after inoculation of the highest FV dose (data not shown; Zelinskyy et al³⁰ ). Increasing infection doses resulted in a gradual increase in the level of Treg expansion in the spleen and bone marrow (Figure 3A). In contrast, increasing viral loads in lymph nodes did not result in greater expansion of Treg, which might be associated with the high number of Treg that were already present in the lymph nodes of noninfected mice (Figure 2A). However, the analysis of spleens and bone marrow clearly demonstrated that the magnitude of Treg expansion correlated with the level of FV replication in these 2 lymphatic organs.

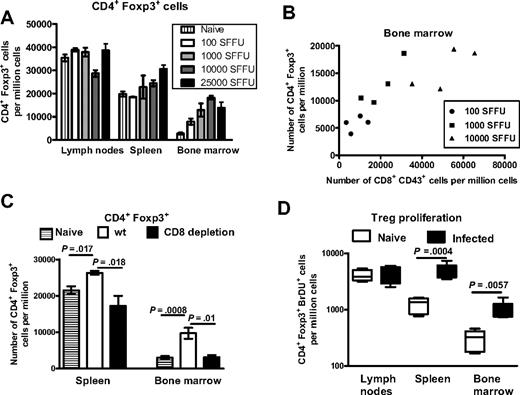

However, these experiments do not answer the question of whether the level of viral replication or the subsequent CD8⁺ T-cell response resulted in Treg expansion. When the numbers of CD4⁺ Foxp3⁺ Treg were compared with the numbers of CD8⁺ CD43⁺ effector T cells in the bone marrow of mice infected with graduate doses of FV, a clear correlation was found (Figure 3B), suggesting that the magnitude of the CD8⁺ T-cell response might influence the level of Treg expansion. To investigate whether or not the presence of CD8⁺ T cells was essential for Treg expansion in the bone marrow and spleen, we depleted these cells by monoclonal antibodies during acute FV infection. The depletion protocol we used ablated more than 95% of all CD8⁺ T cells in both organs, but numbers of CD8-expressing dendritic cells (DC; CD11c-positive cells) were only reduced by 50% in the spleen and 15% in the bone marrow (data not shown). At 10 dpi, the expansion of Foxp3-expressing Treg was completely lost when CD8⁺ T cells were depleted from the spleen and bone marrow (Figure 3C). An involvement of DC in Treg expansion was unlikely because of the incomplete depletion of CD8⁺ DC by the monoclonal antibody. Thus, the antiviral CD8⁺ T-cell response was an essential factor involved in the expansion of Treg during acute FV infection. In contrast, viral replication alone, which was increased in CD8⁺ T cell–depleted mice compared with nondepleted mice (data not shown; Zelinskyy et al³⁰ ), did not result in Treg expansion.

The expansion of Treg in organs with vigorous CD8⁺ T-cell responses might be mediated by recruitment and/or proliferation of these cells. To analyze whether Treg undergo proliferation at the different sites of infection, we stained proliferating cells by adding BrdU to the drinking water of naive and FV-infected mice. In noninfected control mice, the level of homeostatic Treg proliferation was different in lymph nodes, spleen, and bone marrow (Figure 3D). The highest number of proliferating Treg in noninfected mice was found in lymph nodes, and the lowest in the bone marrow. After infection, no increase in the proliferation was found in lymph nodes, whereas a significant increase in BrdU-positive Treg numbers was observed in the spleen and bone marrow. Thus, we observed a clear correlation between the expansion of Treg and their rate of proliferation in the investigated lymphatic organs after FV infection. To investigate whether de novo induction of Treg from Foxp3-negative CD4⁺ T cells occurred during FV infection, GFP-negative cells from naive DEREG mice were transferred into FV-infected wild-type recipients. At 10 dpi, the lymphatic organs were harvested, and several million cells were analyzed for induced expression of GFP. However, no significant conversion of Foxp3⁻ CD4⁺ T cells to Treg was found (supplemental Figure 2). Even when Foxp3⁻ cells from T-cell receptor transgenic mice,³¹  which were in part FV specific, were transferred, no conversion to Treg was found (data not shown). The data strongly suggest that proliferation rather than conversion of helper T cells to Treg plays an important role for Treg expansion during viral infections.

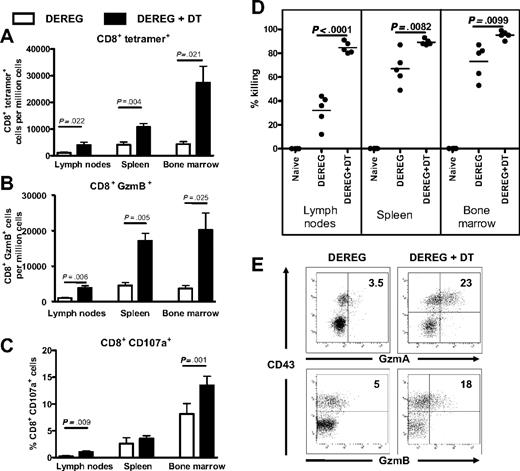

To prove that Treg control peak CD8⁺ T-cell responses and subsequent CD8⁺ T-cell dysfunction in vivo, we used a mouse model in which Foxp3-expressing Treg can be experimentally depleted. Injection of DT into DEREG mice²⁰  that express the DT receptor under the control of the Foxp3 promoter depleted more than 95% of the Treg in all 3 investigated organs (data not shown). Only Treg and no other cell population was affected by this treatment.³²  This effect of DT was only observed in DEREG mice, and no influence of DT on the T-cell repertoire or the FV-specific T-cell response was found in infected wild-type C57BL/6 mice (data not shown). If depletion of Treg was performed in DEREG mice during acute FV infection, peak CD8⁺ T-cell responses were dramatically enhanced (Figure 4A-C). At 10 dpi, significantly more virus-specific CD8⁺ T cells were present in all 3 organs compared with FV-infected nondepleted DEREG mice. A comparison of the different organs revealed that the enhancement of CD8⁺ T-cell responses after Treg depletion was the highest in organs with most prominent Treg expansion. For example, in the bone marrow of FV-infected mice, where the most significant expansion of Treg was found, the depletion of Treg in infected DEREG mice resulted in the most predominant enhancement of the CD8⁺ T-cell response. In addition to the increase of the overall numbers of virus-specific CD8⁺ T cells after Treg depletion, a lack of Treg also improved the function of the CD8⁺ T cells. At their peak response, significantly more CD8⁺ T cells with CD43⁺ effector phenotype produced granzyme B and expressed the CD107a degranulation marker when suppressive Treg were ablated (Figure 4B-C). This was seen in all 3 lymphatic organs analyzed, but was again most pronounced in the spleen and bone morrow. The increased expression and degranulation of cytotoxic molecules correlated with increased FV-specific in vivo CTL activity after Treg depletion (Figure 4D). As described above, cells were loaded with a CTL epitope peptide, labeled with CFSE, and injected i.v. into FV-infected nondepleted or Treg-depleted recipient DEREG mice at 10 dpi. In all 3 investigated organs, depletion of Treg resulted in a significant increase of target cell killing. More than 80% of all target cells were eliminated in the 3 organs of infected mice when no Treg were present, with the highest percentage of killing measured in the bone marrow. The result clearly indicates enhanced virus-specific cytolytic activity of CD8⁺ T cells in FV-infected mice after ablation of Treg. To determine whether Treg ablation also influenced the functional impairment of effector CD8⁺ T cells that develops after the second week of FV infection, we analyzed the expression of granzymes in CD8⁺ T cells with CD43⁺ effector phenotype from the bone marrow at 15 dpi. As reported previously,¹²  CD8⁺ T cells from FV-infected mice showed a reduced granzyme expression at this time point (Figure 4E). In contrast, Treg-depleted mice showed vigorous expression of granzymes in CD8⁺ CD43⁺ T cells. Thus, Treg depletion did not only result in augmentation of peak cytotoxic CD8⁺ T-cell responses, but also prevented the onset of CD8⁺ T-cell dysfunction during the late phase of acute FV infection. To determine at what time point during FV infection Treg suppress the peak CD8⁺ T-cell response, we depleted Foxp3⁺ cells by DT injection during different phases of the acute infection. To measure functional properties of effector CD8⁺ T cells, we determined absolute numbers of CD43⁺ granzyme B-producing cells at 12 dpi (Figure 5). Early depletion of Treg (0-4 dpi) only resulted in an increase of CD8⁺ T-cell responses in the spleen and lymph nodes, the 2 organs in which significant numbers of Treg were already found before FV infection (Figure 2). In the bone marrow, only Treg ablation during the phase of Treg expansion had an effect on CD8⁺ T-cell responses. In the spleen and bone marrow, where Treg expand during infection, the most significant effect of Treg on CD8⁺ cells was found after depletion from days 4 to 8 after infection. Because it takes approximately 3 additional days after the last DT injection for the first Treg to reappear (data not shown), this time point correlates nicely with the peak CD8⁺ T-cell response after FV infection (Figure 1). However, it remains elusive why late depletion (8-12 dpi) of Treg did not influence the CD8⁺ T-cell response in the spleen, whereas it significantly influenced the response in the bone marrow.

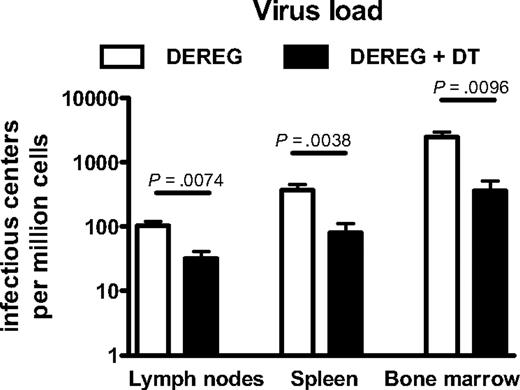

To determine whether augmented CD8⁺ T-cell responses in Treg-depleted mice (depletion from 0 to 10 dpi) resulted in superior control of viral replication, viral loads of FV-infected depleted versus nondepleted DEREG mice were compared at 10 dpi. In all 3 organs investigated, viral loads were significantly reduced in Treg-depleted mice (Figure 6). These results indicate that the suppression of CD8⁺ T-cell responses by Treg negatively influences the control of viral replication during an acute retroviral infection. However, even CD8⁺ T-cell responses that were not suppressed by Treg were not sufficient to completely eliminate the virus (Figure 6). In addition, DEREG mice that were depleted for Treg during acute infection were not resistant against development of chronic FV infection (data not shown).

The question remained whether the negative effect of Treg on antiviral immunity was accepted by the host to avoid immunopathology mediated by massive CD8⁺ T-cell responses. To test this hypothesis, we depleted FV-infected DEREG mice for 10 days and performed extensive histology of several different organs at 15 dpi. Similar to FV-infected wild-type B6 mice, DEREG mice developed a mild splenomegaly after FV infection. The severity to splenomegaly was not affected by the depletion of Treg after DT injection (data not shown). However, lymph nodes from FV-infected DEREG mice showed a severe hyperplasia when Treg were depleted, whereas lymph nodes from nondepleted, infected DEREG mice showed no or only mild hyperplasia (supplemental Figure 3A). The hyperplasia was mediated by a massive increase in CD3⁺ T-cell numbers, but also increased B220⁺ B-cell numbers in lymph nodes after Treg ablation in FV-infected mice (supplemental Figure 3B).

However, the massive virus-specific CD8⁺ T-cell response after Treg depletion did not result in severe immunopathology during acute infection. Intensive pathohistologic analysis of the kidney, liver, gut, and joints did not reveal any signs of emerging autoimmune diseases within the first 15 dpi (data not shown). Thus, it might be possible to deplete Treg in certain acute viral infections as a new therapeutic approach without dramatic pathologic consequences for the host.

To survive an infection, a host needs to generate an efficient immune response against the invading pathogen, but at the same time needs to limit possible immunopathology induced by exuberant lymphocyte responses. Treg play a very important role in balancing these 2 contradictory effects occurring in most infectious diseases. They prevent immunopathology by dampening pathogen-specific immune responses. However, this might lead to enhanced pathogen survival.³³  In the current study, we used a transgenic mouse model, in which Treg could be specifically depleted, to show that indeed the Treg response tidily controls the antiviral CD8⁺ T-cell response during an acute retroviral infection.

In previous studies using the FV model, we showed that this retrovirus induces an expansion of Treg during acute infection,¹²  which correlates with significant impairment of the antiviral effector functions of CD8⁺ T cells.^5,12  To avoid a generalized immunosuppression after an infection, a compartmentalization of Treg responses to the sites of inflammation would be desirable for an infected host. Siegmund et al have shown that inflamed tissues are, indeed, the sites of active Treg-mediated suppression of immune responses in vivo.³⁴  Along these lines, in ocular herpes viral infections, Treg accumulate at the site of infection, the conjunctiva, but not in other organs, such as the spleen or blood.^35,36  In leishmaniasis, it has been shown that Treg exclusively expand at the site of a primary infection, and that immunity to secondary infections is negatively influenced only at these sites of previous inflammation.³⁷  In our current study, we clearly demonstrate that the Treg response during retroviral infection is also highly compartmentalized, and that Treg expansion is only found in organs with high viral replication and subsequent inflammation. A series of studies suggests that this might also be the case in HIV-infected patients. The first reports on the role of Treg in HIV infection were performed with blood samples from HIV-infected persons. Although these studies demonstrated increased numbers of Treg in the blood of HIV patients compared with uninfected controls, no clear correlation with viral loads and disease progression was found.^38,39  However, when lymph nodes, the main reservoir of HIV replication, were analyzed, a correlation between the prevalence of Treg and viral loads, as well as disease progression, was found.^40-42  These studies imply that the Treg response is locally restricted in retroviral infections and increases the level of viral replication at sites of inflammation. Our current study using FV-infected Foxp3 DT receptor transgenic mice provides first direct experimental evidence that this concept is correct. This leads to the question for the cells or the factor(s) involved in expansion of Treg and whether recruitment/retention, proliferation, or de novo induction of Treg is the predominant reason for the increased numbers of Treg in virus-infected tissue. Suffia et al showed in a very elegant study that α_Eβ₇ integrin (CD103) is necessary for the retention of Treg at the site of Leishmania major infection.⁴³  In FV-infected mice, nearly all Foxp3⁺ cells that expand during infection express CD103.¹²  Thus, it is very likely that this integrin also plays a major role in Treg compartmentalization in FV infection. In addition, we have previously shown that FV-infected DC can expand the population of Foxp3⁺ cells in vitro upon presentation of antigen to naive T cells.⁴⁴  Because FV-infected DC were also found in spleens of infected mice,⁴⁴  it remains possible that virus-infected DC induce the proliferation of Treg at the site of infection. However, our current results show that CD8⁺ T cells play a vital role in Treg expansion (Figure 3). In FV-infected mice without CD8⁺ T cells, no expansion of Treg was observed in any of the investigated organs, although viral loads were even higher in FV-infected, CD8⁺ T cell–depleted mice compared with infected, nondepleted controls.³⁰  These results are in agreement with data from Antunes et al, who showed that suppression of bone marrow pathology in FV-infected mice was mediated by Treg and that the expansion of these Treg exclusively depended on the presence of virus-specific effector CD4⁺ T cells.³¹  Thus, the 2 studies indicate that Treg expansion in viral infection is driven by virus-specific effector T cells rather than viral replication itself or presentation of antigens to virus-specific Treg.

It is still a matter of debate whether Treg that suppress pathogen-specific T-cell responses have to be pathogen specific themselves. In several infectious diseases, such as Leishmania⁹  or hepatitis C virus,⁴⁵  pathogen-specific Treg have been found. Furthermore, in some autoimmune diseases, only antigen-specific Treg were able to suppress autoreactive T cells, whereas nonspecific Treg were ineffective.⁴⁶  These reports may imply that only antigen-specific Treg play a significant role in infectious diseases. However, in the current study, we were unable to demonstrate the presence of FV-specific Treg in FV-infected mice using FV-specific class II tetramers or performing adoptive transfer experiments with FV-specific CD4⁺ T cells from T-cell receptor transgenic mice (data not shown). This is supported by a study from Antunes et al, who used the FV model to show that bone marrow pathology induction by virus-specific, IFNγ-producing CD4⁺ T cells was efficiently suppressed by virus-nonspecific Treg.³¹  These data strongly suggest that poly-specific Treg that are efficiently recruited to or proliferate in organs with virus-induced inflammation can suppress virus-specific T-cell responses. Nonspecific proliferation might play a very important role in local expansion of Treg, as Figure 2C shows that in organs of strong virus-induced inflammation, Treg undergo significant proliferation. However, no experimental evidence was found that conversion of Foxp3-negative cells to Treg (supplemental Figure 2) or increased survival of Treg (data not shown) contributed to the expansion of Treg at sites of retroviral infection.

In a very recent study, Lund et al reported their surprising results that ablation of Treg in herpes simplex virus-2–infected mice resulted in an accelerated fatal infection with increased viral loads instead of enhanced immunity to the virus.⁴⁷  They also used a mouse model in which they could deplete Treg by DT injection. Treg depletion amplified the immune responses in draining lymph nodes at the site of infection, but delayed the entry of the immune cells into the herpes simplex virus–infected tissue. Thus, the authors postulated an immune response–promoting role for Treg in acute infections in which the site of pathogen replication is in nonlymphoid tissues. In contrast to these findings, our current results show for the first time that the suppressive activity of Treg on antiviral immunity seems to be the predominant effect in viral infections in which the primary targets of the virus are cells of the lymphoid organs. This suggests that the biologic effect of Treg in different viral infections can be quite diverse, ranging from a promoting to a suppressing role in antiviral immune responses.

Thus, suppressing Treg responses during infections with lymphotropic viruses might still be an interesting therapeutic approach. We were able to show that this can indeed result in augmented antiviral T-cell responses and superior control of viral replication. Prolonged deletion of Treg has been reported to result in autoimmune diseases in newly born and adult mice,^20,48  putting a therapy based on suppressing Treg or their function into question. However, the short-term depletion of Treg that we applied in the current study did not result in severe immunopathology even during an ongoing antiviral immune response. This should encourage researchers to develop new reagents to manipulate Treg in vivo, which may be used for the therapy of infections with lymphotropic viruses.

We thank Markus Simon (Max-Plank-Institut für Immunbiology) for providing the anti–granzyme A antibodies. We are grateful to the National Institutes of Health tetramer facility for providing MHC class II tetramers.

This work was supported by a grant to U.D. and G.Z. from the Deutsche Forschungsgemeinschaft (Di 714/8-2 and TRR60 Project B4).

National Institutes of Health

Contribution: G.Z. and K.K.D. designed and performed research, analyzed data, and wrote the paper; Y.P.H. performed research and analyzed data; S.S., S.N., and T.W. performed research; K.G. and O.K. performed research and analyzed data; A.D.G. analyzed data; T.S. provided material and wrote the paper; and U.D. designed research, analyzed data, and wrote the paper.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: Ulf Dittmer, Institut für Virologie, Universitätsklinikum Essen, Hufelandstrasse 55, 45122 Essen, Germany; e-mail: ulf.dittmer@uni-due.de.
