Pomalidomide augments fetal hemoglobin production without the myelosuppressive effects of hydroxyurea in transgenic sickle cell mice

Substantial experimental and clinical evidence supports the development of targeted therapies for the induction of fetal hemoglobin (HbF) in patients with sickle cell disease (SCD).^1-6  Hydroxyurea, a ribonucleotide reductase inhibitor, is the most thoroughly investigated and only Food and Drug Administration-approved treatment for adult patients with SCD that augments HbF expression and reduces clinical complications.^7,8  Despite this progress, there is an unabated need for targeted HbF-inducing therapies because many patients fail to respond to hydroxyurea. Pomalidomide and lenalidomide are proprietary thalidomide analogs, which belong to a novel class of immunomodulatory drugs. Both compounds recently emerged from clinical trials as highly promising treatments for various hematologic cancers and chronic inflammatory conditions.^9-11  Surprisingly, both immunomodulatory drug compounds were also found to restore erythropoiesis and to reduce or eliminate blood transfusion dependency in patients with multiple myeloma and myelodysplastic syndromes.^12-15  Furthermore, a recent ex vivo study demonstrated that pomalidomide and lenalidomide not only stimulated the proliferation of CD34⁺ progenitor cells and total hemoglobin production but also up-regulated HbF synthesis by a transcriptional mechanism.¹⁶  In this system, pomalidomide enhanced HbF synthesis more potently than lenalidomide and hydroxyurea and acted synergistically in combination with hydroxyurea. These results prompted the current study to evaluate pomalidomide's hematologic properties in a relevant in vivo model of SCD.

Knockout-transgenic sickle cell mice were bred at Georgia Health Sciences University according to institutional guidelines.¹⁷  Treatment groups consisted of vehicle (saline; n = 8), pomalidomide (10 mg/kg; n = 9), hydroxyurea (100 mg/kg; n = 7), pomalidomide (10 mg/kg) plus high-dose hydroxyurea (100 mg/kg; n = 8), and pomalidomide (10 mg/kg) plus low-dose hydroxyurea (10 mg/kg; n = 8). Pomalidomide (Celgene) and hydroxyurea (Sigma-Aldrich) were mixed in saline and injected intraperitoneally daily (Monday through Friday) for 8 weeks. C57BL/6 mice were used for specific control experiments. Details of the mouse model, drug preparation, and dose selection are included in supplemental Methods (available on the Blood Web site; see the Supplemental Materials link at the top of the online article). The study was approved by Georgia Health Sciences University's Animal Care and Use Committee.

Detailed information is contained in supplemental Methods.

Blood was collected by intracardiac puncture from ketamine/xylazine-anesthetized mice in vacutainer EDTA tubes (BD Biosciences) and complete blood count analyzed with the CBC-Diff Veterinary Hematology System (Heska Corporation). Reticulocyte counts were determined by supravital staining with methylene blue.

Hemoglobin analysis from mouse hemolysates was done by analytic high performance liquid chromatography using a weak cation-exchange column SynChropak CM-300 (Eprogen) on the Waters Empower 32 high performance liquid chromatography system (Millipore).

F cells were analyzed by flow cytometry using the Caltag HbF test kit (Caltag Laboratories) according to the manufacturer's instructions. Flow cytometry was performed using the BD FACSCalibur system (BD Biosciences). HbF/F cell (picograms per cell) was calculated using mean corpuscular hemoglobin × % HbF/% F cell.

Formalin-fixed bone marrow sections (4 μm) of the proximal femur were stained with hematoxylin and eosin (Richard-Allan Scientific) and analyzed by 2 blinded investigators for the myeloid to erythroid ratio (M:E).

Data are mean ± SEM. Groups were analyzed by 1-way ANOVA followed by Student-Newman-Keuls test. A P value < .05 was considered significant.

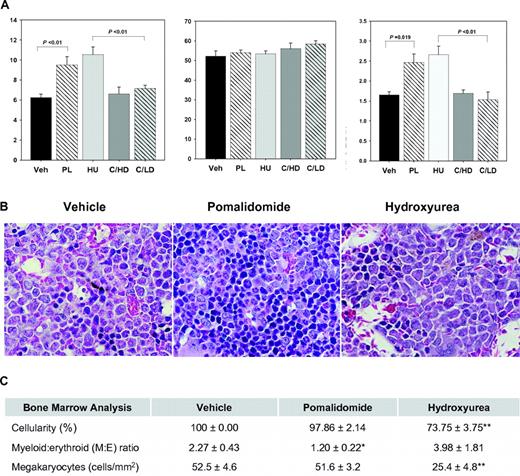

Pomalidomide was well tolerated by sickle cell mice without signs of toxicity and with similar absorption and elimination properties compared with BL/6 control mice (supplemental Figure 2). Pomalidomide increased the level of HbF expression from 6.24% at baseline to 9.51% after 8 weeks of treatment, which was comparable with hydroxyurea (Figure 1A) and similar to the magnitude of HbF induction observed in adult sickle cell patients treated with hydroxyurea in the Multicenter Study of Hydroxyurea trial.^7,8  It is important to note that the human β-globin cluster transgene in our model only encodes for the Aγ-globin gene sequence. Considering that pomalidomide is known to transcriptionally activate both Aγ- and Gγ-globin genes, this transgene design may have resulted in underreporting of pomalidomide's in vivo HbF activity.^16,17  The increase in HbF expression in the pomalidomide and hydroxyurea groups was accompanied by a higher HbF content per F-cell without parallel increases in the F-cell percentage (Figure 1A). This lack of an F-cell response is probably related to the high pretreatment F-cell values of ≥ 50%, which is in agreement with the observed inverse relationship between the F-cell response to hydroxyurea and pretreatment F-cell values in a clinical trial of young patients with SCD.¹⁸  Motivated by the synergistic HbF-inducing activity of pomalidomide and hydroxyurea in ex vivo CD34⁺ progenitor cells, we conducted combinatory treatments and surprisingly observed a virtual loss of HbF induction above control levels (Figure 1A). We tested a combination of pomalidomide with a lower dose of hydroxyurea (10 mg/kg) to rule out compound toxicity as the cause of HbF inhibition. Interestingly, this regimen recovered bone marrow function but continued to block HbF production. The reason for this loss of HbF activity in the combined treatment groups is unclear but could be related to the greater complexity of regulatory signals in the in vivo microenvironment or differences between the β-globin gene clusters in the two systems.

Ineffective erythropoiesis is a contributory factor to anemia in SCD, albeit to a much lesser extent than in β-thalassemia syndromes. We found that pomalidomide, in addition to modulating HbF expression, expanded the erythron and improved the efficiency of erythropoiesis as evidenced by a trend toward higher reticulocyte counts (Figure 1B-C; Table 1). Because of the physical constraints of the mouse bone marrow compartment, the spleen in sickle mice functions as the major hematopoietic organ and becomes massively enlarged. Pomalidomide significantly raised the peripheral red blood cell (RBC) count, caused further increases in spleen weight, and decreased the M:E ratio in bone marrow and spleen. Plasma free hemoglobin levels in the pomalidomide group were not different from controls, indicating that gains in the peripheral RBC counts were not secondary to a protective effect of HbF production on F-cell survival. However, we noted that expansion of the erythroid lineage was associated with significantly reduced RBC mean corpuscular volumes and only small increases in total hemoglobin levels. These findings suggest residual defects in hemoglobin production possibly secondary to iron-restricted erythropoiesis or the mild β-thalassemic phenotype in this model. In contrast, hydroxyurea treatment was associated with sharply lower reticulocyte counts, a significant increase in the M:E ratio in both hematopoietic organs, and a reduction of spleen weights to less than one-half of control values. Bone marrow megakaryocyte counts appeared unaffected by pomalidomide but were significantly reduced by hydroxyurea. Compared with hydroxyurea, pomalidomide had no statistically significant effect on the total white blood cell count but caused a significant reduction in the monocyte fraction, which could have additional beneficial treatment effects because of the proinflammatory role of sickle monocytes in SCD.

A potential limitation of this study in mice is the difficulty of extrapolating an equivalent HbF-inducing dose of pomalidomide in humans because of the large interspecies differences in drug metabolism. Studies in rats with [¹⁴C]-pomalidomide demonstrated that metabolism makes only a minor contribution to drug clearance, whereas monkeys and humans metabolized the compound extensively. Although further experiments are required to identify pomalidomide's mechanism of HbF induction, our study revealed that pomalidomide is a safe and effective HbF-inducing agent unaccompanied by the cytotoxic effects of hydroxyurea in mice with SCD. These results and pomalidomide's immunomodulatory properties, which are the subject of ongoing research in our laboratory, warrant further exploration of this compound as a novel therapy for patients with SCD and other β-hemoglobinopathies.

The authors thank Drs Tim Townes and Tom Ryan for the gift of knockout-transgenic sickle cell mice and Kimberly Smith and Doris Cawley for technical assistance.

S.E.M. was supported by the Celgene Corporation and National Institutes of Health (Roadmap Initiative in Nanomedicine, Nanomedicine Development Center award 1PN2EY018244).

National Institutes of Health

Contribution: S.E.M. was responsible for the overall study, designed the research, analyzed the data, and wrote the manuscript; M.W. performed the research, analyzed the data, and assembled the figures; F.K. performed the HbF analysis; S.D.Y. analyzed the data; Y.X. conducted the pharmacokinetic analysis; L.A.M. and L.G.C. discussed the study and provided vital reagents; P.S.S. contributed to the writing of the manuscript; and A.K. conceived the idea and contributed to the writing of the manuscript.

Conflict-of-interest disclosure: S.E.M., M.W., S.D.Y., P.S.S., and A.K. received funding from Celgene. Y.X. and L.G.C. are employees of Celgene, which has a financial interest in pomalidomide. L.A.M. was an employee of Celgene at the time of this study. F.K. declares no competing financial interests.

Correspondence: Steffen E. Meiler, Department of Anesthesiology and Perioperative Medicine, Georgia Health Sciences University, 1120 15th St., BIW 2144, Augusta, GA 30912-2700; e-mail: smeiler@georgiahealth.edu.
