Tim-3 marks human natural killer cell maturation and suppresses cell-mediated cytotoxicity

Natural killer (NK) cells comprise 5% to 20% of human peripheral blood lymphoid cells and are a critical component of the immune system, providing protection against viral infections and contributing to tumor immune surveillance. NK-cell activity is regulated by an intricate balance of signals transmitted by inhibitory and activating receptors.^1,2  Functionally distinct NK-cell subsets can be defined based on the level of CD56 and CD16 coexpression.³  CD56^brightCD16⁻ NK cells produce abundant IFN-γ in response to stimulation with interleukin (IL)–12 and proliferate robustly when cultured in IL-2, whereas CD56^dimCD16⁺ NK cells are more cytolytic and produce significant amounts of cytokine when their activating receptors are engaged.⁴  CD56^dimCD16⁺ NK cells are considered mature NK cells and are differentiated from the immature CD56^brightCD16^– NK-cell subset. This is further supported by recent data demonstrating the dynamics of expression of the killer immunoglobulin-like receptors (KIR), CD57, CD94, and CD62L expression on the CD56^dimCD16⁺ NK cells as they mature from CD56^brightCD16^– NK-cell precursors.^5-9

T-cell immunoglobulin– and mucin domain–containing (Tim)–3 is a member of Tim family of receptors of which there are 3 in humans (Tim-1, Tim-3, and Tim-4).¹⁰  These molecules are involved in diverse metabolic and immunoregulatory processes.¹¹  Tim-3 is a type I transmembrane protein that contains no defined signaling motifs in its cytoplasmic domain, but it has been implicated both in activation and inhibition of immune responses^12,13  and in the induction of apoptosis of Tim-3–bearing cells through interactions with galectin-9.¹⁴  Tim-3 is expressed on CD4⁺ T cells, dendritic cells, monocytes,^15-17  CD8⁺ T cells,^18,19  and NK cells.²⁰  In a comparison of lymphocyte populations in healthy human subjects, the highest transcription of the gene encoding Tim-3 was observed in NK cells.²¹  There is evidence that engagement of Tim-3 on mouse T cells with the ligand galectin-9 promotes aggregation, leading to the death of T-helper 1 cells and the selective loss of interferon (IFN)-γ–producing T cells.¹⁴  On human T cells, the expression of Tim-3 regulates cell proliferation and IFN-γ secretion.^19,21,22  We and others have observed that increased amounts of Tim-3 on T cells during HIV, hepatitis C virus, and other chronic viral infections correlated with T-cell dysfunction, suggesting that Tim-3 is part of a negative regulatory pathway.^19,23-25  In this study, we investigated the expression of Tim-3 on human NK cells and its regulation by cytokines, and we provide evidence for the role of Tim-3 in the restraint of NK cell–mediated cytotoxicity in healthy individuals.

Peripheral blood mononuclear cells (PBMCs) of healthy individuals were obtained from the Stanford Blood Bank. Cord blood PMBCs were obtained from AllCells. The University of California, San Francisco and the University of Hawaii institutional review boards approved the research involving human participants reported in this study (approvals H11613-19149 and 11-06-549-01).

NKL cells, a human NK-cell line,²⁶  were stably transduced with pMXneo-FLAG-Tim-3, a retroviral vector expressing human Tim-3 protein with a FLAG tag on its N terminus. A full-length human TIM-3 cDNA was obtained from Open Biosystems. NKL and NKL-FLAG-Tim-3 were cultured in complete media (RPMI-1640; Invitrogen) supplemented with 10% heat-inactivated FCS, 2mM l-glutamine, 100 U/mL penicillin, and 100 μg/mL streptomycin) with 200 U/mL IL-2 (NCI Biologic Resources Branch). NKL-FLAG-Tim-3 cells were drug selected with 1 mg/mL Geneticin (G-418).

PBMCs were washed with PB supplemented with 1% bovine serum albumin and 2mM EDTA (FACS buffer). For staining, 5 × 10⁵ cells were incubated with 10 μg/mL human IgG (Sigma-Aldrich) to block nonspecific antibody binding. To identify NK cells, we stained the cells with PE-conjugated or APC-conjugated anti–Tim-3, FITC-conjugated CD94 (R&D Systems), Alexa 700–conjugated anti-CD4, PE-Cy7–conjugated anti-CD56, Pacific blue–conjugated anti-CD16 (all from BD Biosciences), ECD-conjugated anti-CD3, PE-conjugated anti-CD335 (Beckman Coulter), and Qdot605-conjugated anti-KIR3DL1. APC-Cy7–conjugated anti-CD14 and APC-Cy7–conjugated anti-CD19 (BD Biosciences) were used to exclude monocytes and B cells, respectively, and Amine Aqua (Invitrogen) was used to exclude dead cells. In some experiments, cells were fixed in 2% paraformaldehyde in PBS and permeabilized with FACS-perm (BD Biosciences). Permeabilized cells were stained for intracellular IFN-γ and perforin (both from BD Biosciences). Fluorescence minus one samples were prepared for each fluorochrome to facilitate gating. Cells were fixed with 2% paraformaldehyde in PBS and analyzed by flow cytometry using a 4-laser LSR-II or Fortessa instrument (BD Biosciences). Anti–mouse IgG-coated beads (Invitrogen) were reacted with each fluorochrome-conjugated antibody separately and used for software-based compensation. Cells were analyzed with FlowJo Version 9.4.3 software (TreeStar).

PBMCs were washed with FACS buffer and incubated with 10 μg/mL human IgG before surface staining to block nonspecific antibody binding. After surface staining, the PBMCs were stained with PE-conjugated anti–Tim-3, FITC-conjugated anti-CD94, PE-Cy7–conjugated anti-CD56, Pacific blue-conjugated anti-CD16, ECD-conjugated anti-CD3, APC-Cy7–conjugated anti-CD14, and APC-Cy7–conjugated anti-CD19; the cells were sorted using a modified BD FACSAria (BD Biosciences). To isolate NK cells, we sorted CD19⁻, CD14⁻, CD3⁻, CD56^dimCD16⁺, or CD56^brightCD16⁻ either lacking or expressing Tim-3 on their surface.

Cryopreserved PBMCs from healthy donors were thawed and analyzed for NK-cell frequency and for receptor expression. PBMCs were cultured in complete media and stimulated with targets cells (721.221, an HLA-class I–deficient EBV-transformed human B lymphoblastoid cell line; or K562, a human erythromyeloblastoid leukemia cell line; 1:5 effector:target ratio) or with different cytokines: human recombinant IL-2 (40-500 IU/mL), IL-12 (50 ng/mL; both from PeproTech), IL-18 (50 ng/mL; MBL Lab), IL-15 (100 ng/mL), IFN-γ (10 ng/mL; both from R&D Systems), or IFN-α (10⁴ U/mL; PBL Interferon Source). PBMCs cultured in complete media were taken as a measure of background activity. In brief, thawed cryopreserved PBMCs were cultured at 5 × 10⁶ cells/mL in 96-well round-bottomed plates with the respective stimulants, and then 10 μg/mL FITC-conjugated anti-CD107a mAb (BD Biosciences) was added to the culture for 4 to 6 hours in the presence of 10 μg/mL brefeldin-A (Sigma-Aldrich). The cells were then harvested and prepared for flow cytometry to analyze their CD107a degranulation or their IFN-γ production. Data were analyzed using FlowJo Version 9.4.3 software (TreeStar).

The 4 sorted NK-cell subsets were cultured in IL-15 (100 ng/mL) for 24 hours and then stained with PE-conjugated anti–Tim-3, FITC-conjugated anti-CD94, PE-Cy7–conjugated anti-CD56, and Pacific blue–conjugated anti-CD16 to analyze Tim-3 and CD94 expression during their maturation by flow cytometry. All data were analyzed using FlowJo Version 9.4.3 software (TreeStar).

NK cell–mediated cytotoxicity was analyzed using a 4-hour ⁵¹Chromium (⁵¹Cr) release assay. In the antibody-redirected killing assays, human NKL-FLAG-Tim-3 cells, fresh PBMCs, or overnight IL-2 (200 U/mL)–activated PBMCs were used as effectors and were incubated for 4 hours with the ⁵¹Cr-labeled mouse FcR⁺ P815 cells, a mouse mastocytoma cell line (ATCC). P815 cells were coated with 10 μg/mL antibodies against different receptors: anti-CD16 (clone Leu11a; BD Biosciences), anti-2B4 (clone C1.7; a gift from Dr G. Trinchieri, National Cancer Institute), anti-NKG2D (clone 149810; R&D Systems), anti–Tim-3 (clone 344836; R&D Systems), anti–Tim-3 (clone 344801; a generous gift from Dr J. P. Houchins, R&D Systems), anti-CD94 (clone DX22), anti-CD56 (clone My31.13), or against the FLAG epitope tag (clone M2; Sigma-Aldrich). In these P815 cytotoxicity assays, monoclonal antibodies binding to activating human NK receptors induce the killing of the Fc receptor–bearing P815 target cells, whereas monoclonal antibodies against inhibitory NK-cell receptors suppress the killing of P815 target cells. When 2 antibodies (1 antibody against an activating receptor and 1 antibody against an inhibitory receptor) were combined in the same assay, both antibodies were present at the same total concentration. Furthermore, to demonstrate that the antibody against an inhibitory NK-cell receptor was specifically suppressing NK-cell activation, rather than simply competing for Fc receptor occupancy on the P815 target cells, the antibody against the activating NK-cell receptor was mixed with an equal concentration of an isotype-matched control antibody or an antibody binding to NK cells but not affecting their function (eg, anti–human CD56). We also used 721.221 cells transfected with the human CD32 Fc receptor (hCD32)²⁷  as target cells. The assay with ⁵¹Cr-labeled 721.221-hCD32 target cells was done similarly to the assay with P815 cells, with the difference that 721.221-hCD32 cells were directly lysed by the effector cells (NKL-FLAG-Tim-3 or fresh PBMCs), so they did not require stimulation with antibodies to an activating NK receptor to initiate cytotoxicity. The radioactivity released by the lysed target cells was measured with a gamma counter. All experiments were performed in triplicate, and data were expressed as the percentage of lysis of target cells, calculated using the formula (sample release − spontaneous release)/(maximal release − spontaneous release) × 100, in which the value of maximal release was the amount of radioactivity released from the target cells with 1% SDS in distilled water. Spontaneous release was the amount of radioactivity released by target cells in medium alone without effector cells.

Statistical analyses were performed using SAS System 9 for Windows XP (SAS Institute) or Prism Version 5 statistical software for MAC (GraphPad Software). Nonparametric statistical tests were used. The Mann-Whitney U test was used for comparison tests.

Gene expression studies have identified high levels of Tim-3 transcripts in NK cells.²¹  We measured the surface expression of Tim-3 protein on NK cells by flow cytometry. NK cells were gated as CD14⁻CD19⁻CD3⁻CD56⁺ cells (Figure 1A). We observed a high surface expression of Tim-3 on most circulating NK cells (median, 90.7%; interquartile range [IQR], 82.1, 94.6) from healthy donors (Figure 1A) compared with CD8⁺ (median, 18%; IQR, 13.8, 19.3) or CD4⁺ (median, 8.3%; IQR, 6.4, 15.1) T cells (Figure 1B-C), which is consistent with previous analyses of HAVCR2 mRNA expression.²¹  Tim-3 expression on NK cells varied among different healthy donors both in terms of frequency (Figure 1A,C) and cell surface density (as determined by mean fluorescent intensity [MFI]; Figure 1A; data not shown).

CD56^dimCD16⁺ NK cells are considered mature NK cells and are differentiated from the immature CD56^brightCD16^– NK-cell subset. We observed that the CD56^dimCD16⁺ NK cells essentially all expressed Tim-3 (median, 95.6%; IQR, 91.1, 98.6), whereas CD56^brightCD16^– NK cells were heterogeneous (median, 75.3%; IQR, 62.4, 86.5), with clearly separated Tim-3–negative and Tim-3–positive subsets in the healthy donors evaluated (Figure 1D-E). For most donors, the amount of Tim-3 expressed at the surface of CD56^dimCD16⁺ NK cells was slightly higher than on CD56^brightCD16^– NK cells (Figure 1F). A similar pattern of expression for Tim-3 was observed on NK cells derived from the cord blood of healthy newborns (Figure 1G-H). Interestingly, the percentage of Tim-3⁺ NK cells was lower in the CD56^brightCD16^– NK cells from newborns compared with CD56^brightCD16^– NK cells from healthy adults (median, 32% [Figure 1G] vs median, 75.3% [Figure 1E]).

Because Tim-3 was mostly expressed by mature CD56^dimCD16⁺ NK cells, we analyzed CD94 and Tim-3 coexpression in NK cells to determine whether Tim-3 was acquired during the maturation of CD56^brightCD16^– NK cells. Indeed, CD94 density marks the transition from CD56^brightCD16^– and CD56^dimCD16⁺ NK cells.^5,28  In the representative donor shown, all CD56^brightCD16⁻ NK cells expressed CD94 at a high cell surface density, but 58.6% were also Tim-3⁺, whereas most of the CD56^dimCD16⁺ NK cells were Tim-3⁺ (83.4%) and only 28.3% were Tim3⁺CD94^hi (Figure 1I), suggesting that CD94^hi NK cells gain Tim-3 expression before down-regulating CD94 surface expression. A similar expression pattern was observed for CD62L and Tim-3 (data not shown). These data suggest that Tim-3 expression is acquired on CD56^brightCD16^– NK cells during their transition to the more mature CD56^dimCD16⁺ NK cells.

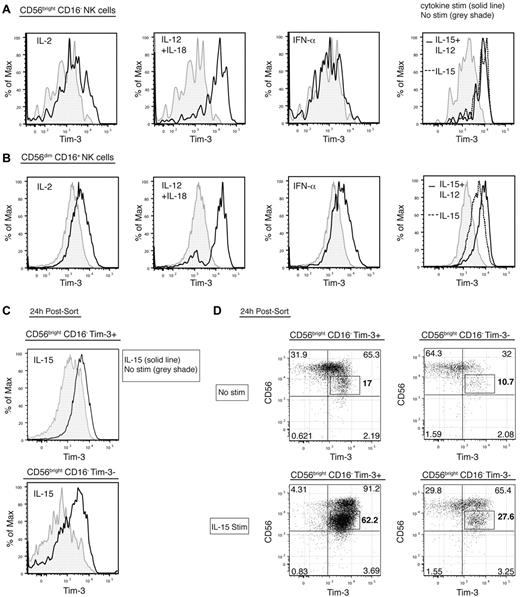

We assessed the expression of Tim-3 on NK cells cultured with cytokines known to stimulate NK-cell proliferation, cytotoxicity, and cytokine production (eg, IL-12, IL-18, IL-12 + IL-18, IL-15, IL-15 + IL-12, IL-2, IFN-γ, or IFN-α). Each of these cytokines induced the up-regulation of Tim-3 expression to varying degrees (Figure 2A), except IFN-γ, which did not up-regulate Tim-3 (data not shown). IL-12 + IL-18 prominently led to a marked up-regulation of Tim-3 expression on both the CD56^brightCD16^– (unstimulated MFI median, 1212; IQR, 867.8, 1456; median, 76.8%; IQR, 71.6, 82.3; [IL-12 + IL-18 stimulation] MFI median, 2880; IQR, 2534, 3336; median, 87.7%; IQR 78.0, 93.1; MFI; P = .002) and the CD56^dimCD16⁺ NK subsets (unstimulated MFI median, 1354; IQR, 1029, 1579; [IL-12 + IL-18 stimulation] MFI median, 2932; IQR, 2434, 3734; MFI; P = .002; Figure 2A). Previously, we reported that stimulation of CD8⁺ T cells with IL-15 lead to an increase in Tim-3 expression.¹⁸  Similarly, Tim-3 expression was up-regulated on the 2 NK subsets by IL-15 and was further increased on the CD56^dimCD16⁺ NK-cell subset by IL-12 and IL-15 (Figure 2A-B). IL-2 induced modest Tim-3 up-regulation on the CD56^brightCD16^– NK cells, whereas IFN-α did not change Tim-3 expression on this NK-cell subset (Figure 2A). Conversely, Tim-3 expression on CD56^dimCD16⁺ NK cells was up-regulated by either IL-2 or IFN-α stimulation but to a lesser extent compared with IL-12 and IL-18, IL-15, or IL-12 and IL-15 (Figure 2B).

Tim-3 expression is up-regulated by various cytokines and is higher on mature CD56^dimCD16⁺ NK cells; thus, we determined whether Tim-3 was up-regulated during NK-cell maturation. CD56^brightCD16^– and CD56^dimCD16⁺ NK cells expressing or not Tim-3 at their surface were sorted to high purity (supplemental Figure 1, available on the Blood Web site; see the Supplemental Materials link at the top of the online article) and were cultured with or without IL-15. Tim-3 expression spontaneously increased in 24-hour culture even without stimulation (supplemental Figure 1B compared with Figure 2C-D). However, 24 hours after IL-15 stimulation, Tim-3 expression was highly increased on both Tim-3⁺ and Tim-3⁻ CD56^brightCD16^– NK cells compared with cells cultured without stimulation (Figure 2C). To correlate Tim-3 induction by IL-15 on CD56^brightCD16^– NK cells with maturation of this subset, we analyzed CD94 and CD56 expression on these cells. IL-15 stimulation did not change CD94 expression (data not shown). Interestingly, after culture CD56^brightCD16^– NK cells not only acquired Tim-3 expression but also down-regulated CD56 expression, and strikingly the cells that became CD56^dim were Tim-3⁺ (Figure 2D). IL-15 stimulation highly induced the maturation of NK cells and increased this population of CD56^dim Tim-3⁺ cells (Figure 2D). Indeed, the percentage of CD56^dim Tim-3⁺ NK cells after 24-hour culture without stimulation was 17% and 10.7% for sorted CD56^brightCD16⁻ Tim-3⁺ and Tim-3⁻ cells, respectively, and became 62.2% and 27.6% with IL-15 stimulation. These data show that Tim-3 expression is acquired during activation of NK cells, principally by IL-12 and IL-18 or maturation by IL-15. This suggests that Tim-3 is an activation marker, differentiation marker, or both on NK cells.

We have shown previously that increased amounts of Tim-3 on T cells renders them dysfunctional.¹⁹  Therefore, we examined whether the amount of Tim-3 on the cell surface of NK cells correlated with their functional responses. CD56^brightCD16^– NK cells are the predominant NK-cell subset secreting IFN-γ in response to IL-12 + IL-18.²⁹  Indeed, a higher percentage of the CD56^bright NK-cell subset produced IFN-γ compared with the CD56^dim NK cells in response to activation with these cytokines, although a significant proportion of CD56^dim NK cells also produced IFN-γ in response to IL-12 + IL-18 (Figure 3A-B). Most of the CD56^bright NK cells that produced IFN-γ in response to IL-12 + IL-18 stimulation were Tim-3⁺ cells (Figure 2A-B) and displayed a high cell surface density of Tim-3 (Figure 3C). The CD56^dim NK cells that produced IFN-γ in response to IL-12 + IL-18 stimulation also expressed the highest cell surface density of Tim-3 (Figure 3A-C). The MFI of Tim-3 staining was higher on CD56^dim NK cells producing IFN-γ (MFI median, 3110; IQR, 2903, 3693) compared with the IFN-γ–negative NK cells (MFI median, 2240; IQR, 1404, 2532; P = .004; Figure 3C).

On stimulation with 721.221 (Figure 4) or K562 target cells (data not shown), the NK cells that degranulated, as marked by cell surface CD107a staining, were predominantly cells expressing Tim-3 (Tim-3⁺ NK cells; Figure 4A-B). Interestingly, the CD56^brightCD16^– NK cells degranulating expressed the highest surface density of Tim-3, suggesting that the more mature CD56^brightCD16^– Tim-3⁺ NK cells were the cells degranulating when cocultured with target cells (Figure 4C). Tim-3 cell surface expression was similar between CD56^dimCD16⁺ NK cells degranulating or not (Figure 4C). Overall, Tim-3 preferentially marked the most responsive subset of CD56^bright and CD56^dim NK cells with respect to both cytokine production and degranulation. This suggests that Tim-3⁺ NK cells are not dysfunctional or exhausted as observed previously for Tim-3⁺ T cells but that Tim-3 marks highly functional NK cells.

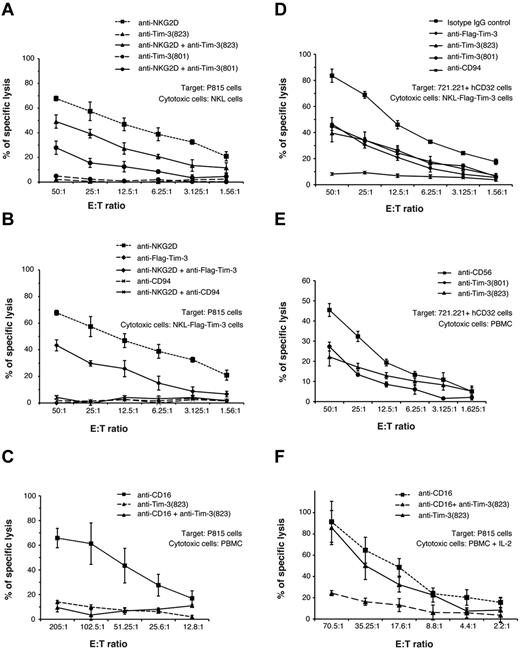

To directly assess the involvement of Tim-3 in NK-cell functional activity, we examined the effects of cross-linking the Tim-3 receptor on NKL, a human NK-cell line, or primary human peripheral blood NK cells from PBMCs. In these experiments, effector cells were cultured with the relatively NK-resistant mouse Fc receptor–bearing P815 target cells in the presence or absence of agonist antibodies against well-defined activating or inhibitory NK receptors. We have previously used this “antibody-redirected” cytotoxicity assay to define the relationship between the activating and inhibitory receptors on human NK cells.³⁰  As shown in Figure 5A, human NKL cells killed P815 cells in the presence of antibodies against the activating NKG2D receptor, and this response was significantly inhibited in the presence of 2 different antibodies against Tim-3. To further confirm that Tim-3 was able to inhibit NK-cell killing, we transduced NKL cells with a Tim-3 construct containing a FLAG epitope tag on the N terminus. Similar to results obtained with the 2 anti–Tim-3 antibodies, an anti-FLAG antibody inhibited NKG2D-induced cytolysis of NKL-FLAG-Tim-3 cells to a similar extent (Figure 5B). These results with the anti-FLAG antibody exclude that the inhibitory effects of the anti–Tim-3 antibodies are unique to special epitopes on the Tim-3 receptor. Control antibodies of the same isotype as the anti–Tim-3 and anti-FLAG antibodies and included in the assays at the same concentration had no effect on the anti-NKG2D–induced cytotoxicity (data not shown). Anti-CD94, recognizing the inhibitory CD94-NKG2A receptor on NKL cells,³⁰  also potently blocked NKG2D-induced cytotoxicity, in general more robustly than anti–Tim-3 or anti-FLAG antibodies (Figure 5B). When NKL cells were incubated with P815 target cells with the anti–Tim-3 or anti-FLAG antibodies alone (ie, in the absence of an antibody to an activating NK receptor), there was no evidence of induction of cytotoxicity (Figure 5A-B) or cytokine production (data not shown). Primary human peripheral blood NK cells potently killed P815 target cells in the presence of anti-CD16 antibodies, and this was suppressed in the presence of anti–Tim-3 antibodies (Figure 5C) but not control antibodies (data not shown). Again, anti–Tim-3 antibodies alone did not induce killing mediated by primary NK cells.

These findings demonstrate that anti–Tim-3 antibodies suppress NK-cell killing induced by the activating NKG2D and CD16 receptors. To address whether cross-linking Tim-3 also can inhibit the spontaneous killing against human NK-sensitive target cells, we transduced the HLA class I–deficient 721.221 cell line with the human CD32 Fc receptor to permit cross-linking of antibodies bound to the effector NK cells. NKL cells transduced with FLAG epitope–tagged Tim-3 (Figure 5D) and primary human peripheral blood NK cells (Figure 5E) efficiently killed the CD32 + 721.221 targets, and killing was suppressed in the presence of 2 distinct anti–Tim-3 antibodies or anti-FLAG antibody but not control anti-CD56 antibody or a nonbinding isotype-matched control antibody. We did not observed augmentation of NK-cell killing of CD32 + 721.221 cells in the presence of anti–Tim-3 antibodies, suggesting that Tim-3 functions as an inhibitor of cell-mediated cytotoxicity in NK cells. Interestingly, Tim-3 cross-linking of human peripheral blood NK cells activated by overnight culture in IL-2 did not inhibit killing of P815 target cells induced by CD16 (Figure 5F) or NKG2D (data not shown), suggesting that Tim-3 is a weak inhibitory receptor that can be overcome by cytokine stimulation of the effector cells.

In this study, we have demonstrated that Tim-3 serves as a marker for NK-cell activation or maturation and when cross-linked can suppress NK cell–mediated cytotoxicity. A host of informative markers have been used to define the maturation of immature CD56^brightCD16^– NK cells into the mature CD56^dimCD16⁺ NK-cell subset.^9,31  Tim-3 is highly expressed on all mature CD56^dimCD16⁺ NK cells but is heterogeneously expressed on CD56^brightCD16^– NK cells. Both CD56^dimCD16⁺ and CD56^brightCD16⁻ NK cells increased Tim-3 expression after stimulation with certain cytokines, in particular with IL-12 + IL-18 and IL-15 + IL-12. The increase of Tim-3 expression on CD56^brightCD16⁻ NK cells stimulated with IL-15 was correlated with CD56 down-regulation in the cells that acquired Tim-3. These data suggest that Tim-3 may be a marker of NK-cell activation or differentiation acquired during the maturation of CD56^bright into CD56^dim cells at the same time that down-regulation of CD56, CD94, CD62L, and NKp46 and the acquisition of KIR is occurring.

In the T-cell lineage, the expression of Tim-3 has been correlated with functional exhaustion of effector T cells.^19,32  In addition, Tim-3 has been shown to function as a receptor for galectin-9, which can induce apoptosis in T cells.^14,33-35  By contrast, when stimulated with IL-12 + IL-18 to induce IFN-γ production or cultured with NK-sensitive target cells to induce degranulation, the NK cells with the highest amounts of cell surface Tim-3 were the most responsive subset. This clearly demonstrates that in the NK-cell lineage, Tim-3 marks the most functionally responsive NK cells within the population, rather than marking dysfunctional or anergic NK cells. It should be noted that certain NK receptors can be expressed on T cells in an aging immune system, and after chronic activation, which reflects the accumulation of senescent effector T cells.³⁶  Thus, the same receptor can mark senescent T cells as well as fully functional NK cells. We propose that Tim-3 marks fully functional mature NK cells but that Tim-3 can restrain full NK-cell cytotoxic potential, similar to other NK-cell inhibitory receptors like the inhibitory KIR, when Tim-3⁺ NK cells encounter target cells expressing cognate ligand(s) of Tim-3. In addition to galectin-9, Tim-3 has been reported to bind phosphatidylserine^16,37  as well as other undefined ligands.³⁸

Although our functional assays clearly demonstrate that Tim-3 can function as an inhibitory receptor its cytoplasmic domain does not possess any canonical inhibitory motifs that can explain this activity. Moreover, a recent study by Kane et al showed that when transfected into Jurkat cells, Tim-3 can act as a costimulatory receptor with the CD3–TcR complex, interacting with Fyn and the p85 subunit of PI3 kinase, augmenting NF-κB and NFAT activation, and increasing IL-2 production.¹³  However, when primary mouse T-helper 1 T cells were simultaneously cross-linked with antibodies against CD3 and Tim-3, anti–Tim-3 suppressed anti-CD3–induced production of IFN-γ. Ju et al reported a modest increase in cytotoxicity and cytokine production when the human NK92 cell line was stimulated with the HepG2.2.15 tumor cell line in the presence of an anti–Tim-3 antibody²⁰ ; however, in this case it is unclear whether the anti–Tim-3 is blocking an inhibitory signal or functioning as an agonist. Our study clearly demonstrates that the simultaneous cross-linking of antibodies against Tim-3 with agonist antibodies against the activating NKG2D and CD16 receptors suppresses NK cell–mediated cytotoxicity, as measured by both killing of the target cells and degranulation of the responding NK cell. The mechanisms by which cross-linking suppressed NK cell–mediated killing is unknown, but cross-linking of Tim-3 on NKL cells or primary NK cells did not affect the viability of the NK cells; there was no evidence that cross-linking Tim-3 with antibodies induced apoptosis in NK cells. In addition although galectin-9, a ligand of Tim-3, can induce apoptosis in NK cells, our preliminary studies suggest that in human NK cells Tim-3 is not required for galectin-9–induced death, implying that other receptors for galectin-9 are responsible (L.C.N., unpublished data, 2012).

Collectively, these finding indicate that the function of Tim-3 is context dependent and may differ in different cell types. Other receptors on NK cells have been reported previously to have different functional outcomes depending on the context. For example, the 2B4 (CD244) receptor has been reported to inhibit or activate NK cell–mediated cytotoxicity and cytokine production, which seems to depend on the availability or concentration of intracellular adapter proteins that interact with the cytoplasmic domain of 2B4.^39,40  The human KIR2DL4 protein contains a canonical immunoreceptor tyrosine-based inhibitor motif in its cytoplasmic domain, yet associates with the immunoreceptor tyrosine-based activation motif (ITAM)–bearing FcϵRIγ adapter protein. Depending on the context, KIR2DL4 has been suggested to have activating or inhibitory properties.^41,42  Similarly, the ITAM-bearing DAP12 and FcϵRIγ adapter proteins can either augment or suppress immune responses depending on the receptor with which they associate and the cell type in which they are expressed.^43-45  Therefore, Tim-3 may regulate NK cells both positively and negatively in different circumstances, possibly depending on the nature of the Tim-3 ligand presented by the potential target cell.
