Functional STAT3 deficiency compromises the generation of human T follicular helper cells

The generation of robust Ab responses is crucial for the correct functioning of the immune system. The importance of this is apparent in diseases that result from dysregulated humoral immune responses. For example, immunodeficient states and autoimmune disorders can develop as a consequence of impaired or exaggerated Ab responses, respectively. Thus, it is imperative to identify factors that control Ab responses. Early studies found that T cells play an important role in initiating Ab responses (reviewed in Tangye et al¹ ). This was mediated by instructive signals in the form of cell–cell contacts and secretion of soluble mediators such as cytokines. More recently, a subset of CD4⁺ T cells with specialized B-cell helper capabilities was identified that is now referred to as T follicular helper (Tfh) cells.^2,3  Tfh cells are identified by several characteristics that also serve functional roles. Thus, Tfh cells express the chemokine receptor CXCR5,^2,3  which facilitates their positioning to B-cell follicles in secondary lymphoid tissues, and the transcription factor Bcl-6,⁴  which is required for the commitment of naive CD4⁺ T cells to the Tfh lineage.^5-7  Tfh cells also express the costimulatory molecules CD40L, ICOS, OX40, and members of the SLAM family, as well as the cytokine IL-21,^2-4,8-12  all of which play important roles in the induction of T cell–dependent (TD) B-cell activation and differentiation.

Because of the importance of Tfh cells in regulating Ab responses, much work has been performed to determine the requirements for their differentiation from naive CD4⁺ T cells. It was initially found that IL-21 was required for the development of murine Tfh cells.^13,14  This was later expanded to include IL-6 and IL-27.^15-17  However, conflicting findings have been made about the relative importance of IL-6 and IL-21 to murine Tfh cell formation^18,19 ; this may reflect redundancy because these cytokines, as well as IL-27, can operate through STAT3.^20,21  We and others previously showed that IL-12 is the key cytokine implicated in the differentiation of human Tfh cells in vitro.^11,22  IL-6, IL-21, IL-23, and IL-27 also induce human Tfh-like cells in vitro, albeit to a much lesser extent than IL-12.^11,17,22  We have now extended these observations by investigating the molecular requirements for the differentiation of naive human CD4⁺ T cells into Tfh cells. This was achieved by studying patients with primary immunodeficiencies resulting from mutations in IL12RB1, STAT1, STAT3, and TYK2. IL-12–mediated induction of human Tfh-like cells was abolished in the absence of IL-12Rβ1 or TYK2, and significantly reduced in CD4⁺ T cells deficient in STAT3 function. In contrast to the effects of IL-12, induction of Tfh cells by IL-6, IL-21, IL-23, and IL-27 was completely dependent on STAT3. These studies indicate that multiple cytokine pathways are involved in the differentiation of human Tfh cells, and IL-12 most efficiently induces human Tfh cells predominantly in a STAT3-dependent manner. This defect in generating Tfh cells from STAT3 mutant (STAT3_MUT) CD4⁺ T cells would contribute to impaired TD humoral immune responses observed in patients with STAT3 mutations. In contrast, the ability of non–IL-12 cytokines to induce Tfh cell function is sufficient to elicit intact Ab responses in persons with impaired IL-12R signaling.

Patients with mutations in IL12RB1, STAT1, TYK2, and STAT3 have been previously described (Table 1 ^23-28 ). PBMCs were isolated from these patients and healthy donors (Australian Red Cross). Tonsils were obtained from St Vincent's Hospital, Sydney. All studies were approved by Institutional Human Research Ethics Committees, and all participants gave written informed consent in accordance with the Declaration of Helsinki.

Alexa-647–conjugated anti–IL-21, biotinylated anti-ICOS, PE–anti-CD4, Pacific Blue–anti-CD4, peridinin chlorophyll protein complex (PerCP)/cyanine 5.5–anti-CD45RA, anti-IFNγ, and FITC–anti-CD45RA were purchased from eBiosciences. Alexa-647–anti-CXCR5, allophycocyanin–anti-CD38, FITC–anti-CD20, PE–anti-CD4, anti-CD27, PerCP–anti-CD3 mAb, and streptavidin–PerCP were purchased from Becton Dickinson. Allophycocyanin–anti-CD4 was purchased from Caltag, and FITC–anti-CCR7 was purchased from R&D Systems.

CD4⁺ T cells were isolated from healthy donors or immunodeficient patients with the use of Dynal beads.²³  Peripheral blood (PB) CD4⁺ T cells were labeled with anti-CD4, anti-CD45RA, and anti-CCR7, and naive CD45RA⁺CCR7⁺ CD4⁺ T cells were isolated (> 98% purity) with the use of a FACSAria (BD Biosciences).

Naive PB CD4⁺ T cells were labeled with CFSE (Molecular Probes) and cultured with T-cell activation and expansion beads (anti-CD2/CD3/CD28; Miltenyi Biotec) alone (nil culture) or under Th1 (IL-12 [20 ng/ml; R&D systems]), Th2 (IL-4 [100 U/ml]), or Th17 (IL-1β [20 ng/ml; Peprotech]), IL-6 (50 ng/mL; PeproTech), IL-21 (50 ng/mL; PeproTech), IL-23 (20 ng/mL; eBioscience), anti–IL-4 (5 μg/mL), and anti-IFNγ (5 μg/mL; eBioscience)^23,29  polarizing conditions, or with IL-6, IL-21, IL-23, or IL-27 (50 ng/mL; eBioscience) alone. After 4 or 5 days, expression of intracellular cytokines, transcription factors, and surface phenotype of cells determined.

Naive CD4⁺ T cells were activated for 5 days (see previous section), treated with mitomycin C (100 μg/mL; Sigma-Aldrich) and then cocultured at a 1:1 ratio (50 × 10³/200 μL/well) with sort-purified allogeneic naive (CD20⁺CD27⁻CD38^inter) tonsillar B cells.^11,29  After 7 days Ig secretion was determined by ELISA.²⁹

Activated CD4⁺ T cells were restimulated with phorbol 12-myristate 13-acetate (100 ng/mL) and ionomycin (750 ng/mL) for 6 hours, with Brefeldin A (10 μg/mL) added after 2 hours. Cells were then fixed with formaldehyde, and expression of cytokines was detected by intracellular staining.^23,29  RNA was extracted with the use of RNeasy kit (QIAGEN) and transcribed into cDNA with the use of random hexamers and Superscript III (Invitrogen). All quantitative PCR (qPCR) primers (Integrated DNA Technologies) were designed with Roche UPL Primer Design Program. Primer sequences, Roche UPL probes, and size of each amplicon are listed in Table 2. qPCR was performed with Roche LightCycler 480 Probe Master Mix and Roche Lightcycler 480 System with the following conditions: denaturation at 95°C for 10 minutes; amplification for 45 cycles at 95°C for 10 seconds, 65°C for 30 seconds, and 72°C for 5 seconds; and cooling at 40°C for 30 seconds. All reactions were standardized to GAPDH.

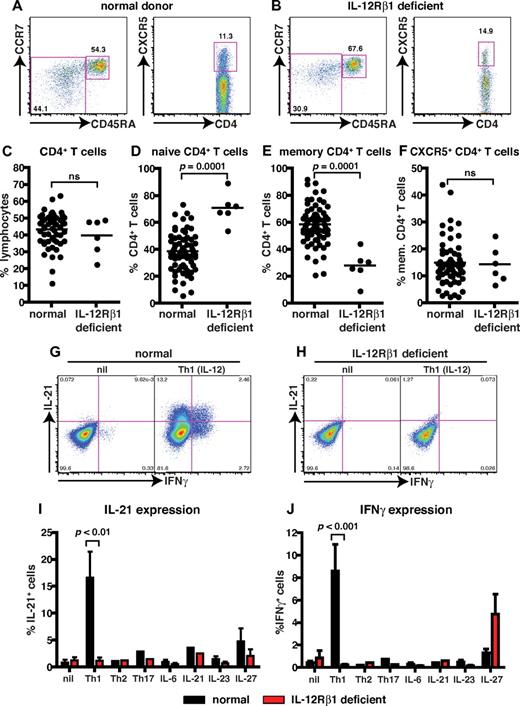

IL-12 can induce human naive CD4⁺ T cells to differentiate into IL-21–expressing cells that resemble Tfh cells in vitro.^11,22  To investigate this function of IL-12 further, we examined patients with homozygous or compound heterozygous null mutations in IL12RB1.²⁶  We first determined the frequency of total CD4⁺ T cells and CD4⁺ T cells with a naive (CD45RA⁺CCR7⁺), memory (CD45RA⁻CCR7^+/−), or Tfh (CXCR5⁺) phenotype in healthy donors (age range, 16-64 years) and patients deficient for IL-12Rβ1 (Figure 1A-D,F). Patients deficient for IL-12Rβ1 had a normal frequency of CD4⁺ T cells (Figure 1; Table 3). In contrast, they had a significant increase in the frequency of naive and a corresponding significant decrease in memory CD4⁺ T cells (Figure 1A-E; Table 3). When the phenotype of CXCR5⁺ T cells was analyzed, ∼ 90% were found within the CD45RA⁻ (ie, memory) subset (Table 3^2,3,11 ). Therefore, we analyzed the frequency of both CXCR5⁺CD45RA⁻ and CD45RA⁺ T cells in healthy donors and in patients deficient for IL-12Rβ1. No significant difference was observed for the frequency of circulating CD4⁺ CXCR5⁺CD45RA⁻ or CD45RA⁺ Tfh-like cells in healthy donors and patients deficient for IL-12Rβ1 (Figure 1A-B,F; Table 3).

To assess the potential of CD4⁺ T cells deficient for IL-12Rβ1 to differentiate into Tfh-like cells, we examined the ability of naive cells to express IL-21 in vitro. Naive CD4⁺ T cells were cultured with T-cell activation and expansion beads alone (nil) or with IL-12 (Th1). After 5 days, cells were restimulated with phorbol 12-myristate 13-acetate/ionomycin, and the expression of IL-21 and IFNγ was then determined. Naive CD4⁺ T cells from either healthy donors or patients deficient for IL-12Rβ1 expressed little IL-21 or IFNγ when cultured under neutral (nil) conditions (Figure 1G-J). However, when normal naive CD4⁺ T cells were cultured under Th1-polarizing conditions (ie, with IL-12), IL-21– and IFNγ–expressing cells were readily detectable (Figure 1G,I,J). In contrast, IL-12 failed to induce IL-21 or IFNγ in naive CD4⁺ T cells deficient for IL-12Rβ1 (Figure 1H-J). Next, we questioned whether naive CD4⁺ T cells deficient for IL-12Rβ1 could differentiate into IL-21–expressing cells in response to other cytokines and signaling pathways. Accordingly, naive CD4⁺ T cells from healthy donors and patients deficient for IL-12Rβ1 were subjected to Th2 (IL-4) and Th17 (IL-1β, IL-6, IL-21, IL-23) polarizing conditions or were cultured in the presence of IL-6, IL-21, IL-23, or IL-27. A small frequency of IL-21–expressing cells could be generated from both normal and IL-12Rβ1–deficient naive CD4⁺ T cells activated with IL-21 or IL-27 (Figure 1I). Similarly, although IL-12 could not induce IFNγ in naive CD4⁺ T cells deficient for IL-12Rβ1, the ability of IL-27 to induce IFNγ was unaffected by IL12RB1 mutations (Figure 1J). Taken together these results indicate that, although IL-12–induced IL-21 expression is abrogated by IL12RB1 mutations, other cytokines and their associated signaling pathways that induce IL-21 (eg, IL-21 and IL-27, albeit to a lesser extent than IL-12) are intact, which is consistent with normal Ab responses to infection and vaccinations in these patients.^30,31

The cytokines that induce IL-21 in human naive CD4⁺ T cells (IL-12, IL-6, IL-21, IL-23, IL-27)^11,22  function by activating JAK/STAT signaling pathways. These cytokines phosphorylate STAT1 (IL-6, IL-12, IL-21, IL-23, IL-27), STAT3 (IL-6, IL-12, IL-21, IL-23, IL-27), STAT4 (IL-12, IL-23), and STAT5 (IL-12).^{20,21,24,32-35}  We confirmed these studies by showing that these IL-21–inducing cytokines predominantly activate STAT1, STAT3, and STAT4 in human naive CD4⁺ T cells (data not shown), suggesting that these transcription factors are important in inducing Tfh cells in humans. To investigate this further, we took advantage of additional primary immunodeficiencies that result from mutations in components of several cytokine-signaling pathways, namely STAT1, TYK2, and STAT3.

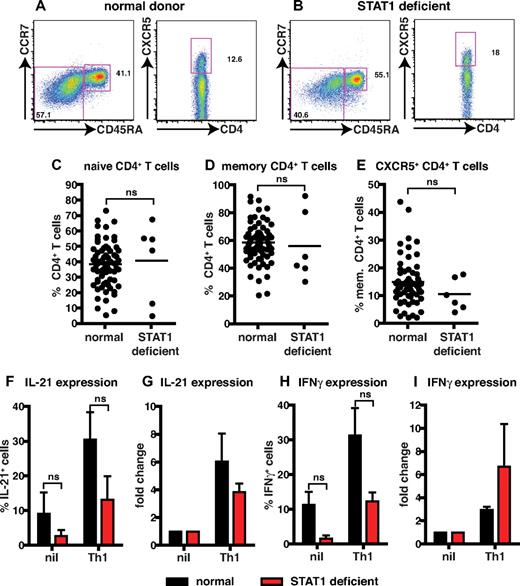

STAT1-deficient patients and healthy donors had comparable frequencies of naive and memory CD4⁺ T cells (Figure 2A-D; Table 3). The proportions of CXCR5⁺CD45RA⁻ or CD45RA⁺ Tfh cells in STAT1-deficient patients were also comparable with healthy donors (Figure 2A-B,E; Table 3). The ability of STAT1-deficient CD4⁺ T cells to differentiate into IL-21⁺ cells in response to Th1-polarizing conditions was then tested. Because of the limited numbers of cells available from these rare patients, total CD4⁺ T cells were examined. When CD4⁺ T cells from healthy donors or STAT1-deficient patients were activated under neutral conditions, IL-21 and IFNγ production could be detected; however, the frequencies of cytokine-expressing cells was lower in STAT1-deficient patients (Figure 2F,H; IL-21: normal, 9.1% ± 6.2%; STAT1, 2.7% ± 1.8%; IFNγ: normal, 11.3% ± 3.8%; STAT1, 1.6% ± 0.9%). Despite these differences in the nonpolarizing cultures, expression of IL-21 and IFNγ in both normal and STAT1-deficient CD4⁺ T cells increased after culture with IL-12 (Figure 2F,H; IL-21: normal, 30.5% ± 7.9%; STAT1, 13.2% ± 6.7%; IFNγ: normal, 31.3% ± 7.9%; STAT1, 12.3% ± 2.5%). Although there appeared to be a reduced ability of IL-12 to enhance expression of IL-21 and IFNγ in the absence of STAT1, compared with normal CD4⁺ T cells (Figure 2F,H), when the effect of IL-12 was expressed as fold-change relative to nonpolarizing cultures, STAT1-deficient CD4⁺ T cells responded comparably to normal cells, that is, ∼ 4- to 6-fold increase in IL-21 (Figure 2G) and ∼ 3- to 6-fold induction in IFNγ expression (Figure 2I). Together these results indicate that IL-12–induced IL-21 and IFNγ in CD4⁺ T cells is independent of STAT1 signaling.

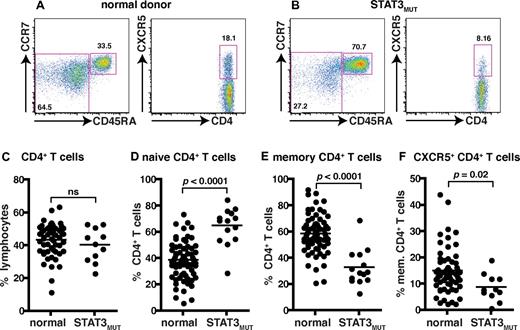

To investigate further the signaling pathways involved in the differentiation of IL-21–expressing cells we used patients with autosomal-dominant hyper IgE syndrome resulting from heterozygous mutations in STAT3.^36,37  Patients heterozygous for these mutations display impaired, but not abolished, STAT3 function with ∼ 25% residual signaling.^36,37  As detailed above, STAT3 is activated by many cytokines, including those that induce IL-21 expression in human CD4⁺ T cells (ie, IL-6, IL-12, IL-21, IL-23, IL-27).^{20,21,24,32-35}  The frequency of total CD4⁺ T cells was comparable between healthy donors and STAT3_MUT patients (Figure 3C). Compared with healthy donors, STAT3_MUT patients have a significant increase in the frequency of naive and a significant decrease in the frequency of memory CD4⁺ T cells (Figure 3A-F; Table 3). Analysis of CXCR5⁺ T cells within the CD45RA⁺ and CD45RA⁻ fractions revealed significant decreases in both of these compartments in STAT3_MUT patients compared with healthy donors (Figure 3A-B,F; Table 3). Thus, mutations in STAT3 cause a ∼ 50% reduction in the frequency of circulating CXCR5⁺CD45RA⁻ and CD45RA⁺ Tfh cells (Figure 3F; Table 3).

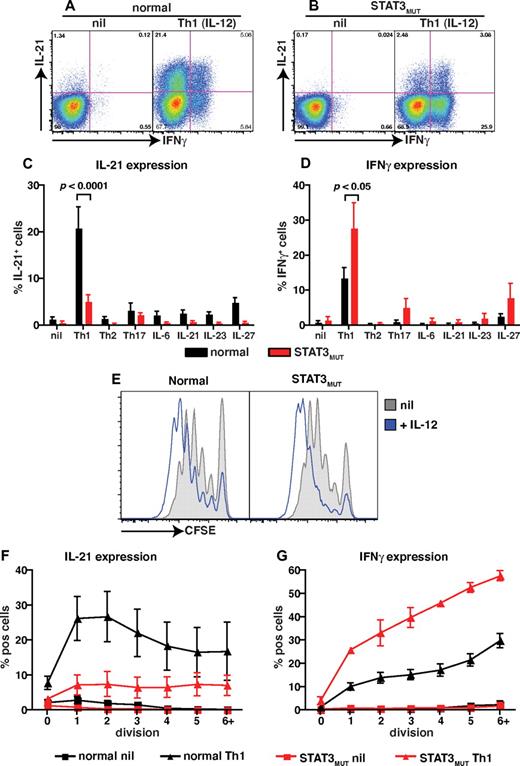

The observations that (1) IL-12 is the main driver of human Tfh cell differentiation in vitro,^11,22  (2) IL-12 is capable of activating STAT3,^21,32-35  and (3) STAT3_MUT patients have a contracted population of circulating CD4⁺ CXCR5⁺CD45RA⁻ and CD45RA⁺ Tfh-like cells (Figure 3E) led us to investigate the consequences of STAT3 mutations on the ability of IL-12 to induce IL-21 in human naive CD4⁺ T cells. No differences were observed in the low frequencies of IL-21– and IFNγ–expressing cells detected in cultures of naive CD4⁺ T cells from healthy donors or STAT3_MUT patients after stimulation under neutral conditions (Figure 4A-D). However, induction of IL-21 expression by IL-12 was significantly reduced in STAT3_MUT naive CD4⁺ T cells compared with normal naive CD4⁺ T cells (Figure 4A-C; normal, 20.9% ± 4.5%; STAT3_MUT, 5.2% ± 1.3%). In fact this defect was most pronounced when the frequency of IL-21⁺IFNγ⁻ cells were determined (Figure 4A-B). This analysis found a significant (P < .01) decrease in IL-21⁺IFNγ⁻ cells but not IL-21⁺IFNγ⁺ (P > .05) cells in STAT3_MUT patients compared with healthy donors after Th1 polarization (IL-21⁺IFNγ⁻: normal, 16.7% ± 3.2%; STAT3_MUT, 2.3% ± 0.5%; IL-21⁺IFNγ⁺: normal, 4.8% ± 1.5%; STAT3_MUT, 3.3% ± 1%). In contrast to IL-21, expression of IFNγ in CD4⁺ T cells in response to IL-12 was unaffected by STAT3 mutations; in fact it was higher than normal CD4⁺ T cells (Figure 4D). This increase in IFNγ production by STAT3_MUT CD4⁺ T cells, however, did not contribute to decreased IL-21 production because neutralizing IFNγ in these cultures had no effect on IL-21 expression, and there was a positive correlation between IL-21 and IFNγ expression in both normal and STAT3_MUT naive CD4⁺ T cells after Th1 polarization (data not shown). It was possible that induction of IL-21 by IL-12 resulted from not only a direct effect of IL-12 but also the effects of other cytokines induced by IL-12 that act in an autocrine manner to further promote IL-21 expression. To address this, we examined IL-21 and IFNγ expression in normal and STAT3_MUT CD4⁺ T cells by qPCR after 24 and 48 hours of stimulation with or without IL-12. Expression of IL21 was substantially increased by IL-12 in normal CD4⁺ T cells within 24 hours of stimulation, compared with cells cultured under neutral (nil) conditions, and similar levels were detected after 48 hours (supplemental Figure 1A-B, available on the Blood Web site; see the Supplemental Materials link at the top of the online article). Consistent with the flow cytometric analysis, expression of IL21 in IL-12–activated STAT3_MUT naive CD4⁺ T cells was reduced compared with normal controls (supplemental Figure 1A-B). In contrast to IL21, IFNG was abundantly expressed by IL-12–treated STAT3_MUT naive CD4⁺ T cells; in fact, consistent with the intracellular staining data, IFNG expression by these cells exceeded that of normal naive CD4⁺ T cells at the 48-hour time point (supplemental Figure 1C-D). These data suggest that IL-12 acts directly to rapidly induce IL-21 expression in naive CD4⁺ T cells.

IL-12 is capable of activating the JAK family protein tyrosine kinase TYK2,³⁸  which subsequently phosphorylates STATs, including STAT3.³⁹  Mutations in TYK2 have been reported in 2 patients who developed susceptibility to various pathogens, including mycobacteria/Bacille Calmette-Guérin and herpes viruses.^25,28  One of the contributing factors to disease pathogenesis is believed to be the unresponsiveness of their T cells to IL-12 with respect to induction of IFNγ expression.²⁵  To investigate this further, these 2 patients deficient for TYK2 were examined (supplemental Figure 2). CXCR5⁺CD45RA⁻ Tfh-like cells were detected in both patients at similar frequencies as healthy donors (supplemental Figure 2A-B,E; Table 3). When IL-21 expression in total CD4⁺ T cells from 1 patient deficient for TYK2 after culture with IL-12 was examined, the level of induction was ∼ 2-fold less than that observed for normal CD4⁺ T cells (supplemental Figure 2F-G). We extended these studies by examining naive CD4⁺ T cells from the second patient deficient for TYK2. Compared with normal naive CD4⁺ T cells, induction of IL-21 expression by IL-12 in TYK2-deficient CD4⁺ T cells was severely reduced (supplemental Figure 2I). Induction of IFNγ was also dramatically compromised by TYK2 mutations (supplemental Figure 2H,J). Taken together, these data suggest that mutations in TYK2 and STAT3, which are both activated downstream of the IL-12R,^{21,32-35,38,39}  cause a significant impairment in the ability of naive CD4⁺ T cells to differentiate into IL-21–expressing cells in response to IL-12.

Because IL-12 can promote proliferation of human activated T cells,⁴⁰  and differentiation of CD4⁺ T cells into cytokine-expressing cells is linked to cell division,^29,41  it was important to determine whether the reduction in expression of IL-21 in IL-12–stimulated STAT3_MUT CD4⁺ T cells resulted from reduced cell division or reflected an intrinsic defect in the differentiation program of these cells.

To do this, we examined proliferation by labeling naive CD4⁺ T cells with CFSE and tracked their division after in vitro stimulation by monitoring CFSE dilution. There was no difference in cell division between normal or STAT3_MUT naive CD4⁺ T cells activated under neutral conditions (Figure 4E). Similarly, IL-12 increased proliferation regardless of whether the naive CD4⁺ T cells were derived from healthy donors or STAT3_MUT patients (Figure 4E). When IL-21 expression was examined on a per division basis, we found that it increased in normal CD4⁺ T cells after the first few divisions and then reached a maximum, being expressed in ∼ 20%-30% of cells after 2-3 divisions (Figure 4F). Expression of IL-21 by STAT3_MUT CD4⁺ T cells also modestly increased with division; however, the frequency of IL-21⁺ cells in each division never exceeded 10% and thus was dramatically reduced compared with normal CD4⁺ T cells (Figure 4F). These data establish that the defect in IL-12–induced IL-21 induction in the absence of functional STAT3 was not because of a difference in proliferation, but rather because of an inability to efficiently acquire IL-21 during Tfh cell differentiation. Notably, when IFNγ expression was also analyzed on a per division basis, the frequency of cytokine-positive cells continued to increase with each cell division (Figure 4G). Furthermore, the heightened frequency of IFNγ⁺ cells observed in STAT3_MUT compared with normal CD4⁺ T cells at the population level (Figure 4D and supplemental Figure 1) was also detected for cells that had undergone different divisions (Figure 4G).

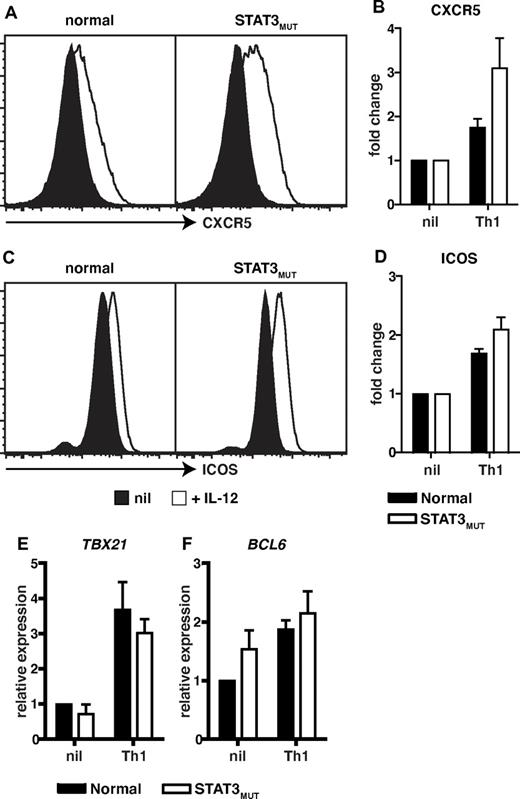

IL-12 not only promotes IL-21 expression in human naive CD4⁺ T cells but also induces additional features of Tfh cells such as sustained expression of CXCR5 and ICOS, and a modest induction of the Tfh lineage restricted transcription factor BCL6.^4,11  We therefore wanted to explore whether the effects of IL-12 on these aspects of CD4⁺ T-cell activation were also compromised by mutations in STAT3. Compared with naive CD4⁺ T cells activated under neutral conditions, elevated expression of the Tfh cell markers CXCR5 and ICOS was observed when either normal or STAT3_MUT cells were activated in the presence of IL-12 (Figure 5 A,C). In fact, compared with cells cultured under neutral conditions, IL-12 up-regulated CXCR5 and ICOS expressions by 2- to 3-fold on both normal and STAT3_MUT naive CD4⁺ T cells (Figure 5B,D). IL-12 also up-regulated TBX21 (encoding T-bet) and BCL6, the transcription factors required to generate Th1 and Tfh cells, respectively, to a comparable extent in normal and STAT3_MUT naive CD4⁺ T cells (Figure 5E,F). Thus, IL-12–mediated induction of CXCR5, ICOS, and BCL6 in Tfh-like cells either only require the residual levels of functional STAT3 that are available in STAT3_MUT CD4⁺ T cells or are STAT3-independent resulting from IL-12–induced activation of STAT4.^20,21,34,38  This latter scenario would underlie the normal induction of TBX21 and IFNγ in STAT3_MUT Th1 cells.

Consistent with our previous findings,¹¹  most of the other culture conditions used in this study (ie, Th2- and Th17-polarizing conditions; exogenous IL-6, IL-21, IL-23) had no effect on expression of CXCR5 and ICOS on normal CD4⁺ T cells above that observed for the nonpolarizing culture (supplemental Figure 3A-B). However, IL-27 did modestly enhance ICOS expression (supplemental Figure 3B) and induce TBX21 in naive CD4⁺ T cells (supplemental Figure 3C), and this was independent of STAT3. Interestingly, Th17 polarizing culture conditions induced the greatest levels of BCL6 in naive CD4⁺ T cells, and this was substantially reduced in STAT3_MUT CD4⁺ T cells (supplemental Figure 3D), reflecting the contribution of STAT3 to the combined signaling of IL-6, IL-21, and IL-23 through their respective receptors.

We next questioned whether a reduction in IL-21 expression in STAT3_MUT CD4⁺ T cells would result in a detectable functional defect, such as a compromised ability of these cells to provide help to B cells. To investigate this, we established an in vitro B-cell helper assay in which naive CD4⁺ T cells were isolated from healthy donors and STAT3_MUT patients and activated under neutral or Th1-polarizing conditions. After 5 days, the CD4⁺ T cells were harvested and cocultured with naive B cells for an additional 7 days, after which time Ig secretion was quantified. Normal naive CD4⁺ T cells activated under Th1 conditions provided significantly more help to support Ig production by cocultured B cells than when these T cells were cultured under neutral conditions (Figure 6A-C). Although priming under Th1 conditions also increased the helper function of STAT3_MUT CD4⁺ T cells relative to those cultured under neutral conditions, it was significantly less than that of normal CD4⁺ T cells (Figure 6A-C). This reduction in B-cell help by IL-12–stimulated STAT3_MUT CD4⁺ T cells approximated their reduction in expression of IL-21 under these culture conditions (ie, ∼ 50%-70%; compare Figures 4C and 6A-C), thereby suggesting that the impaired ability of STAT3_MUT CD4⁺ T cells to adequately promote B-cell differentiation resulted from insufficient production of IL-21. Indeed, the reduced ability of IL-12–primed STAT3_MUT CD4⁺ T cells to provide help to B cells could be overcome when IL-21 was added to the cocultures (Figure 6C). Thus, functional STAT3 deficiency compromises the ability of IL-12 to induce IL-21, which is subsequently detrimental to the capacity of these CD4⁺ T cells to mediate the differentiation of B cells into Ig-secreting cells.

As previously shown, other cytokines (IL-6, IL-21, IL-23, IL-27) can also give rise to IL-21–expressing cells, albeit to a much lesser extent than IL-12.^11,17,22  When STAT3_MUT naive CD4⁺ T cells were exposed to these cytokines, they were unable to up-regulate IL-21 expression (Figure 4C). Thus, although mutations in STAT3 substantially reduced the ability of IL-12 to induce IL-21 expression in CD4⁺ T cells, the ability of IL-6, IL-21, IL-23, and IL-27 to do this was completely dependent on STAT3. Consistent with this, STAT3_MUT naive CD4⁺ T cells preactivated with IL-6, IL-21, or IL-23 were unable to support Ab production by cocultured B cells (supplemental Figure 3E-F).

Lymphocyte differentiation is the outcome of the integration of signals from numerous external stimuli and the activation of specific transcription factors that regulate gene expression and ultimately cellular function. The differentiation of naive CD4⁺ T cells into Th1, Th2, Th17, and T-regulatory cells has been well-characterized for the roles of specific cytokines and transcription factors. The emergence of Tfh cells as the predominant subset of CD4⁺ T cells that mediate TD humoral immunity has been accompanied by the elucidation of the requirements for their generation and maintenance. Thus, engaging the TCR, ICOS, and the SLAM/SAP pathways by ligands present on APCs, together with signals mediated by STAT3 downstream of receptors for the cytokines IL-6, IL-21, and IL-27, coordinately induce expression of the transcription factors BCL6, IRF4, and c-MAF, which converge to yield Tfh cells.^8,12  Despite these generalized findings, much controversy remains over the relative contribution of these individual components to Tfh cell formation; this is most apparent from subsequent studies that have challenged the role of IL-6 and IL-21 in this process.^8,12,18,19  Furthermore, the molecular requirements for the generation of human Tfh cells remain incompletely defined.

We and others previously showed that IL-12 plays an important role in the differentiation of human Tfh cells, as evidenced by its ability to induce expression of IL-21 and to maintain expression of ICOS and CXCR5 on naive CD4⁺ T cells.^11,22  Similar to studies in mice,^7,14,17  IL-6, IL-21, and IL-27 also induce IL-21 expression in human naive CD4⁺ T cells, albeit to a much lesser extent than IL-12.^11,17,22  We have now substantially extended these findings by investigating the in vivo and in vitro development of Tfh cells in patients with loss-of-function mutations in IL-12RB1, STAT1, TYK2, and STAT3; that is genes that compromise cytokine-mediated intracellular signaling pathways probably involved in regulating human Tfh cell formation.

The specific ability of IL-12 to induce IL-21 expression in human naive CD4⁺ T cells was confirmed by showing that in the absence of a functional receptor (ie, in patients deficient for IL-12Rβ1) IL-12 was unable to give rise to IL-21–expressing cells (Figure 1I). Interestingly, IL-12–mediated IL-21 expression partially depended on intact STAT3 signaling, because heterozygous mutations in STAT3 (which render most STAT3 dimers nonfunctional) reduced IL-21 expression by 50%-75%. Induction of IL-21 expression in CD4⁺ T cells by IL-12 was also reduced in the absence of TYK2 but was unaffected by STAT1 deficiency. Further evidence that the generation of human Tfh cells is STAT1 independent was the finding that the frequency of circulating CXCR5⁺CD45RA⁻ T cells was unaffected by gain-of-function mutations in STAT1 (22% 6.6%; n=3). Although IL-12 is well-characterized for its ability to operate via STAT4-dependent pathways,²⁰  our finding of a requirement for STAT3 in IL-12 function is consistent with numerous studies that have documented STAT3 activation in human and murine T cells exposed to IL-12.^{21,33,34,38,42}  TYK2 is similarly phosphorylated in IL-12–treated T cells.^20,38,39  Despite the defect in IL-21 production, IL-12 could still induce STAT3_MUT naive CD4⁺ T cells to acquire other characteristics of Tfh cells such as increased expression of ICOS, CXCR5, and BCL6 (Figure 5A-D). The intact induction of these phenotypic and molecular changes in Tfh-like cells, as well as residual expression of IL-21, in IL-12–treated CD4⁺ T cells derived from STAT3_MUT patients, are probably induced in a STAT4-dependent manner. Thus, IL-12 induces IL-21 expression predominantly through a TYK2/STAT3-dependent mechanism, with a minor contribution via STAT4 signaling. This is supported by the ability of both STAT3 and STAT4 to bind the promoters of the IL21 and BCL6 genes^43,44  and also by the recent finding that IL-12 induces IL-21 in murine CD4⁺ T cells via STAT3- and STAT4-dependent pathways.⁴²  Importantly, the reduction in IL-12–induced expression of IL-21 in STAT3_MUT CD4⁺ T cells translated to a functional defect in TD B-cell differentiation in vitro (Figure 6). Interestingly, although IL-12 could still induce normal levels of ICOS on STAT3_MUT CD4⁺ T cells, this could not compensate for the deficiency in IL-21 production by these T cells, which is the primary source of help for B-cell differentiation. These findings are consistent with a model in which ICOS has a dual role in Tfh cells, first, in their generation from naive precursors, and, second, in enhancing IL-21 expression.^12,14,45,46

While the ability of IL-12 to induce IL-21 in naive CD4⁺ T cells was predominantly STAT3-dependent, induction of IL-21 by IL-6, IL-21, and IL-27; and the ability of CD4⁺ T cells primed with these cytokines to help B cells, were completely abrogated by mutations in STAT3. Thus, the ability of all cytokines currently identified to induce IL-21 in human CD4⁺ T cells, and subsequent B cell-helper function would be dramatically affected by STAT3 mutations, that is, either strongly reduced or completely abolished. The importance of intact STAT3 signaling in generating human Tfh cells is reinforced by the significant reduction in the frequencies of circulating CD4⁺ CXCR5⁺ T cells in STAT3_MUT patients. By contrast, the frequency of these CXCR5⁺ Tfh-like cells was normal in patients deficient for IL-12Rβ1. This suggests that, although IL-12 induces the greatest frequency of IL-21–expressing CD4⁺ T cells, there is sufficient redundancy among cytokine signaling pathways involved in generating Tfh cells to overcome the inability of CD4⁺ T cells to give rise to Tfh cells in the absence of the IL-12 signaling. In other words, IL-6, IL-21, and IL-27 signaling through STAT3 will still give rise to Tfh cells from IL12RB1-mutant CD4⁺ T cells. This is supported by the observation that humoral immune responses are intact in patients deficient for IL-12Rβ1.^26,30,31  Given the critical role of Tfh cells in humoral immune responses, it makes teleologic sense that this level of redundancy evolved to protect against the detrimental effects of Tfh cell deficiency. In contrast, use of STAT3 by several cytokines in the generation of human Tfh cells provides an explanation for why STAT3_MUT patients exhibit defects in humoral immune responses (including reductions in circulating CD4⁺ CXCR5⁺CD45RA⁻ and CD45RA⁺ Tfh-like cells, memory B cells and an inability to mount protective Ab responses after vaccination or natural infection^24,47,48 ) that cannot be compensated entirely by IL-12–dependent STAT4 signaling. These clinical, cellular, and serologic features of STAT3 deficiency are reminiscent of patients with mutations in ICOS and CD40LG,^49,50  which largely result from an absence of B-cell help by Tfh cells.^49,50  Thus, although an intrinsic defect resulting from the inability of B cells to respond to cytokines such as IL-6, IL-10, and IL-21 would contribute to the functional Ab deficiency in STAT3_MUT patients,²⁴ this defect would be compounded further by the compromised generation and function of Tfh cells.

Overall, our findings have shed substantial light on the molecular requirements for generating human Tfh cells and have identified a signaling pathway that could be targeted to enhance Tfh cell generation in immunodeficient conditions. The corollary is that because dysregulated activation and/or generation of Tfh cells has been associated with autoimmunity in humans and mice, inhibiting this pathway may represent a novel approach to treating autoAb-mediated conditions.

The authors thank the Garvan Flow Cytometry facility for cell sorting, Dr Rene de Waal Malefyt (DNAX) for providing reagents (IL-4, anti–IL-4 mAb), and the patients and their families for participating in this project.

This work was supported by project and program grants from the National Health and Medical Research Council (NHMRC) of Australia (C.S.M., E.K.D., M.B., D.A.F., M.C.C., and S.G.T.) and Rockefeller University Center for 541 Clinical and Translational science (5UL1RR024143; J.-L.C.). C.S.M. is a recipient of a Career Development Fellowship and S.G.T. is a recipient of a Senior Research Fellowship from the NHMRC of Australia.

Contribution: C.S.M. designed the research, performed experiments, analyzed and interpreted results, and wrote the manuscript; D.T.A., A.C., and E.K.D performed experiments; J.B., S.B.-D., P.D.A., A.Y.K, D.A., D.E., K.M., S.S.K., Y.M., S.N., M.A.F., S.C., J.M.S., J.P., M.W., P.G., M.C.C., D.A.F., and J.-L.C. provided patient samples and clinical details; M.C.C. also genotyped STAT3-mutant patients; M.B. provided intellectual input; and S.G.T designed the research, interpreted results, and wrote the manuscript. All authors commented on the manuscript.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: Cindy S. Ma, Garvan Institute of Medical Research, 384 Victoria St, Darlinghurst, 2010 NSW, Australia; e-mail: c.ma@garvan.org.au; or Stuart G. Tangye, Garvan Institute of Medical Research, 384 Victoria St, Darlinghurst, 2010 NSW, Australia; e-mail: s.tangye@garvan.org.au.
