Extensive molecular mapping of TCRα/δ- and TCRβ-involved chromosomal translocations reveals distinct mechanisms of oncogene activation in T-ALL

T-cell acute lymphoblastic leukemias (T-ALLs) are malignant proliferations of T-cell precursors arrested at various stages of development.^1,2  Our understanding of T-ALL oncogenesis has advanced rapidly over the past decade, and numerous combinations of multigenic aberrations and oncogenic synergy have been identified.³  Among these, chromosomal translocations involving the TCR loci represent the recurrent oncogenic hallmark of T-ALL.⁴ TCR translocations predominantly involve the TCRα/δ locus at chromosome 14q11 or TCRβ at chromosome 7q34, but rearrangement of TCRγ at chromosome 7p15 is virtually unrecognized.⁴  Such translocations are generally believed to result from illegitimate V(D)J recombination events and to lead to ectopic activation of oncogenes because of their the potent positive regulatory elements of the TCR locus or loss of the negative regulatory element.^5,6  Specific mechanistic differences in V(D)J-mediated translocation mechanisms have been shown to guide break location and clustering in T-ALL.⁷  Two main types of oncogenic translocations involving the TCRβ and TCRα/δ have been described.⁸  In the so-called type 1 translocations (supplemental Figure 1, available on the Blood Web site; see the Supplemental Materials link at the top of the online article), a cryptic but functional recombination signal sequence (cRSS) is present near the oncogene and is mistakenly targeted by the RAG recombinase as a partner for a recombining TCR gene segment. Translocations of this type consequently cluster (within tens of base pairs) at this cryptic site. In type 2 translocations, only the Ig/TCR locus breaks are generated by RAG targeting, and the translocation results from repair mistakes between TCR-rearranging intermediates and DNA breaks in the vicinity of the oncogene. One distinctive feature of the 2 mechanisms is that the former involves DNA transactions between 2 breaks (4 DNA ends), both of which are thought to be recombinase mediated, whereas the latter involves DNA transactions between 3 breaks (6 DNA ends), with only the TCR breaks being due to recombinase activity. In T-ALL, the basis for DNA breakage at the other breakpoint is largely unknown, probably heterogeneous, and not necessarily specific to lymphoid malignancies. It is generally considered that both the TCR locus and the partner oncogene need to be in an accessible chromatin configuration to undergo translocation. Because TCR rearrangements occur sequentially in a highly coordinated fashion during both normal and leukemic T-lymphoid development, molecular characterization of TCR translocations can throw light on the timing of the oncogenic event.

In humans, the earliest T-cell precursor was defined as CD34⁺/CD7⁺/CD45RA⁺/sCD3⁻/CD2⁻/CD5⁻/CD1a⁻.⁹  Progressive lineage restriction and acquisition of T-cell potential after migration from the BM to the thymus is likely to involve successive differentiation into CD5⁺CD1a⁻ T/NK precursors, followed by definitive T-cell commitment of CD34⁺sCD3⁻CD4/8 double-negative (DN) thymocytes at the CD5⁺CD1a⁺ developmental stage.¹⁰  This is followed by appearance of intermediate single positivity for CD4 immediately before the transition to the CD4/8 double-positive (DP) cell stage. TCRδ rearrangement initiates within the thymus, at the CD5⁺CD1a⁻ T/NK stage; TCRγ and TCRβ rearrangements initiate at the CD1a⁺ stage, before the start of cTCRβ expression; and β selection during the CD34⁺CD1a⁺ → intermediate single positivity transition.¹⁰ TCRδ rearrangement first involves V-D or D-D junctions, which may then proceed to D-J or VD-J complete junctions, possibly (or unless) followed by TCRδ locus deletion because of V-Jα recombination in αβT-lineage–committed precursors.¹¹  T-ALLs reproduce the normal stages of thymic cell development, notably with respect to the succession of TCR rearrangements.¹²

Several significant T-ALL oncogenes, including TLX1 (10q24), HOXA (7p15), LMO2 (11p13), LMO1 (11p15), TAL1 (1p32), and NOTCH1 (9q34), were identified from TCR chromosomal translocation analysis.^13,14  A recent, but unique, FISH study demonstrated that TCR-oncogene translocations detected karyotypically are largely underestimated, notably those involving TCRβ, which were detected in 19% of 126 T-ALLs.⁴  The TCR partner oncogene was not identified in several cases. Similarly, molecular characterization and evaluation of the extent of recombinase involvement at the TCR-oncogene junction has not been fully evaluated in T-ALL. We have recently shown that some oncogenes can influence the type of TCRδ rearrangements that have leukemogenic potential, because TLX1 overexpression inhibits the TCRα enhanceosome and therefore leads to auto-extinction of TCR-TLX1 translocated cells, in which the TCRα enhancer is on the same chromosome as TLX1.¹⁵

In the present study, we searched for TCRβ and TCRα/δ translocations by FISH and ligation-mediated PCR (LM-PCR) in 280 T-ALL patients and characterized their molecular junctions. We confirm the high incidence of TCRβ translocations in both adult and pediatric T-ALL patients and have identified 4 unreported TCR oncogene partners. We also show that the majority of oncogene partner breakpoints are not recombinase mediated and that the regulatory elements predominantly used to drive oncogene expression differ in TCRβ (which are exclusively enhancer driven) and TCRα/δ (which use an enhancer-independent cryptic internal promoter) translocations

Diagnostic samples from a consecutive series of 280 T-ALL patients, 128 pediatric and 152 adults (16 years or over), were screened for TCRβ and TCRα/δ rearrangement by FISH and/or LM-PCR. Sample collection and analyses were obtained with informed consent in accordance with the Declaration of Helsinki with approval from the institutional review boards of institutions that participated in this study. Diagnosis of T-ALL was based on the World Health Organization 2008 criteria, defined by expression of cytoplasmic and/or surface CD3, and negativity of CD19 and MPO, as described previously.¹  The only criterion for inclusion in the study was the availability of appropriate material for cytogenetic/molecular analysis. Immunophenotyping, molecular marker identification of STIL-TAL1 (also known as SIL-TAL1) and PICALM-MLLT10 (also known as CALM-AF10) fusion transcripts, oncogene quantification (TLX1, TLX3, LMO1, LMO2, TAL1, and HOXA9), and TCR immunogenotyping were performed as described previously.^1,16

Cytogenetic analysis with R-banding was performed at various institutions on metaphases from BM aspirates taken at diagnosis using standard procedures. Karyotypes were described according to the International System for Human Cytogenetic Nomenclature (ISCN), 2005.

Screening by FISH for TCRβ and TCRδ rearrangements was performed at Necker Hospital (Hôpital Necker-Enfants Malades, Paris, France). We designed a dual-color probe using RP11-114L10 and RP11-1084E14 BAC clones for TCRβ and CTD-2552B11 and RP11-1083M21 for TCRα/δ. For the GNAQ translocation, we used 3 probes spanning the GNAQ, TLX1, and TCRα/δ loci: BAC clones RP11-959B21, RP11-98I1, RP11-951C10, RP11-624L13 labeled with streptavidin cyanine 5 for the GNAQ locus; RP11-31L23, RP11-119018, RP11-324L3, RP11-179B2, RP11-1031N22 labeled with rhodamine-dUTP for TLX1; RP11-137H15 and CTD-2552B11 labeled with FITC-dUTP (Vysis) for TCRα/δ. For the TCRα/δ-NKX2.4 translocation, TCRα/δ probes were coupled with CTD-2338F9 and CTD-322103. For the TCRβ-LEF1 and TCRβ-IL2RB translocations, TCRβ probes were associated, respectively, with RP11-32K24, RP11-45D5, RP11-1123B16 and RP11-349I23, and with RP11-191N10 and RP11-643I13. For the remaining loci, we used RP11-1065L8 and RP11-782G4 (LMO1), RP11-1008P23 and RP11-1018M13 (LMO2), RP11-159M21 and RP11-1112E24 (TAL1), and RP11-1136C8 and 1132K14 (HOXA).

LM-PCR assays were performed as described previously.^17,18  Briefly, 330 ng of genomic DNA was digested using a combination of 6 blunt-end restriction enzymes (DraI, PvuII, StuI, SmaI, SspI, and EcoRV). For the TCRβ-based LM-PCR rounds, ligation of 50 pmol of an adaptor to both ends of the restriction fragments was followed by 2 rounds of PCR using nested adaptor-specific (AP1 and AP2) oligonucleotide primers, as well as Dβ1, Dβ2, Jβ1.6, and Jβ2.7 oligonucleotide primers. The LM-PCR products were sequenced in both directions using the specific primer and the nested adaptor-specific primer (AP2). The sequences were blasted to the National Center for Biotechnology Information (NCBI) nucleotide database (http://www.ncbi.nlm.nih.gov/BLAST) and the Ensembl genome browser (http://www.ensembl.org/Multi/blastview). Junctions identified by LM-PCR were validated with a specific primer set flanking the identified breakpoint.

We used a TaqMan assay to quantify HOXA9, LMO2, and TAL1 transcripts with the following primers: HOXA9F: 5′GAAAACAATGCTGAGAATGAGAGC3′, HOXA9 Probe: Fam-ACAAGCCCCCCATCGATCCCA-Tamra, HOXA9R: 5′CGCGCATGAAGCCAGTT3′, TAL1F: 5′ACAATCGAGTGAAGAGGAGACCTTC, TAL1 Probe: Fam-CTATGAGATGGAGATGGAGATTACTGATTG-Tamra, TAL1R: 5′ACGCCGCACAACTTTGGT 3′, LMO2F: 5′GCCATCGAAAGGAAGAGCCT3′, LMO2 probe: Fam-CCTGCTGACATGCGGCGGCT-Tamra, LMO2R: 5′AAGTAGCGGTCCCCGATGTT3′ 40 cycles were run on ABI 7500HT (Applied Biosystems) as described previously.¹⁷  NKX2-4 was quantified with kit hs01380224-g1 (Applied Biosystems).

As described previously,¹⁹  a recombination plasmid (supplemental Figure 7A) in which the 2 sequences to be tested for V(D)J recombination are separated by a termination signal was constructed. The approximately 0.8-kb sequence located immediately 5′ of TLX1 and containing the breakpoint “hot spot” (5′ TLX1 sequence), and the germline-recombining Dδ3 segment flanked by its 2 consensus RSS were inserted upstream to the chloramphenicol acetyltransferase gene (CAT). Two 5′ TLX1 sequences were tested: the SR16 sequence covers nucleotides −794 to +15 relative to the position of the first ATG of TLX1's first exon and the SR17 construct is shorter and covers position −794 to −227.

The recombination plasmid and expression plasmids for RAG1, RAG2, and TdT were cotransfected into eukaryotic NIH3T3 fibroblasts according to the manufacturer's instructions (FuGENE HD Transfection Reagent; Roche Applied Science). After Dpn1 digestion and purification, the plasmids were transfected in Top10 E coli bacteria (Invitrogen) and plated on ampicillin (100 μg/mL)/chloramphenicol (15 μg/mL). After 16-18 hours of incubation, the ampicillin/chloramphenicol–selected colonies were probed by direct PCR (Taq; Invitrogen) with core plasmid primers (p5b or P6b and Vect3c) flanking the inserted recombination construction. The PCR products were then sequenced and analyzed individually.

TCRβ locus translocations were identified by FISH in 40 of 280 (14%) T-ALL patients. The TCRβ translocation frequency was comparable in adult (24 of 152; 16%) and pediatric (16 of 128, 12.5%) patients. Only 12 of 28 TCRβ-translocated T-ALL patients with an available karyotype harbored a 7q34 abnormality, confirming the low rate of classic karyotypic informativity for this category of translocation (Table 1).

LM-PCR and/or dual-color FISH identified the oncogene partners from 37 of the 40 TCRβ-split T-ALLs (Table 1). No partner could be identified in only 3 cases. As expected, a high frequency of homeodomain oncogene deregulation was observed (25 of 40; 63%), including 13 TCRβ-HOXA and 12 TCRβ-TLX1 translocations. Of the 13 TCRβ-HOXA patients, 11 had material available for HOXA transcript quantification; all demonstrated HOXA9 overexpression (median HOXA9/ABL: 277%, range, 54%-3562%). Similarly, all 12 patients with TCRβ-TLX1 translocations demonstrated high-level TLX1 overexpression (data not shown). Contrary to TLX1⁺ T-ALLs, which demonstrate a virtually uniform early cortical stage of αβ-lineage maturation arrest,^16,20 TCRβ-HOXA translocations showed a predominantly mature TCR expressing the γδ-lineage phenotype (7 of 13 TCRγδ⁺), especially in adult T-ALL patients. Two TCRγδ–expressing T-ALL patients demonstrated HOXA activation both by TCRβ-HOXA translocation and PICALM-MLLT10 fusion transcript (Table 1). Among previously reported TCRβ oncogene partners, 2 LMO1, 3 LMO2, 3 MYB, and 1 TAL1 TCRβ-translocated cases were identified, confirming the low frequency of these translocations in T-ALL.

Two new TCRβ partners were identified by LM-PCR: LEF1 (lymphoid enhancer factor 1) on chromosome 4q25 and ILR2B (IL-2 receptor beta chain) on chromosome 22q13. The TCRβ-LEF1–translocated case was a cortical CD1a⁺/pre-αβ adult T-ALL patient (T-ALL439 in Table 1; this patient also demonstrated a novel TCRα/δ-NKX2-4 translocation, see next paragraph). LM-PCR analysis identified the breakpoints within intron 3 of LEF1 (Figure 1A). Interestingly, this TCRβ-LEF1 translocation leads to the LEF1 transcript inactivation, because RT-PCR analysis of the full-length LEF1 transcript (exons 1-11) demonstrated that the wild-type full-length LEF1 transcript was not detectable (supplemental Figure 2A) and SNP-6 CGH-array analysis of this case confirmed that the nontranslocated LEF1 allele harbored partial intragenic deletion (supplemental Figure 2B). These data are consistent with the reported tumor-suppressor function of LEF1 in T-cell oncogenesis.²¹  The case of TCRβ-IL2RB–translocated T-ALL was a cortical CD1a⁺/pre-αβ pediatric patient with a normal karyotype (number 17 in Table 1). Molecular breakpoint mapping revealed that the translocation put the ILR2B gene under the control of the TCRβ enhancer (Eβ; Figure 1B).

Of 280 T-ALL patients, 38 (13%) demonstrated a TCRα/δ translocation by cytogenetic and FISH analysis. These were more frequent in adult patients (29 of 152; 19%) compared with pediatric patients (9 of 128; 7%; P = .002). As for the TCRβ–translocated patients, only 15 of 30 TCRα/δ–translocated T-ALL patients with available karyotypic data harbored 14q11 abnormalities (Table 2).

LM-PCR and/or dual-color FISH allowed the identification of 36 oncogene partners from these 38 split-TCRα/δ T-ALL patients (Table 2), with only 2 cases remaining unidentified. TLX1 represented the most frequent TCRα/δ partner (as expected, mainly in adults [19 of 29] compared with 2 of 9 in children), but there were also 7 cases of LMO2, 5 TAL1, and 1 MYC, with no apparent age influence. Compared with the relatively frequency of TCRβ-HOXA, there was a striking absence of TCRα/δ-HOXA rearrangements. One trans-rearrangement between the TCRδ and IgH loci was observed in a TLX3-expressing T-ALL patient (Table 2).

Two new partners were identified by LM-PCR: NKX2-4 (NK2 homeobox 4) on chromosome 20p11 and GNAQ (guanine nucleoside binding protein) on chromosome 9q21. Molecular junctional characterization of the TCRa/δ-NKX2-4 (T-ALL439) demonstrated that the translocation put the NKX2-4 gene under the control of the TCRα enhancer (Eα; Figure 1C). Quantitative RT-PCR analysis of NKX2-4 transcript expression confirmed NKX2-4 overexpression in this sample compared with other T-ALL, peripheral blood lymphocytes, and thymic samples (supplemental Figure 3). The TCRα/δ-GNAQ-TLX1 patient (T-ALL244 in Figure 1D and Table 2) demonstrated a karyotypic t(9;10;14)(q22;q23;q11). On the basis of LM-PCR results and the overexpression of TLX1, we performed 3-color FISH analysis using a combination of TLX1 (red), GNAQ (yellow), and TCRα/δ (green) probes. We demonstrated a fusion of GNAQ and TCRα/δ, GNAQ and TLX1, on the der(9) and der(10), respectively. However, FISH analysis on the der(14) revealed a complex rearrangement and a fusion on 14q, of, sequentially, TLX1, GNAQ, and TCRα/δ (telomere to centromere). By LM-PCR it was possible to identify the GNAQ-TCRα/δ junction (Figure 1D), but not the TLX1 junction(s).

Another patient (T-ALL500) showed a translocation with 3 partners, including TLX1, TCRδ, and TCRβ, which was confirmed by 3-color FISH analysis (supplemental Figure 4).

TCR translocations, especially those involving TCRα/δ, occurred more frequently within T-ALL patients with the early-cortical, IMβ/pre-αβ phenotype (Tables 1 and 2). However, these translocations are observed at all stages of maturation arrest, including mature TCRγδ- and TCRαβ–expressing T-ALLs, but are relatively rare in immature cases (Table 3). Among the recognized oncogenic groups in T-ALL, patterns of “cooperative” oncogenes can be identified. PICALM-MLLTF10⁺ T-ALLs lead to overexpression of HOXA but also coexist with TCRβ-HOXA (this study) or TCRα/δ-HOXA,²²  as if the PICALM-MLLT10 (also known as CALM-AF10)–induced HOXA expression left the locus accessible to DNA damage and subsequent translocation. Similarly, in patients with STIL-TAL1 (also known as SIL-TAL1), TCR translocations mainly involve oncoproteins known for their collaboration with TAL1 (LMO1 and LMO2). Approximately 60% of translocation partner oncogenes belong to the superfamily of homeotic proteins, but there are striking differences in TCR involvement, in which HOXA is mostly translocated to TCRβ, TLX1 to both, and TLX3 to neither, although TLX3 is frequently deregulated by promoter substitution, particularly in pediatric T-ALL patients. No significant relation was observed with NOTCH1/FBXW7 somatic mutations and TCRα/δ or TCRβ translocations, although TCR translocations altogether tended to be more frequent in NOTCH1/FBXW7–mutated patients (P = .04), probably because they are preferentially arrested at a cortical IMβ/pre-αβ stage (Table 3).

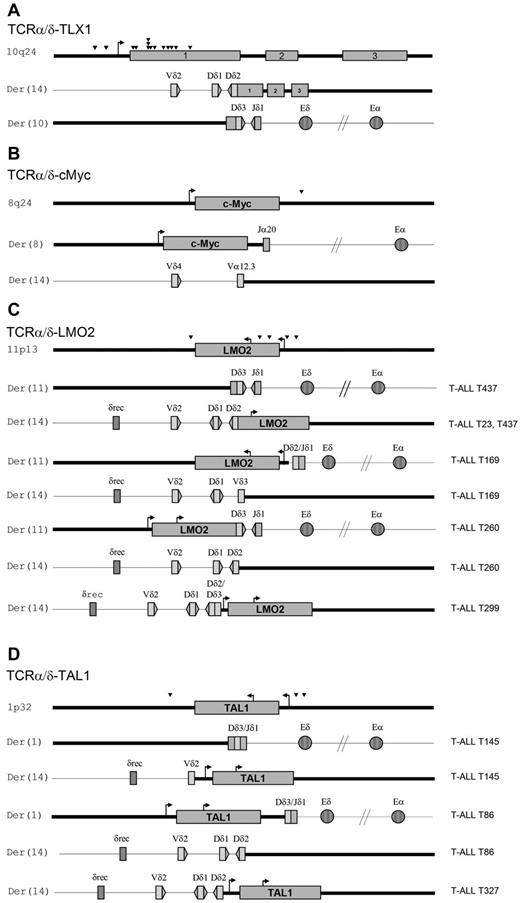

LM-PCR analysis identified 20 and 24 molecular junctions from TCRβ-translocated patients (Figure 2 and supplemental Figure 5) and TCRα/δ–translocated patients (Figure 3 and supplemental Figure 6), respectively. All 11 TCRβ-oncogene T-ALL patients in which both derivative junctions were identified occurred during a Dβ to Jβ rearrangement (Figure 2 and supplemental Figure 5), of which 10 were Dβ1 and 2 were Dβ2. In patient T-ALL536, a Vβ-Dβ rearrangement occurred after translocation. Similarly, the TCRα/δ translocated cases predominantly (12 of 15) demonstrated junctions involving Dδ2 or Dδ3 to Jδ1 errors (Figure 3 and supplemental Figure 6). Only 1 patient (T-ALL268) had translocation with TCRα. Therefore, TCRα/δ and TCRβ-oncogene translocations must occur during early thymic-cell differentiation in the majority of both adult and pediatric patients.²³  These data also imply that oncogene activation takes place at an immature DN/CD1a⁻/CD34⁺ stage of thymic development, when Dδ2-Dδ3/Dδ3-Jδ1 and Dβ-Jβ rearrangements occur, whereas the bulk of leukemic maturation arrest occurs at a later (cortical) stage. This strongly suggests that most TCR-oncogene translocations correspond to early “driver” events in T-ALL oncogenesis.

Because all TCRβ junctions identified involved DNA transactions between 3 breaks (6 DNA ends type 2), the breaks in the oncogene partner are unlikely to be RSS mediated. This was also the case for the majority of TCRα/δ-oncogene junctions. None of the 26 fully (both derivatives) characterized TCRα/δ translocations were standard type 1 translocations: trans-V(D)J recombination between 1 TCR RSS and 1 cRSS). Although a heptamer-like sequence located near this hotspot breakpoint region has already been proposed,²⁴  all TCRδ-TLX1 junctions identified showed the presence of 3 breaks (Dδ, Jδ1, and TLX1), suggesting a type 2 translocation. To further test these reported heptamer-like sequences, the whole 700-bp region from 5′ to TLX1 was tested by a functional extrachromosomal recombination assay (supplemental Figure 7A). Consistent with previous reports,²⁴  this confirmed the absence of functional cryptic RSS that could drive the TLX1 break location by this in vitro assay (supplemental Figure 7B). We also used the recently developed RSS Information Content (RIC) score analysis, an in silico tool allowing evaluation of the recombinogenic potential of cRSS candidates (http://www.itb.cnr.it/rss). The RIC scores obtained for the recombination sites involved at all 39 breakpoints showed that the large majority of translocations reported here (37 of 39) do not pass the RIC criteria, confirming the absence of functional cRSS and the status of type 2 translocations. In only 2 cases, T-ALL43 (RIC: −32.86) and T-ALL86 (RIC: −54.19), did a borderline “pass” RIC score identify potential 12-RSS and 23-RSS candidates, respectively (supplemental Figure 7C). However, neither of the 2 cases would represent a standard trans-V(D)J transaction after cRSS mistargeting. Patient T-ALL43 indeed showed a TLX1 cRSS/Jβ breakpoint with a long N insertion (supplemental Figure 5), which might be compatible with a type 1 translocation followed by rare ongoing recombination of the SJ (leading to a pseudo-HJ²⁵ ). Unfortunately, neither LM-PCR assays nor direct PCR attempts to identify the expected reciprocal TLX/Dβ–coding joint on der(7) gave rise to amplification products, preventing definitive resolution of this case. Patient T-ALL86 was even more complex, and compatible with a rare variant involving the collusion between a type 1 synapse (Dδ2-12/TAL1) and a Dδ2-Dδ3 rearrangement.²⁶

To explore whether CpG dinucleotides are involved in the type 2 translocations identified herein (as described previously in the BCL2 MBR, BCL1 MTC, and the TCF3 clusters to be hotspots for translocation breakpoints in B-lymphoid lymphomas and leukemias²⁷ ), we searched for CpG dinucleotides and TLX1 breakpoint colocalization, but found that they were not superimposed (supplemental Figure 8). This suggested that distinct, as yet unrecognized, mechanisms are responsible for these breaks. Finally, because most of the oncogenic regions did not have cryptic heptamers and TCR-oncogene chromosomal translocations involved DNA transactions between 3 breaks in a large majority of cases, our data suggest that strand donation within type 2 translocations represent the most frequent illegitimate translocation events in T-ALL. However, we cannot formally exclude that some of the cRSS might have taken part in complex nonconventional type 1 translocations, and further studies will be necessary to fully explore the interesting possibility of complex 2-step recombination and/or 3-way synapses.

In TCRβ translocations, the regulatory element that drives oncogene expression is likely to be exclusively Eβ, because the oncogene and the Eβ enhancer were located on the same derivative chromosome in all cases (Figure 2). In contrast, TCRα/δ translocations demonstrated heterogeneity with respect to the relative position of oncogenes and TCR⁺ regulatory elements on the derivative chromosomes. A minority (n = 4) were compatible with Eα/δ–driven oncogenesis, all of which involved MYC, LMO2, or TAL1 (Figure 3). In all remaining cases (20 of 24), the oncogene and Eα/δ were not on the same derivative chromosome, demonstrating that oncogene overexpression must be because of distinct regulatory elements within the TCRδ locus.

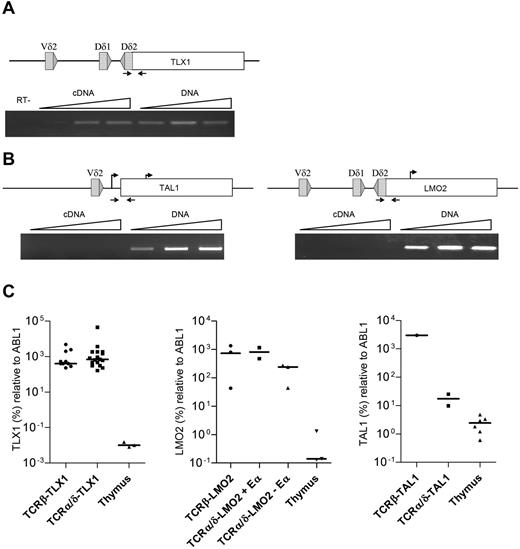

Virtually all of the TCRα/δ-TLX1 breakpoints were within the TLX1 exon 1 (5′ to the ATG start site and 3′ to the promoter), leading to separation of the TLX1 promoter from the coding region. To determine the origin of TCR-driven TLX1 transcripts, we performed clono-specific RT-PCR across the breakpoints of both TCRα/δ-TLX1 and TCRβ-TLX1 translocations. “Fusion transcripts” (resulting from transcription within the TCRα/δ locus) were detected in all of the TCRα/δ-TLX1 samples (Figure 4A), but not in the TCRβ-TLX1 samples (data not shown and as described previously¹⁵ ), suggesting the presence of positive regulatory element(s) upstream to the TCRδ locus that drives TLX1 overexpression. In contrast, in patients with TCRα/δ-LMO2 or TCRα/δ-TAL1 translocations with the same configuration, no fusion transcripts from the TCRδ locus could be identified (Figure 4B). These data demonstrate that the mechanisms driving oncogene deregulation other than by downstream enhancer juxtapositioning are different in TLX1⁺ and TLX1⁻ T-ALL.

The levels of LMO2, TAL1, and TLX1 expression did not differ depending on whether expression was driven by Eβ, Eα, or upstream TCRδ regulatory elements (or cryptic promoters), demonstrating that sufficient levels of transcriptional deregulation are likely to be required for oncogenic clonal selection (Figure 4C). Consistent with this observation, breakpoints were scatted, often at a significant distance from the oncogene, in enhancer-driven (Eβ or Eα) TCR-oncogene cases. In contrast, they clustered close to the oncogene when the oncogene and Eα/δ were located on different derivative chromosomes, in keeping with promoter-dependent, cis-acting positive regulatory elements (Figures 2 and 3).

Overall, these data demonstrate that enhancer-independent oncogene deregulation and clonal selection occurs frequently in TCRα/δ, but not in TCRβ translocations in T-ALL.

Deciphering the molecular mechanisms of chromosomal alterations in cancer cells has improved our understanding of both the selection of mechanistic pathways and oncogenic functions. Among the various alterations reported to date, TCR chromosome translocations represent the recurrent oncogenic hallmarks of T-ALL, when they are much more frequent than Ig in B-lineage ALL. In the present large series of T-ALL patients analyzed by FISH and/or LM-PCR for TCR-oncogene translocation, TCRβ-oncogene and TCRα/δ-oncogene translocations were found in 14% and 13% of T-ALL patients, respectively. A significant number of both TCRβ and TCRα/δ translocations were unsuspected from cytogenetic analysis, stressing the need for FISH/LM-PCR screening if these cases require comprehensive detection. These data are consistent with those of Cauwelier et al, although they reported a slightly higher rate (19%) of TCRβ-oncogene translocation.⁴  Four new TCR partners were identified in the present series of T-ALL patients: IL2RB and LEF1 with TCRβ and NKX2-4 and GNAQ with TCRα/δ. The LEF1 chromosomal translocation was associated with an intragenic deletion of the nontranslocated LEF1 locus. This suggests an intriguing form of oncogenic inactivation by a TCR translocation because the breakpoint within the LEF1 gene splits the β-catenin domain, confirming the probable tumor-suppressor role of LEF1 reported by Gutierrez et al.²¹  A translocation involving IL2RB has been described with an unknown partner on chromosome 1.²⁸  IL2RB is constitutively expressed in mature T cells and is induced by TCR activation, leading to proliferation and T-cell survival.²⁹  An oncogenic role for IL2RB deregulation is not evident because it does not have catalytic properties. Further investigation will be necessary to clarify this uncommon abnormality. A TCRα/δ-NKX2-4 translocation could be suspected from a t(14;20)(q11;p12) karyotype reported by Cauwelier et al.⁴ NKX2-4 is a member of the NKL family of homeodomain proteins, which also contains TLX1 and TLX3.³⁰  Recently, deregulation of other NKL oncogenes (NKX2.1, NKX2.2, and NKX2.5) were reported in T-ALL.^31,32  Both NKX2.1 and NKX2.2 are known to be deregulated by recurrent IgH/TCR translocations. However, such translocations are likely to be rare, because none was identified in the present large series. Interestingly, T-ALL with NKX2.1 overexpression corresponds to a distinctive transcriptional cluster characterized by a proliferative profile. Unfortunately, gene-expression profiling was unavailable for the NKX2-4 translocated patient reported here. Another NKL member, NKX2-5, can be deregulated by juxtapositioning to BCL11B in pediatric T-ALL cell lines.³²  These observations suggest that a variety of NKL (at least TLX and NKX) proteins can be involved in T-ALL oncogenic networks. Despite these 4 patients, few novel oncogenes have been identified in the present study, suggesting that the large majority of TCR-driven oncogenes in T-ALL have already been identified.

Mistakes of V(D)J recombination have been considered one of the major mechanisms leading to lymphoid malignancy-associated translocations. Concerning type 2 translocations, the V(D)J synaptic complex is formed between the 2 normal TCR/IG partners. In this case, the end transaction corresponds to a mistake in the repair phase of the V(D)J recombination, illegitimately joining coding-end intermediates (D and J) with broken ends (tumor breakpoints) and joining the signal-end intermediates into a normal signal-joint (SJ), which is not seen in tumor cells excised on a nonreplicative episome diluted out during successive cell divisions.^8,33  Because the RAGs can perform a single-strand nick at an isolated RSS (or cRSS), but requires a synaptic complex to convert the nick into a double-strand break,³⁴  the possibility that a broken end (or any third RSS partner) would have been converted from a nick into a double-strand break before engaging in repair with synapsed partners is slim. No tripartite V(D)J reaction involving 2 IG/TCR partners and an additional RSS has been demonstrated so far.

A confusing situation may arise when the type 1 signal joint generated on one of the derivative chromosomes keeps on rearranging with IG/TCR partners in cis. This may create a pseudo-hybrid joint (ΨHJ) between a TCR/IG coding end and the cRSS, but in which both rearranging partners (the coding end and the cRSS) undergo processing (deletion, P, and N regions).³⁵  Although this 2-step mechanism has to date rarely been reported,²⁵  we cannot exclude that it might be involved in some of the translocations reported herein. Translocations of type 2 are generally more scattered, but nevertheless can cluster in “fragile sites” (within hundreds of base pairs) near the deregulated oncogene. A recent study tested cRSS in several oncogenes and showed that only few pseudo-RSS support V(D)J recombination in in vitro models, suggesting that V(D)J targeting mistakes are only responsible for a modest fraction of genomic alterations.⁷  Our present data are in keeping with these functional studies, because molecular analysis of TCR-oncogene junctions showed a large majority of type 2 TCR-oncogene translocations in which the TCR partner chromosome breakpoints were not RAG mediated. CpG dinucleotides in the BCL2 MBR, BCL1 MTC, and TCF3 breakpoint clusters have been reported to be hot spots for translocation breakpoints,²⁷  but we found no superimposition of CpG dinucleotides and TLX1 breakpoints, which are highly clustered (supplemental Figure 8). This suggests that type 2 V(D)J translocations in T-ALL involve non-RAG double-strand break mechanisms distinct from those identified in B-lymphoid malignancies.

The majority of TCR translocations occurred during Dβ-Jβ or Dδ-Dδ rearrangements, known to be very early events in T-cell differentiation that occur within the thymus in DN CD1a⁻ cells before TCRβ selection. The final maturation arrest of the bulk leukemic population was much later in most cases, demonstrating uncoupled oncogene activation and maturation arrest. Most TCR-translocated T-ALLs were indeed arrested during or after TCRβ selection, with a significant proportion expressing a TCRαβ or TCRγδ. We demonstrated that a significant proportion of these TCR⁺ T-ALLs, especially those expressing a TCRγδ, retain stigmata of TCRβ selection, such as a DP, CD1a⁺ phenotype and ongoing RAG1 and pre-T-α expression.¹²  These data are compatible with an oncogenic role for the pro-proliferative TCRβ selection signal, whereby the TCR translocation occurs in an early DN thymocyte, but leads to a maturation arrest around TCRβ selection, as recently described for TCRα/δ-TLX1 translocations.¹⁵  Consistent with this, most TCR translocations are associated with specific stages of maturation arrest, the so-called type A oncogenes.³⁶  The scenario in which oncogene activation is uncoupled from oncogene activity entails that the cell carrying the translocation has no selective advantage until reaching the appropriate later stage, when maturation is arrested. This cell and its progeny will meanwhile accumulate imprints of poly/oligoclonality, such as TCR rearrangements and additional oncogenic mutations. Monoclonality would arise through competitive advantage of the additional mutations/translocations (it is currently considered that T-ALLs usually have > 10 mutations/T-ALL) subsequently occurring in one or another subclone. Although this is only beginning to be recognized in T-ALL, this concept has clearly been demonstrated in other lymphoid neoplasms. The best-described example is the t(14;18)–mediated translocation in follicular lymphoma leading to ectopic BCL2 expression. Although the translocation occurs as a type 2 translocation during the DH to JH recombination in the BM, BCL2 does not prevent further B-cell differentiation or provide a selective advantage until reaching the germinal center, the quasi-exclusive localization where BCL2 is physiologically down-regulated.^37,38  As a consequence, follicular lymphoma manifests as a mature B-cell lymphoma originating from the germinal center. Demonstrative evidence that this uncoupling also occurs in T-ALL oncogenesis is the Notch1 mouse model, in which the retrovirus-mediated overexpression of intracellular notch (ICN1) in Lin⁻ BM cells generates TCRαβ⁺CD4⁺CD8⁺ T-ALLs with a monoclonal TCRβ chain but diverse TCRα chains.³⁹  These observations have speculative implications for T-ALL therapy, because the “pre-leukemic” early thymic clonogenic population needs to be eradicated and its disappearance monitored.

A 2-step model of translocation has been proposed based on a TCRβ-TAL2 translocation model: (1) a cRSS located 3′ to TAL2 reacts with Dβ1 in the thymus of a healthy subject and then (2) a Dβ1-Jβ2.7 rearrangement occur, which leads to TAL2 overexpression.²⁵  This mechanism is not compatible with the majority of TCRβ translocations described herein, because Dβ1 and Jβ segments are not on the same derivative.

Although all breaks from TCRβ-oncogene translocations mapped 3′ to the oncogene, the majority of breaks from TCRα/δ-oncogene translocations mapped 5′ to the oncogene. Therefore, although oncogene activation in TCRβ–translocated patients was consistent with classic TCRβ Eβ-mediated activation, the TCRα/δ translocations uncoupled the oncogene and Eα onto 2 distinct derivative chromosomes, implying a distinct deregulation mechanism (involving potential non-enhancer-regulatory elements in the TCRδ promoter region). We have demonstrated that TLX1 leads to inhibition of the TCRα enhancer, via an ETS1 interaction,¹⁵  leading to counterselection of translocations that juxtapose TLX1 and the TCRα enhancer in cis. It is therefore possible that the different types of translocations observed for other T-ALL oncogenes are also affected by the consequences of oncogene expression on juxtaposed TCR regulatory elements.

Remarkably, despite the obvious contrast in the mechanisms of oncogene activation (see TLX1 or LMO2 in Figure 4C), no significant differences could be observed in oncogene overexpression levels from TCRβ and TCRα/δ translocation configurations. This suggests oncogenic selection of cases with sufficient/optimal expression levels and distinct molecular mechanisms of oncogene activation with respect to the TCR locus orientation involved in the translocation rather than the oncogene itself. Further investigation into the molecular mechanisms of early oncogenic deregulation is therefore justified.

In conclusion, the majority of TCR structural translocations in T-ALL have now probably been identified, but the mechanisms leading to chromosomal break and misrepair on the partner chromosome remain unidentified. These translocations occur at an earlier stage than bulk maturation arrest and the localization of TCRβ and TCRα/δ breakpoints differ, probably at least in part because of an impact of the deregulated oncogene on the function of the juxtaposed TCR regulatory elements.
