A case of paroxysmal nocturnal hemoglobinuria caused by a germline mutation and a somatic mutation in PIGT

Paroxysmal nocturnal hemoglobinuria (PNH) is an acquired hemolytic anemia that results from the expansion of hematopoietic stem cells that are deficient for glycosylphosphatidylinositol (GPI), a glycolipid moiety that anchors >100 different proteins to the cell surface.^1-5  PNH patients were reported to be deficient for an initial step in the GPI anchor synthesis that is catalyzed by the GPI-GlcNAc transferase,^3,6,7  and somatic mutations in the X-chromosomal gene PIGA that encodes a subunit of this transferase complex⁸  are regarded as the causative event in the predominant number of PNH cases.^2-5,7,9  However, in a small number of PNH cases with a clear GPI anchor deficiency, no mutations in PIGA have been found.

In this work, we report about 2 mutation events, a germline splice site mutation and a somatic deletion in PIGT, which is another gene of the GPI anchor synthesis pathway, that we identified performing next-generation sequencing in a PNH patient with wild-type PIGA.

This study was conducted in accordance with the Declaration of Helsinki. Genetic analysis was performed after approval by ethical committee and informed consent.

For the targeted enrichment of exons of all known GPI anchor synthesis genes (supplemental Table 1 on the Blood website), we used a customized SureSelect library (Agilent) as previously described.¹⁰  Genomic DNA of the patient and 9 controls was isolated from whole blood and enriched for GPI pathway exons according to the manufacturer’s protocol, followed by single-read cluster generation on a Cluster Station (Illumina). The captured, purified, and clonally amplified library was then sequenced on an Illumina Genome Analyzer IIx and mapped to the human reference sequence GRCh37, resulting in a mean coverage of >300-fold for all exons and >10-fold coverage for >95% of the target region. Variants were detected with SAMtools,¹¹  annotated with ANNOVAR,¹²  and further analyzed in GeneTalk.¹³

For the detection of exon deletions, we first counted the reads per exon and normalized this value for each sample by the total number of reads that were mapped to the target region. This normalized read count per exon was used to compute the mean and variance for the coverage per exon in all analyzed samples. Exons with a normalized coverage that was 2 standard deviations below the mean were classified as partially deleted in a subpopulation of cells and further analyzed.

Array comparative genomic hybridization (arrayCGH) was carried out on genomic DNA isolated from a peripheral blood draw using whole-genome 1 M Oligonucleotide-Array (Agilent) to confirm the deletion of PIGT and to characterize its extent. Analysis was performed with Feature Extraction and CGH Analytics software (Agilent) as described previously.¹⁴  The copy number variants (CNV) involving PIGT was further analyzed with fluorescence in situ hybridization (FISH) using BAC clone RP3-337O18 in metaphases of phytohemagglutinin-stimulated T lymphocytes and granulocytes that were enriched by a Ficoll gradient.

We cloned a coding region of human PIGT (NM_015937) from a cDNA library derived from placenta,¹⁵  tagged with FLAG at the N terminus, and subcloned it into plasmid mammalian expression.¹⁶  A PIGT mutant with skipped exon 11 was generated by site-directed mutagenesis. Mutant and wild-type PIGT plasmids were transfected by electroporation into PIGT-deficient Chinese Hamster Ovary cells expressing human GPI-anchored proteins, CD55 and CD59, as previously described.¹⁷  Two days later, lysates were applied to sodium dodecyl sulfate-polyacrylamide gel electrophoresis and western blotting against anti-FLAG antibody to determine levels of expressed PIGT. The levels of CD55 and CD59 restored at the cell surface were determined by fluorescence-activated cell sorter.

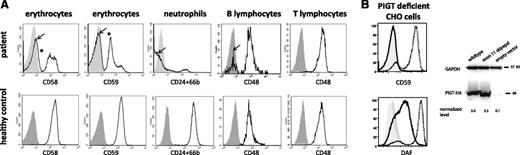

We performed targeted enrichment of all exons of genes involved in GPI anchor synthesis followed by ultradeep sequencing in a female patient with classical hemolytic PNH that is negative for mutations in PIGA. The patient was diagnosed with hemolytic anemia with a negative direct antiglobulin test at the age of 44 years and experienced frequent hemolytic crises, abdominal pain, diarrhea, headache, arthralgia, dyspnea, and fatigue in the following years. At the age of 49 years, a flow cytometric analysis was performed that showed reduced expression of GPI-anchored proteins on blood cells (Figure 1A). DNA was isolated from blood at that time and subjected to ultradeep sequencing. The patient was started on eculizumab due to PNH-related symptoms soon after it became available 6 years ago and responded to this treatment (see supplemental Materials for a detailed clinical description of the patient).

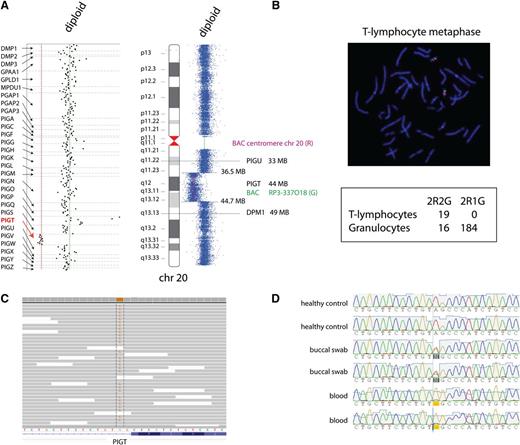

We detected a significant reduction in the coverage of all PIGT exons in the DNA extracted from blood compared with other genes of the GPI anchor synthesis pathway, which suggested a deletion of this gene in a subpopulation of cells (Figure 2A). We performed array CGH to measure the full extent of the CNV and detected an 8-MB deletion, arr20q11.23q13.12 (Figure 2A). To clarify which subpopulation was affected by the deletion, we used a FISH probe (RP3-337O18) targeting the CNV interval in T lymphocytes and granulocytes. Although we did not observe any deletion in full metaphases of T lymphocytes, 92% of the evaluated granulocyte interphase nuclei showed only a single signal for RP3-337O18, suggesting a heterozygous deletion including PIGT in a myeloid stem cell that occurred as a somatic event (Figure 2B).

The mutation analysis of the deep sequencing data revealed a single nucleotide substitution in PIGT affecting the splice acceptor site of intron 10: NM_015937:c.1401-2A>G (Figure 2C). From 1463 sequence reads that cover the splice site, 1239 showed the base substitution, suggesting that the mutation is present on the chromosome without the somatic deletion involving PIGT. We also measured the splice site mutation in a heterozygous state in ABI Sanger sequences of DNA that was extracted from epithelial cells of a buccal swab providing further evidence that c.1401-2A is the germline event (Figure 2D). Based on these findings, we hypothesized that the somatic deletion of the wild-type allele of PIGT occurred in a myeloid stem cell and resulted in a clone that is hemizygous for PIGT. In this clone, the single remaining copy of PIGT is functionally impaired due to the splice site mutation that results in skipping 84 bp of exon 11 and deleting 28 highly conserved amino acids in PIGT.

We analyzed the functional effect of the germline splice site mutation in PIGT-null Chinese Hamster Ovary cells. Although the transfection of wild-type PIGT into these cells restored the levels of wild-type GPI-linked proteins CD55 and CD59 at the cell surface, the transfection of the mutant only leads to a minor increase of CD55 surface expression but almost no CD59 expression at comparable PIGT protein levels (Figure 1B).

In contrast to the X-chromosomal PIGA, all other known genes involved in the GPI anchor synthesis pathway, including PIGT, are found on autosomes, and inactivating mutations in these genes have to occur on both alleles in the same cell to result in a GPI anchor deficiency. The co-occurrence of 2 mutations in the same gene is a situation that is similar to hereditary cases of retinoblastoma that have been explained by a 2-hit model of 1 inherited mutation and 1 somatic mutation in RB1.¹⁸  Therefore, individuals that are heterozygous for mutations in autosomal genes that impair GPI anchor synthesis, such as the reported splice site mutation in PIGT, might have an increased risk to develop PNH.

Although PIGA catalyzes the first step of the GPI anchor synthesis,⁸  PIGT is a component of the transamidase complex that is required for attachment of preassembled GPI to proteins.¹⁵  Therefore, even in the presence of fully assembled GPI anchors, PNH can occur. This suggests that not only the specific defect in the GPI anchor synthesis that is caused by PIGA mutations but also a GPI-anchored protein deficiency that is due to mutations in other genes of the pathway may predispose for PNH. Interestingly, a deletion on 20q is also a recurrent somatic abnormality in myelodysplastic syndrome; however, it is currently not clear whether the loss of heterozygosity of other genes in this region besides PIGT, contributes to the clonal expansion.

Recent findings of congenital GPI deficiencies also shed new light on the clinical feature of hemoglobinuria. Although no hemolysis was reported for patients with germline mutations in PIGN,¹⁹ PIGM,²⁰ PIGO,²¹ PIGL,²² PIGV,²³  and even PIGA²⁴  and PIGT,²⁵  chronic hemolysis was described in patients with a congenital CD59 deficiency²⁶  that responds to eculizumab therapy.²⁷  Further studies are therefore required to elucidate how mutations in GPI pathway genes contribute to the different phenotypic features and to what extent additional somatic events occur.

The authors thank the reviewers for valuable comments and Seval Turkmen for helpful discussions.

This work was supported by a grant from the Bundesministerium für Forschung und Technologie (0313911), Deutsche Forschungsgemeinschaft grants KR 3985/1-1 (to P.M.K.) and SFB 665 (to S.M.), and grants from the Ministry of Education, Culture, Sports, Science and Technology, and the Ministry of Health, Labour and Welfare of Japan.

Contribution: P.M.K. and D.P. performed research and analyzed the data; U.K., J.H., and C.S. performed sequencing studies; B.H. and H.S. provided patient samples and characterized the patient; A.H. provided patient samples, performed research, and analyzed data; E.K. performed arrayCGH; B.T. performed the FISH analysis; Y.M. performed cell culture experiments; H.S., B.H., and P.M.K. designed the study; and E.K., H.N., P.N.R., Y.M., J.H., T.K., and S.M. wrote the paper.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: Peter Krawitz, Institute for Medical Genetics and Human Genetics, Augustenburger Platz 1, 13353 Berlin, Germany; e-mail: peter.krawitz@gmail.com.
