Coexistence of gain-of-function JAK2 germ line mutations with JAK2^V617F in polycythemia vera

To the editor:

Philadelphia chromosome–negative myeloproliferative neoplasms (MPNs) can be viewed as clonal premalignant disorders that precede development of acute leukemia wherein the order of mutation acquisition, together with environmental insults such as inflammation, matters. MPN disease-defining somatic mutations are in Janus kinase 2 (JAK2), calreticulin (CALR), and myeloproliferative leukemia virus oncogene (MPL; a gene encoding thrombopoietin receptor) genes. Several studies have revealed other somatic mutations affecting intracellular signaling of hematopoietic stem cells in MPNs, but these are considered as phenotype-modifying, not disease-initiating, mutations (reviewed by Tefferi and Pardanani¹ ), such as Tet methylcytosine dioxygenase 2 (TET2) mutations, which may precede or follow acquisition of JAK2^V617F.^2-4  However, the order of TET2 mutation occurrence alters the transcriptional program in hematopoietic stem cells and patients’ clinical outcome.⁵

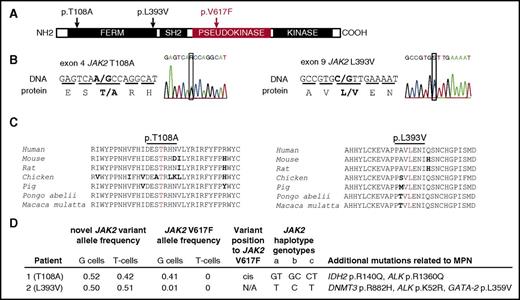

In polycythemia vera (PV), the JAK2^V617F mutation is present in the vast majority of patients, yet is not always the disease-initiating mutation and constitutes only part of the clone.^6,7  We reported in 2014 the mutational landscape of 31 JAK2^V617F-positive PV patients^4,8  and identified 2 patients with an acquired polycythemia phenotype carrying JAK2 variants at conserved residues of JAK2: first (T108A) in the 4-point, ezrin, radixin, moesin (FERM) domain, and the other (L393V) in 7 amino acids upstream of the Src homology 2 (SH2) domain (Figure 1A-C). Both mutations were verified by Sanger sequencing in DNA isolated from patients’ granulocytes, and then proven to be heterozygous germ line mutations by their presence in T cells and nail DNA. Protein prediction algorithms (SIFT,⁹  AGVGD,¹⁰  and PolyPhen¹¹ ) considered both variants as tolerated, benign, and light, respectively, but both variants were predicted to be damaging by MutationTaster¹²  and possibly damaging by LoFtool. Nevertheless, the functional significance of these germ line JAK2 variants and their putative predisposition to PV are not known.

The first patient (JAK2^T108A) had a JAK2^V617F allele burden of 41% in granulocytes. He initially presented 13 months prior to our encounter with hemoglobin 19.4 g%, thrombocytosis of 535 × 10⁹/L, mild leukocytosis (11.3 × 10⁹/L), and recent history of pulmonary embolism. Detailed family history was not available, but there was an undocumented history of increased hematocrit in maternal uncle. Subsequent therapy with hydroxyurea normalized his blood counts. He moved to a different state, and several months later, he developed bone pain, prostration, thrombocytopenia, and transfusion-requiring anemia and died with fulminant blast transformation. The second patient (JAK2^L393V) was ethnic Japanese who had a preceding 12-year history of initially isolated thrombocytosis followed within an ensuing year also by erythrocytosis. He had a history of coronary thromboses. He achieved normalization of blood counts by hydroxyurea therapy. At the time of the study, he had very low JAK2^V617F allele burden at 1% (confirmed by sensitive quantitative JAK2^V617F assay⁶ ). A year later, he became anemic, and hydroxyurea therapy was stopped. His marrow showed ∼10% of blasts. In the ensuing 2 years, he developed progressive pancytopenia with increasing blasts; he then refused supporting therapy, at which time he developed leukocytosis and peripheral blood blast count exceeding 75%, refused further supportive therapy, and died. Their other mutations detected at the time of the study that may have contributed to their PV phenotype are depicted in Figure 1D.⁴

We first analyzed individual burst-forming unit erythroid colonies (BFU-Es) for erythropoietin (EPO)–independent growth (EECs) from the patient with JAK2^L393V. All individually genotyped colonies had wild-type (wt) and JAK2^L393V alleles in similar proportions, and only 1 EEC (1/16) had an equal proportion of JAK2^V617F and wt alleles (heterozygous). Material from the JAK2^T108A patient was not available for BFU-E analyses; however, we cloned and sequenced his complementary DNA (cDNA) from his granulocytes and found that JAK2^T108A and JAK2^V617F were cis. In the patient with the JAK2^L393V mutation, a paucity of material and low allelic burden of JAK2^V617F precluded determination of a JAK2^L393V/V617F configuration.

Unfortunately, in silico modeling of potential interactions of JAK2 germ line variants cannot be obtained because the structure of the JAK2 FERM domain is not yet available, whereas in the structure of the TYK2 FERM domain, these residues are exposed and do not appear to interact with other residues that lack the kinase and pseudokinase domains or with partners of other receptor subunits.¹³  Interestingly, our JAK2 variants contain precise residues of TYK2 at the 108 (Ala) and 393 (Val) positions, suggesting that, in themselves, they are compatible with functional JAK kinases. TYK2 functions in heteromeric receptor complexes, whereas JAK2 functions in homodimeric receptor complexes, and it is possible that these exposed residues play a role in limiting JAK2 self-activation.

In order to determine the functional consequences of JAK2 germ line mutations on the PV phenotype, we generated stably transfected Ba/F3 cell lines expressing erythropoietin receptor (EPOR) and JAK2 variants (T108A, L393V, V617F, and wt). Cells expressing JAK2^V617F were EPO independent, and their viability was significantly increased in comparison with JAK2^WT-expressing cells, which did not grow in the absence of EPO and proliferated less at various EPO concentrations. The 2 interrogated JAK2 mutants were dependent on EPO but were hypersensitive (Figure 2A). Response to a JAK2 inhibitor (LY2784544)¹⁴  was similar for both germ line and wt JAK2 variants at different concentrations of LY2784544 after 72 hours of exposure (data not shown).

We evaluated signal transduction of JAK2 mutant and wt kinases, as measured by STAT activation, using dual luciferase assays with STAT responsive elements reporter plasmid. STAT activation was markedly increased without EPO for JAK2^V617F and less so, but still more, compared with wt in both germ line variants (P < .05; Figure 2B, top). Using double mutants in the luciferase assay, only cis configuration of T108A/V617F increased the STAT activation above JAK2^V617F signal (P < .05; Figure 2B, middle). The L393V mutation does not seem to synergize in augmenting V617F signaling, which is consistent with only 1% V617F allele burden in the patients’ granulocytes. It is possible that JAK2^L393V variant synergizes with other acquired mutations with higher allele frequency in this patient (Figure 1D), but without further study, the existence of such cooperation of these mutations should be interpreted with caution. We then stimulated cells with different EPO concentrations (0,1, and 1 U/mL, EPO added 24 hours after transfection) and determined STATs activation. Increased STAT activation by EPO was significant only at low concentrations of EPO (P < .05; Figure 2B, bottom) for both germ line mutants, whereas no further increase of STAT activation was observed in already markedly hyperactive JAK2^V617F-transfected cells after addition of EPO (data not shown).

We also investigated JAK/STAT signaling in stably transfected Ba/F3-EPOR cell lines. Cells were cytokine starved for 6 hours and then stimulated with an increased concentration of EPO for 15 minutes. Similar levels of human JAK2 protein in all cell lines were verified by western blot using anti-DDK antibody (Cell Signaling Technology, Danvers, MA). Constitutive activation of the STAT5 pathway was obvious in JAK2^V617F-expressing cells in the absence of EPO. We repeatedly observed stronger phosphorylation of JAK2 and STAT5 at low concentrations of EPO in both mutant variants (T108A, L393V) in comparison with JAK2^WT cell line (Figure 2C).

Because JAK2 germ line mutations in MPNs were identified at the same time as oncogenic JAK2^V617F,¹⁵  their impact on JAK2 kinase activity and effect on disease initiation or progression have not been fully evaluated. Several germ line mutations in addition to the somatic JAK2^V617F mutation in JAK2 pseudo-kinase domains can induce MPN phenotype (eg, R564Q¹⁶  and V625F¹⁷ ) or isolated thrombocytosis (V617I¹⁸ ) and erythrocytosis (E846D and R1063H),¹⁹  but our data also suggest that germ line mutations outside the core regulatory domain can alter the EPO-sensing properties of cells and therefore may provide proliferation advantage. Because the JAK2 FERM domain is required for EPOR association and consequent relief of inhibitory conformation of the kinase domain that leads to JAK2 activation,^20,21  the molecular basis of this activation remains to be elucidated.

To our knowledge, this is the first description of an association of gain-of-function germ line JAK2 mutations coexisting with JAK2^V617F in subjects with PV phenotypes. Interestingly, these propositi had documented normal blood counts for decades prior to their PV diagnosis. However, after developing the PV phenotype, both eventually died of acute myeloid leukemia (AML) or myelodysplastic syndrome transforming within months to AML. Whether these germ line mutations increase the probability of acquiring PV is suggestive; both mutations were found in analysis of 31 unrelated PV subjects (statistically unlikely to be a random occurrence), and, in 1 subject, JAK2^T108A and JAK2^V617F were in cis. In addition, the L393V mutation was found with increased frequency among diffuse large B-cell tumors,²²  and T108A has been reported in an adenocarcinoma cell line,²³  further supporting their potential to predispose to malignancy.

In conclusion, we hypothesize that JAK2 germ line mutations may represent a mechanism that may precede acquisition of JAK2^V617F lesion during the evolution of PV phenotype and may contribute to further genomic alterations in PV clone and perhaps even leukemic transformation.
