Oncolytic Adenovirus Expressing Cytokines Enhances Anti-Tumor Efficacy of Mesothelin-Redirected CAR-T Cells

Background: Chimeric antigen receptor T-cell (CAR-T) therapy has shown significant efficacy in hematological malignancies, however, the efficacy against solid tumors remains limited. Immunosuppression caused by the tumor microenvironment or poor infiltration of transferred T cells can restrict T cell efficacy. We hypothesized that oncolytic Adenovirus (O-Ad) expressing cytokines would improve the efficacy of adoptive T cell therapy by modulating the tumor environment. Therefore we aimed to determine if O-Ad expressing cytokines can 1) cause direct lysis of pancreatic cancer cells, 2) enhance killing by CAR-T cells. 3) enhance infiltration and persistence of CAR-T cells in the context of solid tumors.

Methods: We targeted pancreatic tumor cell lines by mesothelin-redirected CAR-T cells (SS1-BBz CAR-T) in combination with O-Ad (Adv-5/3-d24-TNF-IL2), which consists of an adenovirus serotype 5 nucleic acid backbone, a serotype 5/3 chimeric fiber knob, a 24-bp deletion (d24) in the Rb binding constant region 2 of E1 promoter, an E2F tumor specific promoter and the human cytokines interleukin 2 and tumor necrosis factor alpha.

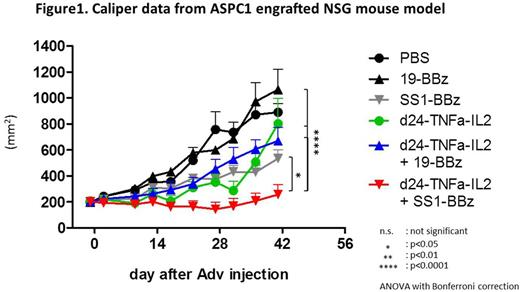

Results: The pancreatic tumor cell lines used in this study, ASPC1, BXPC3, and Capan2, expressed the Adv-serotype 3 receptor, DSG2. We also confirmed that O-Ad does not have adverse effects on T cell viability and proliferation even at high titer (1,000vp/cell) in an in vitro assay. To test the efficacy of the O-Ad and CAR-T combination, we performed a killing assay. O-Ad clearly enhanced killing by CAR-T cells in a luciferase based killing assay. We also used the xCELLigence real time cell analyzer (RTCA) for kinetic analysis of killing. In combination with O-Ad, more rapid killing kinetics by CAR-T cells was observed especially in lower E:T ratio. To examine the impact of the combination in vivo, large established subcutaneous ASPC1-CBG-GFP tumors in NSG mice were treated with CAR-T alone or in combination with intratumoral injection of O-Ad. O-Ad alone or CAR-T alone showed moderate tumor regression. On the other hand, the combination of O-Ad and CAR-T showed significantly enhanced tumor regression (figure 1). In FCM and histological analysis, tumors treated with O-Ad were infiltrated with higher number of T cells, and the number of infiltrating T cells correlated with anti- tumor efficacy. One of the concerns with use of IL-2 effects is the induction of regulatory T cells, however, there wasn't any difference in the number of CD25 and FOXP3 positive cell infiltration between the tumors treated with CAR-T alone and the combination of O-Ad and CAR-T. In a peripheral blood analysis, T cells from mice treated with the combination of O-Ad and CAR-T expressed lower levels of inhibitory molecules (PD-1, LAG3) comparing to those treated with CAR-T alone (figure 2).

Conclusions: These results suggest that combination therapy of O-Ad armed with cytokines and CAR-T cells is effective in preclinical models against solid tumors by enhancing T cell proliferation, persistence, function and infiltration to the tumor.
