Biallelic mutations in DNAJC21 cause Shwachman-Diamond syndrome

To the editor:

Shwachman-Diamond syndrome (SDS) is an inherited multisystem disorder. The clinical diagnostic criteria include evidence of bone marrow failure and exocrine pancreatic dysfunction. The diagnosis is supported by having metaphyseal dysplasia, short stature, and social-behavioral concerns.^1,2  Most patients have mutations in the SBDS gene.³  SBDS has been implicated in multiple cellular pathways^4-8 ; however, its most prominent studied role is the release of eIF6 from the 60S ribosome subunit enabling monosome 80S ribosome formation.⁴

Approximately 10% to 20% of SDS patients do not have mutations in SBDS.^2,3  Herein, we describe 4 patients with a clinical diagnosis of SDS, from 3 unrelated families, who were negative for mutations in SBDS but carried biallelic mutations in DNAJC21. Based on the clinical cases, comparable ribosomal function of DNAJC21 and SBDS, and recently identified association of DNAJC21 mutations with bone marrow failure,⁹  we propose that mutations in DNAJC21 cause SDS.

The patients were enrolled in the Canadian Inherited Marrow Failure Registry or in a genetic study of Shwachman-Diamond syndrome. Both studies were approved by the Research Ethics Board at the Hospital for Sick Children, with informed consent.

Whole-exome sequencing, genome-wide analysis of copy number variations, Sanger sequencing, immunoblotting, and gene knockdown by shRNA were performed as described.^10-12  Detailed information of Methods and Web resources are in supplemental Data, available on the Blood Web site.

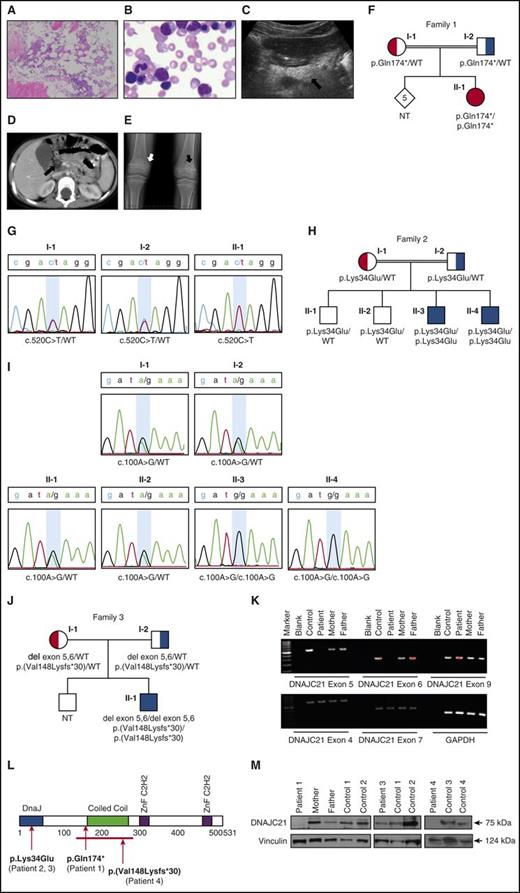

Patient 1 of Family 1 was of Afghani ancestry from consanguineous parents. She presented at the age of 2.5 years with failure to thrive and was found to have pancytopenia, high mean corpuscular volume, and increased hemoglobin F (Table 1). The bone marrow was hypocellular (Figure 1A-B). She also had exocrine pancreatic dysfunction with low serum pancreatic enzyme levels (Table 1), markedly increased echogenicity of the pancreas by ultrasound examination, and hypodense pancreas by computed tomography scan, consistent with lipomatosis (Figure 1C-D). The patient was treated with fat-soluble vitamin supplements. Her height was below the third percentile. Skeletal survey showed evidence of metaphyseal dysplasia (Figure 1E), as described in SDS.¹³

The patient also had gross and fine motor developmental delay and bilateral retinal dystrophy (supplemental Figure 1A-D).

The second family included 2 affected children to consanguineous parents of First Nations (Canada) ancestry. The first sibling (Patient 2) was diagnosed after birth with progressive bone marrow failure (Table 1) and died of Staphylococcus aureus sepsis at the age of 18 months. He was diagnosed with pancreatic insufficiency and SDS based on low serum trypsinogen levels before his death. Autopsy demonstrated atrophic exocrine pancreas with fatty infiltration and preservation of the endocrine tissue.

The second sibling (Patient 3) had pancytopenia with severe anemia after birth, but later had stable moderate pancytopenia. Bone marrow testing at 8 months of age showed hypocellularity (supplemental Figure 2A-B), with a cytogenetic abnormality 46,XY, der(15)t(1;15)(q12;p11). Peripheral blood karyotype was normal. At 7 years of age, he developed severe pancytopenia and underwent bone marrow transplantation, but died 2.5 months post-transplant of Epstein-Barr virus–associated lymphoproliferative disorder. The patient also had feeding difficulties, low serum pancreatic enzyme levels (Table 1), and a small hyperechogenic pancreas (supplemental Figure 2C-D). He was treated with fat-soluble vitamin supplements. Metaphyseal dysplasia in multiple joints (supplemental Figure 2E-F and Table 1) and mild flaring of anterior rib ends as described in SDS¹³  were found at presentation.

The third family included one affected patient (Patient 4) to parents of Indian descent. The patient developed severe aplastic anemia at 2 years of age (Table 1) and underwent successful bone marrow transplantation. He had evidence of exocrine pancreatic dysfunction, metaphyseal dysplasia, short stature, and developmental delay, and was diagnosed with SDS. He developed retinal dysplasia after transplant.

Relevant clinical diagnostic tests done on the patients are described in Table 1. Given the typical hematologic, pancreatic, and skeletal findings, all were diagnosed with SDS, according to published international consensus guidelines.¹

We performed whole-exome sequencing on peripheral blood from the patient and parents of Family 1 as described.¹²  Pedigree is shown in Figure 1F. DNAJC21 was considered to be the candidate gene because of a homozygous stop codon variant (c.520C>T, p.Gln174*) that was not described in studied populations (supplemental Table 1), and the currently understood gene function in ribosome biogenesis that resembles SBDS. Homozygosity in the patient and heterozygosity in the parents were validated by Sanger sequencing (Figure 1G).

Based on identification of an extended run of homozygosity including DNAJC21 by SNP6.0 array in Patient 3 (supplemental Figure 3) and the parents’ consanguinity (Figure 1H), we also considered DNAJC21 in Family 2. Sanger sequencing of all exons revealed a previously unreported homozygous mutation c.100A>G that results in substitution of a highly conserved amino acid p.Lys34Glu in the J-domain (Figure 1I). This variant is predicted to be damaging and disease-causing by multiple protein prediction software programs (supplemental Table 1). Using the protein structure prediction software CFSSPS, the mutation was predicted to lengthen an α-helical segment and abolish a turn within the DnaJ domain (supplemental Figure 4). Based on the available NMR structure of the J domain of murine polyoma T antigen (1FAF) (http://www.rcsb.org/pdb), residue K34 is exposed on the solvent side of the protein; thus, the mutation is likely to reverse the surface charge and may not perturb the protein fold.

Exome sequencing of Family 3 (Figure 1J) did not reveal nucleotide-level mutations; however, careful examination of Patient 4’s DNAJC21 sequence revealed only few reads from exons 5 and 6 in contrast to surrounding exons (supplemental Figure 5A). Parents had borderline read numbers in these regions. Analysis of the exome data by NextGene 2.4.2 indicated a deletion of these exons with high confidence (supplemental Figure 5B-C). Polymerase chain reaction (PCR) of genomic DNA showed no amplification of exons 5 and 6, consistent with their deletion (Figure 1K). This is predicted to cause splicing that merges exon 4 with exon 7, frameshift, and early protein truncation p.(Val148Lysfs*30). Reverse transcription of T-cell RNA, followed by PCR of the cDNA fragment that includes exon 4-7 showed heterozygosity for a long (normal) and a short (mutant) allele in the parents and homozygosity for the short allele in the child (supplemental Figure 5D). Sequencing confirmed the absence of exon 5-6 in the short fragment (supplemental Figure 5E).

DNAJC21 encodes a protein¹⁴  with a common isoform of 531 amino acids. It contains a highly conserved amino-terminal DnaJ-domain,¹⁵  a centrally positioned coiled coil region, and a carboxyl segment with two C2H2-type zinc fingers that flank 168 amino acids that are rich in charged residues.¹⁶  The protein structure and location of the mutations are depicted in Figure 1L. Immunoblotting revealed markedly reduced protein levels in cells from Patient 1 (homozygous nonsense mutation) and Patient 4 (biallelic exon 5-6 deletion) compared with noncarrier controls, and ∼40% reduction in Patient 3 (homozygous missense mutation) (Figure 1M). The specificity of the antibody was demonstrated by shRNA-mediated DNAJC21 knockdown in HEK-293T cells (supplemental Figure 6). The patients did not have prominent reduction in the SBDS protein (supplemental Figure 7), as typically seen in SDS patients with mutations in SBDS.

DNAJC21 is ubiquitously expressed. Its homolog in Saccharomyces cerevisiae, Jjj1, is required for ribosome biogenesis through the DnaJ-domain. Both SBDS and DNAJC21 homologs are involved in the release of maturation/auxiliary factors from the pre-60S ribosomal subunit, Tif6 by Sdo1 and Arx1/Alb1 by Jjj1. Yeast strains deleted for these homologs lead to accumulation of their target factors in the cytosol,^17,18  grow poorly at low temperatures,^17,19  accumulate half-mer ribosomes,^4,20  and have reduced levels of mature ribosomes^16,17 —all hallmarks of dysfunctional 60S ribosomal subunit biogenesis. Efficient release of Tif6 from 60S is also dependent on the release of Arx1²¹ ; therefore, Jjj1 deficiency may also affect the release of Tif6. This could be an additional reason for the phenotypic similarity in patients with mutation of DNAJC21 or SBDS.

A recent paper showed that DNAJC21 is associated with bone marrow failure.⁹  Unfortunately, the presented clinical pictures were limited, and no pancreatic data were indicated, so it remains unclear whether an SDS diagnosis had been considered. Exocrine pancreatic dysfunction is frequently difficult to diagnose, and status can change with age.²²  Many challenges in classification of inherited bone marrow failure syndromes have been noted,^23,24  but improvements are anticipated as new genes are identified. Of note, an additional 3 SDS patients in our registry had no mutations in SBDS and DNAJC21 by whole-exome sequencing and SNP6.0 array. Thus, it is likely that additional SDS genes remain to be identified.

A number of unique clinical features have been described in individual patients with SDS.^25-28  The retinitis pigmentosa in Patient 1 is intriguing, but is possibly caused by a novel homozygous indel/frameshift variant in C2orf71²⁹  (supplemental Figure 1E), which the patient carried in addition to DNAJC21. However, because Patient 4 also had retinal dystrophy (albeit post-transplant) and retinal dystrophy was also observed by Tummala and colleagues,⁹  an association between DNAJC21 and retinal phenotype is possible.

In summary, our data indicate that mutations in DNAJC21 can lead to SDS. The involvement of DNAJC21 in ribosome functions that parallel those of SBDS highlights the need to better understand how ribosome failure contributes to SDS and related bone marrow failure phenotypes.
