Preclinical characterization of pirtobrutinib, a highly selective, noncovalent (reversible) BTK inhibitor

Bruton tyrosine kinase (BTK), a multidomain protein with pleckstrin homology, Tec homology, SRC homology (SH) 3, SH2, and kinase domains, is a critical component of the B-cell receptor signaling complex. BTK is activated by SRC family kinases phosphorylating BTK tyrosine 551 (Y551) in the kinase activation loop, leading to increased autophosphorylation of Y223 in the SH3 domain.¹ BTK regulates proliferation and survival of diverse B-cell malignancies, including chronic lymphocytic leukemia (CLL, involving naive B cells), mantle cell lymphoma (MCL) and marginal zone lymphoma (involving germinal center B cells), and Waldenström macroglobulinemia (WM, involving plasma cells). Consistent with a critical survival role for BTK in these malignancies, BTK deficiency abrogates tumor formation in CLL mouse models.² Treatment of primary, patient-derived CLL, MCL, and WM tumor cells with covalent (irreversible) BTK inhibitors (cBTKis) reduces viability, adhesion, and migration.^3-5

The treatment landscape of B-cell malignancies has been transformed with cBTKi. Three cBTKis, ibrutinib, acalabrutinib, and zanubrutinib, are approved for MCL and CLL, whereas ibrutinib and zanubrutinib are also approved for WM and marginal zone lymphoma.^6-8 Despite advancing treatment, long-term efficacy with cBTKis has been limited by toxicity and acquired resistance.^9-12

Pirtobrutinib, an orally available, highly selective, noncovalent (reversible) BTKi, with low-nanomolar potency against both BTK and BTK C481 substitution mutants, was developed to overcome multiple mechanisms of pharmacologic and on-target cBTKi resistance.¹³ To deliver tonic inhibition throughout the dosing period, pirtobrutinib achieves exposures providing >90% inhibition of BTK at trough, regardless of the intrinsic BTK turnover rate. In a phase 1/2, multicenter, open-label clinical trial¹⁴ with 725 patients treated across 7 dose levels, pirtobrutinib monotherapy was shown to be safe and have activity in patients with multiple cBTKi-treated B-cell malignancies, including those with resistance in the absence of BTK C481 mutations.^15-18 The objective of this study was to provide a detailed preclinical characterization of pirtobrutinib.

Pirtobrutinib was provided by Loxo@Lilly (Stamford, CT). Ibrutinib, acalabrutinib, and zanubrutinib were purchased from Selleck Chemicals (Houston, TX) and MedChemExpress (Monmouth Junction, NJ). Stock solutions were made in dimethyl sulfoxide (DMSO).

GST-tagged, human BTK and BTK C481S kinase domain (residues 389-659) proteins were expressed in Trichoplusia ni insect cells. Purified proteins were crystallized in solution containing between 31% and 32% PEG3350, 0.3M ammonium sulfate, 0.1M bis-tris pH 5.5, with a single round of microseeding. Data collection, processing, and refinement statistics are summarized in supplemental Table 1 (available on the Blood website).^19-24 Pirtobrutinib omit electron density maps are shown in supplemental Figure 1.

Pirtobrutinib activity against BTK, BTK C481S, and selected non-BTK kinases was determined by monitoring incorporation of [³³P]-PO₄ from [³³P]-adenosine triphosphate (ATP) into polyglutamic acid–tyrosine (poly-EY) peptide substrate in the HotSpot Kinase Assay (Reaction Biology, Malvern, PA).²⁵ Data were analyzed using standard-curve fitting methods. Pirtobrutinib (1 μM) was tested for kinase activity inhibition of 371 human kinases using the HotSpot Kinase Assay and K_m ATP concentrations. Pirtobrutinib, ibrutinib, zanubrutinib, and acalabrutinib (100 nM) were tested using the HotSpot Kinase Assay at a concentration of 10 μM ATP. Percentage of control activity was calculated for each enzyme.

All experiments were performed with a Biacore T200 SPR system (Cytiva, Marlborough, MA) at 4°C in HBS-P running buffer (10 mM N-2-hydroxyethylpiperazine-N′-2-ethanesulfonic acid, pH 7.4; 150 mM NaCl; 10 mM MgCl₂; 2 mM Tris[2-carboxyethyl] phosphine; 0.05% [v/v] Tween 20; and 2% [v/v] DMSO). The full-length biotinylated BTK and BTK C481S proteins (Carna Biosciences, Kobe, Japan) were individually immobilized on a Series S streptavidin sensor chip at a density of ∼5000 response units. The assay was performed using the Biacore single-cycle kinetics program with increasing pirtobrutinib concentrations passed over the sensor chip surface. Individual injection association and dissociation times were 120 seconds each, with a final dissociation event of 1800 seconds. Affinity constants were calculated with Biacore T200 evaluation software version 3.1.

N-terminal 6×-His–tagged BTK (1-659) and SH3-SH2-KD BTK (214-659) were expressed and purified at Loxo@Lilly. Proteins were assayed at 1 or 2 μM (BTK and SH3-SH2-BTK, respectively) with 100 μM BTKi and 2× SYPRO Orange dye in buffer containing 25 mM N-2-hydroxyethylpiperazine-N′-2-ethanesulfonic acid (pH 7.5), 10 mM MgCl₂, 0.5 mM Tris(2-carboxyethyl) phosphine, and 1% (v/v) DMSO. Assay plates were read on the QuantStudio 6 Pro quantitative polymerase chain reaction system using the Protein Thermal Shift protocol (20°C, 2 minutes; 0.05°C/s ramp; 95°C, 2 minutes).

TMD8 cells were obtained from Tokyo Medical and Dental University (Tokyo, Japan). HEK293T, HEK293, Ramos RA1, REC-1, HCT116, and A375 cells were obtained from the American Type Culture Collection (Manassas, VA). TMD8, REC-1, and Ramos RA1 cells were cultured in RPMI 1640 plus 10% fetal bovine serum (FBS). HEK293T, HEK293, and A375 cells were grown in Dulbecco's modified Eagle medium plus 10% FBS, and HCT116 cells were grown in McCoy’s medium plus 10% FBS. TMD8 cells expressing BTK C481S were generated by electroporation of a BTK C481S plasmid and selection with 100 nM ibrutinib. This cell line also expresses endogenous BTK. HEK293T stably expressing BTK or BTK C481S were generated using standard transfection methods (GenScript Biotech, Piscataway, NJ). Whole blood was obtained from AllCells (Alameda, CA). Peripheral blood mononuclear cells (PBMCs) derived from patients with CLL were obtained from Discovery Life Sciences (Huntsville, AL), Precision for Medicine (Carlsbad, CA), and BiolVT (Hicksville, NY).

TMD8, TMD8 BTK C481S, and REC-1 cells were plated in 384-well plates at 1500 cells per well (TMD8) and 2500 cells per well (REC-1), and inhibitors at different concentrations were added to each well, in duplicate or triplicate. After a 72-hour incubation, cells were lysed with CellTiter-Glo reagent (Promega Corporation, Madison, WI). Luminescence was measured using the EnVision 2105 plate reader (PerkinElmer, Waltham, MA). Signals in compound-containing wells were normalized to signals from DMSO-containing wells and half-maximal inhibitory concentration (IC₅₀) values were calculated by using a 4-parameter fit.

HEK293 cells stably expressing BTK or BTK C481S were plated in 96-well (1.5 × 10⁵ cells per well) or 6-well plates (5 × 10⁵ cells per well) and incubated with inhibitors for 2 hours. BTK Y223 autophosphorylation was assessed using Simple Western (ProteinSimple, San Jose, CA). For a full list of antibodies used see supplemental Table 2. The BTK Y223 phosphorylation signal was normalized to total BTK, and IC₅₀ values were calculated relative to the percentage DMSO control, using a 4-parameter fit.

Ramos RA1 and REC-1 cells (8 × 10⁶ cells per condition) were serum starved for 4 hours, incubated with pirtobrutinib for 2 hours, and then stimulated with anti-immunoglobulin M (anti-IgM) (5 μg/mL) for 10 minutes. PBMCs derived from donors with CLL (1.5 × 10⁶ cells per condition) were incubated with pirtobrutinib for 3 hours. Cells were harvested, washed, and lysed, and then analyzed by Simple Western or traditional western blotting for levels of phosphorylated (phospho-) BTK Y223, phospho-BTK Y551, and total BTK. Phosphorylation signals were normalized to total BTK protein.

Cryopreserved lymphocyte-enriched PBMCs isolated from whole blood were thawed and incubated overnight in RPMI 1640 with 10% FBS at 37°C. The next day, PBMCs were seeded in 96-well v-bottom plates at 2 × 10⁵ cells per well and treated with pirtobrutinib for 1 hour. PBMCs were then stimulated with 10 μg/mL anti-IgM for 3 hours, washed, and incubated with anti-CD19-PE and CD69-APC antibodies and eFluor520 viability dye for 30 minutes at 4°C. The percentage of CD69⁺ cells in the CD19⁺ population was analyzed using FlowJo SW (BD Bioscience, Ashland, OR).

REC-1 and TMD8 cells were plated in 96-well plates at 2 × 10⁵ and 1 × 10⁵ cells per well, respectively, in serum-free RPMI 1640. Cells were treated with pirtobrutinib for ∼100 minutes followed by incubation with a Calbryte 520AM/Pluronic F-127 mixture at a 1:1 ratio for 30 minutes. Following incubation, cells were stimulated with anti-IgM to induce calcium flux and the fluorescent signal was read on an EnVision 2105 plate reader.

To quantify cellular target engagement of pirtobrutinib to BTK, BRK, TXK, YES1, CSK, FYN, and TEC, HEK293 cells were transiently transfected with full-length NanoLuc fusion vectors for each protein. Next, cells were incubated with a cell-permeable fluorescent NanoBRET tracer that reversibly binds to the kinase-NanoLuc luciferase fusion proteins. After incubation, cells were plated and treated with 3-fold serial dilutions of pirtobrutinib for 1 hour, followed by incubation with luciferase substrate (Promega Corporation, Madison, WI). Emission signals were measured with the EnVision 2104 plate reader and IC₅₀ values were calculated using GraphPad Prism 4, based on a sigmoidal dose-response equation.

To quantify pirtobrutinib cellular activity against ERBB4, the PathHunter Functional Kinase assay was used (Eurofins/DiscoverX, St Charles, MO). U2OS cells (human bone osteosarcoma epithelial), engineered to coexpress the full-length receptor tyrosine kinase of interest and a tagged SH2 domain, were incubated with a range of pirtobrutinib concentrations. Pirtobrutinib IC₅₀ values were determined using a 4-parameter fit.

To determine the cellular activity of pirtobrutinib for MEK1/MEK2, ERK1/ERK2 phosphorylation was evaluated in the HCT116 and A375 cell lines. Cells were plated at 5000 cells per well and treated with serially diluted pirtobrutinib. After 2 hours of treatment, cells were fixed, permeabilized, and incubated overnight with a phosphor-ERK1/2 (T202, Y204) primary antibody. A goat antirabbit IgG Alexa-488 secondary antibody was added, followed by fluorescence analysis with Acumen Explorer (SPT Labtech, Melbourn, United Kingdom) to count phospho-ERK1/2–positive cells. Data were analyzed using standard-curve fitting methods.

OCI-Ly10 cells were implanted subcutaneously into male nonobese diabetic/severe combined immunodeficiency mice and tumors were allowed to grow to a volume of between ∼150 and 200 mm³. Mice were randomized by tumor size across dose groups and dosed orally twice-daily (BID) with 10 or 50 mg/kg pirtobrutinib (12 mice per group) or vehicle (11 mice per group) for 28 days. Tumor volumes were measured thrice weekly during the study and for an additional 35 days after dosing (Axis Bioservices, Coleraine, United Kingdom). In the TMD8 study, cells were injected subcutaneously into Balb/c SCID mice and allowed to grow for 19 days until a mean tumor volume of 400 mm³ was reached. Mice were randomized by tumor size across dose groups and orally dosed BID with 15 or 30 mg/kg pirtobrutinib (10 mice per group) for 18 days or vehicle (10 mice per group) for 14 days. Tumor volumes were measured thrice weekly. REC-1 cells were injected subcutaneously into female athymic nude mice and allowed to grow for 18 days when a mean tumor volume of 150 mm³ was reached. Mice were randomized by tumor volume across dose groups and orally dosed BID with pirtobrutinib at 10, 30, or 50 mg/kg (6 mice per group) or vehicle (10 mice per group) for 21 days. Tumor volumes were measured twice weekly. TMD8 cells expressing BTK C481S were injected into female Balb/c SCID mice and allowed to grow for 12 days when a mean tumor volume of 150 mm³ was reached. Mice were randomized by tumor size and orally dosed BID with pirtobrutinib at 3, 10, and 30 mg/kg (10 mice per group) or vehicle (14 mice per group) for 14 days. Tumor volumes were measured 2 or 3 times per week.

Animal procedures for the OCI-Ly10 xenograft tumor studies were performed under the guidance of the United Kingdom Animal (Scientific Procedures) Act 1986. Mice used in the TMD8 and TMD8 BTK C481S studies were treated in accordance with guidelines by the Association for Assessment and Accreditation of Laboratory Animal Care International, and protocols were authorized by the French Ministry of Education, Advanced Studies and Research. All procedures used in the REC-1 xenograft study were compliant with the United States Department of Agriculture’s Animal Welfare Act (9 CFR Parts 1, 2, and 3) and the Guide for the Care and Use of Laboratory Animals (Institute for Laboratory Animal Research, The National Academies Press, Washington, DC).

For the OCI-Ly10 and TMD8 BTK C481S in vivo xenograft studies, a 2-way, repeated-measures analysis of variance and Dunnett multiple comparison test were performed to compare tumor volume of each treatment group vs that in the vehicle control group. For TMD8 and REC-1 in vivo xenograft studies, a 2-way, repeated-measures analysis of variance was performed on log-transformed data to compare the tumor volume of each treatment group vs that in the vehicle control group. For the TMD8 study, analysis was performed until day 14 after randomization because no data were available for the vehicle group beyond this day. Differences with a P value < .05 were considered significant.

X-ray crystal structures were generated for the kinase domain of BTK and BTK C481S in complex with pirtobrutinib (Figure 1A). The structures exhibited a global estimated root-mean-square deviation of ∼0.7 Å and showed pirtobrutinib-bound in the ATP-binding site. The structural organization within the kinase domain was similar to previously published BTK x-ray crystal structures.^26-28 Pirtobrutinib formed 3 hydrogen bond interactions with the backbone of E475 and M477 in the hinge region, water-mediated hydrogen bonds with K430 and D539, and an edge-to-face pi-stacking interaction with F540 (Figure 1B). With a closest distance of ∼4 Å, pirtobrutinib did not directly interact with C481 and introduction of the C481S mutation did not alter pirtobrutinib’s binding interactions with BTK. In contrast, the United States Food and Drug Administration (FDA)-approved inhibitors ibrutinib,^27,28 zanubrutinib,²⁸ and acalabrutinib^28,29 are all irreversible and form a covalent bond with C481. The superimposed structures of pirtobrutinib with ibrutinib (Figure 1C) and zanubrutinib (supplemental Figure 2) showed that pirtobrutinib extends further into the BTK protein toward the activation loop and C-helix compared with ibrutinib and zanubrutinib.

Pirtobrutinib demonstrated potent inhibition of BTK and BTK C481S in radiometric in vitro enzyme assays, with IC₅₀ values of 3.2 and 1.4 nM, respectively (Figure 1D). SPR binding studies demonstrated pirtobrutinib is a reversible inhibitor of BTK and BTK C481S, with single-digit nanomolar binding affinities (K_D), low dissociation rates, and BTK and BTK C481S–pirtobrutinib complex half-lives (t_1/2) ranging from 1.5 to 2.4 hours (Table 1, supplemental Figure 3). In thermal melt studies using differential scanning fluorometry, pirtobrutinib binding to BTK resulted in 2 melt temperatures (Tms) of 41.2°C and 54.0°C, whereas the cBTKis each resulted in a single Tm of 47.5°C (mean value, Figure 1E). When all BTKis were subsequently evaluated against SH3-SH2-KD BTK (ΔPHTH-BTK), the Tms of truncated BTK bound to pirtobrutinib and cBTKis were 54.5°C and 47.5°C, respectively (Figure 1E). These data suggest that pirtobrutinib and cBTKi binding differentially stabilizes the PHTH and SH3-SH2-KD of BTK.

In HEK293 cells stably expressing BTK or BTK C481S, pirtobrutinib inhibited BTK Y223 autophosphorylation with IC₅₀ values of 8.8 and 9.8 nM, respectively (Figure 1F; supplemental Figure 4). Although ibrutinib, acalabrutinib, and zanubrutinib also potently inhibited autophosphorylation in BTK-expressing cells, with IC₅₀ values of 6.2, 20.8, and 6.6 nM, respectively, they showed minimal or no inhibitory activity in BTK C481S–expressing cells (supplemental Figure 4). Pirtobrutinib’s potent inhibition of BTK autophosphorylation was maintained in HEK293T cells transiently expressing other BTK C481X mutants, including C481T, C481G, and C481R, resulting in IC₅₀ values ranging between 3.9 to 13.9 nM (supplemental Table 3). In Ramos RA1 and REC-1 cells, pirtobrutinib potently inhibited BTK phosphorylation of both Y223 (autophosphorylation) and Y551 (upstream kinase phosphorylation) (Figure 2A; supplemental Figure 5A). In contrast, although cBTKis potently inhibited Y223 phosphorylation in these cells, their effects on Y551 phosphorylation were minimal. In Ramos RA1, and REC-1 cells, pirtobrutinib also inhibited phosphorylation of the downstream substrate, PLCγ2 Y1217, with an IC₅₀ of 9.1 nM and 51.7 nM, respectively (supplemental Figure 5B-C). In addition, in PBMCs from 4 treatment-naive donors with CLL, pirtobrutinib inhibited BTK Y223 autophosphorylation with an average IC₅₀ of 2.3 nM (Figure 2B). Pirtobrutinib also potently inhibited Y551 phosphorylation in the 4 CLL samples, whereas ibrutinib had no effect (Figure 2C). Collectively, these findings confirm that pirtobrutinib inhibits BTK and BTK C481 mutant activity and suggest that pirtobrutinib binding compared with cBTKi binding differentially affects phosphorylation at Y551.

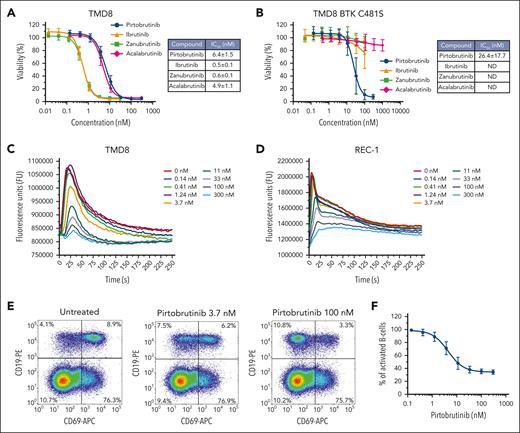

Pirtobrutinib inhibited cell proliferation in TMD8 (Figure 3A) and REC-1 cells (supplemental Figure 6), with IC₅₀ values of 6.4 and 3.1 nM, respectively, indicating potent cell proliferation inhibition in both activated B-cell diffuse large B-cell lymphoma (ABC-DLBCL) and MCL cell lines. Ibrutinib, acalabrutinib, and zanubrutinib also showed potent antiproliferative activities in TMD8 and REC-1 cells, with IC₅₀ values ranging from 0.5 to 5.9 nM (Figure 3A; supplemental Figure 6). Although pirtobrutinib’s antiproliferative potency was maintained in TMD8 cells expressing BTK C481S (IC₅₀, 26.4 nM), no antiproliferative activity was observed in these cells with cBTKis (Figure 3B).

Pirtobrutinib dose-dependently reduced anti-IgM–stimulated calcium flux, with IC₅₀ values of 6.3 and 8.6 nM for TMD8 (Figure 3C) and REC-1 (Figure 3D), respectively. Ibrutinib, zanubrutinib, and acalabrutinib reduced anti-IgM–stimulated calcium flux in REC-1 cells, with IC₅₀ values of 1.7 nM, 4.3 nM, and 72.7 nM, respectively (supplemental Figure 7). Pirtobrutinib treatment of REC-1 cells for 24 hours resulted in a >50% reduction of cytokine levels for 7 of 18 secreted cytokines detected in the untreated control, with IC₅₀ values ranging from 2.6 to 6.1 nM (supplemental Table 4). In healthy-donor human PBMCs, pirtobrutinib reduced the anti-IgM–induced CD69 expression on CD19⁺ B cells in a dose-dependent manner (IC₅₀, 4.7 ± 1.7 nM) (Figure 3E-F). In addition, in T cells isolated from healthy donors, pirtobrutinib did not affect the proliferation, viability, cell size, and expression of PD-1, TIM3, and LAG3 in a T-cell activation/exhaustion in vitro assay (supplemental Figure 8). Ibrutinib treatment showed similar results (supplemental Figure 8). Collectively, results indicate that pirtobrutinib potently inhibited proliferation, anti-IgM–stimulated calcium flux and CD69 expression, and cytokine secretion in B cells.

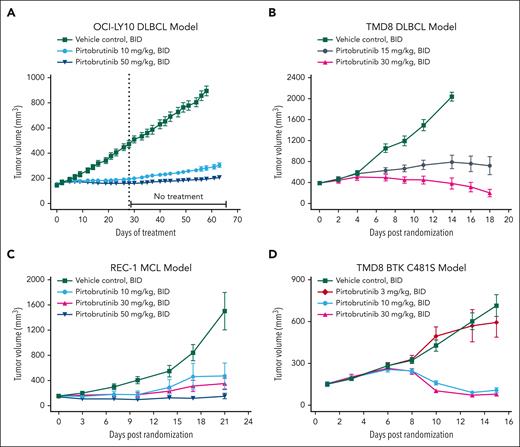

In vivo pirtobrutinib efficacy was evaluated in mouse xenograft models using human ABC-DLBCL cell lines (OCI-Ly10 and TMD8), and the MCL cell line, REC-1. The pharmacokinetic profile in mice (supplemental Figure 9) differs from that in humans and requires BID oral dosing to maintain exposure throughout the dosing period. Pirtobrutinib caused significant dose-dependent TGI in the 3 xenograft models. In the OCI-Ly10 model, TGI was 88% and 95% at 10 and 50 mg/kg BID, respectively, on treatment day 28 (Figure 4A). Only modest tumor regrowth was observed after pirtobrutinib withdrawal for 35 days, with 83% and 93% TGI maintained in the 10 and 50 mg/kg treatment groups, respectively (Figure 4A). In the TMD8 xenograft model, a dose-dependent 76% and 101% TGI at 15 and 30 mg/kg BID, respectively, on treatment day 14, was observed with pirtobrutinib compared with vehicle (Figure 4B). Tumor regression (TR) of –49% was observed in the 30 mg/kg BID group on treatment day 18, when compared with tumor volumes at treatment initiation. In the REC-1 MCL xenograft model, pirtobrutinib demonstrated 80% and 84% TGI at 10 and 30 mg/kg BID, respectively, and TR of –11% in the 50 mg/kg BID group (Figure 4C). In vivo pirtobrutinib efficacy was also evaluated in a human DLBCL TMD8 BTK C481S xenograft model (Figure 4D). A significant dose-dependent TGI at 10 and 30 mg/kg BID was observed with pirtobrutinib treatment compared with vehicle-treated control. TR of –29% and –48% were observed at 10 and 30 mg/kg BID, respectively, compared with tumor volumes at treatment initiation. All treatments were well tolerated, and no drug-related deaths occurred in the 4 lymphoma xenograft studies (supplemental Figure 10).

Pirtobrutinib was profiled against 371 kinases in enzyme activity assays at a 1 μM concentration (supplemental Table 5). Results show only BTK and 8 other kinases were inhibited by >50% at 1 μM. Follow-up dose-response assays showed pirtobrutinib inhibited 6 kinases with <100-fold selectivity vs BTK (supplemental Table 6). To compare kinase selectivity across BTK inhibitors, pirtobrutinib, ibrutinib, zanubrutinib, and acalabrutinib were profiled against 371 (pirtobrutinib and ibrutinib), 367 (zanubrutinib), and 362 (acalabrutinib) kinases at 100 nM (supplemental Table 5). Pirtobrutinib showed improved selectivity with only 4 kinases inhibited >50% compared with ibrutinib and zanubrutinib, which inhibited 22 and 6 kinases, respectively. In this assay, acalabrutinib inhibited 4 kinases, similar to pirtobrutinib, but was much less potent on BTK with only 83% inhibition, compared with the 97% inhibition observed for pirtobrutinib. To profile pirtobrutinib’s cellular selectivity, a competitive binding chemoproteomics study was performed in which PBMCs were incubated with or without pirtobrutinib (10, 1, 0.1, and 0.01 μM), before incubation with biotinylated acyl phosphates, ATP and adenosine diphosphate, which react irreversibly with conserved lysine residues in the ATP-binding pockets of protein kinases. Mass spectrometry analysis showed, at 0.1 μM pirtobrutinib, probe binding to BTK was reduced by 90%, with no other kinase showing >50% reduction. At higher concentrations, besides BTK, only 3 other kinases showed >50% inhibition, TEC and MEK1/MEK2, at 1 and 10 μM pirtobrutinib, respectively (supplemental Table 7). In additional cell-based assays to characterize pirtobrutinib inhibition for select kinases of interest, pirtobrutinib retained >100-fold selectivity vs TEC, and was 500-fold selective for BTK over the other targets (Table 2).

From the preclinical profile presented here, pirtobrutinib was shown to be a highly selective and a potent noncovalent BTKi. Pirtobrutinib inhibited both BTK and BTK C481 mutant variants with low-nanomolar potency. Furthermore, in vitro binding experiments demonstrated that pirtobrutinib dissociates slowly from BTK, and the pirtobrutinib-BTK complex half-life exceeded the reported mean half-lives of FDA-approved kinase inhibitors on their main target.³⁰ X-ray crystallography studies using the BTK kinase domain revealed that pirtobrutinib did not directly interact with C481 but displayed extensive hydrogen bonding with other BTK residues and water molecules in, or close to, the ATP-binding site, which are identical in both BTK and BTK C481S. Consequently, introduction of the C481S mutation did not alter pirtobrutinib’s binding interactions with BTK. In contrast, acalabrutinib, ibrutinib, and zanubrutinib each form a covalent bond with C481.^27-29 Thus, whereas these cBTKis were shown to be largely inactive against C481 mutant forms of BTK in our studies, pirtobrutinib retained activity on C481 mutations. This is an important development in the treatment landscape for BTKis as the C481–binding site mutation appears to be the most common on-target resistance mechanism in CLL.^31,32 Other studies have shown C481 substitution mutations are a recurring mechanism of resistance to cBTKis, seen in varying rates across disease types.^31,33 C481 substitutions prevent irreversible ligation of cBTKis to BTK, leading to insufficient BTK target coverage in patients and treatment failure.^32,34 Second-generation cBTKis provide greater selectivity and limit off-target toxicity but efficacy after progression on cBTKis is limited because they do not overcome mechanisms of resistance.^12,35 Recently, BTK mutations other than C481, located in, and near, the ATP-binding site were identified in 7 patients treated with pirtobrutinib, who had previously received ibrutinib treatment.¹² The crystal structure of BTK bound to pirtobrutinib shows that these mutations are predicted to sterically block the binding of pirtobrutinib to the protein. To date, these mutations have not been observed in patients treated with pirtobrutinib, who are naive to covalent inhibitor treatment. Additional studies to further explore pirtobrutinib resistance mechanisms are in progress. In addition, in patients, second-generation approved cBTKis have circulating half-lives ranging from 1 to 4 hours,^7,8 resulting in short exposure periods for binding to, and inactivation of, BTK.^6,7 Conversely, 200 mg pirtobrutinib daily has a circulating half-life of ∼20 hours in patients with trough steady state exposure corresponding to 96% BTK target inhibition.¹⁴ Pirtobrutinib’s BTK inhibition at trough may be particularly important in patients with rapid BTK synthesis rates and in more proliferative tumors with high de novo BTK turnover, in which cBTKis may be limited by incomplete covalent target occupancy toward the end of the dosing interval, potentially driving disease progression and drug resistance.^14,36,37

High pirtobrutinib selectivity for BTK was demonstrated in both enzymatic and cell-based systems. The x-ray crystal structure showed, in addition to numerous van der Waals and direct hydrogen bond interactions between pirtobrutinib and BTK, that pirtobrutinib interacts with the BTK protein through an extensive water-mediated hydrogen bond network. We hypothesize that the large number of pirtobrutinib interactions with BTK plays a role in pirtobrutinib’s high kinome selectivity. Covalent BTKi off-target inhibition has been associated with toxicities,^10,11 such as antiplatelet bleeding activity associated with TEC inhibition.³⁸ Clinically, pirtobrutinib selectivity has translated into low toxicity across multiple B-cell malignancies, in which it demonstrated early promising safety, with low overall rates of adverse events and few discontinuations because of adverse events, including among patients intolerant to existing drugs.¹⁴

Experiments described herein demonstrated that pirtobrutinib inhibits BTK cellular activity and tumor growth in vivo across multiple tumor types. Pirtobrutinib inhibited BTK signaling and cell proliferation in multiple B-cell lymphoma cell lines, including DLBCL and MCL, and in PBMCs from treatment-naive donors with CLL, demonstrating in vitro activity in clinically relevant cell populations. In vivo results from mouse xenograft studies demonstrated that pirtobrutinib significantly inhibited tumor growth from human ABC-DLBCL and MCL lines and was well-tolerated in mice.

Pirtobrutinib, but not cBTKis, prevented Y551 phosphorylation in the BTK activation loop in multiple cell assays. These results were unexpected because pirtobrutinib does not bind in the H3 selectivity pocket as previously described for other BTK inhibitors that prevent Y551 phosphorylation (supplemental Figure 11).²⁷ We also observed that pirtobrutinib maintained BTK in a folded state at a significantly higher temperature than apo- and cBTKi-bound BTK, as indicated by the increased Tm to 54.0°C of pirtobrutinib-bound full-length BTK, which is 13.5°C and 6.5°C more than apo- and cBTKi-bound BTK, respectively. We hypothesize that pirtobrutinib stabilizes BTK in a closed, inactive conformation, consistent with the high BTK-pirtobrutinib complex Tm, whereas cBTKis³⁹ destabilize the closed conformation, providing access to upstream kinases, which phosphorylate Y551 (Figure 5) and downstream scaffolding interactions. The closed, inactive conformation of BTK stabilized by pirtobrutinib binding may interact with fewer cellular proteins than cBTKi-bound BTK, thereby inhibiting kinase-independent BTK cellular signaling. Studies to characterize the functional differences between the pirtobrutinib-induced closed BTK conformation and the cBTKi-induced open BTK conformation are ongoing with a focus on identifying interactions with phosphorylated Y551, recently described with HCK,⁴⁰ and differentially exposed regions of BTK.

In conclusion, the pharmacologic, biophysical, and structural attributes detailed herein differentiated pirtobrutinib from the current FDA-approved cBTKis. In combination with the phase 1 and 2 clinical experience in multiple B-cell malignancies,¹⁴ these results support the advancement of pirtobrutinib into ongoing phase 3 trials in MCL and CLL.
